7-50 — FRONT SEAT (#136166) — 184 parça

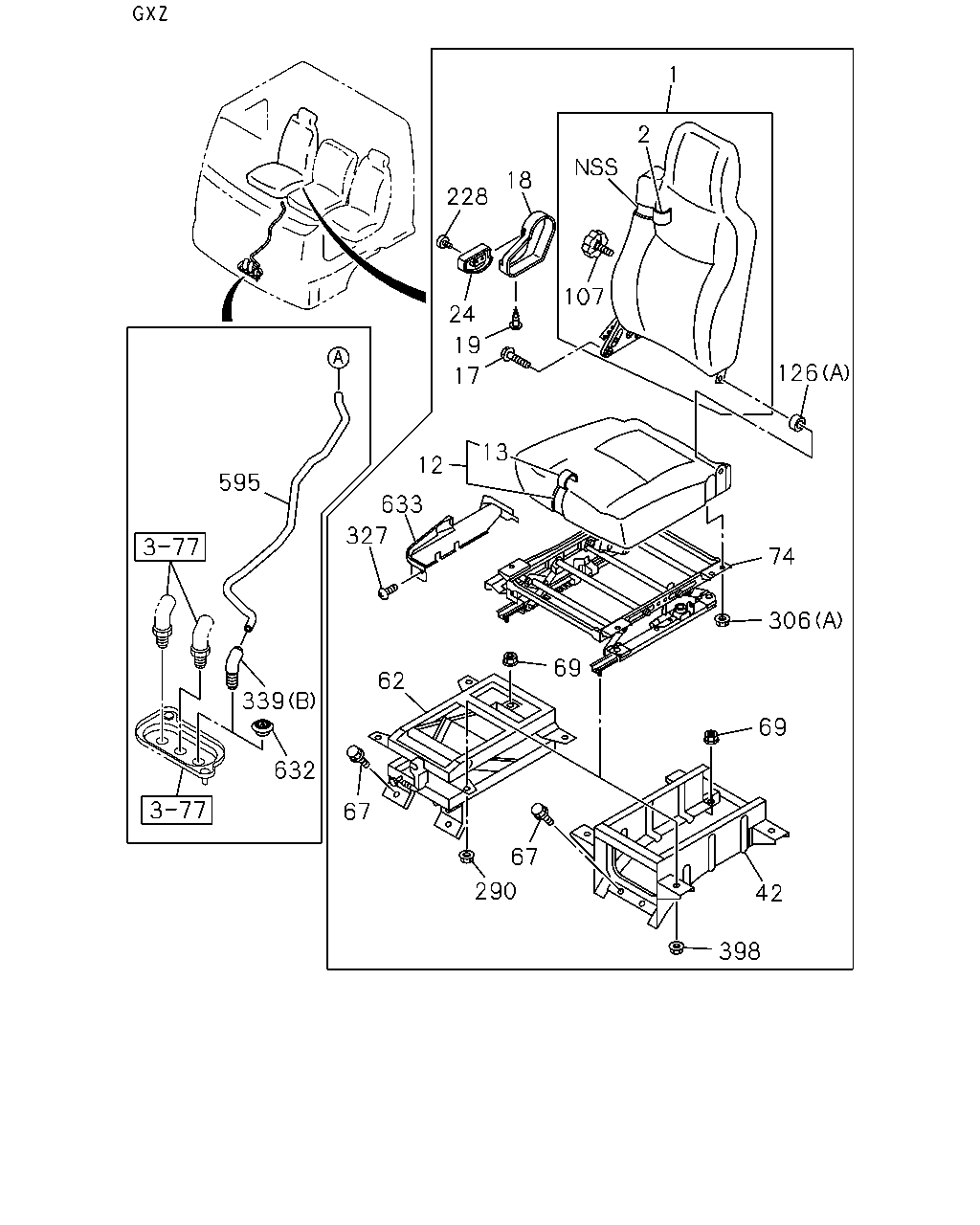

1 2 18 228 107 24 19 17 13 12 633 327 62 69 126 74 306 69 42 398 67 290 67 632 339 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT THA	8-97924-734-0	01	1	1403-	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> THA	8-97925-322-0	01	1	1403-		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-323-0	01	1	1403-		●
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	1403-	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> THA	8-97925-325-0	01	1	1403-		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-326-0	01	1	1403-		●
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	1403-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> THA	8-97925-331-0	01	1	1403-		●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-332-0	01	1	1403-		●
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	1403-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> THA	8-97925-328-0	01	1	1403-		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-329-0	01	1	1403-		●
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	04	1	1403-	●	●
17	BOLT; RECLINING PASSENGER THA	8-98092-334-0	04	1	1403-	●	●
18	COVER; RECLINING GRAY THA	8-97409-332-0	01	1	1403-	●	●
19	SCREW; COVER M5 THA	8-98062-663-0	01	1	1403-	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY THA	8-97409-333-0	01	1	1403-	●	●
42	STAND; DRIVER SEAT WHEEL BASE 4700MM<47W> THA	1-75558-604-2	01	1	1403-	●	●
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75538-183-7	01	1	1403-		●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE THA	0-28451-020-0	02	1	1403-	●	●
69	NUT; FRT SEAT M10 FLANGE THA	0-91180-110-0	02	1	1403-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT THA	8-98003-678-0	01	1	1403-		●
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	1403-		●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1403-	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1403-	●	●
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	1403-	●	●
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE THA	1-75538-207-0	04	1	1403-		●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1403-	●
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	1403-	●	●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	06	1	1403-		●
327	CLIP; COVER ID=459	1-09987-273-0	02	1	1403-		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1403-		●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A) THA	1-75538-131-3	01	1	1403-		●
398	NUT; STAND WHEEL BASE 4700MM<47W> M8 FLANGE THA	1-75538-207-0	04	1	1403-	●	●
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>	8-98067-762-0	01	1	1403-		●
632	GROMMET OD=24	8-94119-796-0	01	1	1403-	●
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	1403-		●
633	COVER; ADJ,TILT GRAY THA	8-97409-956-0	01	1	1403-		●

62 78 81 79 79 467 468 85 513 87 339 470 85 322 86 79 79 76 78 86 77 66 88 85 80 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B

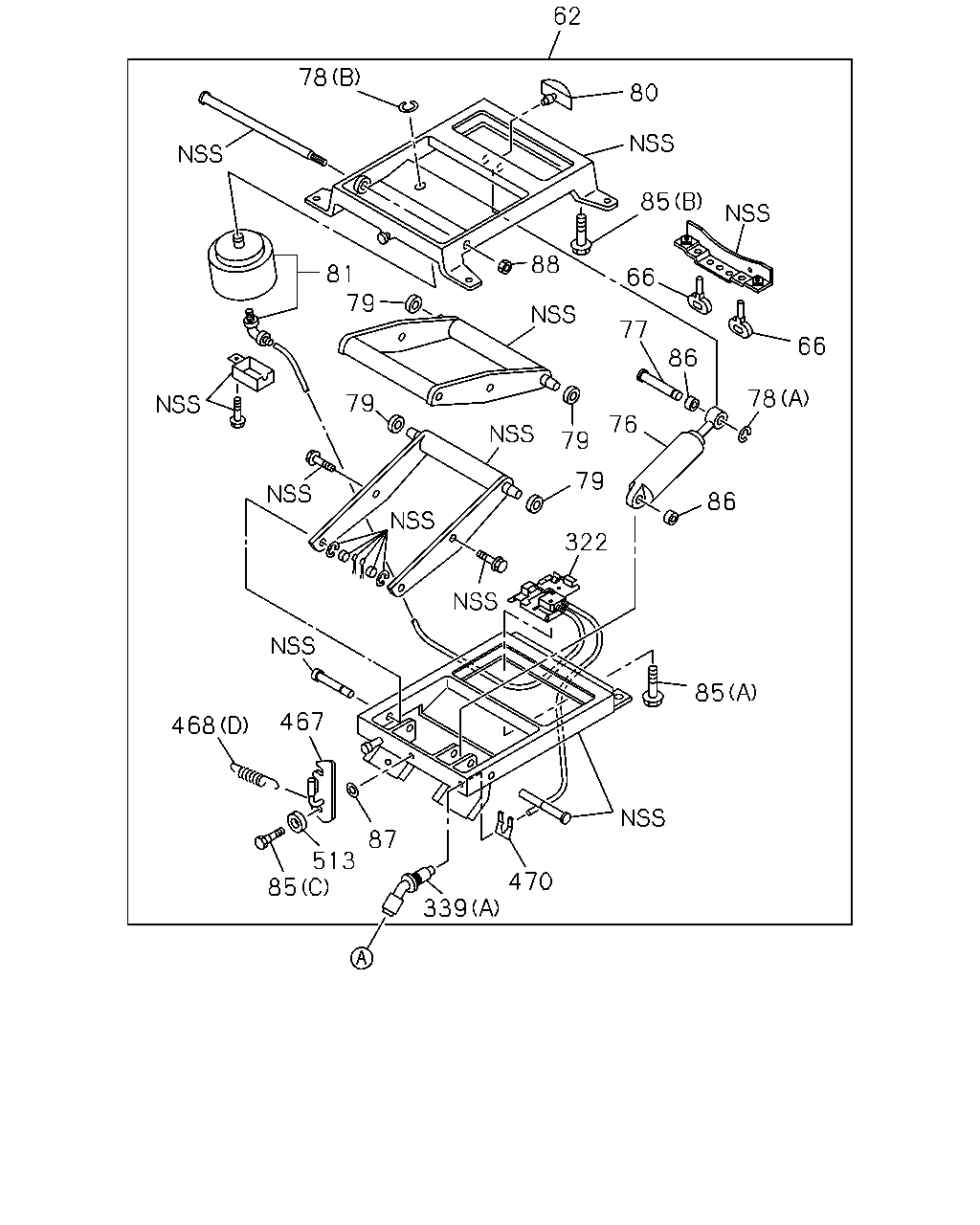

62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75538-183-7	01	1	1403-	●
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> THA	1-75538-145-0	02	1	1403-	●
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75538-139-0	01	1	1403-	●
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> THA	1-75538-138-2	01	1	1403-	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8 THA	9-09185-408-0	01	1	1403-	●
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15 THA	9-09185-415-0	01	1	1403-	●
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75538-159-0	04	1	1403-	●
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> THA	1-09987-123-0	01	1	1403-	●
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> THA	1-75538-151-2	01	1	1403-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C) THA	1-09980-577-0	01	1	1403-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) THA	1-75538-208-0	02	1	1403-	●
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER THA	1-75538-209-0	03	1	1403-	●
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY THA	1-09983-173-1	02	1	1403-	●
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2	0-91510-508-0	01	1	1403-	●
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> THA	1-75537-273-1	01	1	1403-	●
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> THA	1-75538-186-2	01	1	1403-	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (B)	8-98014-971-0	01	1	1403-	●
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A) THA	1-75538-131-3	01	1	1403-	●
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> THA	1-75538-134-0	01	1	1403-	●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D) THA	1-75538-132-0	01	1	1403-	●
468	SPRING; RETURN (A) THA	1-75518-206-0	01	1	1403-	●
468	SPRING; RETURN (B) THA	1-75518-207-0	01	1	1403-	●
468	SPRING; RETURN (C) THA	1-75518-208-0	02	1	1403-	●
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> THA	1-75538-137-0	01	1	1403-	●
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> THA	1-75538-133-0	01	1	1403-	●

201 201 158 158 471 518 542 529

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	1403-	●	●
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	1403-	●	●
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	1403-	●	●
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	1403-	●	●
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	1403-	●	●
518	NUT; TILT ADJ (B) THA	1-75518-264-0	04	1	1403-		●
518	NUT; TILT ADJ (E) M8 FLANGE THA	1-75538-207-0	04	1	1403-		●
518	NUT; TILT ADJ (D) M6 LOCK NUT THA	5-09984-020-0	02	1	1403-		●
518	NUT; TILT ADJ (C) M8 FLANGE THA	8-94152-886-0	04	1	1403-		●
529	PIN; LINK THA	1-75518-262-0	01	1	1403-	●	●

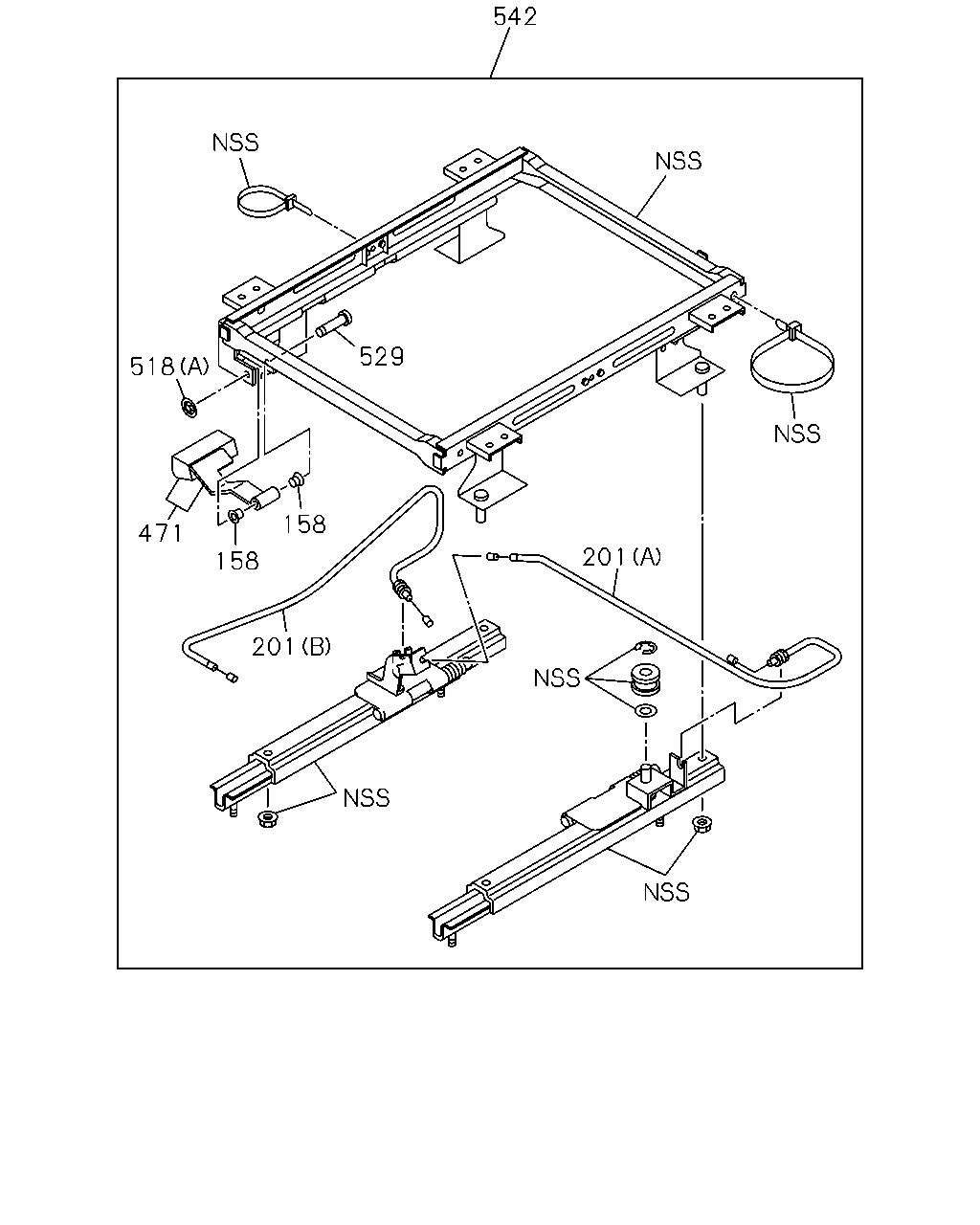

542	ADJUSTER ASM; SEAT SLIDE THA	8-98093-310-0	01	1	1403-	●

113 114 122 17 123 46 115 116 627 630 99 306 627

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	04	1	1403-	●	●
17	BOLT; RECLINING PASSENGER THA	8-98092-334-0	04	1	1403-	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE THA	0-28451-020-0	02	1	1403-	●	●
99	BUSHING; SEAT BACK THA	8-98063-219-0	01	1	1403-	●	●

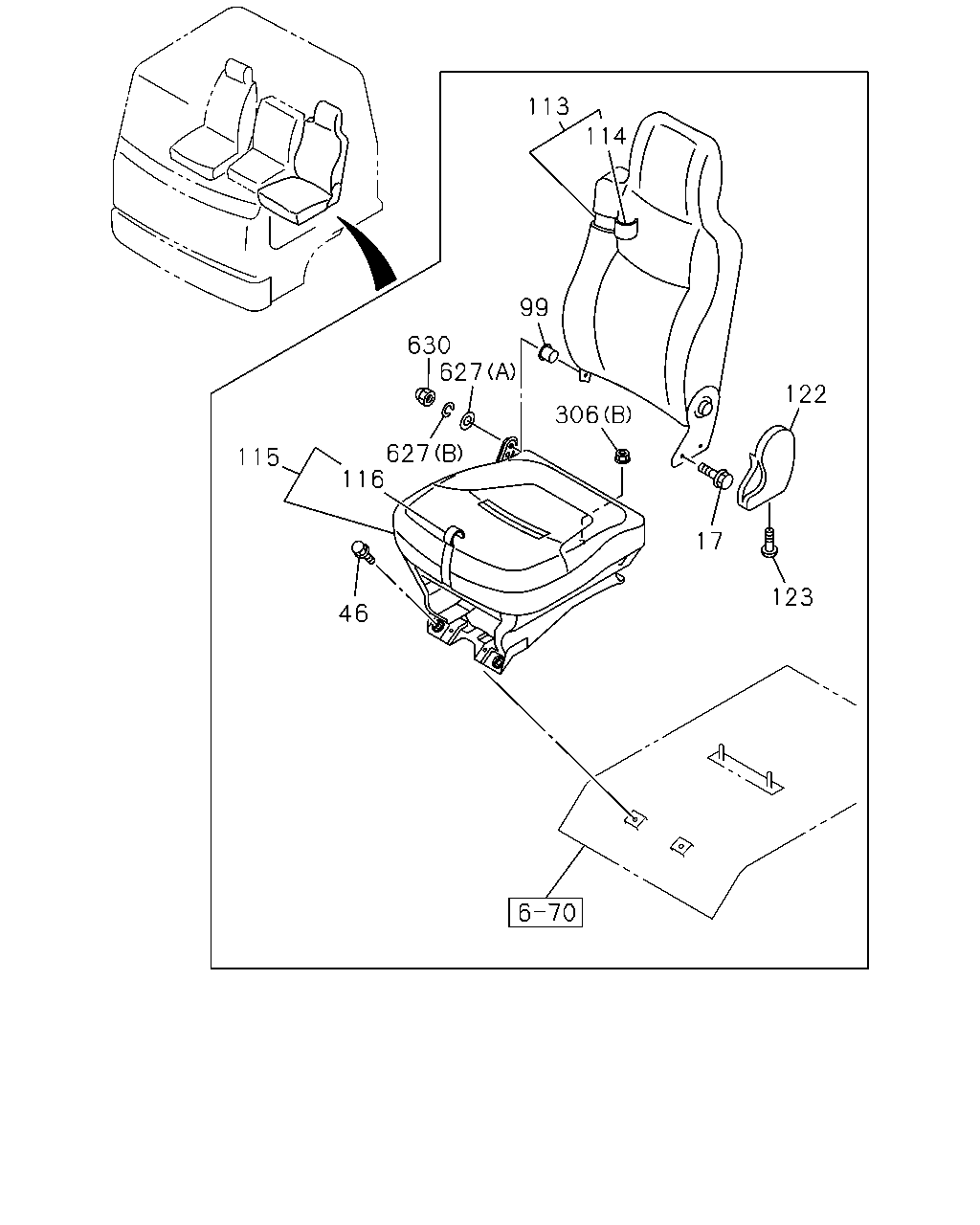

113	BACK ASM; SEAT THA	8-97924-737-0	01	1	1403-	●
113	BACK ASM; SEAT THA	8-97925-324-0	01	1	1403-		●
114	COVER; TRIM,PASSENGER SEAT,BACK THA	8-97924-761-0	01	1	1403-	●
114	COVER; TRIM,PASSENGER SEAT,BACK THA	8-97925-327-0	01	1	1403-		●
115	CUSHION ASM; PASSENGER SEAT THA	8-97924-759-0	01	1	1403-	●
115	CUSHION ASM; PASSENGER SEAT THA	8-97925-333-0	01	1	1403-		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION THA	8-97924-760-0	01	1	1403-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION THA	8-97925-330-0	01	1	1403-		●
122	COVER; ADJ,RECLINING GRAY THA	8-97409-967-0	01	1	1403-	●	●
123	SCREW; COVER,RECLINING THA	8-98070-026-0	01	1	1403-	●	●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1403-	●
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	1403-	●	●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	06	1	1403-		●
627	WASHER; FRT SEAT (A) THA	8-98063-223-0	01	1	1403-	●	●
627	WASHER; FRT SEAT (B) THA	8-98063-224-0	01	1	1403-	●	●
630	NUT; CAP M8 THA	8-98063-225-0	01	1	1403-	●	●

175 360 506 126 359 403 179 182 403 176 188 16 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING CENTER SEAT<SA1> THA	1-75418-062-1	01	1	1403-	●	●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1403-	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1403-	●	●

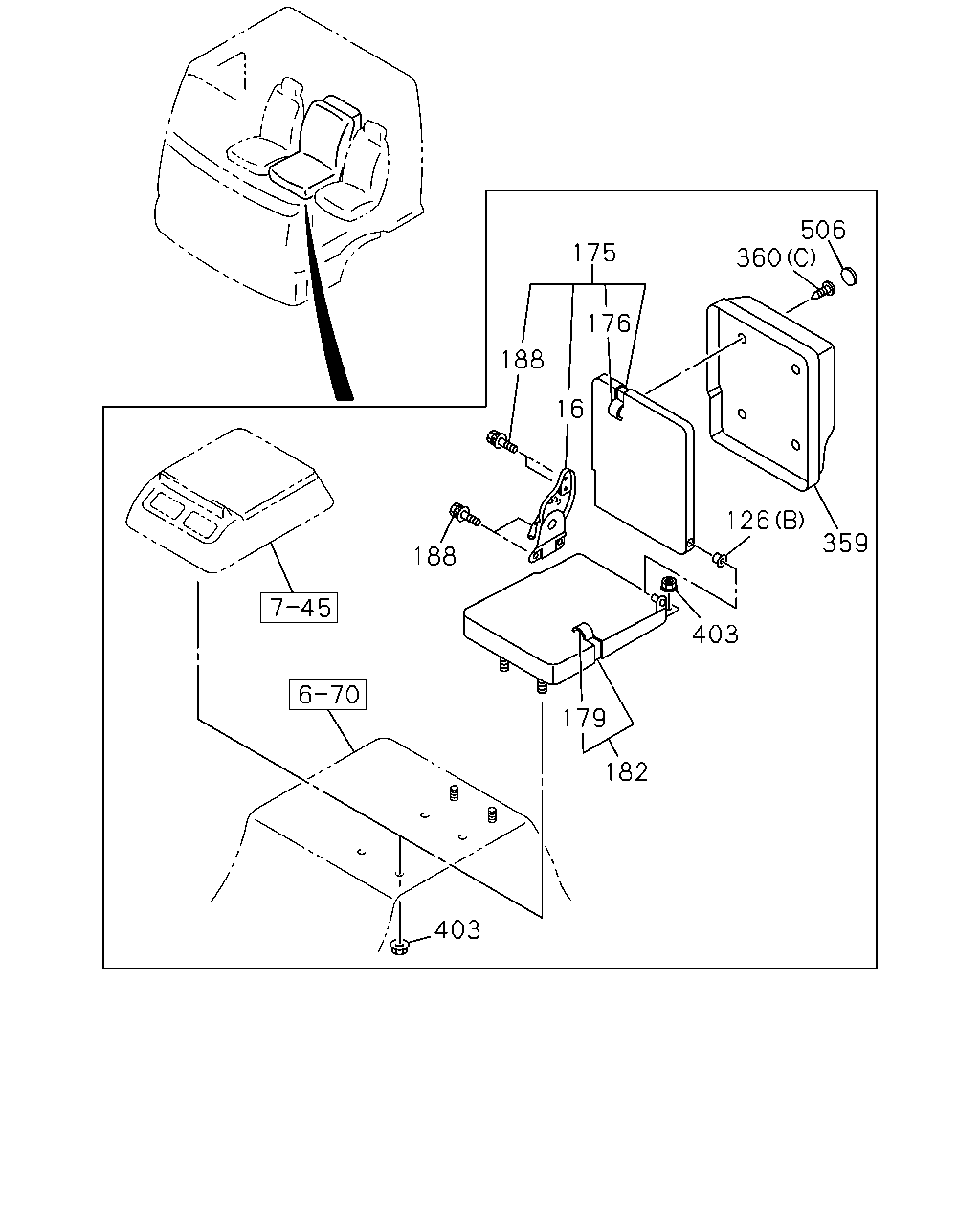

175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1> THA	8-97925-314-0	01	1	1403-	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT<SA1> THA	8-97924-456-1	01	1	1403-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1> THA	8-97925-308-0	01	1	1403-	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT<SA1> THA	8-97924-458-0	01	1	1403-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT<SA1> THA	8-97924-453-0	01	1	1403-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT<SA1> THA	8-97924-454-0	01	1	1403-		●
182	CUSHION ASM; CENTER SEAT CENTER SEAT<SA1> THA	8-97924-451-0	01	1	1403-	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT<SA1> THA	8-97924-452-0	01	1	1403-		●
188	BOLT; BACK TO CUSHION CENTER SEAT<SA1> M10X20 THA	8-97924-820-0	04	1	1403-	●	●

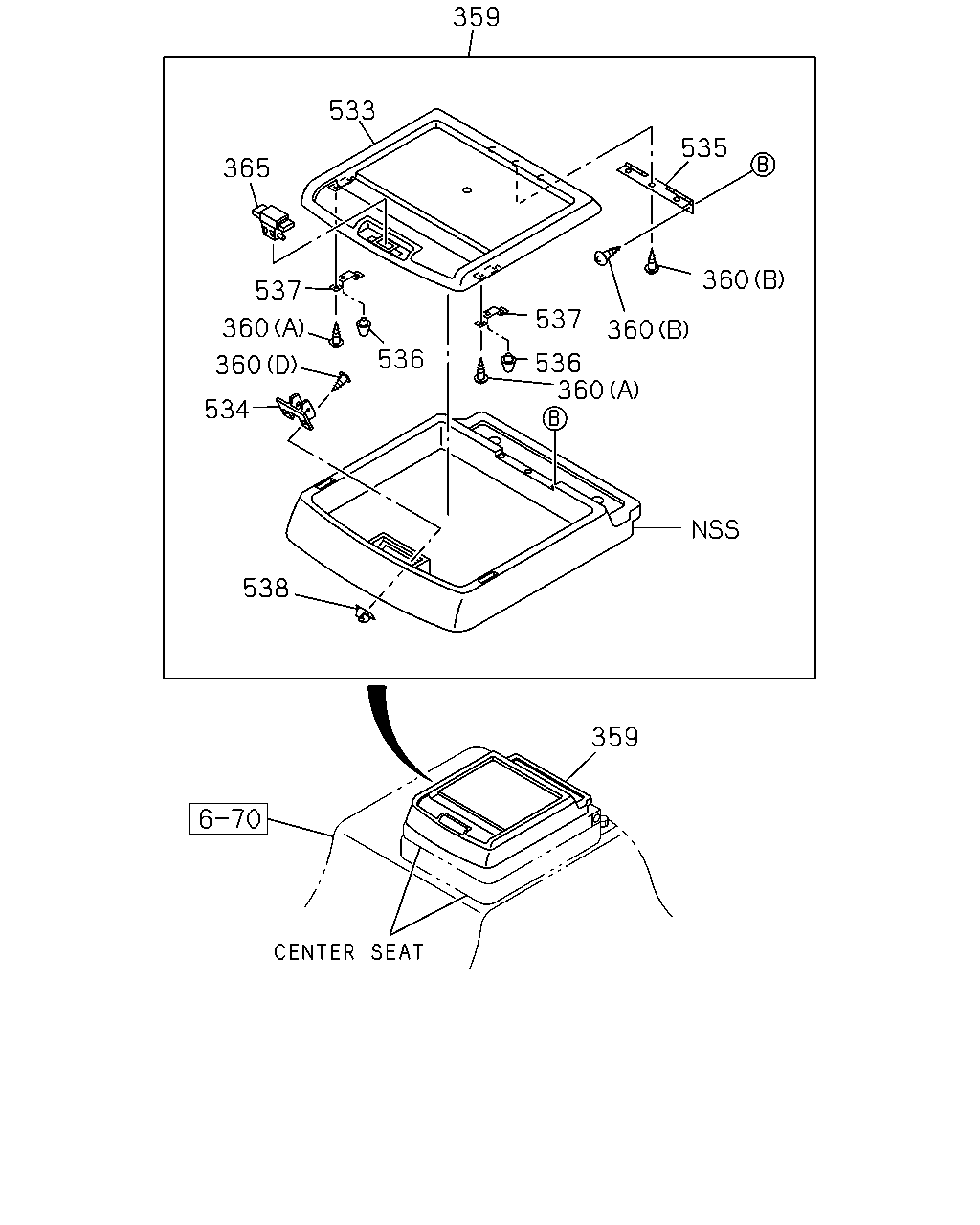

359	BOX; PARCEL CENTER SEAT<SA1> THA	8-97924-469-0	01	1	1403-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1403-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	1403-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1403-		●
360	SCREW; PARCEL CENTER SEAT<SA1> (D) M5X20	9-09829-324-1	02	1	1403-		●
403	NUT; CENTER SEAT CENTER SEAT<SA1> M8 FLANGE THA	0-91180-108-0	04	1	1403-	●	●
506	CAP; PARCEL BOX CENTER SEAT<SA1> THA	8-97924-470-0	04	1	1403-		●

359 533 365 537 360 360 534 538 536 537 536 360 360 360 535 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
359	BOX; PARCEL CENTER SEAT<SA1> THA	8-97924-469-0	01	1	1403-	●
360	SCREW; PARCEL CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1403-	●
360	SCREW; PARCEL CENTER SEAT<SA1> (B) M4X16	0-70040-416-0	06	1	1403-	●
360	SCREW; PARCEL CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1403-	●
360	SCREW; PARCEL CENTER SEAT<SA1> (D) M5X20	9-09829-324-1	02	1	1403-	●
365	LOCK ASM; SEAT CENTER SEAT<SA1> THA	8-97924-512-0	01	1	1403-	●
533	LID; PARCEL BOX CENTER SEAT<SA1> THA	8-97924-511-0	01	1	1403-	●
534	STRIKER; PARCEL BOX CENTER SEAT<SA1> THA	8-97913-529-0	01	1	1403-	●
535	HINGE; PARCEL BOX CENTER SEAT<SA1> THA	8-97913-533-0	01	1	1403-	●
536	RUBBER; CUSHION CENTER SEAT<SA1> THA	8-97914-858-0	02	1	1403-	●
537	BRACKET; RUBBER CENTER SEAT<SA1> THA	8-97914-859-0	02	1	1403-	●
538	GROMMET; SCREW CENTER SEAT<SA1> THA	8-97914-867-0	02	1	1403-	●

1 2 18 228 24 17 19 13 12 632 126 542 306 69 42 398 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

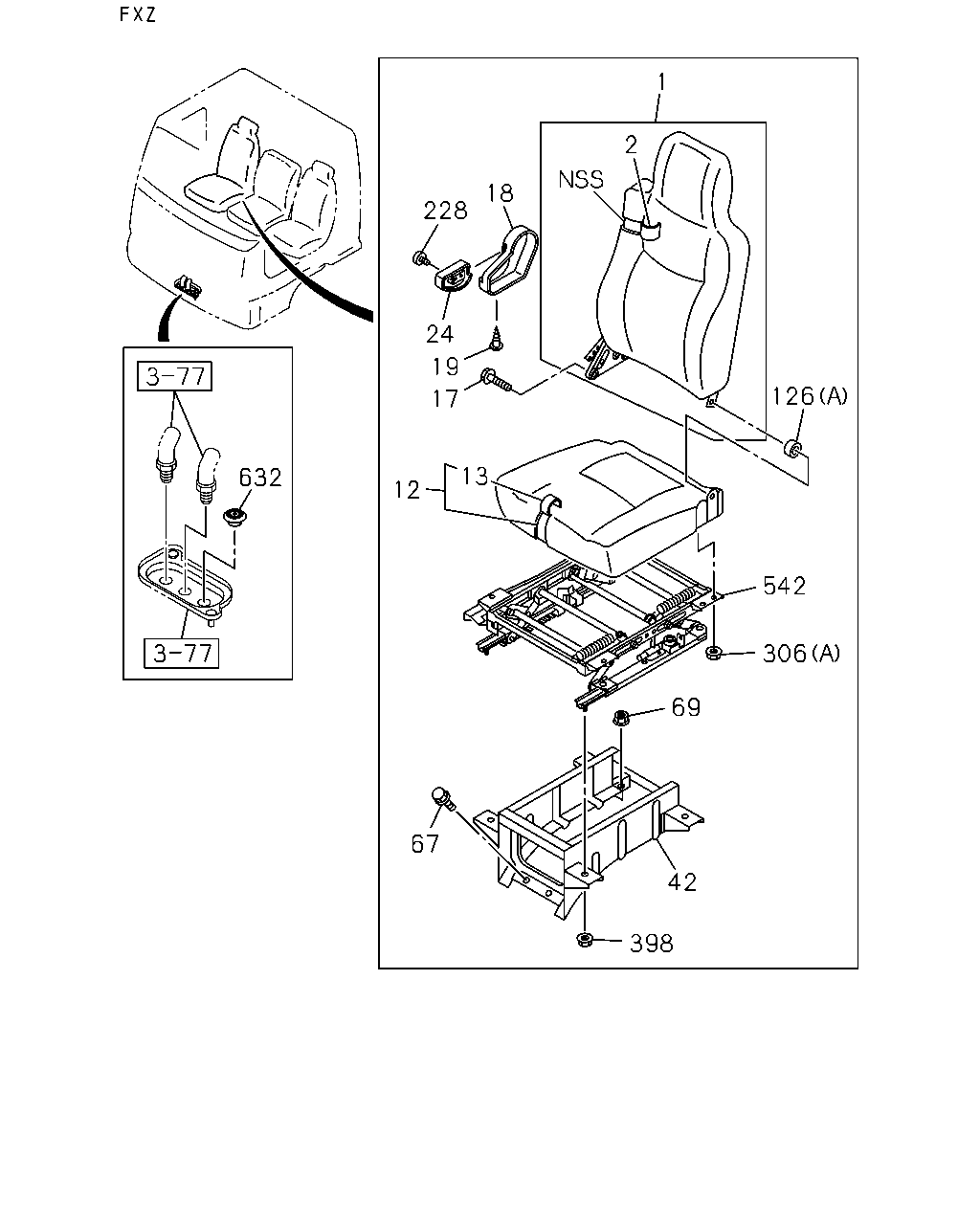

1	BACK ASM; SEAT THA	8-97924-734-0	01	1	1403-	●
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> THA	8-97925-322-0	01	1	1403-		●
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-323-0	01	1	1403-		●
2	COVER; TRIM,FRT SEAT,BACK THA	8-97924-750-0	01	1	1403-	●
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> THA	8-97925-325-0	01	1	1403-		●
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-326-0	01	1	1403-		●
12	CUSHION; SEAT,FRT THA	8-97924-748-1	01	1	1403-	●
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> THA	8-97925-331-0	01	1	1403-		●
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-332-0	01	1	1403-		●
13	COVER; TRIM,FRT SEAT,CUSHION THA	8-97924-749-0	01	1	1403-	●
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> THA	8-97925-328-0	01	1	1403-		●
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> THA	8-97925-329-0	01	1	1403-		●
17	BOLT; RECLINING DRIVER M10X20 THA	8-98062-661-0	04	1	1403-	●	●
17	BOLT; RECLINING PASSENGER THA	8-98092-334-0	04	1	1403-	●	●
18	COVER; RECLINING GRAY THA	8-97409-332-0	01	1	1403-	●	●
19	SCREW; COVER M5 THA	8-98062-663-0	01	1	1403-	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY THA	8-97409-333-0	01	1	1403-	●	●
42	STAND; DRIVER SEAT WHEEL BASE 4700MM<47W> THA	1-75558-604-2	01	1	1403-	●	●
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE THA	0-28451-020-0	02	1	1403-	●	●
69	NUT; FRT SEAT M10 FLANGE THA	0-91180-110-0	02	1	1403-	●	●
126	BUSHING; HINGE,RECLINING (A) THA	8-98063-218-0	01	1	1403-	●	●
126	BUSHING; HINGE,RECLINING CENTER SEAT<SA1> (B) THA	8-97917-184-0	01	1	1403-	●	●
228	SCREW; KNOB M4 THA	8-98062-662-0	01	1	1403-	●	●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	08	1	1403-	●
306	NUT; SEAT ADJ (B) M10 FLANGE THA	0-91180-110-0	02	1	1403-	●	●
306	NUT; SEAT ADJ (A) M8 FLANGE THA	1-75538-207-0	06	1	1403-		●
398	NUT; STAND WHEEL BASE 4700MM<47W> M8 FLANGE THA	1-75538-207-0	04	1	1403-	●	●
542	ADJUSTER ASM; SEAT SLIDE THA	8-98093-310-0	01	1	1403-	●
632	GROMMET OD=24	8-94119-796-0	01	1	1403-	●
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	1403-		●

468 468 51 51 512 51 532 278 302 518 543 518 471 158 158 551 201 518 63 63 518 201 551 551 72 518 302 518 72 551 302 518 302 518 302 302 543 518 302 543 74 543 302 543 468 529 468 518 518 518 278 532 278 512 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

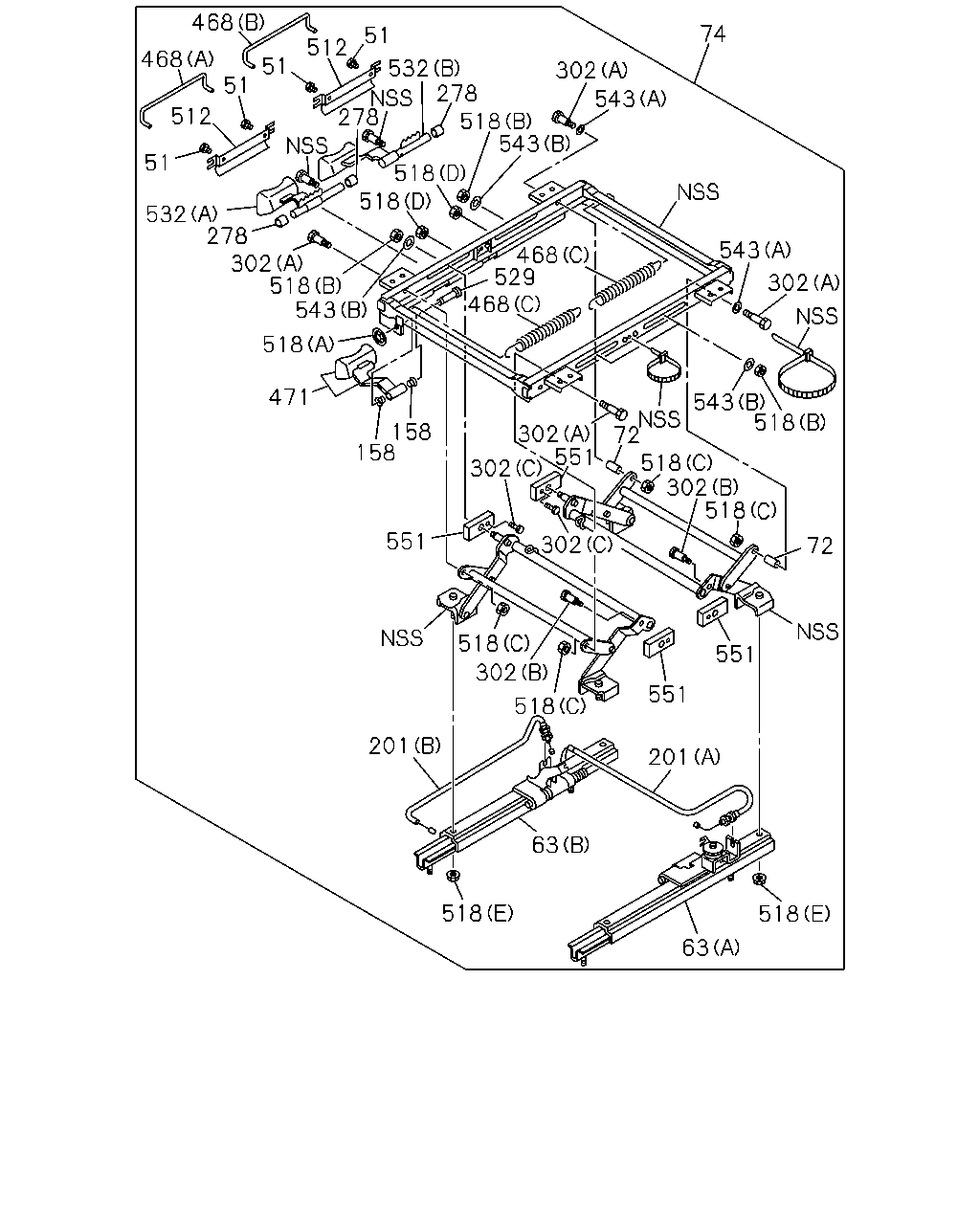

51	SCREW; COVER THA	1-75518-325-1	04	1	1403-		●
63	ADJUSTER; SEAT SLIDE (A) THA	1-75518-199-1	01	1	1403-		●
63	ADJUSTER; SEAT SLIDE (B) THA	1-75518-323-0	01	1	1403-		●
72	SPACER; SEAT ADJ THA	1-75518-334-1	02	1	1403-		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT THA	8-98003-678-0	01	1	1403-		●
158	BUSHING; LINK ARM THA	1-75518-209-0	02	1	1403-	●	●
201	CABLE; ADJ (A) L=667 THA	1-75518-288-0	01	1	1403-	●	●
201	CABLE; ADJ (B) L=605 THA	1-75518-289-1	01	1	1403-	●	●
278	COLLAR; FRT SEAT THA	1-75518-244-0	03	1	1403-		●
302	BOLT; ADJ,HEIGHT CONT (B) THA	1-75518-266-2	02	1	1403-		●
302	BOLT; ADJ,HEIGHT CONT (A) THA	1-75518-270-1	04	1	1403-		●
302	BOLT; ADJ,HEIGHT CONT (C) THA	1-75518-336-1	02	1	1403-		●
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D) THA	1-75538-132-0	01	1	1403-		●
468	SPRING; RETURN (A) THA	1-75518-206-0	01	1	1403-		●
468	SPRING; RETURN (B) THA	1-75518-207-0	01	1	1403-		●
468	SPRING; RETURN (C) THA	1-75518-208-0	02	1	1403-		●
471	LEVER; SEAT ADJ THA	8-98107-869-0	01	1	1403-	●	●
512	COVER; LEVER THA	1-75518-243-1	02	1	1403-		●
518	NUT; TILT ADJ (A) THA	1-75518-263-0	01	1	1403-	●	●
518	NUT; TILT ADJ (B) THA	1-75518-264-0	04	1	1403-		●
518	NUT; TILT ADJ (E) M8 FLANGE THA	1-75538-207-0	04	1	1403-		●
518	NUT; TILT ADJ (D) M6 LOCK NUT THA	5-09984-020-0	02	1	1403-		●
518	NUT; TILT ADJ (C) M8 FLANGE THA	8-94152-886-0	04	1	1403-		●
529	PIN; LINK THA	1-75518-262-0	01	1	1403-	●	●
532	LEVER ASM; TILT (A) THA	1-75518-203-0	01	1	1403-		●
532	LEVER ASM; TILT (B) THA	1-75518-204-1	01	1	1403-		●
543	WASHER; HEIGHT ADJUSTER (A) THA	1-75518-335-0	02	1	1403-		●
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4 THA	9-09160-508-0	04	1	1403-		●
551	SLIDER; HEIGHT ADJ THA	1-75518-265-0	04	1	1403-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
