7-40 — INSTRUMENT PANEL AND BOX (#136162) — 104 parça

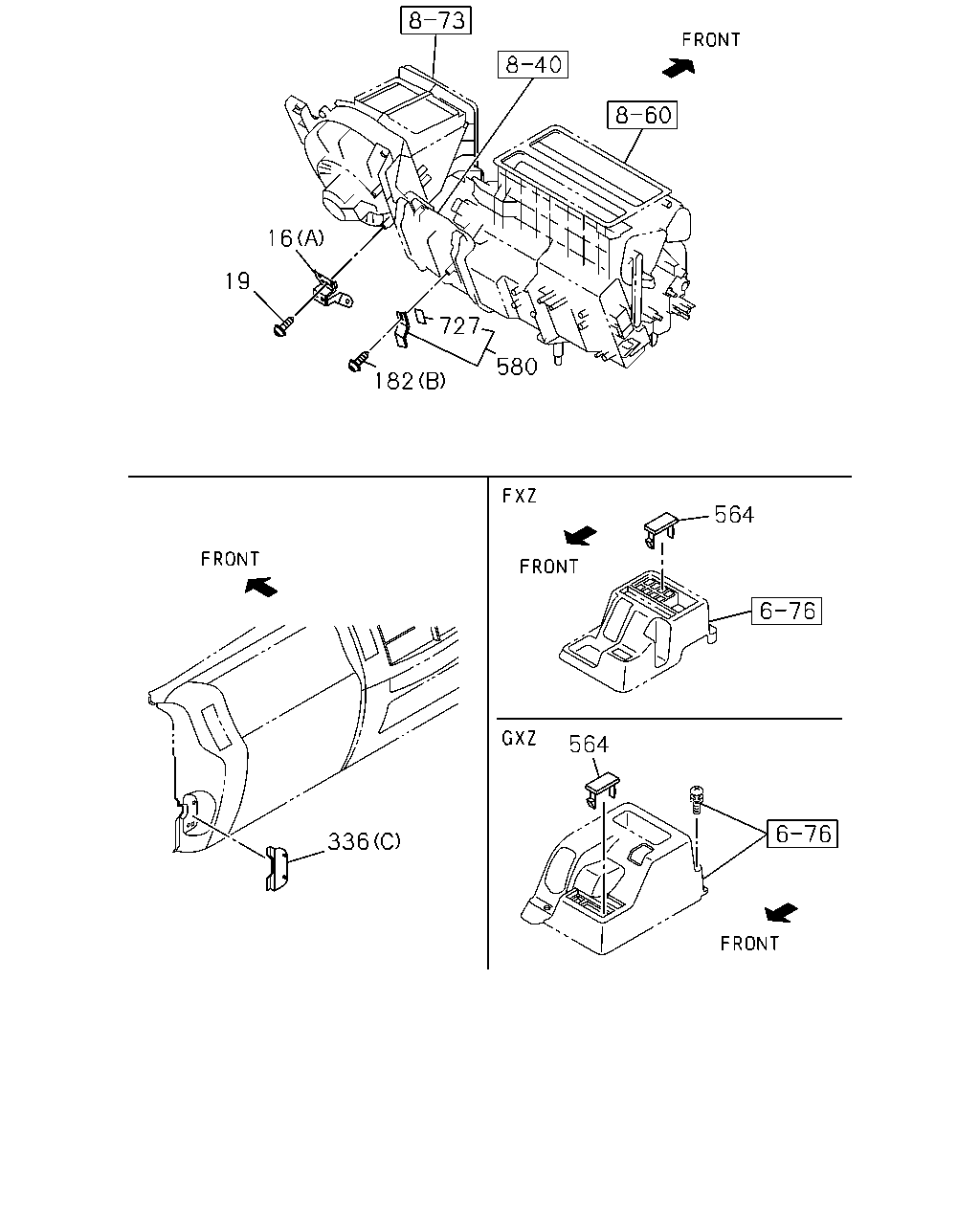

çizim 413450
16 19 182 727 580 564 564 336
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1403- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1403- ● ●
16 BRACKET; INST PNL
(B) THA 		8-97926-512-0 01 1 1403- ● ●
16 BRACKET; INST PNL
(B) THA 		8-97926-511-0 01 1 1403- ● ●
19 SCREW; BRKT
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1403- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 1403- ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1403- ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1403- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1403- ● ●
336 COVER; INST PANEL SIDE
(A) THA 		8-97926-875-0 01 1 1403- ● ●
336 COVER; INST PANEL SIDE
(D) THA 		8-97926-876-0 01 1 1403- ● ●
336 COVER; INST PANEL SIDE
(C) THA 		8-97926-879-0 01 1 1403- ● ●
336 COVER; INST PANEL SIDE
(B) THA 		8-97926-882-0 01 1 1403- ● ●
564 COVER; SW 8-97043-732-1 06 1 1403- ●
564 COVER; SW 8-97043-732-1 04 1 1403- ●
580 BRACKET; COVER 8-98017-528-1 01 1 1403- ● ●
727 SEAL; BRACKET 8-98186-934-0 01 1 1403- ● ●

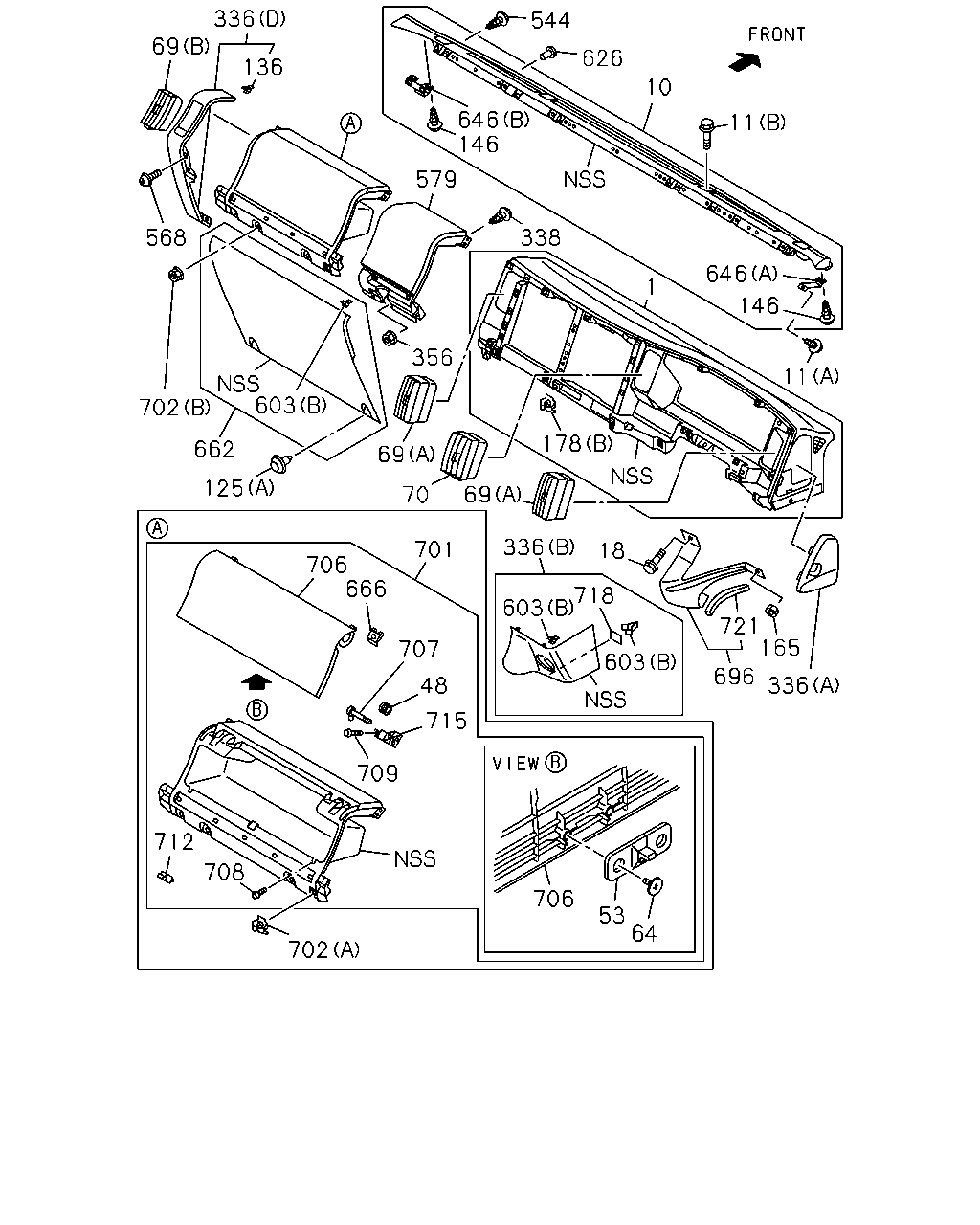

çizim 413817
336 69 568 702 603 69 662 125 70 706 666 707 48 715 709 702 708 712 706 53 64 696 336 603 603 336 69 701 718 721 165 11 146 646 338 356 178 18 579 136 146 646 544 10 626 11 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
THA 		8-97926-376-1 01 1 1403- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1403- ● ●
11 BOLT; INST PNL
(A) SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1403- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1403- ● ●
18 BOLT; BRKT
SCREW T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 01 1 1403- ● ●
48 SPRING; GLOVE BOX LID
THA 		8-97926-410-0 01 1 1403- ● ●
48 SPRING; GLOVE BOX LID
THA 		8-97926-411-0 01 1 1403- ● ●
53 STRIKER; GLOVE BOX
THA 		8-97926-403-1 01 1 1403- ● ●
64 SCREW; STRIKER
M4X85 THA 		8-97926-404-0 01 1 1403- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1403- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1403- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1403- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1403- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1403- ● ●
136 CLIP; INST COVER
THA 		8-97926-885-0 02 1 1403- ● ●
146 SCREW; TAP
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1403- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE THA 		0-91180-106-0 01 1 1403- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1403- ● ●
178 NUT; INST PANEL
(B) THA 		8-97926-385-0 30 1 1403- ● ●
336 COVER; INST PANEL SIDE
(A) THA 		8-97926-875-0 01 1 1403- ● ●
336 COVER; INST PANEL SIDE
(D) THA 		8-97926-876-0 01 1 1403- ● ●
336 COVER; INST PANEL SIDE
(C) THA 		8-97926-879-0 01 1 1403- ● ●
336 COVER; INST PANEL SIDE
(B) THA 		8-97926-882-0 01 1 1403- ● ●
338 SCREW; COVER
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1403- ● ●
356 NUT; COVER
M6 FLANGE THA 		0-91180-106-0 01 1 1403- ● ●
544 SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1403- ● ●
568 BOLT; COVER
SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1403- ● ●
579 COVER; INST PNL
THA 		8-97926-878-0 01 1 1403- ● ●
603 CLIP; COVER
(B) THA 		8-97926-387-0 09 1 1403- ● ●
603 CLIP; COVER
(A) THA 		8-97926-890-0 01 1 1403- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1403- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1403- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1403- ● ●
662 COVER; LWR,INST PANEL
THA 		8-97926-877-0 01 1 1403- ● ●
666 INSERT; INST PANEL
M5 THA 		8-97926-400-0 04 1 1403- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1403- ● ●
701 TRAY; INST
THA 		8-97926-381-1 01 1 1403- ● ●
702 NUT; TRAY
(B) M6 FLANGE THA 		0-91180-106-0 02 1 1403- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1403- ● ●
706 LID; TRAY INST
THA 		8-97926-402-1 01 1 1403- ● ●
707 SHAFT; TRAY INST LID
THA 		8-97926-393-0 02 1 1403- ● ●
708 STOPPER; TRAY INST LID
THA 		8-97926-394-0 02 1 1403- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 1403- ● ●
712 LOCK; TRAY INST LID
THA 		8-97926-395-0 01 1 1403- ● ●
715 SUPPORT; TRAY,HINGE
THA 		8-97926-396-0 01 1 1403- ● ●
715 SUPPORT; TRAY,HINGE
THA 		8-97926-397-0 01 1 1403- ● ●
718 SEAL; COVER
THA 		8-97926-893-0 01 1 1403- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1403- ● ●

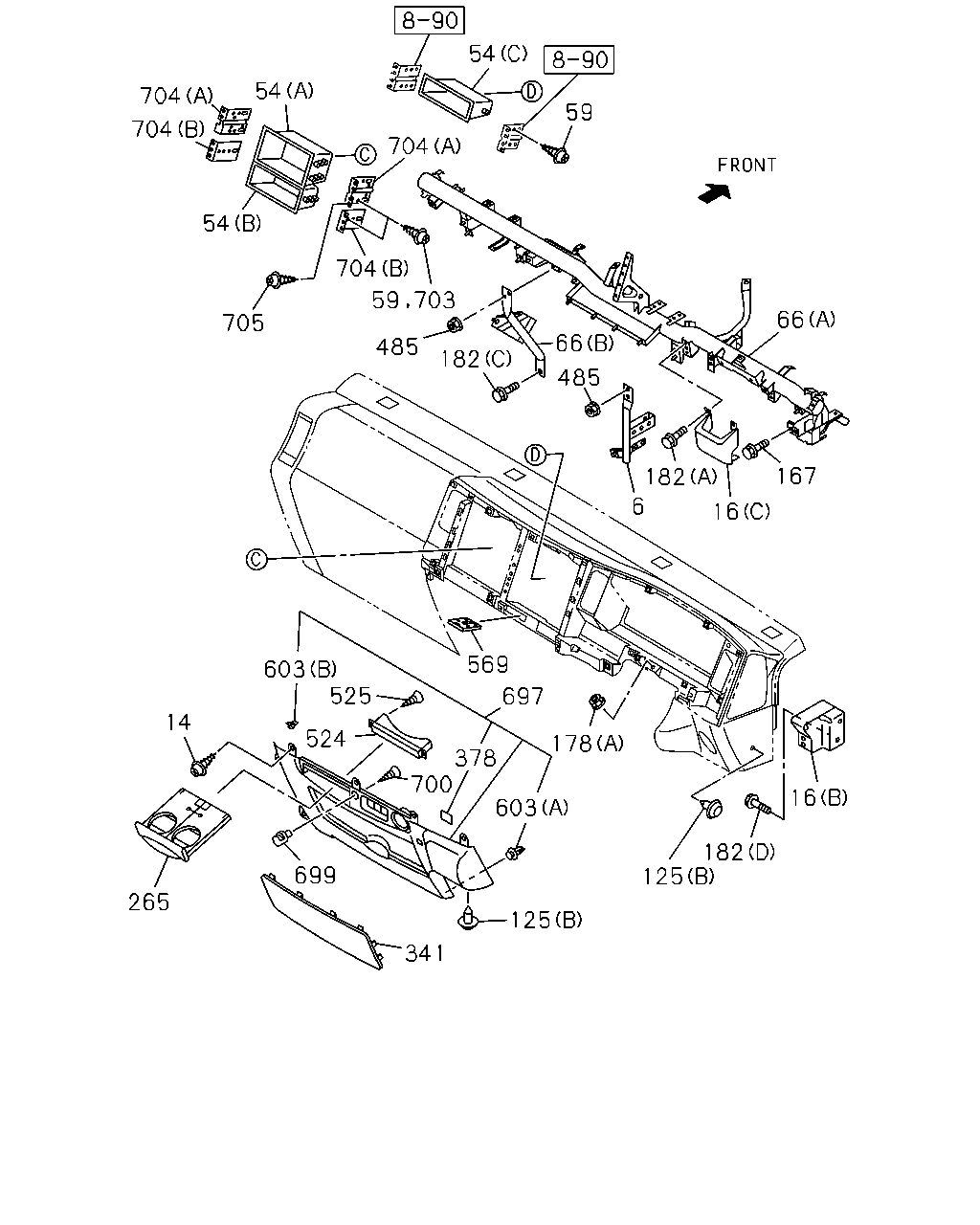

çizim 414033
704 704 704 704 705 54 54 54 59 59 703 485 182 66 485 66 167 16 182 6 569 603 525 524 14 697 378 178 603 700 699 265 341 125 125 16 182
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1403- ● ●
14 SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1403- ● ●
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1403- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1403- ● ●
16 BRACKET; INST PNL
(B) THA 		8-97926-512-0 01 1 1403- ● ●
16 BRACKET; INST PNL
(B) THA 		8-97926-511-0 01 1 1403- ● ●
54 POCKET; CENTER CLUSTER
(B) THA 		8-97926-412-0 01 1 1403- ● ●
54 POCKET; CENTER CLUSTER
(C) THA 		8-97926-414-0 01 1 1403- ● ●
54 POCKET; CENTER CLUSTER
(A) THA 		8-97926-874-0 01 1 1403- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1403- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1403- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 1403- ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1403-1406 ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1403- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1403- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1403- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1403- ● ●
178 NUT; INST PANEL
(B) THA 		8-97926-385-0 30 1 1403- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 1403- ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1403- ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1403- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1403- ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1403- ● ●
341 LID; FUSE BOX
THA 		8-97926-881-0 01 1 1403- ● ●
378 SEAL; INST PANEL
THA 		8-97926-891-0 01 1 1403- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1403- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1403- ● ●
525 SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1403- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1403- ● ●
603 CLIP; COVER
(B) THA 		8-97926-387-0 09 1 1403- ● ●
603 CLIP; COVER
(A) THA 		8-97926-890-0 01 1 1403- ● ●
697 PANEL; INST CENTER
THA 		8-97926-880-0 01 1 1403- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1403- ● ●
700 BOLT; HOOK
SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1403- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1403- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1403- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1403- ● ●
705 SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1403- ● ●
