◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11048 - EXZ LHD EURO4 WITH 2STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#13615) — 8 parça

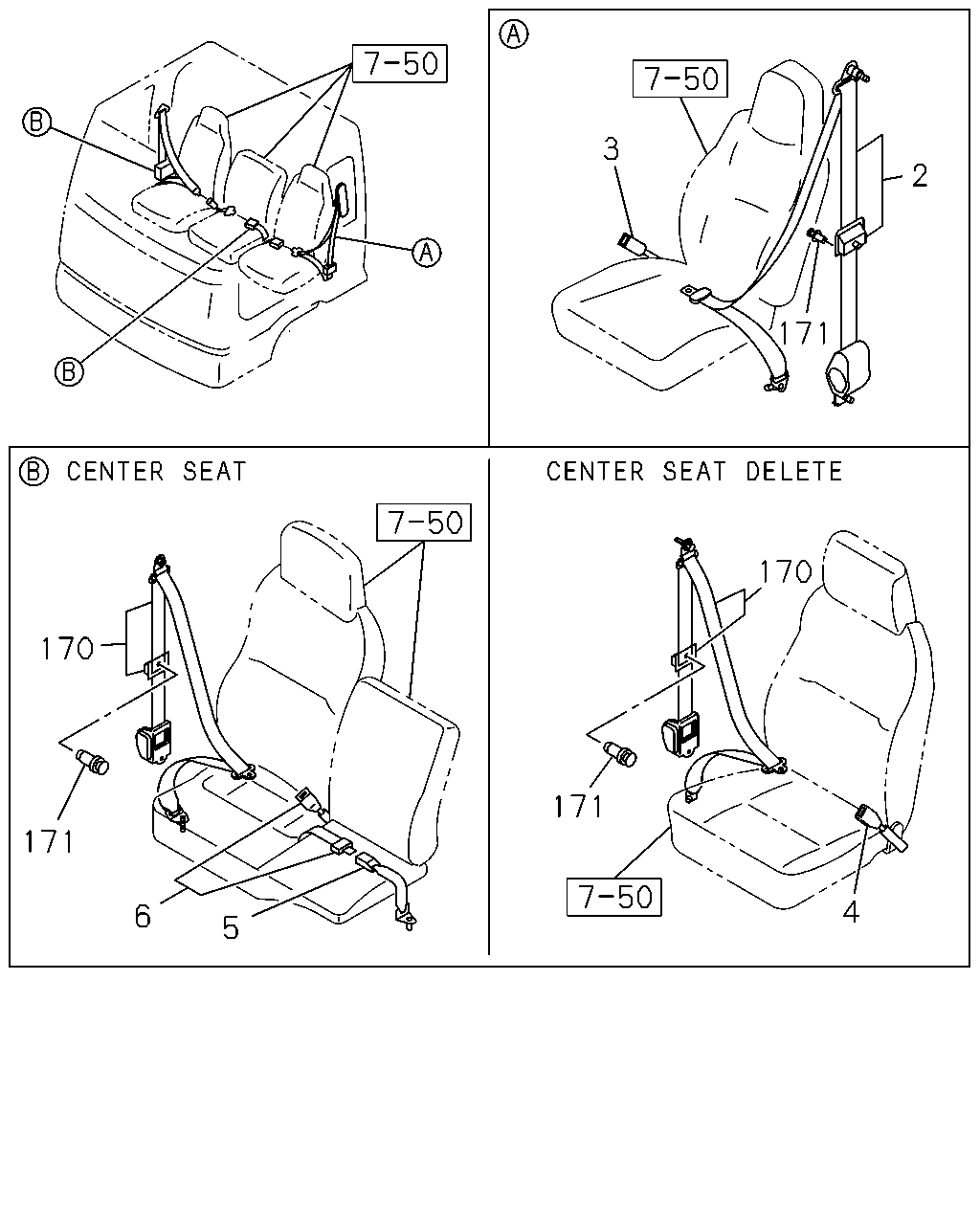

çizim 91998
3 2 171 170 170 171 171 4 6 5
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE 8-98046-540-1 01 1 0611-
3 BELT; SEAT,BUCKLE SIDE 1-75618-914-0 01 1 0611-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75618-911-1 01 1 0611-
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0611-
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) 		8-98046-543-1 01 1 0611-
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98046-541-1 01 1 0611-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0611-

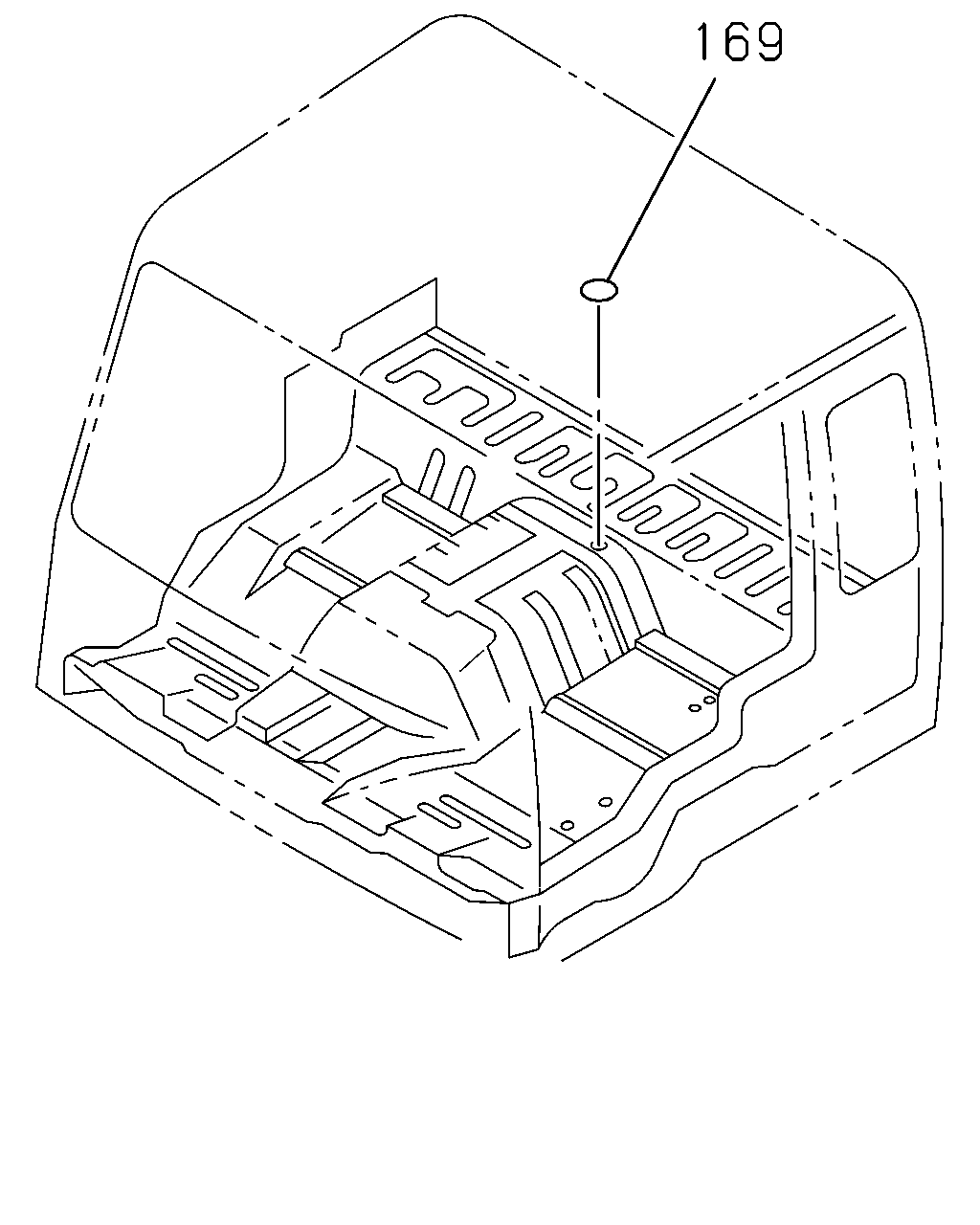

çizim 106524
169
BalonParca AdiParca NoAdetTipApplied Date
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0611-
