◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11048 - EXZ LHD EURO4 WITH 2STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#13614) — 200 parça

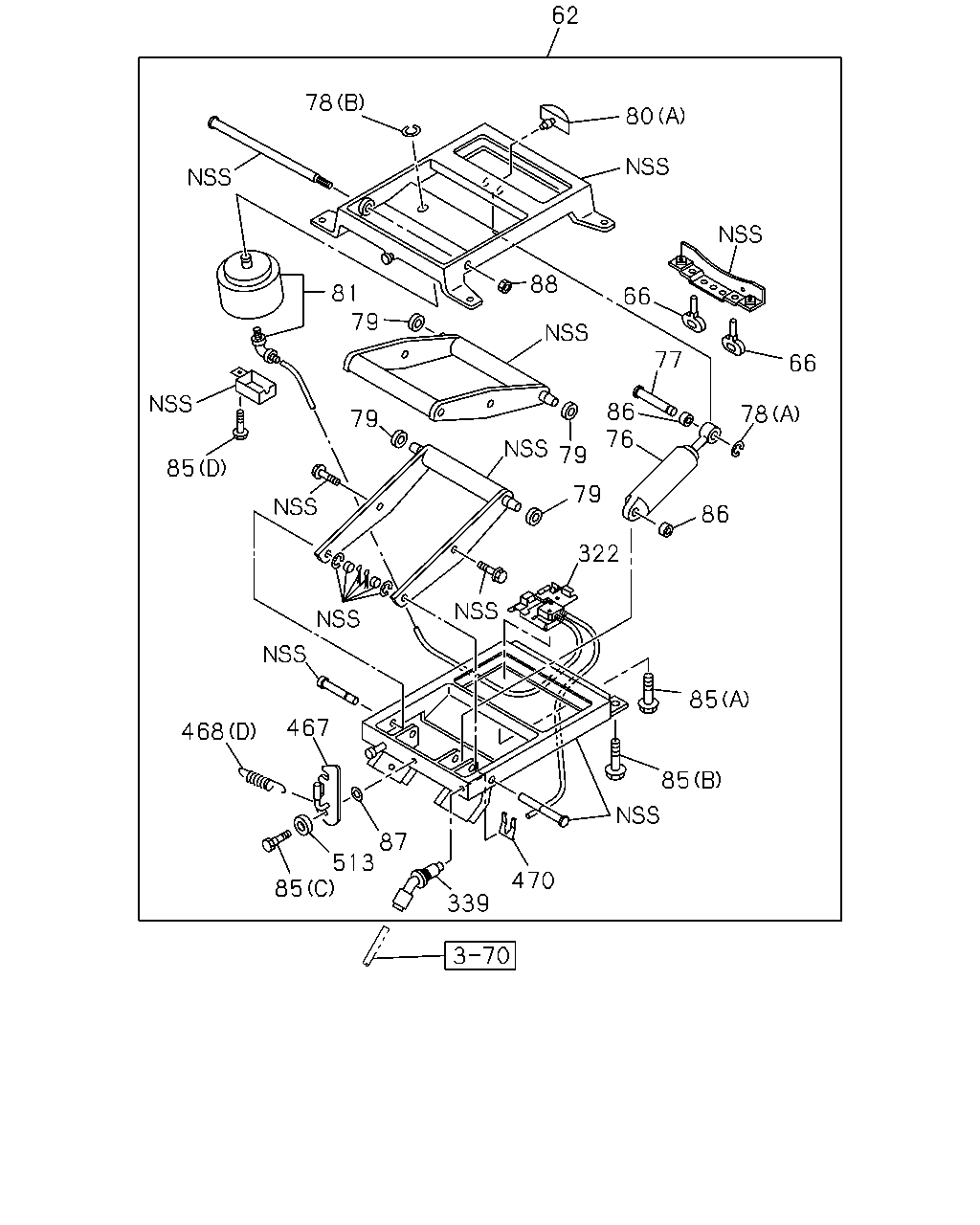

çizim 91896
62 80 66 78 77 66 86 76 79 79 86 322 88 79 81 78 79 85 467 468 87 470 339 513 85 85 85
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-8 01 1 0611-1403
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-453-0 01 1 1404-
66 RUBBER; LWR STOPPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 0611-
76 DAMPER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 0611-
77 PIN; DAMPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 0611-
78 RING; SNAP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 0611-
78 RING; SNAP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 		9-09185-415-0 01 1 0611-
79 ROLLER ASM; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 0611-1403
79 ROLLER ASM; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-489-0 04 1 1404-
80 RUBBER; STOPPER
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1007-
80 RUBBER; STOPPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 0611-
81 SPRING; AIR
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-2 01 1 0611-1312
81 SPRING; AIR
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98242-816-0 01 1 1401-
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-1 01 1 0611-
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 		1-75538-208-1 02 1 0611-
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0611-1312
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-
86 BUSHING; GUIDE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0611-
87 WASHER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 0611-0710
87 WASHER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		0-91510-508-0 01 1 0711-
88 NUT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		1-75537-273-1 01 1 0611-
322 VALVE; AIR SPRING
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-187-3 01 1 0611-
339 UNION; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-3 01 1 0611-
467 LEVER; LOCK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 0611-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0611-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0611-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0611-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0611-
470 CLIP; HOSE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 0611-
513 SPACER; LEVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 0611-

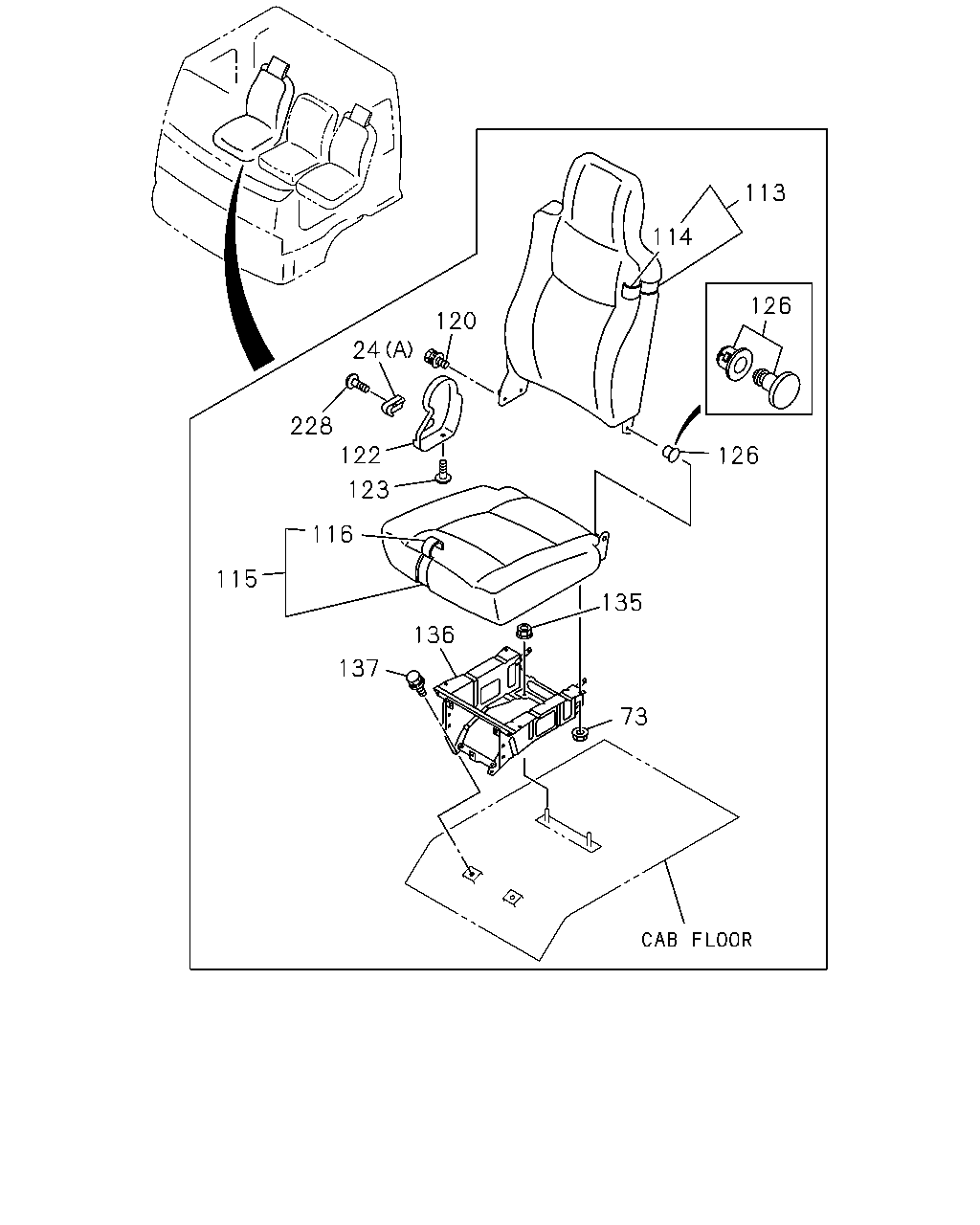

çizim 91915
113 114 126 120 24 228 122 126 123 116 115 135 136 137 73
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 1012-
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97859-019-0 01 1 0611-0710
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 0711-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0611-1011
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (A) DARK GRAY 		8-97867-021-0 01 1 1012-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0611-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-654-2 01 1 0611-1011
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-275-0 01 1 1012-
113 BACK ASM; SEAT
VINYL SEAT(A83) 		1-75208-241-2 01 1 0611-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-173-1 01 1 0611-1011
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-292-0 01 1 1012-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) 		1-75116-742-1 01 1 0611-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-642-1 01 1 0611-1011
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-127-0 01 1 1012-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT(A83) 		1-75207-367-1 01 1 0611-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-162-1 01 1 0611-1011
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-140-0 01 1 1012-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-133-1 01 1 0611-
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0611-
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97867-020-0 01 1 0611-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0611-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0611-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0611-0703
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704-
136 STAND; PASSENGER SEAT 1-75558-602-3 01 1 0611-1305
136 STAND; PASSENGER SEAT 8-98242-299-0 01 1 1306-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0611-0703
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-1011
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0611-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0611-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711-1011
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 1012-

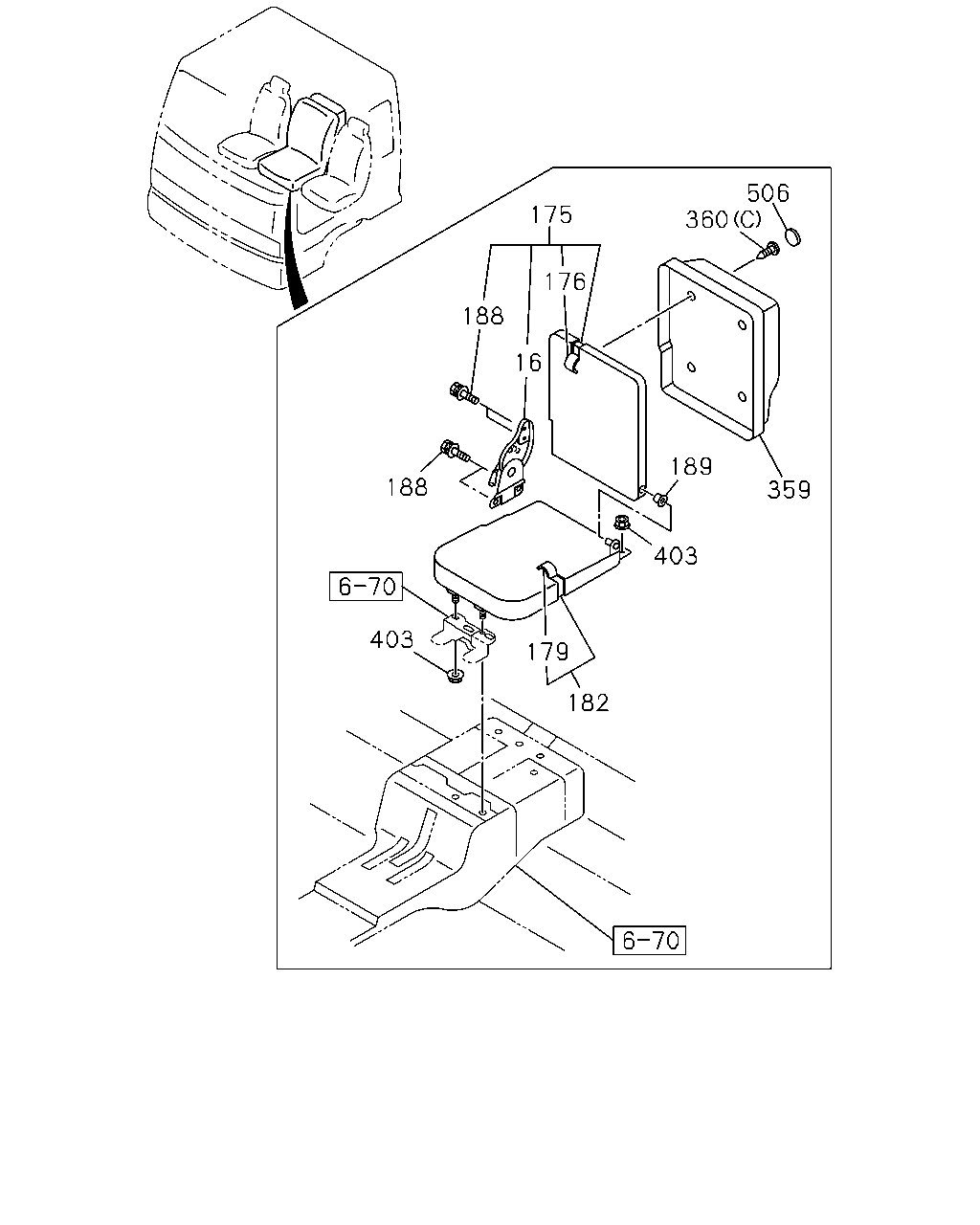

çizim 91977
506 360 175 176 188 16 189 188 359 403 403 179 182
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) 		1-75418-062-1 01 1 0611-
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-602-3 01 1 0611-1011
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-328-1 01 1 1012-
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75026-856-3 01 1 0611-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-156-2 01 1 0611-1011
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-331-0 01 1 1012-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75116-710-1 01 1 0611-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-164-1 01 1 0611-1011
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-325-0 01 1 1012-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75127-127-1 01 1 0611-
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-644-1 01 1 0611-1011
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		8-98168-317-2 01 1 1012-
182 CUSHION ASM; CENTER SEAT
VINYL SEAT(A83) CENTER SEAT(SA1) 		1-75207-009-4 01 1 0611-
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 0611-
189 BUSHING; HINGE,CENTER SEAT BACK
CENTER SEAT(SA1) 		8-97854-900-0 01 1 0611-
359 BOX; PARCEL
CENTER SEAT(SA1) 		1-72538-275-4 01 1 0611-1006
359 BOX; PARCEL
CENTER SEAT(SA1) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0611-0612
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 0611-0612
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0701-1104
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0611-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		1-75538-207-0 04 1 0611-0703
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 0704-
506 CAP; PARCEL BOX
CENTER SEAT(SA1) 		1-09983-180-3 04 1 0611-1006
506 CAP; PARCEL BOX
CENTER SEAT(SA1) 		1-09983-180-3 02 1 1007-

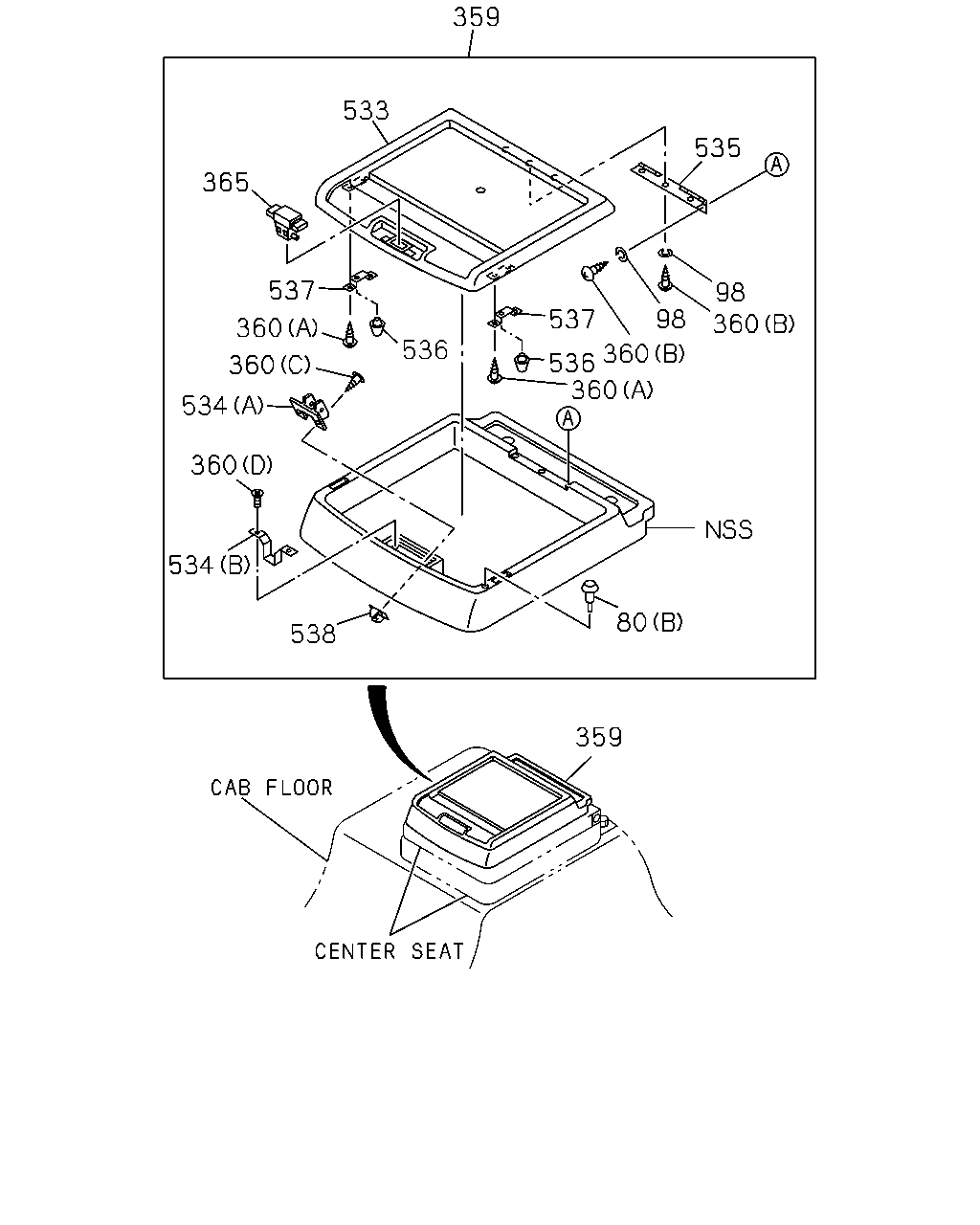

çizim 92000
359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 538 359
BalonParca AdiParca NoAdetTipApplied Date
80 RUBBER; STOPPER
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1007-
80 RUBBER; STOPPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 0611-
98 WASHER; HINGE
CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0611-
359 BOX; PARCEL
CENTER SEAT(SA1) 		1-72538-275-4 01 1 0611-1006
359 BOX; PARCEL
CENTER SEAT(SA1) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0611-0612
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 0611-0612
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0701-1104
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0611-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
365 LOCK ASM; SEAT
CENTER SEAT(SA1) 		1-72538-180-0 01 1 0611-
533 LID; PARCEL BOX
CENTER SEAT(SA1) 		1-72538-277-1 01 1 0611-1006
533 LID; PARCEL BOX
CENTER SEAT(SA1) 		8-98145-118-0 01 1 1007-
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (A) 		1-72538-181-0 01 1 0611-1006
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1007-
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) 		1-72447-391-1 01 1 0611-
536 RUBBER; CUSHION
CENTER SEAT(SA1) 		5-09983-002-1 02 1 0611-1006
537 BRACKET; RUBBER
CENTER SEAT(SA1) 		1-72548-057-1 02 1 0611-1006
538 GROMMET; SCREW
CENTER SEAT(SA1) 		1-09983-165-0 02 1 0611-1006

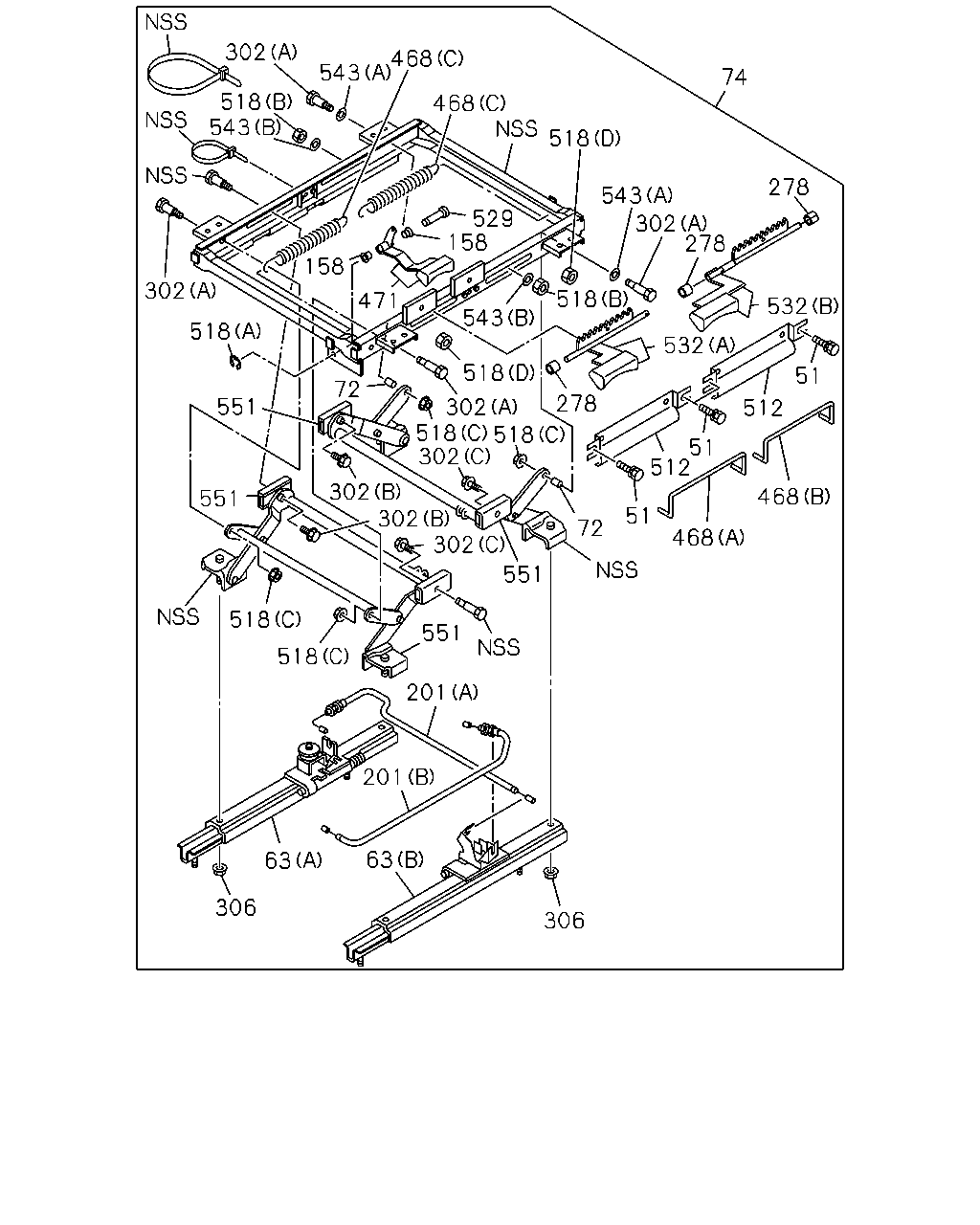

çizim 106525
302 468 543 74 518 543 468 518 278 543 302 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER 1-75518-325-1 04 1 0611-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-227-1 01 1 0611-
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-324-0 01 1 0611-
72 SPACER; SEAT ADJ 1-75518-334-1 02 1 0611-1502
72 SPACER; SEAT ADJ 8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-331-3 01 1 0611-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-646-0 01 1 1503-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0611-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0611-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0611-
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 0611-
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-2 02 1 0611-
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-1 04 1 0611-1502
302 BOLT; ADJ,HEIGHT CONT
(A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-336-1 02 1 0611-
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 0611-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0611-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0611-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0611-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0611-
471 LEVER; SEAT ADJ 1-75518-290-0 01 1 0611-0710
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 0711-
512 COVER; LEVER 1-75518-245-1 02 1 0611-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0611-
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 0611-
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 0611-
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 0611-
529 PIN; LINK 1-75518-262-0 01 1 0611-
532 LEVER ASM; TILT
(A) 		1-75518-221-0 01 1 0611-
532 LEVER ASM; TILT
(B) 		1-75518-222-1 01 1 0611-
543 WASHER; HEIGHT ADJUSTER
(B) ID=8.4 		9-09160-508-0 04 1 0611-
543 WASHER; HEIGHT ADJUSTER
(A) 		1-75518-335-0 02 1 0611-1502
543 WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 0611-

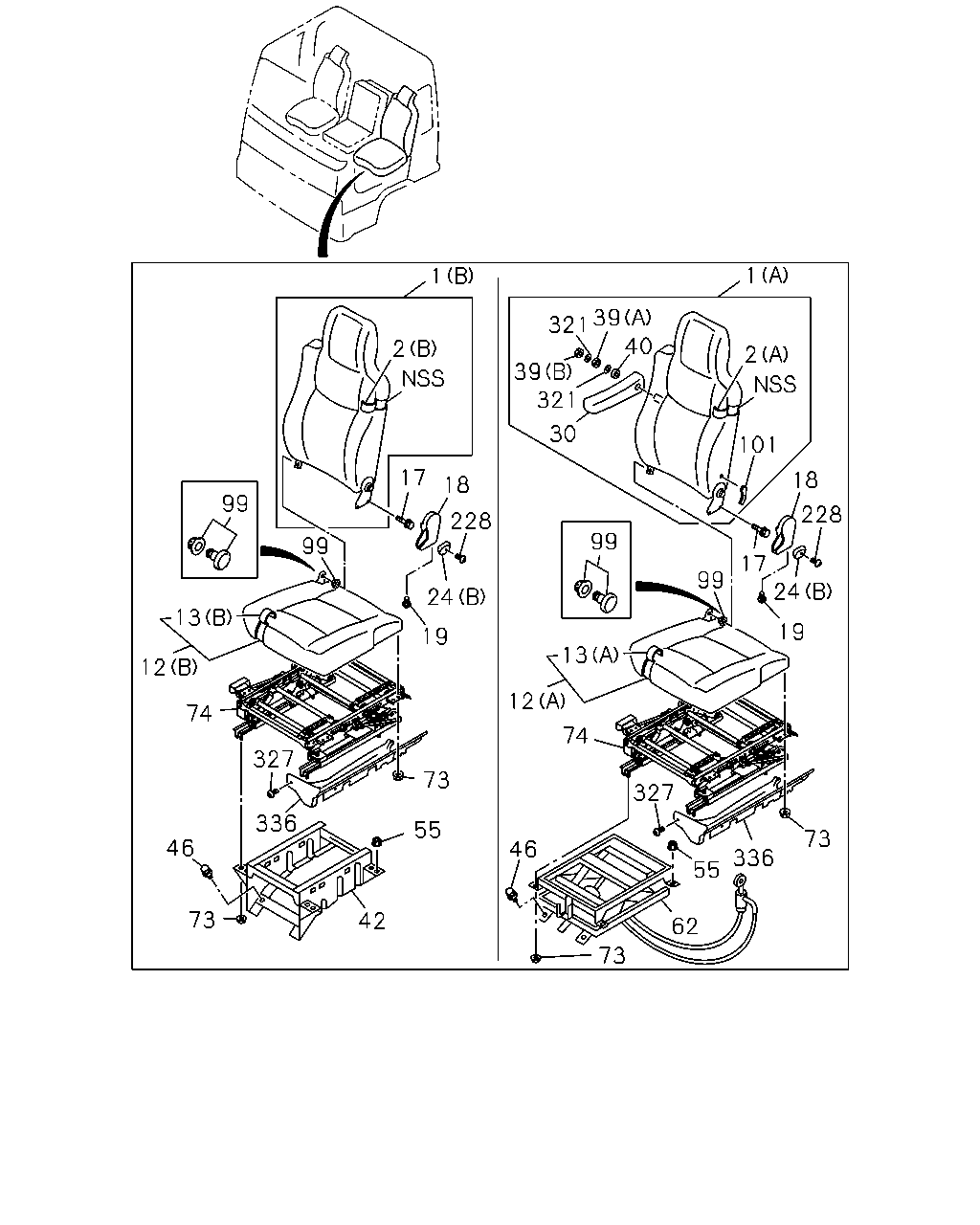

çizim 106527
1 1 39 321 40 2 2 39 321 30 101 17 18 18 99 228 228 99 99 17 24 99 24 13 19 19 13 12 12 74 74 327 73 327 336 55 73 46 46 336 55 73 42 62 73
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75207-648-2 01 1 0611-0901
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-98135-637-0 01 1 0902-1011
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-98168-065-0 01 1 1012-
1 BACK ASM; SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75207-728-2 01 1 0611-0901
1 BACK ASM; SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		8-98135-638-0 01 1 0902-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75127-167-1 01 1 0611-1011
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-98168-084-0 01 1 1012-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75127-183-1 01 1 0611-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75207-640-2 01 1 0611-1011
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-98168-044-0 01 1 1012-
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75207-006-3 01 1 0611-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75127-160-2 01 1 0611-1011
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-98168-075-0 01 1 1012-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) (B) 		1-75127-104-1 01 1 0611-
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0611-
18 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 0611-
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 0611-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 1012-
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97859-019-0 01 1 0611-0710
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 0711-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0611-1011
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (A) DARK GRAY 		8-97867-021-0 01 1 1012-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-175-1 01 1 0611-
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 01 1 0611-
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 0611-
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0611-
42 STAND; DRIVER SEAT
VINYL SEAT(A83) RIGID SEAT WO/ARM REST(TAZ) 		1-75558-604-2 01 1 0611-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0611-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0611-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704-
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-8 01 1 0611-1403
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-453-0 01 1 1404-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0611-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-331-3 01 1 0611-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-646-0 01 1 1503-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0611-
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0902-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-1011
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0611-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0611-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711-1011
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 1012-
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0611-
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0611-
327 CLIP; COVER 1-09987-273-0 01 1 0611-
336 COVER; DRIVER SEAT 1-75518-313-0 01 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
