11587 - FXZ/GXZ(THAI)EURO3
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#136132) — 64 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀
[515A] CAB TILT PIPING;FRAME SIDE (26 parça)
[515A] CAB REAR LOCK (17 parça)
[515A] CAB TILT CYLINDER FIXING (3 parça)
[515A] CAB TILT PIPING;CAB MTG MBR SIDE (18 parça)
▶

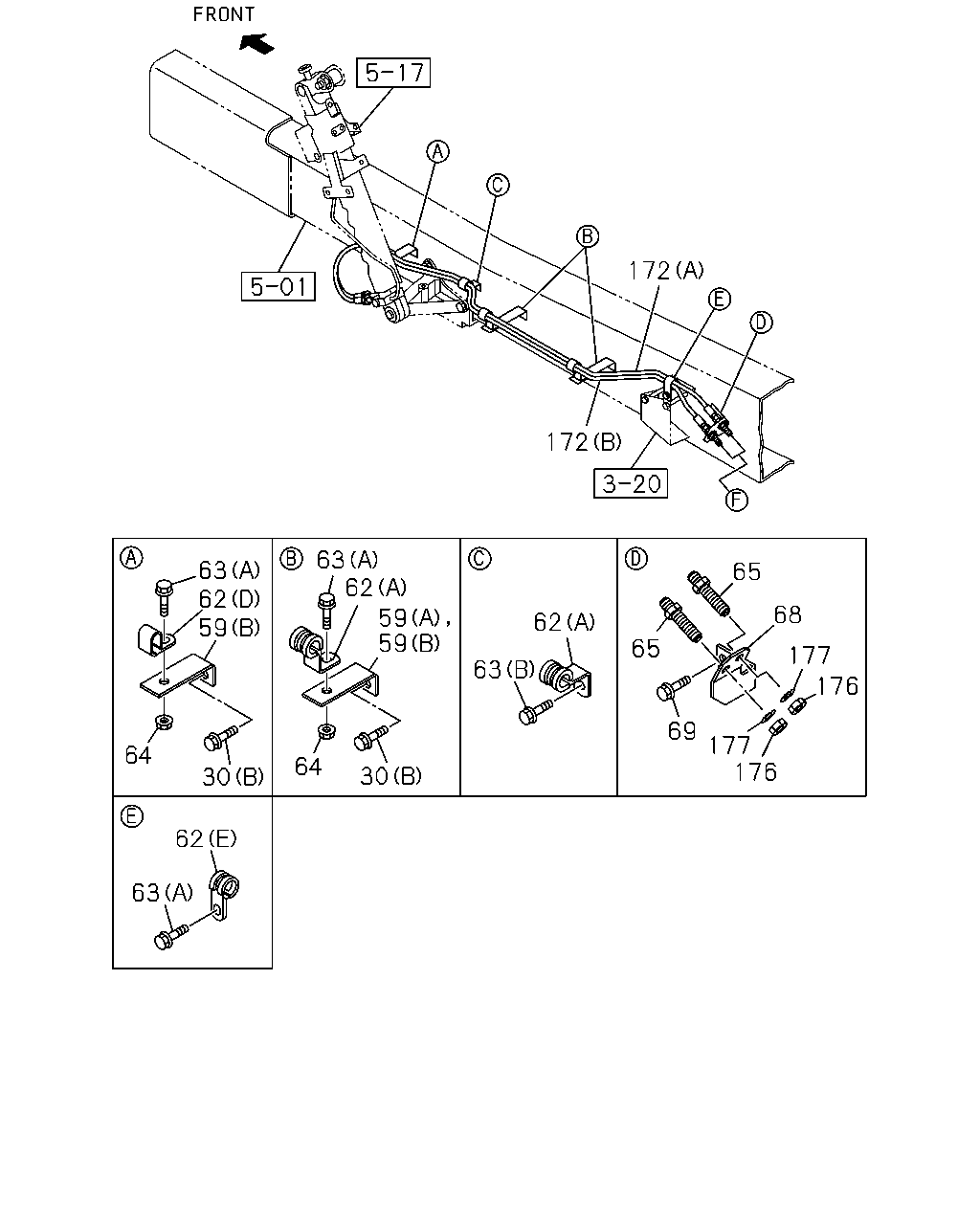

172
172
63
62
59
64
30
62
63
63
62
59
59
64
30
62
63
65
68
177
176
176
177
69
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
30
BOLT; BRKT FIX
(A) M8X20 FLANGE THA
0-28650-820-0
01
1
1403-
●
●
30
BOLT; BRKT FIX
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1403-
●
●
59
BRACKET; CLIP
(A) L=115 B=25
1-47476-758-0
01
1
1403-
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=115 B=25
1-47476-758-0
01
1
1403-
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
02
1
1403-
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) L=75
1-47478-323-0
02
1
1403-
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
01
1
1403-
●
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (B) L=75
1-47478-323-0
01
1
1403-
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) L=115 B=25
1-47476-758-0
02
1
1403-
●
62
CLIP; OIL PIPE
(B) ID=7X2 L=20
0-95324-635-0
01
1
1403-
●
●
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
1403-
●
●
62
CLIP; OIL PIPE
(D) ID=22X11 L=20
1-09700-871-0
01
1
1403-
●
●
62
CLIP; OIL PIPE
(A) ID=21 L=30 H=40
1-09700-991-1
03
1
1403-
●
●
62
CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM<BFA> (E) ID=24 L=27
1-09700-809-0
01
1
1403-
●
63
BOLT; CLIP
(A) M8X20 FLANGE THA
0-28650-820-0
03
1
1403-
●
63
BOLT; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) M8X20 FLANGE THA
0-28650-820-0
03
1
1403-
●
63
BOLT; CLIP
(B) M8X30 FLANGE THA
0-28650-830-0
01
1
1403-
●
●
63
BOLT; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) M8X20 FLANGE THA
0-28650-820-0
04
1
1403-
●
64
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
03
1
1403-
●
●
65
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
02
1
1403-
●
●
68
BRACKET; UNION
8-98109-453-0
01
1
1403-
●
●
69
BOLT; BRKT
M8X35 FLANGE THA
0-28650-835-0
02
1
1403-
●
●
172
HOSE; FLEX,OIL TILT
(B)
8-98086-335-0
01
1
1403-
●
●
172
HOSE; FLEX,OIL TILT
(A)
8-98106-696-0
01
1
1403-
●
●
176
NUT; UNION
M12
9-09840-280-0
02
1
1403-
●
●
177
WASHER; LK,UNION
ID=12.2
0-91510-512-0
02
1
1403-
●
●

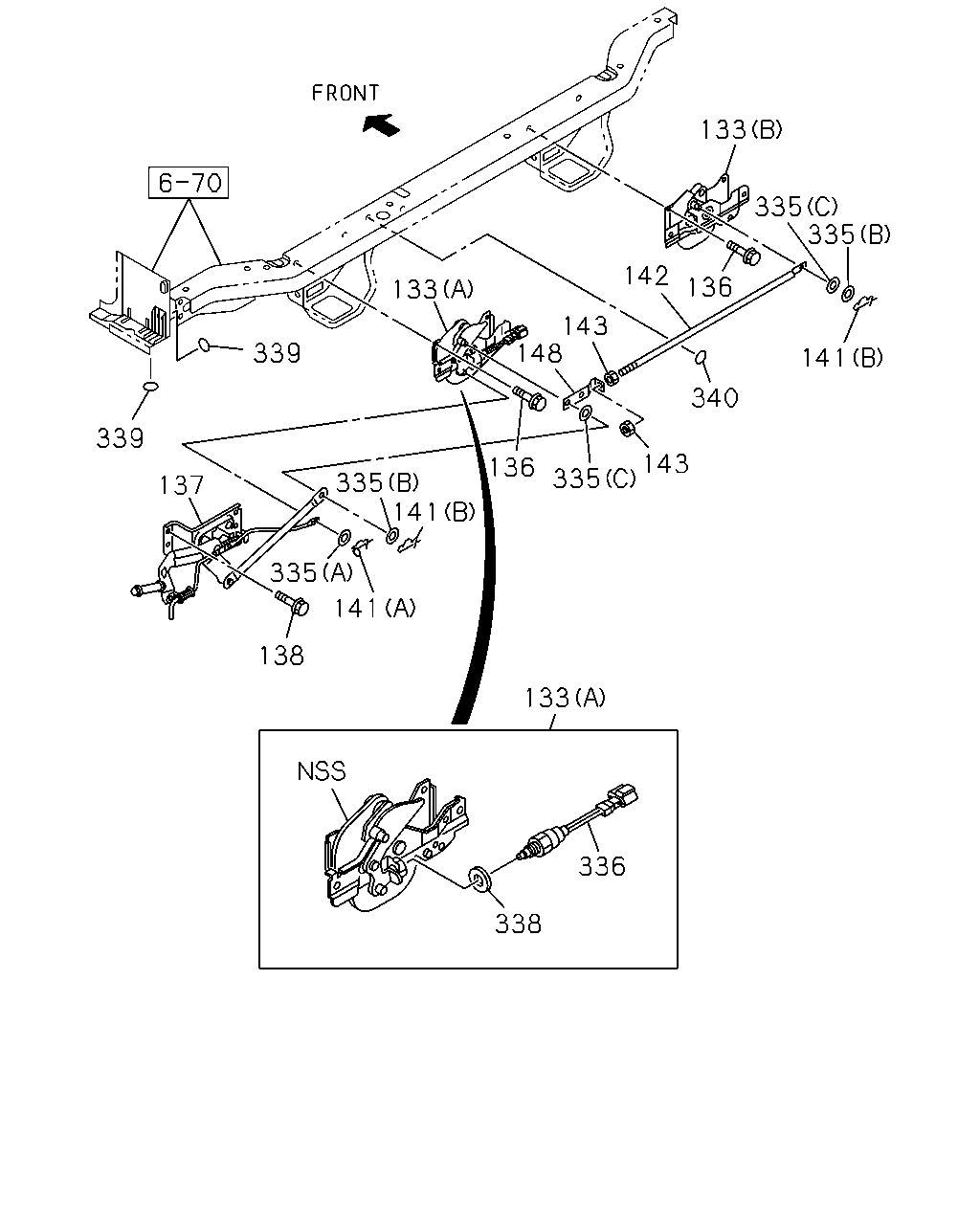

339
339
137
335
335
138
141
141
136
133
148
143
335
142
133
335
335
141
136
340
143
133
336
338
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
133
LOCK ASM; CAB
(A)
8-98094-285-2
01
1
1403-
●
●
133
LOCK ASM; CAB
(B)
8-98061-489-1
01
1
1403-
●
●
136
BOLT; CAB LK
M8X20 FLANGE THA
0-28650-820-0
08
1
1403-
●
●
137
CONTROL UNIT; CAB LOCK
8-98053-683-2
01
1
1403-
●
●
138
BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE THA
0-28650-820-0
04
1
1403-
●
●
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3
8-98039-045-1
01
1
1403-
●
●
141
PIN; SNAP,CAB LOCK ROD
(B) L=32.6
8-98062-280-0
02
1
1403-
●
●
142
ROD; HOOK TO HOOK
8-97587-990-0
01
1
1403-
●
●
143
NUT; JAW JOINT,HOOK TO HOOK
M10 THA
0-91110-510-0
02
1
1403-
●
●
148
JOINT; JAW,HOOK TO HOOK
8-97410-736-0
01
1
1403-
●
●
335
WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16 THA
0-91610-508-0
01
1
1403-
●
●
335
WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26
0-91610-612-0
02
1
1403-
●
●
335
WASHER; CAB LOCK ROD
(C) ID=13 OD=22
8-98060-839-0
02
1
1403-
●
●
336
SWITCH; CAB LOCK
8-98091-155-1
01
1
1403-
●
●
338
WASHER; CAB LOCK
ID=17 OD=30
0-91610-516-0
01
1
1403-
●
●
339
SEAL; TILT HANDLE
OD=25 BLACK THA
1-76798-019-0
04
1
1403-
●
●
340
SEAL; HOLE
OD=25 BLACK THA
1-76798-019-0
02
1
1403-
●
●

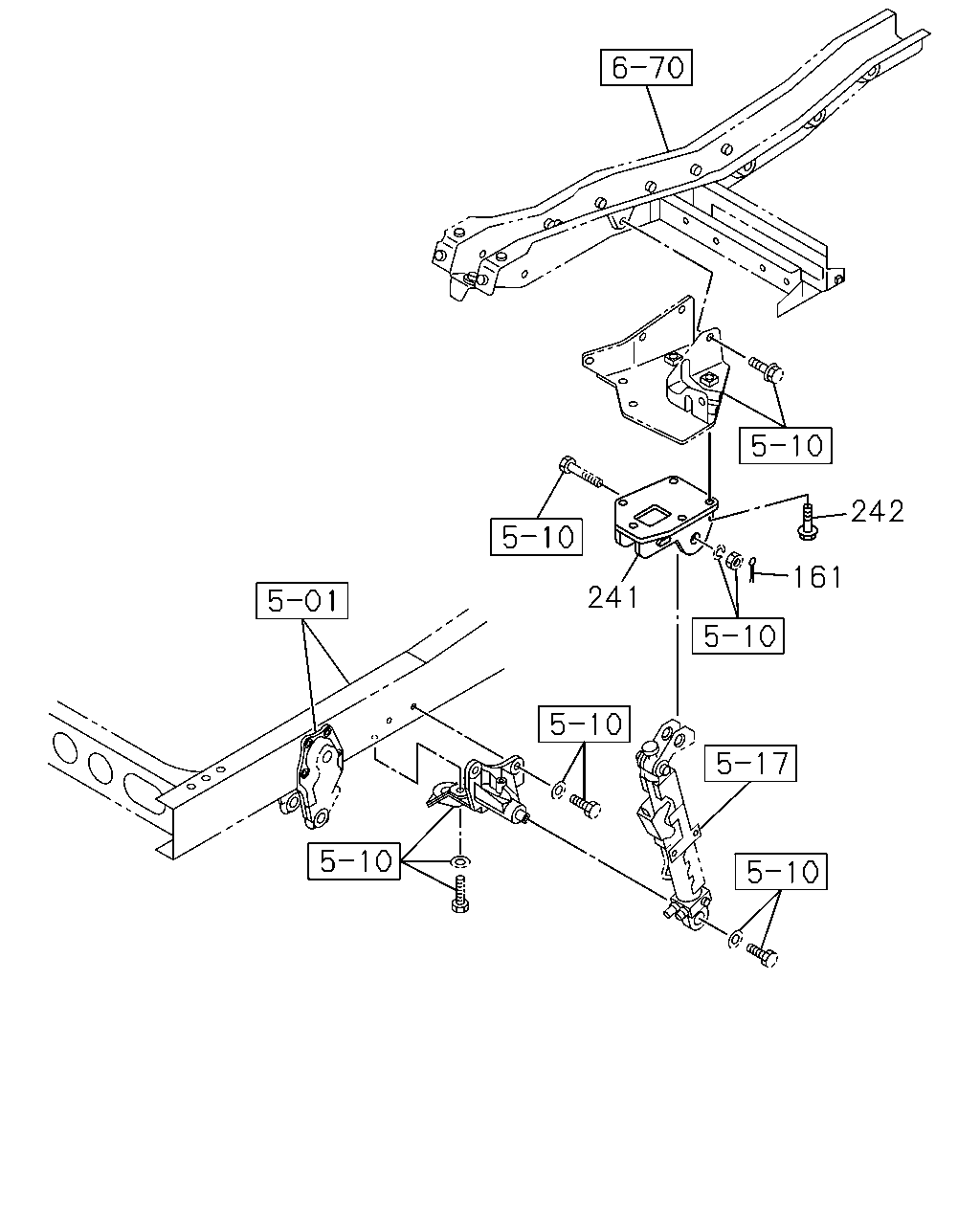

242
161
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
161
PIN; SPLIT
OD=2.8 L=25
0-81123-025-0
01
1
1403-
●
●
241
BRACKET; POWER CYL UPR,CAB TILT
8-98054-834-0
01
1
1403-
●
●
242
BOLT; POWER CYL BRKT,CAB TILT
M10X25 FLANGE THA
0-28051-025-0
05
1
1403-
●
●

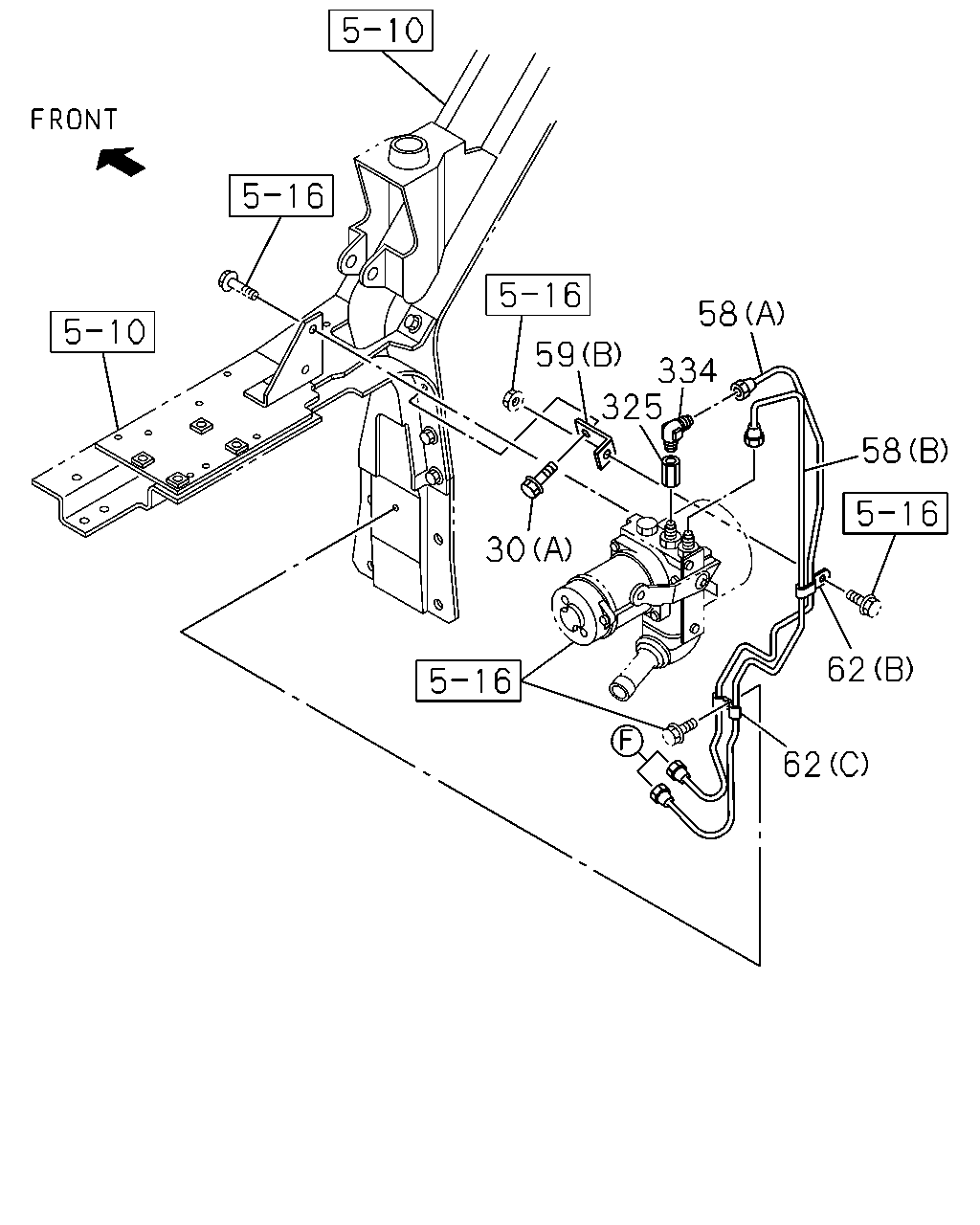

58
334
59
325
58
62
62
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
30
BOLT; BRKT FIX
(A) M8X20 FLANGE THA
0-28650-820-0
01
1
1403-
●
●
30
BOLT; BRKT FIX
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1403-
●
●
58
PIPE; OIL,POWER UNIT
(A) L=865 SERVICED BY L=900
1-47428-729-0
01
1
1403-
●
●
58
PIPE; OIL,POWER UNIT
(B) L=983 SERVICED BY L=1000
1-47428-730-0
01
1
1403-
●
●
59
BRACKET; CLIP
(A) L=115 B=25
1-47476-758-0
01
1
1403-
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=115 B=25
1-47476-758-0
01
1
1403-
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
02
1
1403-
●
59
BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) L=75
1-47478-323-0
02
1
1403-
●
59
BRACKET; CLIP
(B) L=75
1-47478-323-0
01
1
1403-
●
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (B) L=75
1-47478-323-0
01
1
1403-
●
59
BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> (A) L=115 B=25
1-47476-758-0
02
1
1403-
●
62
CLIP; OIL PIPE
(B) ID=7X2 L=20
0-95324-635-0
01
1
1403-
●
●
62
CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
01
1
1403-
●
●
62
CLIP; OIL PIPE
(D) ID=22X11 L=20
1-09700-871-0
01
1
1403-
●
●
62
CLIP; OIL PIPE
(A) ID=21 L=30 H=40
1-09700-991-1
03
1
1403-
●
●
62
CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM<BFA> (E) ID=24 L=27
1-09700-809-0
01
1
1403-
●
325
ADAPTER; PUMP
M12 & RC1/4 STRAIGHT
1-09660-885-0
01
1
1403-
●
●
334
CONNECTOR; PUMP
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1403-
●
●
