◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11587 - FXZ/GXZ(THAI)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#136125) — 36 parça

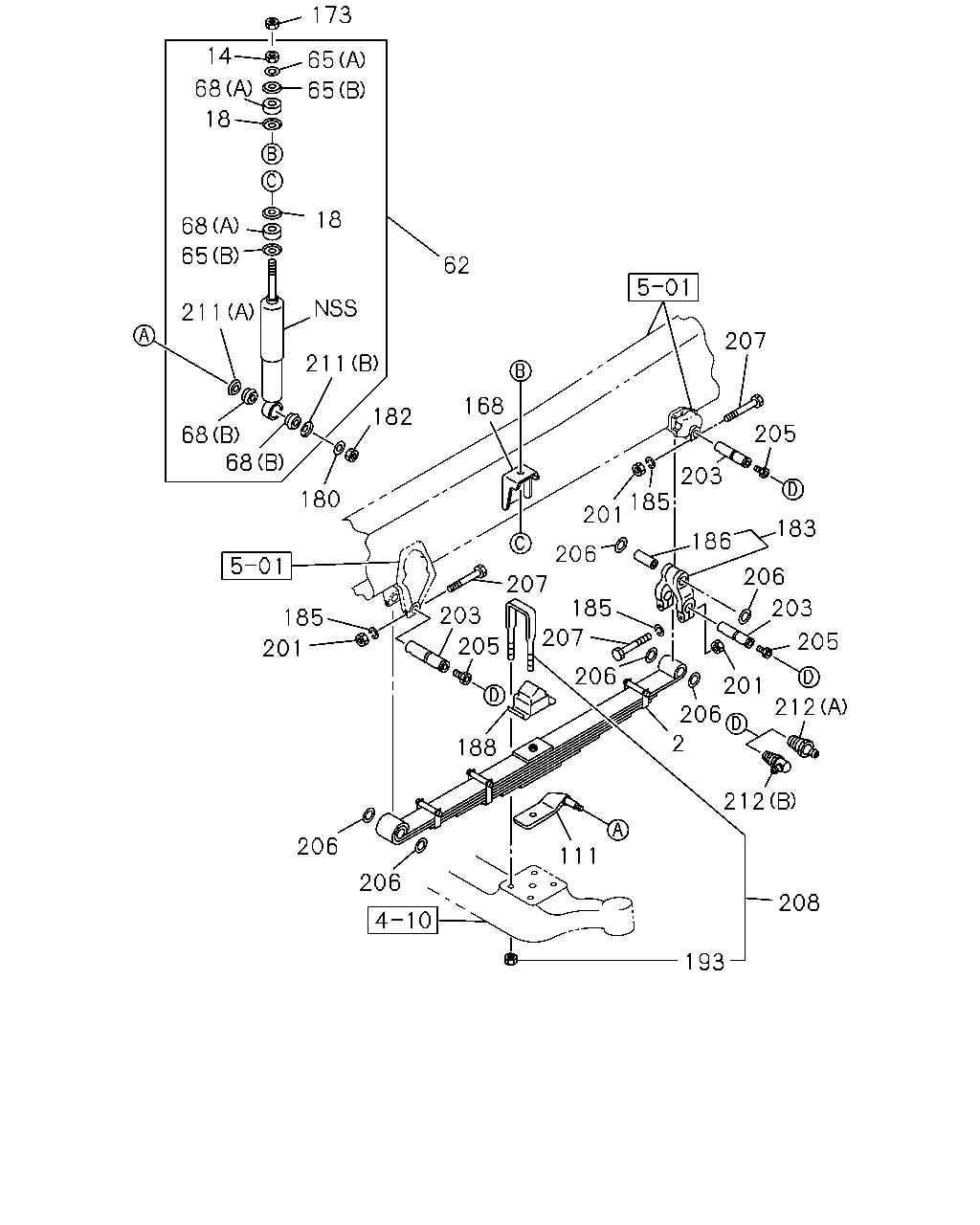

çizim 413769
173 65 65 14 68 18 68 65 211 18 211 68 68 180 182 62 168 185 201 203 205 188 206 206 111 193 208 212 2 206 206 207 185 207 206 201 185 203 207 205 183 186 206 203 205 212 201
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 7-LEAF THA 		1-51130-961-0 01 1 1403- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 7-LEAF THA 		8-98137-207-0 01 1 1403- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 5200MM<52W> 7-LEAF THA 		8-98201-306-0 02 1 1403- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF THA 		8-98231-369-0 01 1 1403- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF THA 		8-98231-370-0 01 1 1403- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1403- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1403- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 1403- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1403- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1403- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1403- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1403- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
THA 		8-97948-498-0 01 1 1403- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
THA 		8-97948-497-0 01 1 1403- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1403- ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1403- ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1403- ● ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 1403- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1403- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1403- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1403- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		1-51172-085-2 02 1 1403- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		1-51172-081-1 02 1 1403- ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1403- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1403- ● ●
203 PIN; SPR TO SHACKLE
THA 		8-97948-141-0 06 1 1403- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1403- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1403- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1403- ● ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> L=240 		1-87870-376-2 04 1 1403- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 5200MM<52W> L=230 		1-87870-493-0 04 1 1403- ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1403- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1403- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1403- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1403- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1403- ● ●
