◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11587 - FXZ/GXZ(THAI)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-02 - PROPELLER SHAFT GUARD ▶
4-02 — PROPELLER SHAFT GUARD (#136113) — 37 parça

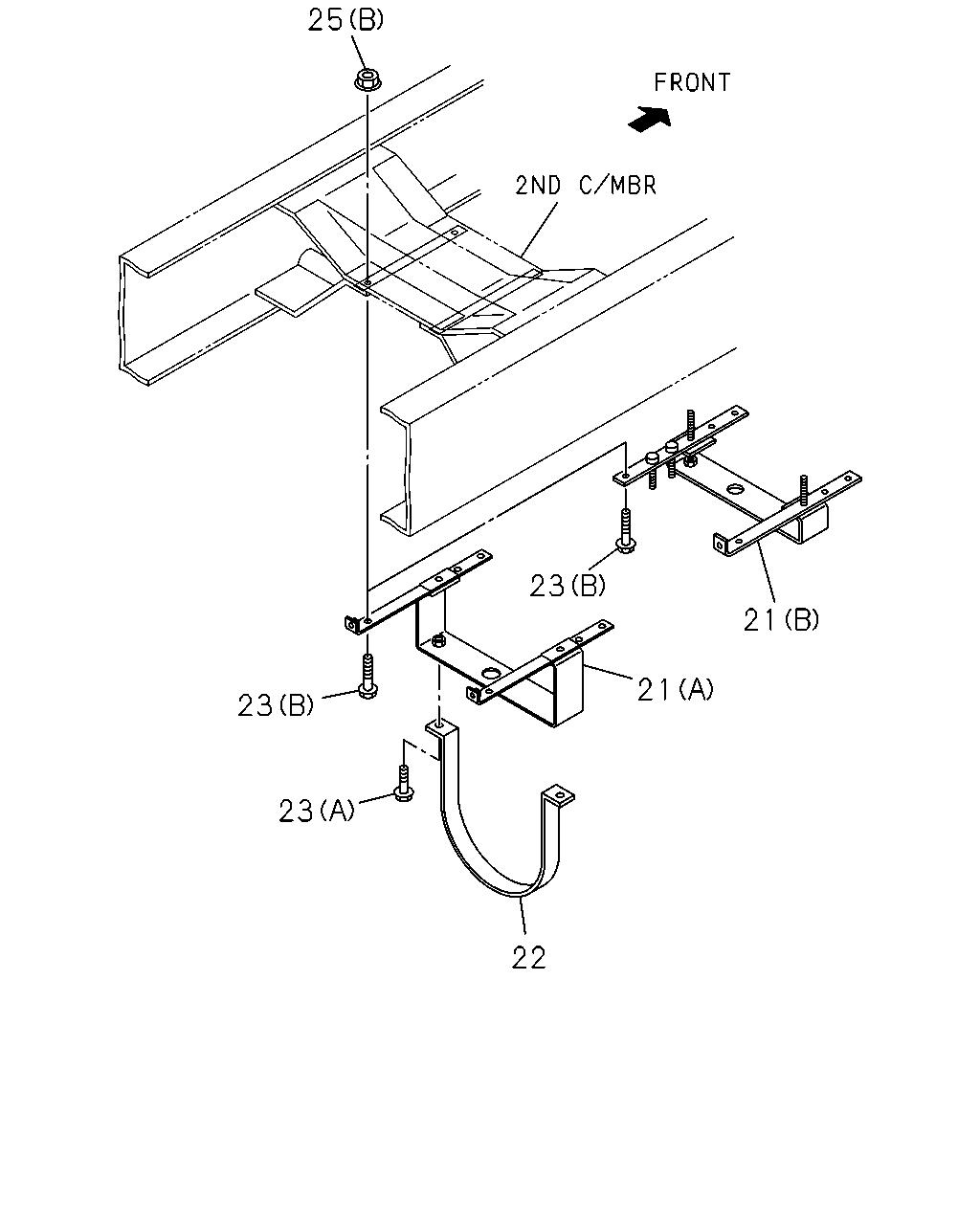

çizim 413562
25 23 21 21 23 23 22
BalonParca AdiParca NoAdetTipApplied Date A B
21 BRACKET; PROP GUARD
WHEEL BASE 4700MM<47W> (A) 		1-53279-277-1 01 1 1403- ●
21 BRACKET; PROP GUARD
WHEEL BASE 5200MM<52W> (B) 		1-53279-274-0 01 1 1403- ●
21 BRACKET; PROP GUARD
WHEEL BASE 5300MM<53W> (C) 		1-53279-248-0 01 1 1403- ●
21 BRACKET; PROP GUARD
WHEEL BASE 4700MM<47W> (B) 		1-53279-267-3 01 1 1403- ●
22 GUARD; PROP SHAFT
WHEEL BASE 4700MM<47W> 		1-53279-270-0 01 1 1403- ●
22 GUARD; PROP SHAFT
WHEEL BASE 5200MM<52W> THA 		1-53279-166-0 01 1 1403- ●
22 GUARD; PROP SHAFT
WHEEL BASE 4700MM<47W> THA 		1-53279-166-0 01 1 1403- ●
22 GUARD; PROP SHAFT
WHEEL BASE 5300MM<53W> 		1-53279-262-0 01 1 1403- ●
23 BOLT; GUARD
WHEEL BASE 4700MM<47W> (B) M8X35 FLANGE THA 		0-28650-835-0 04 1 1403- ●
23 BOLT; GUARD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5200MM<52W> (A) M10X30 FLANGE THA 		0-28651-030-0 02 1 1403- ●
23 BOLT; GUARD
(A) M10X30 FLANGE THA 		0-28651-030-0 02 1 1403- ●
23 BOLT; GUARD
WHEEL BASE 5200MM<52W> (B) M8X35 FLANGE THA 		0-28050-835-0 02 1 1403- ●
23 BOLT; GUARD
WHEEL BASE 4700MM<47W> (B) M8X35 FLANGE THA 		0-28050-835-0 02 1 1403- ●
23 BOLT; GUARD
WHEEL BASE 5300MM<53W> (A) M10X30 FLANGE THA 		0-28651-030-0 03 1 1403- ●
23 BOLT; GUARD
WHEEL BASE 5300MM<53W> (A) M10X40 FLANGE THA 		0-28651-040-0 04 1 1403- ●
25 NUT; GUARD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5200MM<52W> (B) M8 FLANGE THA 		0-91180-108-0 04 1 1403- ●
25 NUT; GUARD
(B) M8 FLANGE THA 		0-91180-108-0 04 1 1403- ●
25 NUT; GUARD
WHEEL BASE 5300MM<53W> (A) M10 FLANGE THA 		0-91180-210-0 07 1 1403- ●

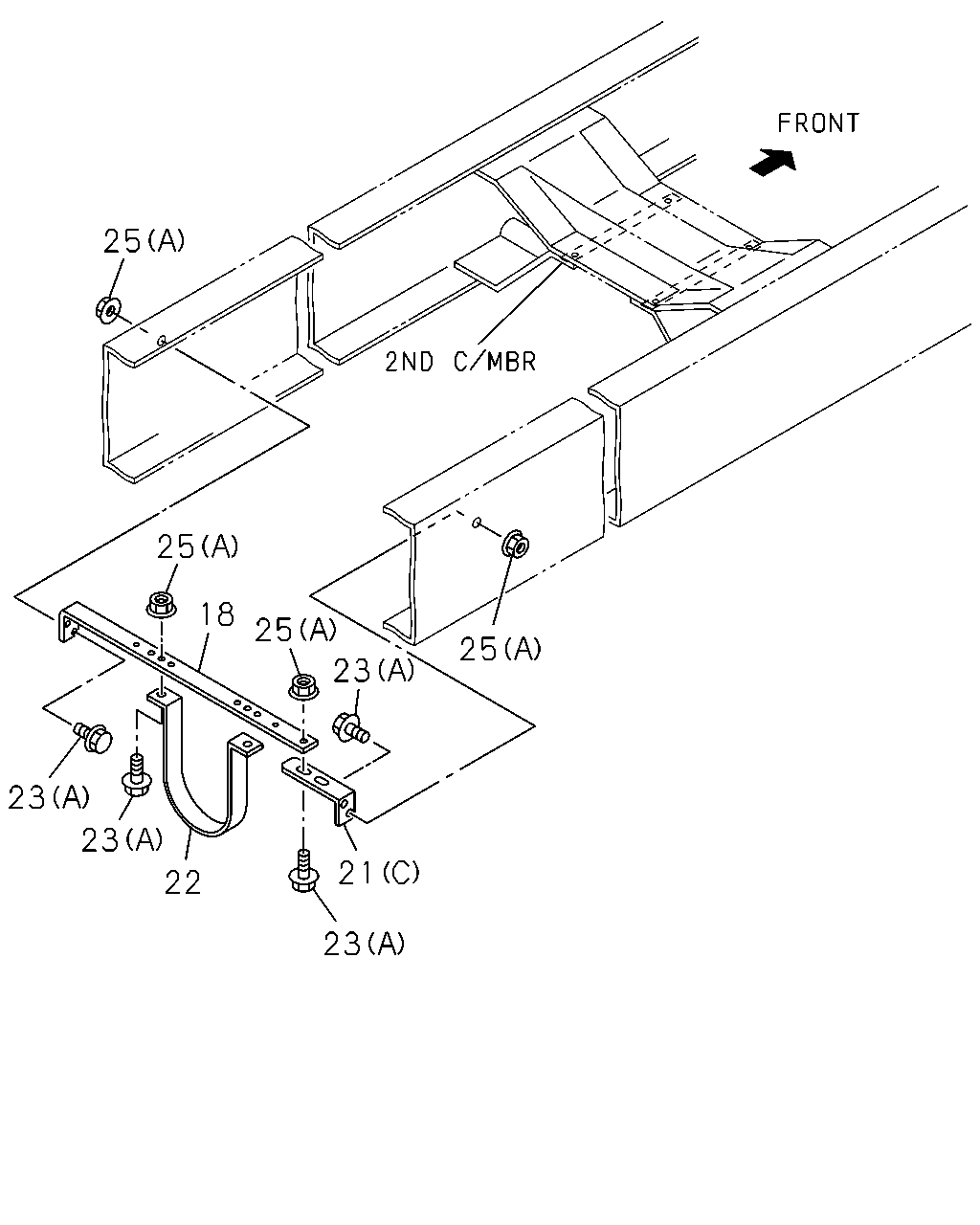

çizim 413579
25 25 18 25 23 25 23 23 22 21 23
BalonParca AdiParca NoAdetTipApplied Date A B
18 BRACKET; PROP SHAFT GUARD
WHEEL BASE 5300MM<53W> THA 		1-53279-249-0 01 1 1403- ●
21 BRACKET; PROP GUARD
WHEEL BASE 4700MM<47W> (A) 		1-53279-277-1 01 1 1403- ●
21 BRACKET; PROP GUARD
WHEEL BASE 5200MM<52W> (B) 		1-53279-274-0 01 1 1403- ●
21 BRACKET; PROP GUARD
WHEEL BASE 5300MM<53W> (C) 		1-53279-248-0 01 1 1403- ●
21 BRACKET; PROP GUARD
WHEEL BASE 4700MM<47W> (B) 		1-53279-267-3 01 1 1403- ●
22 GUARD; PROP SHAFT
WHEEL BASE 4700MM<47W> 		1-53279-270-0 01 1 1403- ●
22 GUARD; PROP SHAFT
WHEEL BASE 5200MM<52W> THA 		1-53279-166-0 01 1 1403- ●
22 GUARD; PROP SHAFT
WHEEL BASE 4700MM<47W> THA 		1-53279-166-0 01 1 1403- ●
22 GUARD; PROP SHAFT
WHEEL BASE 5300MM<53W> 		1-53279-262-0 01 1 1403- ●
23 BOLT; GUARD
WHEEL BASE 4700MM<47W> (B) M8X35 FLANGE THA 		0-28650-835-0 04 1 1403- ●
23 BOLT; GUARD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5200MM<52W> (A) M10X30 FLANGE THA 		0-28651-030-0 02 1 1403- ●
23 BOLT; GUARD
(A) M10X30 FLANGE THA 		0-28651-030-0 02 1 1403- ●
23 BOLT; GUARD
WHEEL BASE 5200MM<52W> (B) M8X35 FLANGE THA 		0-28050-835-0 02 1 1403- ●
23 BOLT; GUARD
WHEEL BASE 4700MM<47W> (B) M8X35 FLANGE THA 		0-28050-835-0 02 1 1403- ●
23 BOLT; GUARD
WHEEL BASE 5300MM<53W> (A) M10X30 FLANGE THA 		0-28651-030-0 03 1 1403- ●
23 BOLT; GUARD
WHEEL BASE 5300MM<53W> (A) M10X40 FLANGE THA 		0-28651-040-0 04 1 1403- ●
25 NUT; GUARD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5200MM<52W> (B) M8 FLANGE THA 		0-91180-108-0 04 1 1403- ●
25 NUT; GUARD
(B) M8 FLANGE THA 		0-91180-108-0 04 1 1403- ●
25 NUT; GUARD
WHEEL BASE 5300MM<53W> (A) M10 FLANGE THA 		0-91180-210-0 07 1 1403- ●
