Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11587 - FXZ/GXZ(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#136108) — 138 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀

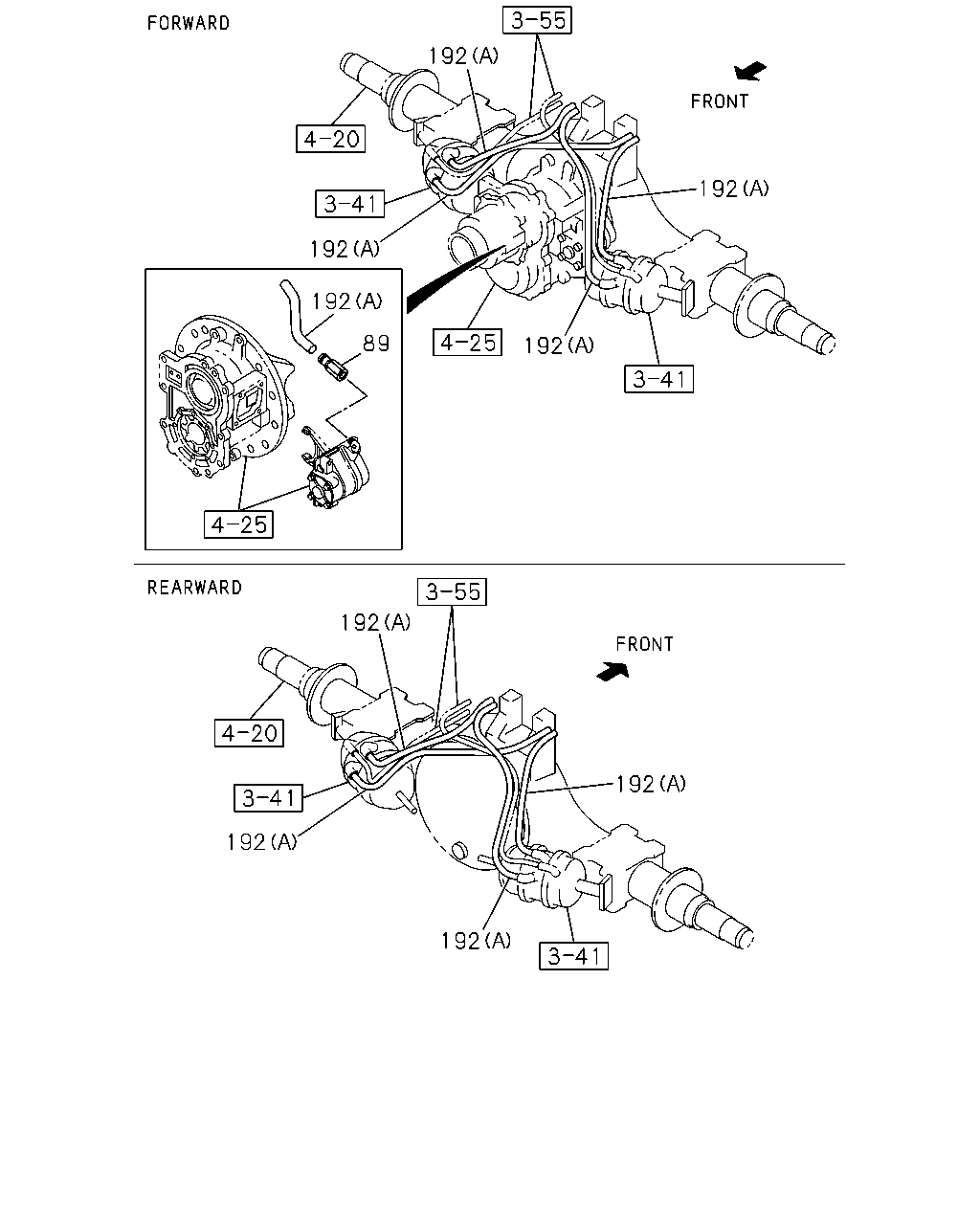

[377A] REAR AXLE SIDE (13 parça)

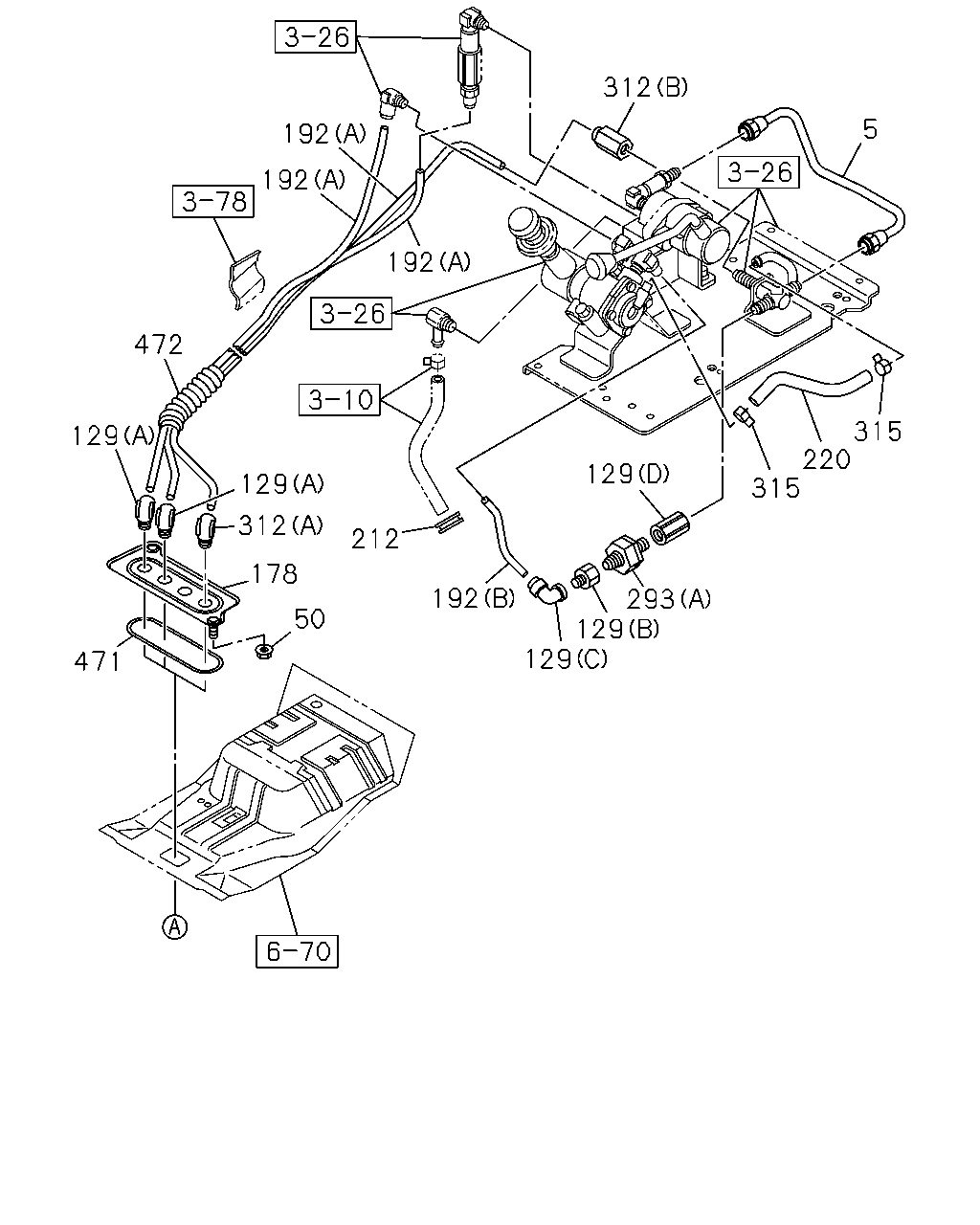

[377A] CAB SIDE;GXZ (32 parça)

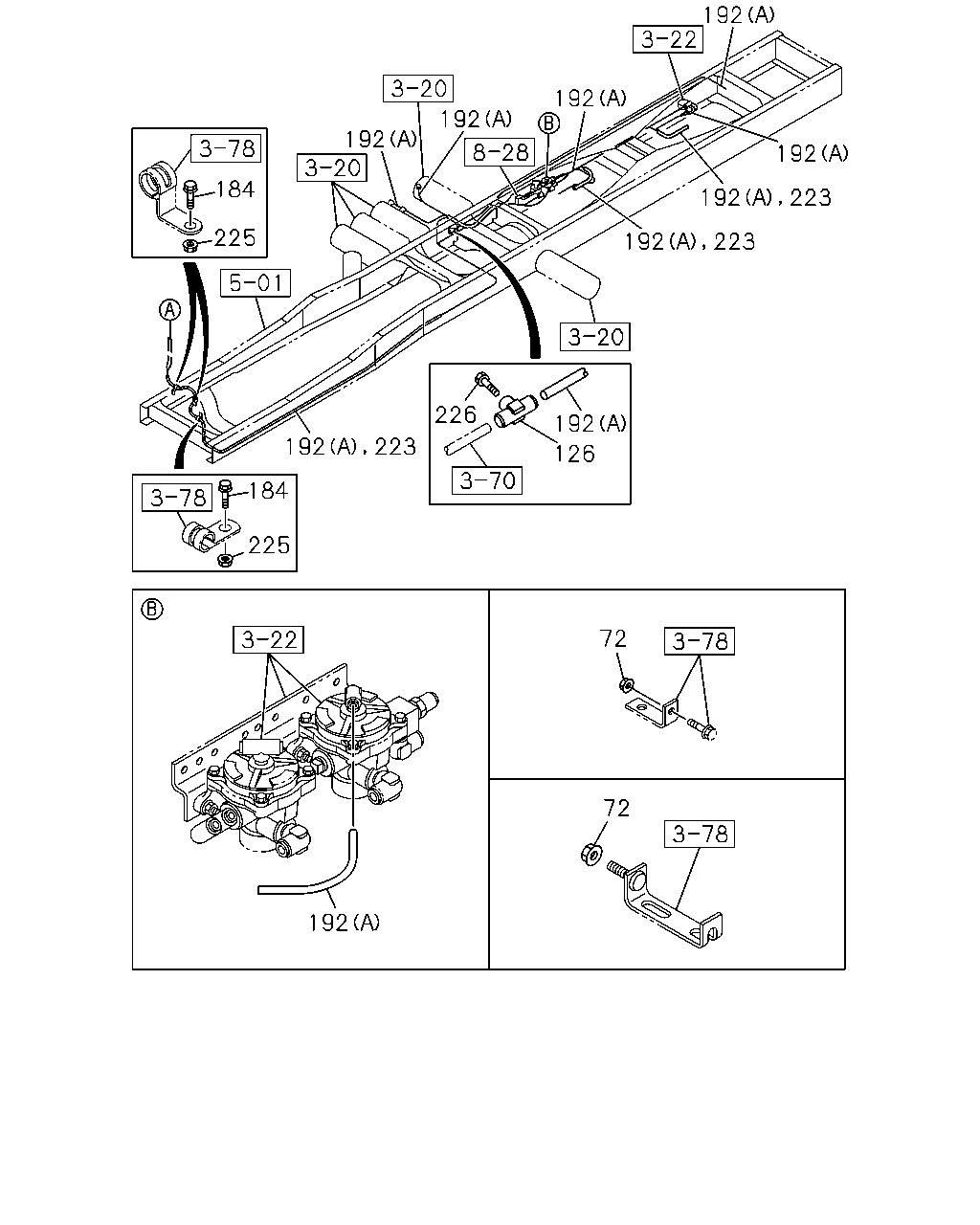

[377A] FRAME SIDE;FXZ (31 parça)

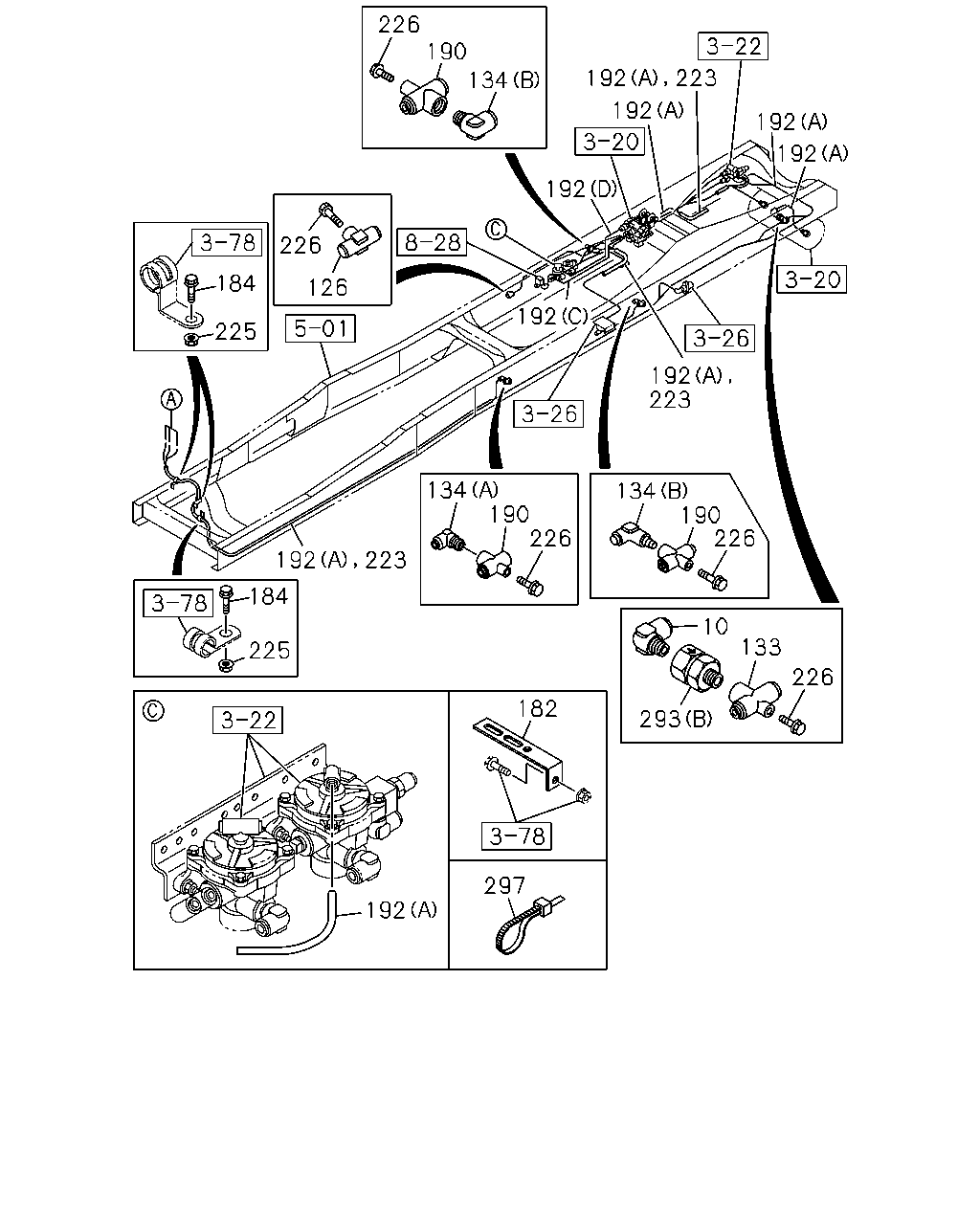

[377A] FRAME SIDE;GXZ (35 parça)

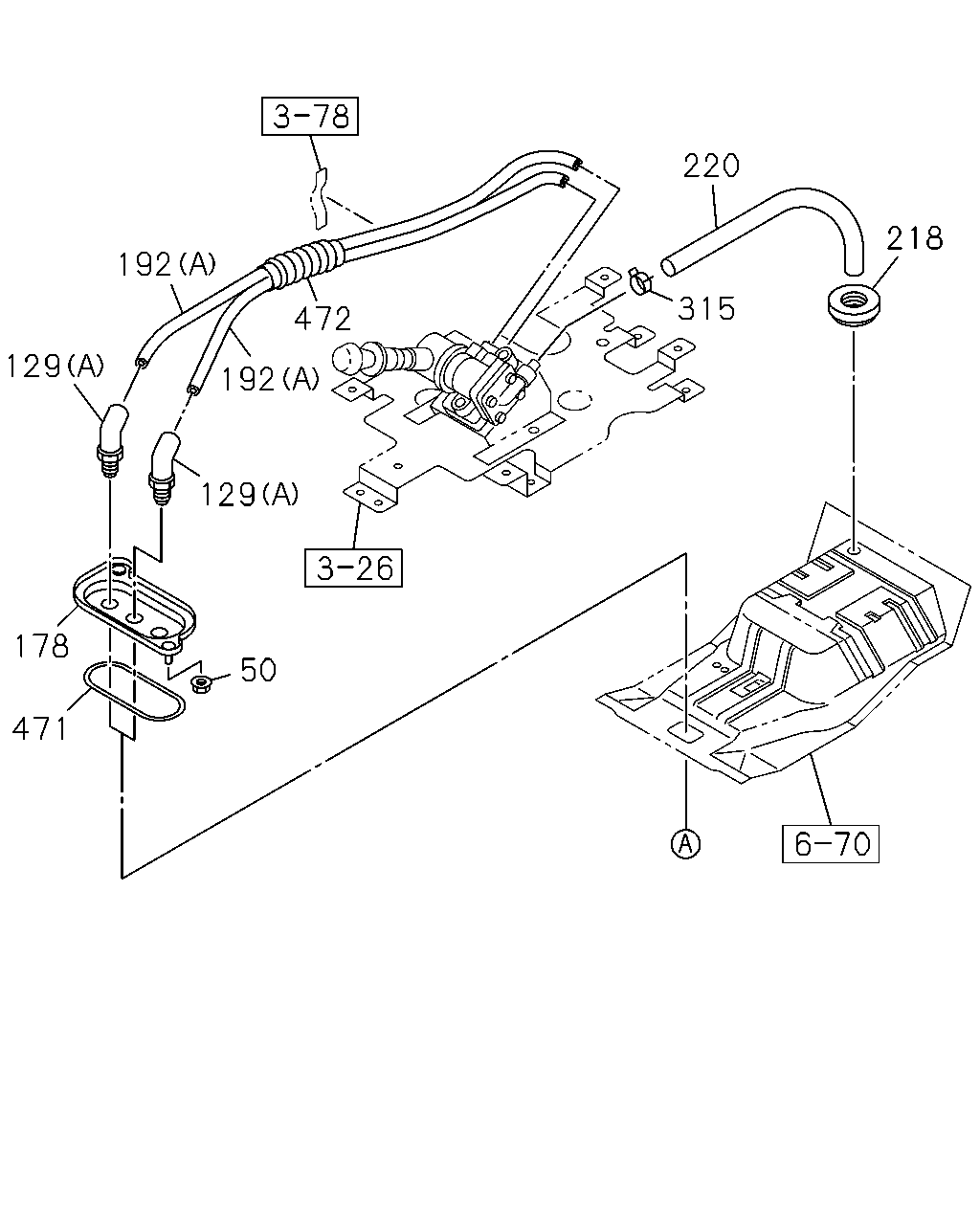

[377A] CAB SIDE;FXZ (27 parça)
▶
192
192
192
192
192
192
89
192
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
89
CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1403-
●
●
133
UNION; NIPPLE
DIN8 & DIN12 & R3/8 3WAY
1-09661-130-0
01
1
1403-
●
192
TUBE; NYLON
(B) THA
8-98017-537-0
01
1
1403-
●
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) THA
8-98109-852-0
01
1
1403-
●
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (D) THA
8-98122-535-0
01
1
1403-
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA
1-87411-008-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA
1-87411-009-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA
1-87411-010-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1403-
●
●
192
192
192
312
5
315
220
315
129
293
129
129
192
212
129
472
129
312
178
50
471
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
PIPE; AIR,UNION TO PARKING VLV
THA
8-97610-775-1
01
1
1403-
●
50
NUT; UNION BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1403-
●
●
129
CONNECTOR; NYLON TUBE
(A)
8-97611-963-1
02
1
1403-
●
●
129
CONNECTOR; NYLON TUBE
(D) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1403-
●
129
CONNECTOR; NYLON TUBE
(C)
8-97633-756-0
01
1
1403-
●
129
CONNECTOR; NYLON TUBE
(B)
8-97633-768-0
01
1
1403-
●
133
UNION; NIPPLE
DIN8 & DIN12 & R3/8 3WAY
1-09661-130-0
01
1
1403-
●
178
BRACKET; UNION
8-98017-054-1
01
1
1403-
●
178
BRACKET; UNION
8-98017-056-1
01
1
1403-
●
192
TUBE; NYLON
(B) THA
8-98017-537-0
01
1
1403-
●
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) THA
8-98109-852-0
01
1
1403-
●
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (D) THA
8-98122-535-0
01
1
1403-
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA
1-87411-008-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA
1-87411-009-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA
1-87411-010-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1403-
●
●
212
GROMMET; AIR PIPE
OD=24
9-61166-007-0
01
1
1403-
●
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1403-
●
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=220 SERVICED BY L=10000
9-09914-701-0
01
1
1403-
●
293
VALVE; CHECK
(B)
1-48320-013-2
01
1
1403-
●
293
VALVE; CHECK
(A)
1-48410-479-1
01
1
1403-
●
312
CONNECTOR; SUPPLY
(B) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
1403-
●
312
CONNECTOR; SUPPLY
(A)
8-97611-963-1
01
1
1403-
●
315
CLIP
ID=14
8-94238-572-0
01
1
1403-
●
315
CLIP
ID=14
8-94238-572-0
02
1
1403-
●
471
SEAL; BRKT
1-79738-832-0
01
1
1403-
●
●
472
TUBE; SPUTTER
THA
8-98108-051-0
01
1
1403-
●
472
TUBE; SPUTTER
THA
8-98108-051-0
02
1
1403-
●
192
192
192
192
192
223
192
223
192
192
126
226
184
225
223
192
184
225
192
72
72
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
72
NUT; BRKT
WHEEL BASE 5200MM<52W> M8 FLANGE THA
0-91180-108-0
01
1
1403-
●
72
NUT; BRKT
WHEEL BASE 5300MM<53W> M8 FLANGE THA
0-91180-108-0
02
1
1403-
●
72
NUT; BRKT
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> M8 FLANGE THA
0-91180-108-0
02
1
1403-
●
72
NUT; BRKT
WHEEL BASE 4700MM<47W> M8 FLANGE THA
0-91180-108-0
02
1
1403-
●
72
NUT; BRKT
M8 FLANGE THA
0-91180-108-0
05
1
1403-
●
126
UNION; NYLON TUBE
WHEEL BASE 4700MM<47W>
1-09661-128-0
01
1
1403-
●
●
133
UNION; NIPPLE
DIN8 & DIN12 & R3/8 3WAY
1-09661-130-0
01
1
1403-
●
184
BOLT; TUBE CLIP
M8X25 FLANGE THA
0-28650-825-0
03
1
1403-
●
●
192
TUBE; NYLON
(B) THA
8-98017-537-0
01
1
1403-
●
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) THA
8-98109-852-0
01
1
1403-
●
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (D) THA
8-98122-535-0
01
1
1403-
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA
1-87411-008-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA
1-87411-009-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA
1-87411-010-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1403-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA
1-87411-019-0
AR
1
1403-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA
1-87411-022-0
AR
1
1403-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=15 THA
1-87411-026-0
AR
1
1403-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 THA
1-87411-028-0
AR
1
1403-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA
1-87411-031-0
AR
1
1403-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA
1-87411-033-0
AR
1
1403-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=6000 ID=19 THA
1-87411-303-0
AR
1
1403-
●
●
225
NUT; TUBE CLIP
M8 FLANGE THA
0-91180-108-0
03
1
1403-
●
●
226
BOLT; UNION
WHEEL BASE 4700MM<47W> M8X20 FLANGE THA
0-28650-820-0
01
1
1403-
●
●
226
BOLT; UNION
EXC. AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE THA
0-28650-820-0
01
1
1403-
●
226
BOLT; UNION
M8X20 FLANGE THA
0-28650-820-0
02
1
1403-
●
226
BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE THA
0-28650-820-0
02
1
1403-
●
226
134
190
226
184
225
126
192
192
192
223
192
192
192
223
192
134
190
226
10
33
226
293
182
297
192
225
184
223
192
134
226
190
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
CONNECTOR; FLEX HOSE
DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1403-
●
126
UNION; NYLON TUBE
WHEEL BASE 4700MM<47W>
1-09661-128-0
01
1
1403-
●
●
133
UNION; NIPPLE
DIN8 & DIN12 & R3/8 3WAY
1-09661-130-0
01
1
1403-
●
134
CONNECTOR
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
1403-
●
134
CONNECTOR
AIR SUSP DRIVER SEAT<A56> (A) DIN6 & R3/8 ELBOW
1-09661-234-0
01
1
1403-
●
182
BRACKET; TUBE CLIP
L=100 H=30
1-47477-645-2
01
1
1403-
●
184
BOLT; TUBE CLIP
M8X25 FLANGE THA
0-28650-825-0
03
1
1403-
●
●
190
UNION; 3 WAY
DIN8 & RC3/8 3WAY
1-09661-129-0
02
1
1403-
●
190
UNION; 3 WAY
AIR SUSP DRIVER SEAT<A56> DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
1403-
●
192
TUBE; NYLON
(B) THA
8-98017-537-0
01
1
1403-
●
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) THA
8-98109-852-0
01
1
1403-
●
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (D) THA
8-98122-535-0
01
1
1403-
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA
1-87411-008-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA
1-87411-009-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA
1-87411-010-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1403-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA
1-87411-019-0
AR
1
1403-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA
1-87411-022-0
AR
1
1403-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=15 THA
1-87411-026-0
AR
1
1403-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 THA
1-87411-028-0
AR
1
1403-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA
1-87411-031-0
AR
1
1403-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 THA
1-87411-033-0
AR
1
1403-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=6000 ID=19 THA
1-87411-303-0
AR
1
1403-
●
●
225
NUT; TUBE CLIP
M8 FLANGE THA
0-91180-108-0
03
1
1403-
●
●
226
BOLT; UNION
WHEEL BASE 4700MM<47W> M8X20 FLANGE THA
0-28650-820-0
01
1
1403-
●
●
226
BOLT; UNION
EXC. AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE THA
0-28650-820-0
01
1
1403-
●
226
BOLT; UNION
M8X20 FLANGE THA
0-28650-820-0
02
1
1403-
●
226
BOLT; UNION
AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE THA
0-28650-820-0
02
1
1403-
●
293
VALVE; CHECK
(B)
1-48320-013-2
01
1
1403-
●
293
VALVE; CHECK
(A)
1-48410-479-1
01
1
1403-
●
297
CLIP; BAND
L=350
1-09707-183-0
01
1
1403-
●
192
472
192
129
129
178
471
50
315
220
218
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
50
NUT; UNION BRKT
M8 FLANGE THA
0-91180-108-0
02
1
1403-
●
●
129
CONNECTOR; NYLON TUBE
(A)
8-97611-963-1
02
1
1403-
●
●
129
CONNECTOR; NYLON TUBE
(D) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
1403-
●
129
CONNECTOR; NYLON TUBE
(C)
8-97633-756-0
01
1
1403-
●
129
CONNECTOR; NYLON TUBE
(B)
8-97633-768-0
01
1
1403-
●
133
UNION; NIPPLE
DIN8 & DIN12 & R3/8 3WAY
1-09661-130-0
01
1
1403-
●
178
BRACKET; UNION
8-98017-054-1
01
1
1403-
●
178
BRACKET; UNION
8-98017-056-1
01
1
1403-
●
192
TUBE; NYLON
(B) THA
8-98017-537-0
01
1
1403-
●
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) THA
8-98109-852-0
01
1
1403-
●
192
TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (D) THA
8-98122-535-0
01
1
1403-
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=6
1-87411-003-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 THA
1-87411-006-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 THA
1-87411-007-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 THA
1-87411-008-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 THA
1-87411-009-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 THA
1-87411-010-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 THA
1-87411-011-0
AR
1
1403-
●
●
192
TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 THA
1-87411-012-0
AR
1
1403-
●
●
218
GROMMET; VINYL HOSE
OD=24
9-61166-007-0
01
1
1403-
●
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1403-
●
220
HOSE; VINYL,EXH,PARKING BRK VLV
L=220 SERVICED BY L=10000
9-09914-701-0
01
1
1403-
●
315
CLIP
ID=14
8-94238-572-0
01
1
1403-
●
315
CLIP
ID=14
8-94238-572-0
02
1
1403-
●
471
SEAL; BRKT
1-79738-832-0
01
1
1403-
●
●
472
TUBE; SPUTTER
THA
8-98108-051-0
01
1
1403-
●
472
TUBE; SPUTTER
THA
8-98108-051-0
02
1
1403-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
