◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11587 - FXZ/GXZ(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#136107) — 87 parça
çizim 413342
159 159 159 98 178 98 15 150 149 51 35 29 30 31 28 32 35 122
BalonParca AdiParca NoAdetTipApplied Date A B
15 CONNECTOR; AIR PIPE
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1403- ● ●
28 NIPPLE; AIR PIPE 1-09654-128-1 02 1 1403- ● ●
29 NUT; NIPPLE
M20 		0-91111-520-0 02 1 1403- ● ●
30 WASHER; LK,NIPPLE
ID=20.2 		0-91510-520-0 02 1 1403- ● ●
31 BRACKET; NIPPLE 8-98094-074-0 01 1 1403- ● ●
31 BRACKET; NIPPLE 8-98094-075-0 01 1 1403- ● ●
32 HOSE; FLEX,FRT
L=430 		0-57847-430-1 02 1 1403- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 1403- ● ●
51 GROMMET; NYLON TUBE
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1403- ●
51 GROMMET; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=28 OD=35 T=25 		1-09332-011-1 01 1 1403- ●
51 GROMMET; NYLON TUBE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1403- ●
51 GROMMET; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=28 OD=35 T=17 		9-09956-256-2 01 1 1403- ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 1403- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1403- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 1403- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1403- ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1403- ● ●
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 1403- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1403- ● ●
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-1 02 1 1403- ● ●
149 BOLT; UNION
M8X20 FLANGE THA 		0-28650-820-0 01 1 1403- ●
149 BOLT; UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X20 FLANGE THA 		0-28650-820-0 01 1 1403- ●
149 BOLT; UNION
M8X25 FLANGE THA 		0-28650-825-0 01 1 1403- ●
149 BOLT; UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA 		0-28650-825-0 01 1 1403- ●
150 ADAPTER; CONT,NEUTRAL BUS STOP
DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1403- ● ●
159 CLIP; NYLON TUBE
WHEEL BASE 4700MM<47W> (C) L=350 		1-09707-183-0 23 1 1403- ●
159 CLIP; NYLON TUBE
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) L=350 		1-09707-183-0 23 1 1403- ●
159 CLIP; NYLON TUBE
WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (C) L=350 		1-09707-183-0 25 1 1403- ●
159 CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> (C) L=350 		1-09707-183-0 25 1 1403- ●
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 02 1 1403- ● ●
159 CLIP; NYLON TUBE
(B) ID=26 L=26 		1-09701-236-0 01 1 1403- ● ●
159 CLIP; NYLON TUBE
(B) ID=29 L=35 		5-09700-293-1 01 1 1403- ● ●
159 CLIP; NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 01 1 1403- ● ●
178 UNION 1-09661-128-0 02 1 1403- ●
178 UNION
EXC. ANTILOCK BRAKE SYSTEM<BFA> 		1-09661-128-0 02 1 1403- ●

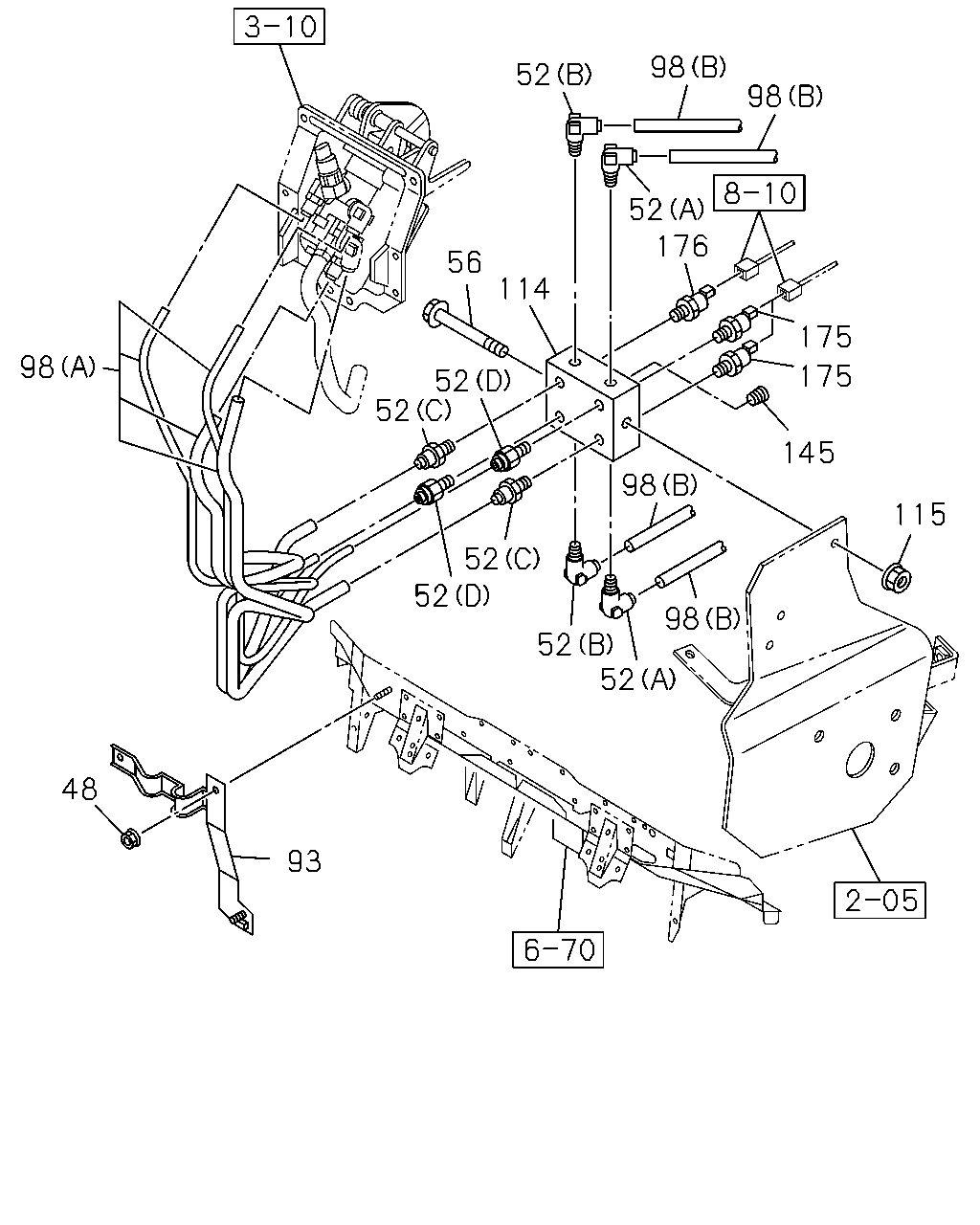

çizim 413357
93 48 98 56 52 52 114 52 52 52 98 98 52 176 175 175 145 115 98 98 52 52
BalonParca AdiParca NoAdetTipApplied Date A B
48 NUT; UNION BRKT
M6 FLANGE THA 		0-91180-106-0 02 1 1403- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 1403- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 1403- ● ●
52 CONNECTOR; NYLON TUBE
(D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 1403- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 1403- ● ●
56 BOLT; UNION BRKT
M8X100 FLANGE THA 		0-28050-800-0 01 1 1403- ● ●
93 BRACKET; UNION,TUBE
THA 		8-98186-924-0 01 1 1403- ● ●
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 1403- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1403- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 1403- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1403- ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1403- ● ●
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 1403- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1403- ● ●
114 UNION; NYLON TUBE 8-98057-394-1 01 1 1403- ● ●
115 NUT; TUBE UNION
MJT7U M/T<Y4X> M8 FLANGE THA 		0-91180-108-0 02 1 1403- ●
115 NUT; TUBE UNION
M8 FLANGE THA 		0-91180-108-0 01 1 1403- ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 1403- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 1403- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 1403- ● ●

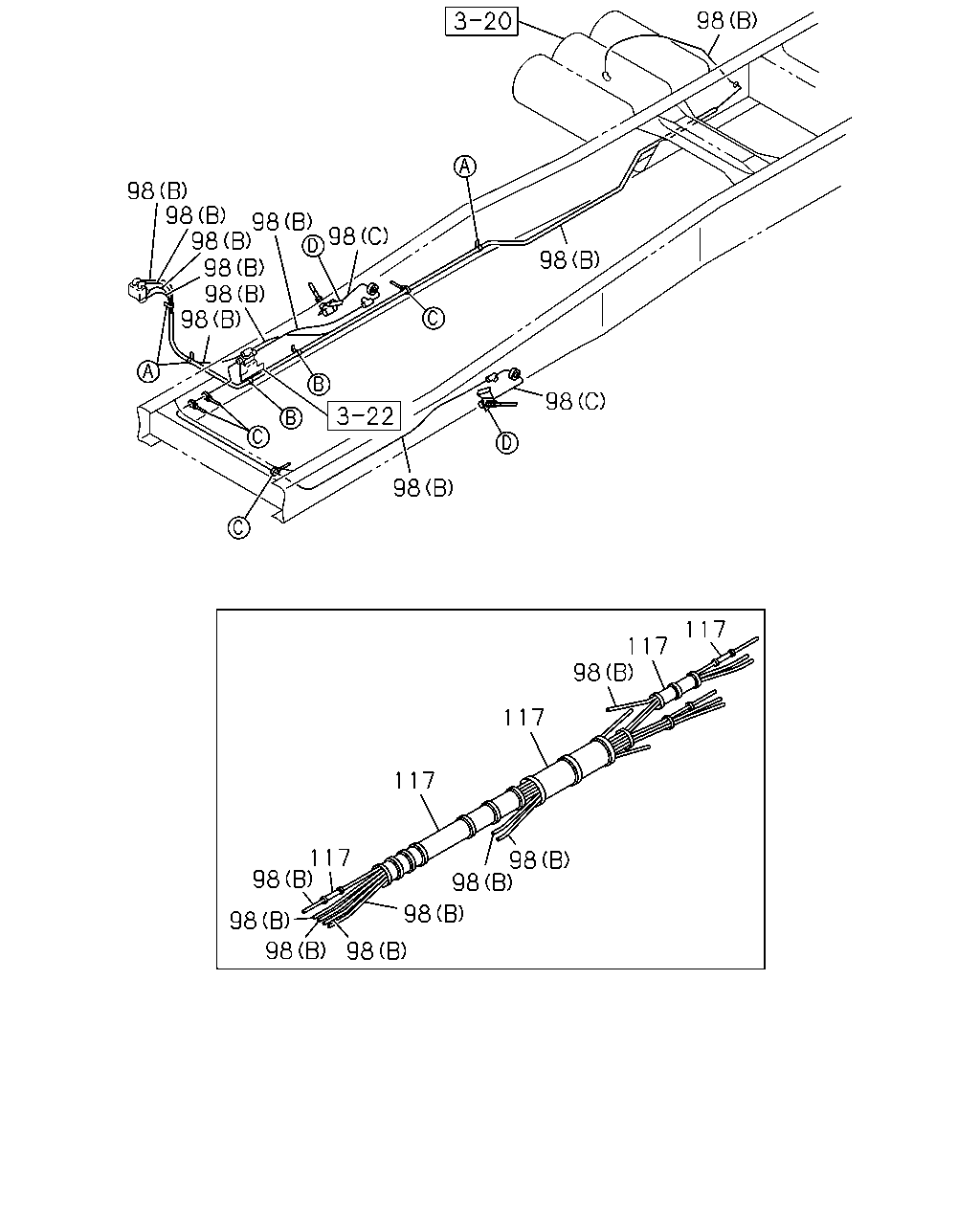

çizim 413360
98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 117 117 117 117 117
BalonParca AdiParca NoAdetTipApplied Date A B
98 TUBE; NYLON
(C) THA 		8-98086-217-0 01 1 1403- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98086-217-0 01 1 1403- ●
98 TUBE; NYLON
(C) THA 		8-98106-552-0 01 1 1403- ●
98 TUBE; NYLON
EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) THA 		8-98106-552-0 01 1 1403- ●
98 TUBE; NYLON
(A) THA 		8-98091-307-0 01 1 1403- ● ●
98 TUBE; NYLON
ANTILOCK BRAKE SYSTEM<BFA> (C) L=170 OD=12 THA 		1-49222-063-0 02 1 1403- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 THA 		1-87411-002-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 THA 		1-87411-008-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 THA 		1-87411-009-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 THA 		1-87411-010-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 THA 		1-87411-011-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 THA 		1-87411-012-0 AR 1 1403- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 THA 		1-87411-013-0 AR 1 1403- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 THA 		1-87411-019-0 AR 1 1403- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 THA 		1-87411-022-0 AR 1 1403- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=13 THA 		1-87411-023-0 AR 1 1403- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1403- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 THA 		1-87411-027-0 AR 1 1403- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 THA 		1-87411-029-0 AR 1 1403- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 THA 		1-87411-031-0 AR 1 1403- ● ●
