3-01 — FRONT WHEEL BRAKE (#136094) — 68 parça
çizim 413303
271 271 305 271 279 23 282 264 29 275 278 294 306 304 121 279 271 23 282
BalonParca AdiParca NoAdetTipApplied Date A B
23 SPRING; COIL
THA 		1-47629-196-0 04 1 1403- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) THA 		1-09583-365-1 02 1 1403- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) THA 		1-47649-041-0 02 1 1403- ● ●
121 SCREW; LK SPR FRT WHEEL CYL
THA 		1-47619-149-1 04 1 1403- ● ●
264 RING; SNAP,SPR PIN
THA 		1-47649-034-1 02 1 1403- ● ●
271 CLIP; ADJ
THA 		1-47621-017-0 04 1 1403- ● ●
275 RING; RETAINER
THA 		1-47649-031-0 02 1 1403- ● ●
278 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1403- ● ●
279 CAGE; SPRING
THA 		1-47629-192-0 04 1 1403- ● ●
282 RING; DRIVE
THA 		1-47629-200-0 04 1 1403- ● ●
294 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1403- ● ●
304 REPAIR KIT; EXPANDER
THA 		1-85576-403-0 02 1 1403- ● ●
305 REPAIR KIT; BOOT,EXPANDER
THA 		1-85576-404-0 02 1 1403- ● ●
306 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1403- ● ●

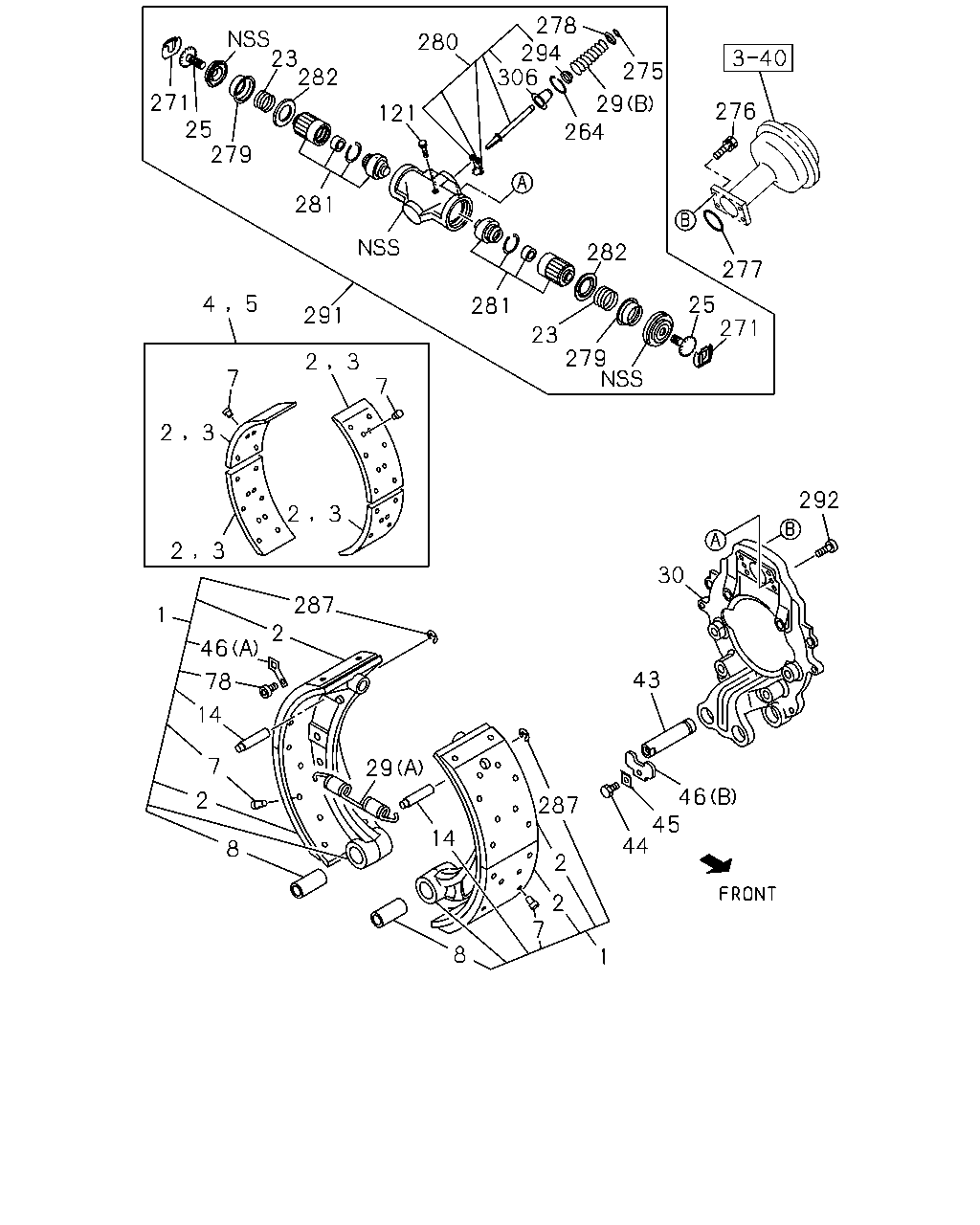

çizim 413678
1 2 3 2 3 2 7 4 5 291 2 3 7 3 287 2 46 78 14 7 2 8 29 14 8 7 1 2 2 287 44 45 46 43 30 292 279 23 281 281 279 25 271 23 282 121 280 306 294 278 264 29 275 282 25 271 277 276
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> LEADING THA 		1-47170-320-0 01 1 1403- ●
1 SHOE; BRK,FRT
LEADING THA 		1-47170-320-0 01 1 1403- ●
1 SHOE; BRK,FRT
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> TRAILING THA 		1-47170-321-0 01 1 1403- ●
1 SHOE; BRK,FRT
TRAILING THA 		1-47170-321-0 01 1 1403- ●
1 SHOE; BRK,FRT
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> LEADING THA 		1-47170-322-0 01 1 1403- ●
1 SHOE; BRK,FRT
LEADING THA 		1-47170-322-0 01 1 1403- ●
1 SHOE; BRK,FRT
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> TRAILING THA 		1-47170-323-0 01 1 1403- ●
1 SHOE; BRK,FRT
TRAILING THA 		1-47170-323-0 01 1 1403- ●
1 SHOE; BRK,FRT
WHEEL BASE 5200MM<52W> LEADING THA 		1-47170-316-0 01 1 1403- ●
1 SHOE; BRK,FRT
WHEEL BASE 5200MM<52W> TRAILING THA 		1-47170-317-0 01 1 1403- ●
1 SHOE; BRK,FRT
WHEEL BASE 5200MM<52W> LEADING THA 		1-47170-318-0 01 1 1403- ●
1 SHOE; BRK,FRT
WHEEL BASE 5200MM<52W> TRAILING THA 		1-47170-319-0 01 1 1403- ●
2 LINING; FRT BRK SHOE,STANDARD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA 		1-47126-700-0 08 1 1403- ●
2 LINING; FRT BRK SHOE,STANDARD
THA 		1-47126-700-0 08 1 1403- ●
2 LINING; FRT BRK SHOE,STANDARD
WHEEL BASE 5200MM<52W> THA 		1-47126-698-0 08 1 1403- ●
3 LINING; FRT BRK SHOE,OVER SIZE
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> THA 		1-47126-701-0 08 1 1403- ●
3 LINING; FRT BRK SHOE,OVER SIZE
THA 		1-47126-701-0 08 1 1403- ●
3 LINING; FRT BRK SHOE,OVER SIZE
WHEEL BASE 5200MM<52W> THA 		1-47126-699-0 08 1 1403- ●
4 LINING SET; FRT BRK,STANDARD
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 		1-88311-316-0 02 1 1403- ●
4 LINING SET; FRT BRK,STANDARD 1-88311-316-0 02 1 1403- ●
4 LINING SET; FRT BRK,STANDARD
WHEEL BASE 5200MM<52W> 		1-88311-314-0 02 1 1403- ●
5 LINING SET; FRT BRK,OVER SIZE
WHEEL BASE 4700MM<47W>,WHEEL BASE 5300MM<53W> 		1-88311-317-0 02 1 1403- ●
5 LINING SET; FRT BRK,OVER SIZE 1-88311-317-0 02 1 1403- ●
5 LINING SET; FRT BRK,OVER SIZE
WHEEL BASE 5200MM<52W> 		1-88311-315-0 02 1 1403- ●
7 RIVET; LINING,FRT BRK
L=15.5 THA 		1-09732-053-0 80 1 1403- ● ●
8 BUSHING; BRK SHOE
THA 		1-47112-020-0 04 1 1403- ● ●
14 PIN; SHOE RETURN SPR
THA 		1-47119-177-1 04 1 1403- ● ●
23 SPRING; COIL
THA 		1-47629-196-0 04 1 1403- ● ●
25 SCREW; ADJ,FRT WHEEL CYL
THA 		1-47623-035-2 04 1 1403- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(A) THA 		1-09583-365-1 02 1 1403- ● ●
29 SPRING; RETURN,FRT BRK SHOE
(B) THA 		1-47649-041-0 02 1 1403- ● ●
30 BRACKET; ANCHOR,FRT
THA 		8-98091-252-0 02 1 1403- ● ●
43 PIN; ANCHOR
L=115.5 THA 		1-47131-044-0 04 1 1403- ● ●
44 BOLT; LOCK,ANCHOR PIN
M10X16 THA 		1-47139-173-0 02 1 1403- ● ●
45 WASHER; LK
THA 		1-47133-011-0 02 1 1403- ● ●
46 PLATE; LOCK
(A) THA 		1-47119-152-0 04 1 1403- ● ●
46 PLATE; LOCK
(B) THA 		1-47133-010-0 02 1 1403- ● ●
78 BOLT; LK,PLATE
THA 		1-47119-153-0 04 1 1403- ● ●
121 SCREW; LK SPR FRT WHEEL CYL
THA 		1-47619-149-1 04 1 1403- ● ●
264 RING; SNAP,SPR PIN
THA 		1-47649-034-1 02 1 1403- ● ●
271 CLIP; ADJ
THA 		1-47621-017-0 04 1 1403- ● ●
275 RING; RETAINER
THA 		1-47649-031-0 02 1 1403- ● ●
276 BOLT; CHAMBER
M10X42.5 THA 		1-47139-163-0 08 1 1403- ● ●
277 RING; CHAMBER
THA 		1-48259-231-0 02 1 1403- ● ●
278 RETAINER; SPRING
THA 		1-47649-020-0 02 1 1403- ● ●
279 CAGE; SPRING
THA 		1-47629-192-0 04 1 1403- ● ●
280 WEDGE; FRT WHEEL CYL
THA 		1-47640-012-0 02 1 1403- ● ●
281 SLEEVE
THA 		1-47629-247-1 04 1 1403- ● ●
282 RING; DRIVE
THA 		1-47629-200-0 04 1 1403- ● ●
287 RING; SNAP
ID=10 		0-91805-510-0 08 1 1403- ● ●
291 EXPANDER
THA 		1-47601-087-0 02 1 1403- ● ●
292 BOLT; EXPANDER
THA 		1-47634-008-0 04 1 1403- ● ●
294 BOOT; WEDGE
THA 		1-47649-042-0 02 1 1403- ● ●
306 CAP; EXPANDER
THA 		1-47649-044-0 02 1 1403- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
