Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11587 - FXZ/GXZ(THAI)EURO3
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶

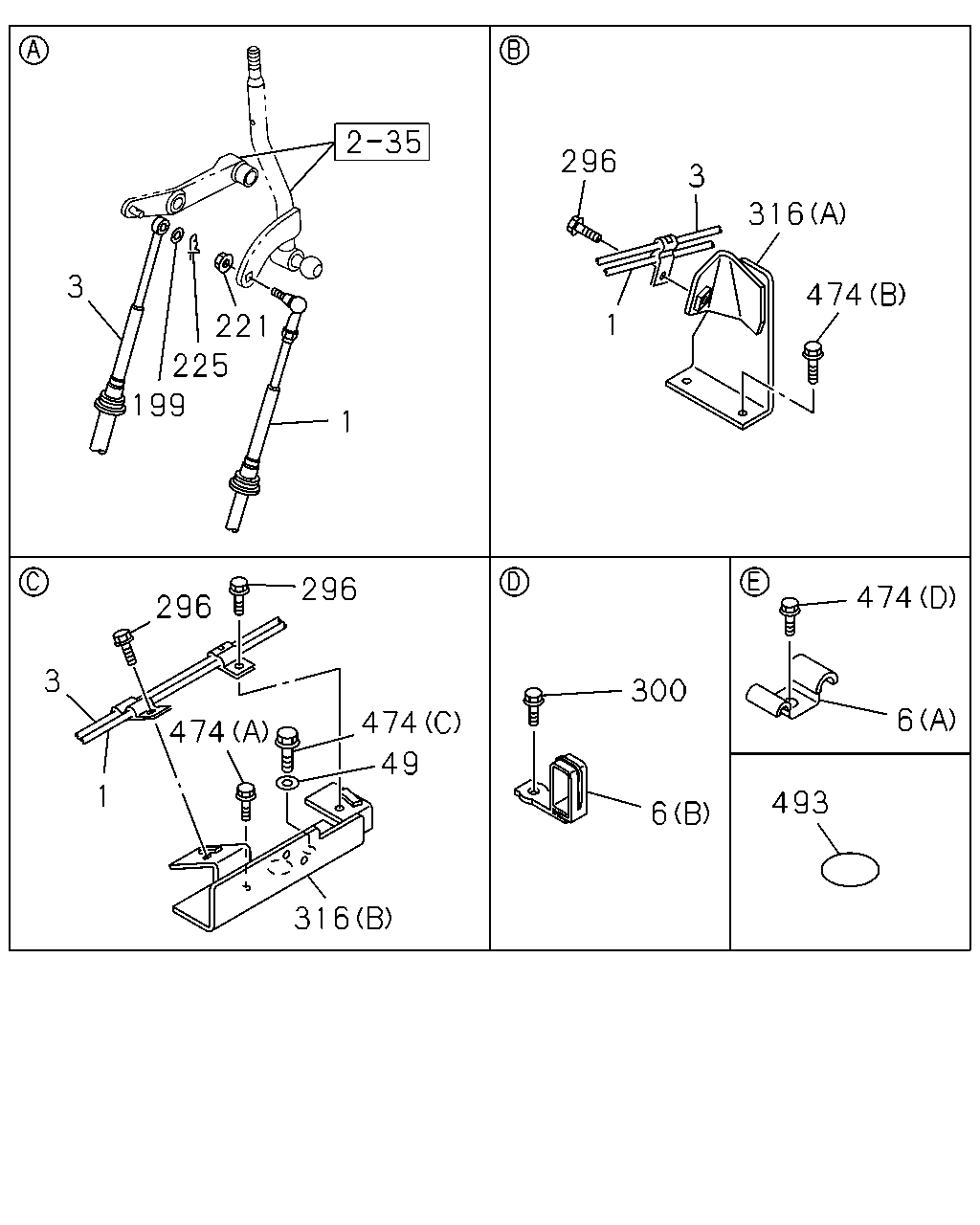

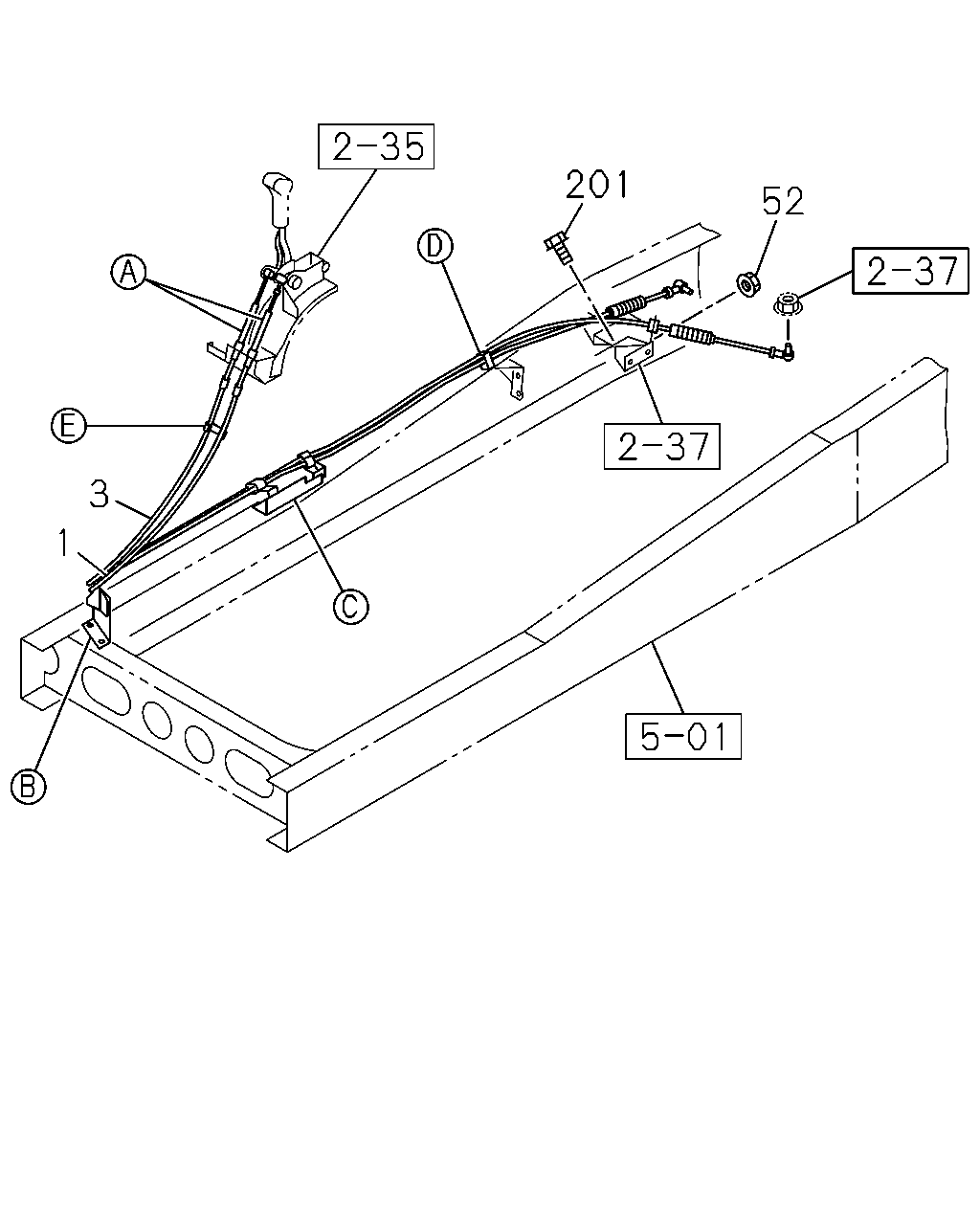

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#136086) — 38 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀
[236A] NO.2 (25 parça)
[236A] NO.1 (13 parça)
▶
3
221
225
1
199
1
3
296
316
474
474
6
493
6
300
49
474
474
316
296
296
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CABLE; SHIFT,TRANS CONT
MAL6R M/T<Y2J> L=3130 THA
8-98246-042-0
01
1
1403-1505
●
1
CABLE; SHIFT,TRANS CONT
MAL6R M/T<Y2J> L=3130 THA
8-98054-892-2
01
1
1506-
●
1
CABLE; SHIFT,TRANS CONT
MJT7U M/T<Y4X> L=3201 THA
8-98246-044-0
01
1
1403-1505
●
1
CABLE; SHIFT,TRANS CONT
MJT7U M/T<Y4X> L=3201 THA
8-98123-232-0
01
1
1506-
●
1
CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T<Y5K> L=3205 THA
8-98246-040-0
01
1
1403-1505
●
●
1
CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T<Y5K> L=3205
8-98054-888-2
01
1
1506-
●
●
3
CABLE; SELECT,TRANS CONT
MAL6R M/T<Y2J> L=3150 THA
8-98054-898-3
01
1
1403-
●
3
CABLE; SELECT,TRANS CONT
MJT7U M/T<Y4X> L=3223 THA
8-98123-234-0
01
1
1403-
●
3
CABLE; SELECT,TRANS CONT
ZF9S1310 M/T<Y5K> L=3105 THA
8-98054-894-3
01
1
1403-
●
●
6
CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
1403-
●
●
6
CLIP; CABLE
(B) ID=10 & 10 M8
1-09701-220-0
01
1
1403-
●
●
49
WASHER; LK
ID=14.2
0-91510-614-0
01
1
1403-
●
●
199
WASHER; PL,SELECT
ID=8.4 OD=16
0-91614-508-0
01
1
1403-
●
●
221
NUT; SHIFT WIRE TO LEVER
M8 FLANGE
1-09440-062-1
01
1
1403-
●
●
225
PIN; SELECT CABLE
L=27.7
8-94111-137-0
01
1
1403-
●
●
296
BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE THA
0-28050-820-0
03
1
1403-
●
●
300
BOLT; CLIP
M8X20 FLANGE THA
0-28050-820-0
01
1
1403-
●
●
316
BRACKET; CLIP
(A)
8-98055-446-1
01
1
1403-
●
●
316
BRACKET; CLIP
(B)
8-98056-946-0
01
1
1403-1412
●
●
316
BRACKET; CLIP
(B)
8-98294-156-0
01
1
1501-
●
●
474
BOLT; BRKT
(A) M14X45
0-20801-445-0
01
1
1403-
●
●
474
BOLT; BRKT
(B) M8X20 FLANGE THA
0-28050-820-0
02
1
1403-
●
●
474
BOLT; BRKT
(C) M8X30 FLANGE THA
0-28050-830-0
01
1
1403-
●
●
474
BOLT; BRKT
(D) M8X25 W/WASHER
0-51640-825-0
01
1
1403-
●
●
493
SEAL; CABLE
OD=36 T=0.05 BLACK
5-76777-035-0
01
1
1403-
●
●
201
52
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CABLE; SHIFT,TRANS CONT
MAL6R M/T<Y2J> L=3130 THA
8-98246-042-0
01
1
1403-1505
●
1
CABLE; SHIFT,TRANS CONT
MAL6R M/T<Y2J> L=3130 THA
8-98054-892-2
01
1
1506-
●
1
CABLE; SHIFT,TRANS CONT
MJT7U M/T<Y4X> L=3201 THA
8-98246-044-0
01
1
1403-1505
●
1
CABLE; SHIFT,TRANS CONT
MJT7U M/T<Y4X> L=3201 THA
8-98123-232-0
01
1
1506-
●
1
CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T<Y5K> L=3205 THA
8-98246-040-0
01
1
1403-1505
●
●
1
CABLE; SHIFT,TRANS CONT
ZF9S1310 M/T<Y5K> L=3205
8-98054-888-2
01
1
1506-
●
●
3
CABLE; SELECT,TRANS CONT
MAL6R M/T<Y2J> L=3150 THA
8-98054-898-3
01
1
1403-
●
3
CABLE; SELECT,TRANS CONT
MJT7U M/T<Y4X> L=3223 THA
8-98123-234-0
01
1
1403-
●
3
CABLE; SELECT,TRANS CONT
ZF9S1310 M/T<Y5K> L=3105 THA
8-98054-894-3
01
1
1403-
●
●
52
NUT; BRKT
MJT7U M/T<Y4X> M10 FLANGE THA
0-91180-210-0
02
1
1403-
●
201
BOLT; BRKT
MAL6R M/T<Y2J> M8X16 FLANGE THA
0-28050-816-0
04
1
1403-
●
201
BOLT; BRKT
MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M8X16 FLANGE THA
0-28050-816-0
01
1
1403-
●
201
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
01
1
1403-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
