2-30A — GEAR SHIFTER AND QUADRANT BOX (#136083) — 228 parça

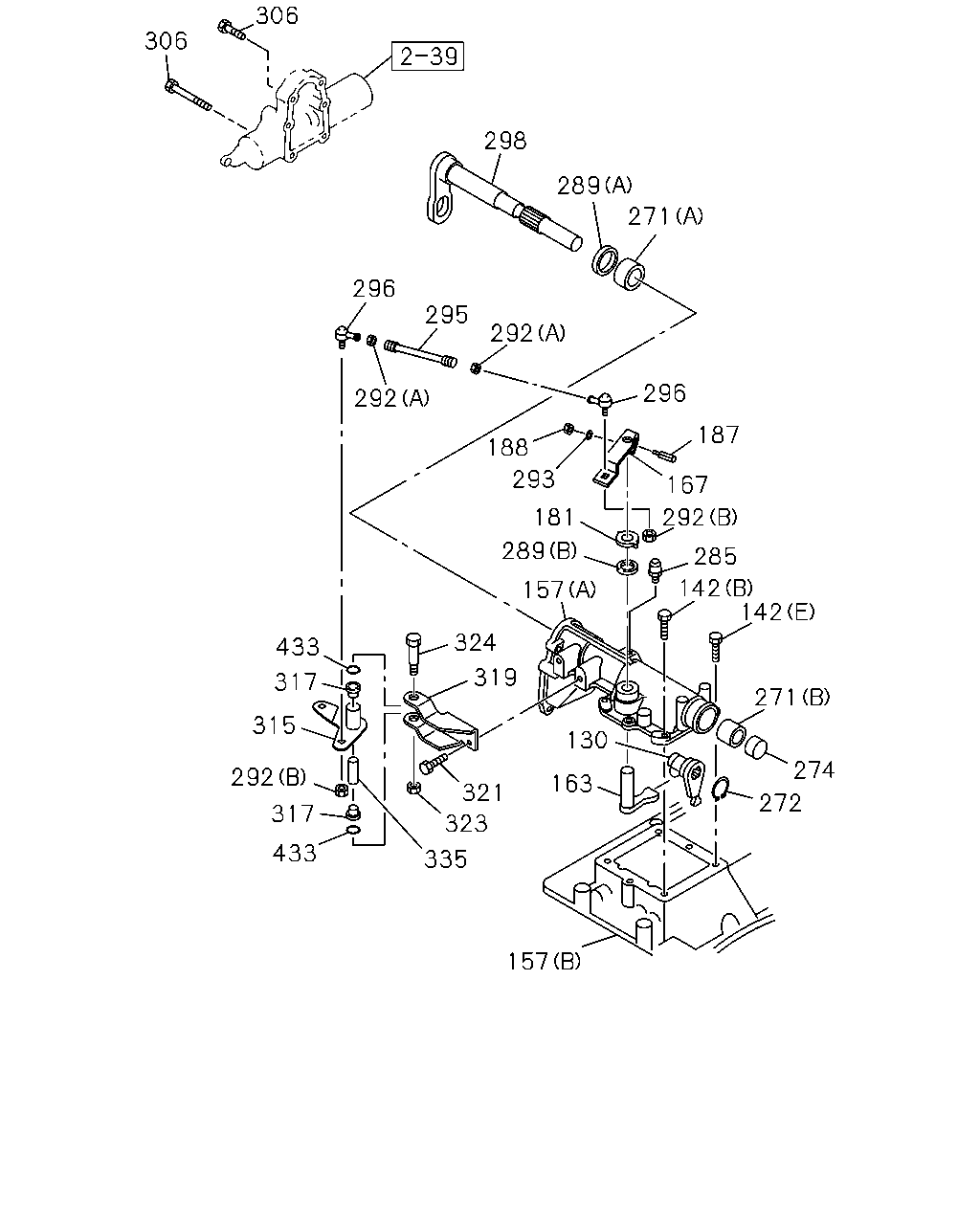

çizim 413706
306 306 298 289 271 296 292 295 292 188 293 181 289 157 296 187 167 292 285 142 142 271 274 272 130 163 324 319 433 317 315 292 317 433 335 323 321 157
BalonParca AdiParca NoAdetTipApplied Date A B
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1403- ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1403- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 1403- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 03 1 1403- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X45 L=75 		8-98010-335-0 01 1 1403- ●
142 BOLT; QUAD BOX
(F) M10X20,M10X55 L=85 		8-98032-017-0 01 1 1403- ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		8-98044-944-0 11 1 1403- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 1403- ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1403- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 1403- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 1403- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1403- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1403- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1403- ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1403- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1403- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1403- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1403- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1403- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1403- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1403- ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1403- ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1403- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1403- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 1403- ● ●
296 ROD END 1-09760-108-0 02 1 1403- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1403- ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE THA 		0-28151-045-0 02 1 1403- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE THA 		0-28151-080-0 04 1 1403- ● ●
315 LEVER; SELECT 8-98097-127-0 01 1 1403- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 1403- ● ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 1403- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 1403- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1403- ● ●
324 BOLT; SHAFT
M10X60 FLANGE THA 		0-28051-060-0 01 1 1403- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 1403- ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 1403- ● ●

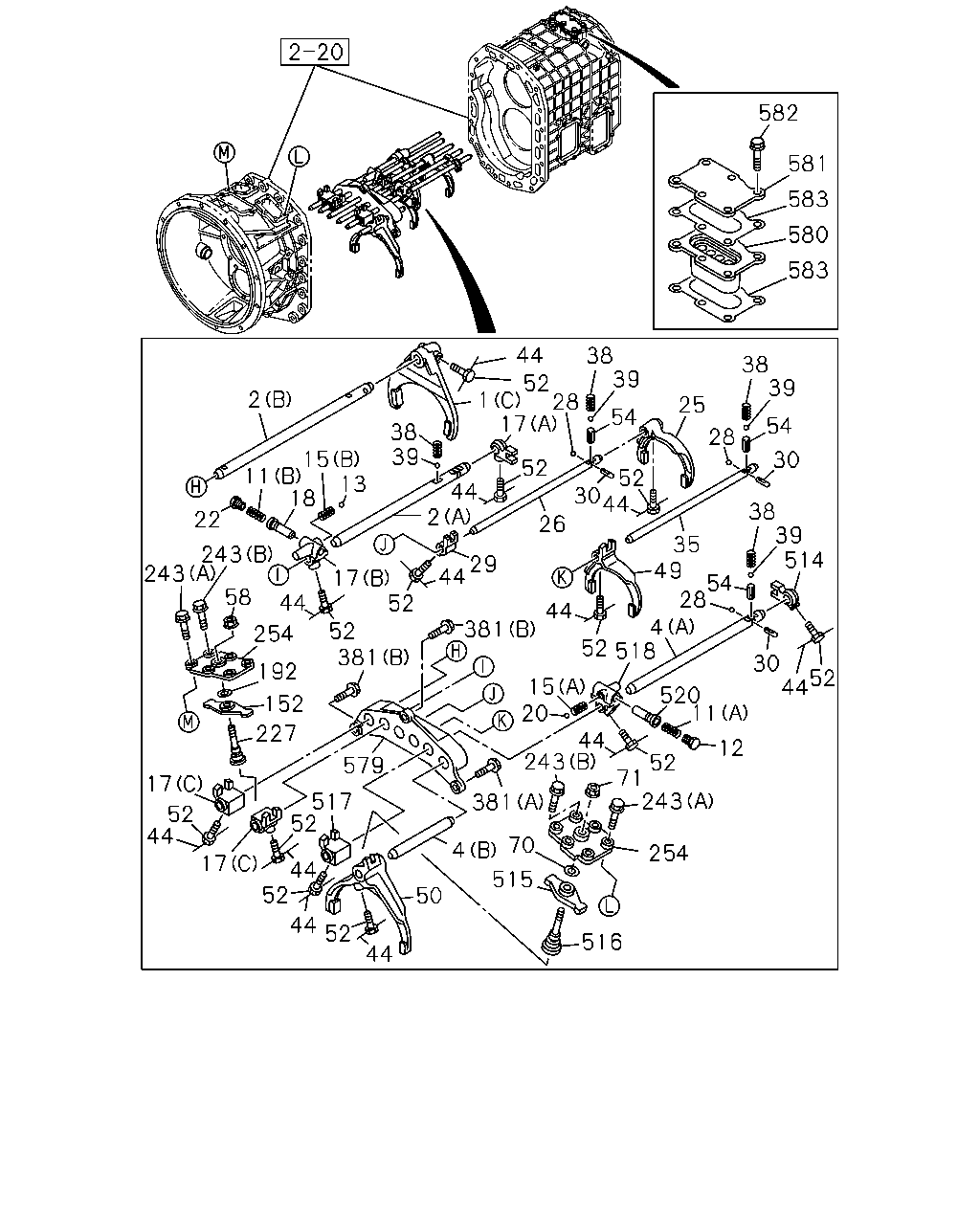

çizim 413717
582 581 583 580 583 38 39 54 30 38 39 514 52 44 30 54 35 28 25 38 39 54 52 44 52 28 17 1 30 52 44 44 26 28 49 4 518 520 11 12 52 243 71 254 516 515 4 381 243 44 15 20 44 52 381 29 2 44 52 70 50 44 52 44 44 52 517 52 17 44 52 17 227 152 192 254 58 243 243 22 11 2 15 18 13 39 38 17 52 44 381 579
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 1403- ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 1403- ●
1 ARM; SHIFT,1ST & REV
(C) 		1-33511-579-0 01 1 1403- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-400-1 01 1 1403- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-415-1 01 1 1403- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-438-0 01 1 1403- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-456-0 01 1 1403- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-405-1 01 1 1403- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-407-1 01 1 1403- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-443-1 01 1 1403- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-445-0 01 1 1403- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 1403- ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 1403- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 1403- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1403- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1403- ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1403- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-439-0 01 1 1403- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 1403- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 1403- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-202-3 01 1 1403- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-552-1 01 1 1403- ●
17 BLOCK; SHIFT,1ST & REV
(C) 		1-33511-557-0 02 1 1403- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1403- ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1403- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 1403- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1403- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 1403- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 1403- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 1403- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-440-1 01 1 1403- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1403- ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1403- ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 1403- ● ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-442-1 01 1 1403- ●
38 SPRING; DETENT 1-09580-379-0 04 1 1403- ● ●
39 BALL; DETENT 1-09843-012-0 04 1 1403- ● ●
44 WIRE; LK
L=180 		1-09780-024-0 10 1 1403- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 1403- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-461-0 01 1 1403- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 1403- ●
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 1403- ●
50 ARM; SHIFT,6TH 1-33511-550-0 01 1 1403- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 12 1 1403- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1403- ● ●
58 NUT
M12 FLANGE THA 		0-91180-212-0 01 1 1403- ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 1403- ●
71 NUT; SHIFT LEVER
M12 FLANGE THA 		0-91180-212-0 01 1 1403- ●
152 LEVER; RELAY,SELECT 1-33511-560-1 01 1 1403- ●
192 WASHER; PL
ID=16.5 		9-09857-042-0 01 1 1403- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 1403- ●
227 SPINDLE; 1ST & REV 1-33519-104-0 01 1 1403- ●
243 BOLT; COVER
(A) M10X30 FLANGE 		0-28151-030-0 08 1 1403- ●
243 BOLT; COVER
(B) M10X28 FLANGE REAMER 		8-97365-375-0 04 1 1403- ●
254 COVER; LEVER 1-33141-054-0 02 1 1403- ●
381 BOLT
(A) M10X35 FLANGE THA 		0-28751-035-0 01 1 1403- ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1403- ●
514 BLOCK; 6-7 SETTING 1-33511-605-0 01 1 1403- ●
515 LEVER; SHIFT,6TH & 7TH 1-33511-560-1 01 1 1403- ●
516 SPINDLE; 6TH & 7TH 1-33519-104-0 01 1 1403- ●
517 BLOCK; SHIFT,6TH & 7TH 1-33511-557-0 01 1 1403- ●
518 BLOCK ASM; SHIFT,6TH & 7TH 1-33511-558-1 01 1 1403- ●
520 SLEEVE; 6TH & 7TH 1-33516-022-1 01 1 1403- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-065-1 01 1 1403- ●
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 1403- ●
581 COVER; BLOCK 1-33141-056-0 01 1 1403- ●
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 1403- ●
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 1403- ●

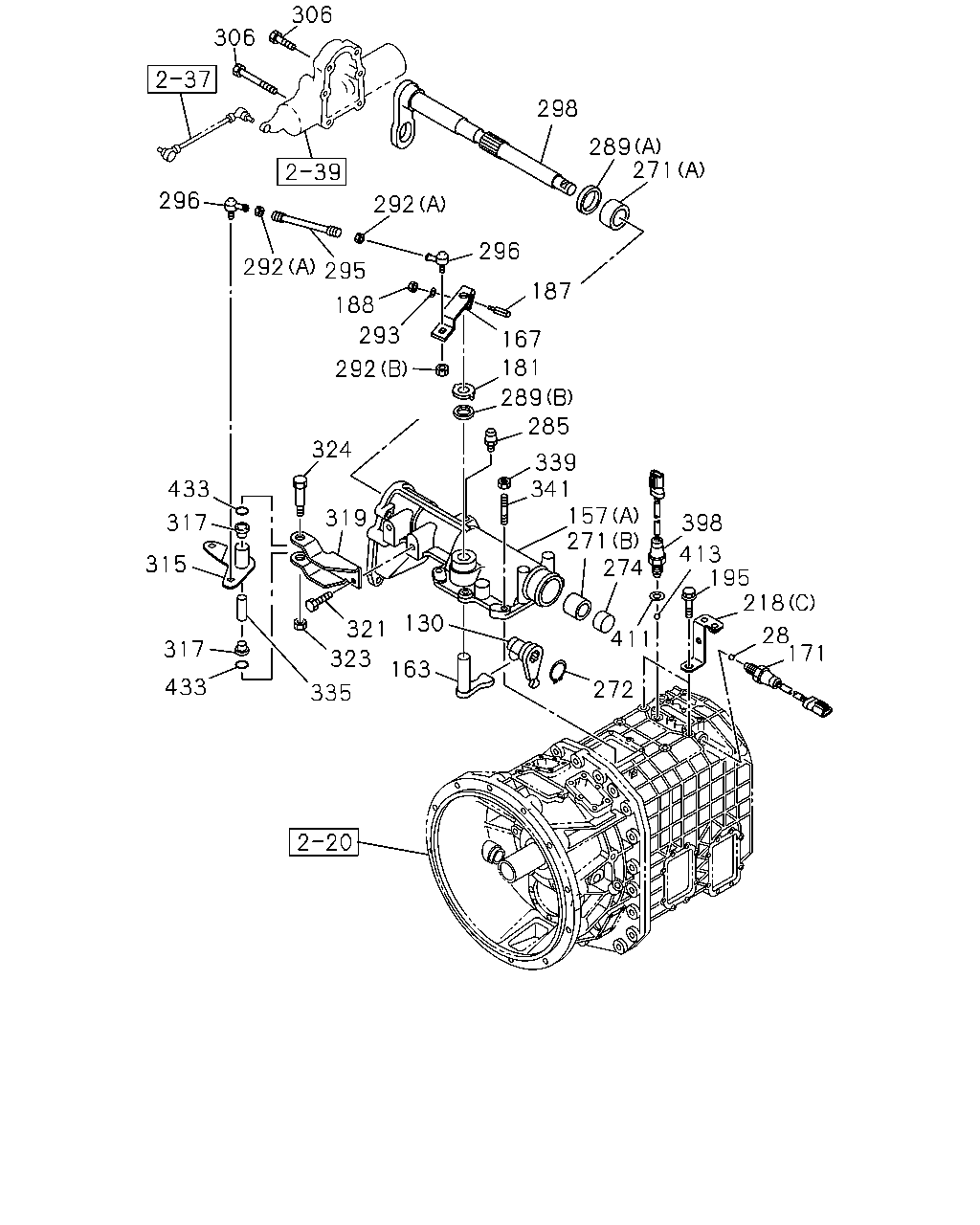

çizim 413870
298 289 271 306 306 296 292 292 295 188 296 293 292 187 167 181 289 339 285 341 157 271 274 398 413 195 218 28 171 411 272 130 163 321 323 335 319 324 433 317 315 317 433
BalonParca AdiParca NoAdetTipApplied Date A B
28 BALL; INTER LK 9-00097-501-0 04 1 1403- ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1403- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 1403- ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1403- ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 1403- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 1403- ● ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1403- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1403- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1403- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1403- ● ●
195 BOLT
M10X25 FLANGE THA 		0-28751-025-0 02 1 1403- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 1403- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 1403- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-639-1 02 1 1403- ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1403- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1403- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1403- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1403- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1403- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1403- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1403- ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1403- ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1403- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1403- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 1403- ● ●
296 ROD END 1-09760-108-0 02 1 1403- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1403- ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE THA 		0-28151-045-0 02 1 1403- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE THA 		0-28151-080-0 04 1 1403- ● ●
315 LEVER; SELECT 8-98097-127-0 01 1 1403- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 1403- ● ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 1403- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 1403- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1403- ● ●
324 BOLT; SHAFT
M10X60 FLANGE THA 		0-28051-060-0 01 1 1403- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 1403- ● ●
339 NUT; QUAD BOX
M10 FLANGE THA 		0-91180-210-0 06 1 1403- ●
341 STUD; QUAD BOX
M10X25 L=40 THA 		0-44011-025-0 06 1 1403- ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 1403- ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1403- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 THA 		8-94462-114-0 01 1 1403- ●
413 BALL; BACK SW 9-00097-013-0 01 1 1403- ●
433 GASKET; BUSHING 1-09623-636-0 02 1 1403- ● ●

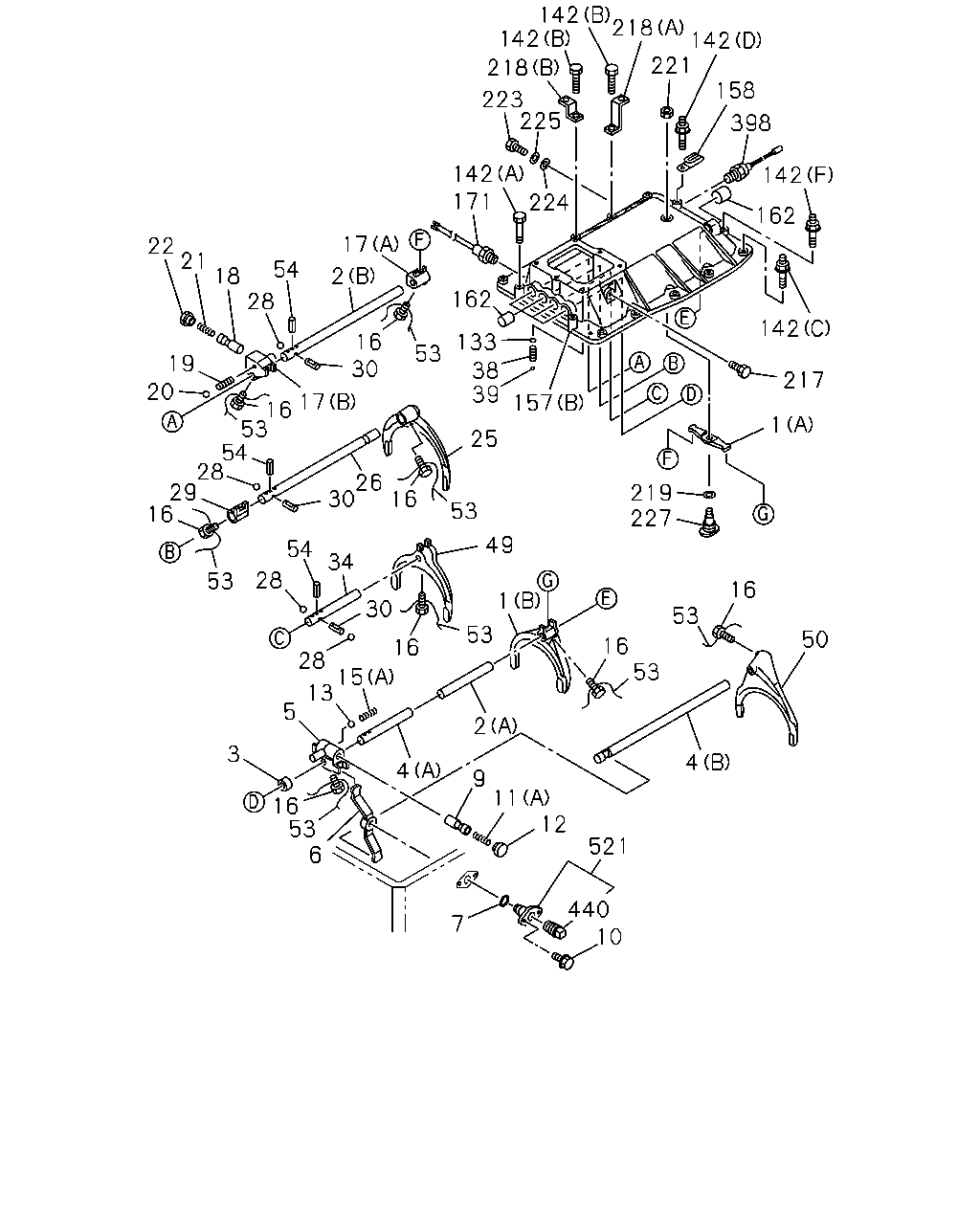

çizim 414016
142 142 218 223 225 142 171 224 218 142 221 158 398 142 162 142 217 1 219 227 16 50 53 16 53 4 10 440 521 12 11 9 4 7 2 1 49 157 39 38 133 162 25 53 16 26 53 16 17 2 54 28 18 21 22 19 20 17 30 16 53 54 28 29 16 53 28 34 54 30 30 53 16 15 28 13 5 3 16 53 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 1403- ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 1403- ●
1 ARM; SHIFT,1ST & REV
(C) 		1-33511-579-0 01 1 1403- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-400-1 01 1 1403- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-415-1 01 1 1403- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-438-0 01 1 1403- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-456-0 01 1 1403- ●
3 STOPPER; 6TH SHIFT ROD 9-33537-018-0 01 1 1403- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-405-1 01 1 1403- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-407-1 01 1 1403- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-443-1 01 1 1403- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-445-0 01 1 1403- ●
5 BLOCK; SHIFT,6TH 1-33511-372-2 01 1 1403- ●
6 LEVER; RELAY 9-33511-402-1 01 1 1403- ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 1403- ●
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-022-1 01 1 1403- ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 1403- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 1403- ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 1403- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 1403- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1403- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1403- ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1403- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-439-0 01 1 1403- ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 08 1 1403- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 1403- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 1403- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-202-3 01 1 1403- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-552-1 01 1 1403- ●
17 BLOCK; SHIFT,1ST & REV
(C) 		1-33511-557-0 02 1 1403- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1403- ● ●
19 SPRING; COIL COMP 1-09580-438-0 01 1 1403- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1403- ● ●
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 1403- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 1403- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1403- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 1403- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 1403- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 1403- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-440-1 01 1 1403- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1403- ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1403- ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 1403- ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-402-1 01 1 1403- ●
38 SPRING; DETENT 1-09580-379-0 04 1 1403- ● ●
39 BALL; DETENT 1-09843-012-0 04 1 1403- ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-461-0 01 1 1403- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 1403- ●
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 1403- ●
50 ARM; SHIFT,6TH 1-33511-550-0 01 1 1403- ●
53 WIRE; BOLT
L=180 		1-09780-024-0 06 1 1403- ●
53 WIRE; BOLT
L=200 		9-08351-020-0 02 1 1403- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1403- ● ●
133 SEAT; SPR 1-33549-072-0 04 1 1403- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1403- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 1403- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 03 1 1403- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X45 L=75 		8-98010-335-0 01 1 1403- ●
142 BOLT; QUAD BOX
(F) M10X20,M10X55 L=85 		8-98032-017-0 01 1 1403- ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		8-98044-944-0 11 1 1403- ●
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 1403- ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1403- ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 1403- ●
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 1403- ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1403- ● ●
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 1403- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 1403- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 1403- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-639-1 02 1 1403- ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 1403- ●
221 NUT; SPINDLE
M12 FLANGE THA 		0-91180-212-0 01 1 1403- ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 1403- ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 1403- ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 1403- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 1403- ●
227 SPINDLE; 1ST & REV 1-33519-104-0 01 1 1403- ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 1403- ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1403- ●
440 PLUG; OIL
PT1/4 		9-99204-513-0 01 1 1403- ●
521 SPINDLE; 6TH 1-33119-255-0 01 1 1403- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
