Sayfa 2-26A - Isuzu EPC

2-26A — MANUAL TRANSMISSION GEAR (#136081) — 296 parça

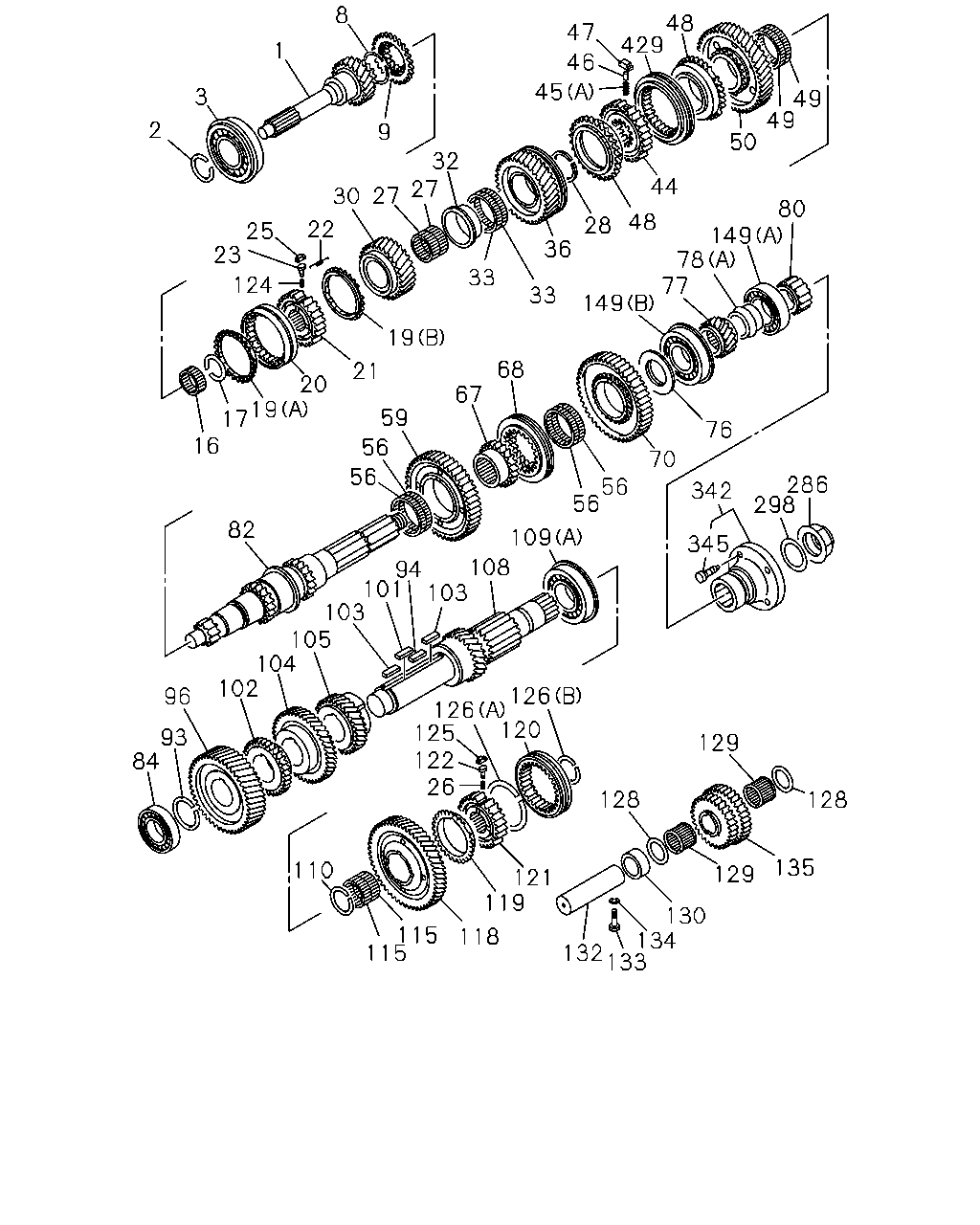

8 1 3 2 9 32 27 27 30 22 25 23 124 16 17 19 20 21 19 33 36 28 48 44 50 49 49 48 429 47 46 45 80 149 78 77 149 68 67 59 56 56 56 56 70 76 286 298 342 345 128 129 128 129 135 130 134 133 132 121 119 118 115 115 110 26 122 125 126 120 126 109 108 94 103 101 103 105 104 102 96 93 84 82 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-699-1	01	1	1403-	●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-991-0	01	1	1403-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	1403-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	1403-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	1403-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	1403-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1403-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1403-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1403-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1403-		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	1403-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	1403-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	1403-		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	1403-		●
8	CLIP; DOG CLU	1-33219-008-0	01	1	1403-	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	1403-		●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	1403-	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	1403-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	1403-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	1403-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	1403-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	1403-		●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	1403-	●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-8	01	1	1403-	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-1	01	1	1403-	●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-1	02	1	1403-		●
20	SLEEVE	1-33262-097-1	01	1	1403-	●
20	SLEEVE	1-33262-222-0	01	1	1403-		●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	1403-	●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	1403-		●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	1403-	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	1403-	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	1403-	●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	1403-	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	1403-	●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	1403-		●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	1403-	●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-657-0	01	1	1403-	●
30	GEAR; 4TH,MAINSHAFT Z=41	1-33253-690-0	01	1	1403-		●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	1403-	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	1403-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	1403-	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	1403-		●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	1403-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	1403-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	1403-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	1403-		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1403-	●	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	1403-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1403-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1403-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	1403-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	1403-		●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	1403-	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	1403-	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	1403-		●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	1403-	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-392-1	01	1	1403-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	1403-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	1403-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	1403-		●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	1403-	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	1403-		●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	1403-	●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	1403-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	1403-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	1403-	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	1403-		●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	1403-	●
77	GEAR; 6TH,MAINSHAFT Z=18	1-33253-333-2	01	1	1403-	●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-074-0	01	1	1403-	●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-098-0	01	1	1403-		●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	1403-		●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	1403-	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	1403-		●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	1403-	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	1403-1503		●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1504-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1403-1405	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-1	01	1	1406-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1403-1405	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	1403-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	1403-		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	1403-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1403-		●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	1403-	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	1403-		●
96	GEAR; COUNTER DRIVE Z=39	1-33331-195-0	01	1	1403-	●
96	GEAR; COUNTER DRIVE Z=43	1-33331-271-0	01	1	1403-		●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	1403-	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	1403-	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	1403-	●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	1403-	●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	1403-		●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	1403-		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-366-0	01	1	1403-	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-379-0	01	1	1403-		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	1403-	●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	1403-	●
108	SHAFT; COUNTER Z=24-16-12	1-33311-332-0	01	1	1403-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	1403-	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	1403-	●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-186-0	01	1	1403-		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	1403-		●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	1403-		●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-207-0	01	1	1403-		●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	1403-	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1403-		●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	1403-	●
118	GEAR; 6TH,COUNTER Z=45	1-33338-304-0	01	1	1403-	●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	1403-	●
120	SLEEVE	1-33262-098-2	01	1	1403-	●
121	HUB; CLU,6TH	1-33261-189-2	01	1	1403-	●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	1403-	●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	1403-	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	1403-	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	1403-	●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	1403-	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1403-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	1403-	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	1403-	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1403-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1403-		●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	1403-	●
132	SHAFT; REV	1-33351-012-2	01	1	1403-	●
132	SHAFT; REV	1-33351-025-4	01	1	1403-		●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	1403-	●
134	WASHER; LK,REV SHAFT ID=8.2	0-91510-508-0	01	1	1403-	●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	1403-	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	1403-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-021-1	01	1	1403-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-163-0	01	1	1403-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-172-0	01	1	1403-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-173-0	01	1	1403-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-203-0	01	1	1403-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-204-0	01	1	1403-		●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	1403-	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	1403-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	1403-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	1403-		●
342	FLANGE; OUTPUT	8-98210-979-0	01	1	1403-	●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1403-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1403-	●	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	1403-	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	1403-		●

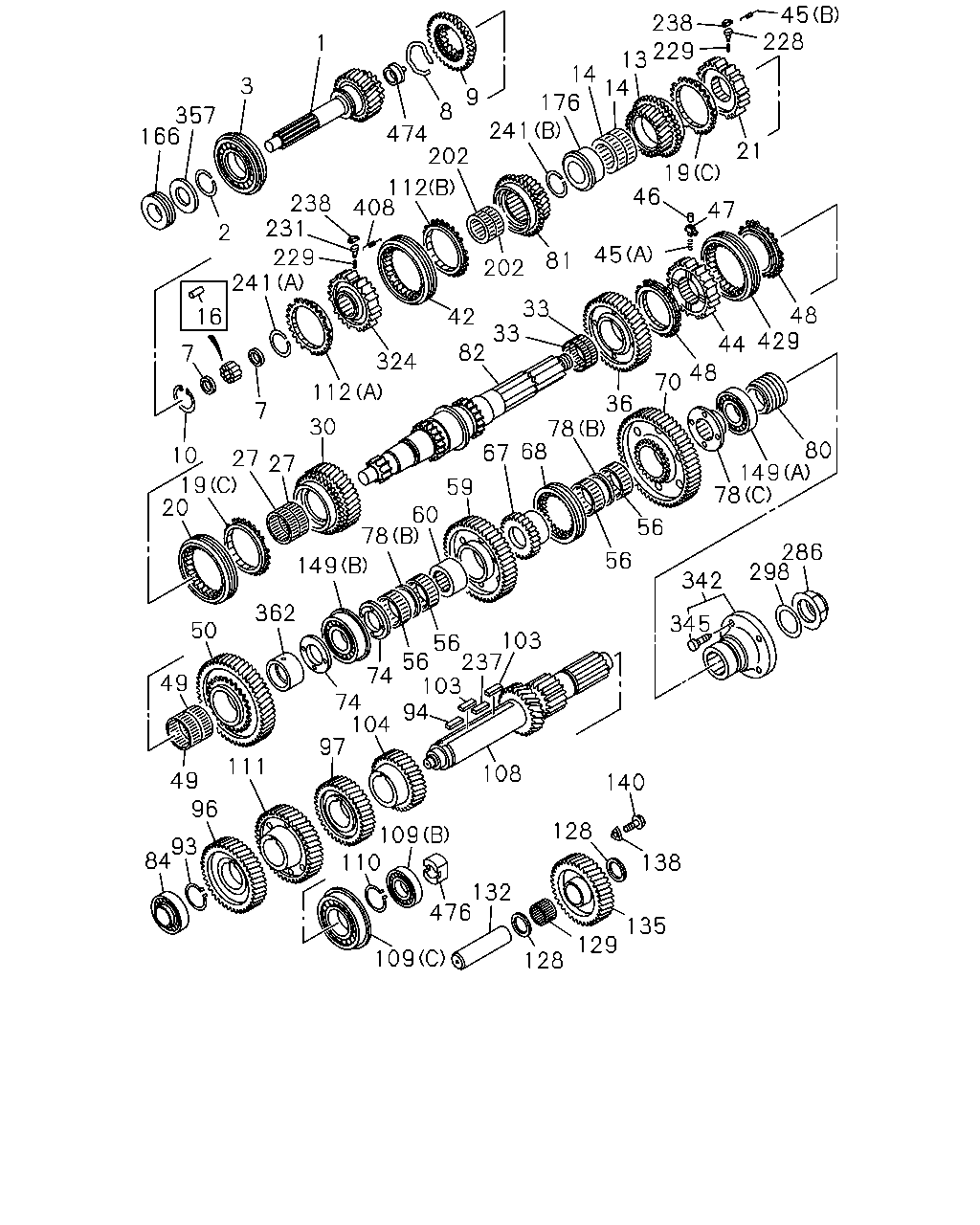

1 166 16 10 112 19 13 14 176 112 111 110 109 132 128 138 135 129 128 140 108 103 103 149 149 109 2 241 229 231 238 202 241 14 229 238 228 21 202 27 27 20 19 298 286 104 3 357 30 324 33 33 342 345 237 362 474 45 46 45 49 49 476 44 429 48 47 50 56 59 56 56 56 36 48 408 7 7 42 81 82 70 78 68 67 60 78 74 94 74 80 78 97 96 93 84 8 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-699-1	01	1	1403-	●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-991-0	01	1	1403-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	1403-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	1403-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	1403-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	1403-	●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	1403-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	1403-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	1403-		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	1403-		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	1403-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	1403-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	1403-		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	1403-		●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	1403-		●
8	CLIP; DOG CLU	1-33219-008-0	01	1	1403-	●
8	CLIP; DOG CLU	1-33219-024-0	01	1	1403-		●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	1403-	●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	1403-		●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	1403-		●
13	GEAR; 5TH,MAINSHAFT Z=30	1-33253-667-0	01	1	1403-		●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	1403-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	1403-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	1403-	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	1403-		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	1403-		●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-8	01	1	1403-	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-1	01	1	1403-	●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-1	02	1	1403-		●
20	SLEEVE	1-33262-097-1	01	1	1403-	●
20	SLEEVE	1-33262-222-0	01	1	1403-		●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	1403-	●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	1403-		●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	1403-	●
27	BEARING; 4TH GEAR NTN	1-09811-401-0	02	1	1403-		●
30	GEAR; 4TH,MAINSHAFT Z=29	1-33253-657-0	01	1	1403-	●
30	GEAR; 4TH,MAINSHAFT Z=41	1-33253-690-0	01	1	1403-		●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	1403-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	1403-	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	1403-		●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	1403-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	1403-		●
42	SLEEVE	1-33262-222-0	01	1	1403-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	1403-	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	1403-		●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	1403-	●	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	1403-		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	1403-	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	1403-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	1403-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	1403-		●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	1403-	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	1403-	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	1403-		●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	1403-	●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-392-1	01	1	1403-		●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	1403-	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	1403-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-401-0	04	1	1403-		●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	1403-	●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	1403-		●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	1403-		●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	1403-	●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	1403-		●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	1403-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	1403-	●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	1403-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	1403-1503		●
74	WASHER; THRUST,REV GEAR	8-98304-662-0	02	1	1504-		●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-074-0	01	1	1403-	●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-098-0	01	1	1403-		●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	1403-		●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	1403-	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	1403-		●
81	GEAR; 7TH,MAIN Z=23	1-33253-653-0	01	1	1403-		●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	1403-	●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	1-33231-298-0	01	1	1403-1503		●
82	SHAFT; MAIN,TRANS Z=24-37-28-24	8-98304-660-0	01	1	1504-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	1403-1405	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-1	01	1	1406-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	1403-1405	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	1403-		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	1403-		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	1403-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	1403-		●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	1403-	●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	1403-		●
96	GEAR; COUNTER DRIVE Z=39	1-33331-195-0	01	1	1403-	●
96	GEAR; COUNTER DRIVE Z=43	1-33331-271-0	01	1	1403-		●
97	GEAR; 5TH,COUNTER Z=37	1-33338-385-0	01	1	1403-		●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	1403-	●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	1403-	●
103	KEY; COUNTER GEAR L=63	1-09735-027-0	01	1	1403-		●
103	KEY; COUNTER GEAR L=67	1-09735-049-0	01	1	1403-		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-366-0	01	1	1403-	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-379-0	01	1	1403-		●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	1403-	●
108	SHAFT; COUNTER Z=24-16-12	1-33311-332-0	01	1	1403-		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-021-1	01	1	1403-	●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-163-0	01	1	1403-	●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-186-0	01	1	1403-		●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	1403-		●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	1403-		●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-207-0	01	1	1403-		●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	1403-	●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	1403-		●
111	GEAR; 7TH COUNTER SHAFT Z=51	1-33338-387-0	01	1	1403-		●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-7	01	1	1403-		●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-1	01	1	1403-		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	1403-	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	1403-	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	1403-	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	1403-		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	1403-		●
132	SHAFT; REV	1-33351-012-2	01	1	1403-	●
132	SHAFT; REV	1-33351-025-4	01	1	1403-		●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	1403-	●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	1403-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	1403-		●
140	BOLT; LK PIECE M10X25	1-09049-006-1	01	1	1403-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-021-1	01	1	1403-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-163-0	01	1	1403-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-172-0	01	1	1403-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-173-0	01	1	1403-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-203-0	01	1	1403-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-204-0	01	1	1403-		●
166	PIECE; DIST	1-33363-032-1	01	1	1403-		●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	1403-		●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	1403-		●
228	PLUNGER; SYN	1-33263-020-0	03	1	1403-		●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	1403-		●
231	PLUNGER	1-33263-020-0	03	1	1403-		●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	1403-		●
238	INSERT	1-33263-025-2	06	1	1403-		●
241	RING; SNAP (A)	1-09588-185-0	01	1	1403-		●
241	RING; SNAP (B)	1-09588-189-0	01	1	1403-		●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	1403-	●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	1403-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	1403-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	1403-		●
324	HUB; CLU	1-33261-238-0	01	1	1403-		●
342	FLANGE; OUTPUT	8-98210-979-0	01	1	1403-	●
342	FLANGE; OUTPUT	8-98210-980-0	01	1	1403-		●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	1403-	●	●
357	RING	1-31349-015-0	01	1	1403-		●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	1403-		●
408	SPRING	1-09583-171-0	03	1	1403-		●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	1403-	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	1403-		●
474	NOZZLE; OIL	1-33219-257-0	01	1	1403-		●
476	ADAPTER; PUMP DRIVE	1-33339-066-0	01	1	1403-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
