◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11587 - FXZ/GXZ(THAI)EURO3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07A - CLUTCH BOOSTER; MINIPACK ▶
2-07A — CLUTCH BOOSTER; MINIPACK (#136074) — 54 parça

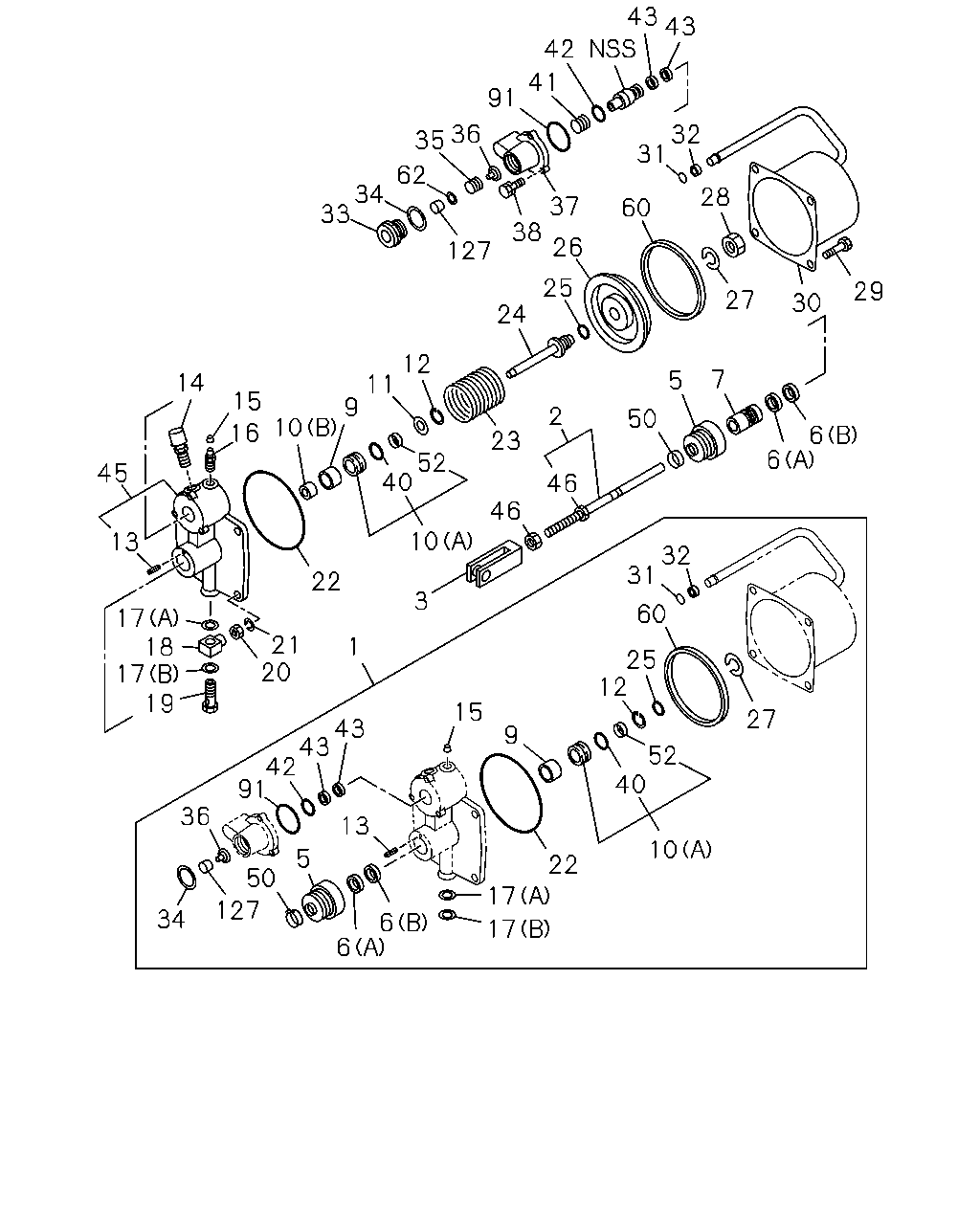

çizim 413930
43 43 42 41 91 36 35 62 37 32 60 26 127 12 24 25 34 33 9 11 15 14 22 13 45 17 18 21 28 31 1 23 2 5 27 30 46 32 31 27 52 40 10 16 17 19 20 60 25 12 15 43 43 42 91 36 5 50 127 6 13 6 17 22 17 40 10 52 9 10 46 3 50 7 6 6 29 38 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-613-0 01 1 1403- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-627-0 01 1 1403- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1403- ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1403- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1403- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-498-0 01 1 1403- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-499-0 01 1 1403- ● ●
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 1403- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1403- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-107-0 01 1 1403- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-108-0 01 1 1403- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1403- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1403- ● ●
13 PIN; SPR 1-31829-109-0 01 1 1403- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1403- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1403- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1403- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1403- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1403- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1403- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1403- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1403- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1403- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1403- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1403- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31824-154-0 01 1 1403- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1403- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1403- ● ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1403- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1403- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1403- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1403- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1403- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1403- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1403- ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1403- ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1403- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1403- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1403- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1403- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1403- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1403- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1403- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1403- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1403- ● ●
45 PLATE; END,CLU BOOSTER 1-31829-614-0 01 1 1403- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1403- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1403- ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 1403- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1403- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1403- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1403- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 1403- ●
127 FILTER; POPPET 1-31829-488-0 01 1 1403- ●
