2-05 — CLUTCH PIPING (#136073) — 287 parça

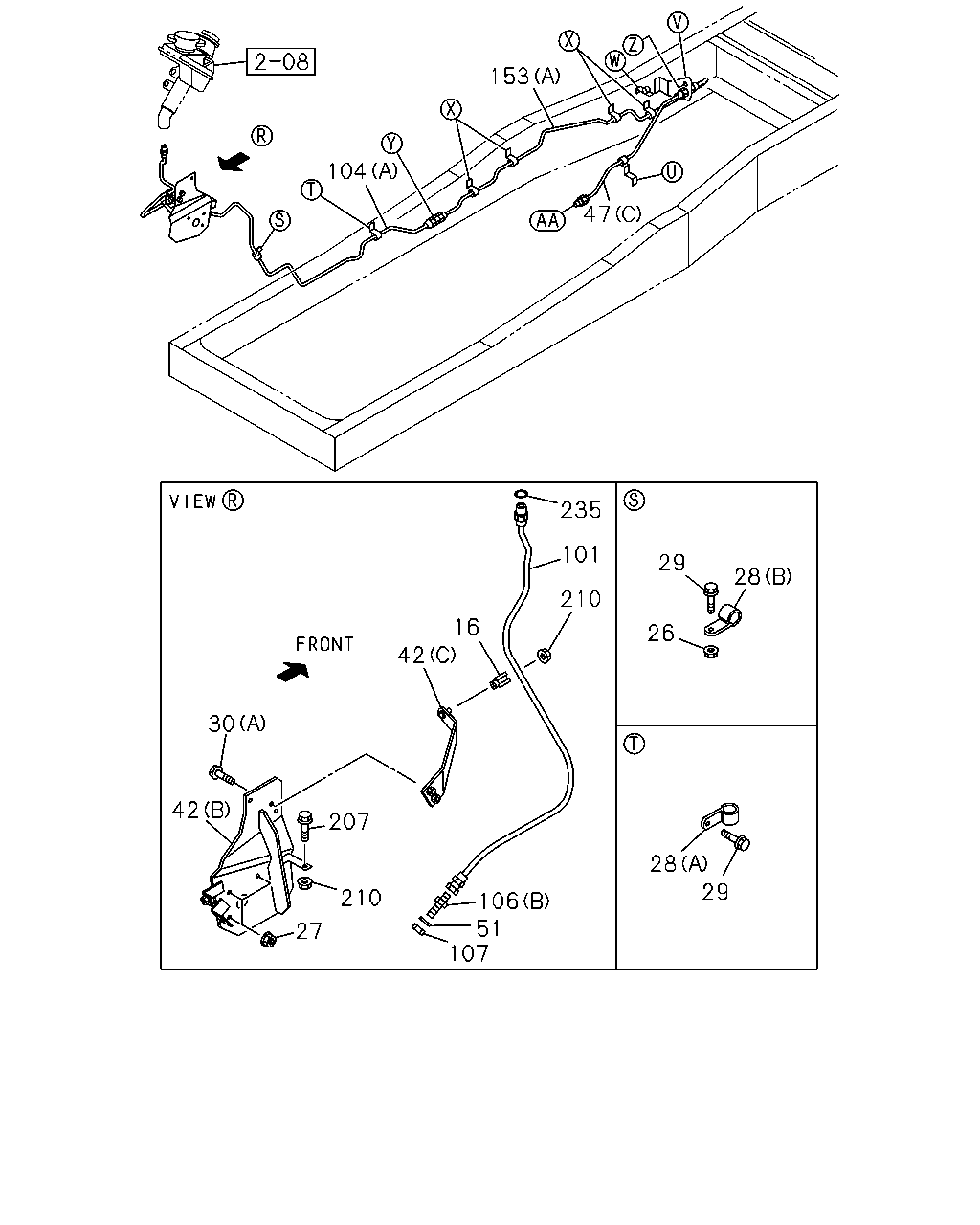

29 26 28 28 35 33 104 34 153 106 153 104 235 101 210 16 42 30 42 207 51 210 106 107 27 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=16 L=28	1-09700-872-0	03	1	1403-	●	●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1403-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	03	1	1403-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1403-	●	●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1403-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=9 L=20	0-95234-835-0	01	1	1403-	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	1403-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=9 L=40	0-95234-875-0	01	1	1403-	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	02	1	1403-	●	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1403-	●	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X25 FLANGE THA	0-28650-825-0	01	1	1403-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	01	1	1403-	●	●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1403-	●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1403-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1403-	●	●
33	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1403-	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	04	1	1403-	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1403-	●	●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	03	1	1403-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	1403-	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	02	1	1403-	●	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	03	1	1403-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1403-	●	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	8-97948-682-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	1403-	●	●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2	0-91510-620-0	01	1	1403-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1403-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE THA	8-97948-689-0	01	1	1403-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T<Y2J> (C) L=1215 SERVICED BY L=1250	1-47428-764-0	01	1	1403-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJT7U M/T<Y4X> (A) L=1196 THA	8-98211-460-0	01	1	1403-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (B) L=1747 SERVICED BY L=1800	1-47428-768-0	01	1	1403-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1403-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	1403-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1403-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	1403-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700	1-47428-767-0	01	1	1403-	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (A) L=1758 SERVICED BY L=1800	1-47428-768-0	01	1	1403-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1403-	●	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1403-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1403-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1403-	●	●

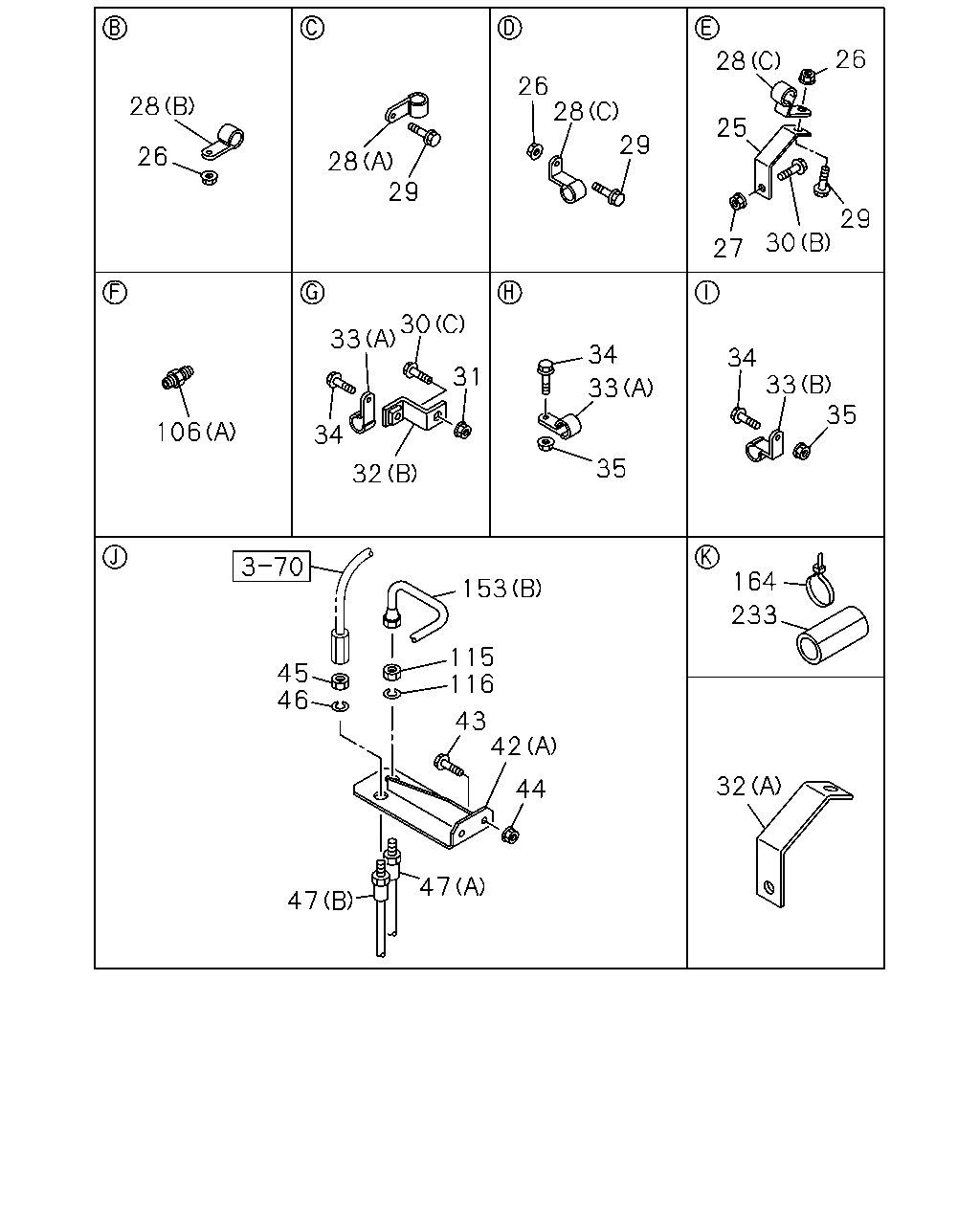

104 109 153 47 47 235 101 210 16 42 30 42 207 210 106 51 107 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=16 L=28	1-09700-872-0	03	1	1403-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1403-	●	●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1403-	●	●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1403-	●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1403-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	8-97948-682-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	1403-	●	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480	0-07806-480-1	01	1	1403-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470	1-09364-692-0	01	1	1403-	●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650	1-09364-694-0	01	1	1403-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350	1-09363-624-0	01	1	1403-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370	8-98072-331-0	01	1	1403-	●	●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2	0-91510-620-0	01	1	1403-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1403-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE THA	8-97948-689-0	01	1	1403-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T<Y2J> (C) L=1215 SERVICED BY L=1250	1-47428-764-0	01	1	1403-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJT7U M/T<Y4X> (A) L=1196 THA	8-98211-460-0	01	1	1403-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (B) L=1747 SERVICED BY L=1800	1-47428-768-0	01	1	1403-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1403-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	1403-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1403-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	1403-	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1310 M/T<Y5K> L=1680 SERVICED BY L=1700	1-47428-767-0	01	1	1403-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700	1-47428-767-0	01	1	1403-	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (A) L=1758 SERVICED BY L=1800	1-47428-768-0	01	1	1403-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1403-	●	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1403-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1403-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1403-	●	●

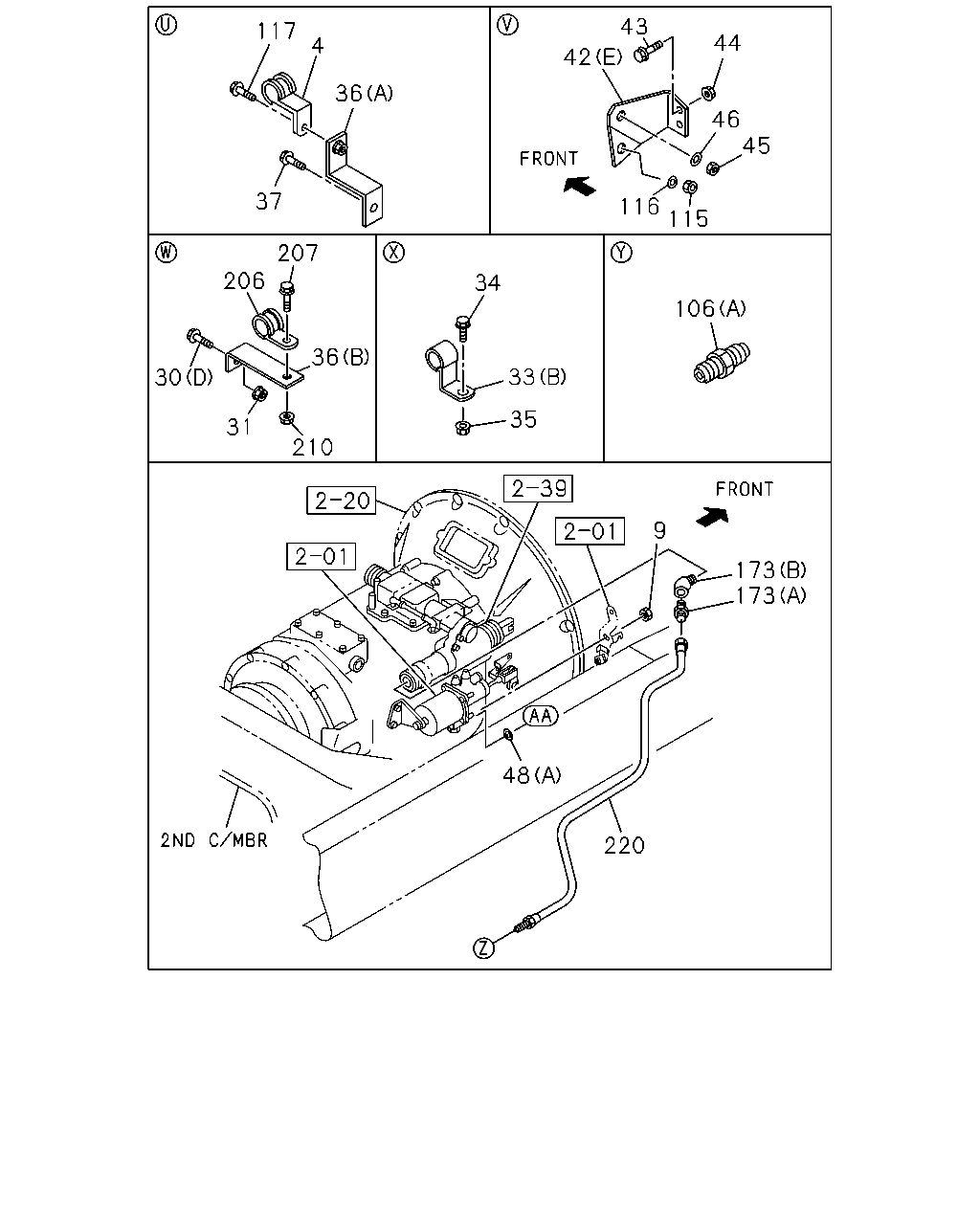

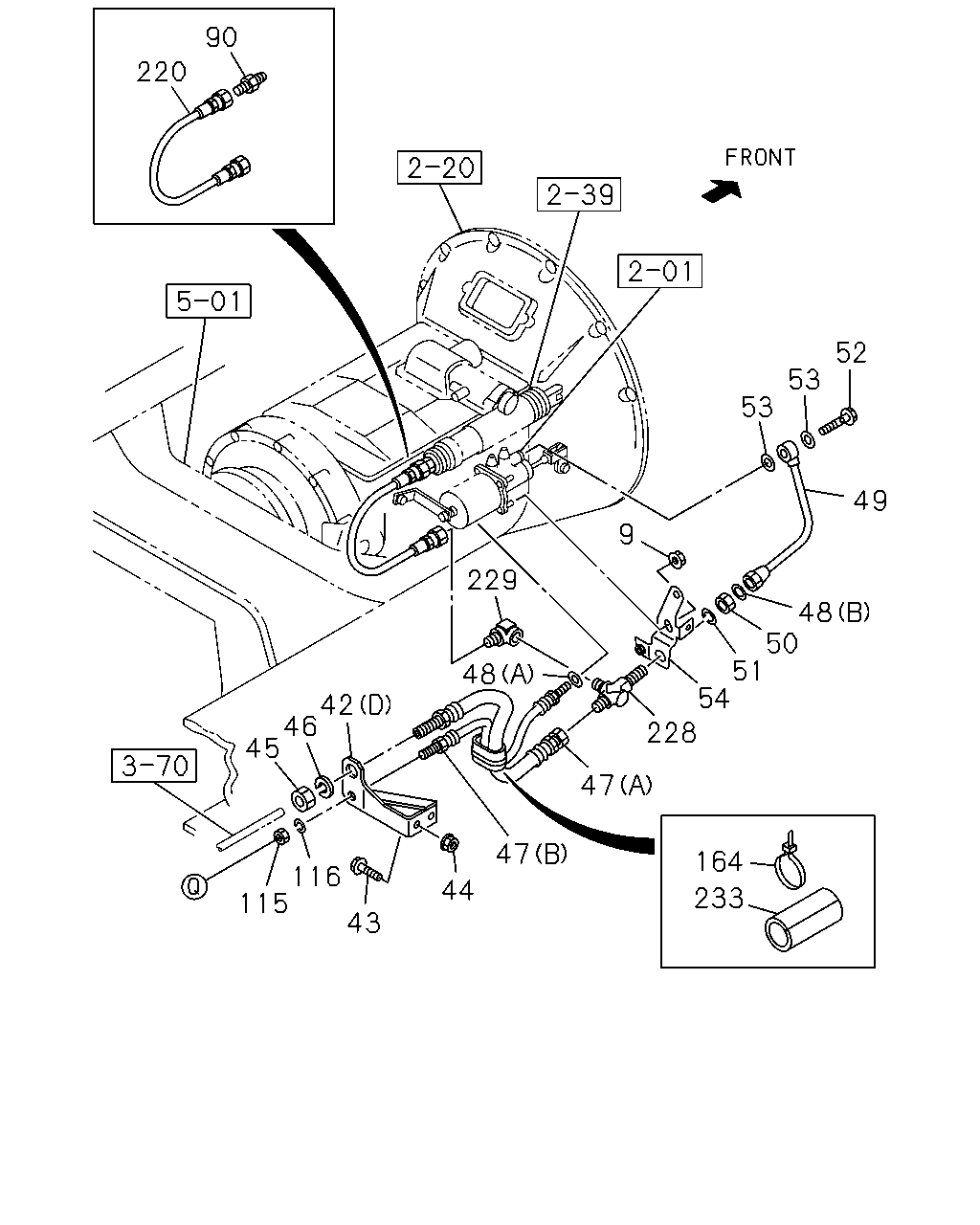

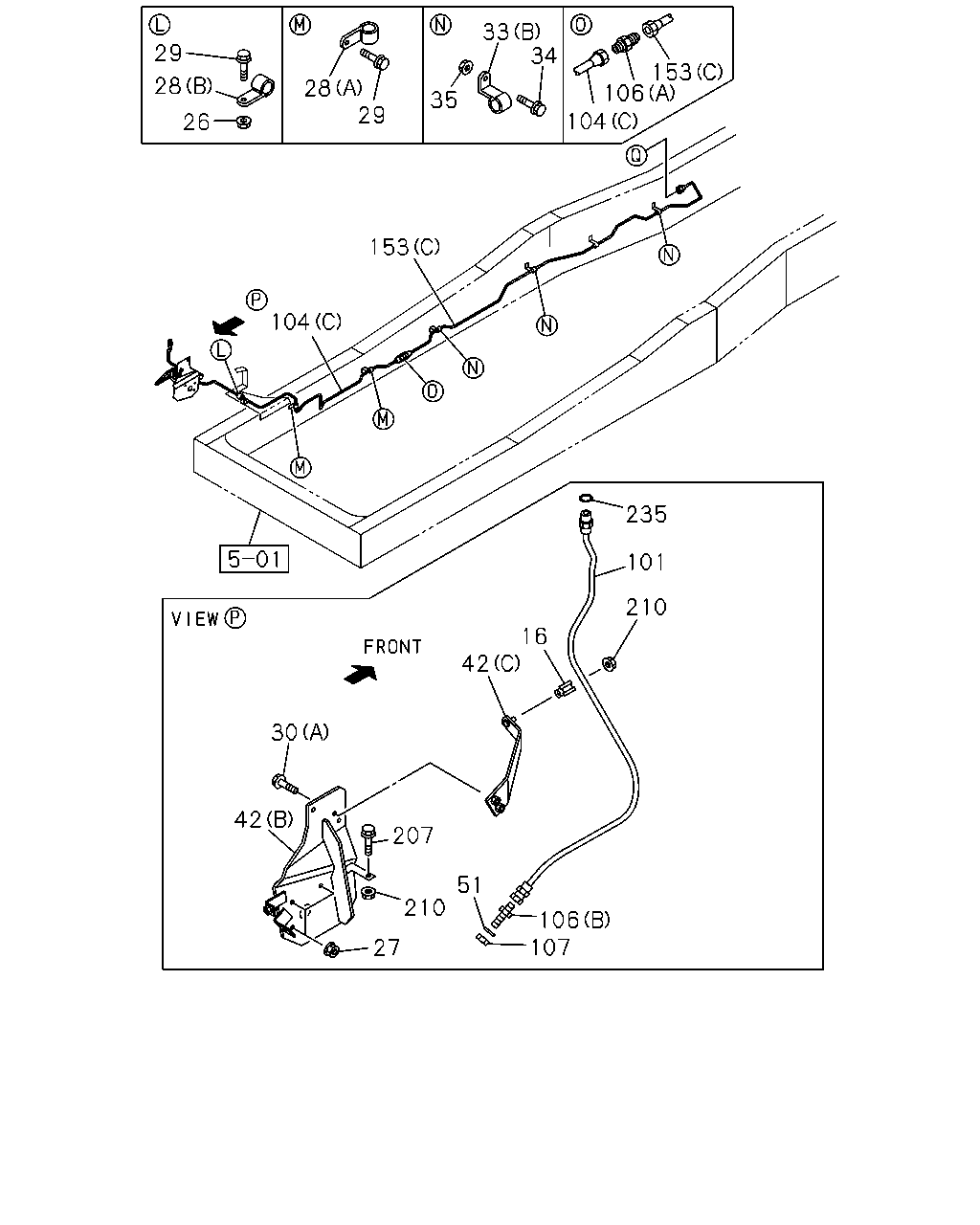

90 220 9 42 46 45 116 115 43 47 44 47 54 228 50 51 48 229 48 49 52 53 53 164 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M10 FLANGE THA	0-91180-210-0	02	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	8-97948-682-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	1403-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	02	1	1403-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T<Y5K> M8X35 FLANGE THA	0-28650-835-0	02	1	1403-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	1403-	●	●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> M20	0-91111-520-0	01	1	1403-	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M12	9-09840-280-0	01	1	1403-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1403-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T<Y2J> ID=20.2	0-91510-520-0	01	1	1403-	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> ID=12.2	0-91510-512-0	01	1	1403-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1403-		●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480	0-07806-480-1	01	1	1403-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470	1-09364-692-0	01	1	1403-	●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650	1-09364-694-0	01	1	1403-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350	1-09363-624-0	01	1	1403-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370	8-98072-331-0	01	1	1403-	●	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (B) ID=11 OD=18	9-09572-510-0	01	1	1403-	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1403-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAL6R M/T<Y2J> L=245	1-49117-733-0	01	1	1403-	●
50	NUT; UNION MAL6R M/T<Y2J> M20	0-91111-520-0	01	1	1403-	●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2	0-91510-620-0	01	1	1403-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1403-	●	●
52	BOLT; EYE,AIR PIPE MAL6R M/T<Y2J> M14X27 FLANGE	1-09675-086-0	01	1	1403-	●
53	GASKET; JOINT BOLT MAL6R M/T<Y2J> ID=14.2 OD=19.2	8-98251-345-0	02	1	1403-	●
54	BRACKET; AIR,FLEX HOSE MAL6R M/T<Y2J>	1-47477-284-1	01	1	1403-	●
90	NIPPLE; OIL PIPE MAL6R M/T<Y2J> M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1403-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1403-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1403-	●	●
164	CLIP; BAND,FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=350	1-09707-183-0	01	1	1403-	●
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	1403-		●
220	HOSE; FLEX,POWER ASSIST MAL6R M/T<Y2J> L=480	1-09363-659-0	01	1	1403-	●
220	HOSE; FLEX,POWER ASSIST MJT7U M/T<Y4X> L=320	1-09363-656-0	01	1	1403-	●
228	UNION; 3 WAY MAL6R M/T<Y2J>	1-09656-640-0	01	1	1403-	●
229	CONNECTOR; ELOBOW MAL6R M/T<Y2J> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1403-	●
233	BAND; FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=175	1-09707-178-0	01	1	1403-	●
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1403-		●

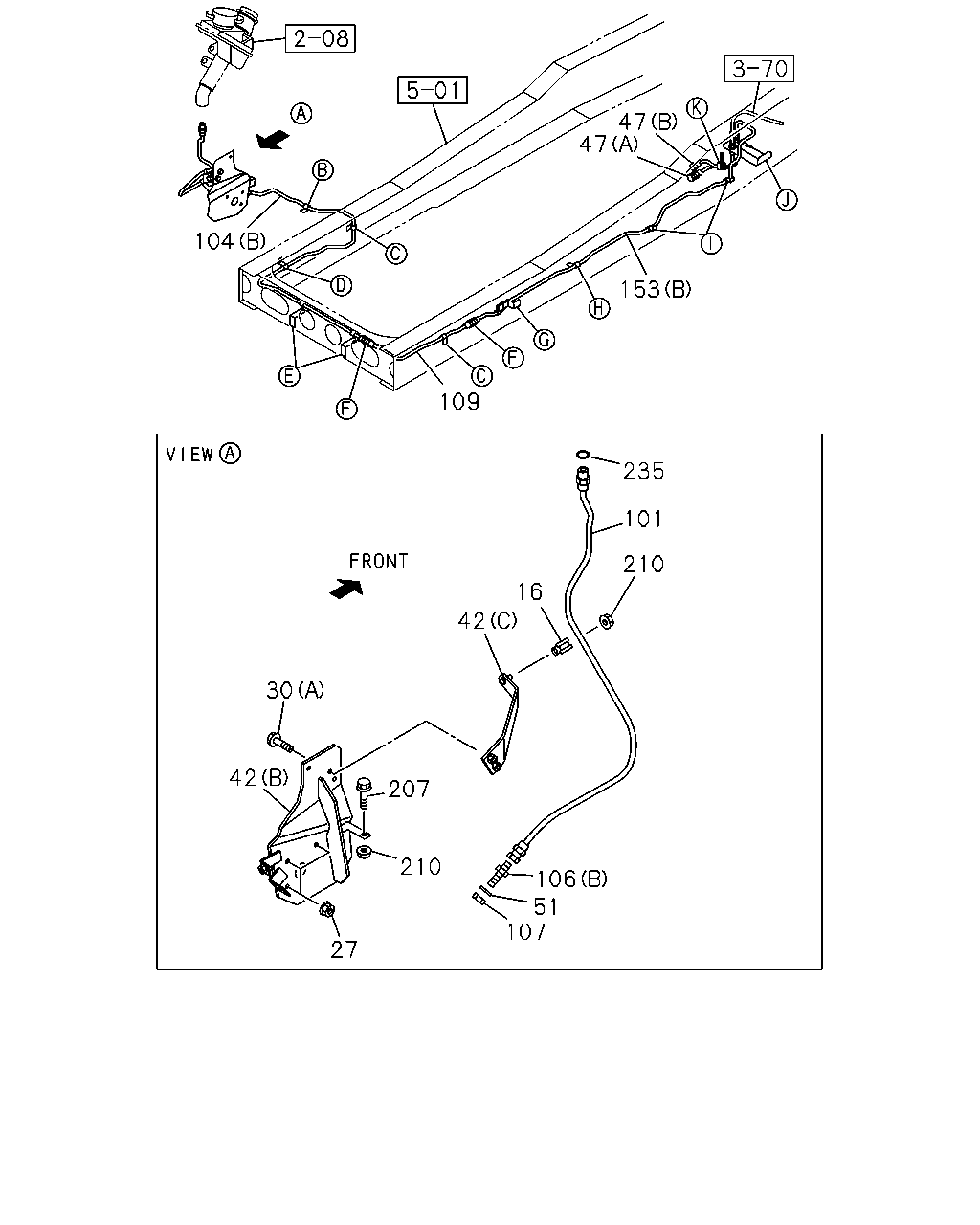

104 153 47 42 30 42 207 16 101 235 29 28 26 106 51 107 210 27 28 29 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE ID=16 L=28	1-09700-872-0	03	1	1403-	●	●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1403-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	03	1	1403-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1403-	●	●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1403-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=9 L=20	0-95234-835-0	01	1	1403-	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	1403-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=9 L=40	0-95234-875-0	01	1	1403-	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	02	1	1403-	●	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1403-	●	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X25 FLANGE THA	0-28650-825-0	01	1	1403-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	01	1	1403-	●	●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1403-	●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1403-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	8-97948-682-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	1403-	●	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480	0-07806-480-1	01	1	1403-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470	1-09364-692-0	01	1	1403-	●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650	1-09364-694-0	01	1	1403-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350	1-09363-624-0	01	1	1403-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370	8-98072-331-0	01	1	1403-	●	●
51	WASHER; LK MAL6R M/T<Y2J> ID=20.2	0-91510-620-0	01	1	1403-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1403-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE THA	8-97948-689-0	01	1	1403-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T<Y2J> (C) L=1215 SERVICED BY L=1250	1-47428-764-0	01	1	1403-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJT7U M/T<Y4X> (A) L=1196 THA	8-98211-460-0	01	1	1403-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T<Y5K> (B) L=1747 SERVICED BY L=1800	1-47428-768-0	01	1	1403-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1403-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	1403-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1403-	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	1403-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700	1-47428-767-0	01	1	1403-	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (A) L=1758 SERVICED BY L=1800	1-47428-768-0	01	1	1403-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1403-	●	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1403-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1403-	●	●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1403-	●	●

117 36 42 43 46 44 116 45 115 106 33 34 35 36 207 206 30 31 48 220 173 173 37 4 210 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> ID=16 H=25 L=25	1-09701-162-0	01	1	1403-	●
9	NUT; BRKT,FLEX HOSE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M10 FLANGE THA	0-91180-210-0	02	1	1403-	●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1403-	●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1403-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1403-	●	●
31	NUT; BRKT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	01	1	1403-	●
31	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1403-		●
31	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1403-	●	●
33	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1403-	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	04	1	1403-	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1403-	●	●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	03	1	1403-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	1403-	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	02	1	1403-	●	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	03	1	1403-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1403-	●	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1403-	●	●
36	BRACKET; CLIP MJT7U M/T<Y4X> (A)	1-47475-689-0	01	1	1403-	●
36	BRACKET; CLIP MJT7U M/T<Y4X> (B) L=95	1-82699-085-0	01	1	1403-	●
37	BOLT; CLIP BRKT MJT7U M/T<Y4X> M10X16 FLANGE THA	0-28151-016-0	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	8-97948-682-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	1403-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	02	1	1403-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T<Y5K> M8X35 FLANGE THA	0-28650-835-0	02	1	1403-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	1403-	●	●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> M20	0-91111-520-0	01	1	1403-	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M12	9-09840-280-0	01	1	1403-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1403-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T<Y2J> ID=20.2	0-91510-520-0	01	1	1403-	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> ID=12.2	0-91510-512-0	01	1	1403-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1403-		●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (B) ID=11 OD=18	9-09572-510-0	01	1	1403-	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=10.2 OD=16.0 THA	9-09571-410-0	01	1	1403-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1403-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	1403-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1403-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1403-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1403-	●	●
117	BOLT; CLIP,FLEX HOSE MJT7U M/T<Y4X> M8X16 FLANGE THA	0-28050-816-0	01	1	1403-	●
173	CONNECTOR MJT7U M/T<Y4X> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1403-	●
173	CONNECTOR MJT7U M/T<Y4X> (B) R1/4 & RC1/4	1-09664-211-0	01	1	1403-	●
206	CLIP; TUBE MJT7U M/T<Y4X> ID=16 L=28	1-09700-872-0	01	1	1403-	●
207	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●	●
207	BOLT; CLIP MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●
210	NUT; CLIP MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1403-	●
210	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	1403-	●	●
220	HOSE; FLEX,POWER ASSIST MAL6R M/T<Y2J> L=480	1-09363-659-0	01	1	1403-	●
220	HOSE; FLEX,POWER ASSIST MJT7U M/T<Y4X> L=320	1-09363-656-0	01	1	1403-	●

28 26 29 28 26 29 28 25 28 26 29 30 27 106 32 34 33 30 31 34 35 33 34 35 33 164 153 233 115 116 43 42 44 47 47 46 45 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE ZF9S1310 M/T<Y5K>	8-98123-059-0	01	1	1403-	●	●
26	NUT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	01	1	1403-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	03	1	1403-	●	●
27	NUT; BRKT M10 FLANGE THA	0-91180-210-0	03	1	1403-	●	●
27	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1403-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (A) ID=9 L=20	0-95234-835-0	01	1	1403-	●
28	CLIP; OIL PIPE (B) ID=9 L=40	0-95234-875-0	01	1	1403-	●	●
28	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=9 L=40	0-95234-875-0	01	1	1403-	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	02	1	1403-	●	●
28	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1403-	●	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X20 FLANGE THA	0-28650-820-0	01	1	1403-	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X25 FLANGE THA	0-28650-825-0	01	1	1403-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	01	1	1403-	●	●
30	BOLT; BRKT MJT7U M/T<Y4X> (D) M8X30 FLANGE THA	0-28650-830-0	01	1	1403-	●
30	BOLT; BRKT (A) M8X25 FLANGE THA	0-28650-825-0	02	1	1403-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (C) M8X35 FLANGE THA	0-28650-835-0	01	1	1403-	●	●
30	BOLT; BRKT ZF9S1310 M/T<Y5K> (B) M10X25 FLANGE THA	0-28651-025-0	02	1	1403-	●	●
31	NUT; BRKT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	01	1	1403-	●
31	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	1403-		●
31	NUT; BRKT ZF9S1310 M/T<Y5K> M10 FLANGE THA	0-91180-210-0	01	1	1403-	●	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T<Y5K> (B)	1-47479-482-0	01	1	1403-	●	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T<Y5K> (A)	8-98123-059-0	01	1	1403-	●	●
33	CLIP; OIL PIPE MAL6R M/T<Y2J>,MJT7U M/T<Y4X> (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1403-	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (A) ID=9 L=20	0-95234-835-0	04	1	1403-	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T<Y5K> (B) ID=8 H=20 L=20	1-09700-604-0	02	1	1403-	●	●
34	BOLT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	03	1	1403-	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X25 FLANGE THA	0-28650-825-0	04	1	1403-	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T<Y5K> M8X30 FLANGE THA	0-28650-830-0	02	1	1403-	●	●
35	NUT; PIPE CLIP MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8 FLANGE THA	0-91180-108-0	03	1	1403-	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1403-	●	●
35	NUT; PIPE CLIP ZF9S1310 M/T<Y5K> M8 FLANGE THA	0-91180-108-0	02	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> (D)	1-47477-546-1	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T<Y4X> (E)	1-47479-812-0	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT (B) THA	8-97948-682-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT (C) THA	8-98179-878-0	01	1	1403-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T<Y5K> (A)	1-47476-912-1	01	1	1403-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T<Y2J>,MJT7U M/T<Y4X> M8X30 FLANGE THA	0-28650-830-0	02	1	1403-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T<Y5K> M8X35 FLANGE THA	0-28650-835-0	02	1	1403-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE THA	0-91180-108-0	02	1	1403-	●	●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T<Y2J> M20	0-91111-520-0	01	1	1403-	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> M12	9-09840-280-0	01	1	1403-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	1403-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T<Y2J> ID=20.2	0-91510-520-0	01	1	1403-	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T<Y4X>,ZF9S1310 M/T<Y5K> ID=12.2	0-91510-512-0	01	1	1403-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	1403-		●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (A) L=480	0-07806-480-1	01	1	1403-	●
47	HOSE; FLEX,CLU CONT MAL6R M/T<Y2J> (B) L=470	1-09364-692-0	01	1	1403-	●
47	HOSE; FLEX,CLU CONT MJT7U M/T<Y4X> (C) L=650	1-09364-694-0	01	1	1403-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (A) L=350	1-09363-624-0	01	1	1403-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T<Y5K> (B) L=370	8-98072-331-0	01	1	1403-	●	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1403-	●	●
106	UNION; OIL PIPE ZF9S1310 M/T<Y5K> (A) M14 STRAIGHT	0-92113-008-0	01	1	1403-	●	●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1403-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1403-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1403-	●	●
153	PIPE ASM; CLU,UNION TO FLEX MAL6R M/T<Y2J> (C) L=1613 SERVICED BY L=1700	1-47428-767-0	01	1	1403-	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T<Y4X> (A) L=1758 SERVICED BY L=1800	1-47428-768-0	01	1	1403-	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T<Y5K> (B) L=1155 SERVICED BY L=1250	1-47428-764-0	01	1	1403-	●	●
164	CLIP; BAND,FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=350	1-09707-183-0	01	1	1403-	●
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	1403-		●
233	BAND; FLEX HOSE MAL6R M/T<Y2J>,ZF9S1310 M/T<Y5K> L=175	1-09707-178-0	01	1	1403-	●
233	BAND; FLEX HOSE L=175	1-09707-178-0	01	1	1403-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
