1-50 — EXHAUST PIPE AND SILENCER (#136067) — 112 parça

105 24 394 197 394 420 64 58 4 68 105 446 77 77 45 448 94 89 159 396 159 427 427 52 429

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	WASHER; PL,U BOLT ID=8.4 OD=22	0-91610-708-0	02	1	1403-	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	1403-	●	●
45	BOLT; BRKT M10X50 FLANGE THA	0-28051-050-0	02	1	1403-	●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1403-	●	●
58	BRACKET; EXH PIPE,RR THA	8-97924-613-0	01	1	1403-	●
64	U-BOLT; EXH PIPE,RR	8-98164-642-0	01	1	1403-	●
68	NUT; U BOLT M8	0-91111-508-0	02	1	1403-	●
77	RUBBER; CUSHION,BRKT OD=40 THA	1-22159-094-0	04	1	1403-	●
89	CLAMP; EXH SILENCER,RR (A)	1-22133-276-0	01	1	1403-		●
89	CLAMP; EXH SILENCER,RR (B) THA	8-97638-771-0	02	1	1403-	●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	1403-		●
94	BOLT; CLAMP (C) M8X35 FLANGE THA	0-28650-835-0	02	1	1403-		●
94	BOLT; CLAMP (A) M10X40 FLANGE THA	0-28651-040-0	03	1	1403-	●
105	NUT; CLAMP (A) M8 FLANGE THA	0-91180-108-0	04	1	1403-		●
105	NUT; CLAMP (B) M10 FLANGE THA	0-91180-210-0	06	1	1403-	●
159	BOLT; HEAT PROTECTOR M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1403-1409	●
159	BOLT; HEAT PROTECTOR M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1410-	●
197	BRACKET; EXH PIPE,VERTICAL THA	1-22151-768-1	01	1	1403-	●
394	RUBBER; SUPPORT,CLAMP OD=40 THA	1-22159-094-0	08	1	1403-	●
396	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	01	1	1403-	●
420	BOLT; BRKT,VERTICAL PIPE M12X35 FLANGE	0-28061-235-0	08	1	1403-	●
427	SUPPORT; CLAMP OD=40 THA	1-22159-094-0	08	1	1403-	●
429	COLLAR; DIST,SUPPORT L=25	1-14234-083-0	04	1	1403-	●
446	PIECE; DIST,EXH PIPE,RR L=22	9-22159-024-0	02	1	1403-	●
448	PIECE; DIST,U-BOLT THA	8-97917-674-1	01	1	1403-	●

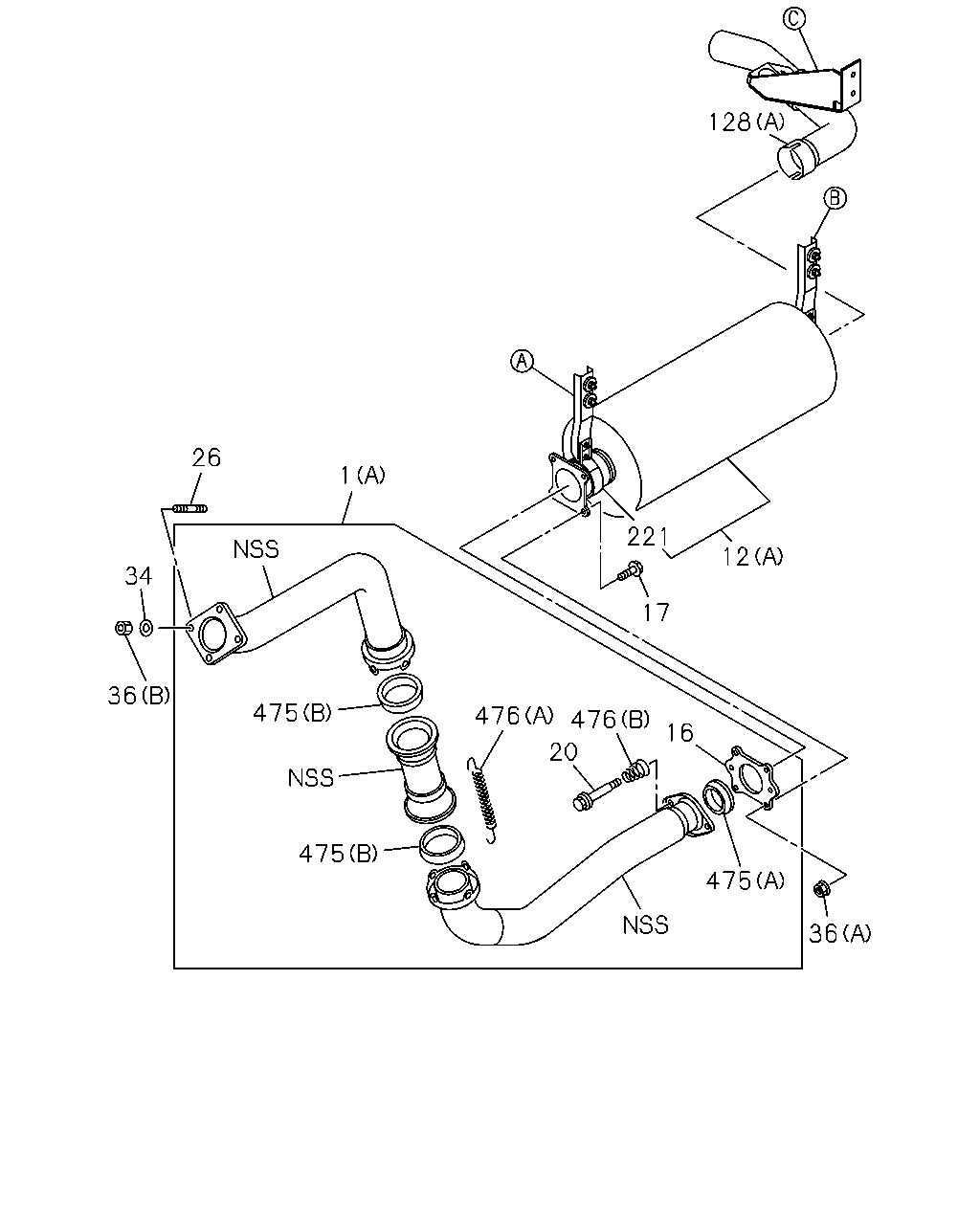

1 26 34 36 475 475 476 20 476 475 36 16 17 221 12 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH WHEEL BASE 4700MM<47W> (A) THA	8-98055-105-0	01	1	1403-		●
1	PIPE; EXH WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) THA	8-98127-231-0	01	1	1403-		●
1	PIPE; EXH (B) THA	8-98110-270-1	01	1	1403-	●
12	SILENCER ASM; EXH (A) THA	8-97926-405-0	01	1	1403-		●
12	SILENCER ASM; EXH (B) THA	8-97926-407-0	01	1	1403-	●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	1403-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1403-		●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	1403-		●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	1-09009-167-0	02	1	1403-	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	1403-	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	04	1	1403-	●	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1403-		●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1403-	●	●
128	PIPE; EXH,RR WHEEL BASE 4700MM<47W> (A) THA	8-97645-940-0	01	1	1403-		●
128	PIPE; EXH,RR WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) THA	8-97640-906-0	01	1	1403-		●
128	PIPE; EXH,RR (B) THA	8-97925-603-0	01	1	1403-	●
221	CLAMP; EXH SILENCER D=101.4	1-22133-170-1	01	1	1403-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-1	01	1	1403-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122 THA	1-22119-297-1	02	1	1403-	●	●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-248-0	04	1	1403-		●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	1403-	●	●
476	SPRING; VIBNON,EXH PIPE (C) THA	1-09583-298-0	04	1	1403-	●

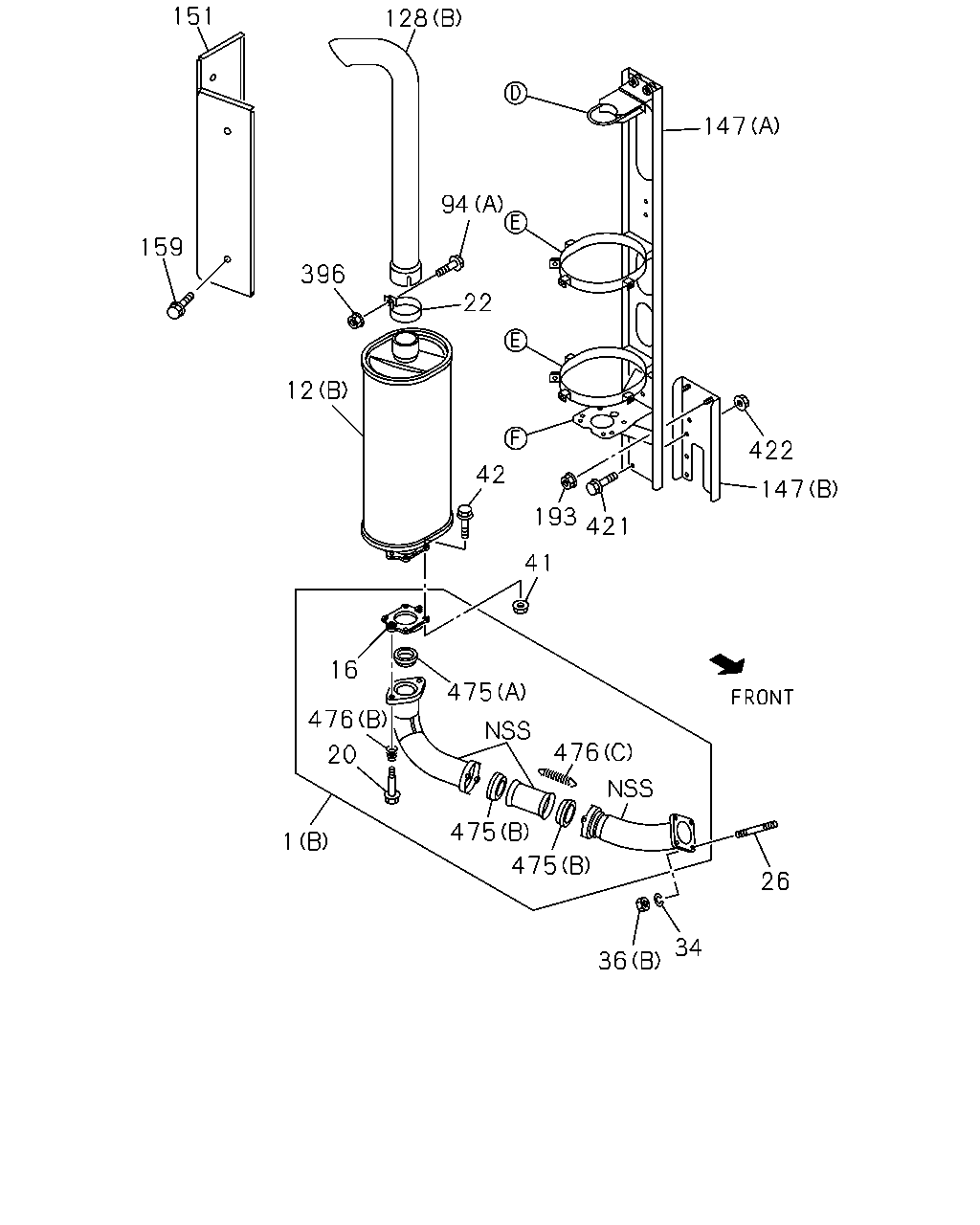

151 159 12 396 128 94 22 147 42 193 421 41 422 147 16 476 20 1 475 475 476 475 36 34 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH WHEEL BASE 4700MM<47W> (A) THA	8-98055-105-0	01	1	1403-		●
1	PIPE; EXH WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) THA	8-98127-231-0	01	1	1403-		●
1	PIPE; EXH (B) THA	8-98110-270-1	01	1	1403-	●
12	SILENCER ASM; EXH (A) THA	8-97926-405-0	01	1	1403-		●
12	SILENCER ASM; EXH (B) THA	8-97926-407-0	01	1	1403-	●
16	FLANGE; EXH PIPE THA	1-22115-217-0	01	1	1403-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	8-94436-943-0	02	1	1403-		●
20	BOLT; FLANGE,EXH PIPE M10X51.4 THA	1-09009-167-0	02	1	1403-	●
22	CLAMP; EXH PIPE THA	1-22133-266-1	01	1	1403-	●
26	STUD; EXH MANIF M12X140 L=160	1-09302-163-0	04	1	1403-	●	●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09556-020-0	04	1	1403-	●	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1403-		●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1403-	●	●
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1403-	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X35 FLANGE	1-09000-653-0	02	1	1403-	●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	1403-		●
94	BOLT; CLAMP (C) M8X35 FLANGE THA	0-28650-835-0	02	1	1403-		●
94	BOLT; CLAMP (A) M10X40 FLANGE THA	0-28651-040-0	03	1	1403-	●
128	PIPE; EXH,RR WHEEL BASE 4700MM<47W> (A) THA	8-97645-940-0	01	1	1403-		●
128	PIPE; EXH,RR WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) THA	8-97640-906-0	01	1	1403-		●
128	PIPE; EXH,RR (B) THA	8-97925-603-0	01	1	1403-	●
147	BRACKET; VERTICAL PIPE (B) THA	8-97924-654-0	01	1	1403-	●
147	BRACKET; VERTICAL PIPE (A) THA	8-97924-664-0	01	1	1403-	●
151	PROTECTOR; HEAT,EXH PIPE THA	8-97638-770-1	01	1	1403-	●
159	BOLT; HEAT PROTECTOR M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1403-1409	●
159	BOLT; HEAT PROTECTOR M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	1410-	●
193	NUT; BRKT,VERTICAL PIPE M12 FLANGE THA	0-91180-212-0	02	1	1403-	●
396	NUT; CLAMP M10 FLANGE THA	0-91180-210-0	01	1	1403-	●
421	BOLT; PIPE BRKT M10X60 FLANGE THA	0-28051-060-0	04	1	1403-	●
422	NUT; PIPE M10 FLANGE THA	0-91180-210-0	04	1	1403-	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112 THA	1-22119-294-1	01	1	1403-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122 THA	1-22119-297-1	02	1	1403-	●	●
476	SPRING; VIBNON,EXH PIPE (A) THA	1-09583-248-0	04	1	1403-		●
476	SPRING; VIBNON,EXH PIPE (B) THA	8-94141-851-0	02	1	1403-	●	●
476	SPRING; VIBNON,EXH PIPE (C) THA	1-09583-298-0	04	1	1403-	●

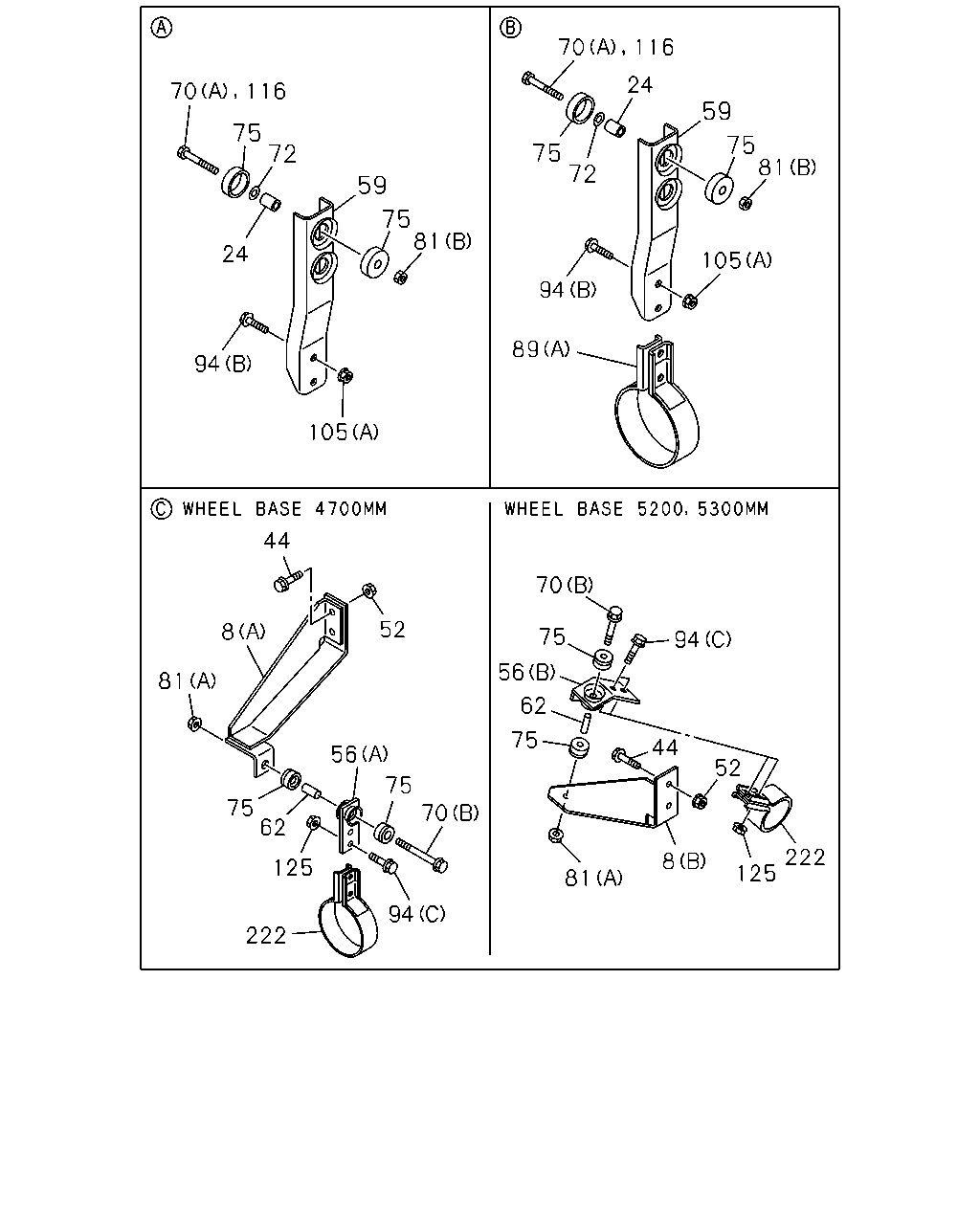

105 81 75 59 24 116 70 75 72 94 89 70 75 94 52 222 125 8 81 44 75 62 56 81 75 59 72 75 70 116 24 94 105 44 52 8 81 75 62 125 222 94 56 75 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BRACKET; EXH PIPE WHEEL BASE 4700MM<47W> (A) THA	8-97645-942-0	01	1	1403-		●
8	BRACKET; EXH PIPE WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (B) THA	8-97640-908-0	01	1	1403-		●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	1403-	●	●
44	BOLT; BRKT M10X35 FLANGE THA	0-28051-035-0	02	1	1403-		●
52	NUT; BRKT M10 FLANGE THA	0-91180-210-0	02	1	1403-	●	●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4700MM<47W> (A) THA	8-97645-943-0	01	1	1403-		●
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (B) THA	8-97640-909-0	01	1	1403-		●
59	BRACKET; EXH SILENCER,FRT WHEEL BASE 4700MM<47W>	8-98055-106-0	02	1	1403-		●
59	BRACKET; EXH SILENCER,FRT WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> THA	8-97924-889-0	02	1	1403-		●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	1403-		●
70	BOLT; BRKT (B) M10X50 FLANGE THA	0-28051-050-0	01	1	1403-		●
70	BOLT; BRKT WHEEL BASE 4700MM<47W> (A) M10X60	0-10856-060-0	02	1	1403-		●
70	BOLT; BRKT WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) M10X50	0-10856-050-0	01	1	1403-		●
70	BOLT; BRKT WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> (A) M10X60	0-10856-060-0	01	1	1403-		●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	04	1	1403-		●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	02	1	1403-		●
75	RUBBER; SUPPORT,BRKT OD=40 THA	1-22159-094-0	08	1	1403-		●
81	NUT; BRKT (B) M10 THA	0-91110-510-0	04	1	1403-		●
81	NUT; BRKT (A) M10 FLANGE THA	0-91180-210-0	01	1	1403-		●
89	CLAMP; EXH SILENCER,RR (A)	1-22133-276-0	01	1	1403-		●
89	CLAMP; EXH SILENCER,RR (B) THA	8-97638-771-0	02	1	1403-	●
94	BOLT; CLAMP (B) M8X35 FLANGE THA	0-28050-835-0	04	1	1403-		●
94	BOLT; CLAMP (C) M8X35 FLANGE THA	0-28650-835-0	02	1	1403-		●
94	BOLT; CLAMP (A) M10X40 FLANGE THA	0-28651-040-0	03	1	1403-	●
105	NUT; CLAMP (A) M8 FLANGE THA	0-91180-108-0	04	1	1403-		●
105	NUT; CLAMP (B) M10 FLANGE THA	0-91180-210-0	06	1	1403-	●
116	BOLT; BRKT WHEEL BASE 4700MM<47W> M10X60	0-10856-060-0	02	1	1403-		●
116	BOLT; BRKT WHEEL BASE 5200MM<52W>,WHEEL BASE 5300MM<53W> M10X50	0-10856-050-0	02	1	1403-		●
125	NUT; CLAMP M8 FLANGE THA	0-91180-108-0	02	1	1403-		●
222	CLAMP; EXH PIPE ID=97 THA	1-22133-191-0	01	1	1403-		●
