◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11587 - FXZ/GXZ(THAI)EURO3 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#136064) — 43 parça

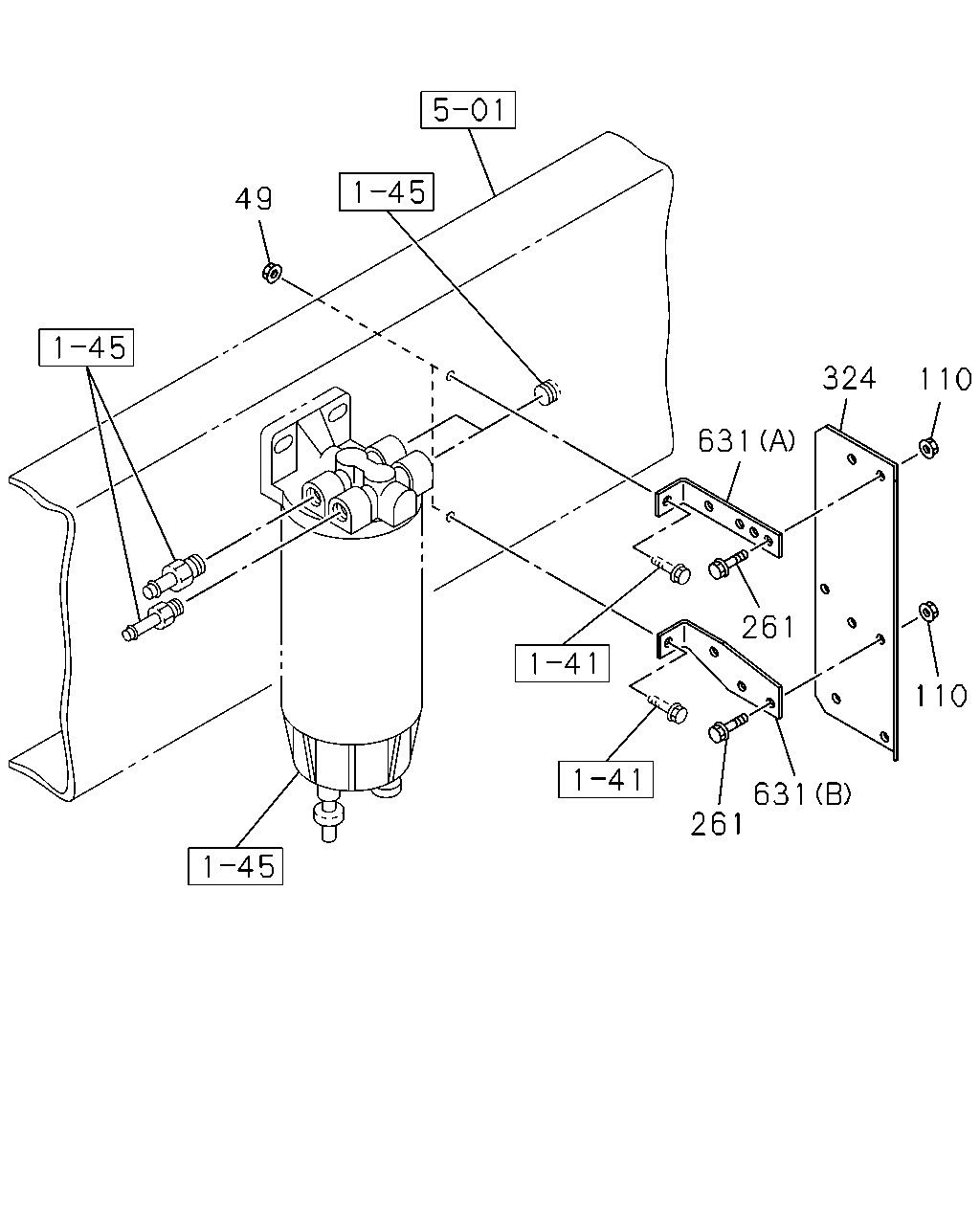

çizim 413160
631 324 110 110 261 261 631 49
BalonParca AdiParca NoAdetTipApplied Date A B
49 NUT; BRKT
FUEL TANK 370L<8MH> M12 		0-91110-512-0 12 1 1403- ●
49 NUT; BRKT
M12 		0-91110-512-0 12 1 1403- ●
49 NUT; BRKT
WHEEL BASE 4700MM<47W> M8 FLANGE THA 		0-91180-108-0 02 1 1403- ●
49 NUT; BRKT
WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> M12 FLANGE THA 		0-91180-212-0 12 1 1403- ●
110 NUT; PROTECTOR
WHEEL BASE 4700MM<47W> M8 FLANGE THA 		0-91180-108-0 04 1 1403- ●
261 BOLT; PROTECTOR
WHEEL BASE 4700MM<47W> M8X20 FLANGE THA 		0-28650-820-0 04 1 1403- ●
324 PROTECTOR; FUEL SEDIMENTER
WHEEL BASE 4700MM<47W> 		1-47471-216-0 01 1 1403- ●
631 BRACKET; PROTECTOR
WHEEL BASE 4700MM<47W> (A) 		1-82698-358-0 01 1 1403- ●
631 BRACKET; PROTECTOR
WHEEL BASE 4700MM<47W> (B) 		1-82698-625-0 01 1 1403- ●

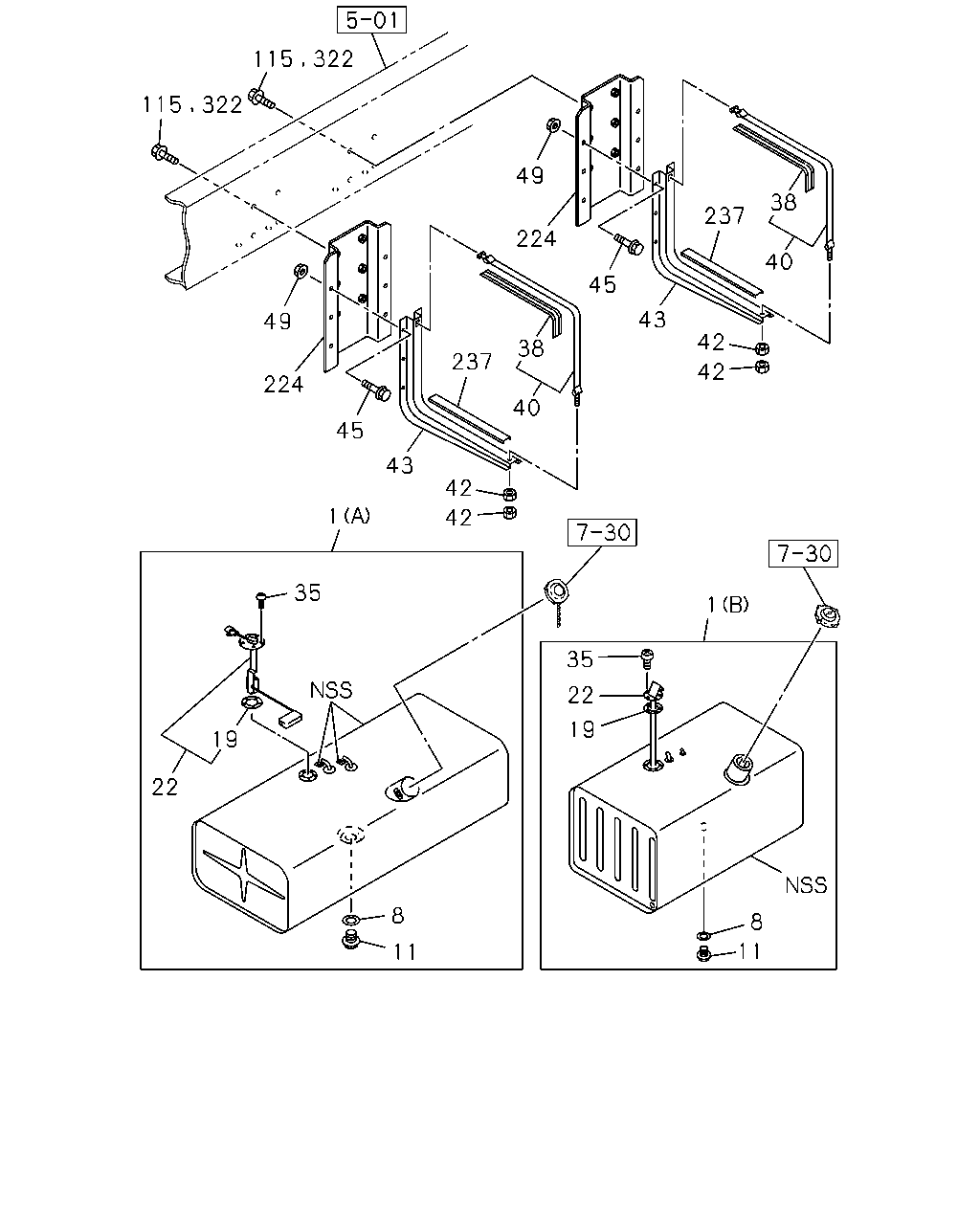

çizim 413951
322 115 322 115 49 224 45 43 42 237 38 40 42 38 237 40 45 224 49 43 42 42 1 1 35 22 19 35 19 22 8 11 8 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20> (A) 1100X632X322 200L THA 		8-97924-531-1 01 1 1403- ●
1 TANK; FUEL
FUEL TANK 370L<8MH> (B) 1275X603X503 370L THA 		8-98240-497-0 01 1 1403- ●
1 TANK; FUEL
(B) 1275X603X503 370L THA 		8-98240-497-0 01 1 1403- ●
8 GASKET; DRAIN PLUG,FUEL TANK
THA 		8-97913-627-0 01 1 1403- ● ●
11 PLUG; DRAIN,FUEL TANK
THA 		8-97913-628-0 01 1 1403- ● ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71 		5-83148-001-0 01 1 1403- ●
19 GASKET; FUEL TANK UNIT
FUEL TANK 370L<8MH> 		1-83149-003-0 01 1 1403- ●
19 GASKET; FUEL TANK UNIT 1-83149-003-0 01 1 1403- ●
22 UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> 		1-83141-084-1 01 1 1403- ●
22 UNIT; FUEL TANK
FUEL TANK 370L<8MH> 		8-98232-363-0 01 1 1403- ●
22 UNIT; FUEL TANK 8-98232-363-0 01 1 1403- ●
35 SCREW; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20> M5X10 W/LK WASHER 		0-36220-510-0 05 1 1403- ●
35 SCREW; FUEL TANK UNIT
FUEL TANK 370L<8MH> 		1-22419-012-0 05 1 1403- ●
35 SCREW; FUEL TANK UNIT 1-22419-012-0 05 1 1403- ●
38 INSULATION; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20> THA 		8-97922-749-0 02 1 1403- ●
38 INSULATION; SUPPORT BELT
FUEL TANK 370L<8MH> THA 		8-97922-175-0 04 1 1403- ●
38 INSULATION; SUPPORT BELT
THA 		8-97922-175-0 04 1 1403- ●
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> THA 		8-97922-752-0 02 1 1403- ●
40 BELT; SUPPORT,FUEL TANK
FUEL TANK 370L<8MH> THA 		8-97922-751-0 02 1 1403- ●
40 BELT; SUPPORT,FUEL TANK
THA 		8-97922-751-0 02 1 1403- ●
42 NUT; SUPPORT BELT
M10 THA 		0-91110-510-0 04 1 1403- ● ●
43 BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20> THA 		8-97910-388-2 02 1 1403- ●
43 BRACKET; FUEL TANK
FUEL TANK 370L<8MH> THA 		8-97921-801-1 02 1 1403- ●
43 BRACKET; FUEL TANK
THA 		8-97921-801-1 02 1 1403- ●
45 BOLT; BRKT,FUEL TANK
WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE THA 		0-28051-240-0 12 1 1403- ●
49 NUT; BRKT
FUEL TANK 370L<8MH> M12 		0-91110-512-0 12 1 1403- ●
49 NUT; BRKT
M12 		0-91110-512-0 12 1 1403- ●
49 NUT; BRKT
WHEEL BASE 4700MM<47W> M8 FLANGE THA 		0-91180-108-0 02 1 1403- ●
49 NUT; BRKT
WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> M12 FLANGE THA 		0-91180-212-0 12 1 1403- ●
115 BOLT; BRKT
WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> M12X40 FLANGE THA 		0-28051-240-0 12 1 1403- ●
224 BRACKET; FUEL TANK BRKT TO FRAME
WHEEL BASE 4700MM<47W> FUEL TANK 200L FRAME SIDE<N20> THA 		8-97910-886-0 02 1 1403- ●
237 GASKET; BRKT TO FUEL TANK
L=580 THA 		8-97916-877-0 02 1 1403- ● ●
322 BOLT; BRKT FIX
FUEL TANK 370L<8MH> M12X45 FLANGE THA 		0-28051-245-0 12 1 1403- ●
322 BOLT; BRKT FIX
M12X45 FLANGE THA 		0-28051-245-0 12 1 1403- ●
