Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11587 - FXZ/GXZ(THAI)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#136043) — 28 parça
◀

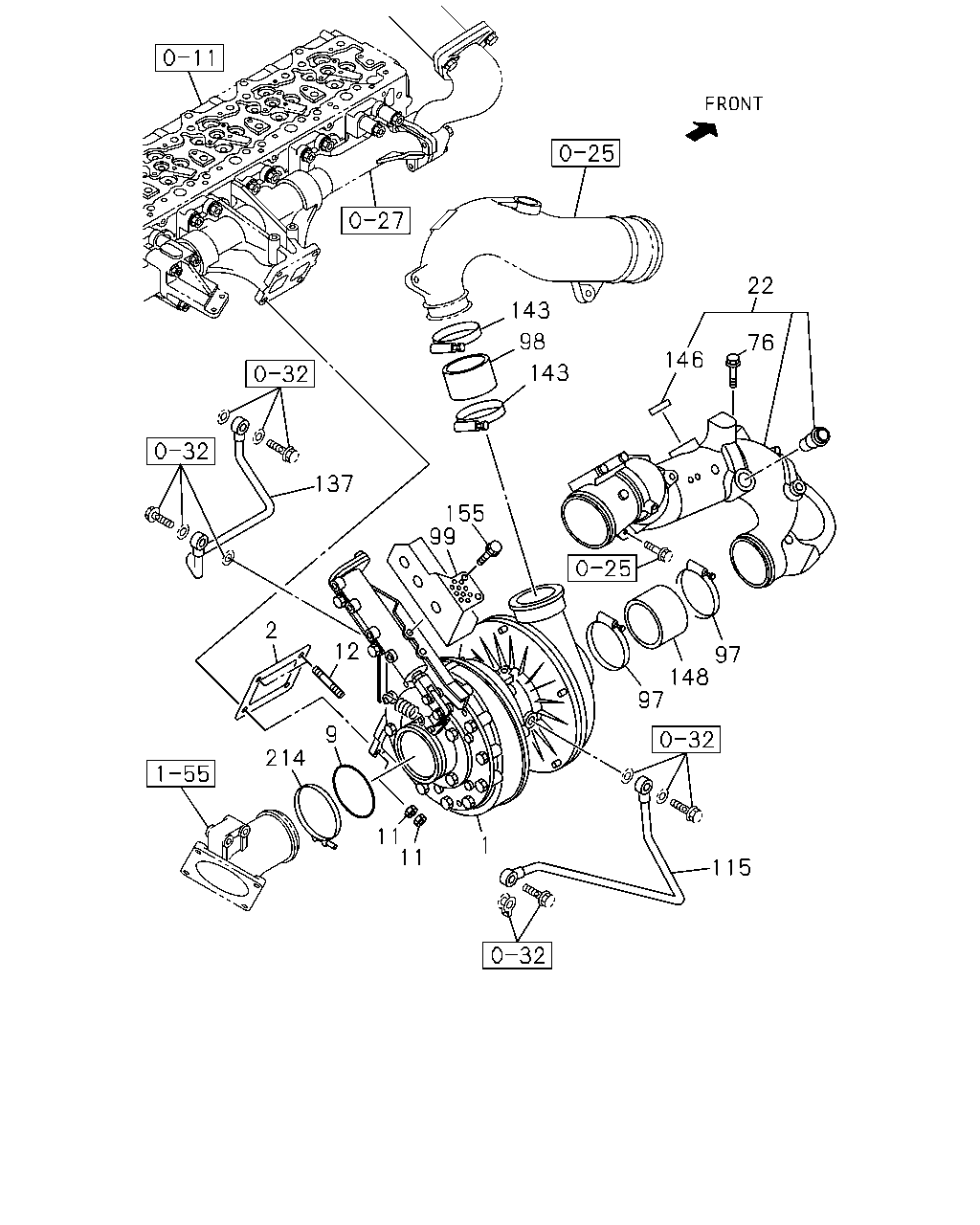

[036A] TURBOCHARGER FIXING (17 parça)
[036A] FLEX HOSE AND PIPE (11 parça)
▶
143
22
143
98
146
76
97
148
115
97
1
11
11
9
12
214
2
155
99
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
1-14400-429-5
01
1
1403-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98162-161-0
01
1
1403-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97618-761-1
01
1
1403-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
1403-
12
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
1403-
22
DUCT; INL,ACL TO TURBOCHARGER
8-97614-187-1
01
1
1403-
76
BOLT; AIR DUCT
M10X45 FLANGE THA
0-28151-045-0
03
1
1403-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-138-0
02
1
1403-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-98169-677-0
01
1
1403-
99
PROTECTOR; HEAT
1-14181-350-0
01
1
1403-
115
PIPE; WATER,TURBOCHARGER OUT
8-97605-217-0
01
1
1403-
137
PIPE; WATER,TURBOCHARGER IN
8-97607-435-0
01
1
1403-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=68-85
8-98096-592-0
02
1
1403-
146
PLUG; INL PIPE
OD=40
8-94241-637-0
01
1
1403-
148
HOSE; TURBOCHARGER,INL
1-09360-913-0
01
1
1403-
155
BOLT; HEAT PROTECTOR
M6X10 FLANGE THA
0-28050-610-0
04
1
1403-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98006-007-1
01
1
1403-
268
268
268
272
272
272
479
479
479
523
523
523
276
276
217
515
514
514
392
514
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
217
BOLT; BRKT
M8X16 FLANGE THA
0-28050-816-0
02
1
1403-
268
NUT; FLEX TUBE
M12
0-91110-512-0
03
1
1403-
272
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
03
1
1403-
276
CLIP; PIPE
ID=6.35 & 6.35
1-09709-273-1
02
1
1403-
392
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
01
1
1403-
479
UNION; FLEX TUBE
M12 2WAY
1-09654-059-2
03
1
1403-
514
HOSE; FLEX
L=240
1-09363-671-0
03
1
1403-
515
BRACKET; UNION
8-97608-912-1
01
1
1403-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=512 SERVICED BY L=550
1-47428-808-0
01
1
1403-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=439 THA
8-97618-499-0
01
1
1403-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=379 THA
8-97618-500-0
01
1
1403-
