3-80 — BRAKE PIPING; TRAILER (#136023) — 25 parça

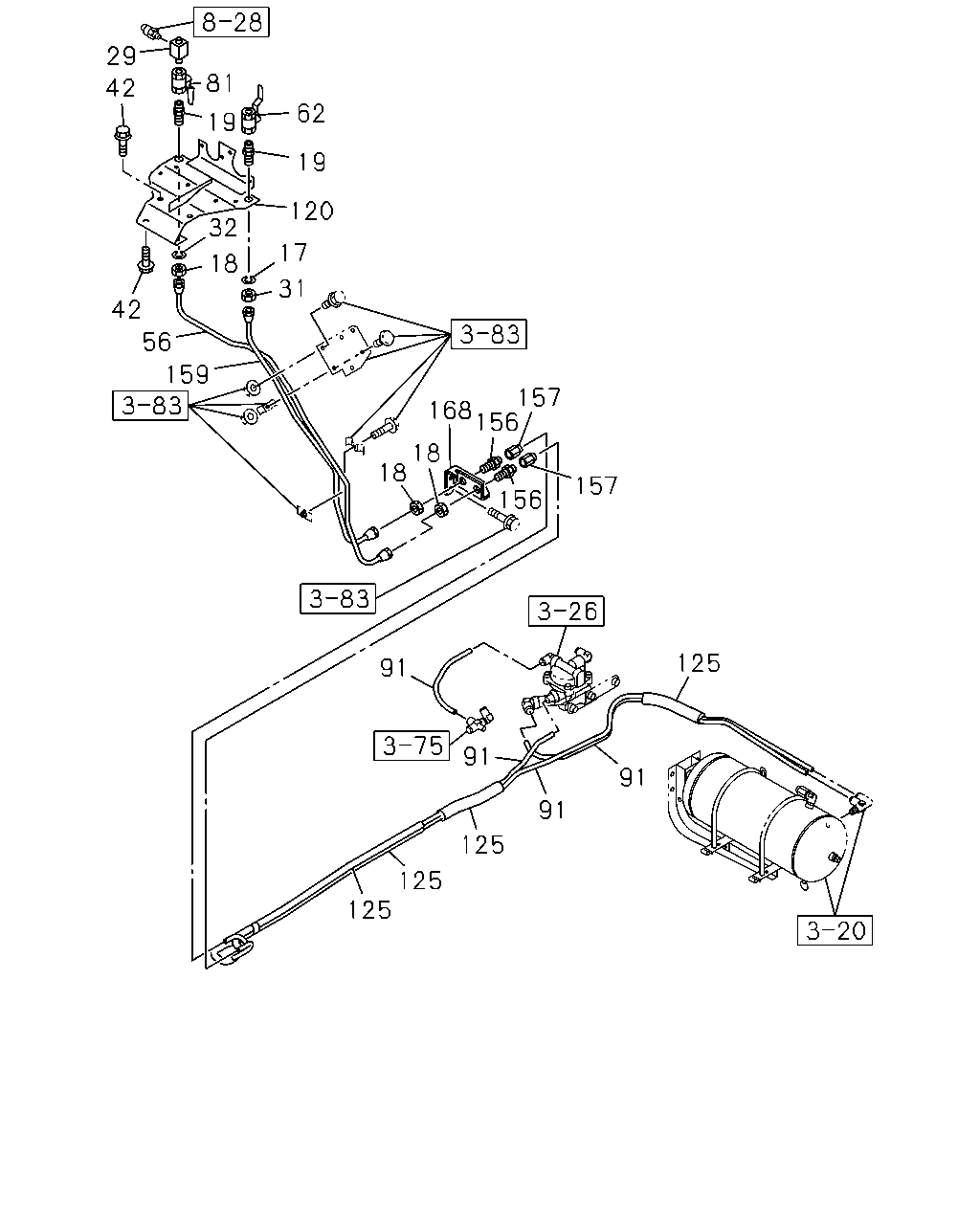

çizim 413435
125 91 91 125 125 125 157 156 18 18 168 157 156 159 56 42 18 17 31 120 19 62 81 29 42 19 32 91 91
BalonParca AdiParca NoAdetTipApplied Date
17 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 01 1 1404-
18 NUT; UNION
M20 		0-91111-520-0 03 1 1404-
19 UNION; AIR PIPE 1-09650-236-1 02 1 1404-
29 CONNECTOR; COCK
PT1/2 		1-09664-041-1 01 1 1404-
31 NUT; UNION
M20 		0-91111-520-0 01 1 1404-
32 WASHER; LK,UNION
ID=20.2 		0-91510-520-0 01 1 1404-
42 BOLT; BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1404-
56 PIPE; AIR,UNION TO COCK
L=817 SERVICED BY L=900 		1-49115-484-0 01 1 1404-
62 COCK; AIR PIPE
YELLOW 		1-09680-093-0 01 1 1404-
81 COCK; AIR COUPLING
RED 		1-09680-091-0 01 1 1404-
91 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1404-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1404-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 1404-
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 1404-
120 BRACKET; COCK 8-98250-440-1 01 1 1404-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 02 1 1404-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 02 1 1404-
156 UNION
M20 & M20 		0-92123-312-0 02 1 1404-
157 ADAPTER
DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 1404-
159 PIPE; AIR,UNION TO CONNECTOR
L=1105 SERVICED BY L=1200 		1-49115-487-0 01 1 1404-
168 BRACKET; UNION 8-98250-432-1 01 1 1404-
çizim 413854
91
BalonParca AdiParca NoAdetTipApplied Date
91 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1404-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 1404-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 02 1 1404-
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 1404-
