Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11567 - FVZ/GVZ(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#136022) — 69 parça
◀
[326A] VALVE;DOUBLE CHECK (8 parça)
[326A] REPAIR KIT;HAND CONTROL BRAKE VALVE (9 parça)
[326A] VALVE;TRAILER BRAKE CONTROL (10 parça)
[326A] COMPONENT,REPAIR KIT;TRLR BRK CONT VLV (10 parça)
[326A] HAND CONTROL BRAKE VALVE (32 parça)
▶
123
68
205
68
205
94
122
123
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; DOUBLE CHECK VLV
(A) M8X12 FLANGE
0-28050-812-0
02
1
1404-
68
BOLT; DOUBLE CHECK VLV
(B) M8X25 FLANGE IDN
0-28650-825-0
01
1
1404-
94
BRACKET; CHECK VLV
8-98177-521-1
01
1
1404-
122
VALVE ASM; DOUBLE CHECK
1-48410-531-1
01
1
1404-
123
CONNECTOR; DBL CHECK VLV
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1404-
123
CONNECTOR; DBL CHECK VLV
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1404-
123
CONNECTOR; DBL CHECK VLV
(C) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
01
1
1404-
205
NUT; DOUBLE CHECK VLV
M8 FLANGE IDN
0-91180-108-0
02
1
1404-
2
11
5
13
18
15
14
21
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; HAND BRK VLV
1-85576-181-0
01
1
1404-
5
GASKET; HANDLE
1-48119-128-0
01
1
1404-
11
GASKET; HD TO COVER
1-48119-130-0
01
1
1404-
13
GASKET; BODY TO COVER
1-48119-120-0
01
1
1404-
14
FOLLOWER; CAM
1-48129-135-0
01
1
1404-
15
CAM; FOLLOWER
1-48129-134-0
01
1
1404-
18
GASKET; BODY
1-48129-096-0
01
1
1404-
21
VALVE; IN & EXH
1-48121-017-0
01
1
1404-
28
STEM ASM; BRK VLV
1-48129-089-0
01
1
1404-
138
138
116
69
106
66
88
137
88
129
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
66
BOLT; VLV BRKT
M10X35 FLANGE IDN
0-28651-035-0
02
1
1404-
69
NUT; VLV BRKT
M10 FLANGE
0-91180-210-0
02
1
1404-
88
CONNECTOR; ELBOW
(B) DIN12 & R1/2 STRAIGHT
1-09660-966-0
01
1
1404-
88
CONNECTOR; ELBOW
(A)
8-97622-084-0
01
1
1404-
106
BRACKET; VLV
8-98126-366-0
01
1
1404-
116
VALVE; DUAL RELAY
1-48210-157-1
01
1
1404-
125
BOLT; RELAY VLV
M10X35 FLANGE IDN
0-28651-035-0
02
1
1404-
129
NUT; VLV
M10 FLANGE
0-91180-210-0
02
1
1404-
137
CONNECTOR; SUPPLY
DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1404-
138
CONNECTOR; DELIVERY
DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1404-

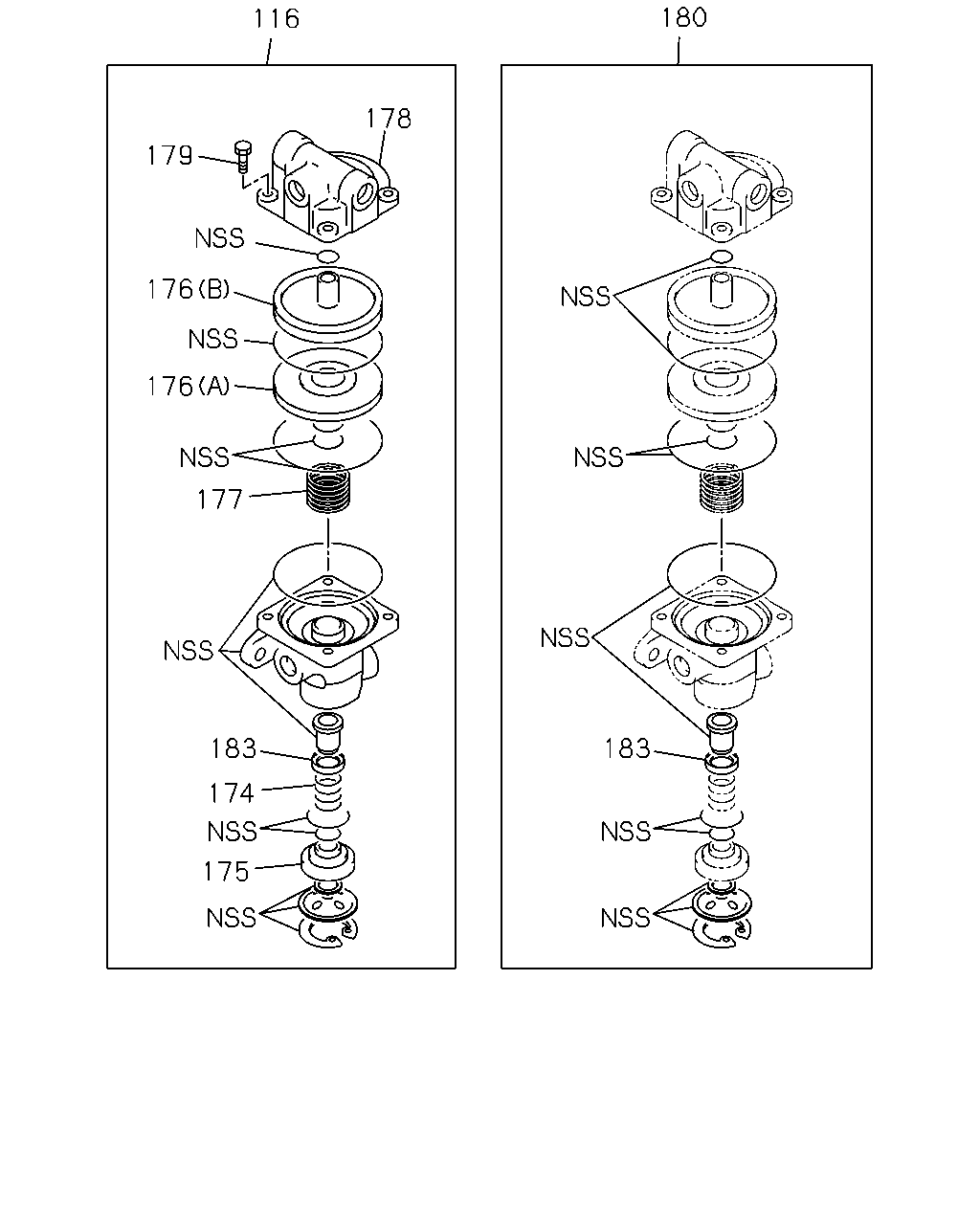

116
178
179
176
180
183
174
175
183
177
176
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
116
VALVE; DUAL RELAY
1-48210-157-1
01
1
1404-
174
SPRING; INL VLV
1-47819-040-0
01
1
1404-
175
GUIDE; VLV,RELAY VLV
1-48129-078-0
01
1
1404-
176
PISTON; RELAY VLV
(A)
1-48219-032-0
01
1
1404-
176
PISTON; RELAY VLV
(B)
1-48219-047-0
01
1
1404-
177
SPRING; RELAY VLV
1-48219-048-0
01
1
1404-
178
COVER; RELAY VLV
1-48219-050-1
01
1
1404-
179
BOLT; COVER,RELAY VLV
1-48219-041-0
04
1
1404-
180
REPAIR KIT; RELAY VLV
1-85576-035-0
01
1
1404-
183
RETAINER; VALVE
1-48213-002-0
01
1
1404-
32
256
165
165
112
105
32
73
112
165
165
5
4
6
7
8
12
11
10
9
21
20
19
18
17
16
15
14
13
23
25
24
28
24
25
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
HANDLE ASM; BRK VLV
1-48119-144-0
01
1
1404-
5
GASKET; HANDLE
1-48119-128-0
01
1
1404-
6
PIN; SPR
1-48119-143-0
01
1
1404-
7
HEAD; BRK VLV
1-48119-131-1
01
1
1404-
8
STOPPER; BRK VLV
1-48119-239-0
01
1
1404-
9
WASHER; LK,ADJ
1-48119-123-0
01
1
1404-
10
RING; ADJ
1-48119-122-0
01
1
1404-
11
GASKET; HD TO COVER
1-48119-130-0
01
1
1404-
12
COVER; BRK VLV
1-48129-097-1
01
1
1404-
13
GASKET; BODY TO COVER
1-48119-120-0
01
1
1404-
14
FOLLOWER; CAM
1-48129-135-0
01
1
1404-
15
CAM; FOLLOWER
1-48129-134-0
01
1
1404-
16
SPRING; GRUDUATING
1-48129-101-0
01
1
1404-
17
PISTON; SPR
1-48129-095-0
01
1
1404-
18
GASKET; BODY
1-48129-096-0
01
1
1404-
19
SPRING; PISTON
1-48129-094-0
01
1
1404-
20
GUIDE; VLV
1-48129-090-0
01
1
1404-
21
VALVE; IN & EXH
1-48121-017-0
01
1
1404-
22
SPRING; VLV
1-48123-024-0
01
1
1404-
23
BODY; BRK VLV
1-48111-060-1
01
1
1404-
24
BOLT; EXH VLV
1-48129-092-0
02
1
1404-
25
WASHER; LK,EXH VLV
1-48129-093-0
02
1
1404-
28
STEM ASM; BRK VLV
1-48129-089-0
01
1
1404-
32
VALVE; BRK,HAND CONT
1-48100-651-0
01
1
1404-
73
BOLT; BRKT
M6X16
0-52000-616-0
05
1
1404-
105
NUT; BRKT
M8 FLANGE IDN
0-91180-108-0
02
1
1404-
112
BRACKET; CONT VLV
(A)
1-73908-268-0
01
1
1404-
112
BRACKET; CONT VLV
(B)
8-98251-373-0
01
1
1404-
165
CONNECTOR; HAND BRK VLV
(A) PT1/4 & PT1/4 2WAY
1-09660-693-0
01
1
1404-
165
CONNECTOR; HAND BRK VLV
(B) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
1404-
165
CONNECTOR; HAND BRK VLV
(C)
8-97062-077-1
01
1
1404-
256
SEAL
1-72497-062-1
01
1
1404-
