Isuzu WW
▶
TRUCKS
▶
FVR
▶
11566 - FVR/GVR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-83 - FIXING PARTS; TRAILER PIPING
▶
3-83 — FIXING PARTS; TRAILER PIPING
(#136019) — 21 parça
◀
[383A] NO.1 (8 parça)

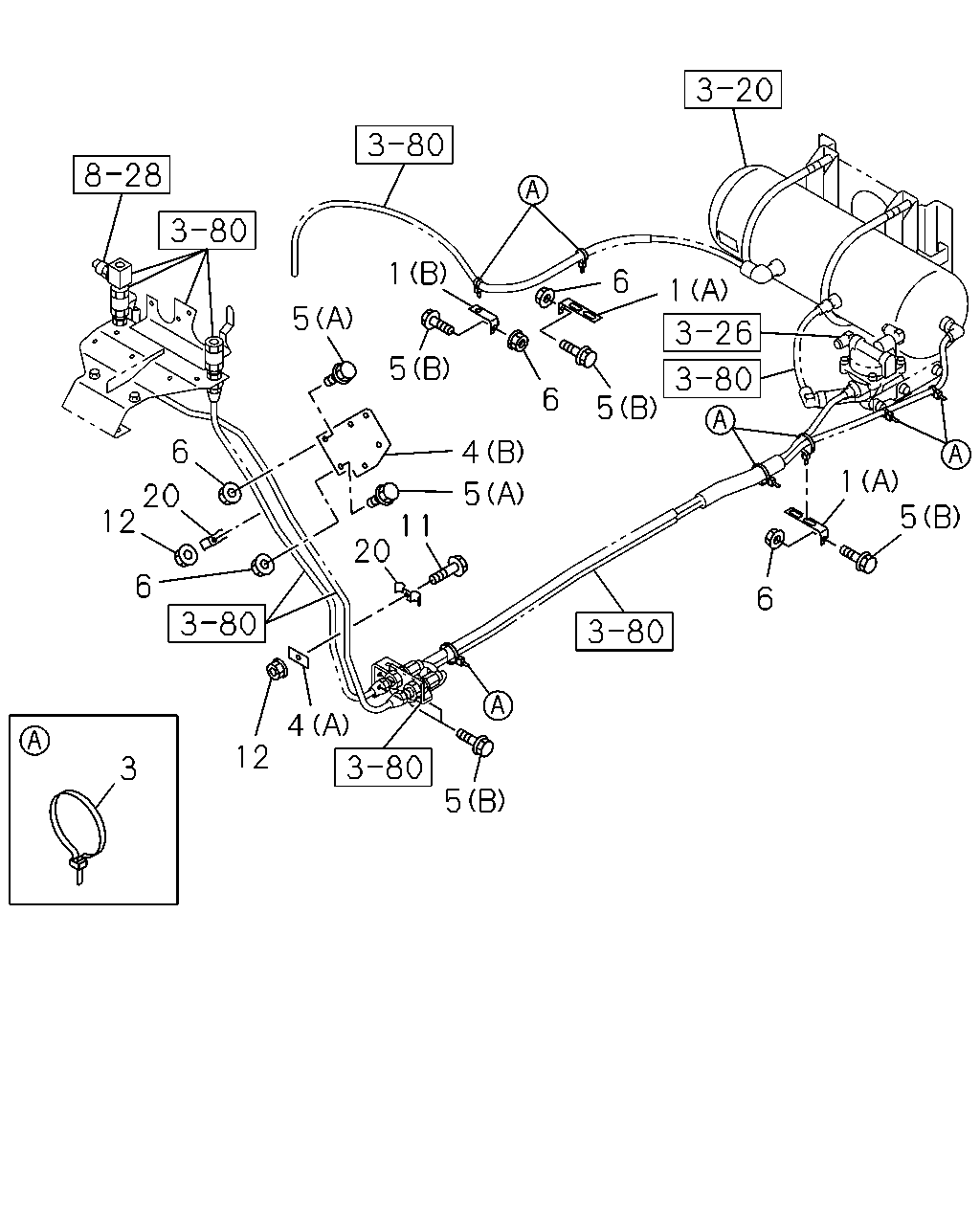

[383A] NO.2 (13 parça)
▶
12
5
17
7
2
5
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; CLIP
M8X20 FLANGE IDN
0-28650-820-0
01
1
1403-
5
BOLT; BRKT
(A) M8X25 FLANGE IDN
0-28650-825-0
04
1
1403-
5
BOLT; BRKT
(B) M8X30 FLANGE
0-28650-830-0
02
1
1403-
5
BOLT; BRKT
(B) M8X30 FLANGE
0-28650-830-0
03
1
1403-
7
CLIP; NYLON TUBE
(A) L=350
1-09707-183-0
01
1
1403-
7
CLIP; NYLON TUBE
(B) ID=21 H=25.5 L=26
8-94176-806-0
01
1
1403-
12
NUT; CLIP
M8 FLANGE IDN
0-91180-108-0
03
1
1403-
17
BRACKET; CLIP
8-98106-046-0
01
1
1403-
1
5
5
6
6
1
5
1
5
6
4
5
11
20
6
20
12
6
12
4
5
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CLIP
(A) L=100 H=30
1-47477-645-2
02
1
1403-
1
BRACKET; CLIP
(B) L=60 H=30
1-47477-716-1
01
1
1403-
3
CLIP; AIR PIPE
L=350
1-09707-183-0
09
1
1403-
4
BRACKET; AIR PIPE
(A) L=50
1-47475-299-2
01
1
1403-
4
BRACKET; AIR PIPE
(B)
8-98141-100-0
01
1
1403-
5
BOLT; BRKT
(A) M8X25 FLANGE IDN
0-28650-825-0
04
1
1403-
5
BOLT; BRKT
(B) M8X30 FLANGE
0-28650-830-0
02
1
1403-
5
BOLT; BRKT
(B) M8X30 FLANGE
0-28650-830-0
03
1
1403-
6
NUT; BRKT
M8 FLANGE IDN
0-91180-108-0
02
1
1403-
6
NUT; BRKT
M8 FLANGE IDN
0-91180-108-0
03
1
1403-
11
BOLT; CLIP
M8X20 FLANGE
0-28050-820-0
01
1
1403-
12
NUT; CLIP
M8 FLANGE IDN
0-91180-108-0
03
1
1403-
20
CLIP; AIR PIPE
ID=13 & 13 L=21.5 & 21.5
1-09700-689-0
02
1
1403-
