Isuzu WW
▶
TRUCKS
▶
FVR
▶
11566 - FVR/GVR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶

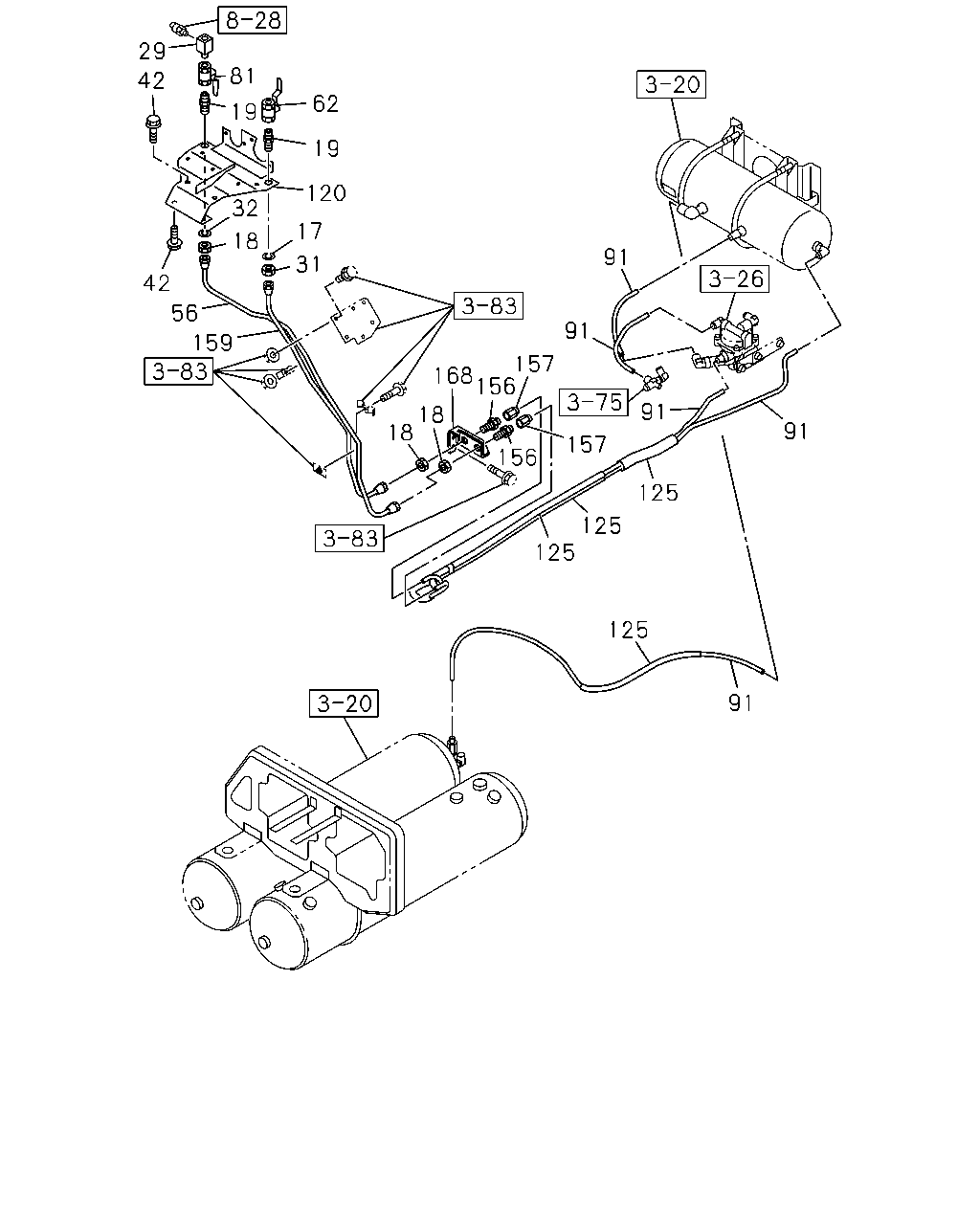

3-80 — BRAKE PIPING; TRAILER
(#136018) — 23 parça
◀
[380A] NO.1 (20 parça)
[380A] NO.2 (3 parça)
▶
29
62
42
81
19
19
31
17
120
18
32
42
159
56
91
91
157
156
168
18
18
91
157
156
125
125
125
91
91
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
WASHER; LK,UNION
ID=20.2
0-91510-520-0
01
1
1403-
18
NUT; UNION
M20
0-91111-520-0
03
1
1403-
19
UNION; AIR PIPE
1-09650-236-1
02
1
1403-
29
CONNECTOR; COCK
PT1/2
1-09664-041-1
01
1
1403-
31
NUT; UNION
M20
0-91111-520-0
01
1
1403-
32
WASHER; LK,UNION
ID=20.2
0-91510-520-0
01
1
1403-
42
BOLT; BRKT
M10X25 FLANGE IDN
0-28651-025-0
04
1
1403-
56
PIPE; AIR,UNION TO COCK
L=817 SERVICED BY L=900
1-49115-484-0
01
1
1403-
62
COCK; AIR PIPE
YELLOW
1-09680-093-0
01
1
1403-
81
COCK; AIR COUPLING
RED
1-09680-091-0
01
1
1403-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1403-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
01
1
1403-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
04
1
1403-
120
BRACKET; COCK
8-98250-440-1
01
1
1403-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
03
1
1403-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
01
1
1403-
156
UNION
M20 & M20
0-92123-312-0
02
1
1403-
157
ADAPTER
DIN12 & M20 STRAIGHT
1-09660-877-0
02
1
1403-
159
PIPE; AIR,UNION TO CONNECTOR
L=1105 SERVICED BY L=1200
1-49115-487-0
01
1
1403-
168
BRACKET; UNION
8-98250-432-1
01
1
1403-
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
1403-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
01
1
1403-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
04
1
1403-
