◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11566 - FVR/GVR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26B - MANUAL TRANSMISSION GEAR ▶
2-26B — MANUAL TRANSMISSION GEAR (#136011) — 137 parça

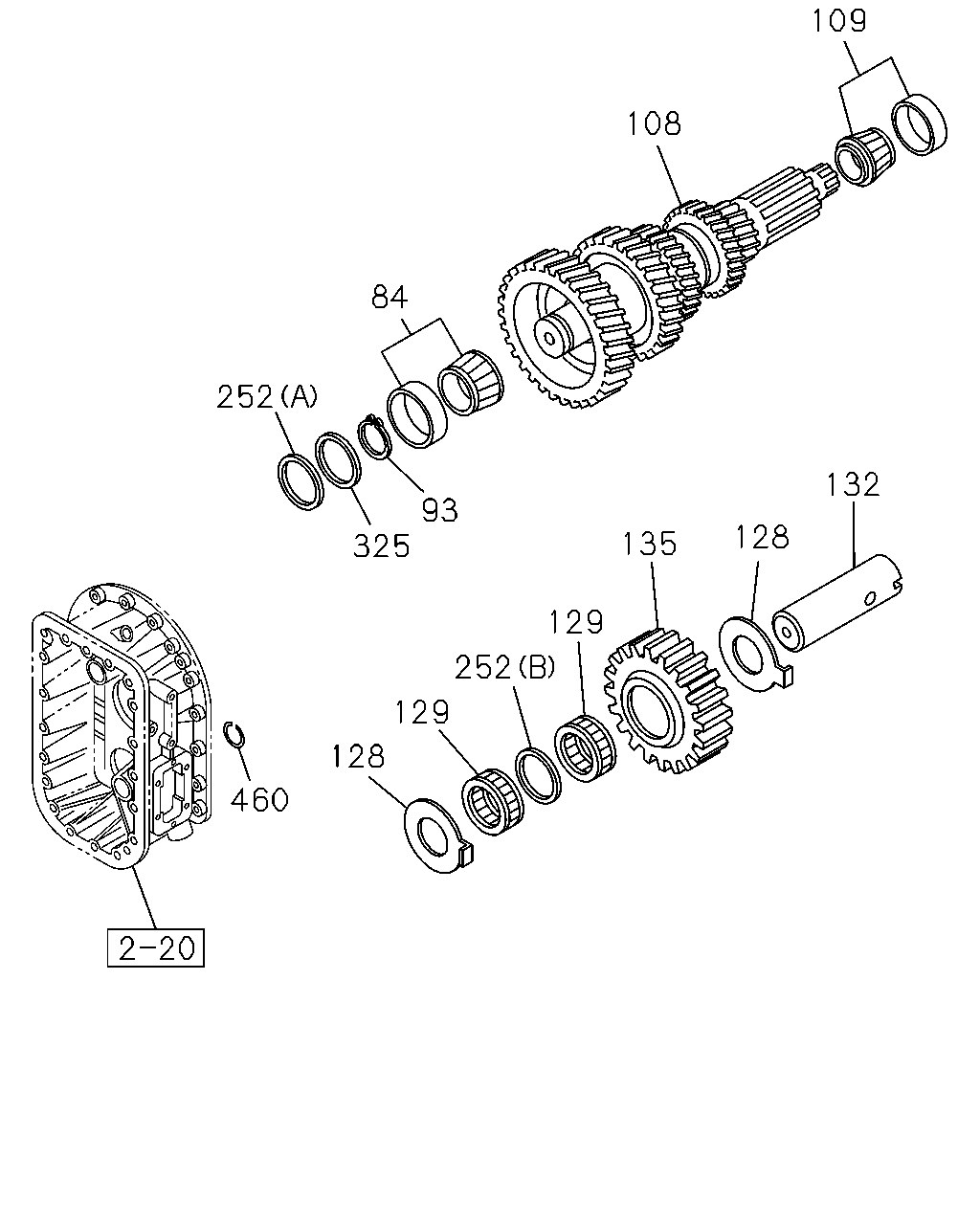

çizim 413229
252 84 108 109 325 93 460 128 252 135 129 128 132 129
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33319-262-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 1403-
108 SHAFT; COUNTER 1-33311-354-0 01 1 1403-
109 BEARING; COUNTER SHAFT,RR 1-33319-262-0 01 1 1403-
128 WASHER; THRUST,REV SHAFT 1-33359-016-0 02 1 1403-
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 1403-
132 SHAFT; REV 1-33351-044-0 01 1 1403-
135 GEAR; REV IDLER 1-33361-097-0 01 1 1403-
252 SPACER
(A) 		1-33319-223-0 01 1 1403-
252 SPACER
(B) 		1-33359-017-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 1403-
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 1403-
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 1403-

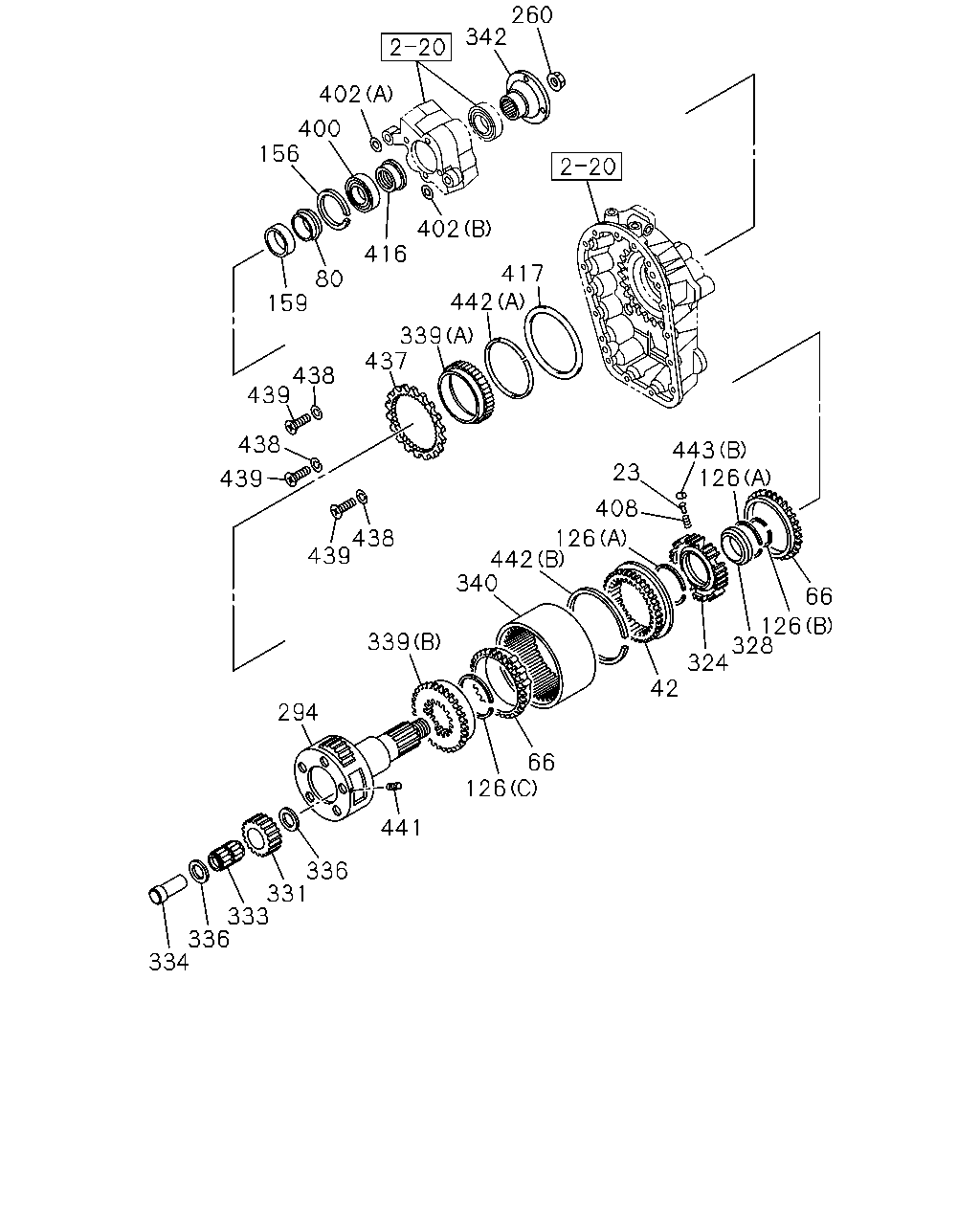

çizim 413721
156 400 402 342 260 159 80 416 402 439 438 439 438 437 339 442 417 439 438 294 339 340 442 126 408 23 443 334 336 333 331 336 441 126 66 42 324 328 126 66 126
BalonParca AdiParca NoAdetTipApplied Date
23 PLUNGER; DETENT,SYN 1-33265-600-0 18 1 1403-
42 SLEEVE 1-33262-246-0 01 1 1403-
66 RING; BLOCK,SYN 1-33265-557-0 02 1 1403-
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 1403-
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 01 1 1403-
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 1403-
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 1403-
126 RING; SNAP,CLU HUB
(D) 		1-33269-065-0 01 1 1403-
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 1403-
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 1403-
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 1403-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.70 		1-37249-193-0 01 1 1403-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.77 		1-37249-194-0 01 1 1403-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.83 		1-37249-195-0 01 1 1403-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.89 		1-37249-196-0 01 1 1403-
156 RING; SNAP,OUTPUT SHAFT BRG
T=3.95 		1-37249-197-0 01 1 1403-
159 SPACER; SPD DRIVE GEAR 1-33159-054-0 01 1 1403-
260 NUT; MAINSHAFT END 1-33119-612-0 01 1 1403-
294 SHAFT; OUTPUT 1-33231-345-0 01 1 1403-
324 HUB; CLU 1-33261-234-0 01 1 1403-
328 BEARING; CARRIER 1-33269-060-0 01 1 1403-
331 GEAR SET; PLANETARY 1-33239-375-0 05 1 1403-
333 ROLLER; PLANETARY GEAR 1-33239-250-0 05 1 1403-
334 SHAFT; PLANETARY GEAR 1-33239-374-0 05 1 1403-
336 WASHER; THRUST,PLANETARY GEAR 1-33239-276-0 10 1 1403-
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 1403-
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 1403-
340 GEAR; RING 1-33339-052-0 01 1 1403-
342 FLANGE; OUTPUT 1-37243-325-0 01 1 1403-
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 1403-
402 SHIM
(A) T=0.005" 		1-33159-050-0 01 1 1403-
402 SHIM
(B) T=0.10" 		1-33159-051-0 01 1 1403-
408 SPRING 1-33264-039-0 18 1 1403-
416 BUSHING; OUTPUT SHAFT 1-37249-168-0 01 1 1403-
417 SPACER; OUTPUT SHAFT 1-33269-053-0 01 1 1403-
437 PLATE; LOCK 1-33269-054-0 01 1 1403-
438 WASHER; LOCK PLATE 1-33269-056-0 03 1 1403-
439 SCREW; LOCK PLATE 1-33269-098-0 03 1 1403-
441 SCREW; STOPPER,PIN 1-33239-251-0 05 1 1403-
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 1403-
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 1403-
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 1403-
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 1403-

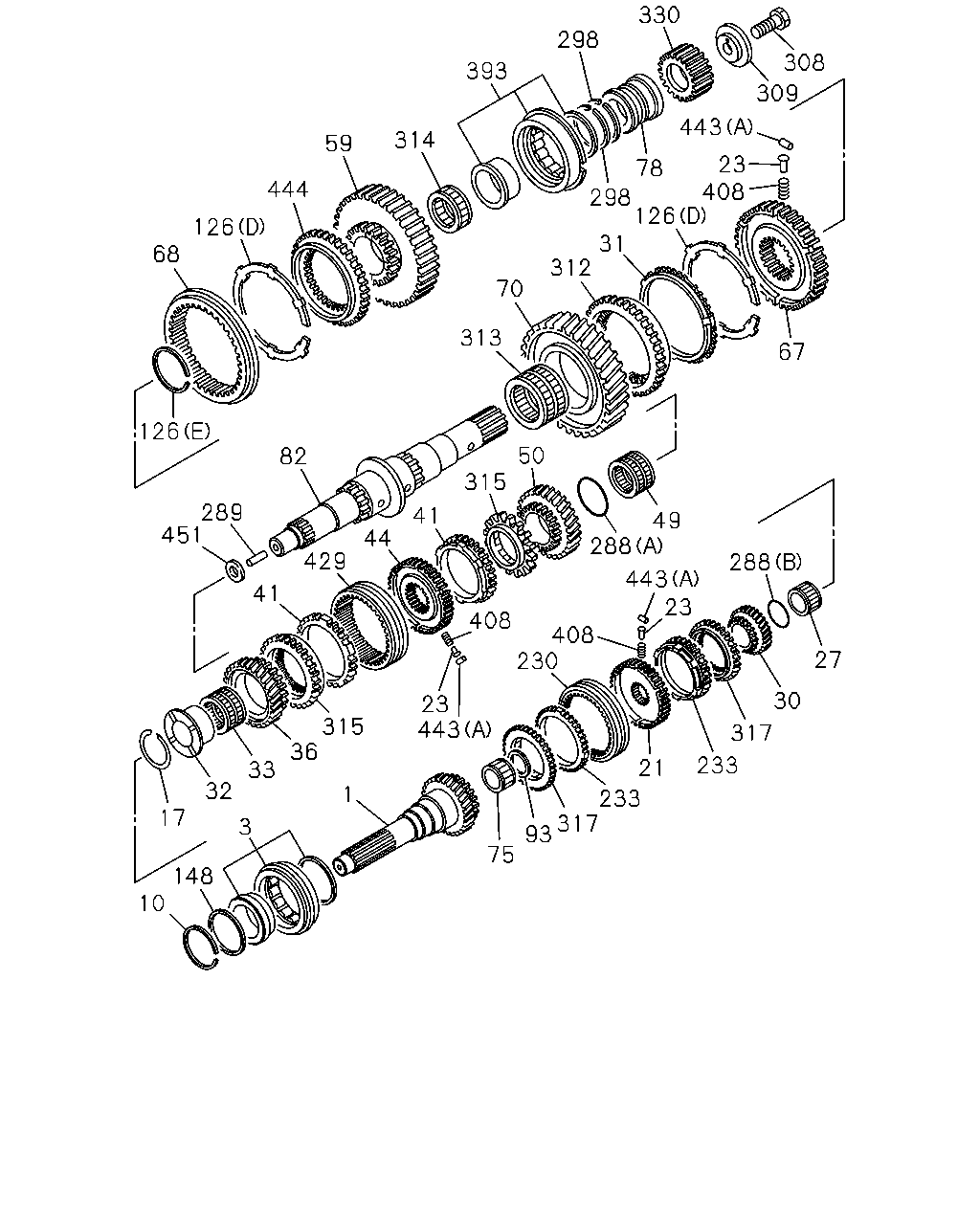

çizim 413995
68 126 444 59 314 393 298 330 289 451 82 313 70 312 31 298 78 126 408 23 443 309 308 41 429 44 41 315 50 17 32 33 36 315 23 443 10 148 3 1 75 93 317 233 21 233 317 30 27 230 408 408 23 443 288 49 288 67 126
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-039-0 01 1 1403-
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 1403-
10 RING; SNAP,PILOT BRG 1-33219-268-0 01 1 1403-
17 RING; SNAP,4TH GEAR
T=2.00 		1-33269-064-0 01 1 1403-
17 RING; SNAP,4TH GEAR
T=2.10 		1-33269-100-0 01 1 1403-
17 RING; SNAP,4TH GEAR
T=2.05 		1-33269-101-0 01 1 1403-
17 RING; SNAP,4TH GEAR
T=2.15 		1-33269-111-0 01 1 1403-
17 RING; SNAP,4TH GEAR
T=2.20 		1-33269-112-0 01 1 1403-
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 1403-
23 PLUNGER; DETENT,SYN 1-33265-600-0 18 1 1403-
27 BEARING; 4TH GEAR 1-33259-079-0 01 1 1403-
30 GEAR; 4TH,MAINSHAFT 1-33252-485-0 01 1 1403-
31 RING; BLOCK,3RD & 4TH 1-33265-599-0 01 1 1403-
32 COLLAR; 3RD GEAR 1-33259-123-0 01 1 1403-
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 1403-
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 1403-
41 RING; BLOCK,2ND & 3RD 1-33265-643-0 02 1 1403-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 1403-
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 1403-
50 GEAR; 2ND,MAINSHAFT 1-33259-137-0 01 1 1403-
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 1403-
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 1403-
68 SLEEVE; 1ST TO REV 1-33265-645-0 01 1 1403-
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 1403-
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 1403-
78 COLLAR; DIST,MAINSHAFT BRG 1-33239-373-0 01 1 1403-
82 SHAFT; MAIN,TRANS 1-33231-346-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 1403-
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 1403-
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 01 1 1403-
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 1403-
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 1403-
126 RING; SNAP,CLU HUB
(D) 		1-33269-065-0 01 1 1403-
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 1403-
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 1403-
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 1403-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.10 		1-33219-298-0 01 1 1403-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.15 		1-33219-299-0 01 1 1403-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.20 		1-33219-300-0 01 1 1403-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.25 		1-33219-301-0 01 1 1403-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.30 		1-33219-302-0 01 1 1403-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.35 		1-33219-303-0 01 1 1403-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.40 		1-33219-304-0 01 1 1403-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.45 		1-33219-305-0 01 1 1403-
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.50 		1-33219-306-0 01 1 1403-
230 SLEEVE; 4TH TO 5TH 1-33262-245-0 01 1 1403-
233 RING; BLOCK 4TH TO 5TH 1-33265-643-0 02 1 1403-
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 1403-
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 1403-
289 PIN; MAINSHAFT 1-33239-242-0 01 1 1403-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33239-245-0 02 1 1403-
308 BOLT; MAINSHAFT 1-33239-366-0 01 1 1403-
309 PLATE; MAINSHAFT 1-33239-317-0 01 1 1403-
312 CLUTCH; DOG,1ST GEAR 1-33265-596-0 01 1 1403-
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 1403-
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 1403-
315 CLUTCH; DOG,2ND GEAR 1-33265-644-0 02 1 1403-
317 CLUTCH; DOG,4TH GEAR 1-33265-644-0 02 1 1403-
330 GEAR; SUN 1-34311-011-0 01 1 1403-
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 1403-
408 SPRING 1-33264-039-0 18 1 1403-
429 SLEEVE; 2ND & 3RD 1-33262-245-0 01 1 1403-
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-059-0 09 1 1403-
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-063-0 09 1 1403-
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 1403-
451 RESTRICTOR; MAIN SHAFT 1-33239-275-0 01 1 1403-
