Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11048 - EXZ LHD EURO4 WITH 2STEPS
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

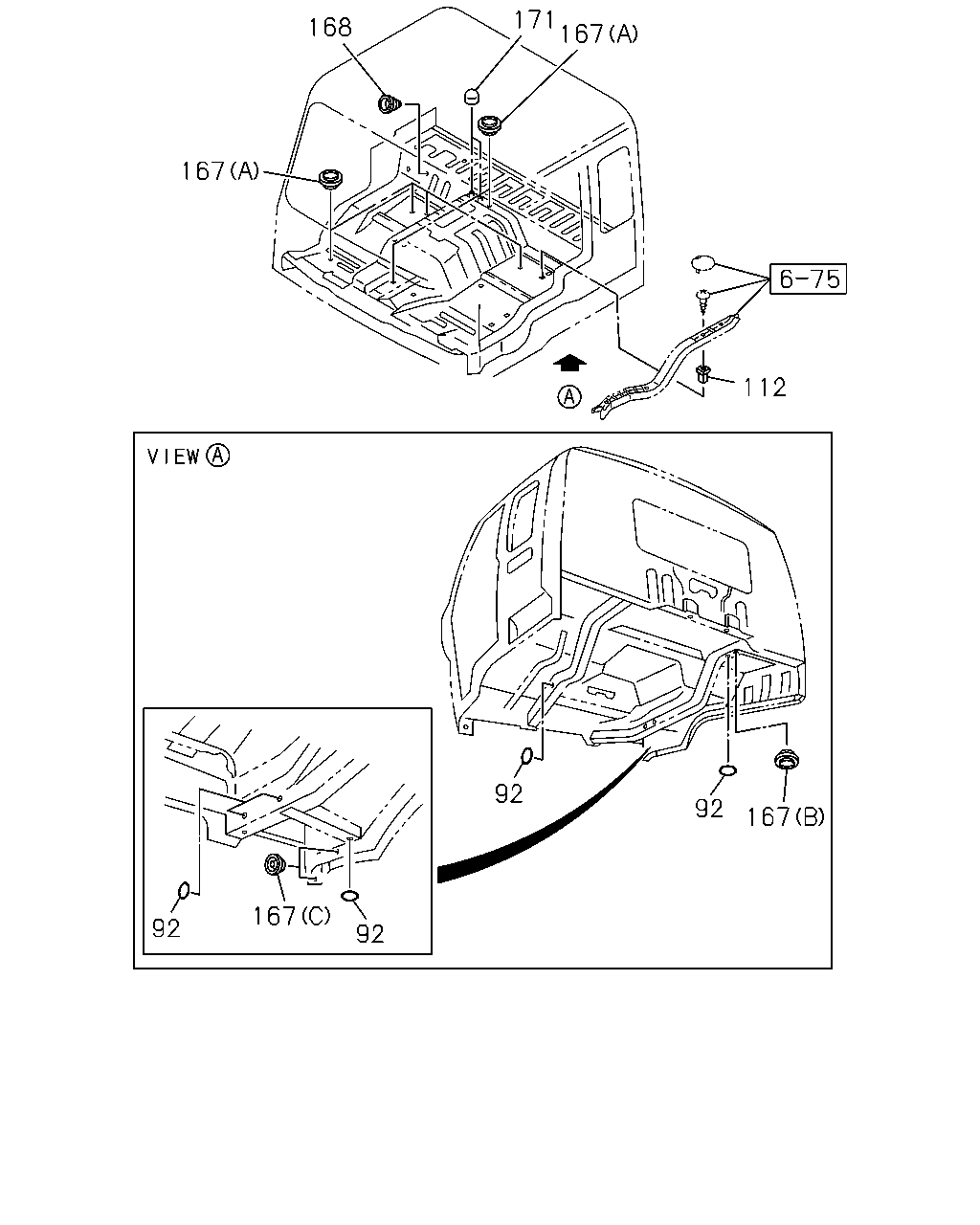

6-78 - FLOOR HOLE PLUG
▶
6-78 — FLOOR HOLE PLUG
(#13601) — 11 parça
171
167
168
167
112
92
92
167
167
92
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
03
1
0611-
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
11
1
0611-
92
SEAL; LOCATION HOLE
CENTER SEAT DELETE(SP9) OD=25 BLACK
1-76798-019-0
02
1
0611-
92
SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK
1-76798-019-0
02
1
0611-
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
0611-
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
03
1
0611-
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
04
1
0611-
167
GROMMET; LOCATION HOLE
(B) OD=35
8-94122-971-0
06
1
0611-
167
GROMMET; LOCATION HOLE
(C) OD=15.0
8-94279-040-0
02
1
0611-
168
COVER; HOLE,ANNTENA CABLE
1-79998-891-1
01
1
0611-
171
CAP; STUD
CENTER SEAT DELETE(SP9)
1-71736-200-0
02
1
0611-
