2-20B — MANUAL TRANSMISSION ASM AND CASE (#136007) — 78 parça

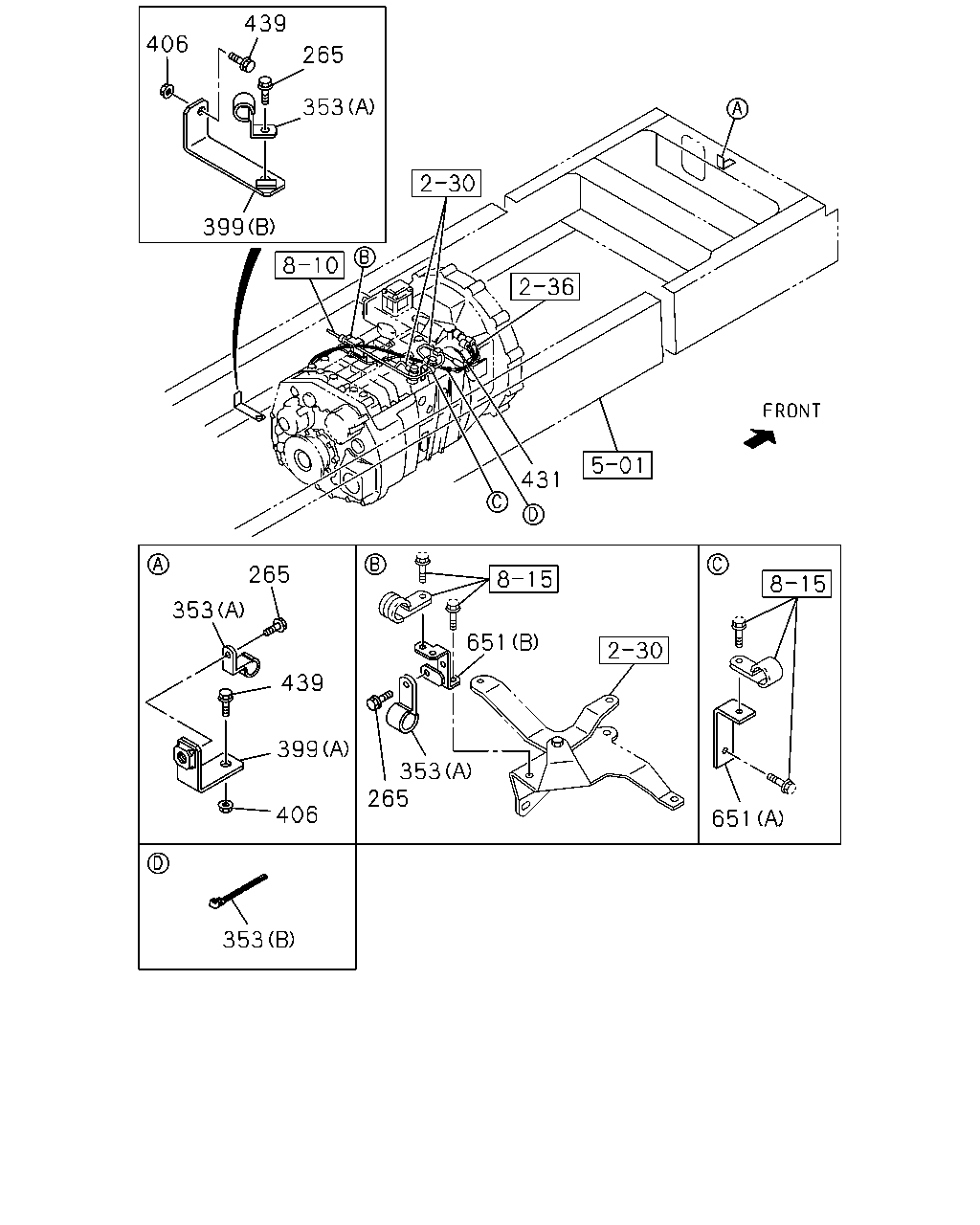

çizim 413231
406 439 353 399 431 265 353 439 399 406 353 265 353 651 651 265
BalonParca AdiParca NoAdetTipApplied Date
265 BOLT; CLIP
M8X20 FLANGE IDN 		0-28650-820-0 03 1 1403-
353 CLIP; NYLON TUBE
(A) ID=11 L=20 		0-95235-035-0 03 1 1403-
353 CLIP; NYLON TUBE
(B) L=140 IDN 		5-09707-031-1 01 1 1403-
399 BRACKET; CLIP
(A) 		8-98085-674-0 01 1 1403-
399 BRACKET; CLIP
(B) 		8-98205-634-0 01 1 1403-
406 NUT; BRKT
M8 FLANGE IDN 		0-91180-108-0 03 1 1403-
431 TUBE; NYLON 1-33119-474-0 02 1 1403-
439 BOLT; BRKT
M8X20 FLANGE IDN 		0-28650-820-0 02 1 1403-
439 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1403-1405
439 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1406-
651 BRACKET; T/M HARNESS
(A) 		1-82698-630-0 01 1 1403-
651 BRACKET; T/M HARNESS
(B) 		8-98098-890-0 01 1 1403-

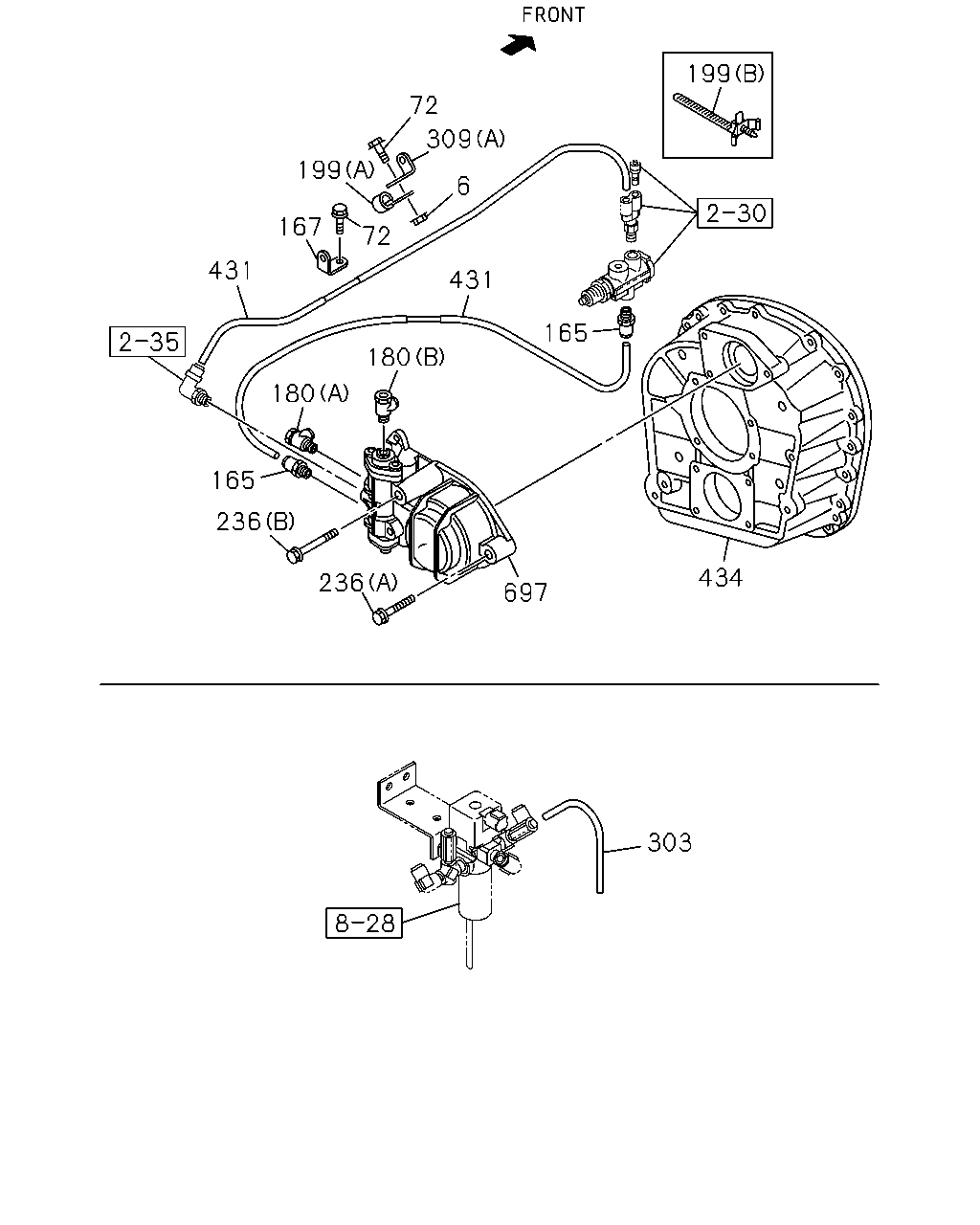

çizim 413242
72 199 167 309 431 165 199 434 697 303 236 236 165 180 180 431 72 6
BalonParca AdiParca NoAdetTipApplied Date
6 NUT; CASE,TRANS 1-33119-571-0 15 1 1403-
72 BOLT; SIDE COVER 1-33119-589-0 14 1 1403-
165 ADAPTER; STRAIGHT 1-33119-461-0 02 1 1403-
167 BRACKET; CLIP,AIR TUBE 1-33119-599-0 01 1 1403-
180 CONNECTOR; NYLON TUBE
(A) 		1-33119-597-0 01 1 1403-
180 CONNECTOR; NYLON TUBE
(B) 		1-33119-598-0 01 1 1403-
199 CLIP; NYLON TUBE
(A) 		1-33119-475-0 01 1 1403-
199 CLIP; NYLON TUBE
(B) 		1-33119-600-0 01 1 1403-
236 BOLT; VALVE BRKT
(A) 		1-33119-549-0 02 1 1403-
236 BOLT; VALVE BRKT
(B) 		1-33119-550-0 01 1 1403-
303 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1403-
309 EYE; LIFTING
(A) 		1-33119-596-0 01 1 1403-
309 EYE; LIFTING
(B) 		1-33119-604-0 01 1 1403-
431 TUBE; NYLON 1-33119-474-0 02 1 1403-
434 HOUSING; CLU 1-31110-188-2 01 1 1403-
697 VALVE; AIR 1-33119-547-0 01 1 1403-

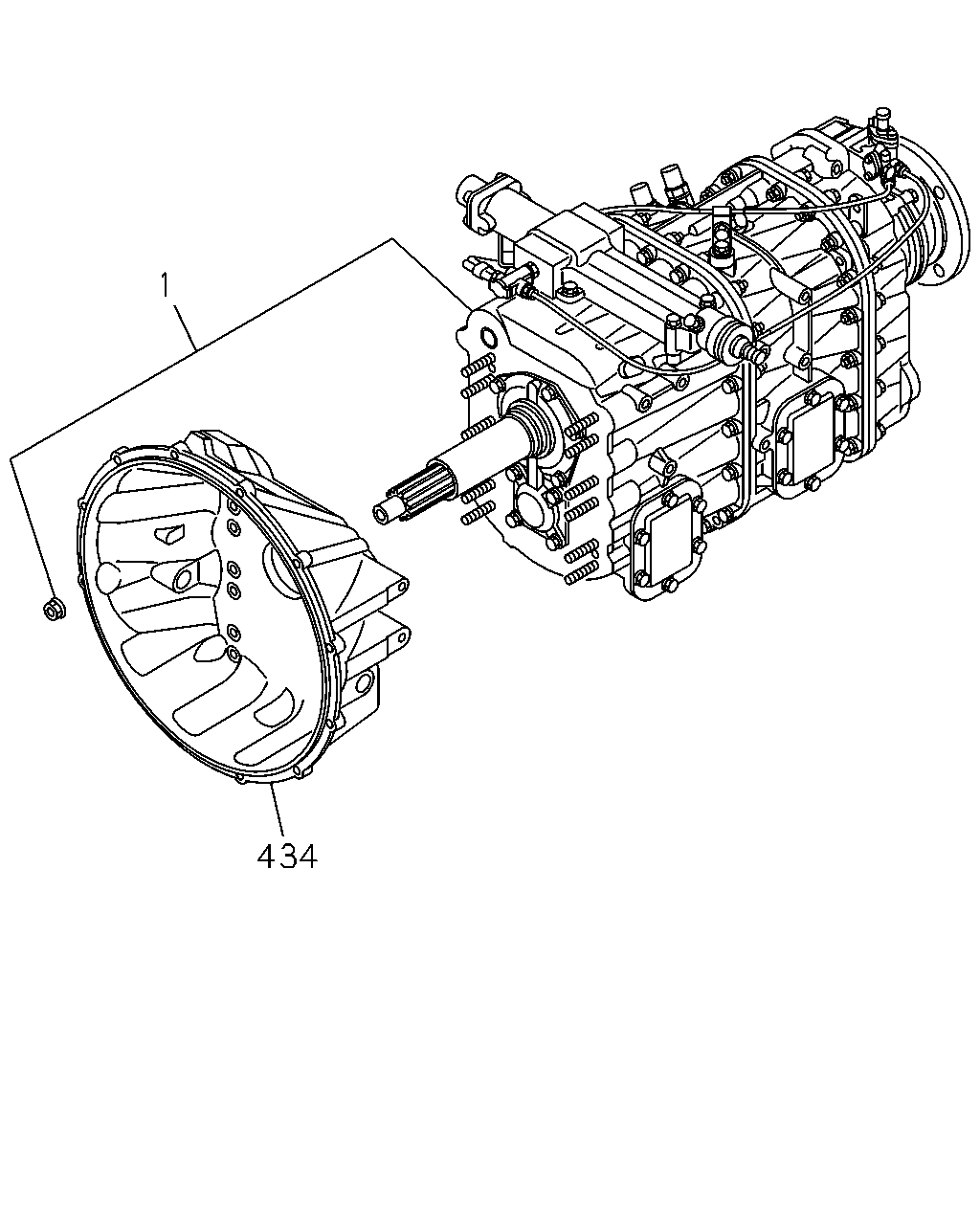

çizim 413665
1 434
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL 8-98257-471-0 01 1 1403-
434 HOUSING; CLU 1-31110-188-2 01 1 1403-

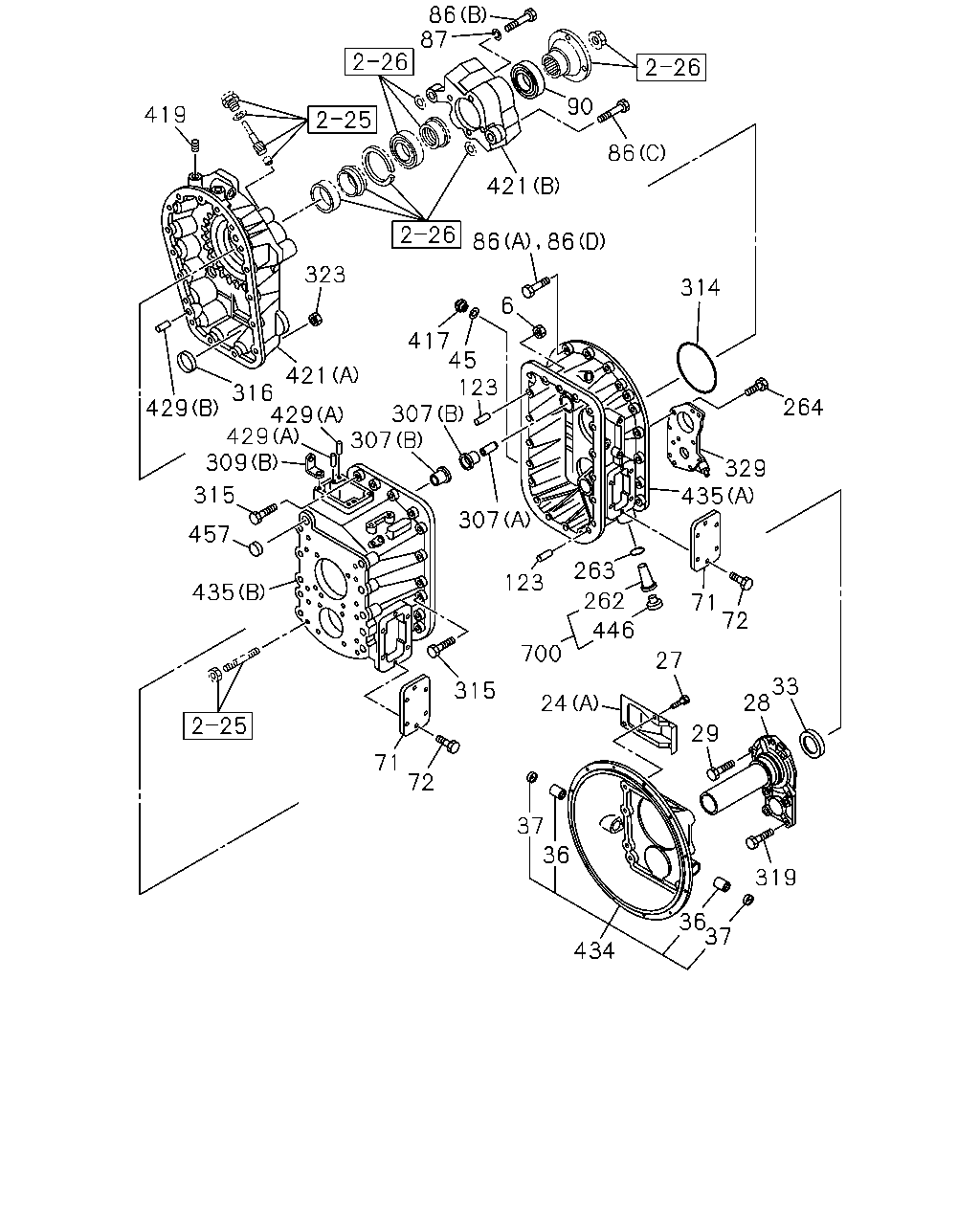

çizim 413735
86 87 90 419 86 421 86 86 314 6 323 429 421 316 429 429 309 315 457 435 71 72 315 417 45 307 307 123 264 329 435 307 123 263 71 72 262 446 700 24 27 33 28 29 37 36 36 319 37 434
BalonParca AdiParca NoAdetTipApplied Date
6 NUT; CASE,TRANS 1-33119-571-0 15 1 1403-
24 COVER; CHECK HOLE,DUST
(A) 		8-98284-107-0 01 1 1411-
24 COVER; CHECK HOLE,DUST
(A) 		1-31131-041-0 01 1 1403-1410
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28050-816-0 02 1 1403-1410
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28050-816-0 02 1 1411-
28 COVER; FRT,TRANS CASE 1-33121-144-0 01 1 1403-
29 BOLT; FRT COVER 1-33129-016-0 05 1 1403-
33 SEAL; OIL,FRT COVER,T/M 1-33219-194-0 01 1 1403-
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-002-1 02 1 1403-
37 SEAL; DUST,CLU HSG 1-09625-002-0 02 1 1403-1405
37 SEAL; DUST,CLU HSG 1-09625-002-0 02 1 1406-
45 GASKET; FILLER PLUG 1-33119-459-0 01 1 1403-
71 COVER; SIDE,TRANS CASE 1-33141-073-0 02 1 1403-
72 BOLT; SIDE COVER 1-33119-589-0 14 1 1403-
86 BOLT; RR COVER
(A) M10X58 		1-33119-573-0 16 1 1403-
86 BOLT; RR COVER
(B) 		1-33119-611-0 04 1 1403-
86 BOLT; RR COVER
(C) 		1-33119-613-0 02 1 1403-
86 BOLT; RR COVER
(D) 		1-33119-614-0 01 1 1403-
87 WASHER; LK,RR COVER 1-33119-610-0 04 1 1403-
90 SEAL; OIL,RR COVER 1-33159-046-0 01 1 1403-
123 DOWEL; TRANS CASE 1-33119-305-0 02 1 1403-
262 STRAINER; OIL PUMP 1-33119-608-0 01 1 1403-
263 GASKET; STRAINER 1-33119-428-0 01 1 1403-
264 BOLT; OIL PUMP 1-33129-016-0 08 1 1403-
307 BUSHING; SHIFT FORK SHAFT
(A) 		1-33119-303-0 01 1 1403-
307 BUSHING; SHIFT FORK SHAFT
(B) 		1-33119-562-0 02 1 1403-
309 EYE; LIFTING
(A) 		1-33119-596-0 01 1 1403-
309 EYE; LIFTING
(B) 		1-33119-604-0 01 1 1403-
314 GASKET; CASE 1-33119-606-0 01 1 1403-
315 BOLT; CASE
M10X40 		1-33119-572-0 04 1 1403-
315 BOLT; CASE
M10X58 		1-33119-573-0 13 1 1403-
315 BOLT; CASE
M10X58 FLANGE 		1-33119-595-0 01 1 1403-
316 MAGNET; TRANS CASE 1-87060-696-0 01 1 1403-
319 BOLT; COVER 1-33159-071-0 04 1 1403-
323 NUT; RR COVER 1-33119-571-0 17 1 1403-
329 PUMP ASM; OIL 1-34150-125-0 01 1 1403-
417 PLUG; OIL FILLER,TRANS 1-33119-577-0 01 1 1403-
419 PLUG; RR COVER 1-33119-615-0 01 1 1403-
421 COVER; RR,TRANS
(A) 		1-33131-271-0 01 1 1403-
421 COVER; RR,TRANS
(B) 		1-33159-048-0 01 1 1403-
429 PIN; STRAIGHT
(B) 		1-33119-305-0 02 1 1403-
429 PIN; STRAIGHT
(A) 		1-33119-311-0 02 1 1403-
434 HOUSING; CLU 1-31110-188-2 01 1 1403-
435 CASE; TRANS
(A) 		1-33111-320-0 01 1 1403-
435 CASE; TRANS
(B) 		1-33111-363-0 01 1 1403-
446 PLUG; CASE,TRANS 1-33119-546-0 01 1 1403-
457 CUP; SEALING,CASE 1-33119-578-0 01 1 1403-
700 STRAINER ASM 1-33119-324-0 01 1 1403-
