Isuzu WW
▶
TRUCKS
▶
FVM
▶
10632 - FVM-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶

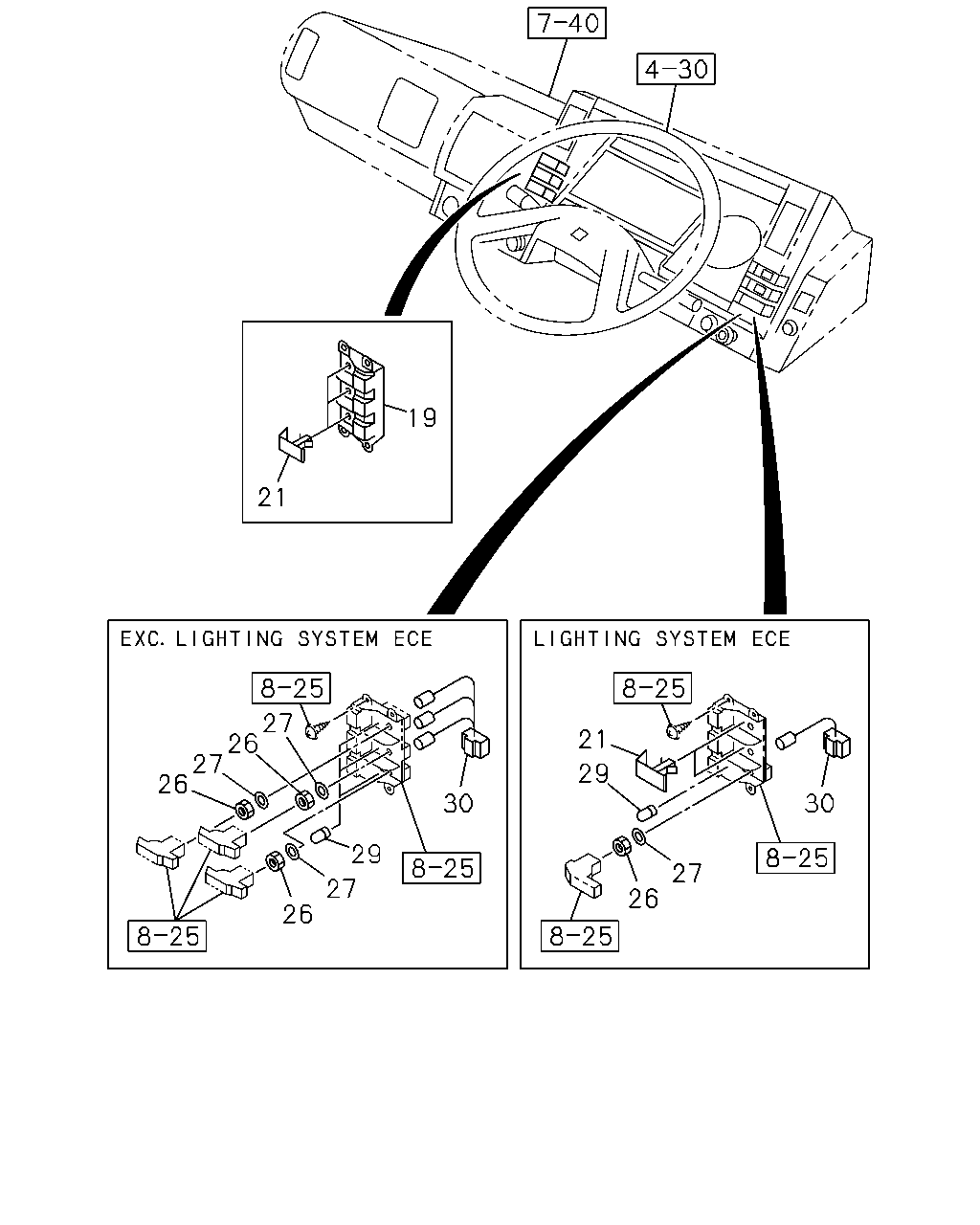

8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#1359) — 22 parça
◀
[826A] NO.1 (11 parça)
[826A] NO.2 (11 parça)
▶
8
1
287
285
286
39
38
41
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
1-84190-023-0
01
1
9204-
8
PANEL; GUIDE,CIGAR LIGHTER
8-94232-213-1
01
1
9204-
38
BRACKET; SW,STARTER SUB
1-82699-351-0
01
1
9204-
39
BOLT; BRKT,STARTER SUB SW
M8X18 FLANGE
0-28010-818-0
02
1
9204-9204
39
BOLT; BRKT,STARTER SUB SW
M8X18 FLANGE
0-28080-818-0
02
1
9205-9205
39
BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE
0-28080-820-0
02
1
9206-
41
NUT; SUB STARTER SW
9-82755-020-0
01
1
9204-
42
WASHER; LK,SUB STARTER SW
ID=14.2
9-09150-514-0
01
1
9204-
285
BUZZER ASM; ALARM CLOCK
RADIO AM/FM<U69>
1-83460-053-0
01
1
9204-
286
GROMMET; SCREW,BUZZER
RADIO AM/FM<U69> D=7X7 L=7.5
5-09983-007-0
01
1
9204-
287
SCREW; BUZZER
RADIO AM/FM<U69> M5X16 TAPPING W/PL WASHER
0-74310-516-0
01
1
9204-
19
21
27
26
27
26
21
29
30
30
29
27
27
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
BASE; SW,METER CLUSTER
BLACK
1-82353-008-0
01
1
9204-
21
COVER; HOLE
1-82359-038-0
03
1
9204-
21
COVER; HOLE
LIGHTING SYSTEM ECE<SLC>
1-82359-038-0
02
1
9204-
26
NUT; METER SW
LIGHTING SYSTEM ECE<SLC> M12
1-09400-066-0
01
1
9204-
26
NUT; METER SW
EXC. LIGHTING SYSTEM ECE<SLC> M12
1-09400-066-0
03
1
9204-
27
WASHER; WAVE,SW
LIGHTING SYSTEM ECE<SLC>
1-09550-006-0
01
1
9204-
27
WASHER; WAVE,SW
EXC. LIGHTING SYSTEM ECE<SLC>
1-09550-006-0
03
1
9204-
29
BULB; METER SW
LIGHTING SYSTEM ECE<SLC> 24V 1.2W
1-82194-027-0
01
1
9204-
29
BULB; METER SW
EXC. LIGHTING SYSTEM ECE<SLC> 24V 1.2W
1-82194-027-0
03
1
9204-
30
CORD ASM; METER SW
LIGHTING SYSTEM ECE<SLC>
1-82359-065-0
01
1
9204-
30
CORD ASM; METER SW
EXC. LIGHTING SYSTEM ECE<SLC>
1-82359-058-0
01
1
9204-
