◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11048 - EXZ LHD EURO4 WITH 2STEPS ▶ 5 - Frame, Cab Mounting ▶ 5-16 - OIL PUMP; CAB TILT ▶
5-16 — OIL PUMP; CAB TILT (#13580) — 159 parça

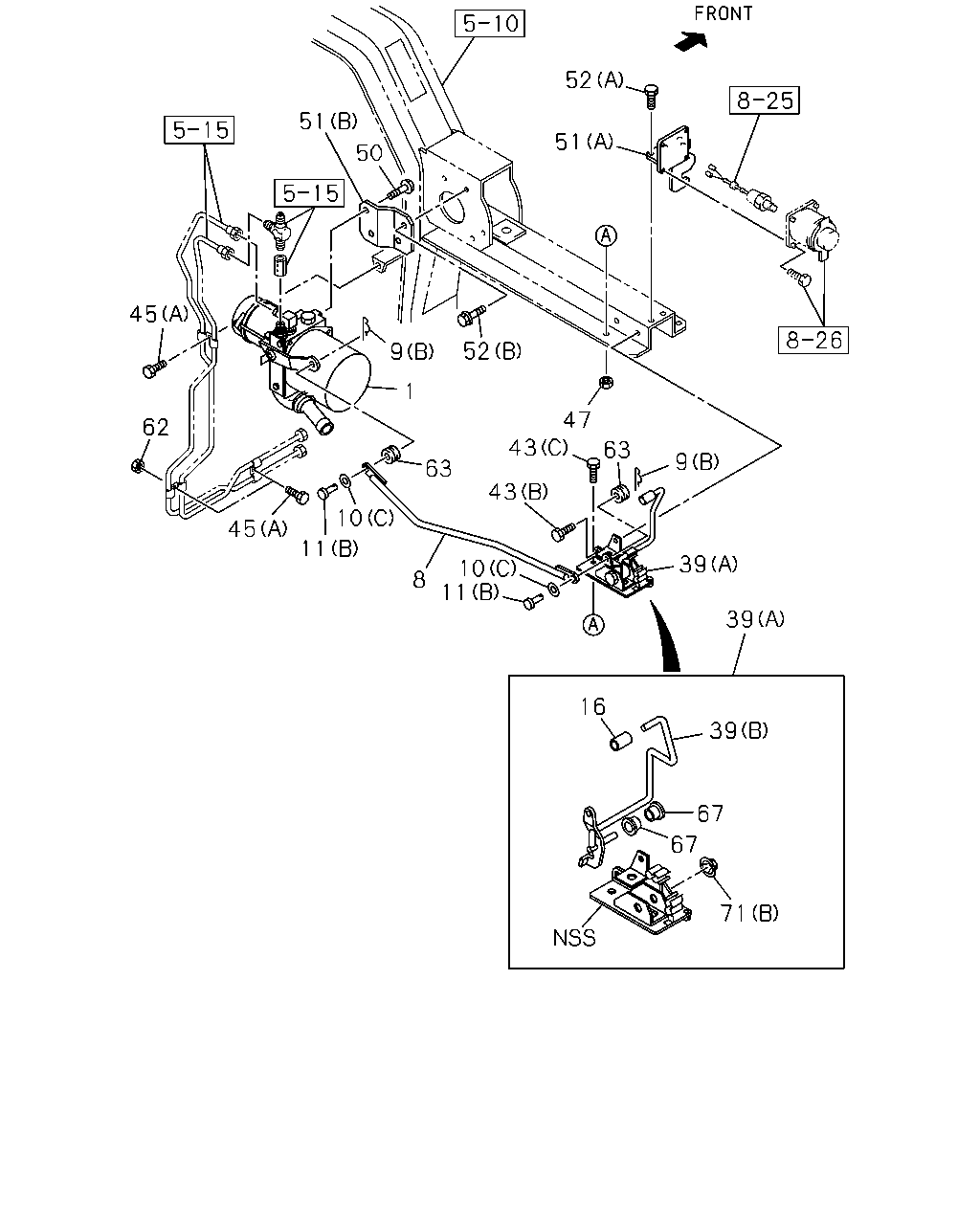

çizim 91912
52 51 50 51 45 52 9 1 47 43 62 63 9 63 43 10 45 11 39 10 11 8 39 16 39 67 67 71
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53457-138-1 01 1 0611-1009
1 PUMP; OIL,CAB TILT 8-98172-037-0 01 1 1010-
8 LINK; OIL PUMP 1-53458-929-0 01 1 0611-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 0611-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 0611-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 0611-0911
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 0912-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		0-91610-708-0 02 1 0611-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 0611-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 0611-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 0611-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 0611-0911
11 PIN; SPLIT,OIL PUMP
(C) 		1-53457-209-0 01 1 0912-
16 CAP
ID=9.0 		8-94207-303-0 01 1 0611-
39 LEVER; OIL PUMP
(C) 		1-53458-723-0 01 1 0611-
39 LEVER; OIL PUMP
(A) 		1-53458-779-1 01 1 0611-
39 LEVER; OIL PUMP
(B) 		1-53458-872-0 01 1 0611-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0611-0804
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0805-
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28651-025-0 01 1 0611-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 0611-0911
43 BOLT; LEVER
(D) M5X16 		1-53457-206-0 03 1 0912-
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0611-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0611-0611
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0611-
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 0611-
47 NUT; LEVER
M10 FLANGE 		0-91180-210-0 01 1 0611-
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28051-016-0 02 1 0611-
51 BRACKET; OIL PUMP
(B) 		1-53458-666-0 01 1 0611-
51 BRACKET; OIL PUMP
(A) 		1-53458-781-0 01 1 0611-
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0611-0804
52 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0805-
52 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0611-
62 NUT; COVER
M8 FLANGE 		0-91180-108-0 01 1 0611-0611
63 GROMMET
ID=10 OD=23 T=8 		1-09983-010-0 02 1 0611-
67 BUSHING
T=6 OD=17.5 		9-33659-249-0 02 1 0611-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 0611-0911
71 NUT; PUSH
(C) 		1-53457-208-0 01 1 0912-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0611-

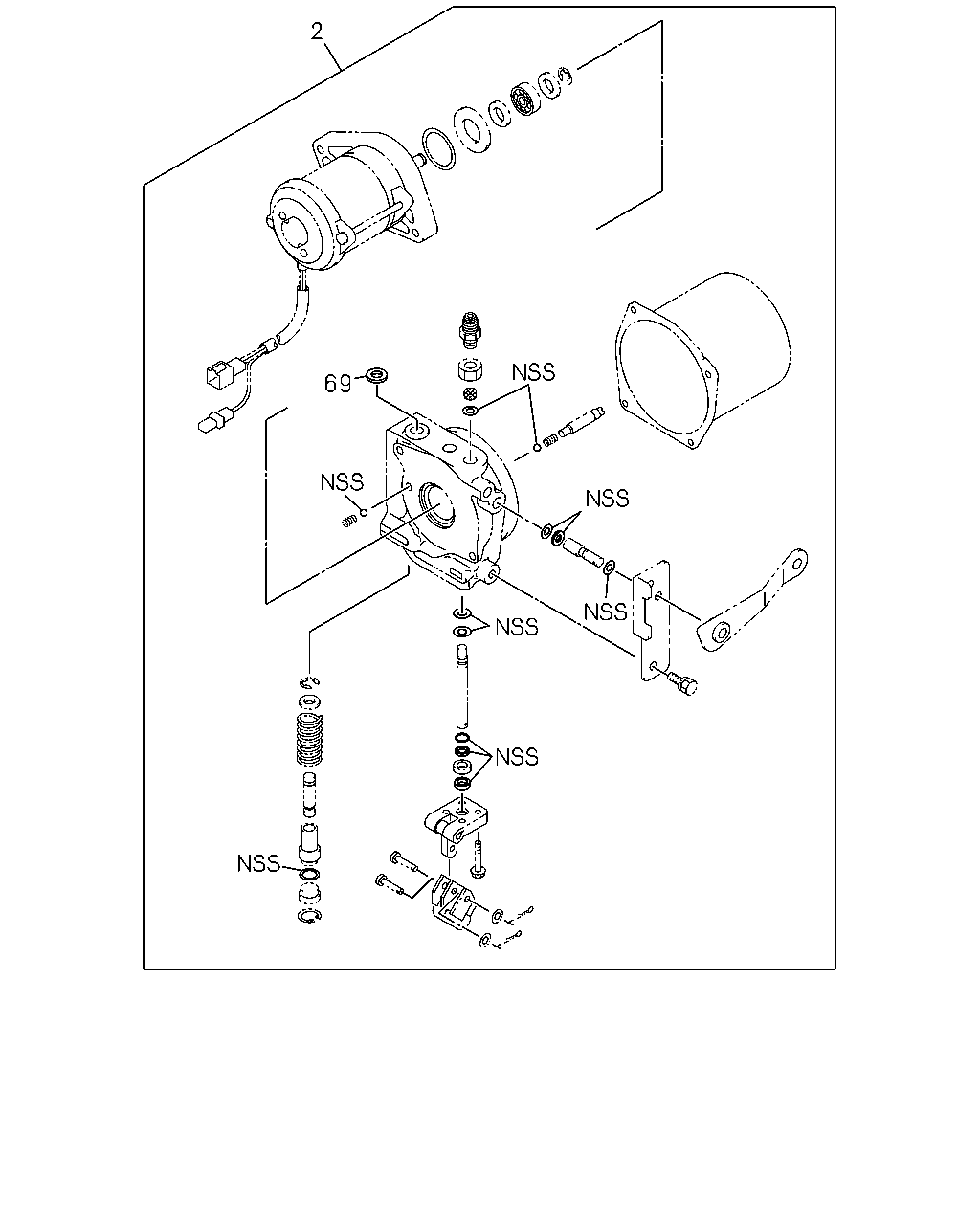

çizim 91956
2 69
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP 1-85579-058-0 01 1 0611-0911
2 REPAIR KIT; OIL PUMP 1-85579-069-0 01 1 0912-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0611-

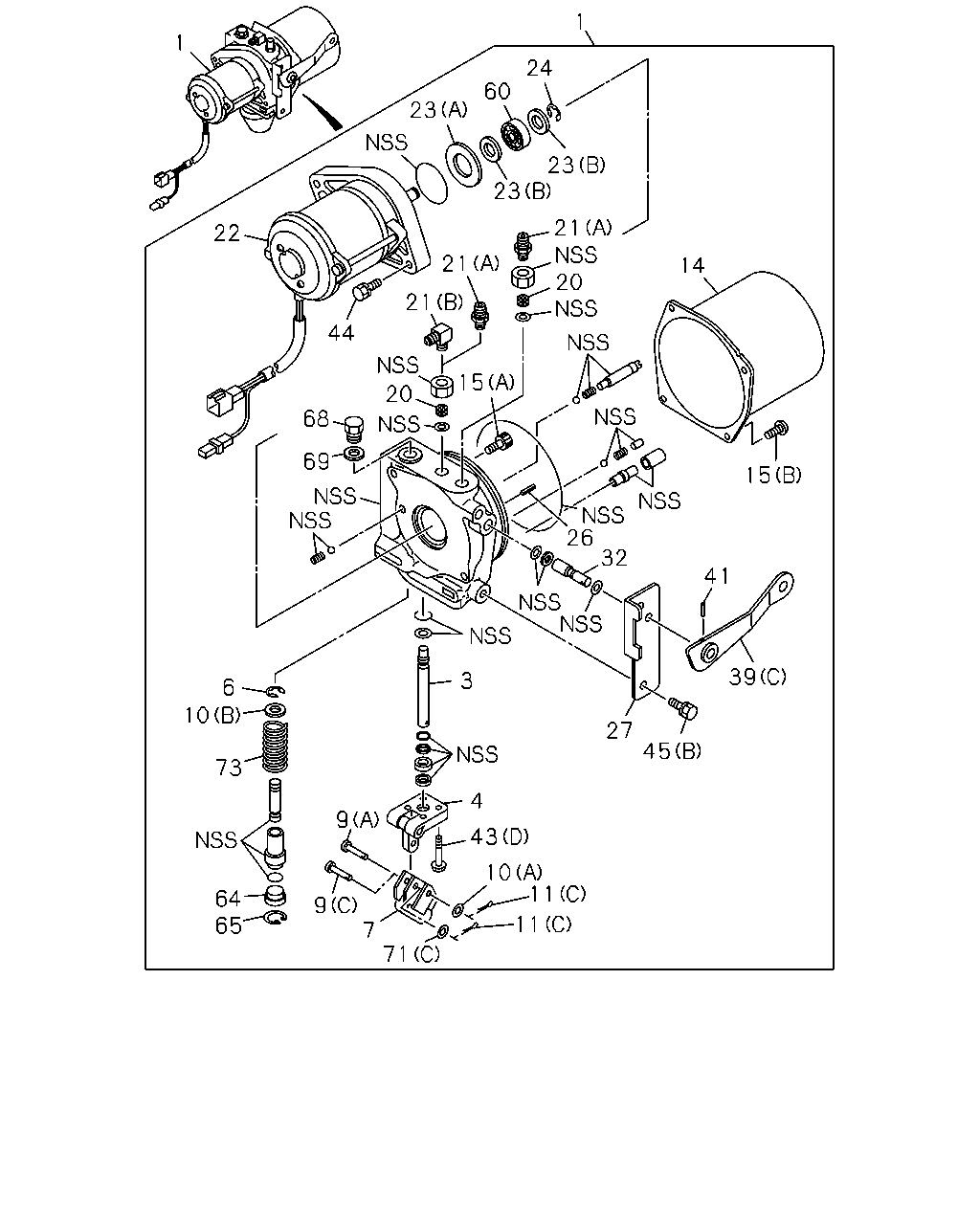

çizim 105541
1 1 24 60 23 23 23 21 20 22 21 14 21 44 15 20 68 69 15 26 32 41 39 3 6 10 27 45 73 4 9 43 10 11 64 65 9 7 71 11
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53457-138-1 01 1 0611-1009
1 PUMP; OIL,CAB TILT 8-98172-037-0 01 1 1010-
3 PISTON; MANUAL 1-53458-842-0 01 1 0611-0911
3 PISTON; MANUAL 1-53457-204-0 01 1 0912-
4 BRACKET; OIL PUMP 1-53458-566-0 01 1 0611-0911
4 BRACKET; OIL PUMP 1-53457-205-0 01 1 0912-
6 RING; SNAP 1-53458-411-0 01 1 0611-
7 SOCKET; OIL PUMP 1-53458-724-1 01 1 0611-0911
7 SOCKET; OIL PUMP 1-53457-207-0 01 1 0912-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 0611-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 0611-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 0611-0911
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 0912-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		0-91610-708-0 02 1 0611-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 0611-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 0611-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 0611-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 0611-0911
11 PIN; SPLIT,OIL PUMP
(C) 		1-53457-209-0 01 1 0912-
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 0611-
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 0611-
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 0611-
20 FILTER; OIL PUMP 1-53457-081-0 02 1 0611-
21 CONNECTOR; OIL PUMP
(B) 		1-53457-026-0 01 1 0611-1009
21 CONNECTOR; OIL PUMP
(A) M12 		1-53458-941-0 01 1 0611-1009
21 CONNECTOR; OIL PUMP
(A) M12 		1-53458-941-0 02 1 1010-
22 MOTOR; OIL PUMP 1-53457-080-0 01 1 0611-
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 0611-
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 0611-
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 0611-
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 0611-
27 COVER; OIL PUMP 1-53458-725-0 01 1 0611-
32 VALVE; OIL PUMP 1-53458-569-0 01 1 0611-
39 LEVER; OIL PUMP
(C) 		1-53458-723-0 01 1 0611-
39 LEVER; OIL PUMP
(A) 		1-53458-779-1 01 1 0611-
39 LEVER; OIL PUMP
(B) 		1-53458-872-0 01 1 0611-
41 PIN; SPR,LEVER 1-53458-019-0 01 1 0611-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0611-0804
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0805-
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28651-025-0 01 1 0611-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 0611-0911
43 BOLT; LEVER
(D) M5X16 		1-53457-206-0 03 1 0912-
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 0611-
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0611-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0611-0611
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0611-
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 0611-
60 BEARING; OIL PUMP 1-53458-423-0 01 1 0611-
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 0611-
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 0611-
68 PLUG; FILLER 1-53458-428-0 01 1 0611-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0611-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 0611-0911
71 NUT; PUSH
(C) 		1-53457-208-0 01 1 0912-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0611-
73 SPRING; PISTON 1-53458-040-0 01 1 0611-

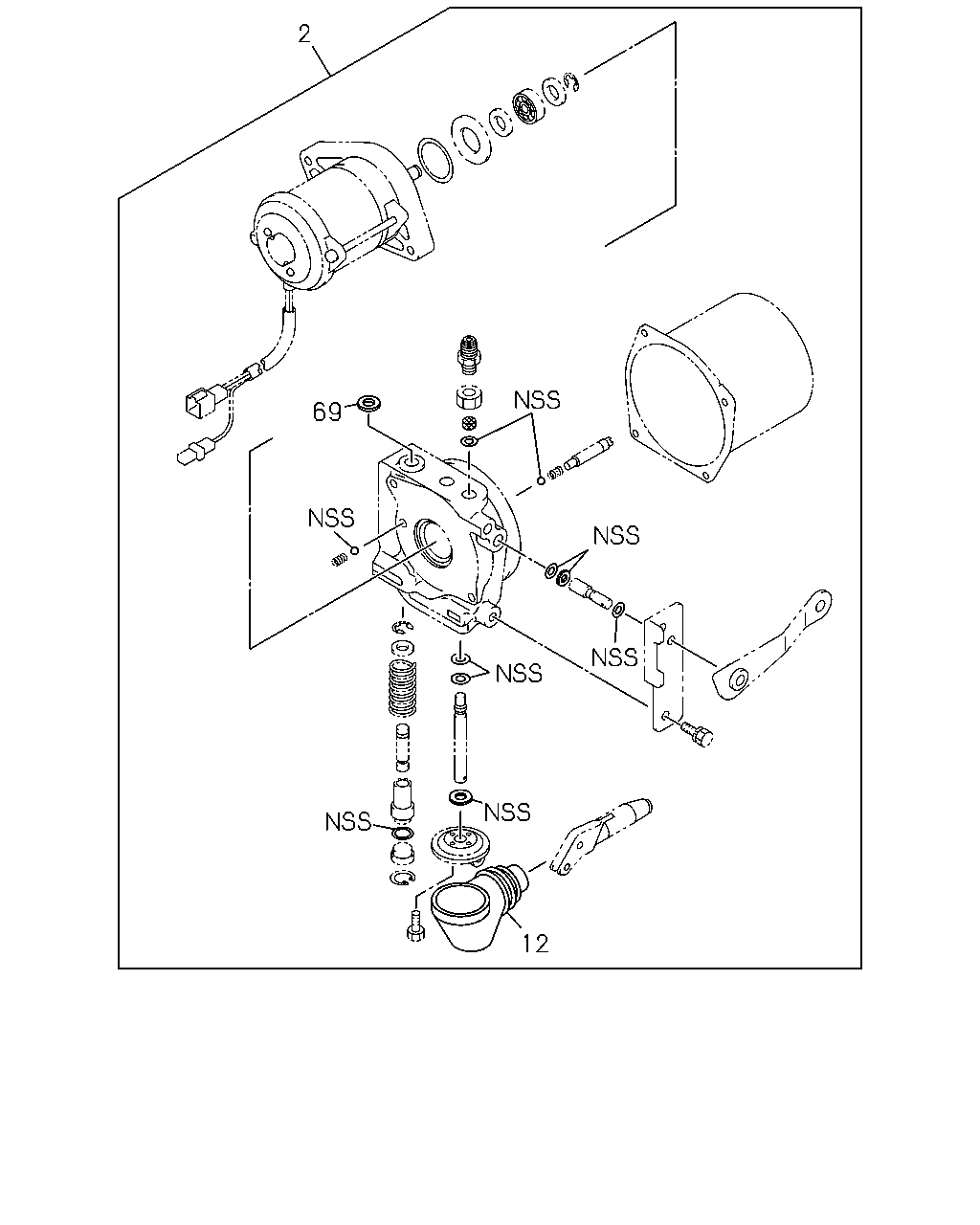

çizim 106359
2 69 12
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP 1-85579-058-0 01 1 0611-0911
2 REPAIR KIT; OIL PUMP 1-85579-069-0 01 1 0912-
12 BOOT; OIL PUMP 1-53458-560-0 01 1 0611-0911
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0611-

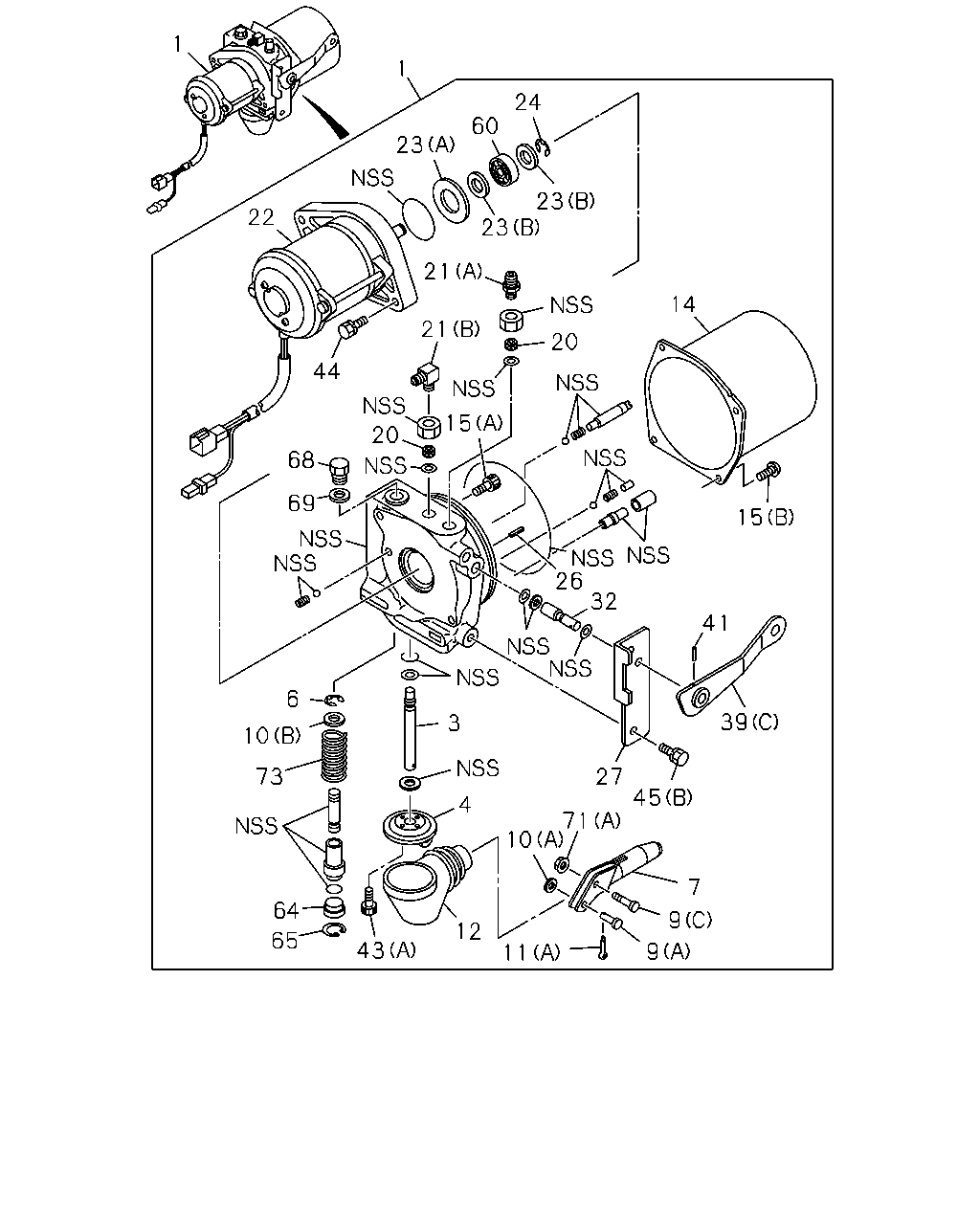

çizim 106523
1 1 24 60 23 23 23 22 21 14 21 20 44 15 20 68 69 15 26 32 41 6 39 3 10 73 27 45 4 71 10 7 64 9 12 65 43 9 11
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 1-53457-138-1 01 1 0611-1009
1 PUMP; OIL,CAB TILT 8-98172-037-0 01 1 1010-
3 PISTON; MANUAL 1-53458-842-0 01 1 0611-0911
3 PISTON; MANUAL 1-53457-204-0 01 1 0912-
4 BRACKET; OIL PUMP 1-53458-566-0 01 1 0611-0911
4 BRACKET; OIL PUMP 1-53457-205-0 01 1 0912-
6 RING; SNAP 1-53458-411-0 01 1 0611-
7 SOCKET; OIL PUMP 1-53458-724-1 01 1 0611-0911
7 SOCKET; OIL PUMP 1-53457-207-0 01 1 0912-
9 PIN; OIL PUMP
(B) L=27.7 		1-09987-141-0 02 1 0611-
9 PIN; OIL PUMP
(A) 		1-53458-060-0 01 1 0611-
9 PIN; OIL PUMP
(C) 		1-53458-844-0 01 1 0611-0911
9 PIN; OIL PUMP
(C) 		1-53458-057-0 01 1 0912-
10 WASHER; OIL PUMP
(C) ID=8.4 OD=22 		0-91610-708-0 02 1 0611-
10 WASHER; OIL PUMP
(A) 		1-53458-013-0 01 1 0611-
10 WASHER; OIL PUMP
(B) 		1-53458-561-0 01 1 0611-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 0611-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53458-058-0 01 1 0611-0911
11 PIN; SPLIT,OIL PUMP
(C) 		1-53457-209-0 01 1 0912-
12 BOOT; OIL PUMP 1-53458-560-0 01 1 0611-0911
14 RESERVOIR; OIL PUMP 1-53458-432-0 01 1 0611-
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-005-0 04 1 0611-
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-433-0 02 1 0611-
20 FILTER; OIL PUMP 1-53457-081-0 02 1 0611-
21 CONNECTOR; OIL PUMP
(B) 		1-53457-026-0 01 1 0611-1009
21 CONNECTOR; OIL PUMP
(A) M12 		1-53458-941-0 01 1 0611-1009
21 CONNECTOR; OIL PUMP
(A) M12 		1-53458-941-0 02 1 1010-
22 MOTOR; OIL PUMP 1-53457-080-0 01 1 0611-
23 WASHER; MOTOR
(A) 		1-53458-018-0 01 1 0611-
23 WASHER; MOTOR
(B) 		1-53458-045-0 02 1 0611-
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 0611-
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 0611-
27 COVER; OIL PUMP 1-53458-725-0 01 1 0611-
32 VALVE; OIL PUMP 1-53458-569-0 01 1 0611-
39 LEVER; OIL PUMP
(C) 		1-53458-723-0 01 1 0611-
39 LEVER; OIL PUMP
(A) 		1-53458-779-1 01 1 0611-
39 LEVER; OIL PUMP
(B) 		1-53458-872-0 01 1 0611-
41 PIN; SPR,LEVER 1-53458-019-0 01 1 0611-
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0611-0804
43 BOLT; LEVER
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0805-
43 BOLT; LEVER
(C) M10X25 FLANGE 		0-28651-025-0 01 1 0611-
43 BOLT; LEVER
(A) M5X12 		1-53458-420-0 02 1 0611-0911
43 BOLT; LEVER
(D) M5X16 		1-53457-206-0 03 1 0912-
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 0611-
45 BOLT; COVER
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0611-
45 BOLT; COVER
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0611-0611
45 BOLT; COVER
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0611-
45 BOLT; COVER
(B) M6X8 		1-53458-004-0 02 1 0611-
60 BEARING; OIL PUMP 1-53458-423-0 01 1 0611-
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 0611-
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 0611-
68 PLUG; FILLER 1-53458-428-0 01 1 0611-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0611-
71 NUT; PUSH
(A) 		1-53458-845-0 01 1 0611-0911
71 NUT; PUSH
(C) 		1-53457-208-0 01 1 0912-
71 NUT; PUSH
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0611-
73 SPRING; PISTON 1-53458-040-0 01 1 0611-
