Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11048 - EXZ LHD EURO4 WITH 2STEPS
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#13579) — 79 parça
◀

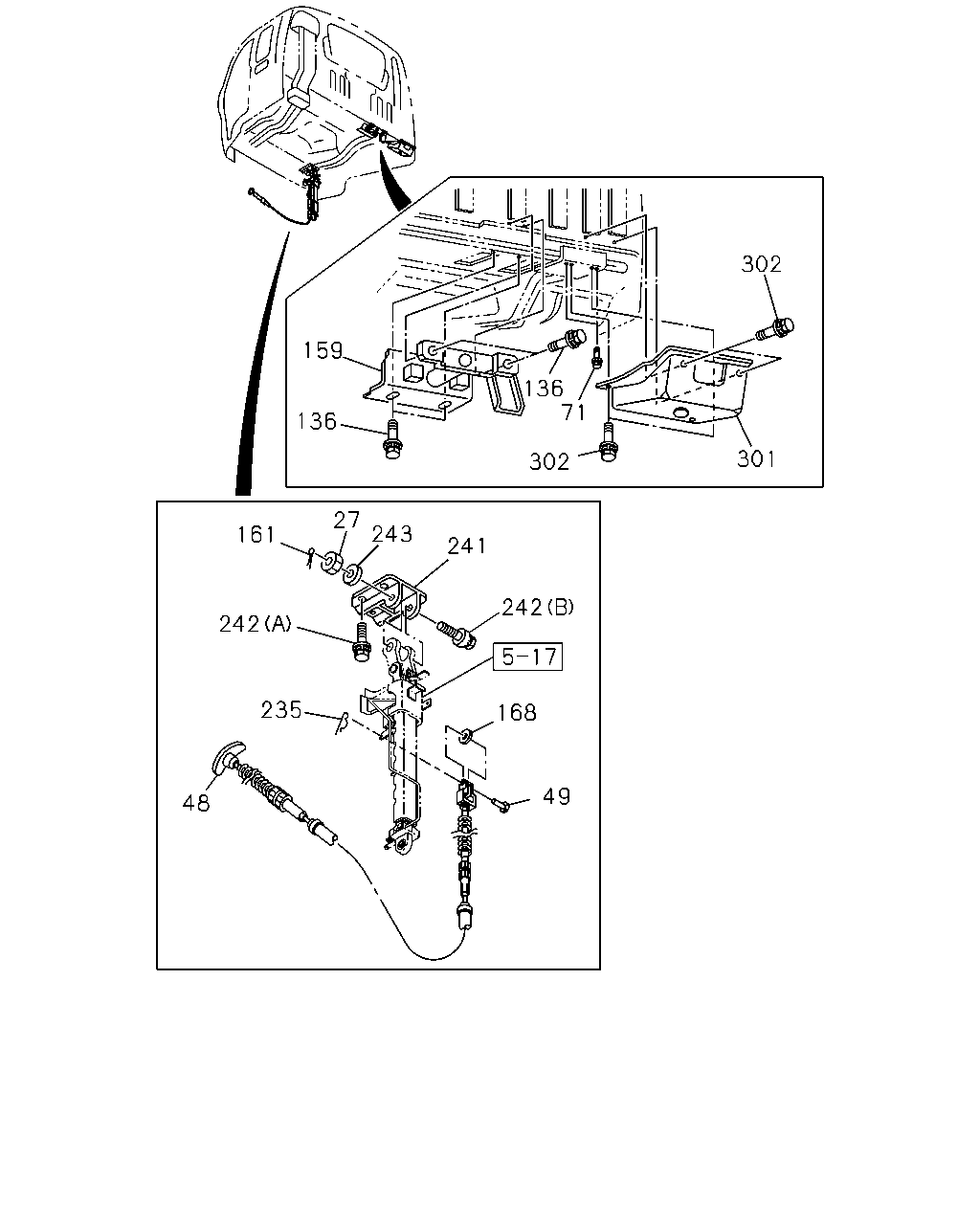

[515A] BRACKET,PIN AND OTHER PARTS (16 parça)

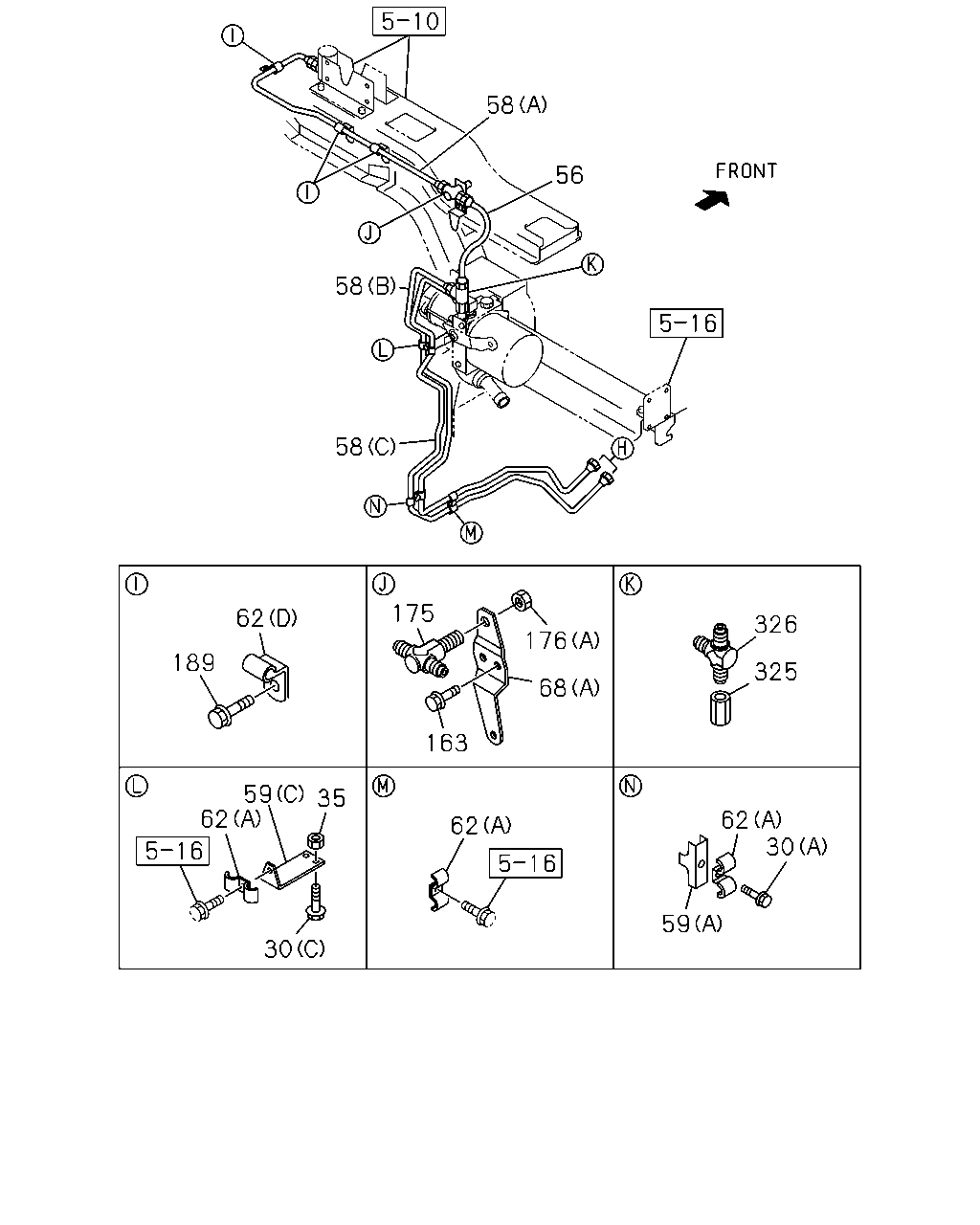

[515A] CAB TILT PIPING;CAB MTG MBR SIDE (29 parça)

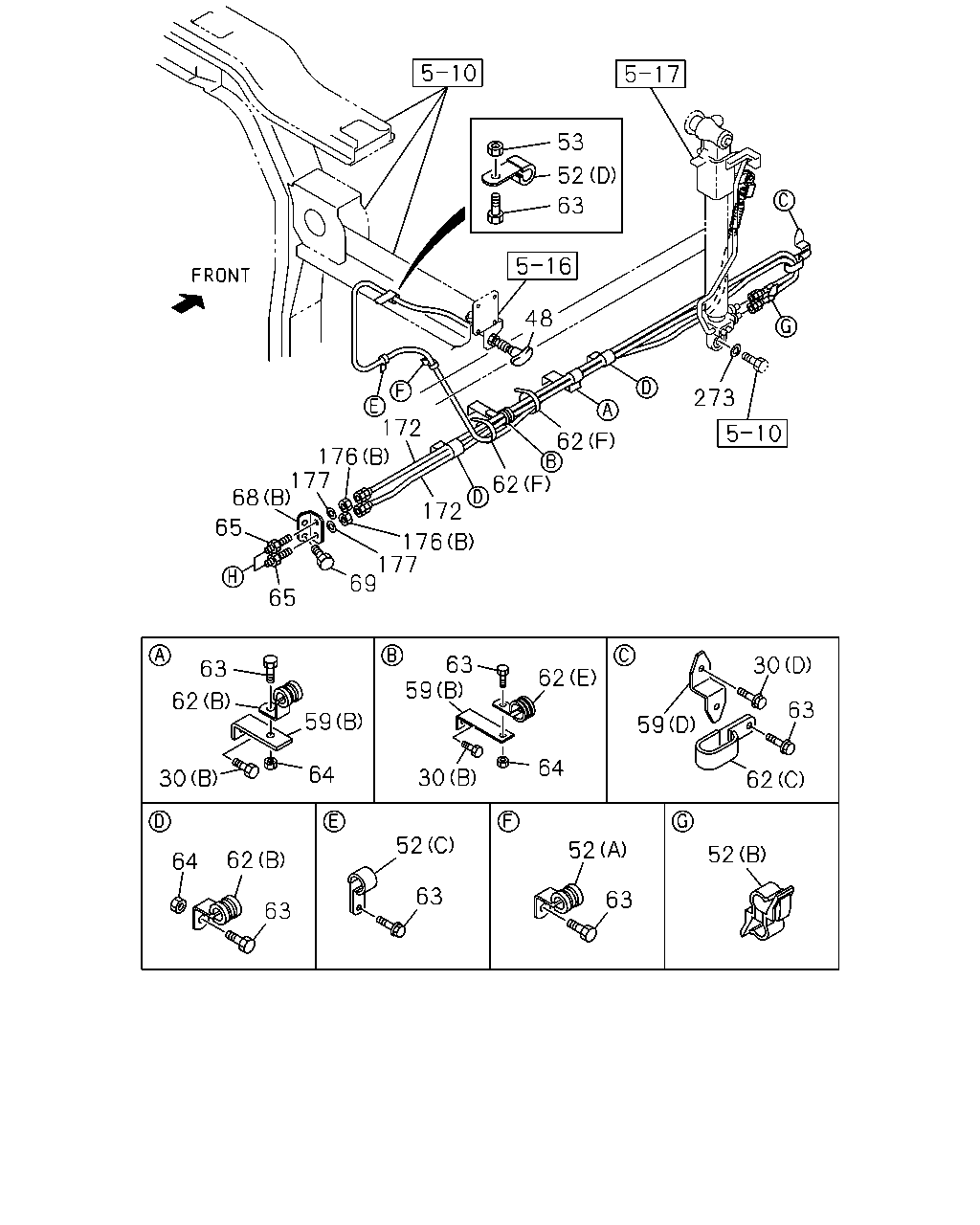

[515A] CAB TILT PIPING;FRAME SIDE (34 parça)
▶
302
159
136
71
136
301
302
27
243
161
241
242
242
235
168
49
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
NUT; OIL CYL
M14 SLOTTED
0-91116-514-0
01
1
0611-
48
CABLE ASM; CONT
L=2457
1-62500-730-0
01
1
0611-
49
PIN; JAW FIX
OD=6 L=17
0-82253-617-0
01
1
0611-
71
BOLT
M10X25 W/LK&PL WASHER
1-09980-488-0
02
1
0611-
136
BOLT; CAB LK
M8X24.5 W/LK&PL WASHER
8-94279-217-0
04
1
0611-
159
PIN
1-79717-627-1
01
1
0611-
161
PIN; SPLIT
OD=2.8 L=25
0-81123-025-0
01
1
0611-
168
WASHER; PL
ID=6.4
9-09160-506-0
01
1
0611-
235
PIN; SNAP
L=21.2
8-94157-840-0
01
1
0611-
241
BRACKET; POWER CYL UPR,CAB TILT
1-53458-660-1
01
1
0611-
242
BOLT; POWER CYL BRKT,CAB TILT
(A) M10X30 W/SP WASHER
1-09980-546-0
05
1
0611-
242
BOLT; POWER CYL BRKT,CAB TILT
(B) M14X70
1-53458-633-0
01
1
0611-
243
WASHER; LK,POWER CYL BRKT
ID=14.2
0-91510-514-0
01
1
0611-0805
243
WASHER; LK,POWER CYL BRKT
ID=14.2
0-91510-814-0
01
1
0806-
301
BRACKET; RR MTG,CAB
1-62570-866-1
02
1
0611-
302
BOLT; BRKT,CAB
M10X25 W/LK&PL WASHER
1-09980-488-0
08
1
0611-
58
56
58
58
175
62
326
176
189
325
68
163
59
62
35
62
30
62
59
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(D) M12X25 FLANGE
0-28651-225-0
01
1
0611-
30
BOLT; BRKT FIX
(A) M8X45 FLANGE
0-28050-845-0
01
1
0611-
30
BOLT; BRKT FIX
(C) M8X20 FLANGE
0-28650-820-0
02
1
0611-
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
02
1
0611-
35
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0611-
56
HOSE; FLEX,OIL PIPE
L=400
1-09365-060-0
01
1
0611-
58
PIPE; OIL,POWER UNIT
(B) L=1191 SERVICED BY L=1200
1-47428-732-0
01
1
0611-
58
PIPE; OIL,POWER UNIT
(C) L=1154 SERVICED BY L=1200
1-47428-732-0
01
1
0611-1009
58
PIPE; OIL,POWER UNIT
(C) L=1268 SERVICED BY L=1370
1-47428-734-0
01
1
1010-
58
PIPE; OIL,POWER UNIT
(A) L=1401 SERVICED BY L=1500
1-47428-735-0
01
1
0611-
59
BRACKET; CLIP
(A)
1-47475-427-1
01
1
0611-
59
BRACKET; CLIP
(B) L=115 B=25
1-47476-758-0
02
1
0611-
59
BRACKET; CLIP
(C)
1-47477-317-0
01
1
0611-
59
BRACKET; CLIP
(D)
1-47477-631-1
01
1
0611-
62
CLIP; OIL PIPE
(C) ID=9X2 L=16
0-95324-825-0
01
1
0611-
62
CLIP; OIL PIPE
(D) ID=6 H=20 L=20
1-09700-603-0
01
1
0611-
62
CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
03
1
0611-
62
CLIP; OIL PIPE
(E) ID=24 L=27
1-09700-809-0
01
1
0611-
62
CLIP; OIL PIPE
(B) ID=21 L=30 H=40
1-09700-991-1
03
1
0611-
62
CLIP; OIL PIPE
(F) L=140
5-09707-031-1
02
1
0611-
68
BRACKET; UNION
(B)
1-47471-040-0
01
1
0611-
68
BRACKET; UNION
(A)
1-53458-374-1
01
1
0611-
163
BOLT; BRKT FIX
M8X20 FLANGE
0-28650-820-0
02
1
0611-
175
UNION; FLEX HOSE
M12 2WAY
1-09654-234-2
01
1
0611-
176
NUT; UNION
(A) M12 FLANGE
0-91180-212-0
01
1
0611-
176
NUT; UNION
(B) M12
9-09840-280-0
02
1
0611-
189
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0611-
325
ADAPTER; PUMP
M12 & RC1/4 STRAIGHT
1-09660-885-0
01
1
0611-
326
UNION; PUMP
M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
0611-
53
52
63
273
48
172
176
177
68
65
65
69
177
176
172
62
62
30
63
62
59
62
63
59
30
64
52
52
63
52
63
63
62
64
30
64
59
63
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
BOLT; BRKT FIX
(D) M12X25 FLANGE
0-28651-225-0
01
1
0611-
30
BOLT; BRKT FIX
(A) M8X45 FLANGE
0-28050-845-0
01
1
0611-
30
BOLT; BRKT FIX
(C) M8X20 FLANGE
0-28650-820-0
02
1
0611-
30
BOLT; BRKT FIX
(B) M8X30 FLANGE
0-28650-830-0
02
1
0611-
48
CABLE ASM; CONT
L=2457
1-62500-730-0
01
1
0611-
52
CLIP; CONT CABLE
(C) ID=7 L=20
0-95234-635-0
01
1
0611-
52
CLIP; CONT CABLE
(D) ID=7 L=50
0-95234-685-0
01
1
0611-
52
CLIP; CONT CABLE
(A) ID=6 H=20 L=20
1-09700-603-0
01
1
0611-
52
CLIP; CONT CABLE
(B) ID=6-10 & 10-14
1-09709-201-1
01
1
0611-
53
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0611-
59
BRACKET; CLIP
(A)
1-47475-427-1
01
1
0611-
59
BRACKET; CLIP
(B) L=115 B=25
1-47476-758-0
02
1
0611-
59
BRACKET; CLIP
(C)
1-47477-317-0
01
1
0611-
59
BRACKET; CLIP
(D)
1-47477-631-1
01
1
0611-
62
CLIP; OIL PIPE
(C) ID=9X2 L=16
0-95324-825-0
01
1
0611-
62
CLIP; OIL PIPE
(D) ID=6 H=20 L=20
1-09700-603-0
01
1
0611-
62
CLIP; OIL PIPE
(A) ID=7 & 7 L=17.5 & 17.5
1-09700-745-0
03
1
0611-
62
CLIP; OIL PIPE
(E) ID=24 L=27
1-09700-809-0
01
1
0611-
62
CLIP; OIL PIPE
(B) ID=21 L=30 H=40
1-09700-991-1
03
1
0611-
62
CLIP; OIL PIPE
(F) L=140
5-09707-031-1
02
1
0611-
63
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
03
1
0611-
63
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
05
1
0611-
63
BOLT; CLIP
M8X30 FLANGE
0-28650-830-0
01
1
0611-
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
02
1
0611-
65
UNION; OIL PIPE
M12 L=66.5
0-92113-306-0
02
1
0611-
68
BRACKET; UNION
(B)
1-47471-040-0
01
1
0611-
68
BRACKET; UNION
(A)
1-53458-374-1
01
1
0611-
69
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0611-
172
HOSE; FLEX,OIL TILT
L=1600
1-09365-052-1
02
1
0611-0909
172
HOSE; FLEX,OIL TILT
L=1600
8-97634-002-0
02
1
0910-
176
NUT; UNION
(A) M12 FLANGE
0-91180-212-0
01
1
0611-
176
NUT; UNION
(B) M12
9-09840-280-0
02
1
0611-
177
WASHER; LK,UNION
ID=12.2
0-91510-512-0
02
1
0611-
273
WASHER; PL,OIL CYL
ID=10.5 OD=32
0-91614-810-0
01
1
0611-
