◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11048 - EXZ LHD EURO4 WITH 2STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#13573) — 11 parça

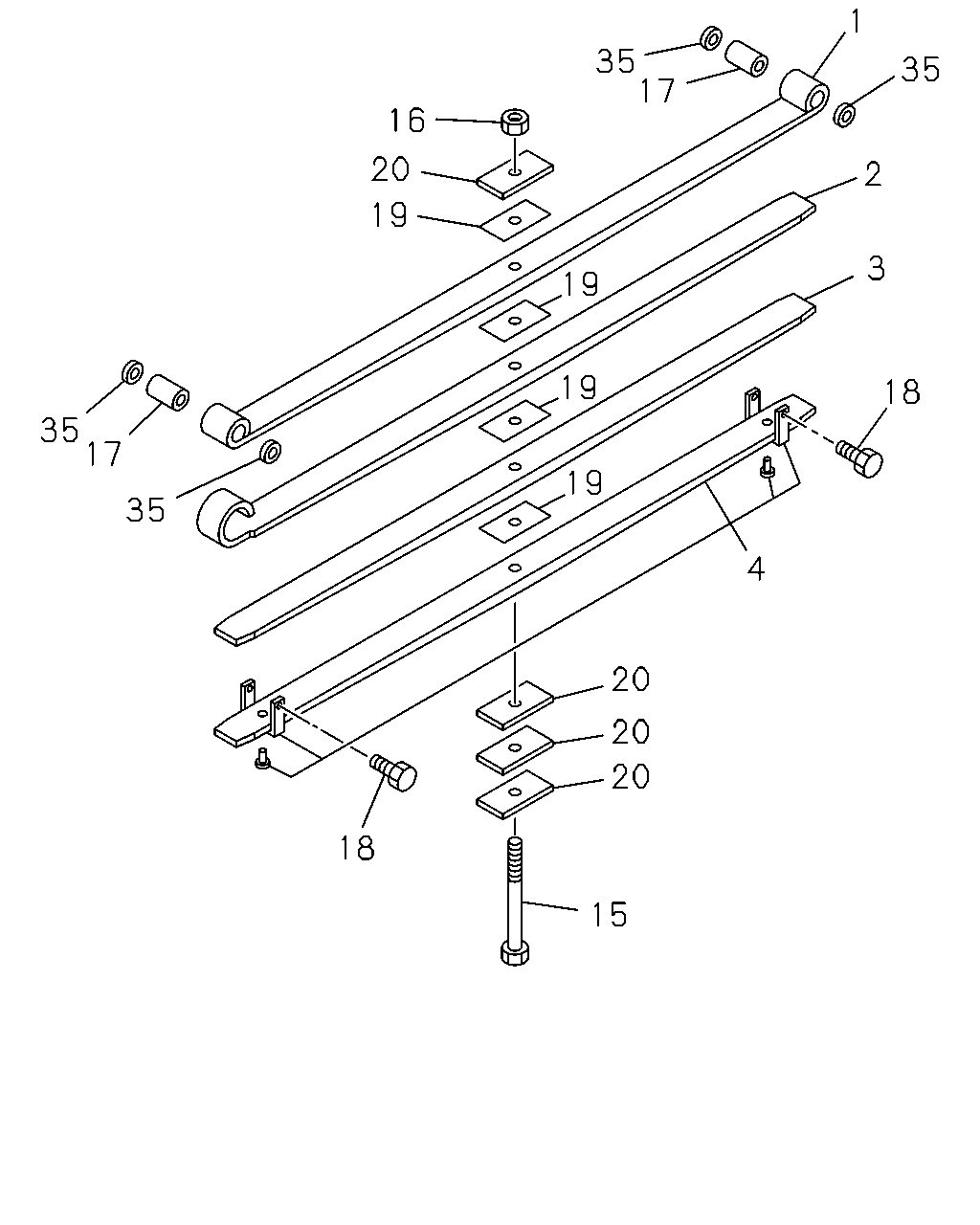

çizim 91974
1 35 17 35 16 20 2 19 3 19 19 18 35 17 19 35 4 20 20 20 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-917-0 		1-51131-917-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-917-0 		1-51132-917-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-917-0 		1-51133-917-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51130-917-0 		1-51134-917-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=165 ASM PART: A = 1-51130-917-0 		1-51156-366-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-917-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 1-51130-917-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X103 ASM PART: A = 1-51130-917-0 		1-09000-536-0 02 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-917-0 		1-51177-071-0 04 1 -
20 SEAT; LEAF SPR,FRT
T=14 ASM PART: A = 1-51130-917-0 		1-51177-097-0 04 1 -
35 SEAL; DUST
ASM PART: A = 1-51130-917-0 		1-51177-321-0 04 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
