Isuzu WW
▶
TRUCKS
▶
EXZ
▶
11048 - EXZ LHD EURO4 WITH 2STEPS
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

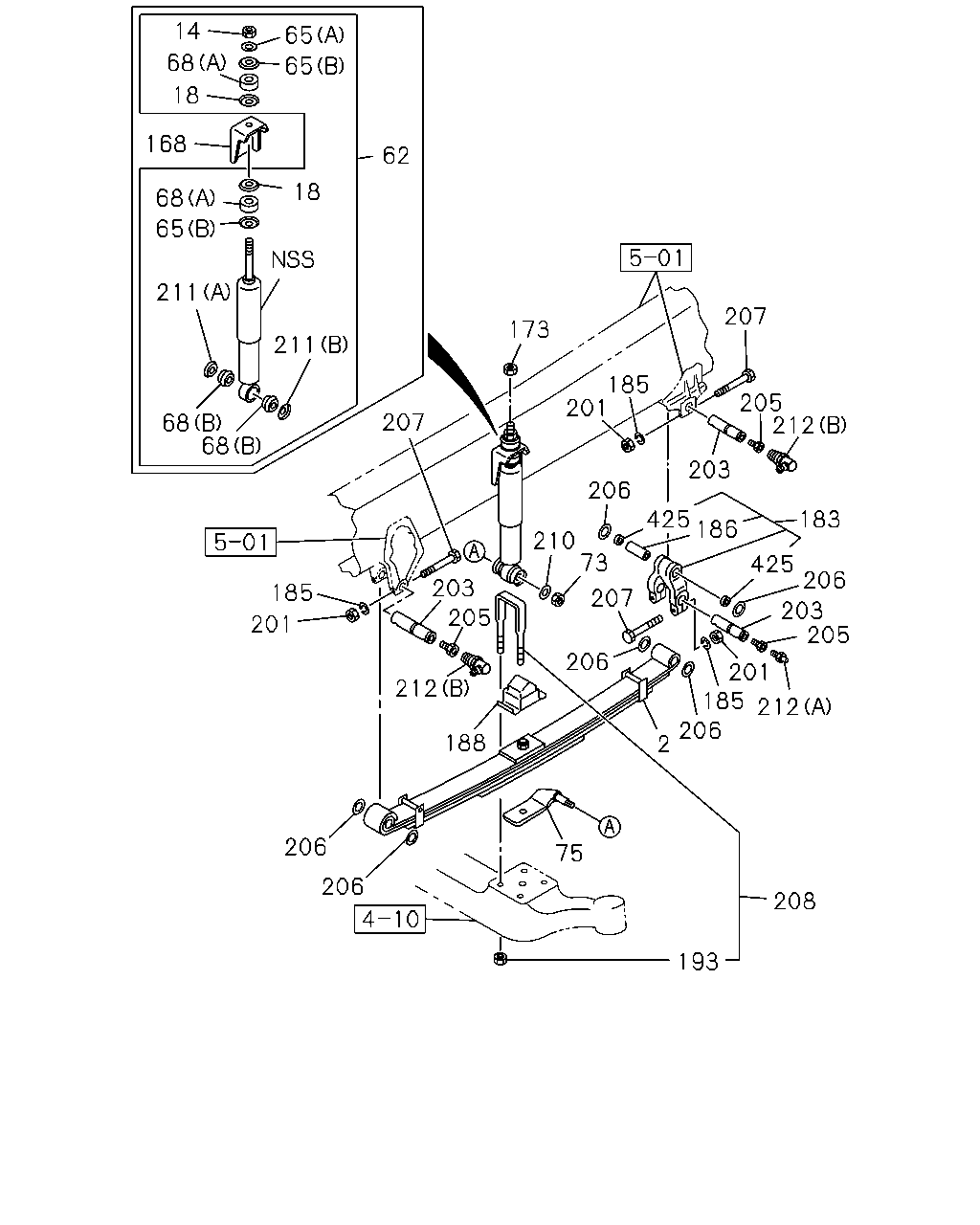

4-50 — FRONT SUSPENSION
(#13572) — 34 parça
14
65
68
65
18
168
62
18
68
65
211
207
173
211
185
201
205
212
207
68
68
203
206
425
186
183
210
73
425
206
203
185
207
203
205
205
201
206
201
185
212
212
206
2
188
206
75
206
208
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4-LEAF
1-51130-917-0
02
1
0611-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
0611-
18
WASHER; CENTERING,S/ABS
ID=24
1-51631-067-0
04
1
0611-
62
ABSORBER ASM; SHOCK,FRT
1-51630-433-1
02
1
0611-
65
WASHER; S/ABS
(A) ID=16.5
1-09503-266-0
02
1
0611-
65
WASHER; S/ABS
(B) ID=16.5
1-51631-068-0
04
1
0611-
68
BUSHING; S/ABS
(A) ID=16 T=25
1-51631-069-0
04
1
0611-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
0611-
73
NUT; BRKT,SHOCK
M20
9-99110-520-0
02
1
0611-
75
BRACKET; FRT S/ABS
1-51681-826-1
01
1
0611-
75
BRACKET; FRT S/ABS
1-51681-825-1
01
1
0611-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
0611-
173
NUT; S/ABS
M14
0-91111-514-0
02
1
0611-
183
SHACKLE; FRT SUSP
1-51162-071-0
02
1
0611-1005
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1006-
185
WASHER; LK,PIN
ID=12.2
0-91510-612-0
12
1
0611-
186
BUSHING; SHACKLE
OD=42
1-51351-044-0
02
1
0611-1005
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1006-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-085-2
02
1
0611-
193
NUT; U BOLT
M22
0-91112-822-0
08
1
0611-1206
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1207-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
0611-
203
PIN; SPR TO SHACKLE
1-51161-031-0
06
1
0611-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
0611-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
0611-
207
BOLT; SPR TO SHACKLE
M12X80
0-10856-280-0
12
1
0611-
208
U-BOLT SET; FRT SPRING
L=250
1-87870-343-1
04
1
0611-0712
208
U-BOLT SET; FRT SPRING
L=240
1-87870-376-2
04
1
0801-
210
WASHER; S/ABS,OUTER
ID=21
9-09160-520-0
02
1
0611-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
0611-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
0611-
212
NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
0611-
212
NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW
0-90301-610-0
04
1
0611-
425
SEAL; DUST
1-51177-321-0
04
1
0611-1005
