◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11048 - EXZ LHD EURO4 WITH 2STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-42 - POWER STEERING OIL PUMP ▶
4-42 — POWER STEERING OIL PUMP (#13571) — 26 parça

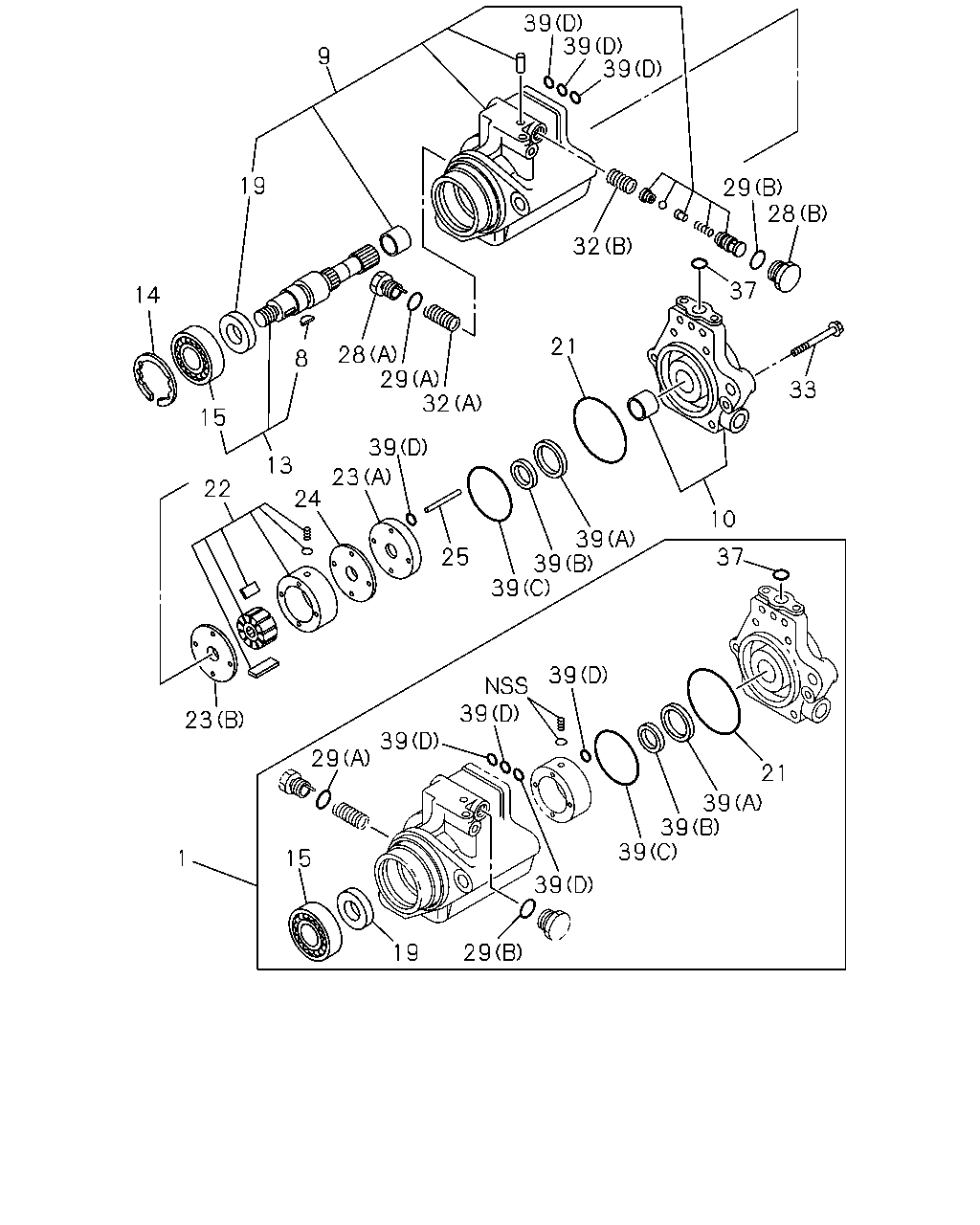

çizim 106279
39 39 39 9 19 29 28 32 37 14 21 28 29 32 8 33 15 39 13 23 24 22 10 39 39 39 25 37 39 39 23 39 29 21 39 39 39 15 1 39 29 19
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: A = 1-19500-616-3 		1-85574-082-0 01 1 -
8 KEY; SHAFT,OIL PUMP
ASM PART: A = 1-19500-616-3 		9-19519-036-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: A = 1-19500-616-3 		1-19511-196-1 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: A = 1-19500-616-3 		1-19511-198-0 01 1 -
13 SHAFT KIT; RET
ASM PART: A = 1-19500-616-3 		1-19521-041-1 01 1 -
14 RING; RET,OIL PUMP
ASM PART: A = 1-19500-616-3 		1-19519-361-0 01 1 -
15 BEARING; BALL,OIL PUMP
ASM PART: A = 1-19500-616-3 		1-19515-016-1 01 1 -
19 SEAL; OIL,OIL PUMP
ASM PART: A = 1-19500-616-3 		1-19519-360-0 01 1 -
21 GASKET; FRT COVER TO BODY
ASM PART: A = 1-19500-616-3 		1-19519-367-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 1-19500-616-3 		1-19519-374-0 01 1 -
23 PLATE; SIDE,OIL PUMP
(B) ASM PART: A = 1-19500-616-3 		1-19519-363-0 01 1 -
23 PLATE; SIDE,OIL PUMP
(A) ASM PART: A = 1-19500-616-3 		1-19519-372-0 01 1 -
24 PLATE ASM; THRUST
ASM PART: A = 1-19500-616-3 		1-19519-371-0 01 1 -
25 PIN; HSG,P/S
ASM PART: A = 1-19500-616-3 		1-19519-359-0 01 1 -
28 PLUG; DRAIN,OIL PUMP
(B) ASM PART: A = 1-19500-616-3 		1-19519-368-0 01 1 -
28 PLUG; DRAIN,OIL PUMP
(A) ASM PART: A = 1-19500-616-3 		1-19519-369-0 01 1 -
29 GASKET; PLUG TO VLV
(A) ASM PART: A = 1-19500-616-3 		9-44519-087-0 01 1 -
29 GASKET; PLUG TO VLV
(B) ASM PART: A = 1-19500-616-3 		9-88510-248-0 01 1 -
32 SPRING; OIL PUMP
(A) ASM PART: A = 1-19500-616-3 		1-19519-370-0 01 1 -
32 SPRING; OIL PUMP
(B) ASM PART: A = 1-19500-616-3 		8-94475-376-0 01 1 -
33 BOLT; COVER
ASM PART: A = 1-19500-616-3 		1-19519-346-0 06 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 1-19500-616-3 		1-19519-292-0 01 1 -
39 GASKET; OIL PUMP
(A) ASM PART: A = 1-19500-616-3 		1-19519-364-0 01 1 -
39 GASKET; OIL PUMP
(B) ASM PART: A = 1-19500-616-3 		1-19519-365-0 01 1 -
39 GASKET; OIL PUMP
(C) ASM PART: A = 1-19500-616-3 		1-19519-366-0 01 1 -
39 GASKET; OIL PUMP
(D) ASM PART: A = 1-19500-616-3 		8-94240-926-0 04 1 -
