◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11048 - EXZ LHD EURO4 WITH 2STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#13568) — 112 parça

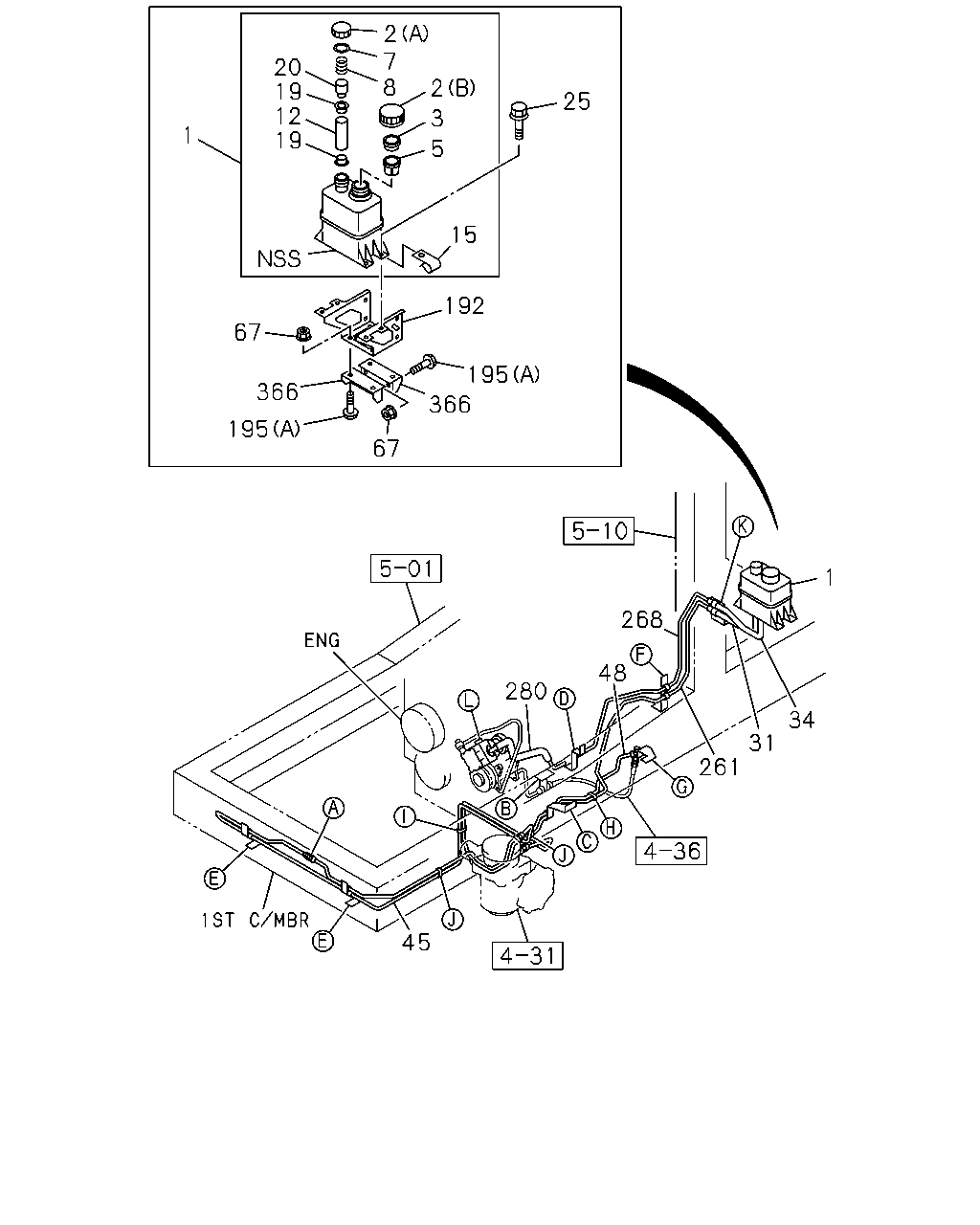

çizim 91590
2 7 8 20 19 12 19 2 25 3 1 5 15 192 67 195 366 366 195 67 1 268 48 280 34 31 261 45
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-235-1 01 1 0611-
2 CAP; OIL TANK,P/S
(A) WO/GAUGE 		1-21241-003-6 01 1 0611-
2 CAP; OIL TANK,P/S
(B) W/GAUGE 		1-21241-006-4 01 1 0611-
3 GASKET; OIL TANK,P/S 1-21249-006-2 01 1 0611-
5 STRAINER; OIL TANK,P/S 1-21235-006-1 01 1 0611-
7 RING; GASKET,OIL TANK,P/S 1-21249-005-0 01 1 0611-
8 SPRING; OIL TANK,P/S 1-09580-599-0 01 1 0611-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-004-1 01 1 0611-
15 PLATE; FILTER,OIL TANK 1-21249-016-0 04 1 0611-
19 SEAT; OIL TANK 1-21262-001-0 02 1 0611-
20 HOLDER; FILTER,OIL TANK,P/S 1-21239-001-2 01 1 0611-
25 BOLT; OIL TANK BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0611-
31 HOSE; P/S OIL TANK,INL 8-98034-999-0 01 1 0611-
34 HOSE; P/S OIL TANK,OUTLET 8-98035-000-0 01 1 0611-
45 PIPE; OIL,P/S UNIT TO UNION 8-98045-491-0 01 1 0611-
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-98045-487-0 01 1 0611-
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0611-
192 BRACKET; P/S OIL TANK 1-21489-200-1 01 1 0611-
195 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0611-
195 BOLT; BRKT
(C) M10X35 FLANGE 		0-28151-035-0 01 1 0611-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0611-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 0611-
195 BOLT; BRKT
(D) M10X20 FLANGE 		0-28651-020-0 02 1 0611-
261 PIPE; OIL,UNION TO HOSE 8-98034-837-0 01 1 0611-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE
L=1340 		8-98034-832-0 01 1 0611-
280 HOSE; P/S OIL PUMP,INL 1-21117-301-0 01 1 0611-
366 SPACER; BRKT TO MEMBER 1-21489-196-1 02 1 0611-

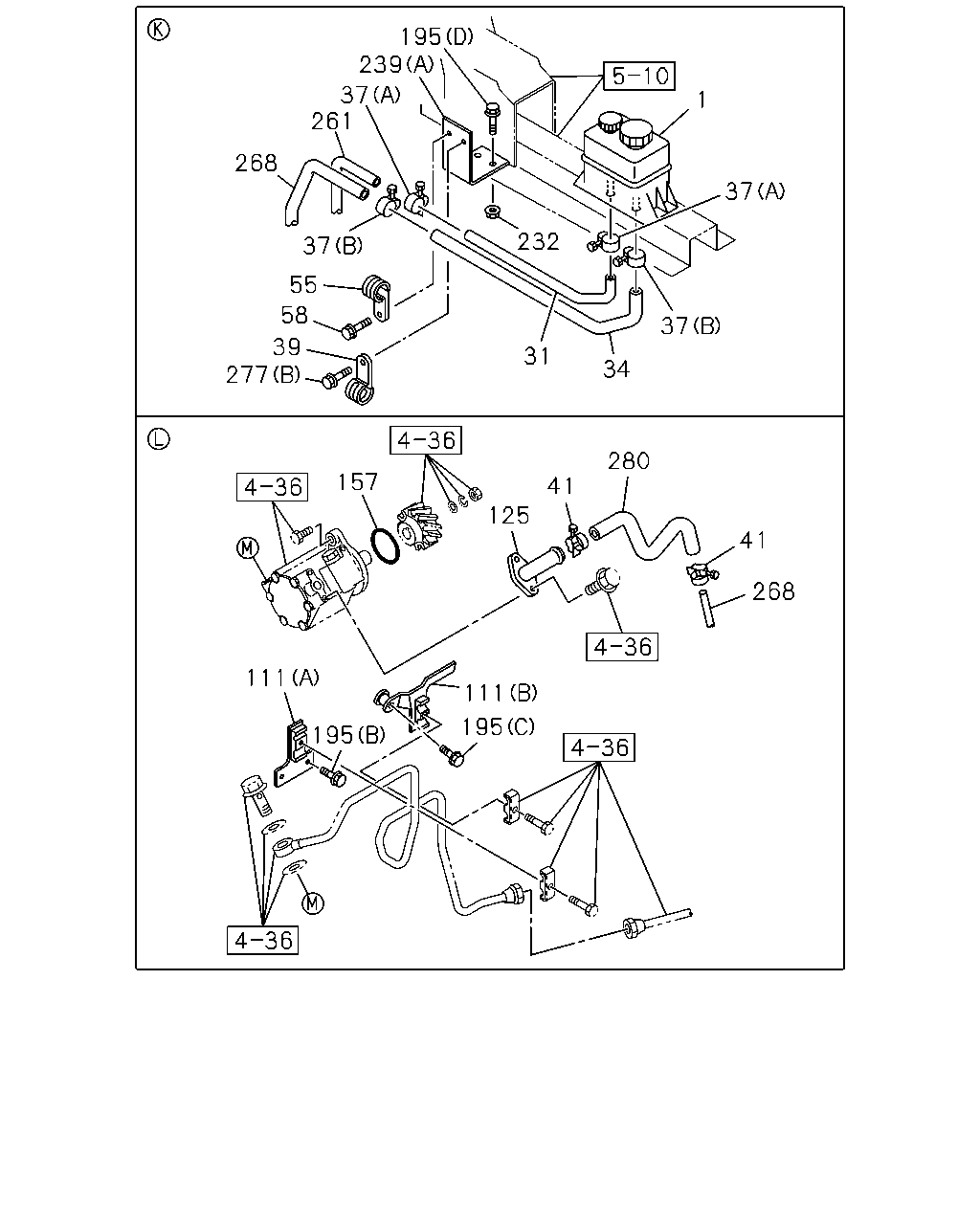

çizim 91972
195 239 37 261 1 268 37 232 37 55 58 37 39 277 31 34 280 157 41 125 41 268 111 111 195 195
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-235-1 01 1 0611-
31 HOSE; P/S OIL TANK,INL 8-98034-999-0 01 1 0611-
34 HOSE; P/S OIL TANK,OUTLET 8-98035-000-0 01 1 0611-
37 CLIP; HOSE,P/S
(A) ID=38 		9-09915-041-1 02 1 0611-
37 CLIP; HOSE,P/S
(B) ID=28 		9-09915-672-1 02 1 0611-
39 CLIP; FLEX HOSE
ID=37 L=35 		1-09701-109-0 01 1 0611-
41 CLIP; HOSE,P/S
ID=38 		9-09915-041-1 02 1 0611-
55 CLIP; P/S RUBBER HOSE
ID=28 L=32 		1-09701-107-1 01 1 0611-
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0611-
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0611-0611
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0611-0611
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0611-
58 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0611-
58 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0611-
58 BOLT; CLIP
M10X20 FLANGE 		0-28651-020-0 02 1 0611-0611
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0611-
111 BRACKET; OIL PIPE
(A) 		1-13345-186-0 01 1 0611-
111 BRACKET; OIL PIPE
(B) 		1-13345-187-0 01 1 0611-
125 CONNECTOR; P/S PUMP 1-13313-532-0 01 1 0611-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6 		1-09623-421-0 01 1 0611-
195 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0611-
195 BOLT; BRKT
(C) M10X35 FLANGE 		0-28151-035-0 01 1 0611-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0611-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 0611-
195 BOLT; BRKT
(D) M10X20 FLANGE 		0-28651-020-0 02 1 0611-
232 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0611-
239 BRACKET; FLEX HOSE
(A) 		1-21464-780-0 01 1 0611-
239 BRACKET; FLEX HOSE
(B) 		1-47471-227-0 01 1 0611-
261 PIPE; OIL,UNION TO HOSE 8-98034-837-0 01 1 0611-
268 PIPE; OIL,FLEX HOSE TO FLEX HOSE
L=1340 		8-98034-832-0 01 1 0611-
277 BOLT; HOSE CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0611-
277 BOLT; HOSE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0611-
280 HOSE; P/S OIL PUMP,INL 1-21117-301-0 01 1 0611-

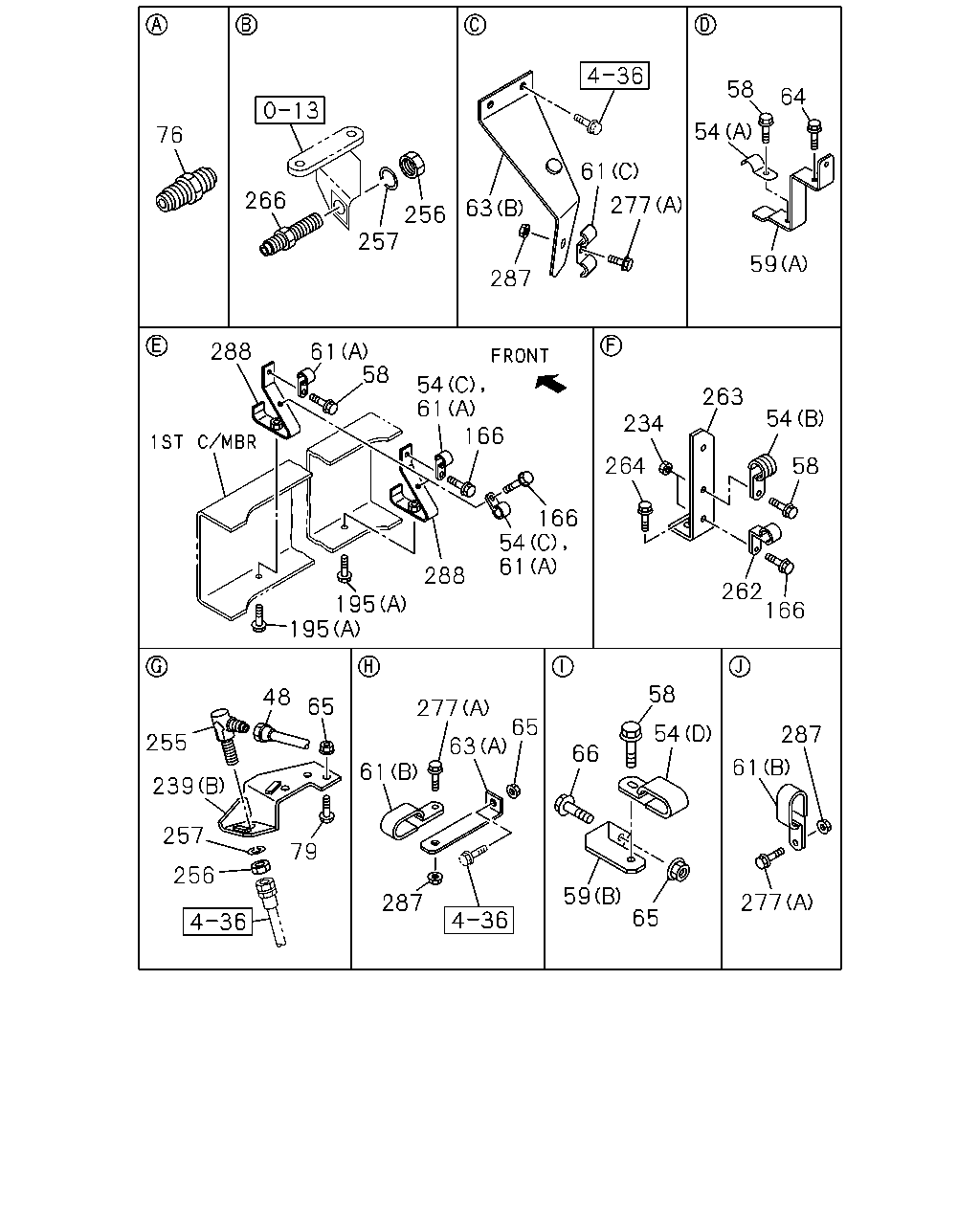

çizim 106271
58 64 54 76 61 266 277 63 256 257 59 287 288 61 58 54 61 166 263 54 234 264 58 166 54 61 288 262 166 195 195 58 48 65 277 65 54 287 255 63 66 61 61 239 257 79 256 59 277 287 65
BalonParca AdiParca NoAdetTipApplied Date
48 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-98045-487-0 01 1 0611-
54 CLIP; OIL PIPE
(C) ID=16 L=20 		0-95235-535-0 01 1 0611-
54 CLIP; OIL PIPE
(D) ID=16X2 L=20 		0-95325-536-0 02 1 0611-0907
54 CLIP; OIL PIPE
(D) ID=16X2 L=20 		0-95325-535-0 02 1 0908-
54 CLIP; OIL PIPE
(A) ID=23.6 L=35 		1-09700-634-0 01 1 0611-
54 CLIP; OIL PIPE
(B) ID=26 L=27 		1-09701-006-0 01 1 0611-
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0611-
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0611-0611
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0611-0611
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0611-
58 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0611-
58 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0611-
58 BOLT; CLIP
M10X20 FLANGE 		0-28651-020-0 02 1 0611-0611
58 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0611-
59 BRACKET; CLIP,OIL PIPE
(A) 		1-47471-183-0 01 1 0611-
59 BRACKET; CLIP,OIL PIPE
(B) 		1-53441-537-0 01 1 0611-
61 CLIP; OIL PIPE
(A) ID=16 L=20 		0-95235-535-0 01 1 0611-
61 CLIP; OIL PIPE
(A) ID=16 L=20 		0-95235-535-0 04 1 0611-
61 CLIP; OIL PIPE
(B) ID=16X2 L=20 		0-95325-535-0 02 1 0611-
61 CLIP; OIL PIPE
(C) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0611-
63 BRACKET; CLIP,P/S
(B) 		1-47471-146-0 01 1 0611-
63 BRACKET; CLIP,P/S
(A) L=112 		1-47475-694-1 01 1 0611-
64 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28050-825-0 01 1 0611-0611
64 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28050-830-0 01 1 0611-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0611-
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0611-
66 BOLT; BRKT,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0611-
76 UNION; OIL PIPE
M22 L=51 		0-92123-015-0 01 1 0611-
79 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0611-
166 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0611-
166 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0611-
195 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0611-
195 BOLT; BRKT
(C) M10X35 FLANGE 		0-28151-035-0 01 1 0611-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0611-
195 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 08 1 0611-
195 BOLT; BRKT
(D) M10X20 FLANGE 		0-28651-020-0 02 1 0611-
234 NUT; PIPE CLIP,P/S
M8 FLANGE 		0-91180-108-0 01 1 0611-
239 BRACKET; FLEX HOSE
(A) 		1-21464-780-0 01 1 0611-
239 BRACKET; FLEX HOSE
(B) 		1-47471-227-0 01 1 0611-
255 UNION; FLEX HOSE
M22 & M22 ELBOW 		1-09654-163-1 01 1 0611-
256 NUT; UNION
M22 		0-91111-522-0 01 1 0611-
256 NUT; UNION
M22 		0-91111-522-0 01 1 0611-
257 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0611-
257 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0611-
262 CLIP; P/S PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0611-
263 BRACKET; P/S PIPE 1-47471-191-1 01 1 0611-
264 BOLT; PIPE BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0611-
266 UNION; OIL PIPE,P/S
M20 & M22 STRAIGHT 		1-09654-167-1 01 1 0611-
277 BOLT; HOSE CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0611-
277 BOLT; HOSE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0611-
287 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0611-
288 BRACKET; CLIP,P/S 1-47479-521-0 02 1 0611-
