Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#13562) — 170 parça

97 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
97	GROMMET; PARKING BRK CABLE SPRING BRAKE(SU9)	1-09983-078-0	01	1	0105-0206	●	●
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09983-078-0	01	1	0207-	●	●
343	SEAL SPRING BRAKE(SU9) OD=25 BLACK	1-76798-019-0	02	1	0105-0206	●	●
343	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK	1-76798-019-0	02	1	0207-	●	●

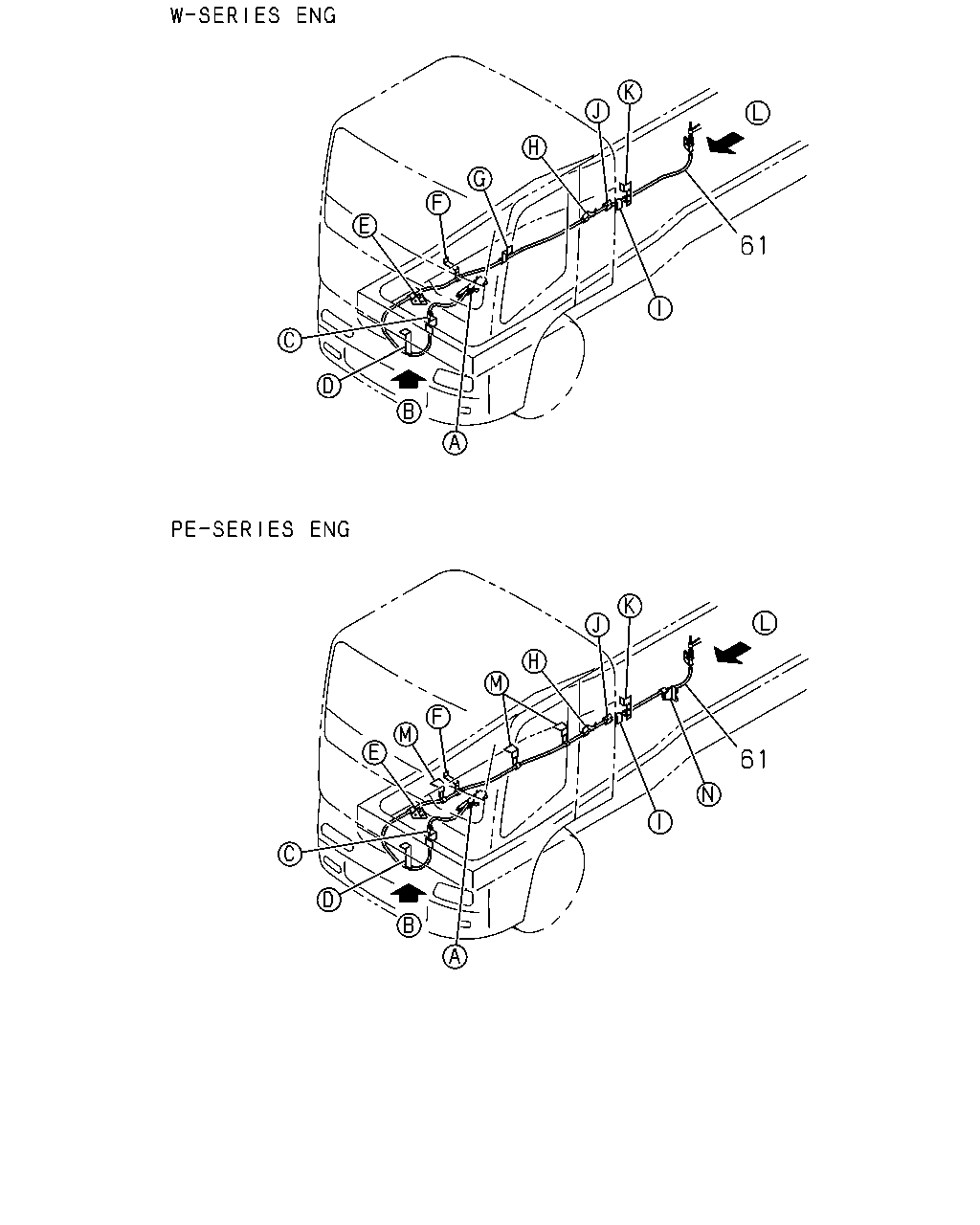

61 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5610	1-79996-454-0	01	1	0105-	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J> L=5694	1-79996-455-0	01	1	0105-	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5220	1-79996-340-3	01	1	0105-	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MJA7 M/T<X9Q> L=5320	1-79996-341-3	01	1	0105-	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5170	1-79996-342-3	01	1	0105-	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> MAL5 M/T<X9F> L=5170	1-79996-342-3	01	1	0105-		●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MAG6 M/T<X9T> L=5540	1-79996-343-3	01	1	0105-	●	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MAP5 M/T<Y9F> EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> L=5540	1-79996-433-1	01	1	0105-	●	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. MIXER TRUCK<RA2> L=5624	1-79996-434-0	01	1	0105-	●	●

45 61 90 324 46 61 187 241 4 28 23 61 52 52 73 51 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	STEM; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-79996-567-0	01	1	0105-	●	●
23	SWITCH; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-82440-100-0	01	1	0105-	●	●
28	BOLT; HAND BRK LEVER PARKING BRAKE TRANSMISSION REAR<PJ8> M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0105-	●	●
45	BOLT; CABLE TO FLOOR PARKING BRAKE TRANSMISSION REAR<PJ8> M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0105-	●	●
46	CLIP; FRT CABLE TO FLOOR PARKING BRAKE TRANSMISSION REAR<PJ8> ID=13 L=20	9-09525-235-0	01	1	0105-	●	●
51	PIN; JOINT,RELAY LEVER PARKING BRAKE TRANSMISSION REAR<PJ8>	1-09987-243-1	01	1	0105-	●	●
52	WASHER; CURVED RELAY LEVER PARKING BRAKE TRANSMISSION REAR<PJ8> ID=19	8-94206-429-1	02	1	0105-	●	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5610	1-79996-454-0	01	1	0105-	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J> L=5694	1-79996-455-0	01	1	0105-	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5220	1-79996-340-3	01	1	0105-	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MJA7 M/T<X9Q> L=5320	1-79996-341-3	01	1	0105-	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5170	1-79996-342-3	01	1	0105-	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> MAL5 M/T<X9F> L=5170	1-79996-342-3	01	1	0105-		●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MAG6 M/T<X9T> L=5540	1-79996-343-3	01	1	0105-	●	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MAP5 M/T<Y9F> EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> L=5540	1-79996-433-1	01	1	0105-	●	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. MIXER TRUCK<RA2> L=5624	1-79996-434-0	01	1	0105-	●	●
73	WASHER; PL,CABLE PARKING BRAKE TRANSMISSION REAR<PJ8> ID=17	9-09160-516-0	01	1	0105-	●	●
90	BOLT; CABLE TO BRKT PARKING BRAKE TRANSMISSION REAR<PJ8> M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-	●	●
90	BOLT; CABLE TO BRKT PARKING BRAKE TRANSMISSION REAR<PJ8> M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0105-0208	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47476-658-0	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-47477-580-1	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F)	1-83129-117-0	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> (A)	1-46147-118-1	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> (A)	1-46147-116-1	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B)	1-46147-264-0	01	1	0105-	●	●
187	BRACKET; HAND BRK PARKING BRAKE TRANSMISSION REAR<PJ8> (E)	1-79996-264-0	01	1	0105-	●	●
241	NUT; BRKT PARKING BRAKE TRANSMISSION REAR<PJ8> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
241	NUT; BRKT PARKING BRAKE TRANSMISSION REAR<PJ8> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> (B)	1-82699-510-2	01	1	0105-	●	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> (B)	1-82699-831-0	01	1	0105-	●	●
324	BRACKET PARKING BRAKE TRANSMISSION REAR<PJ8> (A)	1-79996-140-1	01	1	0105-0208	●	●

187 191 189 192 85 220 86 91 235 225 61 61 99 98 246 247 87 102 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5610	1-79996-454-0	01	1	0105-	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J> L=5694	1-79996-455-0	01	1	0105-	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5220	1-79996-340-3	01	1	0105-	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MJA7 M/T<X9Q> L=5320	1-79996-341-3	01	1	0105-	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5170	1-79996-342-3	01	1	0105-	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> MAL5 M/T<X9F> L=5170	1-79996-342-3	01	1	0105-		●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MAG6 M/T<X9T> L=5540	1-79996-343-3	01	1	0105-	●	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MAP5 M/T<Y9F> EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> L=5540	1-79996-433-1	01	1	0105-	●	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. MIXER TRUCK<RA2> L=5624	1-79996-434-0	01	1	0105-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14	1-09700-057-1	02	1	0109-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14	1-09700-057-1	03	1	0105-0108	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14	1-09700-057-1	01	1	0109-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=14.5 H=23 L=30	1-09700-859-0	03	1	0105-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=14.5 L=20	1-09701-012-0	01	1	0105-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=14.5 L=28	1-09701-013-0	01	1	0105-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C) ID=31 L=30	1-09700-969-0	02	1	0105-	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	07	1	0105-0512	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	07	1	0601-	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M10X20 FLANGE	0-28781-020-0	01	1	0105-0512	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M10X20 FLANGE	0-28751-020-0	01	1	0601-	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91150-108-0	06	1	0105-0602	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0505	●	●
87	NUT POWER BRAKE LOCK SYSTEM(J50) (A) M8 FLANGE	0-91150-108-0	01	1	0506-0602	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0506-0602	●	●
87	NUT POWER BRAKE LOCK SYSTEM(J50) (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
87	NUT POWER BRAKE LOCK SYSTEM(J50) (A) M8 FLANGE	0-91150-108-0	02	1	0105-0505	●	●
87	NUT POWER BRAKE LOCK SYSTEM(J50) (B)	1-46259-007-0	01	1	0506-	●	●
91	CLIP; PARKING BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> ID=14.5 L=20	1-09701-012-0	04	1	0105-	●	●
98	BOLT; RR COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
98	BOLT; RR COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
99	NUT; CONT CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
99	NUT; CONT CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
101	NUT; CABLE TO LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46259-007-0	01	1	0105-	●	●
102	NUT; LK,CABLE TO LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	0105-0512	●	●
102	NUT; LK,CABLE TO LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	01	1	0601-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47476-658-0	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-47477-580-1	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F)	1-83129-117-0	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> (A)	1-46147-118-1	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> (A)	1-46147-116-1	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B)	1-46147-264-0	01	1	0105-	●	●
187	BRACKET; HAND BRK PARKING BRAKE TRANSMISSION REAR<PJ8> (E)	1-79996-264-0	01	1	0105-	●	●
189	NUT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
189	NUT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
191	STAY; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0>	1-46147-233-0	01	1	0105-	●	●
192	BOLT; STAY FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
192	BOLT; STAY FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
220	NUT; CLIP,PARKING CONT CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
220	NUT; CLIP,PARKING CONT CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
225	NUT; CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●
225	NUT; CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
225	NUT; CABLE CLIP W-SERIES ENG<1A2> EXC. MJD7 M/T<X9J> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
225	NUT; CABLE CLIP W-SERIES ENG<1A2> EXC. MJD7 M/T<X9J> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
235	BRACKET; CONT CABLE TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> (B)	1-46147-183-0	02	1	0105-	●	●
235	BRACKET; CONT CABLE TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> (C)	1-47477-180-1	01	1	0105-0206	●	●
235	BRACKET; CONT CABLE TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-46147-169-1	01	1	0105-	●	●
246	SENSOR; BRK LOCK POWER BRAKE LOCK SYSTEM(J50)	1-46360-101-2	01	1	0105-	●	●
247	WASHER; PL POWER BRAKE LOCK SYSTEM(J50) ID=8.4	9-09160-508-0	01	1	0105-0505	●	●

324 224 223 181 86 85 225 231 85 211 87 86 85 86 86 211 187 235 237 87 86 187 85 87 86 188 87 85 187 188 188 87 85 236 235 236 87 85 86 238 187 87

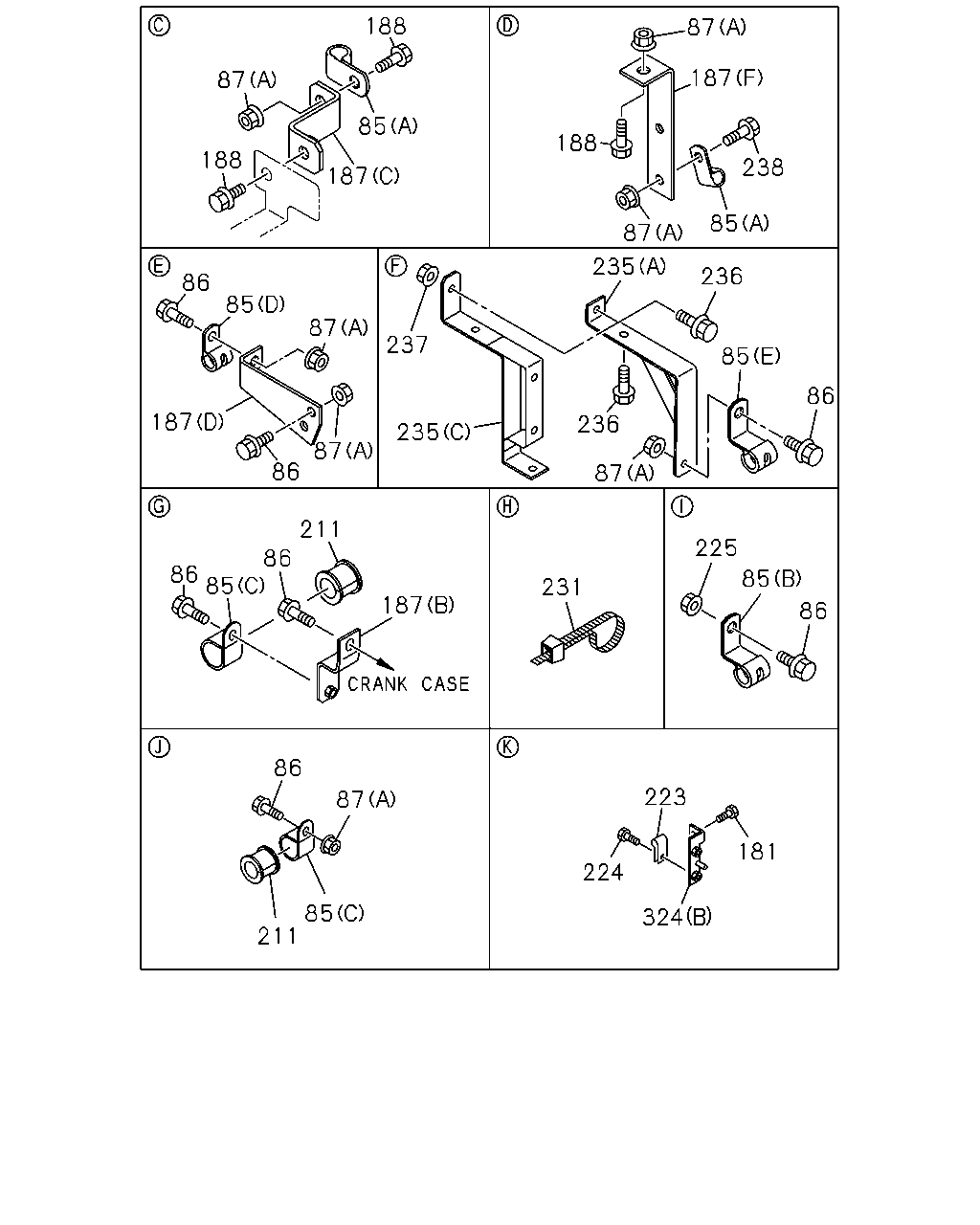

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14	1-09700-057-1	02	1	0109-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14	1-09700-057-1	03	1	0105-0108	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14	1-09700-057-1	01	1	0109-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=14.5 H=23 L=30	1-09700-859-0	03	1	0105-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=14.5 L=20	1-09701-012-0	01	1	0105-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=14.5 L=28	1-09701-013-0	01	1	0105-	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (C) ID=31 L=30	1-09700-969-0	02	1	0105-	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	07	1	0105-0512	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	07	1	0601-	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M10X20 FLANGE	0-28781-020-0	01	1	0105-0512	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M10X20 FLANGE	0-28751-020-0	01	1	0601-	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91150-108-0	06	1	0105-0602	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0105-0505	●	●
87	NUT POWER BRAKE LOCK SYSTEM(J50) (A) M8 FLANGE	0-91150-108-0	01	1	0506-0602	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91150-108-0	01	1	0506-0602	●	●
87	NUT POWER BRAKE LOCK SYSTEM(J50) (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
87	NUT POWER BRAKE LOCK SYSTEM(J50) (A) M8 FLANGE	0-91150-108-0	02	1	0105-0505	●	●
87	NUT POWER BRAKE LOCK SYSTEM(J50) (B)	1-46259-007-0	01	1	0506-	●	●
181	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
181	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47476-658-0	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-47477-580-1	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F)	1-83129-117-0	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> (A)	1-46147-118-1	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> (A)	1-46147-116-1	01	1	0105-	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (B)	1-46147-264-0	01	1	0105-	●	●
187	BRACKET; HAND BRK PARKING BRAKE TRANSMISSION REAR<PJ8> (E)	1-79996-264-0	01	1	0105-	●	●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> M8X25 FLANGE	0-28680-825-0	03	1	0105-0512	●	●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> M8X25 FLANGE	0-28650-825-0	03	1	0601-	●	●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512		●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
211	SLEEVE; RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> ID=23 OD=27 L=40	1-09337-015-0	02	1	0105-	●	●
211	SLEEVE; RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> ID=13 L=32	1-09337-029-0	02	1	0105-	●	●
223	CLIP; PARKING BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> W-SERIES ENG<1A2> ID=14.5 L=28	1-09701-013-0	01	1	0105-	●	●
224	BOLT; CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
224	BOLT; CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
225	NUT; CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●
225	NUT; CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
225	NUT; CABLE CLIP W-SERIES ENG<1A2> EXC. MJD7 M/T<X9J> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
225	NUT; CABLE CLIP W-SERIES ENG<1A2> EXC. MJD7 M/T<X9J> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
231	CLIP; BAND,BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> L=250	1-09707-126-0	02	1	0105-	●	●
231	CLIP; BAND,BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> L=150	1-09707-145-1	01	1	0105-	●	●
235	BRACKET; CONT CABLE TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> (B)	1-46147-183-0	02	1	0105-	●	●
235	BRACKET; CONT CABLE TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> (C)	1-47477-180-1	01	1	0105-0206	●	●
235	BRACKET; CONT CABLE TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> (A)	1-46147-169-1	01	1	0105-	●	●
236	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28680-830-0	06	1	0105-0512	●	●
236	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28650-830-0	06	1	0601-	●	●
236	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X35 FLANGE	0-28680-835-0	01	1	0105-0512	●	●
236	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X35 FLANGE	0-28650-835-0	01	1	0601-	●	●
237	NUT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	06	1	0105-0602	●	●
237	NUT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	06	1	0603-	●	●
238	BOLT; CLIP TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●	●
238	BOLT; CLIP TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W-SERIES ENG<1A2> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> (B)	1-82699-510-2	01	1	0105-	●	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> (B)	1-82699-831-0	01	1	0105-	●	●
324	BRACKET PARKING BRAKE TRANSMISSION REAR<PJ8> (A)	1-79996-140-1	01	1	0105-0208	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
