Sayfa 3-08A - Isuzu EPC

3-08A — PARKING BRAKE (#13560) — 201 parça

68 89 68 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
68	BOLT; BRKT,PARKING BRK CONT PARKING BRAKE TRANSMISSION REAR<PJ8> M10X22 FLANGE	0-28181-022-0	03	1	0105-	●	●	●	●
68	BOLT; BRKT,PARKING BRK CONT M10X22 FLANGE	0-28181-022-0	03	1	0105-					●
89	BRACKET; PARKING BRK CONT PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46147-270-0	01	1	0105-			●
89	BRACKET; PARKING BRK CONT	1-46147-270-0	01	1	0105-					●
89	BRACKET; PARKING BRK CONT PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46147-295-0	01	1	0105-	●	●
89	BRACKET; PARKING BRK CONT PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46147-198-1	01	1	0105-				●
89	BRACKET; PARKING BRK CONT PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46147-218-2	01	1	0105-				●

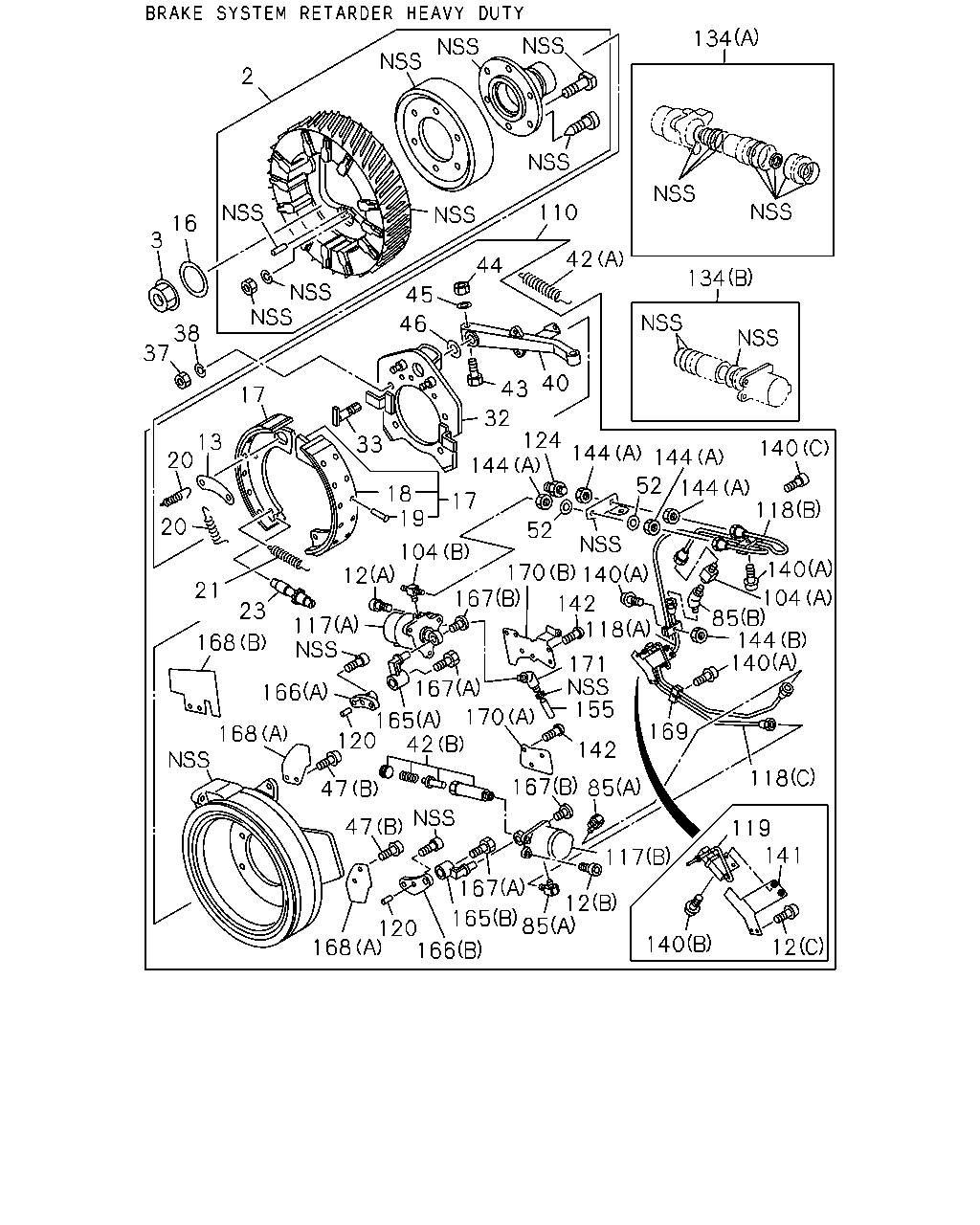

168 120 166 85 165 167 12 140 12 141 119 117 85 167 47 47 168 120 42 142 169 118 140 144 85 155 170 165 166 117 168 23 21 20 20 13 17 33 19 18 104 12 167 167 171 142 118 170 52 17 144 124 144 144 144 118 140 52 140 37 38 3 16 2 45 46 43 32 40 42 110 44 134 140 104 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	DRUM; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46211-026-1	01	1	0105-	●	●	●
2	DRUM; PARKING BRK	1-46211-026-1	01	1	0105-					●
2	DRUM; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46211-041-0	01	1	0105-				●
2	DRUM; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46210-238-3	01	1	0105-				●
3	NUT; LK PARKING BRAKE TRANSMISSION REAR<PJ8> M44	1-09449-076-0	01	1	0105-		●	●
3	NUT; LK M44	1-09449-076-0	01	1	0105-					●
3	NUT; LK PARKING BRAKE TRANSMISSION REAR<PJ8> M46	1-09449-062-0	01	1	0105-	●			●
12	BOLT; FIX PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-104-0	03	1	0105-				●
12	BOLT; FIX PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M6X14 HEX SOCKET	1-48629-145-0	01	1	0105-				●
12	BOLT; FIX PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-148-0	04	1	0105-				●
13	BRACE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	9-46239-002-0	01	1	0105-	●	●	●	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	0105-					●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE TRANSMISSION REAR<PJ8>.	9-09920-607-0	01	1	0105-		●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0105-					●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE TRANSMISSION REAR<PJ8>	1-09623-305-0	01	1	0105-	●			●
17	SHOE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46220-022-0	02	1	0105-	●	●	●	●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	0105-					●
18	LINING; BRK,PARKING PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46225-023-0	02	1	0105-	●	●	●	●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	0105-					●
19	RIVET; LINING,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-09732-012-0	32	1	0105-	●	●	●	●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	0105-					●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	9-09942-434-0	02	1	0105-	●	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	0105-					●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE TRANSMISSION REAR<PJ8>	9-09942-516-0	01	1	0105-	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	0105-					●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46240-003-0	01	1	0105-	●	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	0105-					●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46213-033-0	01	1	0105-	●	●	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-033-0	01	1	0105-					●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	9-46251-069-0	01	1	0105-	●	●	●
33	SHAFT; CAM,PARKING BRK	9-46251-069-0	01	1	0105-					●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	9-46251-069-0	01	1	0105-				●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46251-010-0	01	1	0105-				●
37	NUT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	9-99110-516-0	01	1	0105-0512			●
37	NUT; SUPPORT PLATE M16	9-99110-516-0	01	1	0105-0512					●
37	NUT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	0-91110-516-0	01	1	0601-			●
37	NUT; SUPPORT PLATE M16	0-91110-516-0	01	1	0601-					●
37	NUT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	9-99110-516-0	04	1	0105-0512	●	●		●
37	NUT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	0-91110-516-0	04	1	0601-	●	●		●
38	WASHER; LK,SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> ID=16.2	9-09150-516-0	04	1	0105-	●	●	●	●
38	WASHER; LK,SUPPORT PLATE ID=16.2	9-09150-516-0	04	1	0105-					●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46252-014-0	01	1	0105-	●	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-014-0	01	1	0105-					●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46252-014-0	01	1	0105-				●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46252-047-0	01	1	0105-				●
42	SPRING; RETURN,LEVER PARKING BRAKE TRANSMISSION REAR<PJ8> (A)	1-09583-128-0	01	1	0105-	●	●	●	●
42	SPRING; RETURN,LEVER (A)	1-09583-128-0	01	1	0105-					●
42	SPRING; RETURN,LEVER PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-071-1	01	1	0105-				●
43	BOLT; LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8>	0-10811-045-0	01	1	0105-	●	●	●	●
43	BOLT; LEVER TO CM/SHF	0-10811-045-0	01	1	0105-					●
44	NUT; LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8> M10	9-09111-410-0	01	1	0105-0512	●	●	●	●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	0105-0512					●
44	NUT; LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8> M10	0-91111-510-0	01	1	0601-	●	●	●	●
44	NUT; LEVER TO CM/SHF M10	0-91111-510-0	01	1	0601-					●
45	WASHER; LK,LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8> ID=10.2	9-09150-510-0	01	1	0105-	●	●	●	●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	0105-					●
46	WASHER; LEVER PARKING BRAKE TRANSMISSION REAR<PJ8>	9-09855-362-0	01	1	0105-	●	●	●	●
46	WASHER; LEVER	9-09855-362-0	01	1	0105-					●
47	BOLT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> (A) M16X40	9-09804-155-0	03	1	0105-			●
47	BOLT; SUPPORT PLATE (A) M16X40	9-09804-155-0	03	1	0105-					●
47	BOLT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X10 HEX SOCKET	1-48629-133-0	03	1	0105-				●
47	BOLT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X14 HEX SOCKET	1-48629-145-0	01	1	0105-				●
52	WASHER; PL PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=12.5 OD=26	9-09160-612-0	02	1	0105-				●
85	CONNECTOR; RETARDER PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-150-0	01	1	0105-				●
85	CONNECTOR; RETARDER PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12 & PT1/8	9-09224-306-2	02	1	0105-				●
104	CONNECTOR PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-149-0	01	1	0105-				●
104	CONNECTOR PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-188-0	01	1	0105-				●
110	BRAKE ASM; PARKING PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46200-271-2	01	1	0105-				●
117	CYLINDER ASM; AIR PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-142-0	01	1	0105-				●
117	CYLINDER ASM; AIR PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-146-0	01	1	0105-				●
118	PIPE ASM; AIR CYL PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-49115-875-0	01	1	0105-				●
118	PIPE ASM; AIR CYL PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C)	1-49115-877-0	01	1	0105-				●
118	PIPE ASM; AIR CYL PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-49118-551-0	01	1	0105-				●
119	SWITCH; THERMO PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82450-054-0	01	1	0105-				●
120	PIN; KNOCK PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	9-08150-616-0	02	1	0105-				●
124	CONNECTOR; FLEX HOSE PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-187-0	01	1	0105-				●
134	REPAIR KIT; AIR CYL PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-137-0	01	1	0105-				●
134	REPAIR KIT; AIR CYL PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-138-0	01	1	0105-				●
140	BOLT PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M10X20	1-48629-070-0	04	1	0105-				●
140	BOLT PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X10 HEX SOCKET	1-48629-133-0	02	1	0105-				●
140	BOLT PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6X18	1-48629-134-0	03	1	0105-				●
141	BRACKET PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-111-2	01	1	0105-				●
142	SCREW PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M5X10 PAN-HD	9-93490-510-0	11	1	0105-				●
144	NUT PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6 FLANGE	5-09440-004-0	01	1	0105-				●
144	NUT PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M12	9-09840-280-0	04	1	0105-				●
155	TUBE PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-092-0	01	1	0105-				●
165	LINK; RETARDER PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-140-0	01	1	0105-				●
165	LINK; RETARDER PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-141-0	01	1	0105-				●
166	ATTACHMENT; YOKE PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-066-0	01	1	0105-				●
166	ATTACHMENT; YOKE PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-067-0	01	1	0105-				●
167	STOPPER; LINKAGE PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-069-0	02	1	0105-				●
167	STOPPER; LINKAGE PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-127-0	02	1	0105-				●
168	PROTECTOR; HEAT PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-106-1	01	1	0105-				●
168	PROTECTOR; HEAT PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-190-0	02	1	0105-				●
169	CLAMP PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-131-0	06	1	0105-				●
170	COVER; CASE PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-48629-063-0	01	1	0105-				●
170	COVER; CASE PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-189-0	01	1	0105-				●
171	BREATHER PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-48629-144-0	01	1	0105-				●

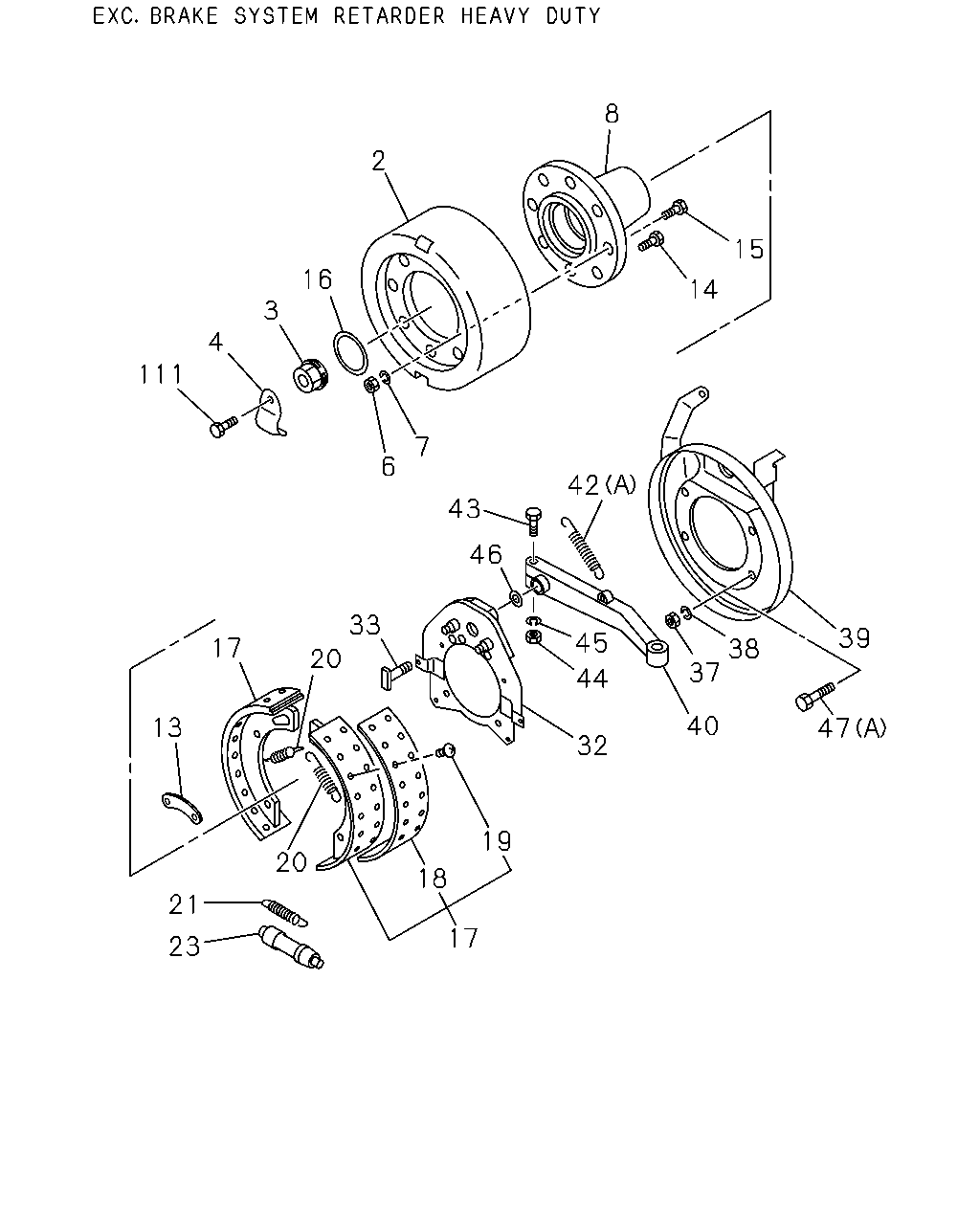

47 39 38 37 40 32 44 45 42 14 15 8 2 7 6 43 46 33 20 17 13 21 23 20 18 17 19 111 4 3 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	DRUM; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46211-026-1	01	1	0105-	●	●	●
2	DRUM; PARKING BRK	1-46211-026-1	01	1	0105-					●
2	DRUM; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46211-041-0	01	1	0105-				●
2	DRUM; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46210-238-3	01	1	0105-				●
3	NUT; LK PARKING BRAKE TRANSMISSION REAR<PJ8> M44	1-09449-076-0	01	1	0105-		●	●
3	NUT; LK M44	1-09449-076-0	01	1	0105-					●
3	NUT; LK PARKING BRAKE TRANSMISSION REAR<PJ8> M46	1-09449-062-0	01	1	0105-	●			●
4	COVER; ADJ HOLE PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46219-019-0	02	1	0105-	●	●	●
4	COVER; ADJ HOLE	1-46219-019-0	02	1	0105-					●
6	NUT; FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	9-99110-516-0	02	1	0105-0512	●	●	●
6	NUT; FLANGE M16	9-99110-516-0	02	1	0105-0512					●
6	NUT; FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16	9-99110-516-0	02	1	0105-0512				●
6	NUT; FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	0-91110-516-0	02	1	0601-	●	●	●
6	NUT; FLANGE M16	0-91110-516-0	02	1	0601-					●
6	NUT; FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16	0-91110-516-0	02	1	0601-				●
7	WASHER; LK,FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> ID=16.2	9-09150-516-0	02	1	0105-	●	●	●
7	WASHER; LK,FLANGE ID=16.2	9-09150-516-0	02	1	0105-					●
7	WASHER; LK,FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.2	9-09150-516-0	02	1	0105-				●
8	FLANGE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-37243-213-0	01	1	0105-		●	●
8	FLANGE; PARKING BRK	1-37243-213-0	01	1	0105-					●
8	FLANGE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-37243-187-0	01	1	0105-				●
8	FLANGE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-37243-215-0	01	1	0105-	●
13	BRACE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	9-46239-002-0	01	1	0105-	●	●	●	●
13	BRACE; PARKING BRK	9-46239-002-0	01	1	0105-					●
14	BOLT; DRUM TO FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> M16X38	1-46219-010-0	02	1	0105-	●	●	●
14	BOLT; DRUM TO FLANGE M16X38	1-46219-010-0	02	1	0105-					●
15	BOLT; FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> M16X55	1-46219-039-0	04	1	0105-	●	●	●
15	BOLT; FLANGE M16X55	1-46219-039-0	04	1	0105-					●
15	BOLT; FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16X38	1-46219-010-0	02	1	0105-				●
15	BOLT; FLANGE PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M16X59.5	1-46219-068-0	08	1	0105-				●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE TRANSMISSION REAR<PJ8>.	9-09920-607-0	01	1	0105-		●	●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0105-					●
16	GASKET; FLANGE ALSO INCLUDED IN GASKET SET(M/T). PARKING BRAKE TRANSMISSION REAR<PJ8>	1-09623-305-0	01	1	0105-	●			●
17	SHOE; PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46220-022-0	02	1	0105-	●	●	●	●
17	SHOE; PARKING BRK	1-46220-022-0	02	1	0105-					●
18	LINING; BRK,PARKING PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46225-023-0	02	1	0105-	●	●	●	●
18	LINING; BRK,PARKING	1-46225-023-0	02	1	0105-					●
19	RIVET; LINING,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-09732-012-0	32	1	0105-	●	●	●	●
19	RIVET; LINING,PARKING BRK	1-09732-012-0	32	1	0105-					●
20	SPRING; RETURN,SECONDARY,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	9-09942-434-0	02	1	0105-	●	●	●	●
20	SPRING; RETURN,SECONDARY,PARKING BRK	9-09942-434-0	02	1	0105-					●
21	SPRING; RETURN,PARKING BRK SHOE PARKING BRAKE TRANSMISSION REAR<PJ8>	9-09942-516-0	01	1	0105-	●	●	●	●
21	SPRING; RETURN,PARKING BRK SHOE	9-09942-516-0	01	1	0105-					●
23	SCREW; ADJ,PARKING BRK SHOE PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46240-003-0	01	1	0105-	●	●	●	●
23	SCREW; ADJ,PARKING BRK SHOE	1-46240-003-0	01	1	0105-					●
32	PLATE; SUPPORT,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46213-033-0	01	1	0105-	●	●	●	●
32	PLATE; SUPPORT,PARKING BRK	1-46213-033-0	01	1	0105-					●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	9-46251-069-0	01	1	0105-	●	●	●
33	SHAFT; CAM,PARKING BRK	9-46251-069-0	01	1	0105-					●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	9-46251-069-0	01	1	0105-				●
33	SHAFT; CAM,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46251-010-0	01	1	0105-				●
37	NUT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	9-99110-516-0	01	1	0105-0512			●
37	NUT; SUPPORT PLATE M16	9-99110-516-0	01	1	0105-0512					●
37	NUT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	0-91110-516-0	01	1	0601-			●
37	NUT; SUPPORT PLATE M16	0-91110-516-0	01	1	0601-					●
37	NUT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	9-99110-516-0	04	1	0105-0512	●	●		●
37	NUT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> M16	0-91110-516-0	04	1	0601-	●	●		●
38	WASHER; LK,SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> ID=16.2	9-09150-516-0	04	1	0105-	●	●	●	●
38	WASHER; LK,SUPPORT PLATE ID=16.2	9-09150-516-0	04	1	0105-					●
39	COVER; DUST,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46213-066-1	01	1	0105-	●	●	●
39	COVER; DUST,PARKING BRK	1-46213-066-1	01	1	0105-					●
39	COVER; DUST,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46213-066-1	01	1	0105-				●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8>	1-46252-014-0	01	1	0105-	●	●	●
40	LEVER; CM/SHF,PARKING BRK	1-46252-014-0	01	1	0105-					●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46252-014-0	01	1	0105-				●
40	LEVER; CM/SHF,PARKING BRK PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-46252-047-0	01	1	0105-				●
42	SPRING; RETURN,LEVER PARKING BRAKE TRANSMISSION REAR<PJ8> (A)	1-09583-128-0	01	1	0105-	●	●	●	●
42	SPRING; RETURN,LEVER (A)	1-09583-128-0	01	1	0105-					●
42	SPRING; RETURN,LEVER PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-48629-071-1	01	1	0105-				●
43	BOLT; LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8>	0-10811-045-0	01	1	0105-	●	●	●	●
43	BOLT; LEVER TO CM/SHF	0-10811-045-0	01	1	0105-					●
44	NUT; LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8> M10	9-09111-410-0	01	1	0105-0512	●	●	●	●
44	NUT; LEVER TO CM/SHF M10	9-09111-410-0	01	1	0105-0512					●
44	NUT; LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8> M10	0-91111-510-0	01	1	0601-	●	●	●	●
44	NUT; LEVER TO CM/SHF M10	0-91111-510-0	01	1	0601-					●
45	WASHER; LK,LEVER TO CM/SHF PARKING BRAKE TRANSMISSION REAR<PJ8> ID=10.2	9-09150-510-0	01	1	0105-	●	●	●	●
45	WASHER; LK,LEVER TO CM/SHF ID=10.2	9-09150-510-0	01	1	0105-					●
46	WASHER; LEVER PARKING BRAKE TRANSMISSION REAR<PJ8>	9-09855-362-0	01	1	0105-	●	●	●	●
46	WASHER; LEVER	9-09855-362-0	01	1	0105-					●
47	BOLT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> (A) M16X40	9-09804-155-0	03	1	0105-			●
47	BOLT; SUPPORT PLATE (A) M16X40	9-09804-155-0	03	1	0105-					●
47	BOLT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X10 HEX SOCKET	1-48629-133-0	03	1	0105-				●
47	BOLT; SUPPORT PLATE PARKING BRAKE TRANSMISSION REAR<PJ8> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X14 HEX SOCKET	1-48629-145-0	01	1	0105-				●
111	BOLT; COVER,CHECK HOLE PARKING BRAKE TRANSMISSION REAR<PJ8> M8X20 W/LK WASHER	0-50040-820-0	02	1	0105-	●	●	●
111	BOLT; COVER,CHECK HOLE M8X20 W/LK WASHER	0-50040-820-0	02	1	0105-					●

113 50 130 137 92 92 131 50 92 92 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
50	ADAPTER; PARK BRK BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0105-	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> L=430	1-09363-623-0	02	1	0105-0302	●
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> OD=12.7 L=450	1-09363-631-0	02	1	0303-	●
113	CLIP; HOSE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=10 & 10	1-09709-277-1	01	1	0105-	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28080-830-0	02	1	0105-0512	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28050-830-0	02	1	0601-	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28080-825-0	02	1	0105-0512	●
130	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28050-825-0	02	1	0601-	●
131	NUT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●
131	NUT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	02	1	0603-	●
137	BRACKET; AIR PIPE BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-47477-635-0	01	1	0105-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
