Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10875 - CXZ LHD S-CAM BRAKE
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶
2-85 — POWER TAKE OFF CONTROL
(#13557) — 43 parça
Tümü
A - CXZ6MC
B - CXZ6MF
◀

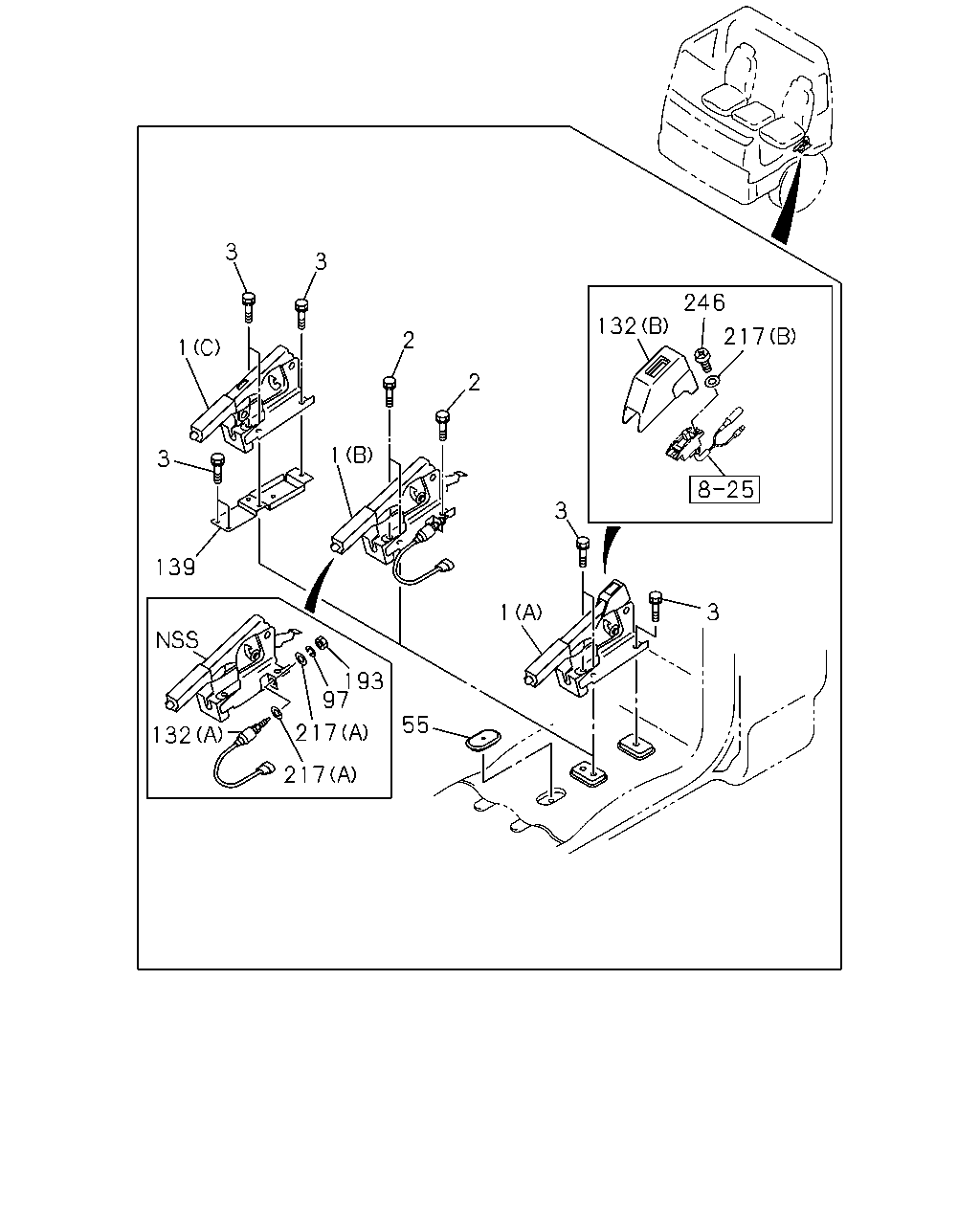

[285A] LEVER AND GROMMET (19 parça)

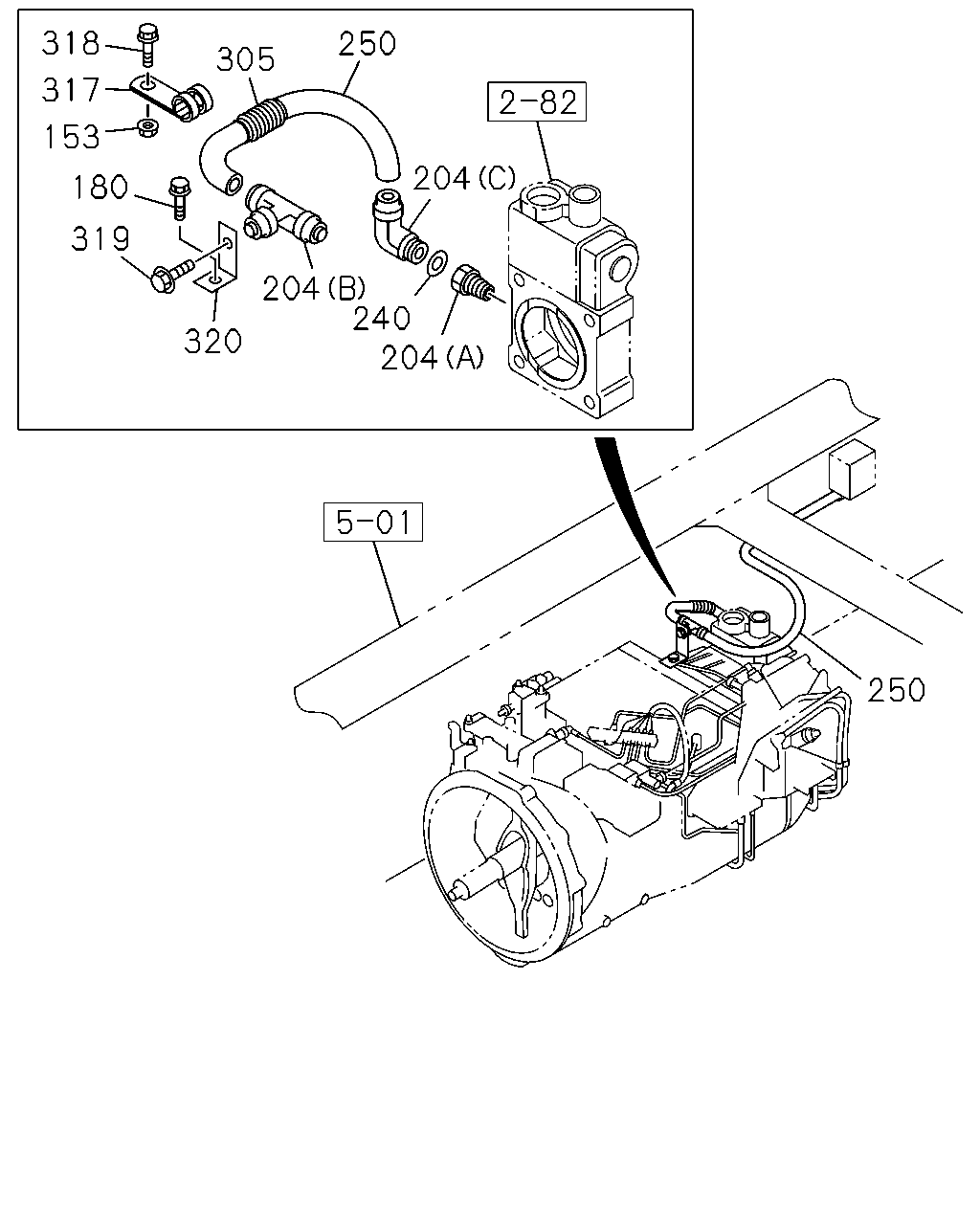

[285A] TUBE,CONNECTOR AND CLIP;ZF M/T (20 parça)

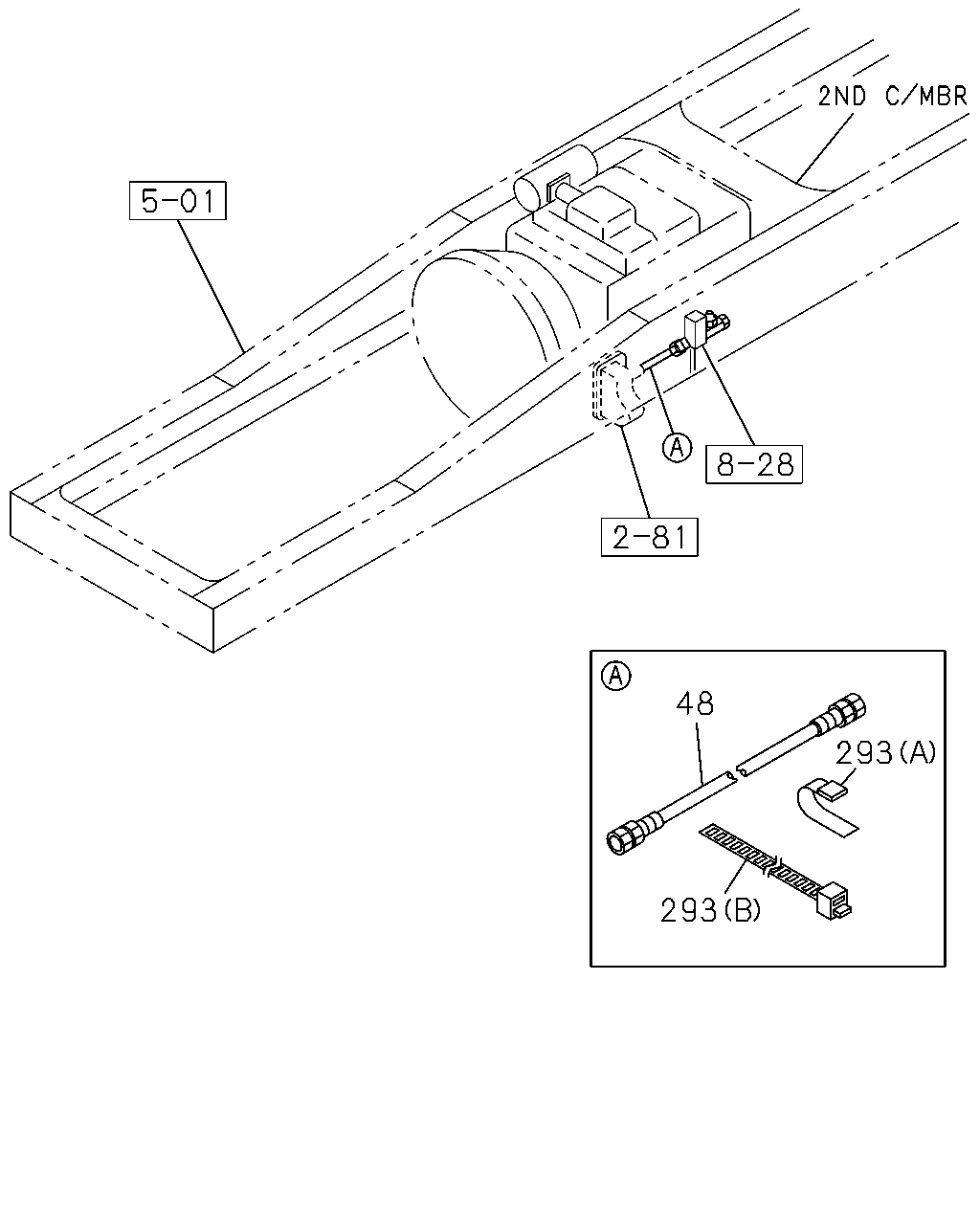

[285A] HOSE;ISUZU M/T (4 parça)
▶
3
3
1
55
193
97
217
217
132
139
3
1
3
3
2
2
1
132
246
217
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) (C)
1-79907-045-1
01
1
0105-
●
1
LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) EXC. GOVERNOR CONTROL<W69> (C)
1-79907-045-1
01
1
0105-
●
1
LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (A)
1-79996-244-0
01
1
0105-
●
●
1
LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> (B)
1-79996-273-1
01
1
0105-
●
2
BOLT; PTO CONT
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0105-
●
3
BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER
8-94279-207-0
06
1
0105-
●
3
BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) EXC. GOVERNOR CONTROL<W69> M8X20.5 W/LK&PL WASHER
8-94279-207-0
06
1
0105-
●
3
BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER
8-94279-207-0
03
1
0105-
●
●
55
GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6)
1-09983-068-0
01
1
0105-
●
●
97
WASHER; LK
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> ID=10.2
9-09150-610-0
01
1
0105-
●
132
COVER; PTO CONT
DUMP CONTROL LEVER<RC4> (B)
1-79997-376-0
01
1
0105-
●
●
132
COVER; PTO CONT
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> (A)
1-82380-114-3
01
1
0105-
●
139
BRACKET; CONT BOX
PTO CONTROL(SV6)
1-79907-044-0
01
1
0105-
●
139
BRACKET; CONT BOX
PTO CONTROL(SV6) EXC. GOVERNOR CONTROL<W69>
1-79907-044-0
01
1
0105-
●
193
NUT
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> M10
9-09111-410-0
01
1
0105-0512
●
193
NUT
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> M10
0-91111-510-0
01
1
0601-
●
217
WASHER; PL
DUMP CONTROL LEVER<RC4> (B) ID=4.3
9-09160-504-0
02
1
0105-
●
●
217
WASHER; PL
PTO CONTROL(SV6) GOVERNOR CONTROL<W69> (A) ID=10.5 OD=18
9-09160-510-0
02
1
0105-
●
246
SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING
0-71180-408-0
02
1
0105-
●
●
250
204
240
204
320
319
180
153
317
318
305
250
204
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
153
NUT; CLIP
PTO ZF TRANS RR(BDM) M8 FLANGE
0-91150-108-0
01
1
0105-0602
●
●
153
NUT; CLIP
PTO ZF TRANS RR(BDM) M8 FLANGE
0-91180-108-0
01
1
0603-
●
●
180
BOLT; BRKT
PTO ZF TRANS RR(BDM) M16X25 FLANGE
0-28881-625-0
01
1
0105-0512
●
●
180
BOLT; BRKT
PTO ZF TRANS RR(BDM) M16X25 FLANGE
0-28851-625-0
01
1
0601-
●
●
204
CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (A)
1-09654-396-0
01
1
0105-
●
●
204
CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (B)
1-09660-788-0
01
1
0105-
●
●
204
CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0105-
●
●
240
GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2
1-09630-084-0
01
1
0105-
●
●
250
TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8
1-87411-006-0
01
1
0301-
●
●
250
TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
0105-
●
●
250
TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8
1-87410-073-0
01
1
0105-
●
●
305
TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) ZF M/T<X9E> PE-SERIES ENG<1A0> SERVICED BY L=2000 ID=10
1-87410-088-0
01
1
0109-
●
●
305
TUBE; CORRUGATE
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) PTO ZF TRANS RR(BDM) W-SERIES ENG<1A2> SERVICED BY L=2000 ID=10
1-87410-088-0
01
1
0109-
●
●
305
TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) L=150 SERVICED BY L=800
1-83129-031-1
01
1
0105-
●
●
317
CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) ID=14.5 L=40
1-09701-014-0
01
1
0105-
●
●
318
BOLT; CLIP
PTO ZF TRANS RR(BDM) M8X25 FLANGE
0-28680-825-0
01
1
0105-0512
●
●
318
BOLT; CLIP
PTO ZF TRANS RR(BDM) M8X25 FLANGE
0-28650-825-0
01
1
0601-
●
●
319
BOLT; CONNECTOR
PTO ZF TRANS RR(BDM) M8X16 FLANGE
0-28080-816-0
01
1
0105-0512
●
●
319
BOLT; CONNECTOR
PTO ZF TRANS RR(BDM) M8X16 FLANGE
0-28050-816-0
01
1
0601-
●
●
320
BRACKET; UNION
PTO ZF TRANS RR(BDM)
1-47478-250-0
01
1
0105-
●
●
48
293
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ISUZU M/T<X9A> L=430
1-09363-677-0
01
1
0105-
●
●
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) FIRE ENGINE PACKAGE<WS2> MAP5 M/T<Y9F> W-SERIES ENG<1A2> L=540
1-09363-612-1
01
1
0105-
●
293
CLIP; HOSE
TRANSMISSION OIL COOLER<C2C> TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=250
1-09707-126-0
01
1
0109-
●
●
293
CLIP; HOSE
TRANSMISSION OIL COOLER<C2C> TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=175
1-09707-178-0
01
1
0105-
●
●
