2-81A — POWER TAKE OFF; TRANSMISSION SIDE (#13555) — 359 parça

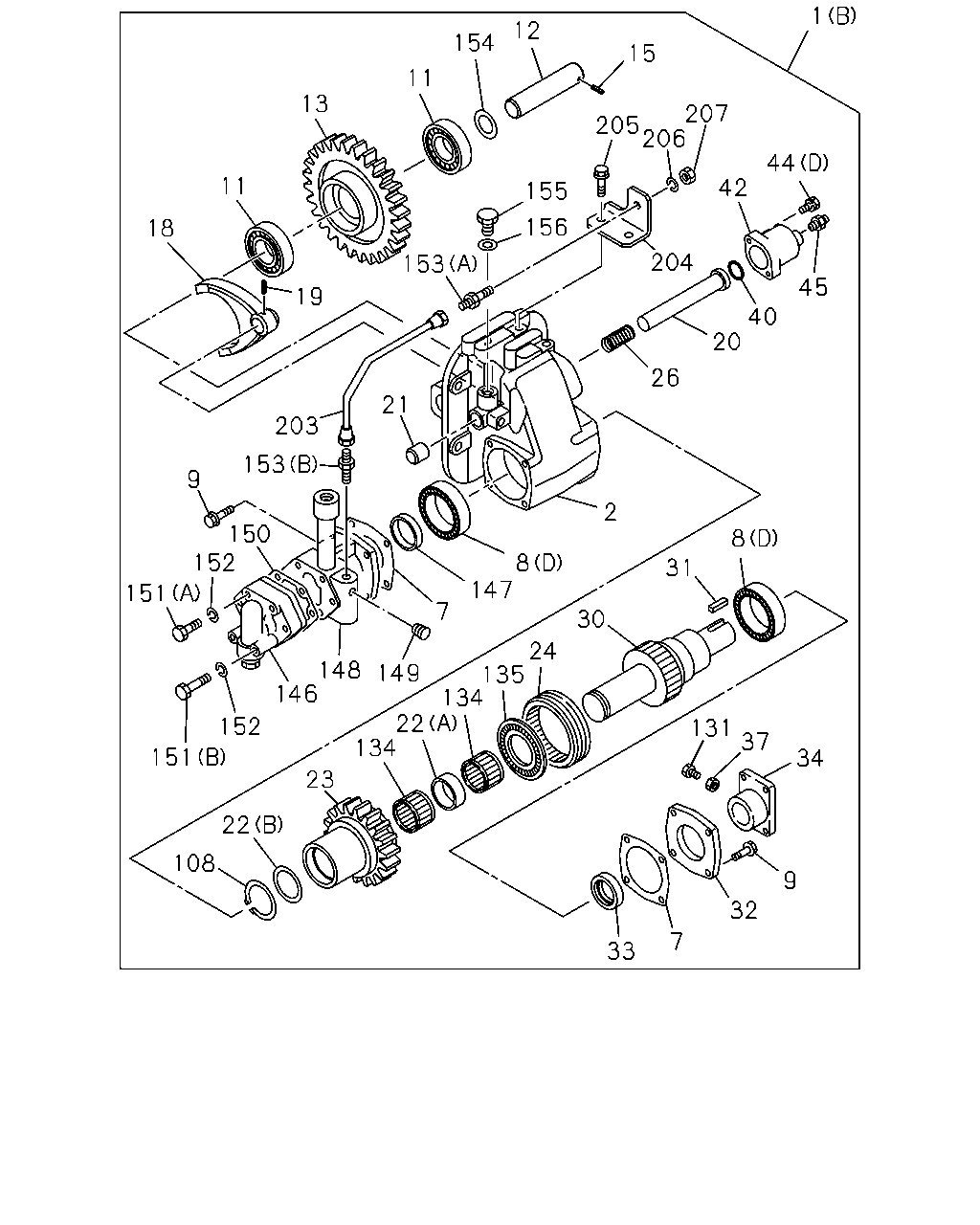

çizim 22273
33 7 32 9 34 37 131 8 31 30 24 135 134 22 134 23 22 108 151 152 146 148 149 7 147 8 2 26 20 40 45 44 42 204 207 205 206 1 15 12 154 11 13 11 18 19 153 156 155 21 203 153 150 152 151 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-38000-326-1 01 1 0105- ● ●
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-38000-317-2 01 1 0105- ●
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-38000-328-1 01 1 0105- ● ●
1 POWER TAKE OFF ASM; TRANS SIDE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-38000-315-1 01 1 0105-0206 ●
1 POWER TAKE OFF ASM; TRANS SIDE
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-38000-315-1 01 1 0207- ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-065-0 01 1 0105- ● ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-093-0 01 1 0105- ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-057-1 01 1 0105- ● ●
2 CASE; GEAR,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-081-0 01 1 0105-0206 ●
2 CASE; GEAR,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-081-0 01 1 0207- ●
7 GASKET; OUTPUT SHAFT COVER,SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-002-0 02 1 0105- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		5-00098-057-0 02 1 0105- ● ● ● ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-09800-208-0 02 1 0105- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) KOYO 		1-09810-231-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) KOYO 		1-09810-231-0 01 1 0207- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK 		1-09810-232-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK 		1-09810-232-0 01 1 0207- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) KOYO 		1-09810-233-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) KOYO 		1-09810-233-0 01 1 0207- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK 		1-09810-234-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK 		1-09810-234-0 01 1 0207- ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 		9-02341-016-0 08 1 0105-0512 ● ● ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 		0-23801-016-0 08 1 0601- ● ● ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE 		0-28781-025-0 08 1 0105- ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09811-144-0 01 1 0105- ● ● ● ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK 		9-00093-173-0 02 1 0105- ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38221-024-0 01 1 0105- ● ● ● ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-026-0 01 1 0105- ●
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=35 		1-38241-056-0 01 1 0105- ● ●
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36 		1-38241-004-0 01 1 0105- ●
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36 		1-38241-065-0 01 1 0105- ● ●
15 PIN; SPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16 		9-09878-613-0 01 1 0105- ● ● ● ● ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-025-0 01 1 0105- ● ● ● ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-026-0 01 1 0105-0512 ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-034-0 01 1 0601- ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09748-019-0 01 1 0105- ● ● ● ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09878-614-0 01 1 0105- ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38371-049-1 01 1 0105- ● ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38371-056-1 01 1 0105- ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38371-027-2 01 1 0105- ● ●
21 COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-33545-001-0 01 1 0105- ● ● ● ● ●
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-38226-050-0 01 1 0105- ●
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-38226-051-0 01 1 0105- ●
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=21 		1-38241-087-0 01 1 0105- ● ● ● ●
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=24 		1-38241-071-0 01 1 0105- ●
24 SLEEVE; DOG CLU,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38225-002-0 01 1 0105- ●
24 SLEEVE; DOG CLU,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38225-009-0 01 1 0105-0206 ●
24 SLEEVE; DOG CLU,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38225-009-0 01 1 0207- ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38121-004-1 01 1 0105- ● ● ● ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-030-0 01 1 0105- ● ● ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-012-0 01 1 0105- ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-083-0 01 1 0105-0206 ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-083-0 01 1 0207- ●
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-08050-732-0 01 1 0105- ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-016-0 01 1 0105- ● ● ● ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38161-001-0 01 1 0105- ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-040-0 01 1 0105-0512 ● ● ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98028-794-0 01 1 0601- ● ● ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09625-024-0 01 1 0105-0512 ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98028-792-0 01 1 0601- ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-035-0 01 1 0105-0206 ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-035-0 01 1 0207- ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38512-019-1 01 1 0105- ● ● ● ● ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38512-013-1 01 1 0105- ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M16 		1-38119-036-0 01 1 0105- ● ● ● ● ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 		9-09111-508-0 01 1 0105- ●
40 GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09561-324-0 01 1 0105- ● ● ● ● ●
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38377-007-0 01 1 0105- ● ● ●
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38377-003-0 01 1 0105- ● ●
42 CYLINDER; AIR,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38151-021-0 01 1 0105-0206 ●
42 CYLINDER; AIR,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38151-021-0 01 1 0207- ●
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M10X25 FLANGE 		0-28181-025-0 02 1 0105- ● ● ● ●
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) M10X25 FLANGE 		0-28781-025-0 02 1 0105- ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE 		0-28080-816-0 04 1 0105-0206 ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE 		0-28080-816-0 04 1 0207- ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE 		0-28080-825-0 04 1 0105-0206 ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE 		0-28080-825-0 04 1 0207- ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE 		0-28680-830-0 04 1 0105-0206 ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE 		0-28680-830-0 04 1 0207- ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4 		9-09902-386-0 01 1 0105-0512 ● ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0105-0512 ● ● ● ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0601- ● ● ● ● ● ●
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09588-168-0 01 1 0105- ●
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=57.9 		9-09180-562-0 01 1 0105-0206 ●
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=57.9 		9-09180-562-0 01 1 0207- ●
131 BOLT; FLANGE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 		0-20800-820-0 01 1 0105- ●
134 BEARING; NEEDLE,OUTPUT SHAFT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09811-322-0 02 1 0105- ●
135 BEARING; THRUST,OUTPUT SHAFT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09810-165-0 01 1 0105- ●
146 PUMP ASM; OIL,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-34150-038-1 01 1 0105- ●
147 PLUG; OIL PUMP,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09600-066-0 01 1 0105- ●
148 ADAPTER; OIL PUMP,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38523-007-0 01 1 0105- ●
149 PLUG; ADAPTER,OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09205-513-0 02 1 0105-0512 ●
149 PLUG; ADAPTER,OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09205-513-0 01 1 0601- ●
150 GASKET; OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-014-0 01 1 0105- ●
151 BOLT; OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X55 		0-10805-855-0 02 1 0105- ●
151 BOLT; OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X70 		0-10805-870-0 02 1 0105- ●
152 WASHER; LK,OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.2 		9-09150-508-0 04 1 0105- ●
153 CONNECTOR; OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-09654-382-0 01 1 0105- ●
153 CONNECTOR; OIL PUMP
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M16 & PT1/4 STRAIGHT 		9-09231-810-1 01 1 0105- ●
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.00 		1-38216-011-0 02 1 0105- ●
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.10 		1-38216-012-0 02 1 0105- ●
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.15 		1-38216-013-0 02 1 0105- ●
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.25 		1-38216-014-0 02 1 0105- ●
154 SHIM; IDLE GEAR
TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.35 		1-38216-015-0 02 1 0105- ●
155 PLUG; SHIFTER ROD
TRANSMISSION SIDE PTO WO/LEVER(SH5) M14X9 		9-99202-314-0 01 1 0105- ●
156 GASKET; PLUG,SHIFTER ROD
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2 OD=20.0 		9-09571-414-0 01 1 0105- ●
203 PIPE ASM; PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-32571-142-0 01 1 0105- ●
204 BRACKET; PIPE,PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-32579-012-0 01 1 0105- ●
205 BOLT; BRKT,PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE 		0-28781-025-0 02 1 0105- ●
206 WASHER; BRKT,PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.2 		9-09150-516-0 01 1 0105- ●
207 NUT; BRKT,PTO,TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M16 		9-99111-416-0 01 1 0105- ●

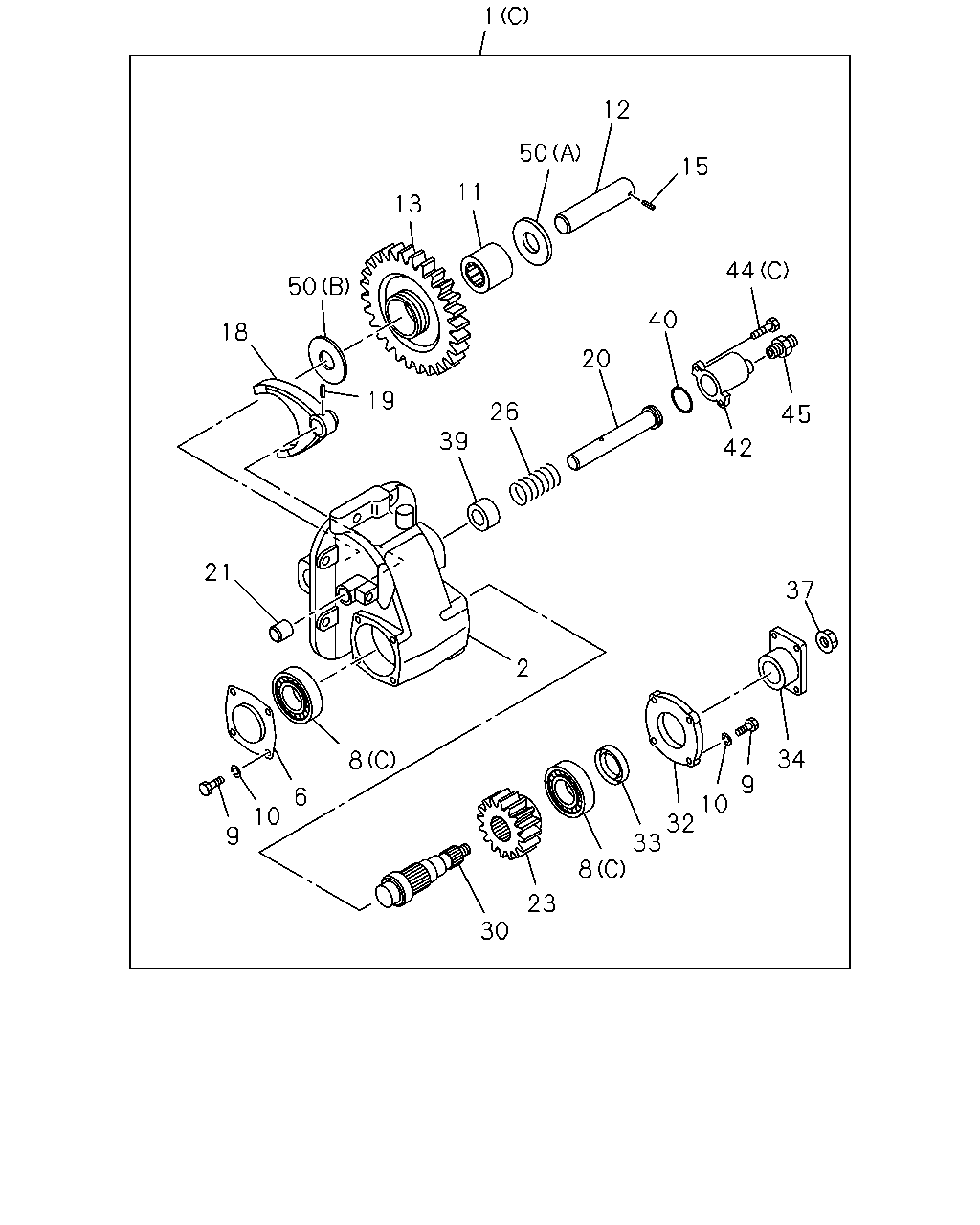

çizim 80847
30 23 8 33 32 10 9 34 37 45 42 44 40 15 12 1 50 11 13 50 39 26 20 19 18 21 6 10 9 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-38000-326-1 01 1 0105- ● ●
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-38000-317-2 01 1 0105- ●
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-38000-328-1 01 1 0105- ● ●
1 POWER TAKE OFF ASM; TRANS SIDE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-38000-315-1 01 1 0105-0206 ●
1 POWER TAKE OFF ASM; TRANS SIDE
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-38000-315-1 01 1 0207- ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-065-0 01 1 0105- ● ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-093-0 01 1 0105- ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-057-1 01 1 0105- ● ●
2 CASE; GEAR,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-081-0 01 1 0105-0206 ●
2 CASE; GEAR,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-081-0 01 1 0207- ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38151-006-0 01 1 0105- ● ● ● ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		5-00098-057-0 02 1 0105- ● ● ● ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-09800-208-0 02 1 0105- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) KOYO 		1-09810-231-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) KOYO 		1-09810-231-0 01 1 0207- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK 		1-09810-232-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK 		1-09810-232-0 01 1 0207- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) KOYO 		1-09810-233-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) KOYO 		1-09810-233-0 01 1 0207- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK 		1-09810-234-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK 		1-09810-234-0 01 1 0207- ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 		9-02341-016-0 08 1 0105-0512 ● ● ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 		0-23801-016-0 08 1 0601- ● ● ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE 		0-28781-025-0 08 1 0105- ●
10 WASHER; OUTPUT SHAFT COVER,SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 08 1 0105- ● ● ● ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09811-144-0 01 1 0105- ● ● ● ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK 		9-00093-173-0 02 1 0105- ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38221-024-0 01 1 0105- ● ● ● ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-026-0 01 1 0105- ●
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=35 		1-38241-056-0 01 1 0105- ● ●
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36 		1-38241-004-0 01 1 0105- ●
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36 		1-38241-065-0 01 1 0105- ● ●
15 PIN; SPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16 		9-09878-613-0 01 1 0105- ● ● ● ● ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-025-0 01 1 0105- ● ● ● ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-026-0 01 1 0105-0512 ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-034-0 01 1 0601- ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09748-019-0 01 1 0105- ● ● ● ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09878-614-0 01 1 0105- ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38371-049-1 01 1 0105- ● ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38371-056-1 01 1 0105- ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38371-027-2 01 1 0105- ● ●
21 COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-33545-001-0 01 1 0105- ● ● ● ● ●
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=21 		1-38241-087-0 01 1 0105- ● ● ● ●
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=24 		1-38241-071-0 01 1 0105- ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38121-004-1 01 1 0105- ● ● ● ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-030-0 01 1 0105- ● ● ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-012-0 01 1 0105- ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-083-0 01 1 0105-0206 ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-083-0 01 1 0207- ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-016-0 01 1 0105- ● ● ● ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38161-001-0 01 1 0105- ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-040-0 01 1 0105-0512 ● ● ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98028-794-0 01 1 0601- ● ● ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09625-024-0 01 1 0105-0512 ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98028-792-0 01 1 0601- ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-035-0 01 1 0105-0206 ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-035-0 01 1 0207- ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38512-019-1 01 1 0105- ● ● ● ● ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38512-013-1 01 1 0105- ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M16 		1-38119-036-0 01 1 0105- ● ● ● ● ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 		9-09111-508-0 01 1 0105- ●
39 STOPPER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38379-006-0 01 1 0105- ● ●
40 GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09561-324-0 01 1 0105- ● ● ● ● ●
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38377-007-0 01 1 0105- ● ● ●
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38377-003-0 01 1 0105- ● ●
42 CYLINDER; AIR,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38151-021-0 01 1 0105-0206 ●
42 CYLINDER; AIR,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38151-021-0 01 1 0207- ●
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M10X25 FLANGE 		0-28181-025-0 02 1 0105- ● ● ● ●
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) M10X25 FLANGE 		0-28781-025-0 02 1 0105- ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE 		0-28080-816-0 04 1 0105-0206 ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE 		0-28080-816-0 04 1 0207- ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE 		0-28080-825-0 04 1 0105-0206 ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE 		0-28080-825-0 04 1 0207- ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE 		0-28680-830-0 04 1 0105-0206 ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE 		0-28680-830-0 04 1 0207- ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4 		9-09902-386-0 01 1 0105-0512 ● ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0105-0512 ● ● ● ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0601- ● ● ● ● ● ●
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-38226-045-0 01 1 0105- ● ● ● ●
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-38226-052-0 01 1 0105- ● ● ● ●

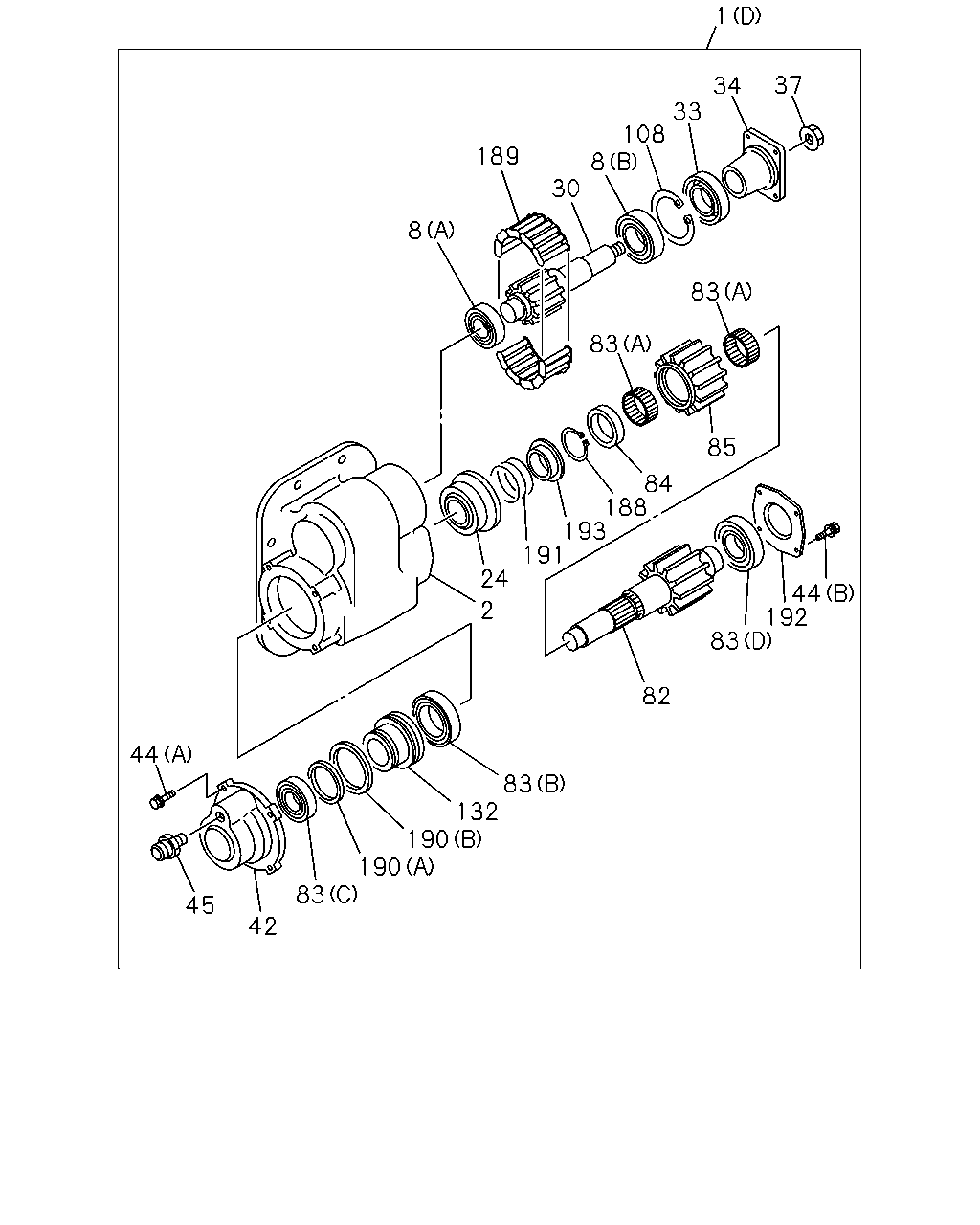

çizim 81430
45 42 83 190 190 132 83 82 83 192 44 83 85 84 188 193 2 24 191 83 8 189 8 108 33 34 37 1 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-38000-326-1 01 1 0105- ● ●
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-38000-317-2 01 1 0105- ●
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-38000-328-1 01 1 0105- ● ●
1 POWER TAKE OFF ASM; TRANS SIDE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-38000-315-1 01 1 0105-0206 ●
1 POWER TAKE OFF ASM; TRANS SIDE
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-38000-315-1 01 1 0207- ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-065-0 01 1 0105- ● ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-093-0 01 1 0105- ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-057-1 01 1 0105- ● ●
2 CASE; GEAR,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-081-0 01 1 0105-0206 ●
2 CASE; GEAR,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-081-0 01 1 0207- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		5-00098-057-0 02 1 0105- ● ● ● ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-09800-208-0 02 1 0105- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) KOYO 		1-09810-231-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) KOYO 		1-09810-231-0 01 1 0207- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK 		1-09810-232-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK 		1-09810-232-0 01 1 0207- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) KOYO 		1-09810-233-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) KOYO 		1-09810-233-0 01 1 0207- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK 		1-09810-234-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK 		1-09810-234-0 01 1 0207- ●
24 SLEEVE; DOG CLU,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38225-002-0 01 1 0105- ●
24 SLEEVE; DOG CLU,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38225-009-0 01 1 0105-0206 ●
24 SLEEVE; DOG CLU,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38225-009-0 01 1 0207- ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-030-0 01 1 0105- ● ● ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-012-0 01 1 0105- ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-083-0 01 1 0105-0206 ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-083-0 01 1 0207- ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-040-0 01 1 0105-0512 ● ● ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98028-794-0 01 1 0601- ● ● ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09625-024-0 01 1 0105-0512 ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98028-792-0 01 1 0601- ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-035-0 01 1 0105-0206 ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-035-0 01 1 0207- ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38512-019-1 01 1 0105- ● ● ● ● ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38512-013-1 01 1 0105- ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M16 		1-38119-036-0 01 1 0105- ● ● ● ● ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 		9-09111-508-0 01 1 0105- ●
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38377-007-0 01 1 0105- ● ● ●
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38377-003-0 01 1 0105- ● ●
42 CYLINDER; AIR,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38151-021-0 01 1 0105-0206 ●
42 CYLINDER; AIR,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38151-021-0 01 1 0207- ●
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M10X25 FLANGE 		0-28181-025-0 02 1 0105- ● ● ● ●
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) M10X25 FLANGE 		0-28781-025-0 02 1 0105- ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE 		0-28080-816-0 04 1 0105-0206 ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE 		0-28080-816-0 04 1 0207- ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE 		0-28080-825-0 04 1 0105-0206 ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE 		0-28080-825-0 04 1 0207- ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE 		0-28680-830-0 04 1 0105-0206 ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE 		0-28680-830-0 04 1 0207- ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4 		9-09902-386-0 01 1 0105-0512 ● ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0105-0512 ● ● ● ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0601- ● ● ● ● ● ●
82 SHAFT; INPUT
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-027-0 01 1 0105-0206 ●
82 SHAFT; INPUT
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-027-0 01 1 0207- ●
83 BEARING; INPUT SHAFT
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) KOYO 		1-09800-259-0 01 1 0105-0206 ●
83 BEARING; INPUT SHAFT
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) KOYO 		1-09800-259-0 01 1 0207- ●
83 BEARING; INPUT SHAFT
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK 		1-09800-260-0 01 1 0105-0206 ●
83 BEARING; INPUT SHAFT
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK 		1-09800-260-0 01 1 0207- ●
83 BEARING; INPUT SHAFT
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) KOYO 		1-09810-233-0 01 1 0105-0206 ●
83 BEARING; INPUT SHAFT
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) KOYO 		1-09810-233-0 01 1 0207- ●
83 BEARING; INPUT SHAFT
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) NSK 		1-09810-234-0 01 1 0105-0206 ●
83 BEARING; INPUT SHAFT
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) NSK 		1-09810-234-0 01 1 0207- ●
83 BEARING; INPUT SHAFT
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-09811-397-0 02 1 0105-0206 ●
83 BEARING; INPUT SHAFT
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-09811-397-0 02 1 0207- ●
83 BEARING; INPUT SHAFT
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-97012-835-0 01 1 0105-0206 ●
83 BEARING; INPUT SHAFT
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-97012-835-0 01 1 0207- ●
84 COLLAR; INPUT SHAFT
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38226-057-0 01 1 0105-0206 ●
84 COLLAR; INPUT SHAFT
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38226-057-0 01 1 0207- ●
85 GEAR; INPUT SHAFT
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38241-104-0 01 1 0105-0206 ●
85 GEAR; INPUT SHAFT
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38241-104-0 01 1 0207- ●
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09588-168-0 01 1 0105- ●
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=57.9 		9-09180-562-0 01 1 0105-0206 ●
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=57.9 		9-09180-562-0 01 1 0207- ●
132 PISTON; CYL,PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38377-010-0 01 1 0105-0206 ●
132 PISTON; CYL,PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38377-010-0 01 1 0207- ●
188 RING; SNAP,INPUT SHAFT
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09588-199-0 01 1 0105-0206 ●
188 RING; SNAP,INPUT SHAFT
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09588-199-0 01 1 0207- ●
189 CHAIN; DRIVE,PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-082-1 01 1 0105-0206 ●
189 CHAIN; DRIVE,PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-082-1 01 1 0207- ●
190 CUP; PISTON,PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-38152-020-0 01 1 0105-0206 ●
190 CUP; PISTON,PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-38152-020-0 01 1 0207- ●
190 CUP; PISTON,PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-38152-021-0 01 1 0105-0206 ●
190 CUP; PISTON,PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-38152-021-0 01 1 0207- ●
191 SPRING; SLEEVE,PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38121-005-0 01 1 0105-0206 ●
191 SPRING; SLEEVE,PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38121-005-0 01 1 0207- ●
192 COVER; INPUT SHAFT
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-38151-604-0 01 1 0105-0206 ●
192 COVER; INPUT SHAFT
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-38151-604-0 01 1 0207- ●
193 RETAINER; SPRING
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38226-056-0 01 1 0105-0206 ●
193 RETAINER; SPRING
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38226-056-0 01 1 0207- ●

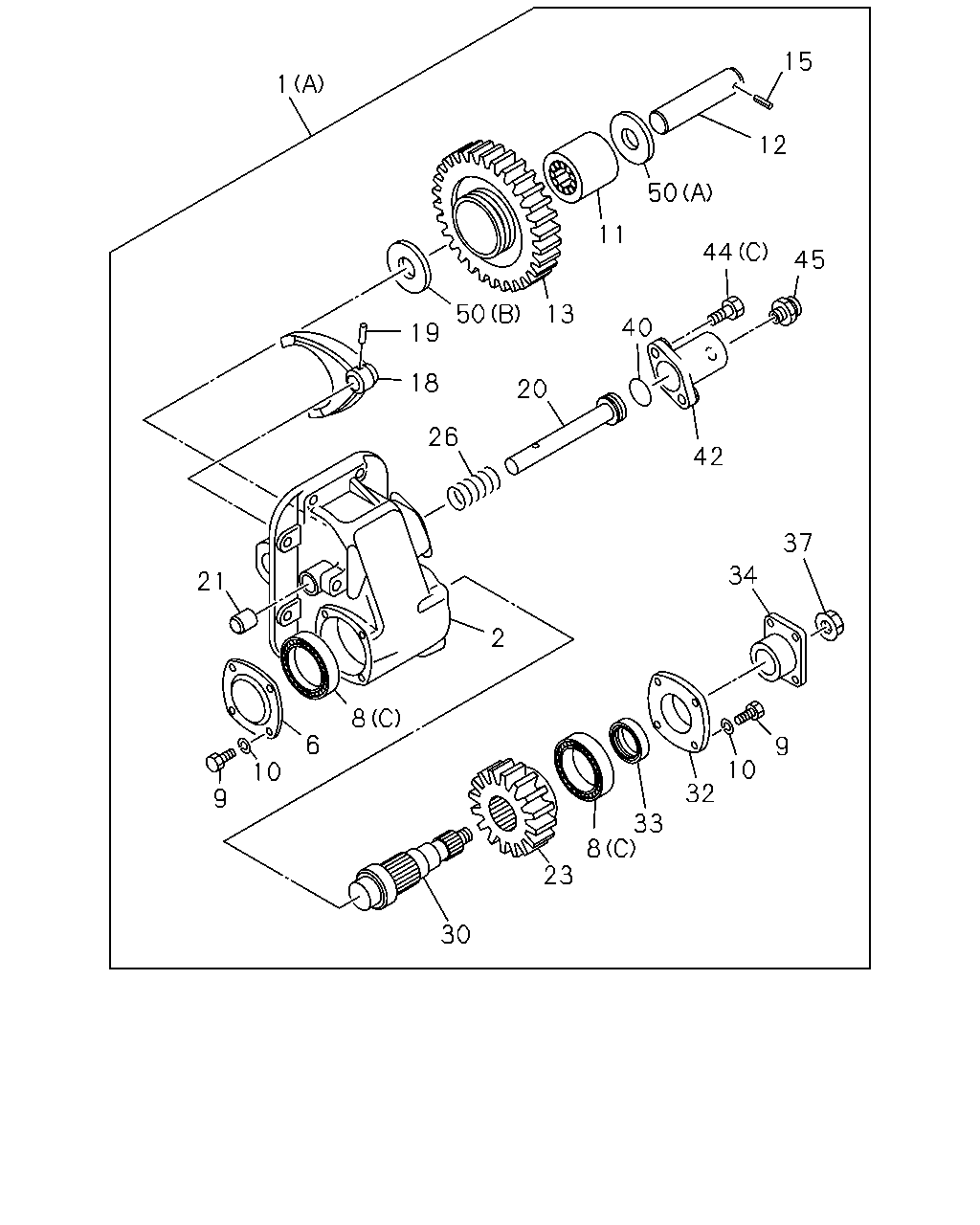

çizim 81628
8 33 32 10 9 34 37 23 30 6 10 9 8 2 21 26 18 19 50 20 13 40 42 44 45 12 15 50 11 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-38000-326-1 01 1 0105- ● ●
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-38000-317-2 01 1 0105- ●
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-38000-328-1 01 1 0105- ● ●
1 POWER TAKE OFF ASM; TRANS SIDE
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-38000-315-1 01 1 0105-0206 ●
1 POWER TAKE OFF ASM; TRANS SIDE
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-38000-315-1 01 1 0207- ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-065-0 01 1 0105- ● ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-093-0 01 1 0105- ●
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-057-1 01 1 0105- ● ●
2 CASE; GEAR,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-081-0 01 1 0105-0206 ●
2 CASE; GEAR,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-081-0 01 1 0207- ●
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38151-006-0 01 1 0105- ● ● ● ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		5-00098-057-0 02 1 0105- ● ● ● ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-09800-208-0 02 1 0105- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) KOYO 		1-09810-231-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) KOYO 		1-09810-231-0 01 1 0207- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK 		1-09810-232-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK 		1-09810-232-0 01 1 0207- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) KOYO 		1-09810-233-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) KOYO 		1-09810-233-0 01 1 0207- ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK 		1-09810-234-0 01 1 0105-0206 ●
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK 		1-09810-234-0 01 1 0207- ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 		9-02341-016-0 08 1 0105-0512 ● ● ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 		0-23801-016-0 08 1 0601- ● ● ● ●
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 FLANGE 		0-28781-025-0 08 1 0105- ●
10 WASHER; OUTPUT SHAFT COVER,SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=10.2 		9-09150-510-0 08 1 0105- ● ● ● ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09811-144-0 01 1 0105- ● ● ● ●
11 BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK 		9-00093-173-0 02 1 0105- ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38221-024-0 01 1 0105- ● ● ● ●
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-026-0 01 1 0105- ●
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=35 		1-38241-056-0 01 1 0105- ● ●
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36 		1-38241-004-0 01 1 0105- ●
13 GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=36 		1-38241-065-0 01 1 0105- ● ●
15 PIN; SPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=16 		9-09878-613-0 01 1 0105- ● ● ● ● ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-025-0 01 1 0105- ● ● ● ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-026-0 01 1 0105-0512 ●
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38361-034-0 01 1 0601- ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09748-019-0 01 1 0105- ● ● ● ●
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09878-614-0 01 1 0105- ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38371-049-1 01 1 0105- ● ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38371-056-1 01 1 0105- ●
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38371-027-2 01 1 0105- ● ●
21 COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-33545-001-0 01 1 0105- ● ● ● ● ●
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=21 		1-38241-087-0 01 1 0105- ● ● ● ●
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=24 		1-38241-071-0 01 1 0105- ●
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38121-004-1 01 1 0105- ● ● ● ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-030-0 01 1 0105- ● ● ● ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38211-012-0 01 1 0105- ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-083-0 01 1 0105-0206 ●
30 SHAFT; OUTPUT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38111-083-0 01 1 0207- ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38152-016-0 01 1 0105- ● ● ● ●
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38161-001-0 01 1 0105- ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-040-0 01 1 0105-0512 ● ● ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98028-794-0 01 1 0601- ● ● ● ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-09625-024-0 01 1 0105-0512 ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98028-792-0 01 1 0601- ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-035-0 01 1 0105-0206 ●
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38119-035-0 01 1 0207- ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38512-019-1 01 1 0105- ● ● ● ● ●
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38512-013-1 01 1 0105- ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M16 		1-38119-036-0 01 1 0105- ● ● ● ● ●
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 		9-09111-508-0 01 1 0105- ●
40 GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		9-09561-324-0 01 1 0105- ● ● ● ● ●
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38377-007-0 01 1 0105- ● ● ●
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38377-003-0 01 1 0105- ● ●
42 CYLINDER; AIR,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38151-021-0 01 1 0105-0206 ●
42 CYLINDER; AIR,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-38151-021-0 01 1 0207- ●
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M10X25 FLANGE 		0-28181-025-0 02 1 0105- ● ● ● ●
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) M10X25 FLANGE 		0-28781-025-0 02 1 0105- ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE 		0-28080-816-0 04 1 0105-0206 ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE 		0-28080-816-0 04 1 0207- ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE 		0-28080-825-0 04 1 0105-0206 ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE 		0-28080-825-0 04 1 0207- ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE 		0-28680-830-0 04 1 0105-0206 ●
44 BOLT; COVER,TRANS SIDE PTO
CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE 		0-28680-830-0 04 1 0207- ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M20 & PT1/4 		9-09902-386-0 01 1 0105-0512 ● ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0105-0512 ● ● ● ●
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0601- ● ● ● ● ● ●
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-38226-045-0 01 1 0105- ● ● ● ●
50 WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-38226-052-0 01 1 0105- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
