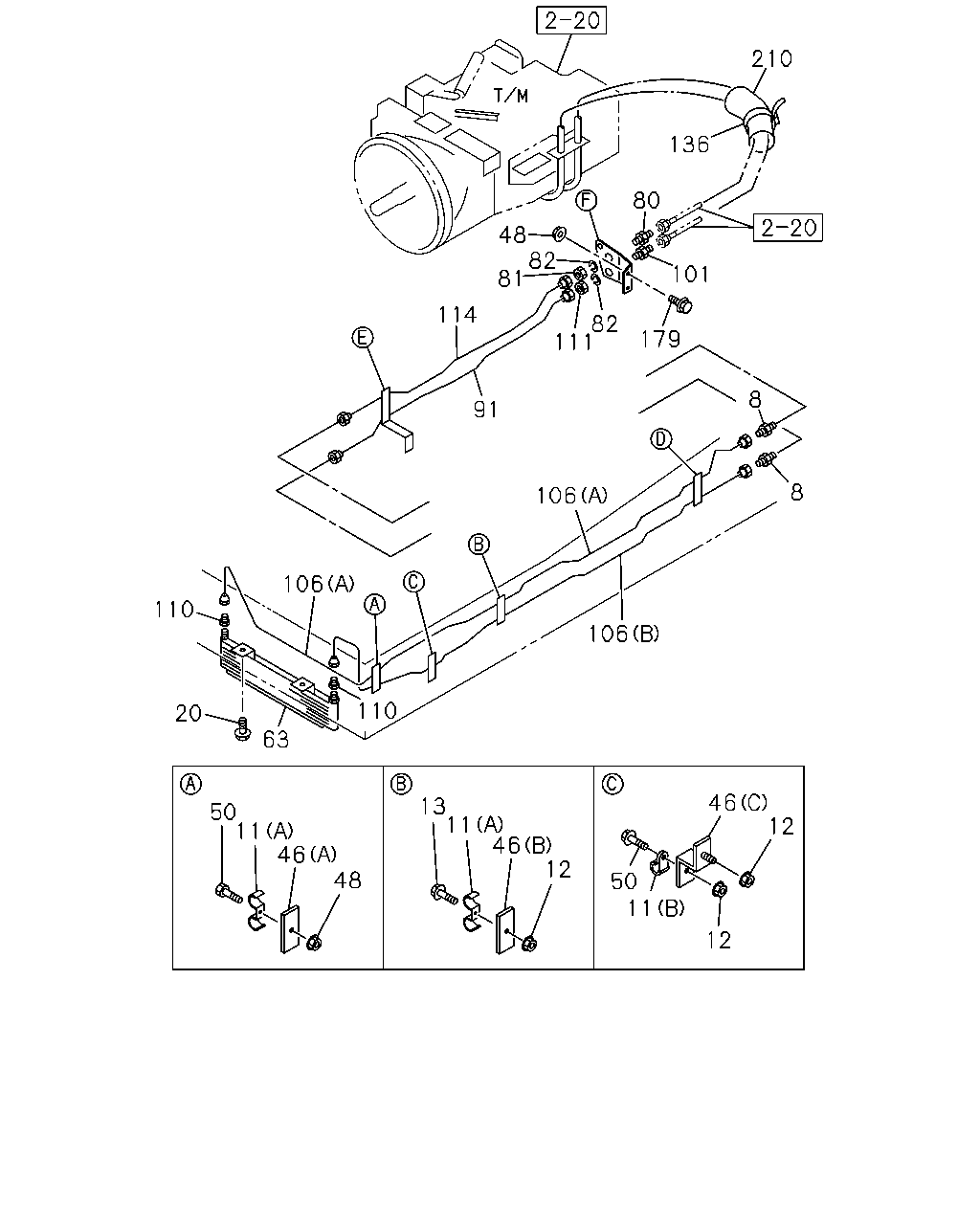

2-53B — TRANSMISSION OIL COOLER SYSTEM (#13554) — 98 parça

12 12 46 11 50 12 46 11 13 48 46 11 50 20 110 63 106 106 106 8 8 179 101 82 111 91 114 81 82 48 80 136 210 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	UNION TRANSMISSION OIL COOLER<C2C> M22	9-09233-015-1	01	1	0105-	●	●
8	UNION TRANSMISSION OIL COOLER<C2C> M22	9-09233-015-1	01	1	0105-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	0105-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0107-0505	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0506-0602	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0106		●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0107-0602		●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-		●
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512		●
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE	0-28081-020-0	02	1	0105-0512	●	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE	0-28051-020-0	02	1	0601-	●	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> (B)	1-47475-881-0	01	1	0105-0110		●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> (B)	1-47477-669-1	01	1	0111-		●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> (C)	1-47477-235-0	01	1	0105-		●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> (A) L=50	1-47475-299-2	02	1	0105-	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	0105-0106	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8X20 FLANGE	0-28680-820-0	01	1	0107-0110		●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8X20 FLANGE	0-28680-820-0	03	1	0105-0110		●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8X20 FLANGE	0-28680-820-0	02	1	0111-0512		●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-290-0	01	1	0105-	●	●
80	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	0105-	●	●
81	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	0105-0512	●	●
81	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	0-91111-522-0	01	1	0601-	●	●
82	WASHER; LK,UNION TRANSMISSION OIL COOLER<C2C> ID=22.5	9-09150-522-0	02	1	0105-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0>	1-49164-672-0	01	1	0105-0110		●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0>	1-49166-438-0	01	1	0111-		●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> L=911	1-49163-072-0	01	1	0105-0106	●	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2>	1-49166-215-0	01	1	0107-	●	●
101	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	0105-	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> (B)	1-47429-504-0	01	1	0105-0110		●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> (A)	1-49166-439-0	01	1	0111-		●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> (A)	1-49164-613-0	01	1	0105-0110		●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> (B)	1-49166-440-0	01	1	0111-		●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> (A) L=2317	1-49164-311-0	01	1	0105-0106	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> (A) L=2324	1-49166-216-0	01	1	0107-0206	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> (A) L=2305	1-49166-669-0	01	1	0207-	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> (B) L=1703	1-49164-312-0	01	1	0105-0106	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> (B) L=1695	1-49166-217-0	01	1	0107-	●	●
110	UNION; OIL PIPE TRANSMISSION OIL COOLER<C2C>	1-09654-398-0	02	1	0105-	●	●
111	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	0105-0512	●	●
111	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	0-91111-522-0	01	1	0601-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> L=1324	1-49164-673-0	01	1	0105-0110		●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0>	1-49166-441-0	01	1	0111-		●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> L=1071	1-49163-073-0	01	1	0105-0106	●	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> L=1073	1-49166-218-0	01	1	0107-	●	●
136	CLIP; FLEX HOSE TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> L=250	1-09707-126-0	01	1	0105-0108	●	●
136	CLIP; FLEX HOSE TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> L=250	1-09707-126-0	01	1	0109-	●	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> L=175	1-09707-178-0	01	1	0105-0108	●	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> L=175	1-09707-178-0	01	1	0109-	●	●

12 178 12 95 95 178 11 50 92 50 46 11 48 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	0105-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> (B) ID=16 L=20	9-09525-535-0	01	1	0105-	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0107-0505	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0506-0602	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0106		●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0107-0602		●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-		●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> (A)	1-47478-648-0	01	1	0105-		●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> (B)	1-47478-566-0	01	1	0105-	●	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> (B)	1-47475-881-0	01	1	0105-0110		●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> (B)	1-47477-669-1	01	1	0111-		●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> (C)	1-47477-235-0	01	1	0105-		●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> (A) L=50	1-47475-299-2	02	1	0105-	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	0105-0106	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8X20 FLANGE	0-28680-820-0	01	1	0107-0110		●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8X20 FLANGE	0-28680-820-0	03	1	0105-0110		●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8X20 FLANGE	0-28680-820-0	02	1	0111-0512		●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0107-0602	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (B)	1-47475-881-0	01	1	0105-0106	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> PE-SERIES ENG<1A0> (B)	1-47475-881-0	01	1	0107-0110		●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> (D)	1-47477-669-1	01	1	0107-0110	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (D)	1-47477-669-1	01	1	0111-	●	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	01	1	0105-0106	●	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	01	1	0107-0512	●	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
