Sayfa 2-53A - Isuzu EPC

2-53A — TRANSMISSION OIL COOLER SYSTEM (#13553) — 182 parça

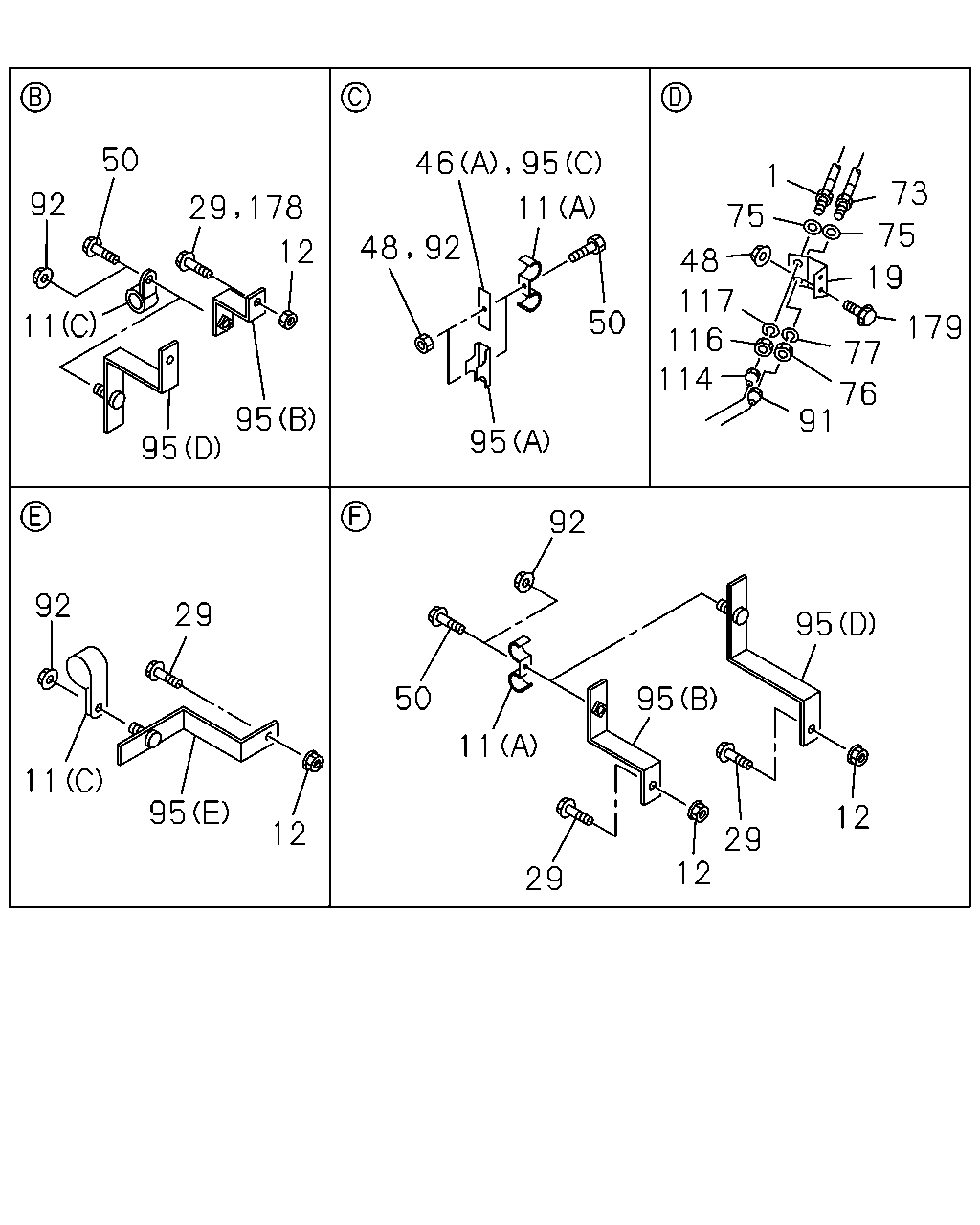

29 12 12 29 11 50 92 95 95 91 76 77 179 19 75 73 1 75 48 117 116 114 50 11 95 46 92 48 95 12 95 11 92 29 95 95 11 92 50 29 178 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> L=405	1-09364-800-0	01	1	0109-	●
1	HOSE; ATF TRANSMISSION OIL COOLER<C2C> L=450	1-09364-625-0	01	1	0105-0108	●	●
1	HOSE; ATF TRANSMISSION OIL COOLER<C2C> L=450	1-09364-625-0	01	1	0109-		●
1	HOSE; ATF TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> L=450	1-09364-625-0	01	1	0109-	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (C) ID=11 L=20	9-09525-035-0	02	1	0107-	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0105-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0105-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (C) ID=11 L=20	9-09525-035-0	01	1	0105-0106	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> (C) ID=11 L=20	9-09525-035-0	01	1	0105-0106	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (C) ID=11 L=20	9-09525-035-0	01	1	0107-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0105-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-0505	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0107-0505	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0107-0505	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0506-0602	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	02	1	0603-	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C>	1-47477-168-1	01	1	0105-		●
19	BRACKET; FLEX HOSE MIXER TRUCK<RA2> TRANSMISSION OIL COOLER<C2C>	1-47477-168-1	01	1	0105-	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2>	1-47478-344-0	01	1	0105-	●
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	02	1	0107-0512	●
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> (A) L=50	1-47475-299-2	04	1	0105-	●	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> (B)	1-47475-519-0	01	1	0105-0505	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	04	1	0105-0505	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	03	1	0506-0602	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
50	BOLT; CLIP FIRE TRUCK<RA9> TRANSMISSION OIL COOLER<C2C> M8X45 FLANGE	0-28080-845-0	01	1	0105-0512		●
50	BOLT; CLIP MIXER TRUCK<RA2> TRANSMISSION OIL COOLER<C2C> M8X45 FLANGE	0-28080-845-0	01	1	0105-0512	●
50	BOLT; CLIP FIRE TRUCK<RA9> TRANSMISSION OIL COOLER<C2C> M8X45 FLANGE	0-28050-845-0	01	1	0601-		●
50	BOLT; CLIP MIXER TRUCK<RA2> TRANSMISSION OIL COOLER<C2C> M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE	0-28080-816-0	04	1	0105-0505	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE	0-28080-816-0	03	1	0506-0512	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	0105-0106	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	0105-0106	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	01	1	0105-0106	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
73	HOSE; FLEX,TRANS TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> L=405	1-09364-800-0	01	1	0109-	●
73	HOSE; FLEX,TRANS TRANSMISSION OIL COOLER<C2C> L=450	1-09364-625-0	01	1	0105-0108	●	●
73	HOSE; FLEX,TRANS TRANSMISSION OIL COOLER<C2C> L=450	1-09364-625-0	01	1	0109-		●
73	HOSE; FLEX,TRANS TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> L=450	1-09364-625-0	01	1	0109-	●
75	GASKET; FLEX HOSE,TRANS TRANSMISSION OIL COOLER<C2C> ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0105-0108	●	●
76	NUT; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	9-99111-416-0	01	1	0105-0512	●	●
76	NUT; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	0-91111-516-0	01	1	0601-	●	●
77	WASHER; LK TRANSMISSION OIL COOLER<C2C> ID=16.2	9-09150-516-0	01	1	0105-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C>	1-49164-822-0	01	1	0105-0106		●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2>	1-49164-822-0	01	1	0105-0106	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> L=1013 SERVICED BY L=1100	1-47428-875-0	01	1	0107-		●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> L=1013 SERVICED BY L=1100	1-47428-875-0	01	1	0107-	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> L=901 SERVICED BY L=900	1-47428-873-0	01	1	0105-0106	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> L=902 SERVICED BY L=900	1-47428-873-0	01	1	0107-	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0107-0602	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0107-0602		●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	01	1	0603-		●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0603-	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (E)	1-47479-172-0	01	1	0107-0402	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (E)	1-47479-994-0	01	1	0403-	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (A)	1-47475-427-1	01	1	0105-		●
95	BRACKET; CLIP MIXER TRUCK<RA2> TRANSMISSION OIL COOLER<C2C> (A)	1-47475-427-1	01	1	0105-	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (B)	1-47475-881-0	01	1	0105-0106	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (B)	1-47475-881-0	01	1	0105-0106	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> (C) L=50	1-47475-299-2	01	1	0105-	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (D)	1-47477-235-0	01	1	0105-0106	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (D)	1-47477-669-1	01	1	0107-0110	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (D)	1-47477-669-1	01	1	0107-0110	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (D)	1-47477-669-1	01	1	0111-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> (D)	1-47477-669-1	01	1	0111-	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=855	1-49164-823-0	01	1	0105-0106		●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> TRANSMISSION OIL COOLER<C2C> L=855	1-49164-823-0	01	1	0105-0106	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=853 SERVICED BY L=900	1-47428-873-0	01	1	0107-		●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> TRANSMISSION OIL COOLER<C2C> L=853 SERVICED BY L=900	1-47428-873-0	01	1	0107-	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=739 SERVICED BY L=800	1-47428-872-0	01	1	0105-0106	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> L=733 SERVICED BY L=800	1-47428-872-0	01	1	0107-	●
116	NUT; BRKT,FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	9-99111-416-0	01	1	0105-0512	●	●
116	NUT; BRKT,FLEX HOSE TRANSMISSION OIL COOLER<C2C> M16	0-91111-516-0	01	1	0601-	●	●
117	WASHER; LK,FLEX HOSE TRANSMISSION OIL COOLER<C2C> ID=16.2	9-09150-516-0	01	1	0105-	●	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	01	1	0105-0106	●	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> M8X25 FLANGE	0-28680-825-0	01	1	0105-0106	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	01	1	0107-0512	●	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●

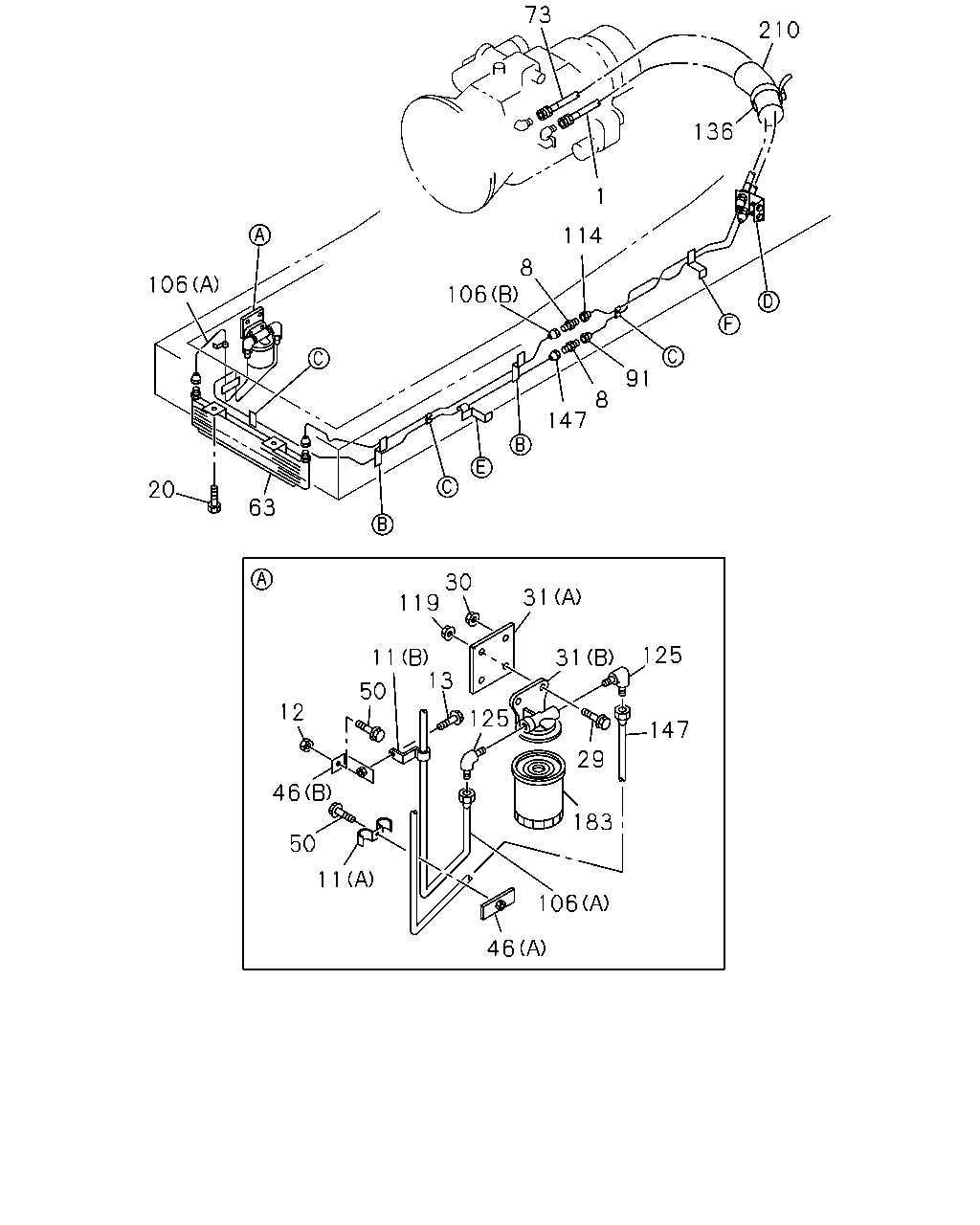

46 106 183 29 147 125 31 31 125 13 119 30 11 50 11 50 46 12 63 20 106 8 106 114 1 136 210 73 91 8 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; ATF TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> L=405	1-09364-800-0	01	1	0109-	●
1	HOSE; ATF TRANSMISSION OIL COOLER<C2C> L=450	1-09364-625-0	01	1	0105-0108	●	●
1	HOSE; ATF TRANSMISSION OIL COOLER<C2C> L=450	1-09364-625-0	01	1	0109-		●
1	HOSE; ATF TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> L=450	1-09364-625-0	01	1	0109-	●
8	UNION TRANSMISSION OIL COOLER<C2C> M16 L=42	9-09233-010-1	02	1	0105-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (C) ID=11 L=20	9-09525-035-0	02	1	0107-	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0105-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	01	1	0105-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (C) ID=11 L=20	9-09525-035-0	01	1	0105-0106	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> (C) ID=11 L=20	9-09525-035-0	01	1	0105-0106	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (C) ID=11 L=20	9-09525-035-0	01	1	0107-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=11 & 11 L=21.5 & 21.5	1-09700-660-0	03	1	0105-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	0105-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-0505	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	01	1	0105-0106	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0107-0505	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0107-0505	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0506-0602	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91180-108-0	02	1	0603-	●
13	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	01	1	0105-0505	●	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE	0-28081-020-0	02	1	0105-0512	●	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE	0-28051-020-0	02	1	0601-	●	●
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	02	1	0107-0512	●
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
29	BOLT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
30	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
30	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
31	BRACKET; OIL FILTER TRANSMISSION OIL COOLER<C2C> (B)	1-33119-222-0	01	1	0105-	●	●
31	BRACKET; OIL FILTER TRANSMISSION OIL COOLER<C2C> (A)	1-47478-329-0	01	1	0105-0207	●	●
31	BRACKET; OIL FILTER TRANSMISSION OIL COOLER<C2C> (A)	1-47479-181-0	01	1	0208-	●	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> (A) L=50	1-47475-299-2	04	1	0105-	●	●
46	BRACKET; OIL PIPE TRANSMISSION OIL COOLER<C2C> (B)	1-47475-519-0	01	1	0105-0505	●	●
50	BOLT; CLIP FIRE TRUCK<RA9> TRANSMISSION OIL COOLER<C2C> M8X45 FLANGE	0-28080-845-0	01	1	0105-0512		●
50	BOLT; CLIP MIXER TRUCK<RA2> TRANSMISSION OIL COOLER<C2C> M8X45 FLANGE	0-28080-845-0	01	1	0105-0512	●
50	BOLT; CLIP FIRE TRUCK<RA9> TRANSMISSION OIL COOLER<C2C> M8X45 FLANGE	0-28050-845-0	01	1	0601-		●
50	BOLT; CLIP MIXER TRUCK<RA2> TRANSMISSION OIL COOLER<C2C> M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE	0-28080-816-0	04	1	0105-0505	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE	0-28080-816-0	03	1	0506-0512	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	0105-0106	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	0105-0106	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	01	1	0105-0106	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-290-0	01	1	0105-	●	●
73	HOSE; FLEX,TRANS TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> L=405	1-09364-800-0	01	1	0109-	●
73	HOSE; FLEX,TRANS TRANSMISSION OIL COOLER<C2C> L=450	1-09364-625-0	01	1	0105-0108	●	●
73	HOSE; FLEX,TRANS TRANSMISSION OIL COOLER<C2C> L=450	1-09364-625-0	01	1	0109-		●
73	HOSE; FLEX,TRANS TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> L=450	1-09364-625-0	01	1	0109-	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C>	1-49164-822-0	01	1	0105-0106		●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2>	1-49164-822-0	01	1	0105-0106	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> L=1013 SERVICED BY L=1100	1-47428-875-0	01	1	0107-		●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> MIXER TRUCK<RA2> L=1013 SERVICED BY L=1100	1-47428-875-0	01	1	0107-	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> L=901 SERVICED BY L=900	1-47428-873-0	01	1	0105-0106	●
91	PIPE; OIL,FLEX HOSE TO UNION TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> L=902 SERVICED BY L=900	1-47428-873-0	01	1	0107-	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (A) L=677	1-49163-119-0	01	1	0105-0207	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (A)	1-49166-675-0	01	1	0208-0406	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (A)	1-49167-336-0	01	1	0407-	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (B)	1-49164-314-0	01	1	0105-0106	●	●
106	PIPE ASM; OIL,COOLER TO UNION TRANSMISSION OIL COOLER<C2C> (B) L=774	1-49166-229-0	01	1	0107-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=855	1-49164-823-0	01	1	0105-0106		●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> TRANSMISSION OIL COOLER<C2C> L=855	1-49164-823-0	01	1	0105-0106	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=853 SERVICED BY L=900	1-47428-873-0	01	1	0107-		●
114	PIPE; OIL,UNION TO FLEX HOSE MIXER TRUCK<RA2> TRANSMISSION OIL COOLER<C2C> L=853 SERVICED BY L=900	1-47428-873-0	01	1	0107-	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> L=739 SERVICED BY L=800	1-47428-872-0	01	1	0105-0106	●
114	PIPE; OIL,UNION TO FLEX HOSE TRANSMISSION OIL COOLER<C2C> EXC. MIXER TRUCK<RA2> L=733 SERVICED BY L=800	1-47428-872-0	01	1	0107-	●
119	NUT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
119	NUT; FILTER TO BRKT TRANSMISSION OIL COOLER<C2C> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
125	CONNECTOR; OIL FILTER TRANSMISSION OIL COOLER<C2C> M16 & PT1/4 ELBOW	1-09650-434-0	02	1	0105-	●	●
136	CLIP; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=250	1-09707-126-0	01	1	0105-0108	●	●
147	PIPE; OIL,UNION TO FILTER TRANSMISSION OIL COOLER<C2C>	1-49164-313-0	01	1	0105-0106	●	●
147	PIPE; OIL,UNION TO FILTER TRANSMISSION OIL COOLER<C2C>	1-49166-228-0	01	1	0107-0207	●	●
147	PIPE; OIL,UNION TO FILTER TRANSMISSION OIL COOLER<C2C>	1-49166-674-0	01	1	0208-0406	●	●
147	PIPE; OIL,UNION TO FILTER TRANSMISSION OIL COOLER<C2C> L=2792 SERVICED BY L=2900	1-47428-885-0	01	1	0407-	●	●
183	CARTRIDGE; OIL FILTER TRANSMISSION OIL COOLER<C2C>	8-94459-700-1	01	1	0105-	●	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=175	1-09707-178-0	01	1	0105-0108	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
