Sayfa 2-37 - Isuzu EPC

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#13551) — 251 parça

45 47 47 45 49 8 49 45 47 49 8 49 45 47 38 36 44 6 6 44 36 38 36 44 38 44 36 38 32 30 35 5 35 30 32 24 22 25 15 25 112 24 22 24 25 15 25 112 24 22 25 15 25 22 28 22 25 28 22 28 25 15 28

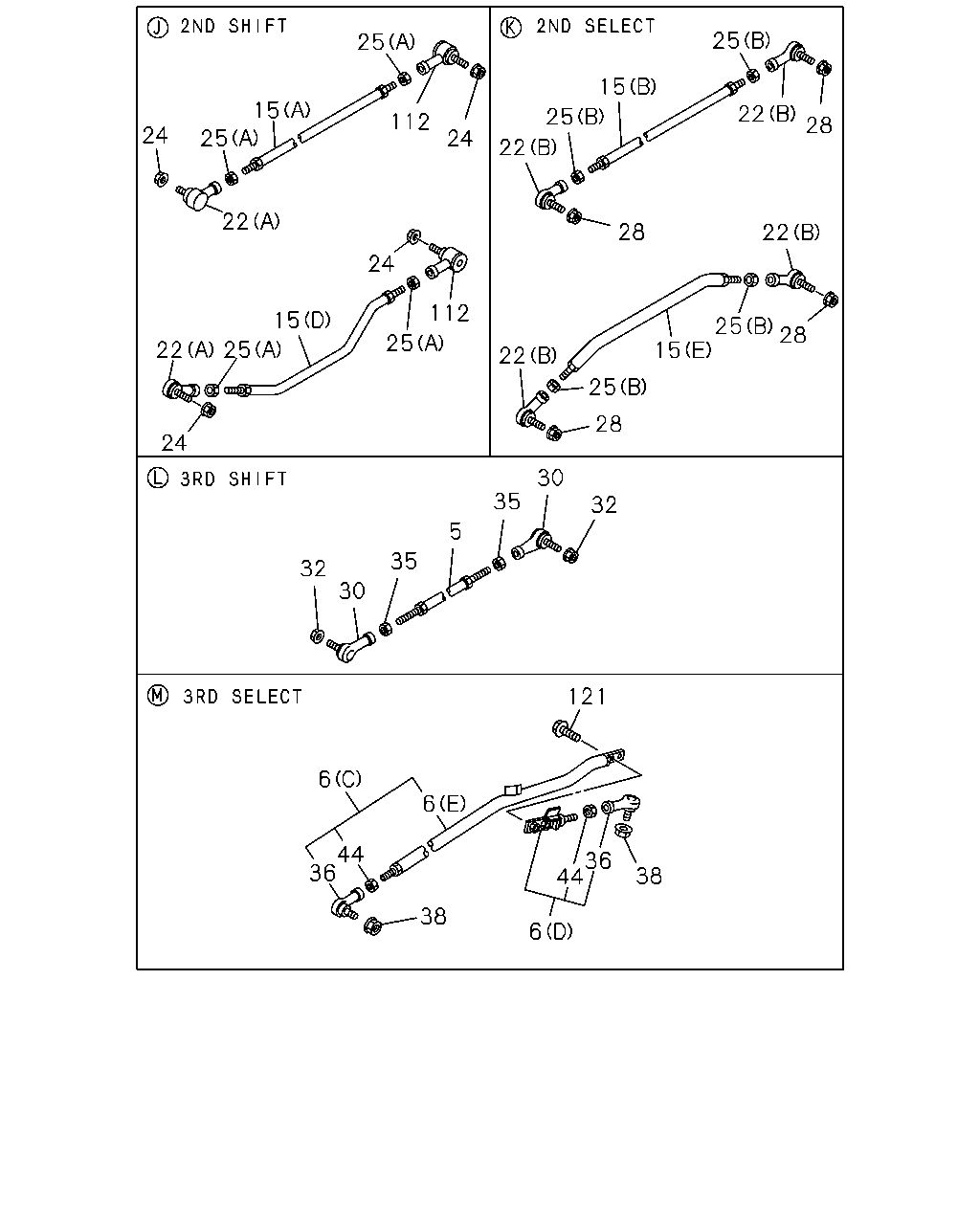

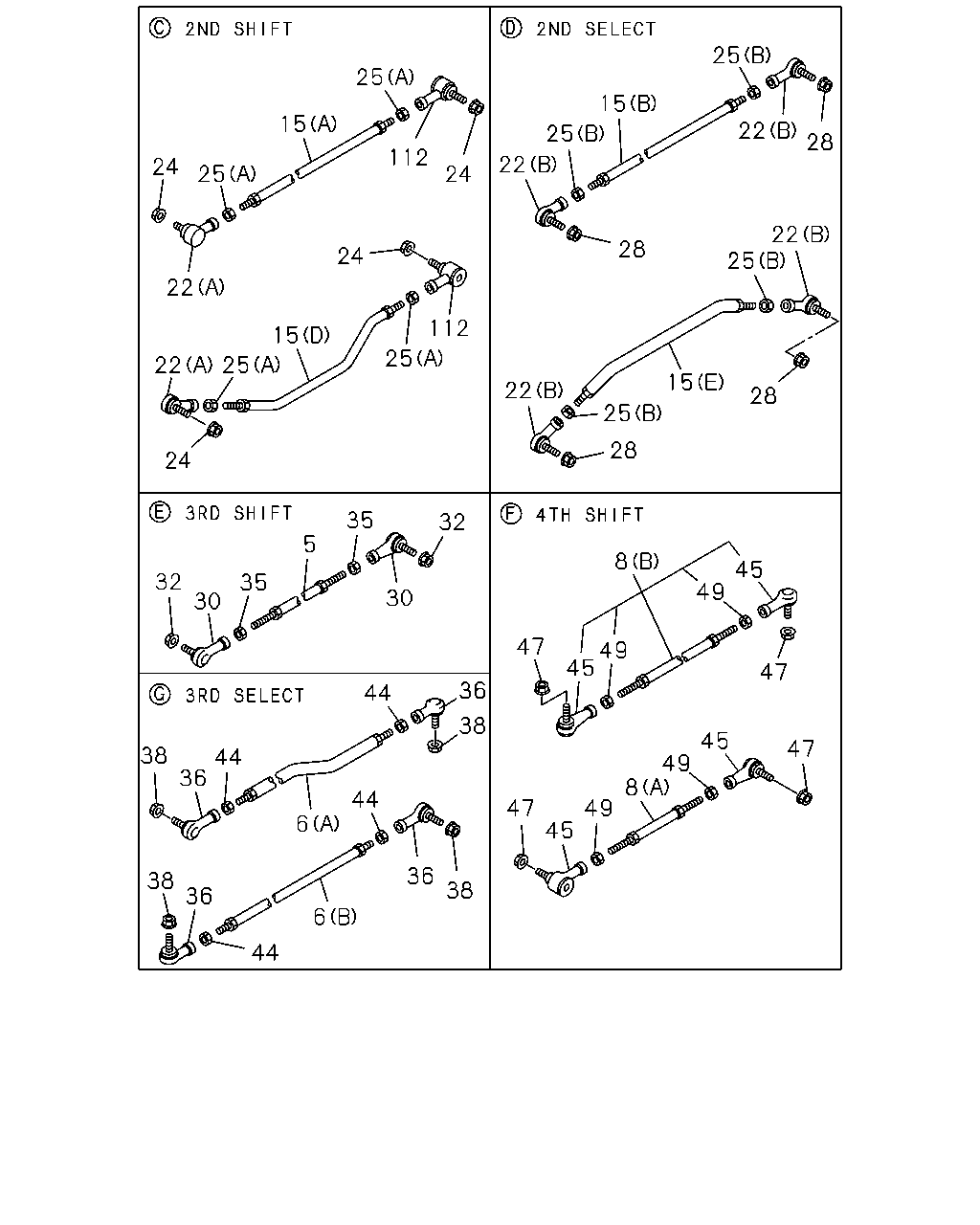

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	ROD; LINK,3RD SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> L=1120	1-33652-603-0	01	1	0105-	●
5	ROD; LINK,3RD SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1120	1-33652-603-0	01	1	0105-		●
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1190	1-33652-922-0	01	1	0105-	●
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> L=1170	1-33652-547-0	01	1	0105-	●
5	ROD; LINK,3RD SHIFT W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	0105-	●
5	ROD; LINK,3RD SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	0105-		●
5	ROD; LINK,3RD SHIFT 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=855	1-33652-321-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=1608	1-33652-985-1	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=1649	1-33652-925-1	01	1	0105-	●
6	ROD; LINK,3RD SELECT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> (A) L=1649	1-33652-925-1	01	1	0105-		●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=1679	1-33652-987-1	01	1	0105-	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> (A) L=1721	1-33652-984-1	01	1	0105-	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJD7 M/T<X9J>,MJA7 M/T<X9Q> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CABUP +110MM<TGG> (A) L=1668	1-33652-983-1	01	1	0105-	●
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CAB UP +110MM<TGG> (A) L=1599	1-33652-916-1	01	1	0105-	●
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CABUP +110MM<TGG> (A) L=1599	1-33652-916-1	01	1	0105-		●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> ZF M/T<X9E> W-SERIES ENG<1A2> (C) L=1454	1-33671-700-1	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> (D) L=125	1-33671-570-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (D) L=125	1-33671-570-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (E) L=1419	1-33652-981-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C) L=1443	1-33671-789-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=1242	1-33652-950-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) L=1396	1-33652-913-1	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),ASSISTOR SHIFT CONTROL<WX8> (B) L=1250	1-33652-978-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),ASSISTOR SHIFT CONTROL<WX8> (B) L=1405	1-33652-876-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) FIRE TRUCK<RA9> MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),ASSISTOR SHIFT CONTROL<WX8> (B) L=1405	1-33652-876-0	01	1	0105-		●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (C) L=1220	1-33671-792-1	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) MAP5 M/T<Y9F> W-SERIES ENG<1A2> (A) L=1493	1-33652-986-1	01	1	0105-		●
6	ROD; LINK,3RD SELECT FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) MAP5 M/T<Y9F> W-SERIES ENG<1A2> (A) L=1647	1-33652-989-1	01	1	0105-		●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) FIRE TRUCK<RA9> ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) L=1390	1-33652-988-0	01	1	0105-		●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=210	1-33652-878-0	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=360	1-33652-649-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT FIRE TRUCK<RA9> ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=360	1-33652-649-1	01	1	0105-		●
8	ROD; LINK,4TH SHIFT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> (A) L=370	1-33652-654-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),ASSISTOR SHIFT CONTROL<WX8> (A) L=337	1-33652-767-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),ASSISTOR SHIFT CONTROL<WX8> (A) L=490	1-33652-749-0	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT FIRE TRUCK<RA9> MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),ASSISTOR SHIFT CONTROL<WX8> (A) L=490	1-33652-749-0	01	1	0105-		●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=330	1-33652-653-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> PE-SERIES ENG<1A0> (C) L=523	1-33652-858-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> W-SERIES ENG<1A2> (C) L=485	1-33652-859-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> MAP5 M/T<Y9F> W-SERIES ENG<1A2> (B) L=275	1-33671-607-0	01	1	0105-		●
8	ROD; LINK,4TH SHIFT FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> MAP5 M/T<Y9F> W-SERIES ENG<1A2> (B) L=430	1-33671-610-0	01	1	0105-		●
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) L=474	1-33652-803-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) L=423	1-33652-804-2	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (B) L=440	1-33652-672-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (A) L=490	1-33652-700-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (D) L=490	1-33652-780-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (E) L=428	1-33652-781-2	01	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD PE-SERIES ENG<1A0> (B)	1-09760-108-0	02	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-125-0	01	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD W-SERIES ENG<1A2> (B)	1-09760-109-0	02	1	0105-	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0> (B) M8	9-09111-408-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0> (B) M8	0-91111-508-0	02	1	0601-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	0-91111-512-0	02	1	0601-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> (B) M10	9-09111-410-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> (B) M10	0-91111-510-0	02	1	0601-	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0105-0512	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2>	1-09760-124-0	02	1	0105-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD MAL5 M/T<X9F>,MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09760-124-0	02	1	0105-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2>	1-09760-124-0	01	1	0105-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2>	1-09760-124-0	01	1	0105-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) MAP5 M/T<Y9F> W-SERIES ENG<1A2>	1-09760-124-0	04	1	0105-		●
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
38	NUT; 3RD LINK ROD FIRE TRUCK<RA9> M10 FLANGE	1-09440-061-0	02	1	0105-		●
44	NUT; LK,RIGHT SCREW,LINK ROD MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> M10	9-09111-410-0	02	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10	9-09111-410-0	02	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> M10	0-91111-510-0	02	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10	0-91111-510-0	02	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	9-09111-410-0	01	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	9-09111-410-0	01	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	0-91111-510-0	01	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	0-91111-510-0	01	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8	9-09111-408-0	02	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8	0-91111-508-0	02	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) MAP5 M/T<Y9F> W-SERIES ENG<1A2> M10	9-09111-410-0	04	1	0105-0512		●
44	NUT; LK,RIGHT SCREW,LINK ROD FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) MAP5 M/T<Y9F> W-SERIES ENG<1A2> M10	0-91111-510-0	04	1	0601-		●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-	●	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
47	NUT; 4TH LINK ROD FIRE TRUCK<RA9> M10 FLANGE	1-09440-061-0	02	1	0105-		●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0512	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-0206	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-0206	●	●
112	JOINT; RUBBER MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-33670-413-1	01	1	0207-	●	●
112	JOINT; RUBBER EXC. MJA7 M/T<X9Q>	1-33670-413-1	01	1	0207-	●	●
112	JOINT; RUBBER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>	1-33670-413-1	01	1	0207-	●	●

25 15 25 24 22 15 25 22 24 25 112 24 112 24 22 25 15 25 22 28 22 28 25 15 25 28 22 30 32 35 5 35 30 32 6 44 36 38 6 6 44 36 38 121 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	ROD; LINK,3RD SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> L=1120	1-33652-603-0	01	1	0105-	●
5	ROD; LINK,3RD SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1120	1-33652-603-0	01	1	0105-		●
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> CAB UP +110MM<TGG> W-SERIES ENG<1A2> L=1190	1-33652-922-0	01	1	0105-	●
5	ROD; LINK,3RD SHIFT MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> L=1170	1-33652-547-0	01	1	0105-	●
5	ROD; LINK,3RD SHIFT W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	0105-	●
5	ROD; LINK,3RD SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> L=1110	1-33652-623-0	01	1	0105-		●
5	ROD; LINK,3RD SHIFT 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=855	1-33652-321-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=1608	1-33652-985-1	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A) L=1649	1-33652-925-1	01	1	0105-	●
6	ROD; LINK,3RD SELECT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> (A) L=1649	1-33652-925-1	01	1	0105-		●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=1679	1-33652-987-1	01	1	0105-	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> (A) L=1721	1-33652-984-1	01	1	0105-	●
6	ROD; LINK,3RD SELECT MIXER TRUCK<RA2> MJD7 M/T<X9J>,MJA7 M/T<X9Q> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CABUP +110MM<TGG> (A) L=1668	1-33652-983-1	01	1	0105-	●
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CAB UP +110MM<TGG> (A) L=1599	1-33652-916-1	01	1	0105-	●
6	ROD; LINK,3RD SELECT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CABUP +110MM<TGG> (A) L=1599	1-33652-916-1	01	1	0105-		●
6	ROD; LINK,3RD SELECT CAB UP +110MM<TGG> ZF M/T<X9E> W-SERIES ENG<1A2> (C) L=1454	1-33671-700-1	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> (D) L=125	1-33671-570-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (D) L=125	1-33671-570-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (E) L=1419	1-33652-981-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT ZF M/T<X9E> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (C) L=1443	1-33671-789-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=1242	1-33652-950-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) L=1396	1-33652-913-1	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),ASSISTOR SHIFT CONTROL<WX8> (B) L=1250	1-33652-978-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),ASSISTOR SHIFT CONTROL<WX8> (B) L=1405	1-33652-876-0	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) FIRE TRUCK<RA9> MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),ASSISTOR SHIFT CONTROL<WX8> (B) L=1405	1-33652-876-0	01	1	0105-		●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (C) L=1220	1-33671-792-1	01	1	0105-	●	●
6	ROD; LINK,3RD SELECT FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) MAP5 M/T<Y9F> W-SERIES ENG<1A2> (A) L=1493	1-33652-986-1	01	1	0105-		●
6	ROD; LINK,3RD SELECT FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) MAP5 M/T<Y9F> W-SERIES ENG<1A2> (A) L=1647	1-33652-989-1	01	1	0105-		●
6	ROD; LINK,3RD SELECT 10PE1S(60L),10PE1N(61L),10PE1H(68L) FIRE TRUCK<RA9> ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) L=1390	1-33652-988-0	01	1	0105-		●
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) L=474	1-33652-803-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) L=423	1-33652-804-2	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (B) L=440	1-33652-672-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (A) L=490	1-33652-700-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (D) L=490	1-33652-780-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (E) L=428	1-33652-781-2	01	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD PE-SERIES ENG<1A0> (B)	1-09760-108-0	02	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD (A)	1-09760-125-0	01	1	0105-	●	●
22	JOINT; BALL,SCREW,LINK ROD W-SERIES ENG<1A2> (B)	1-09760-109-0	02	1	0105-	●	●
24	NUT; 2ND LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0> (B) M8	9-09111-408-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD PE-SERIES ENG<1A0> (B) M8	0-91111-508-0	02	1	0601-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	9-99111-412-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD (A) M12	0-91111-512-0	02	1	0601-	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> (B) M10	9-09111-410-0	02	1	0105-0512	●	●
25	NUT; LK,RIGHT SCREW,LINK ROD W-SERIES ENG<1A2> (B) M10	0-91111-510-0	02	1	0601-	●	●
28	NUT; 2ND LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-	●	●
30	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-124-0	02	1	0105-	●	●
32	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	9-09111-410-0	02	1	0105-0512	●	●
35	NUT; LK,RIGHT SCREW,LINK ROD M10	0-91111-510-0	02	1	0601-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2>	1-09760-124-0	02	1	0105-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD MAL5 M/T<X9F>,MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09760-124-0	02	1	0105-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2>	1-09760-124-0	01	1	0105-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2>	1-09760-124-0	01	1	0105-	●	●
36	JOINT; BALL,RIGHT SCREW,LINK ROD FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) MAP5 M/T<Y9F> W-SERIES ENG<1A2>	1-09760-124-0	04	1	0105-		●
38	NUT; 3RD LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
38	NUT; 3RD LINK ROD FIRE TRUCK<RA9> M10 FLANGE	1-09440-061-0	02	1	0105-		●
44	NUT; LK,RIGHT SCREW,LINK ROD MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> M10	9-09111-410-0	02	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10	9-09111-410-0	02	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> M10	0-91111-510-0	02	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10	0-91111-510-0	02	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	9-09111-410-0	01	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	9-09111-410-0	01	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	0-91111-510-0	01	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD ZF M/T<X9E> W-SERIES ENG<1A2> M10	0-91111-510-0	01	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8	9-09111-408-0	02	1	0105-0512	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD 10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8	0-91111-508-0	02	1	0601-	●	●
44	NUT; LK,RIGHT SCREW,LINK ROD FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) MAP5 M/T<Y9F> W-SERIES ENG<1A2> M10	9-09111-410-0	04	1	0105-0512		●
44	NUT; LK,RIGHT SCREW,LINK ROD FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) MAP5 M/T<Y9F> W-SERIES ENG<1A2> M10	0-91111-510-0	04	1	0601-		●
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-0206	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-0206	●	●
112	JOINT; RUBBER MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-33670-413-1	01	1	0207-	●	●
112	JOINT; RUBBER EXC. MJA7 M/T<X9Q>	1-33670-413-1	01	1	0207-	●	●
112	JOINT; RUBBER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>	1-33670-413-1	01	1	0207-	●	●
121	BOLT; LINK ROD ZF M/T<X9E>	1-09044-103-0	02	1	0105-	●	●

8 47 49 45 49 45 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=210	1-33652-878-0	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=360	1-33652-649-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT FIRE TRUCK<RA9> ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=360	1-33652-649-1	01	1	0105-		●
8	ROD; LINK,4TH SHIFT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ,CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> (A) L=370	1-33652-654-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),ASSISTOR SHIFT CONTROL<WX8> (A) L=337	1-33652-767-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),ASSISTOR SHIFT CONTROL<WX8> (A) L=490	1-33652-749-0	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT FIRE TRUCK<RA9> MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),ASSISTOR SHIFT CONTROL<WX8> (A) L=490	1-33652-749-0	01	1	0105-		●
8	ROD; LINK,4TH SHIFT MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> W-SERIES ENG<1A2> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) L=330	1-33652-653-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> PE-SERIES ENG<1A0> (C) L=523	1-33652-858-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT ZF M/T<X9E> W-SERIES ENG<1A2> (C) L=485	1-33652-859-1	01	1	0105-	●	●
8	ROD; LINK,4TH SHIFT FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> MAP5 M/T<Y9F> W-SERIES ENG<1A2> (B) L=275	1-33671-607-0	01	1	0105-		●
8	ROD; LINK,4TH SHIFT FIRE TRUCK<RA9> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> MAP5 M/T<Y9F> W-SERIES ENG<1A2> (B) L=430	1-33671-610-0	01	1	0105-		●
45	JOINT; BALL,RIGHT SCREW,LINK ROD	1-09760-125-0	02	1	0105-	●	●
47	NUT; 4TH LINK ROD M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
47	NUT; 4TH LINK ROD FIRE TRUCK<RA9> M10 FLANGE	1-09440-061-0	02	1	0105-		●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0512	●	●
49	NUT; LK,RIGHT SCREW,LINK ROD M12	0-91111-512-0	02	1	0601-	●	●

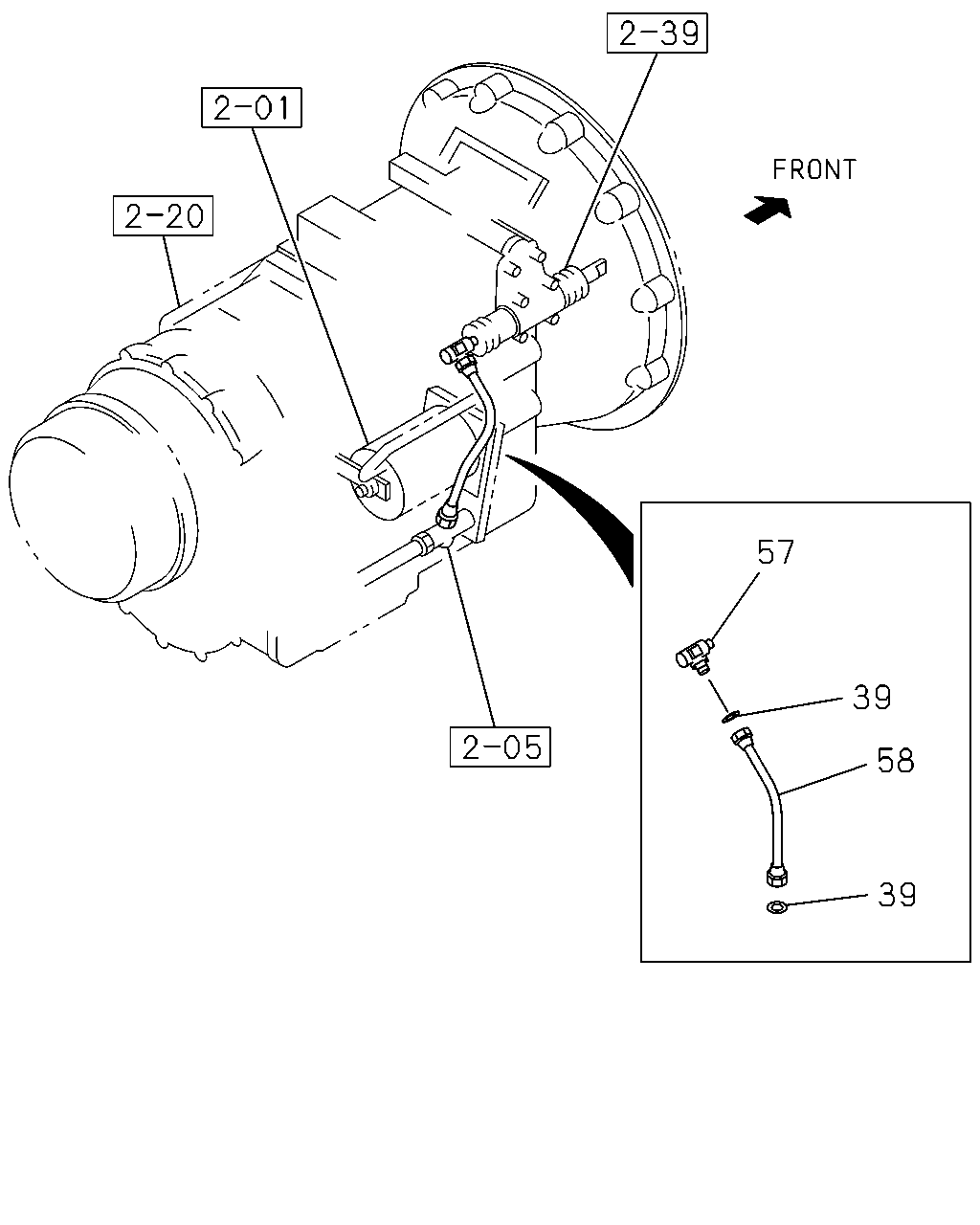

39 58 39 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	GASKET; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=11 OD=18	9-09572-510-0	02	1	0105-	●	●
39	GASKET; FLEX HOSE FIRE TRUCK<RA9> ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAP5 M/T<Y9F> ID=11 OD=18	9-09572-510-0	02	1	0105-		●
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>,MAG6 M/T<X9T> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0105-	●	●
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> MAP5 M/T<Y9F> M20 & PT1/4	9-09902-386-0	01	1	0105-		●
58	HOSE; FLEX,POWER ASSISTOR CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J> L=300	0-07150-300-0	01	1	0109-	●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> PE-SERIES ENG<1A0> L=230	0-07150-230-0	01	1	0105-	●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> L=360	0-07150-360-0	01	1	0105-0108	●	●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) L=360	0-07150-360-0	01	1	0109-	●	●
58	HOSE; FLEX,POWER ASSISTOR FIRE TRUCK<RA9> ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F> L=270	0-07150-270-0	01	1	0105-		●
58	HOSE; FLEX,POWER ASSISTOR FIRE TRUCK<RA9> ASSISTOR SHIFT CONTROL<WX8> MAP5 M/T<Y9F> W-SERIES ENG<1A2> L=420	0-07150-420-0	01	1	0105-		●

16 21 15 21 16 18 18 12 10 14 1 14 112 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	0105-0206	●	●
1	ROD; LINK,1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=480	9-08401-248-0	01	1	0207-	●	●
1	ROD; LINK,1ST SHIFT EXC. MJA7 M/T<X9Q> L=480	9-08401-248-0	01	1	0207-	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0105-0206	●	●
10	JOINT ASM; BALL,SELECT ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-09760-125-0	01	1	0207-	●	●
10	JOINT ASM; BALL,SELECT ROD EXC. MJA7 M/T<X9Q>	1-09760-125-0	01	1	0207-	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0206	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M12	9-99111-412-0	02	1	0207-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> M12	9-99111-412-0	02	1	0207-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M12	0-91111-512-0	02	1	0601-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> M12	0-91111-512-0	02	1	0601-	●	●
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) L=474	1-33652-803-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) L=423	1-33652-804-2	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (B) L=440	1-33652-672-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (A) L=490	1-33652-700-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (D) L=490	1-33652-780-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (E) L=428	1-33652-781-2	01	1	0105-	●	●
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	0105-	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	0105-0512	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	0-91111-508-0	02	1	0601-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-0206	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-0206	●	●
112	JOINT; RUBBER MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-33670-413-1	01	1	0207-	●	●
112	JOINT; RUBBER EXC. MJA7 M/T<X9Q>	1-33670-413-1	01	1	0207-	●	●
112	JOINT; RUBBER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>	1-33670-413-1	01	1	0207-	●	●

18 16 21 15 21 16 18 12 10 14 1 14 12 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ROD; LINK,1ST SHIFT L=480	9-08401-248-0	01	1	0105-0206	●	●
1	ROD; LINK,1ST SHIFT MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=480	9-08401-248-0	01	1	0207-	●	●
1	ROD; LINK,1ST SHIFT EXC. MJA7 M/T<X9Q> L=480	9-08401-248-0	01	1	0207-	●	●
10	JOINT ASM; BALL,SELECT ROD	1-09760-125-0	01	1	0105-0206	●	●
10	JOINT ASM; BALL,SELECT ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-09760-125-0	01	1	0207-	●	●
10	JOINT ASM; BALL,SELECT ROD EXC. MJA7 M/T<X9Q>	1-09760-125-0	01	1	0207-	●	●
12	NUT; 1ST LINK ROD,SHIFT M10 FLANGE	1-09440-061-0	02	1	0105-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD M12	9-99111-412-0	02	1	0105-0206	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M12	9-99111-412-0	02	1	0207-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> M12	9-99111-412-0	02	1	0207-0512	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M12	0-91111-512-0	02	1	0601-	●	●
14	NUT; LK,RIGHT SCREW,LINK ROD EXC. MJA7 M/T<X9Q> M12	0-91111-512-0	02	1	0601-	●	●
15	ROD; LINK 1ST SHIFT (C) L=556	1-33652-744-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (B) L=474	1-33652-803-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A) L=423	1-33652-804-2	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (B) L=440	1-33652-672-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT PE-SERIES ENG<1A0> (A) L=490	1-33652-700-0	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (D) L=490	1-33652-780-1	01	1	0105-	●	●
15	ROD; LINK 1ST SHIFT W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (E) L=428	1-33652-781-2	01	1	0105-	●	●
16	JOINT ASM; BALL,CONT ROD	1-09760-108-0	02	1	0105-	●	●
18	NUT; 1ST LINK ROD M8 FLANGE	1-09440-062-1	02	1	0105-	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	9-09111-408-0	02	1	0105-0512	●	●
21	NUT; LK,RIGHT SCREW,LINK ROD M8	0-91111-508-0	02	1	0601-	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-0206	●	●
112	JOINT; RUBBER	1-33670-413-1	01	1	0105-0206	●	●
112	JOINT; RUBBER MJA7 M/T<X9Q> EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-33670-413-1	01	1	0207-	●	●
112	JOINT; RUBBER EXC. MJA7 M/T<X9Q>	1-33670-413-1	01	1	0207-	●	●
112	JOINT; RUBBER PE-SERIES ENG<1A0>,W-SERIES ENG<1A2>	1-33670-413-1	01	1	0207-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
