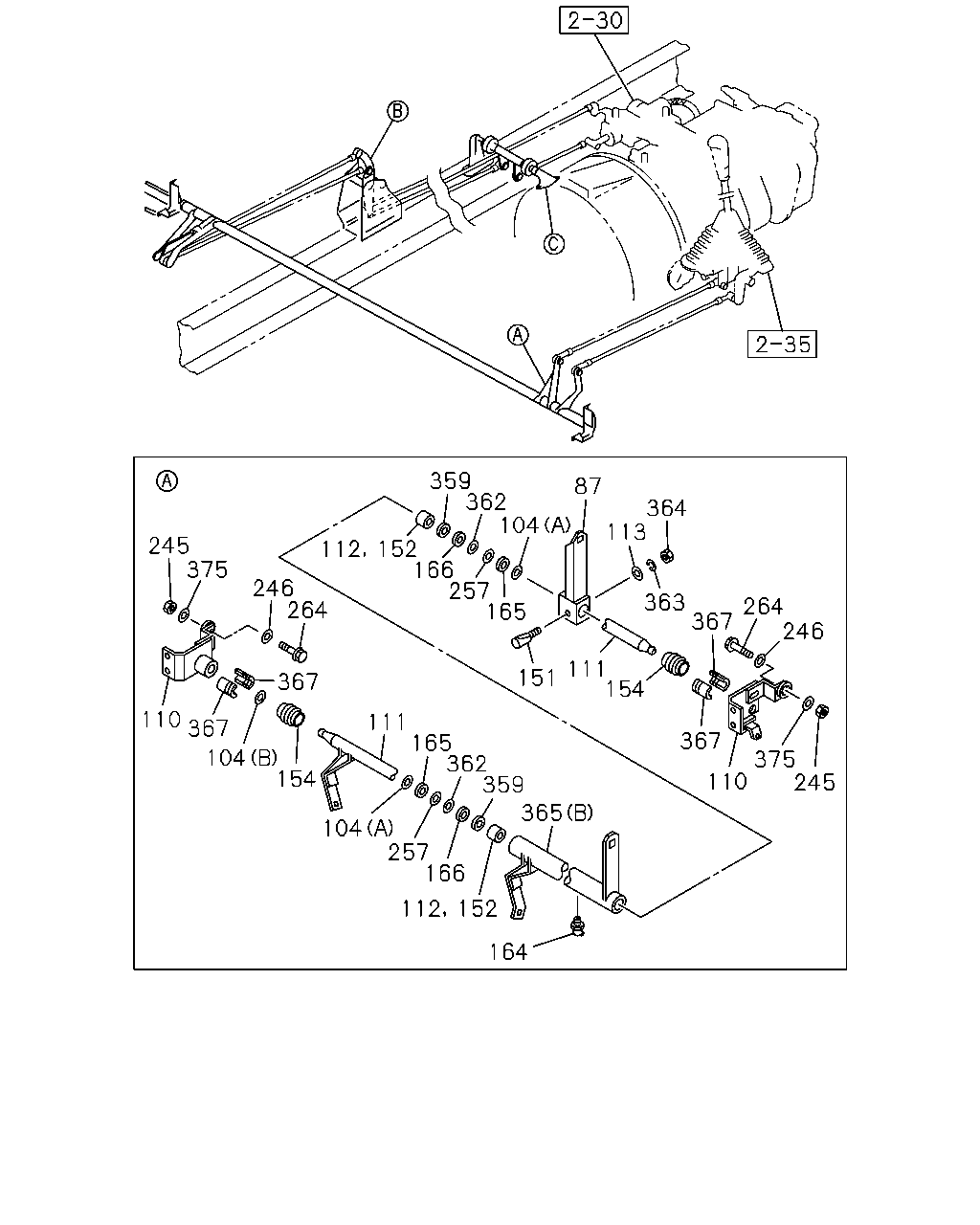

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#13550) — 124 parça

245 110 375 367 246 264 367 363 364 113 154 111 151 165 257 166 152 112 359 362 104 87 264 246 367 111 165 362 359 365 164 152 112 166 257 104 154 104 367 110 375 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
87	LEVER; RELAY,SELECT	1-33651-666-0	01	1	0105-	●	●
104	RING; SNAP (A) ID=32.2	9-09180-035-0	02	1	0105-	●	●
104	RING; SNAP (B) OD=23.5	9-09180-122-0	01	1	0105-	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-617-0	01	1	0105-	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-618-0	01	1	0105-	●	●
111	SHAFT; RELAY LEVER,1ST	1-33659-200-0	01	1	0105-0307	●	●
111	SHAFT; RELAY LEVER,1ST	1-33659-239-0	01	1	0308-	●	●
112	BUSHING; RELAY LEVER	1-09330-143-0	02	1	0308-	●	●
113	WASHER; RELAY LEVER ID=10.5 OD=26	9-09160-710-0	01	1	0105-	●	●
151	BOLT; KEY,RELAY LEVER	1-33659-063-0	01	1	0105-	●	●
152	BEARING; NEEDLE,RELAY LEVER	1-09811-328-0	02	1	0105-0307	●	●
154	COVER; DUST,RELAY LEVER	1-33659-068-0	02	1	0105-	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0105-0512	●	●
164	NIPPLE; GREASE,RELAY LEVER,SHIFT ROD PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●
165	WASHER; RELAY LEVER	1-09503-148-0	AR	1	0105-	●	●
166	WASHER; NYLON,RELAY LEVER	1-09509-040-0	02	1	0105-	●	●
245	NUT; BRKT,RELAY LEVER M10	1-09984-142-0	02	1	0105-	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	02	1	0105-	●	●
257	PIECE; DIST,RELAY LEVER	1-09503-198-0	AR	1	0105-	●	●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
264	BOLT; BRKT,RELAY LEVER M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	02	1	0105-0301	●	●
264	BOLT; BRKT,RELAY LEVER M10X105	1-79198-008-1	02	1	0302-	●	●
359	SEAL; RUBBER,RELAY LEVER	1-09625-005-1	02	1	0105-	●	●
362	SHIM	1-09503-172-0	AR	1	0105-	●	●
363	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	01	1	0105-	●	●
364	NUT; KEY BOLT M10	9-09111-410-0	01	1	0105-0512	●	●
364	NUT; KEY BOLT M10	0-91111-510-0	01	1	0601-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	0105-0307	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-819-1	01	1	0308-	●	●
365	LEVER; RELAY,SELECT PE-SERIES ENG<1A0> (A)	1-33651-770-1	01	1	0105-	●	●
365	LEVER; RELAY,SELECT W-SERIES ENG<1A2> (A)	1-33651-771-1	01	1	0105-	●	●
367	SEAT; BALL,CONT SHAFT	1-33659-053-0	04	1	0105-	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-	●	●

441 457 442 501 460 477 390 503 441 442 442 442 387 386 310 385 385 385

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

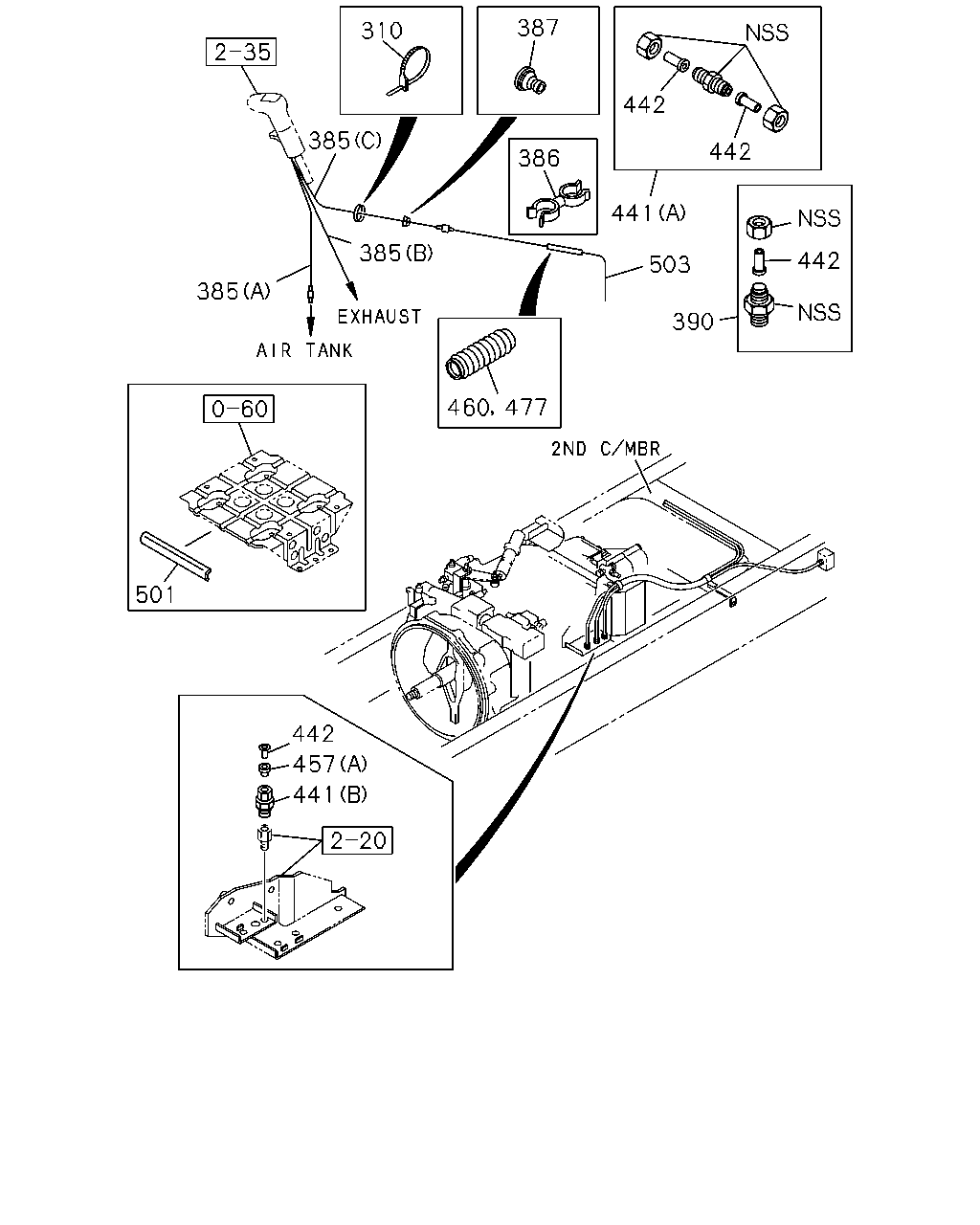

310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=250	1-09707-126-0	17	1	0105-	●	●
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=140	5-09707-031-1	04	1	0105-0105	●	●
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=140	5-09707-031-1	05	1	0106-	●	●
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) (A) L=1440 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-	●	●
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. AIR BAG(TFQ) (A) L=1340 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-	●	●
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) CAB UP +110MM<TGG> (C) L=1500 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-	●	●
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. CAB UP +110MM<TGG> (A) L=1420 SERVICED BY L=2000 OD=4	1-87410-077-0	01	1	0105-	●	●
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0105-	●	●
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-	●	●
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09332-102-0	01	1	0105-	●	●
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ)	1-09661-174-0	01	1	0105-	●	●
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. AIR BAG(TFQ) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0105-	●	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0105-	●	●
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0105-	●	●
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. AIR BAG(TFQ) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0105-	●	●
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=1.4 OD=2.0 L=18	1-09669-100-0	05	1	0105-	●	●
457	GASKET (B)	1-09623-594-0	04	1	0105-	●	●
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. AIR BAG(TFQ) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0205-	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=250 SERVICED BY L=800 ID=7.4	1-83129-031-1	01	1	0105-	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0204	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) AIR BAG(TFQ) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) CAB UP +110MM<TGG> L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0204	●	●
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) EXC. AIR BAG(TFQ) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-	●	●
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) W-SERIES ENG<1A2> L=2000	1-87410-085-0	01	1	0105-	●	●
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> L=2000	1-87410-085-0	01	1	0105-	●	●
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=6000	1-87410-087-0	01	1	0105-	●	●
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0105-	●	●
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) W-SERIES ENG<1A2> L=2000	1-87410-077-0	01	1	0105-	●	●
503	TUBE; NYLON TRANSMISSION-ZF 16S151 OD(Y2N) PE-SERIES ENG<1A0> L=2000	1-87410-077-0	01	1	0105-	●	●
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) L=6000	1-87410-079-0	01	1	0105-	●	●

283 458 253 16 254 253 100 268 457 118 88 365 118 457 457 118 88 115 118 457

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	0105-0602	●	●
16	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	02	1	0603-	●	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	0105-	●	●
100	SPRING W-SERIES ENG<1A2> (A)	1-09583-319-0	01	1	0105-	●	●
100	SPRING W-SERIES ENG<1A2> (B)	1-09583-351-0	01	1	0105-	●	●
115	LEVER; RELAY,2ND SHIFT	1-33651-769-1	01	1	0105-	●	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	0105-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	0105-	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-0512	●	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	0105-	●	●
268	BRACKET; LINK ROD W-SERIES ENG<1A2>	1-33657-216-0	01	1	0105-	●	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	0105-	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-665-0	01	1	0105-0307	●	●
365	LEVER; RELAY,SELECT (B)	1-33651-819-1	01	1	0308-	●	●
365	LEVER; RELAY,SELECT PE-SERIES ENG<1A0> (A)	1-33651-770-1	01	1	0105-	●	●
365	LEVER; RELAY,SELECT W-SERIES ENG<1A2> (A)	1-33651-771-1	01	1	0105-	●	●
457	GASKET (B)	1-09623-594-0	04	1	0105-	●	●
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-	●	●

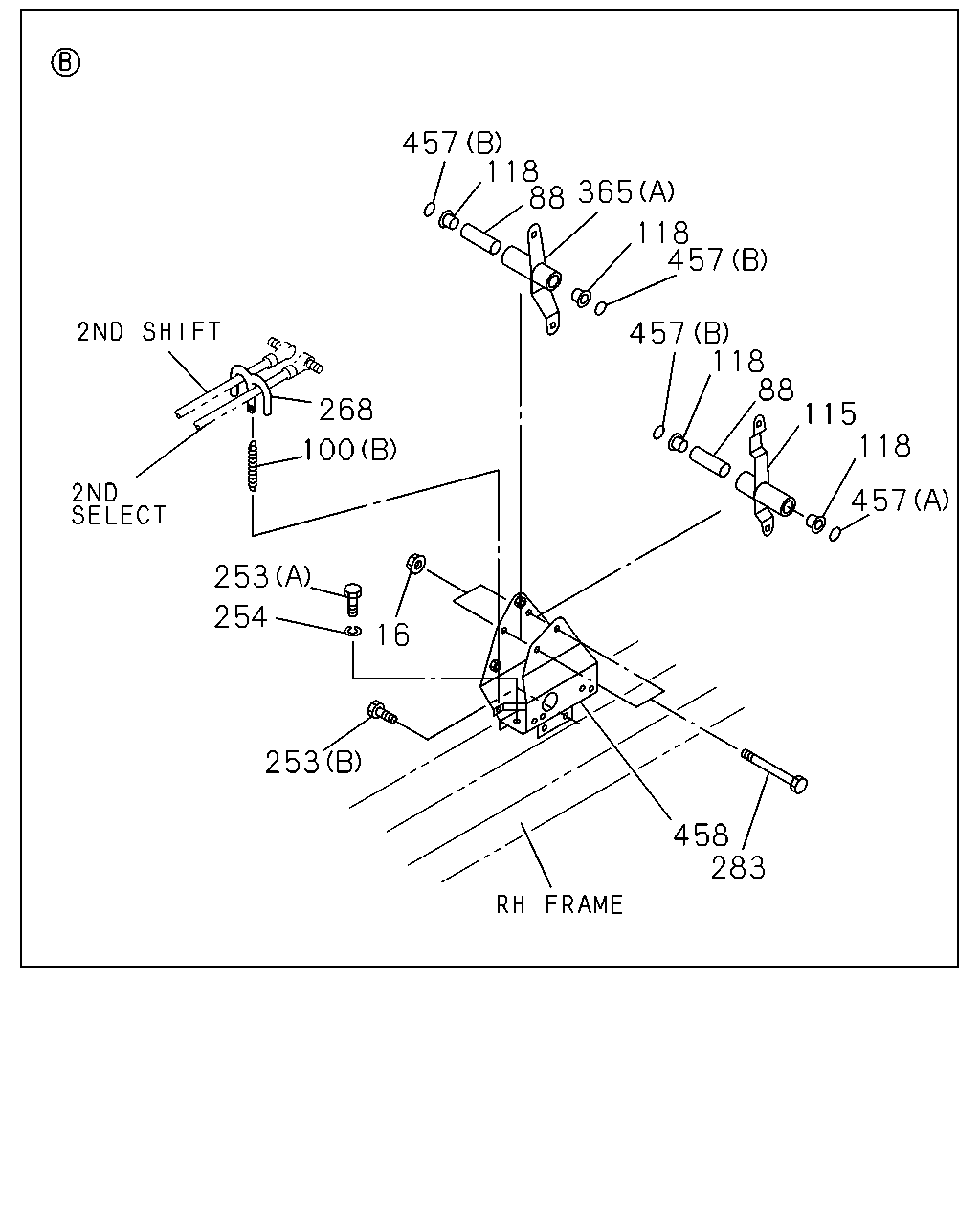

458	BRACKET; 2ND RELAY LEVER CAB UP +110MM<TGG> W-SERIES ENG<1A2>	1-33657-664-1	01	1	0105-	●	●
458	BRACKET; 2ND RELAY LEVER PE-SERIES ENG<1A0>	1-33657-572-2	01	1	0105-	●	●
458	BRACKET; 2ND RELAY LEVER W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG>	1-33657-583-1	01	1	0105-	●	●

33 71 100 34 46 34 35 162 34 46 242 71 34 507 103 466 33 243 71 33 34 34 34 46 71 242 162 46 34 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

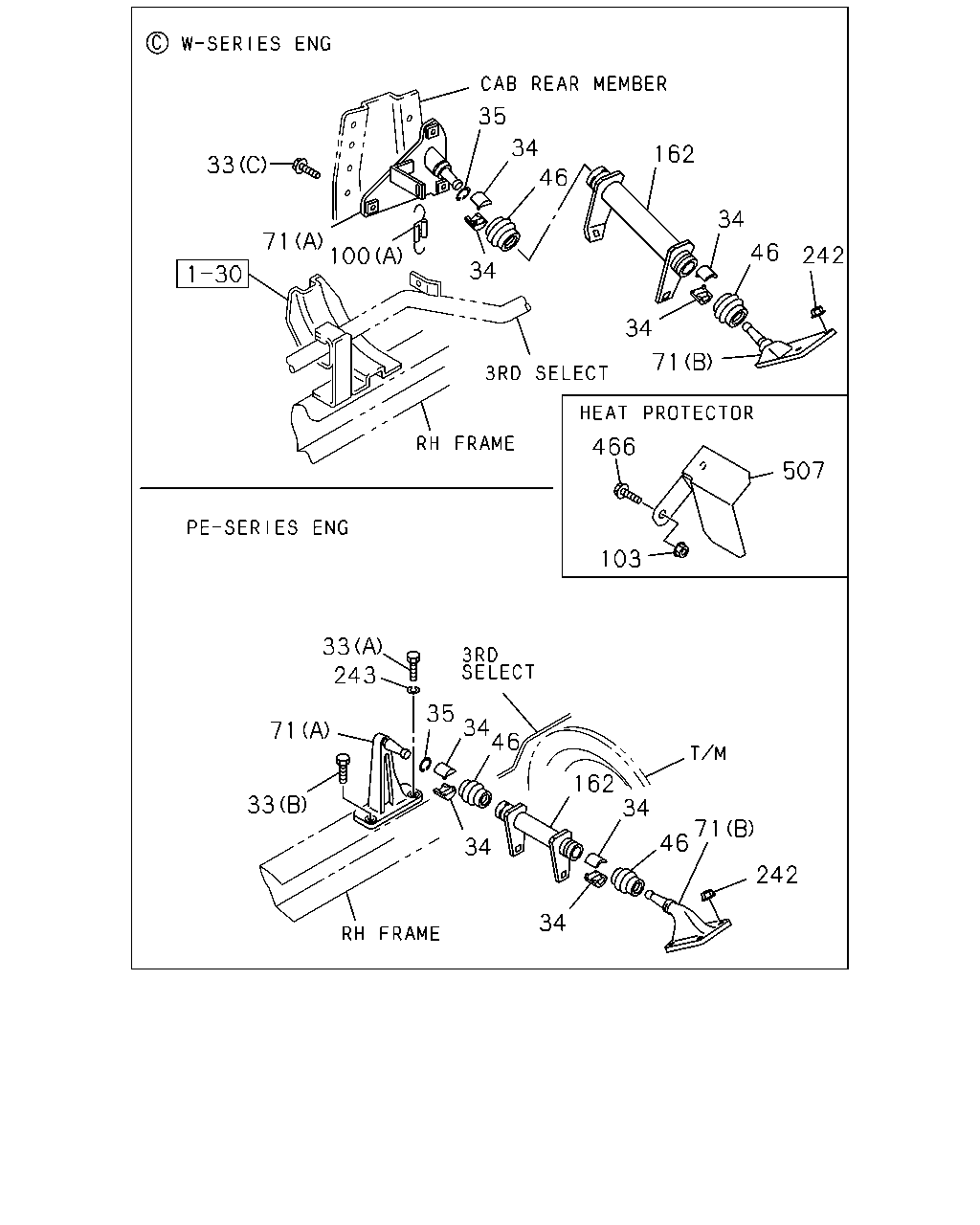

33	BOLT; BRKT,3RD RELAY LEVER W-SERIES ENG<1A2> (C) M10X30 FLANGE	0-28681-030-0	03	1	0105-0512	●	●
33	BOLT; BRKT,3RD RELAY LEVER W-SERIES ENG<1A2> (C) M10X30 FLANGE	0-28651-030-0	03	1	0601-	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) M14X45	0-20801-445-0	01	1	0105-	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) M10X40 W/LK WASHER	0-50041-040-0	01	1	0105-0512	●	●
33	BOLT; BRKT,3RD RELAY LEVER 10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) M10X40 W/LK WASHER	0-50541-040-0	01	1	0601-	●	●
34	SEAT; BALL,RELAY LEVER W-SERIES ENG<1A2>	1-33659-165-0	04	1	0105-	●	●
34	SEAT; BALL,RELAY LEVER PE-SERIES ENG<1A0>	1-33659-118-0	04	1	0105-	●	●
35	RING; SNAP,RELAY LEVER W-SERIES ENG<1A2> OD=34.4	9-09180-132-0	01	1	0105-	●	●
35	RING; SNAP,RELAY LEVER PE-SERIES ENG<1A0> OD=23.5	9-09180-122-0	01	1	0105-	●	●
46	SEAL; DUST,RELAY LEVER W-SERIES ENG<1A2>	1-33659-166-0	02	1	0105-0503	●	●
46	SEAL; DUST,RELAY LEVER W-SERIES ENG<1A2>	1-33659-248-0	02	1	0504-	●	●
46	SEAL; DUST,RELAY LEVER PE-SERIES ENG<1A0>	1-33659-172-0	02	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME CAB UP +110MM<TGG> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (A)	1-33657-657-1	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (A)	1-33657-512-0	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME MIXER TRUCK<RA2> CAB UP +110MM<TGG> W-SERIES ENG<1A2> (A)	1-33657-758-0	01	1	0105-	●
71	BRACKET; 3RD RELAY LEVER,FRAME MIXER TRUCK<RA2> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> (A)	1-33657-812-0	01	1	0105-	●
71	BRACKET; 3RD RELAY LEVER,FRAME W-SERIES ENG<1A2> (B)	1-33657-481-0	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B)	1-33657-188-0	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A)	1-33657-568-0	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (B)	1-33657-478-0	01	1	0105-	●	●
71	BRACKET; 3RD RELAY LEVER,FRAME 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A)	1-33657-569-0	01	1	0105-	●	●
100	SPRING W-SERIES ENG<1A2> (A)	1-09583-319-0	01	1	0105-	●	●
100	SPRING W-SERIES ENG<1A2> (B)	1-09583-351-0	01	1	0105-	●	●
103	NUT CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
103	NUT CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
162	LEVER; RELAY ISUZU M/T<X9A> W-SERIES ENG<1A2>	1-33651-625-1	01	1	0105-	●	●
162	LEVER; RELAY ZF M/T<X9E> W-SERIES ENG<1A2>	1-33651-679-0	01	1	0105-	●	●
162	LEVER; RELAY 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-33651-806-0	01	1	0105-	●	●
162	LEVER; RELAY 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E>	1-33651-678-1	01	1	0105-	●	●
242	NUT; FLANGE 3RD RELAY LEVER PE-SERIES ENG<1A0> M8 FLANGE	5-09440-005-0	04	1	0105-	●	●
242	NUT; FLANGE 3RD RELAY LEVER W-SERIES ENG<1A2> M12 FLANGE	0-91150-212-0	03	1	0105-0602	●	●
242	NUT; FLANGE 3RD RELAY LEVER W-SERIES ENG<1A2> M12 FLANGE	0-91180-212-0	03	1	0603-	●	●
243	WASHER; LK,BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=14.2	9-09150-614-0	01	1	0105-	●	●
466	BOLT; FIX CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●
466	BOLT; FIX CAB UP +110MM<TGG> W-SERIES ENG<1A2> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
507	PROTECTOR; HEAT CAB UP +110MM<TGG> W-SERIES ENG<1A2>	1-14181-315-0	01	1	0105-	●	●
