Sayfa 2-35 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#13549) — 76 parça

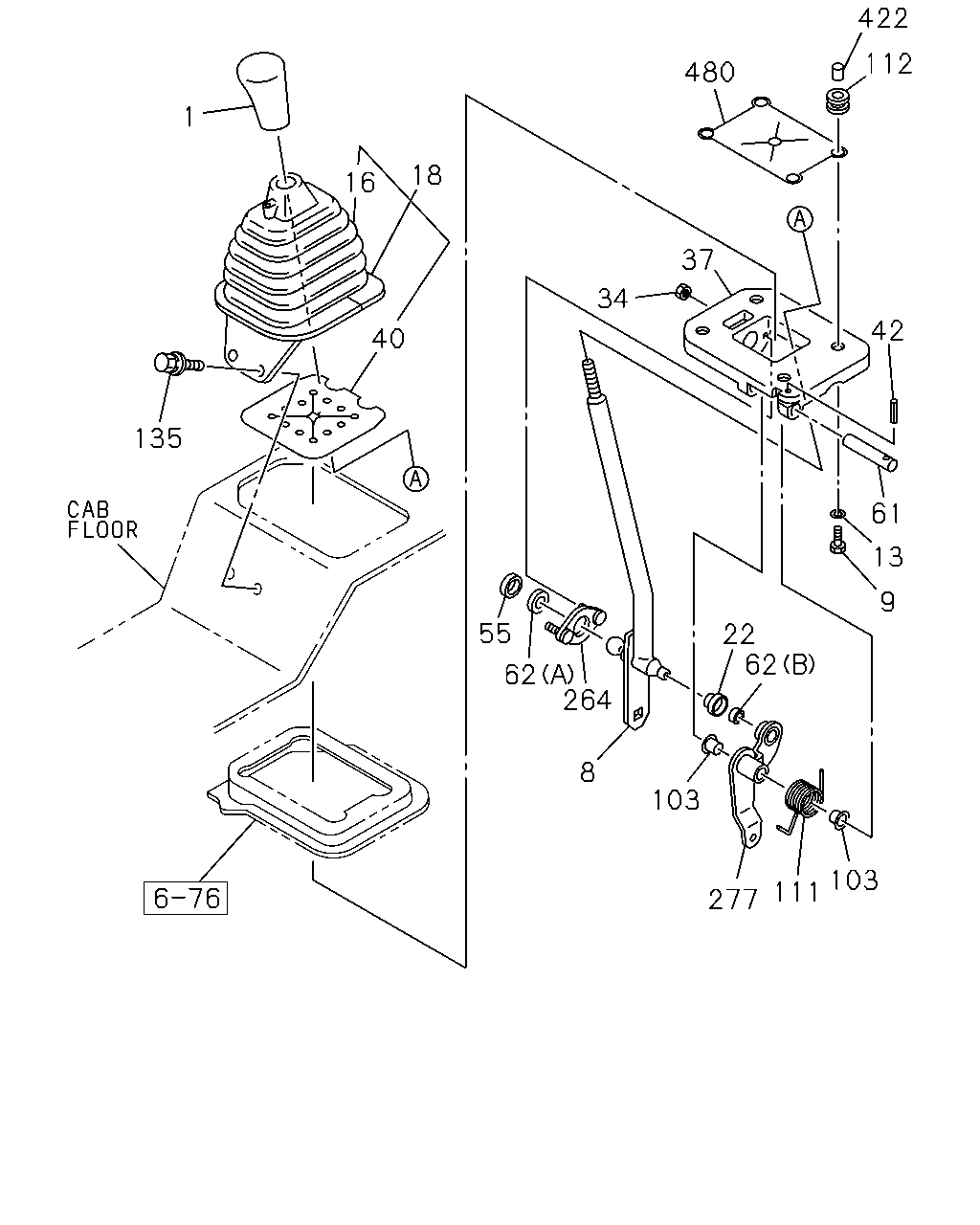

277 111 103 103 62 22 8 264 62 55 9 13 61 42 37 34 112 422 480 18 16 40 135 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER MAL5 M/T<X9F>	1-33611-084-1	01	1	0105-	●
1	KNOB; CHANGE LEVER MAL5 M/T<X9F>,MAP5 M/T<Y9F>	1-33611-084-1	01	1	0105-		●
1	KNOB; CHANGE LEVER MAG6 M/T<X9T>	1-33611-068-1	01	1	0105-	●	●
1	KNOB; CHANGE LEVER MJA6 M/T<X9S>	1-33611-070-1	01	1	0105-	●	●
1	KNOB; CHANGE LEVER MJA7 M/T<X9Q>	1-33611-092-1	01	1	0105-	●	●
1	KNOB; CHANGE LEVER MJD7 M/T<X9J>	1-33611-082-1	01	1	0105-	●	●
1	KNOB; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-33611-038-0	01	1	0105-	●	●
8	LEVER; CHANGE ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>,MAG6 M/T<X9T>,MAP5 M/T<Y9F>	1-33613-344-0	01	1	0105-	●	●
8	LEVER; CHANGE MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>,MAG6 M/T<X9T> EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33613-348-0	01	1	0105-0206	●	●
8	LEVER; CHANGE MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>,MAG6 M/T<X9T> EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33613-348-0	01	1	0207-	●	●
8	LEVER; CHANGE ZF M/T<X9E>	1-33613-345-0	01	1	0105-	●	●
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
13	WASHER; PL,SUPER SHIFT LEVER ID=8.4 OD=22	9-09160-708-0	04	1	0105-	●	●
16	BOOT; CHANGE LEVER ISUZU M/T<X9A>	1-79996-368-0	01	1	0105-	●	●
16	BOOT; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-79996-369-0	01	1	0105-	●	●
18	BOOT; CHANGE LEVER ISUZU M/T<X9A>	1-79996-436-2	01	1	0105-	●	●
18	BOOT; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-79996-401-0	01	1	0105-	●	●
22	COVER; DUST,CHANGE LEVER	1-33619-573-0	01	1	0105-	●	●
34	NUT M6 FLANGE	0-91150-106-0	02	1	0105-0602	●	●
34	NUT M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-467-0	01	1	0105-	●	●
40	SEAL; BOOT HOLDER CHANGE LEVER	1-79996-345-0	01	1	0105-	●	●
42	PIN; SPRING,SELECT LEVER PIN D=5 L=28	8-94252-581-0	01	1	0105-	●	●
55	SEAT; RUBBER,SELECT SPRING	1-33619-429-0	01	1	0105-	●	●
61	PIN; SELECT LEVER	1-33619-470-0	01	1	0105-	●	●
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	0105-	●	●
62	SEAT; BALL,CHANGE LEVER (B)	8-97011-900-0	01	1	0105-	●	●
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	02	1	0105-	●	●
111	SPRING ISUZU M/T<X9A>	1-09585-136-0	01	1	0105-	●	●
112	RUBBER; CUSHION	8-97091-426-0	04	1	0105-	●	●
135	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-	●	●
264	PLATE; COVER	1-33619-469-0	01	1	0105-	●	●
277	LEVER; RELAY	1-33651-636-0	01	1	0105-	●	●
422	BUSHING; CHANGE LEVER	8-97091-427-0	04	1	0105-	●	●
480	RUBBER; COVER	1-33619-554-0	01	1	0105-	●	●

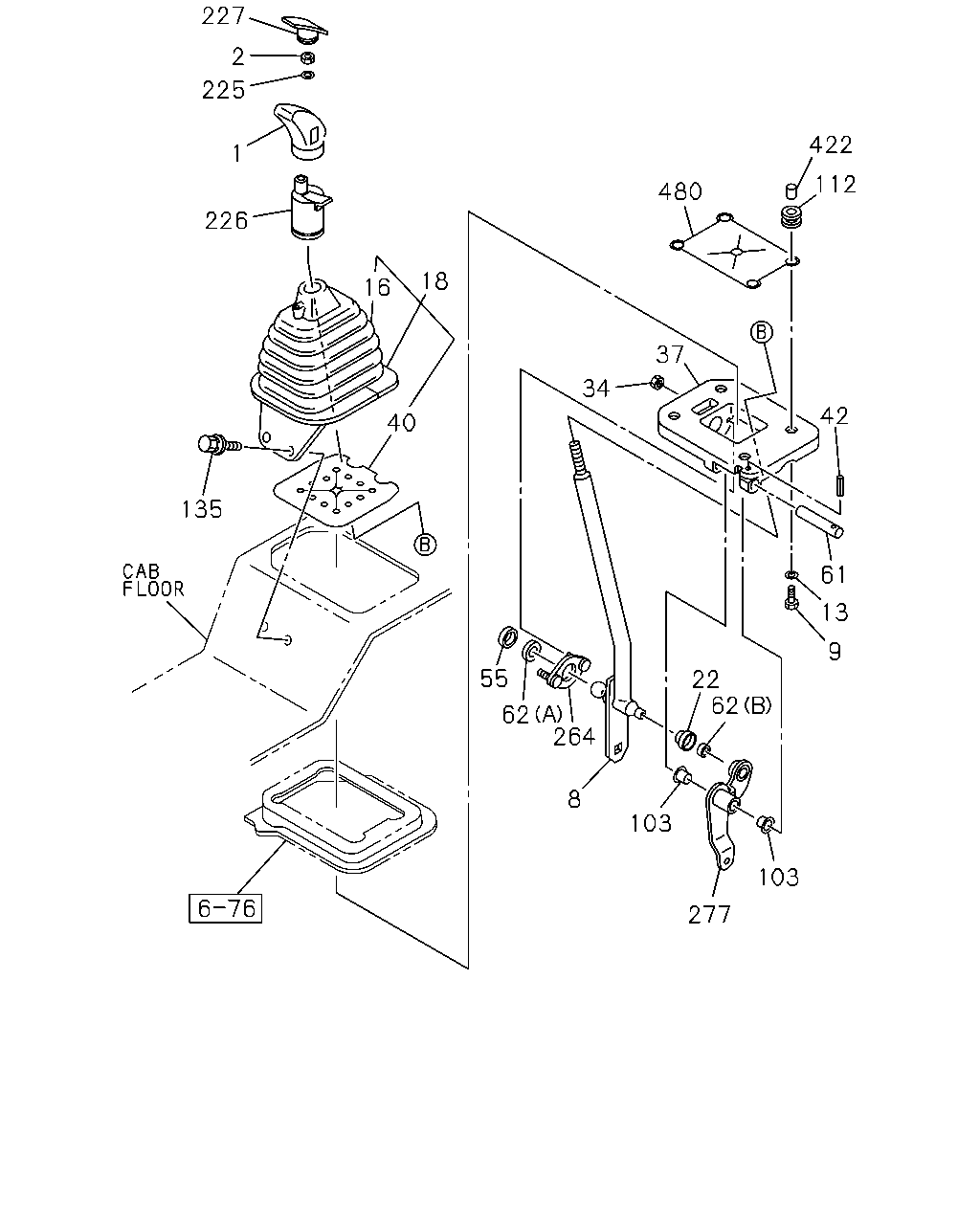

277 103 103 8 264 62 55 22 62 9 13 61 42 37 34 40 18 16 135 226 225 2 227 1 112 422 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER MAL5 M/T<X9F>	1-33611-084-1	01	1	0105-	●
1	KNOB; CHANGE LEVER MAL5 M/T<X9F>,MAP5 M/T<Y9F>	1-33611-084-1	01	1	0105-		●
1	KNOB; CHANGE LEVER MAG6 M/T<X9T>	1-33611-068-1	01	1	0105-	●	●
1	KNOB; CHANGE LEVER MJA6 M/T<X9S>	1-33611-070-1	01	1	0105-	●	●
1	KNOB; CHANGE LEVER MJA7 M/T<X9Q>	1-33611-092-1	01	1	0105-	●	●
1	KNOB; CHANGE LEVER MJD7 M/T<X9J>	1-33611-082-1	01	1	0105-	●	●
1	KNOB; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-33611-038-0	01	1	0105-	●	●
2	NUT; KNOB ZF M/T<X9E> M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●
2	NUT; KNOB ZF M/T<X9E> M10 FLANGE	0-91180-210-0	01	1	0603-	●	●
8	LEVER; CHANGE ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>,MAG6 M/T<X9T>,MAP5 M/T<Y9F>	1-33613-344-0	01	1	0105-	●	●
8	LEVER; CHANGE MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>,MAG6 M/T<X9T> EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33613-348-0	01	1	0105-0206	●	●
8	LEVER; CHANGE MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>,MAG6 M/T<X9T> EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33613-348-0	01	1	0207-	●	●
8	LEVER; CHANGE ZF M/T<X9E>	1-33613-345-0	01	1	0105-	●	●
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28680-825-0	04	1	0105-0512	●	●
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
13	WASHER; PL,SUPER SHIFT LEVER ID=8.4 OD=22	9-09160-708-0	04	1	0105-	●	●
16	BOOT; CHANGE LEVER ISUZU M/T<X9A>	1-79996-368-0	01	1	0105-	●	●
16	BOOT; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-79996-369-0	01	1	0105-	●	●
18	BOOT; CHANGE LEVER ISUZU M/T<X9A>	1-79996-436-2	01	1	0105-	●	●
18	BOOT; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-79996-401-0	01	1	0105-	●	●
22	COVER; DUST,CHANGE LEVER	1-33619-573-0	01	1	0105-	●	●
34	NUT M6 FLANGE	0-91150-106-0	02	1	0105-0602	●	●
34	NUT M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-467-0	01	1	0105-	●	●
40	SEAL; BOOT HOLDER CHANGE LEVER	1-79996-345-0	01	1	0105-	●	●
42	PIN; SPRING,SELECT LEVER PIN D=5 L=28	8-94252-581-0	01	1	0105-	●	●
55	SEAT; RUBBER,SELECT SPRING	1-33619-429-0	01	1	0105-	●	●
61	PIN; SELECT LEVER	1-33619-470-0	01	1	0105-	●	●
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	0105-	●	●
62	SEAT; BALL,CHANGE LEVER (B)	8-97011-900-0	01	1	0105-	●	●
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	02	1	0105-	●	●
112	RUBBER; CUSHION	8-97091-426-0	04	1	0105-	●	●
135	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-	●	●
225	WASHER; PL,KNOB ZF M/T<X9E> ID=10.5 OD=22	9-09160-610-0	01	1	0105-	●	●
226	VALVE; SELECTOR ZF M/T<X9E>	1-33710-008-0	01	1	0105-	●	●
227	COVER; KNOB ZF M/T<X9E>	1-33619-219-0	01	1	0105-	●	●
264	PLATE; COVER	1-33619-469-0	01	1	0105-	●	●
277	LEVER; RELAY	1-33651-636-0	01	1	0105-	●	●
422	BUSHING; CHANGE LEVER	8-97091-427-0	04	1	0105-	●	●
480	RUBBER; COVER	1-33619-554-0	01	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
