◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30A - GEAR SHIFTER AND QUADRANT BOX ▶
2-30A — GEAR SHIFTER AND QUADRANT BOX (#13547) — 1110 parça

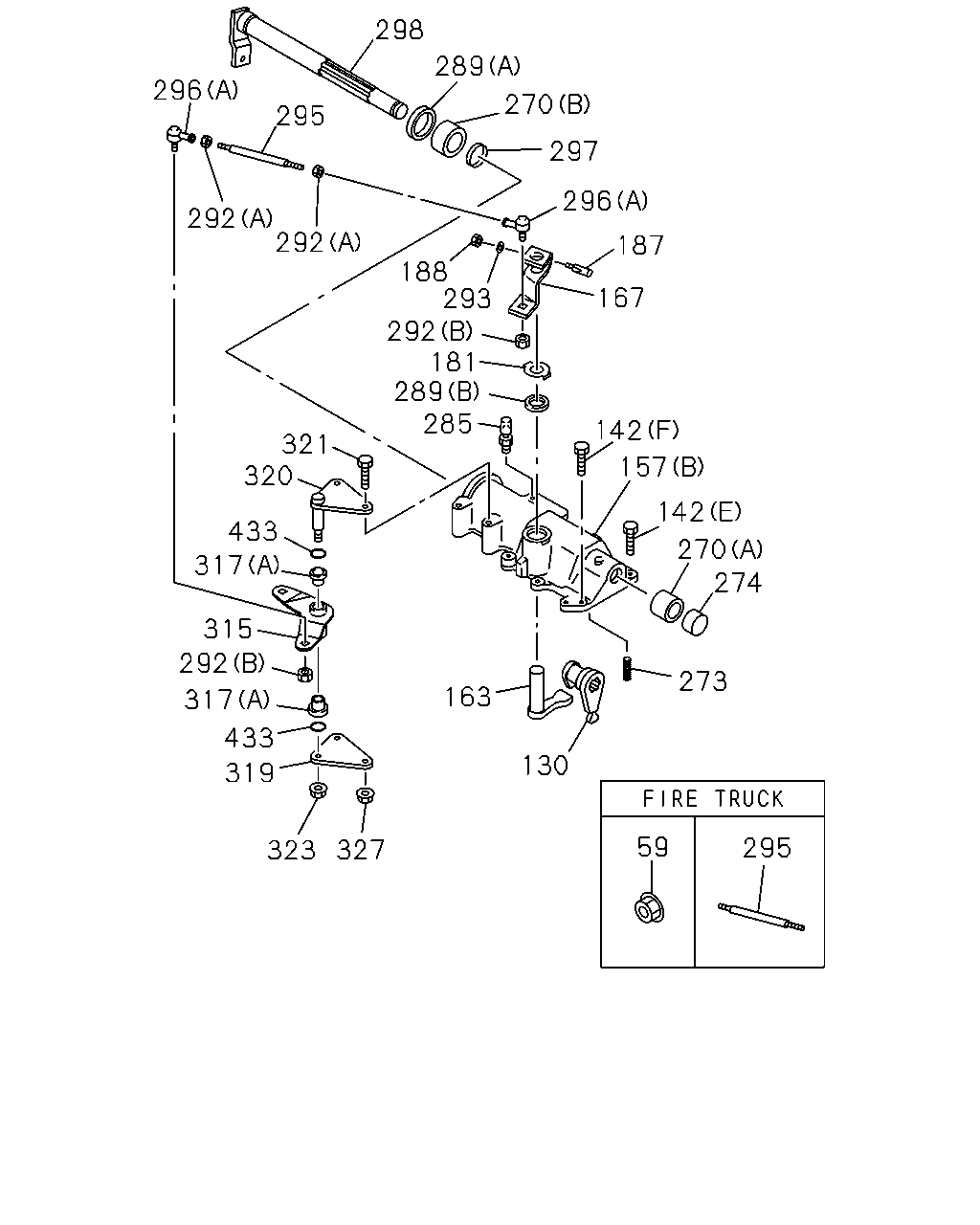

çizim 22206
323 327 319 433 317 292 315 317 433 320 321 285 289 181 292 293 188 130 59 295 273 274 270 142 157 142 167 187 296 297 270 289 298 295 292 292 296 163
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
59 NUT
FIRE TRUCK<RA9> M8 FLANGE 		1-09440-062-1 02 1 0105- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-119-0 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0105- ● ● ● ● ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-103-1 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-125-0 01 1 0105- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0210- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0210- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
FIRE TRUCK<RA9> (B) M10X20,M10X26 L=56 		1-09049-014-1 02 1 0105- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105- ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0210- ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-388-1 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0105- ● ● ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-041-4 01 1 0105- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0105-0109 ● ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0110-0206 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0110-0206 ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0207- ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0105- ● ● ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-138-0 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-163-0 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0105- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0105- ● ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0105- ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0105- ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NTN 		1-09811-006-0 01 1 0105- ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NSK 		1-09811-057-0 01 1 0105- ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) NTN 		1-09811-260-0 01 1 0105- ● ● ● ●
273 PIN; SPR,STOPPER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09748-016-0 01 1 0105- ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0105- ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0105- ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0105- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0105-0307 ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0105- ● ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0105- ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0105-0512 ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ● ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0105- ● ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
FIRE TRUCK<RA9> ASSISTOR SHIFT CONTROL<WX8> 		1-33652-516-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
FIRE TRUCK<RA9> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33652-759-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0105- ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0105- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0105-0507 ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 0508- ●
296 ROD END
(A) 		1-09760-108-0 02 1 0105- ● ● ● ● ● ●
297 STOPPER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33537-020-0 01 1 0105- ●
297 STOPPER; SELECT 1-33537-020-0 01 1 0105- ●
297 STOPPER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33537-012-0 01 1 0105- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-146-0 01 1 0105- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-113-0 01 1 0105-0307 ● ●
298 SHAFT; SHIFT LEVER 1-33522-113-0 01 1 0105-0307 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-179-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER 1-33522-179-0 01 1 0308- ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0105-0109 ● ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0110-0307 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0110-0307 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-180-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 0308- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-150-0 01 1 0105- ● ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0105-0108 ● ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0109- ● ● ● ●
315 LEVER; SELECT 1-33651-960-0 01 1 0105- ●
315 LEVER; SELECT
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-960-0 01 1 0105- ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-756-0 01 1 0105- ● ●
315 LEVER; SELECT 1-33651-754-0 01 1 0105- ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0105- ● ● ● ● ● ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0105-0108 ● ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0109- ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-590-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-752-0 01 1 0105- ● ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0105- ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-630-0 01 1 0105-0108 ● ● ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-630-0 01 1 0109- ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0105-0108 ● ● ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0109- ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0109- ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 0105-0512 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10856-080-0 02 1 0601- ● ● ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0105- ● ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ● ● ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0105- ● ● ● ● ● ●

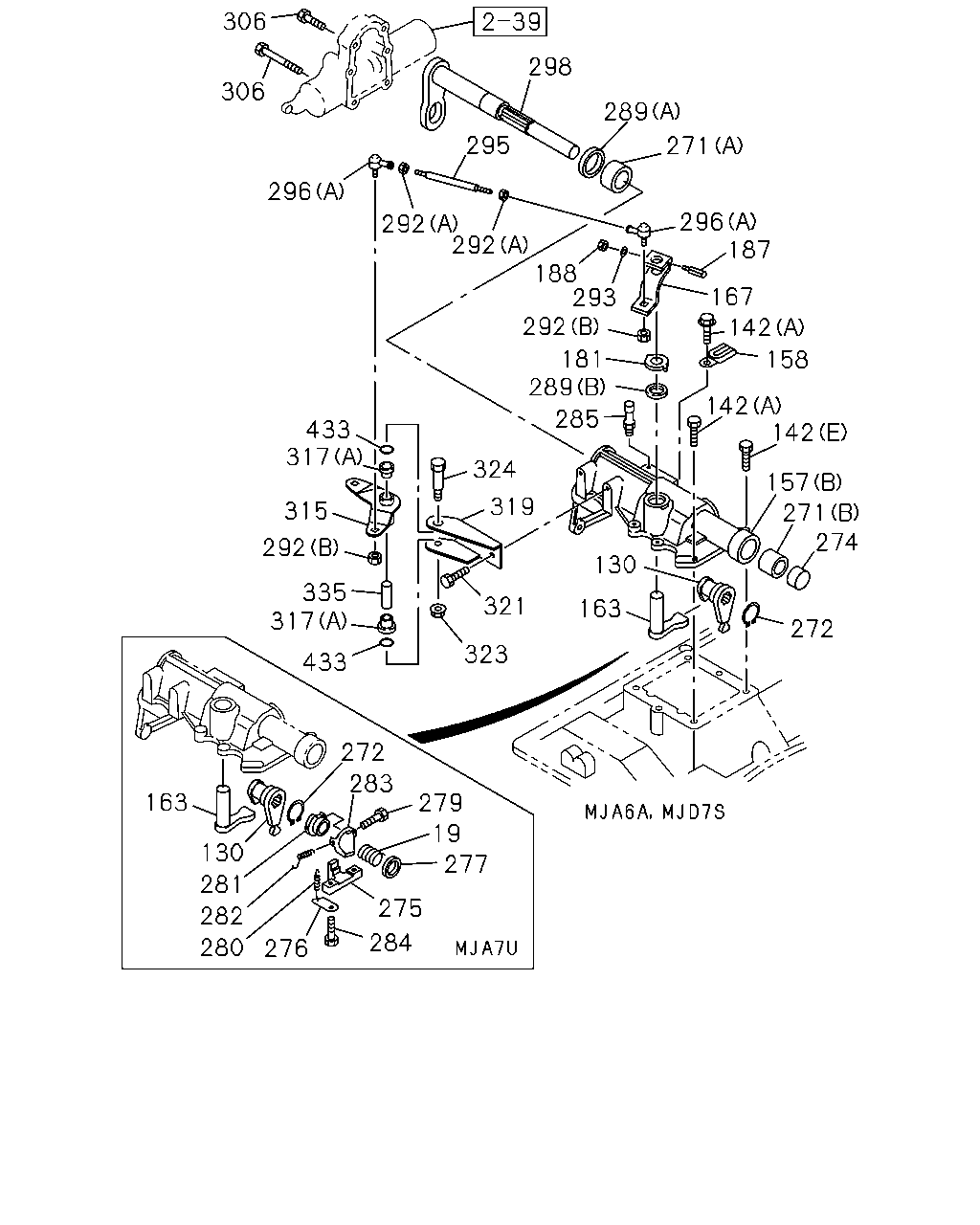

çizim 22267
284 275 277 19 279 283 272 163 130 281 282 280 276 272 274 271 157 142 142 158 142 167 187 296 271 289 298 295 292 293 292 181 289 285 188 292 296 306 306 433 317 315 292 335 317 433 323 321 319 324 130 163
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 SPRING; COIL COMP 1-09580-438-0 01 1 0105- ● ● ●
19 SPRING; COIL COMP 1-09580-519-0 01 1 0105- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-119-0 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0105- ● ● ● ● ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-103-1 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-125-0 01 1 0105- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0210- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0210- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
FIRE TRUCK<RA9> (B) M10X20,M10X26 L=56 		1-09049-014-1 02 1 0105- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105- ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0210- ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-388-1 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0105-0209 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0210- ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0105-0209 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0210- ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0105- ● ● ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-041-4 01 1 0105- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0105-0109 ● ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0110-0206 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0110-0206 ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0207- ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0105- ● ● ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-138-0 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-163-0 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0105- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0105- ● ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0105- ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0105- ● ● ● ● ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23 		1-33549-016-0 01 1 0105-0108 ● ● ● ● ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23 		1-33549-016-0 01 1 0109- ● ● ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0109- ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32 		1-33549-104-0 01 1 0105-0108 ● ● ● ● ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32 		1-33549-104-0 01 1 0109- ● ● ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0109- ● ●
272 RING; SNAP,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 0105-0109 ● ● ● ● ● ●
272 RING; SNAP,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 0110- ● ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0110- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0105- ● ● ● ● ● ●
275 BLOCK; OBSTRUCT,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33529-031-1 01 1 0105- ●
275 BLOCK; OBSTRUCT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33529-027-0 01 1 0105- ●
276 PLATE; SPRING RET 1-33529-010-0 01 1 0105- ●
277 PLATE; SPRING SEAT 1-33529-009-0 01 1 0105- ●
279 BOLT; STOPPER
ASSISTOR SHIFT CONTROL<WX8> M5X8 		0-20800-508-0 01 1 0105- ●
280 SPRING; COIL TENSION
ASSISTOR SHIFT CONTROL<WX8> 		1-09583-285-0 01 1 0105- ●
280 SPRING; COIL TENSION
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09583-255-0 01 1 0105- ●
281 PLATE; OBSTRUCT,QUAD BOX 1-33529-030-1 01 1 0105- ●
282 BOLT; SPRING REAMER 1-33529-024-0 01 1 0105- ●
283 STOPPER; SHIFT SHAFT
ASSISTOR SHIFT CONTROL<WX8> 		1-33529-032-0 01 1 0105- ●
284 BOLT; REAMER,QUAD BOX 1-09040-075-1 02 1 0105- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0105- ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0105- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0105-0307 ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0105- ● ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0105- ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0105-0512 ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ● ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0105- ● ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
FIRE TRUCK<RA9> ASSISTOR SHIFT CONTROL<WX8> 		1-33652-516-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
FIRE TRUCK<RA9> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33652-759-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0105- ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0105- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0105-0507 ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 0508- ●
296 ROD END
(A) 		1-09760-108-0 02 1 0105- ● ● ● ● ● ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-146-0 01 1 0105- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-113-0 01 1 0105-0307 ● ●
298 SHAFT; SHIFT LEVER 1-33522-113-0 01 1 0105-0307 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-179-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER 1-33522-179-0 01 1 0308- ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0105-0109 ● ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0110-0307 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0110-0307 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-180-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 0308- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-150-0 01 1 0105- ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28181-045-0 02 1 0105-0109 ● ● ● ● ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28181-045-0 02 1 0110-0512 ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28181-045-0 02 1 0110-0512 ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28151-045-0 02 1 0601- ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 0601- ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28181-080-0 04 1 0105-0109 ● ● ● ● ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28181-080-0 04 1 0110-0512 ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28181-080-0 04 1 0110-0512 ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28151-080-0 04 1 0601- ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 0601- ● ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0105-0108 ● ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0109- ● ● ● ●
315 LEVER; SELECT 1-33651-960-0 01 1 0105- ●
315 LEVER; SELECT
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-960-0 01 1 0105- ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-756-0 01 1 0105- ● ●
315 LEVER; SELECT 1-33651-754-0 01 1 0105- ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0105- ● ● ● ● ● ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0105-0108 ● ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0109- ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-590-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-752-0 01 1 0105- ● ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0105- ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0105-0108 ● ● ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0109- ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0109- ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 0105-0512 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10856-080-0 02 1 0601- ● ● ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0105- ● ● ● ● ● ●
324 BOLT; SHAFT
ASSISTOR SHIFT CONTROL<WX8> M10X60 FLANGE 		0-28081-060-0 01 1 0105-0108 ● ● ● ● ● ●
324 BOLT; SHAFT
ASSISTOR SHIFT CONTROL<WX8> M10X60 FLANGE 		0-28081-060-0 01 1 0109- ● ● ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0109- ● ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-220-0 01 1 0105-0108 ● ● ● ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-220-0 01 1 0109- ● ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0109- ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0105- ● ● ● ● ● ●

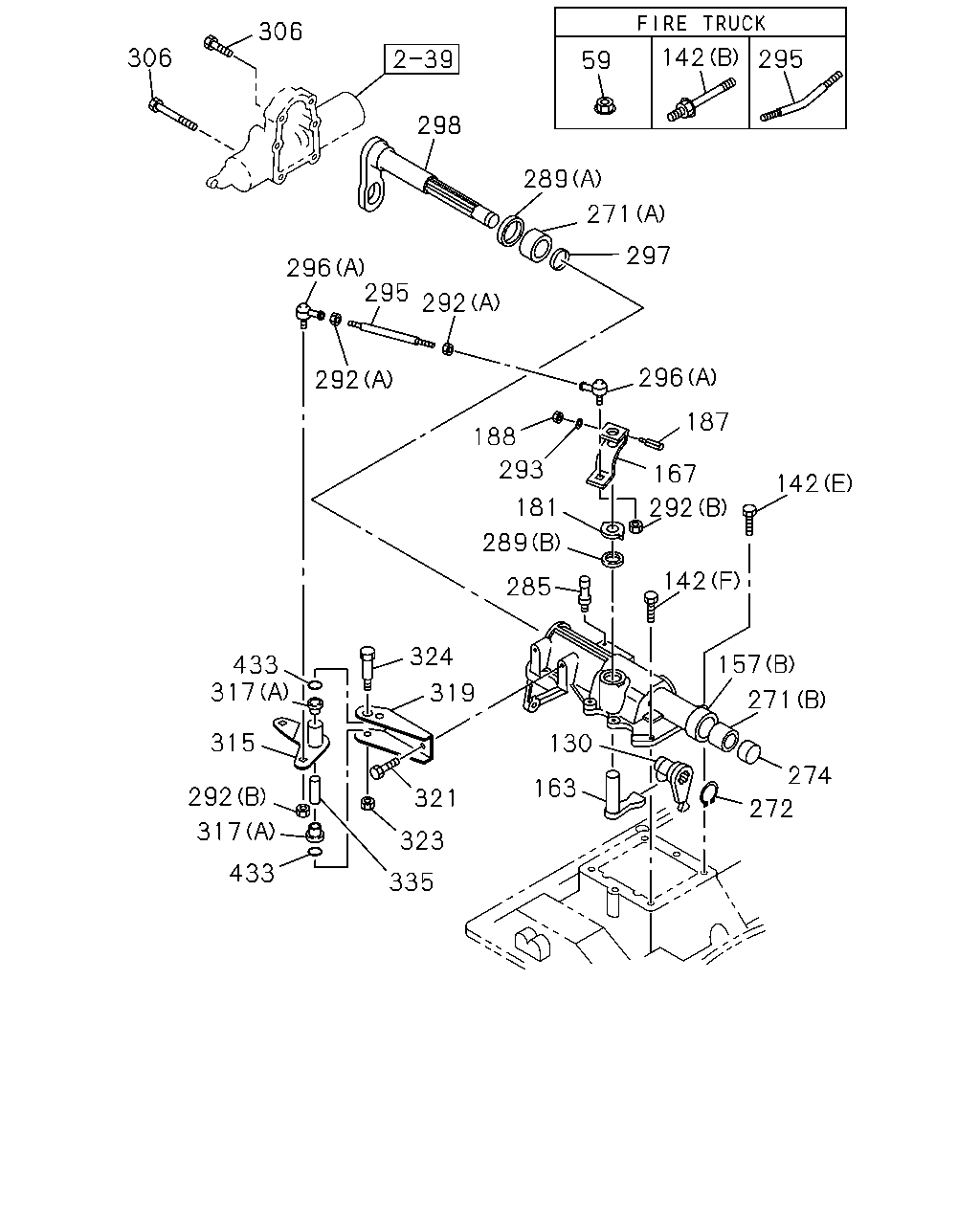

çizim 22269
284 275 277 19 281 276 280 282 130 163 327 323 319 433 317 292 315 317 433 320 321 163 130 273 274 270 142 157 142 158 142 167 187 296 270 289 298 295 296 292 292 188 293 292 181 289 285
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 SPRING; COIL COMP 1-09580-438-0 01 1 0105- ● ● ●
19 SPRING; COIL COMP 1-09580-519-0 01 1 0105- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-119-0 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0105- ● ● ● ● ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-103-1 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-125-0 01 1 0105- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0210- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0210- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
FIRE TRUCK<RA9> (B) M10X20,M10X26 L=56 		1-09049-014-1 02 1 0105- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105- ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0210- ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-388-1 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0105-0209 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0210- ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0105-0209 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0210- ● ● ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0105- ● ● ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-041-4 01 1 0105- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0105-0109 ● ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0110-0206 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0110-0206 ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0207- ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0105- ● ● ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-138-0 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-163-0 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0105- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0105- ● ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0105- ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0105- ● ● ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NTN 		1-09811-006-0 01 1 0105- ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NSK 		1-09811-057-0 01 1 0105- ● ● ● ●
270 BEARING; NEEDLE,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) NTN 		1-09811-260-0 01 1 0105- ● ● ● ●
273 PIN; SPR,STOPPER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09748-016-0 01 1 0105- ● ● ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0105- ● ● ● ● ● ●
275 BLOCK; OBSTRUCT,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-33529-031-1 01 1 0105- ●
275 BLOCK; OBSTRUCT,QUAD BOX
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33529-027-0 01 1 0105- ●
276 PLATE; SPRING RET 1-33529-010-0 01 1 0105- ●
277 PLATE; SPRING SEAT 1-33529-009-0 01 1 0105- ●
280 SPRING; COIL TENSION
ASSISTOR SHIFT CONTROL<WX8> 		1-09583-285-0 01 1 0105- ●
280 SPRING; COIL TENSION
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-09583-255-0 01 1 0105- ●
281 PLATE; OBSTRUCT,QUAD BOX 1-33529-030-1 01 1 0105- ●
282 BOLT; SPRING REAMER 1-33529-024-0 01 1 0105- ●
284 BOLT; REAMER,QUAD BOX 1-09040-075-1 02 1 0105- ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0105- ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0105- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0105-0307 ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0105- ● ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0105- ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0105-0512 ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ● ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0105- ● ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
FIRE TRUCK<RA9> ASSISTOR SHIFT CONTROL<WX8> 		1-33652-516-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
FIRE TRUCK<RA9> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33652-759-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0105- ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0105- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0105-0507 ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 0508- ●
296 ROD END
(A) 		1-09760-108-0 02 1 0105- ● ● ● ● ● ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-146-0 01 1 0105- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-113-0 01 1 0105-0307 ● ●
298 SHAFT; SHIFT LEVER 1-33522-113-0 01 1 0105-0307 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-179-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER 1-33522-179-0 01 1 0308- ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0105-0109 ● ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0110-0307 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0110-0307 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-180-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 0308- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-150-0 01 1 0105- ● ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0105-0108 ● ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0109- ● ● ● ●
315 LEVER; SELECT 1-33651-960-0 01 1 0105- ●
315 LEVER; SELECT
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-960-0 01 1 0105- ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-756-0 01 1 0105- ● ●
315 LEVER; SELECT 1-33651-754-0 01 1 0105- ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0105- ● ● ● ● ● ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0105-0108 ● ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0109- ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-590-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-752-0 01 1 0105- ● ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0105- ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-630-0 01 1 0105-0108 ● ● ●
320 SHAFT; LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-630-0 01 1 0109- ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0105-0108 ● ● ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0109- ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0109- ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 0105-0512 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10856-080-0 02 1 0601- ● ● ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0105- ● ● ● ● ● ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ● ● ●
327 NUT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0105- ● ● ● ● ● ●
çizim 22272
163 272 274 271 157 130 335 323 321 433 317 292 315 317 433 324 319 285 289 181 293 188 296 187 167 292 142 142 297 271 289 292 295 296 292 298 306 306 59 142 295
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
59 NUT
FIRE TRUCK<RA9> M8 FLANGE 		1-09440-062-1 02 1 0105- ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-119-0 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-124-0 01 1 0105- ● ● ● ● ●
130 LEVER; SHIFT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-103-1 01 1 0105- ● ●
130 LEVER; SHIFT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-125-0 01 1 0105- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0210- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0210- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
FIRE TRUCK<RA9> (B) M10X20,M10X26 L=56 		1-09049-014-1 02 1 0105- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105- ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0210- ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-388-1 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
163 LEVER; SELECT,INTERNAL 1-33522-041-4 01 1 0105- ● ● ●
163 LEVER; SELECT,INTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-041-4 01 1 0105- ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0105-0109 ● ● ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0110-0206 ● ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 0110-0206 ●
163 LEVER; SELECT,INTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-162-1 01 1 0207- ● ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-138-0 01 1 0105- ● ● ●
167 LEVER; SELECT,EXTERNAL
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33521-138-0 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL
ASSISTOR SHIFT CONTROL<WX8> 		1-33521-163-0 01 1 0105- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 0105- ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 0105- ● ● ● ● ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0105- ● ● ● ● ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0105- ● ● ● ● ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23 		1-33549-016-0 01 1 0105-0108 ● ● ● ● ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23 		1-33549-016-0 01 1 0109- ● ● ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 0109- ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32 		1-33549-104-0 01 1 0105-0108 ● ● ● ● ● ●
271 BUSHING; QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32 		1-33549-104-0 01 1 0109- ● ● ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 0109- ● ●
272 RING; SNAP,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 0105-0109 ● ● ● ● ● ●
272 RING; SNAP,QUAD BOX
ASSISTOR SHIFT CONTROL<WX8> 		1-09588-175-0 01 1 0110- ● ● ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 0110- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 0105- ● ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 0105- ● ● ● ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0105- ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-334-0 01 1 0105-0307 ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 0308- ● ● ● ● ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 0105- ● ● ● ● ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 0105- ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		9-09111-408-0 02 1 0105-0512 ● ● ● ● ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 0601- ● ● ● ● ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0105- ● ● ● ● ● ●
295 ROD; LINK,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-815-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
FIRE TRUCK<RA9> ASSISTOR SHIFT CONTROL<WX8> 		1-33652-516-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
FIRE TRUCK<RA9> EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33652-759-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> L=130 		1-09765-262-0 01 1 0105- ● ●
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0105- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-817-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		9-08400-817-0 01 1 0105- ●
295 ROD; LINK,RELAY LEVER 1-33652-801-0 01 1 0105-0507 ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 0508- ●
296 ROD END
(A) 		1-09760-108-0 02 1 0105- ● ● ● ● ● ●
297 STOPPER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33537-020-0 01 1 0105- ●
297 STOPPER; SELECT 1-33537-020-0 01 1 0105- ●
297 STOPPER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33537-012-0 01 1 0105- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-146-0 01 1 0105- ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-113-0 01 1 0105-0307 ● ●
298 SHAFT; SHIFT LEVER 1-33522-113-0 01 1 0105-0307 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-179-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER 1-33522-179-0 01 1 0308- ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0105-0109 ● ● ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-161-0 01 1 0110-0307 ● ●
298 SHAFT; SHIFT LEVER 1-33522-161-0 01 1 0110-0307 ●
298 SHAFT; SHIFT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33522-180-0 01 1 0308- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 0308- ●
298 SHAFT; SHIFT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33522-150-0 01 1 0105- ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28181-045-0 02 1 0105-0109 ● ● ● ● ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28181-045-0 02 1 0110-0512 ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28181-045-0 02 1 0110-0512 ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE 		0-28151-045-0 02 1 0601- ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 0601- ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28181-080-0 04 1 0105-0109 ● ● ● ● ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28181-080-0 04 1 0110-0512 ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28181-080-0 04 1 0110-0512 ● ●
306 BOLT; SHIFT ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE 		0-28151-080-0 04 1 0601- ● ● ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 0601- ● ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-777-0 01 1 0105- ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0105-0108 ● ● ●
315 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33651-970-0 01 1 0109- ● ● ● ●
315 LEVER; SELECT 1-33651-960-0 01 1 0105- ●
315 LEVER; SELECT
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33651-960-0 01 1 0105- ●
315 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33651-756-0 01 1 0105- ● ●
315 LEVER; SELECT 1-33651-754-0 01 1 0105- ●
317 BUSHING; LEVER
(A) 		1-09330-119-0 02 1 0105- ● ● ● ● ● ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
10PE1S(60L),10PE1N(61L),10PE1H(68L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-591-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0105-0108 ● ● ●
319 BRACKET; SELECT LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-640-0 01 1 0109- ● ● ● ●
319 BRACKET; SELECT LEVER 1-33657-590-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
6WA1 TC-C(55L) ASSISTOR SHIFT CONTROL<WX8> 		1-33657-590-0 01 1 0105- ●
319 BRACKET; SELECT LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33657-752-0 01 1 0105- ● ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 0105- ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0105-0108 ● ● ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE 		0-28181-022-0 02 1 0109- ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0109- ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10806-080-0 02 1 0105-0512 ● ● ● ●
321 BOLT; BRKT,RELAY LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80 		0-10856-080-0 02 1 0601- ● ● ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 0105- ● ● ● ● ● ●
324 BOLT; SHAFT
ASSISTOR SHIFT CONTROL<WX8> M10X60 FLANGE 		0-28081-060-0 01 1 0105-0108 ● ● ● ● ● ●
324 BOLT; SHAFT
ASSISTOR SHIFT CONTROL<WX8> M10X60 FLANGE 		0-28081-060-0 01 1 0109- ● ● ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0109- ● ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-220-0 01 1 0105-0108 ● ● ● ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM
ASSISTOR SHIFT CONTROL<WX8> 		1-33659-220-0 01 1 0109- ● ● ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0109- ● ●
433 GASKET; BUSHING 1-09623-636-0 02 1 0105- ● ● ● ● ● ●

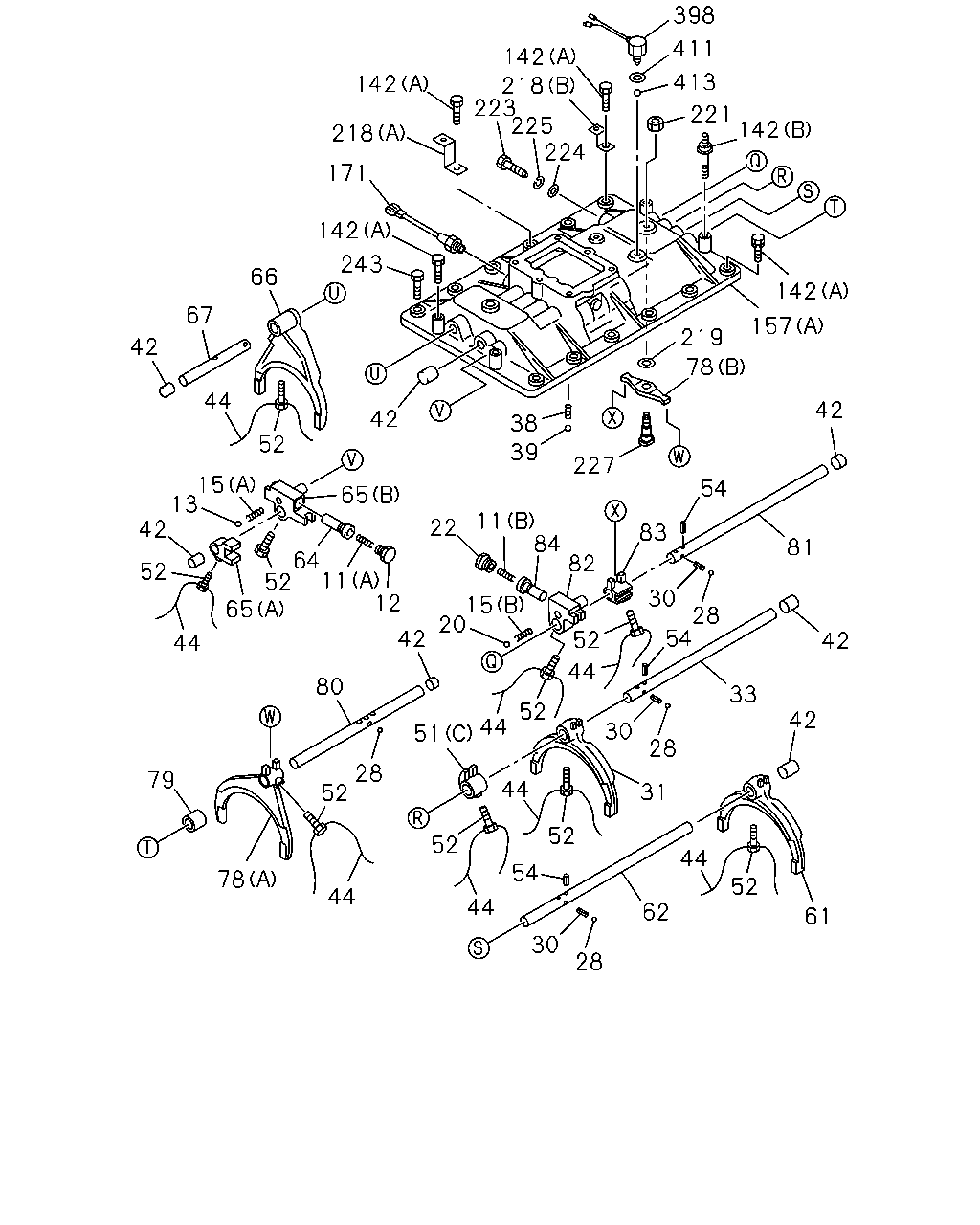

çizim 22377
44 79 78 61 52 62 28 30 44 44 52 28 52 54 52 31 44 42 42 33 28 30 44 52 52 44 51 80 42 20 15 11 12 64 52 65 52 42 13 15 52 42 65 22 11 84 82 83 30 28 54 81 42 54 227 39 38 243 142 66 67 42 44 171 218 142 142 218 223 225 224 221 142 413 411 398 219 78 157 142 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0105-0206 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0207-0209 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0210- ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0105- ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0105- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0105-0206 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0207-0209 ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0210- ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0105-0206 ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0207-0209 ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0210- ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0105- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-436-0 01 1 0105- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0105- ● ● ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0105- ●
28 BALL; INTER LK 9-00097-501-0 03 1 0105- ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0105- ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 02 1 0105- ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0105- ● ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-386-1 01 1 0105- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-291-1 01 1 0105- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-425-1 01 1 0105- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-426-1 01 1 0105- ●
38 SPRING; DETENT 1-09580-379-0 03 1 0105- ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0105- ● ● ● ●
39 BALL; DETENT 1-09843-012-0 03 1 0105- ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0105- ● ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 0105- ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 01 1 0105- ● ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0105- ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0105- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 0105- ●
51 BLOCK; SHIFT,1ST & 2ND
(C) 		1-33511-286-1 01 1 0105- ●
51 BLOCK; SHIFT,1ST & 2ND
(B) 		1-33511-298-4 01 1 0105- ●
51 BLOCK; SHIFT,1ST & 2ND
(A) 		1-33511-605-0 01 1 0105- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 09 1 0105- ● ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0105- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 02 1 0105- ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0105- ● ● ● ●
61 ARM; SHIFT,3RD & 4TH 1-33511-315-1 01 1 0105- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-314-2 01 1 0105- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-428-1 01 1 0105- ● ●
64 SLEEVE; SHIFT BLOCK,5TH TO 6TH 1-33516-022-1 01 1 0105- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-293-2 01 1 0105- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-605-0 01 1 0105- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-286-1 01 1 0105- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-297-1 01 1 0105- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-273-1 01 1 0105- ●
67 ROD; SHIFT,5TH & 6TH 1-33531-430-1 01 1 0105- ●
67 ROD; SHIFT,5TH & 6TH 1-33531-429-1 01 1 0105- ●
78 ARM; SHIFT,REV
(A) 		1-33511-245-1 01 1 0105- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 0105- ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-313-1 01 1 0105- ●
79 STOPPER; REV BLOCK 9-33537-018-0 01 1 0105- ●
80 ROD; SHIFT,REV ARM 1-33531-427-1 01 1 0105- ●
81 ROD; SHIFT,REV BLOCK 1-33531-424-1 01 1 0105- ●
82 BLOCK; SHIFT,REV 1-33511-298-4 01 1 0105- ●
83 BLOCK; SHIFT,REV LEVER 1-33511-038-2 01 1 0105- ●
84 SLEEVE; REV 1-33516-022-1 01 1 0105- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0210- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0210- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
FIRE TRUCK<RA9> (B) M10X20,M10X26 L=56 		1-09049-014-1 02 1 0105- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105- ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0210- ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-388-1 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0105- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0105- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0105- ● ● ● ● ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0105- ● ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0105-0602 ● ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ● ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0105- ● ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 0105- ● ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 0105- ● ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0105- ● ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0105- ●
243 BOLT; COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M6X10 FLANGE 		0-28080-610-0 01 1 0105-0512 ● ●
243 BOLT; COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M6X10 FLANGE 		0-28050-610-0 01 1 0601- ● ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0105- ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0105-0602 ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0105- ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 0105- ● ● ●
çizim 22379
12 11 44 52 75 42 61 76 75 28 15 13 52 44 14 66 28 30 52 44 67 54 65 42 44 52 30 28 62 44 52 42 227 78 54 28 31 30 44 52 51 44 52 52 44 20 15 55 11 22 51 54 33 39 38 42 42 87 88 44 52 6 243 42 219 78 173 157 142 142 221 413 411 398 142 218 223 225 224 142 218 171 77
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 LEVER; RELAY 9-33511-402-1 01 1 0105- ●
6 LEVER; RELAY 1-33511-233-1 01 1 0105- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0105-0206 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0207-0209 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0210- ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0105- ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0105- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0105-0206 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0207-0209 ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0210- ● ● ● ●
14 STOPPER; SHIFT ROD,7TH TO RR 1-33537-019-0 01 1 0105- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0105-0206 ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0207-0209 ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0210- ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0105- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-436-0 01 1 0105- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0105- ● ● ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0105- ●
28 BALL; INTER LK 9-00097-501-0 03 1 0105- ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0105- ● ● ● ●
30 PIN; INTER LK 9-33534-003-0 02 1 0105- ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0105- ● ● ● ●
31 ARM; SHIFT,LOW & 2ND 1-33511-386-1 01 1 0105- ●
31 ARM; SHIFT,LOW & 2ND 1-33511-291-1 01 1 0105- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-425-1 01 1 0105- ●
33 ROD; SHIFT,LOW & 2ND 1-33531-426-1 01 1 0105- ●
38 SPRING; DETENT 1-09580-379-0 03 1 0105- ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0105- ● ● ● ●
39 BALL; DETENT 1-09843-012-0 03 1 0105- ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0105- ● ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 0105- ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 01 1 0105- ● ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0105- ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0105- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 0105- ●
51 BLOCK; SHIFT,1ST & 2ND
(C) 		1-33511-286-1 01 1 0105- ●
51 BLOCK; SHIFT,1ST & 2ND
(B) 		1-33511-298-4 01 1 0105- ●
51 BLOCK; SHIFT,1ST & 2ND
(A) 		1-33511-605-0 01 1 0105- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 09 1 0105- ● ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0105- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 02 1 0105- ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0105- ● ● ● ●
55 SLEEVE; 1ST & 2ND 1-33516-022-1 01 1 0105- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-315-1 01 1 0105- ●
61 ARM; SHIFT,3RD & 4TH 1-33511-314-2 01 1 0105- ●
62 ROD; SHIFT,3RD & 4TH 1-33531-428-1 01 1 0105- ● ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(B) 		1-33511-293-2 01 1 0105- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(A) 		1-33511-605-0 01 1 0105- ●
65 BLOCK ASM; SHIFT,5TH & 6TH
(C) 		1-33511-286-1 01 1 0105- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-297-1 01 1 0105- ●
66 ARM; SHIFT,5TH & 6TH 1-33511-273-1 01 1 0105- ●
67 ROD; SHIFT,5TH & 6TH 1-33531-430-1 01 1 0105- ●
67 ROD; SHIFT,5TH & 6TH 1-33531-429-1 01 1 0105- ●
75 BLOCK ASM; SHIFT,REV & 7TH
(A) 		1-33511-236-1 01 1 0105- ●
75 BLOCK ASM; SHIFT,REV & 7TH
(B) 		1-33511-300-4 01 1 0105- ●
76 ROD; SHIFT,REV & 7TH BLOCK 1-33531-432-1 01 1 0105- ●
77 SLEEVE; REV & 7TH 1-33516-022-1 01 1 0105- ●
78 ARM; SHIFT,REV
(A) 		1-33511-245-1 01 1 0105- ●
78 ARM; SHIFT,REV
(B) 		1-33511-082-0 01 1 0105- ● ●
78 ARM; SHIFT,REV
(A) 		1-33511-313-1 01 1 0105- ●
87 ARM; SHIFT,7TH 1-33511-275-1 01 1 0105- ●
88 ROD; SHIFT,REV & 7TH ARM 1-33531-433-1 01 1 0105- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0210- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0210- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
FIRE TRUCK<RA9> (B) M10X20,M10X26 L=56 		1-09049-014-1 02 1 0105- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105- ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0210- ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-388-1 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0105- ● ● ● ● ● ●
173 SCREW; SET,7TH TO REV 1-09000-446-1 01 1 0105- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0105- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0105- ● ● ● ● ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0105- ● ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0105-0602 ● ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ● ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0105- ● ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 0105- ● ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 0105- ● ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0105- ● ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0105- ●
243 BOLT; COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M6X10 FLANGE 		0-28080-610-0 01 1 0105-0512 ● ●
243 BOLT; COVER
EXC. ASSISTOR SHIFT CONTROL<WX8> M6X10 FLANGE 		0-28050-610-0 01 1 0601- ● ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0105- ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0105-0602 ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0105- ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 0105- ● ● ●
çizim 22665
16 53 35 36 34 53 16 2 16 53 227 219 1 232 231 231 44 232 230 229 228 229 39 38 133 217 142 157 162 142 398 158 221 218 223 225 142 142 218 142 142 171 224 17 2 162 162 162 162 25 53 1 49 16 26 30 53 28 16 29 28 54 53 16 17 30 16 53 20 19 28 54 18 21 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 0105- ● ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 0105- ● ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-082-0 01 1 0105- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-175-1 01 1 0105- ●
1 ARM; SHIFT,1ST & REV 1-33511-520-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-415-1 01 1 0105- ● ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-400-1 01 1 0105- ● ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-408-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-418-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-423-1 01 1 0105- ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 07 1 0105- ● ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 08 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-371-2 01 1 0105- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 0105- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-038-2 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-603-0 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-605-0 01 1 0105- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-034-1 01 1 0105- ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0105- ● ●
19 SPRING; COIL COMP 1-09580-438-0 01 1 0105- ● ● ●
19 SPRING; COIL COMP 1-09580-519-0 01 1 0105- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0105- ● ● ● ● ● ●
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 0105- ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0105- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 0105- ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-184-1 01 1 0105- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 0105- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 0105- ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-410-1 01 1 0105- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-419-1 01 1 0105- ●
28 BALL; INTER LK 9-00097-501-0 03 1 0105- ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0105- ● ● ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-364-1 01 1 0105- ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0105-0309 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0310- ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-286-1 01 1 0105-0309 ●
30 PIN; INTER LK 9-33534-003-0 02 1 0105- ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0105- ● ● ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-403-1 01 1 0105- ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-412-1 01 1 0105- ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-404-1 01 1 0105- ● ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-420-1 01 1 0105- ●
36 BLOCK; SHIFT,4TH & 5TH 1-33511-367-1 01 1 0105- ● ●
38 SPRING; DETENT 1-09580-379-0 03 1 0105- ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0105- ● ● ● ●
39 BALL; DETENT 1-09843-012-0 03 1 0105- ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0105- ● ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 01 1 0105- ● ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0105- ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0105- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 0105- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-465-0 01 1 0105- ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-369-1 01 1 0105- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 0105- ●
53 WIRE; BOLT
L=180 		1-09780-024-0 05 1 0105- ● ●
53 WIRE; BOLT
L=200 		9-08351-020-0 02 1 0105- ● ● ●
53 WIRE; BOLT
L=180 		1-09780-024-0 06 1 0105- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 02 1 0105- ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0105- ● ● ● ●
133 SEAT; SPR 1-33549-072-0 03 1 0105- ● ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0210- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0210- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
FIRE TRUCK<RA9> (B) M10X20,M10X26 L=56 		1-09049-014-1 02 1 0105- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105- ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0210- ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-388-1 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0105-0209 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0210- ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0105-0209 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0210- ● ● ●
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 0105- ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0105- ● ● ● ● ● ●
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 0105- ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0105- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0105- ● ● ● ● ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0105- ● ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0105-0602 ● ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ● ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0105- ● ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 0105- ● ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 0105- ● ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0105- ● ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0105- ●
228 PINION; 4TH & 5TH SHIFT 1-33539-019-0 01 1 0105- ● ●
229 BEARING; NEEDLE,PINION 1-09811-202-0 02 1 0105- ● ●
230 COVER; BRG,PINION 1-33539-018-0 01 1 0105- ● ●
231 BOLT; BRG COVER,PINION
M8X20 		1-09050-005-1 02 1 0105- ● ●
232 WASHER; LK,BRG COVER
ID=8.2 		9-09150-508-0 02 1 0105- ● ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0105- ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0105-0602 ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ● ● ●
çizim 22666
521 440 4 50 16 53 53 16 1 12 10 7 6 53 16 3 5 13 15 28 30 16 53 2 4 9 11 227 219 1 217 38 39 162 162 162 17 162 224 171 142 225 223 218 28 54 34 49 16 53 25 53 26 30 53 16 29 28 54 53 17 16 20 19 28 54 18 21 22 2 142 157 162 142 398 158 221 142 218 142 142 30 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 0105- ● ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 0105- ● ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-082-0 01 1 0105- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-175-1 01 1 0105- ●
1 ARM; SHIFT,1ST & REV 1-33511-520-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-415-1 01 1 0105- ● ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-400-1 01 1 0105- ● ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-408-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-418-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-423-1 01 1 0105- ●
3 STOPPER; 6TH SHIFT ROD 9-33537-018-0 01 1 0105- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-405-1 01 1 0105- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-414-1 01 1 0105- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-421-1 01 1 0105- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-422-1 01 1 0105- ●
5 BLOCK; SHIFT,6TH 1-33511-372-2 01 1 0105- ●
6 LEVER; RELAY 9-33511-402-1 01 1 0105- ●
6 LEVER; RELAY 1-33511-233-1 01 1 0105- ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0105- ● ●
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-022-1 01 1 0105- ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 0105- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0105-0206 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0207-0209 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0210- ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0105- ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0105- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0105-0206 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0207-0209 ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0210- ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0105-0206 ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0207-0209 ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0210- ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0105- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-436-0 01 1 0105- ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 07 1 0105- ● ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 08 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-371-2 01 1 0105- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 0105- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-038-2 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-603-0 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-605-0 01 1 0105- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-034-1 01 1 0105- ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0105- ● ●
19 SPRING; COIL COMP 1-09580-438-0 01 1 0105- ● ● ●
19 SPRING; COIL COMP 1-09580-519-0 01 1 0105- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0105- ● ● ● ● ● ●
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 0105- ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0105- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 0105- ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-184-1 01 1 0105- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 0105- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 0105- ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-410-1 01 1 0105- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-419-1 01 1 0105- ●
28 BALL; INTER LK 9-00097-501-0 03 1 0105- ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0105- ● ● ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-364-1 01 1 0105- ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0105-0309 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0310- ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-286-1 01 1 0105-0309 ●
30 PIN; INTER LK 9-33534-003-0 02 1 0105- ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0105- ● ● ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-403-1 01 1 0105- ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-412-1 01 1 0105- ●
38 SPRING; DETENT 1-09580-379-0 03 1 0105- ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0105- ● ● ● ●
39 BALL; DETENT 1-09843-012-0 03 1 0105- ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0105- ● ● ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-465-0 01 1 0105- ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-369-1 01 1 0105- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 0105- ●
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 0105- ●
50 ARM; SHIFT,6TH 1-33511-437-0 01 1 0105- ●
53 WIRE; BOLT
L=180 		1-09780-024-0 05 1 0105- ● ●
53 WIRE; BOLT
L=200 		9-08351-020-0 02 1 0105- ● ● ●
53 WIRE; BOLT
L=180 		1-09780-024-0 06 1 0105- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 02 1 0105- ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0105- ● ● ● ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0210- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0210- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
FIRE TRUCK<RA9> (B) M10X20,M10X26 L=56 		1-09049-014-1 02 1 0105- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105- ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0210- ● ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-388-1 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0105-0209 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0210- ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0105-0209 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0210- ● ● ●
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 0105- ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0105- ● ● ● ● ● ●
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 0105- ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0105- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0105- ● ● ● ● ● ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 0105- ● ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91150-212-0 01 1 0105-0602 ● ● ● ● ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 0603- ● ● ● ● ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 0105- ● ● ● ● ●
224 WASHER; PL,QUAD BOX
ID=15 		9-09160-514-0 01 1 0105- ● ● ● ● ●
225 WASHER; LK,QUAD BOX
ID=14.2 		9-09150-514-0 01 1 0105- ● ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0105- ● ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0105- ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0105- ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0105-0602 ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ● ● ●
440 PLUG; OIL
PT1/4 		9-99204-513-0 01 1 0105- ●
521 SPINDLE; 6TH 1-33119-255-0 01 1 0105- ●
çizim 24175
44 44 52 52 517 44 52 49 50 44 52 4 54 28 13 15 518 520 11 12 28 30 44 52 4 514 44 52 1 2 44 52 44 52 28 30 26 54 17 44 52 20 15 11 22 18 54 2 28 30 29 52 25 44 17 516 70 515 42 157 142 218 218 142 142 142 158 398 411 413 42 142 38 39 342 227 152 7 171 71 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 0105- ● ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-541-0 01 1 0105- ● ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-082-0 01 1 0105- ●
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-175-1 01 1 0105- ●
1 ARM; SHIFT,1ST & REV 1-33511-520-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-415-1 01 1 0105- ● ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-400-1 01 1 0105- ● ● ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-408-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-418-1 01 1 0105- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-423-1 01 1 0105- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-405-1 01 1 0105- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-414-1 01 1 0105- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-421-1 01 1 0105- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-422-1 01 1 0105- ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0105- ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0105-0206 ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0207-0209 ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 0210- ● ● ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 0105- ● ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0105- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0105-0206 ● ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0207-0209 ● ● ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 0210- ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0105-0206 ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0207-0209 ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 0210- ● ● ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-438-0 01 1 0105- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-436-0 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-371-2 01 1 0105- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-540-0 01 1 0105- ● ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-038-2 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-298-4 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-603-0 01 1 0105- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-605-0 01 1 0105- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-034-1 01 1 0105- ● ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 0105- ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 0105- ● ● ● ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 0105- ● ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-027-1 01 1 0105- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 0105- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 0105- ● ●
25 ARM; SHIFT,2ND & 3RD 1-33511-184-1 01 1 0105- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 0105- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 0105- ● ●
26 ROD; SHIFT,2ND & 3RD 1-33531-410-1 01 1 0105- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-419-1 01 1 0105- ●
28 BALL; INTER LK 9-00097-501-0 03 1 0105- ● ●
28 BALL; INTER LK 9-00097-501-0 04 1 0105- ● ● ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-364-1 01 1 0105- ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0105-0309 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 0310- ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-286-1 01 1 0105-0309 ●
30 PIN; INTER LK 9-33534-003-0 02 1 0105- ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 0105- ● ● ● ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-404-1 01 1 0105- ● ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-420-1 01 1 0105- ●
38 SPRING; DETENT 1-09580-379-0 03 1 0105- ● ●
38 SPRING; DETENT 1-09580-379-0 04 1 0105- ● ● ● ●
39 BALL; DETENT 1-09843-012-0 03 1 0105- ● ●
39 BALL; DETENT 1-09843-012-0 04 1 0105- ● ● ● ●
42 CAP; QUAD BOX
OD=24 L=31 		9-33545-011-1 07 1 0105- ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 01 1 0105- ● ●
44 WIRE; LK
L=180 		1-09780-024-0 07 1 0105- ● ● ●
44 WIRE; LK
L=200 		9-08351-020-0 03 1 0105- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 0105- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-465-0 01 1 0105- ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-369-1 01 1 0105- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 0105- ●
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 0105- ●
50 ARM; SHIFT,6TH 1-33511-437-0 01 1 0105- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 09 1 0105- ● ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 10 1 0105- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 02 1 0105- ● ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 0105- ● ● ● ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 0105- ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91150-212-0 01 1 0105-0602 ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 0603- ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0210- ● ● ●
142 BOLT; QUAD BOX
(C) M10X20,M10X45 L=75 		1-09049-015-0 01 1 0105- ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0210- ● ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-94399-863-1 02 1 0105- ● ● ● ● ● ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 04 1 0105- ●
142 BOLT; QUAD BOX
FIRE TRUCK<RA9> (B) M10X20,M10X26 L=56 		1-09049-014-1 02 1 0105- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0105- ● ● ● ● ●
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 12 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(F) M10X28 FLANGE 		0-28181-028-0 11 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 04 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X26 L=56 		1-09049-014-1 03 1 0210- ● ● ●
142 BOLT; QUAD BOX
(B) M10X20,M10X55 L=85 		1-09049-016-0 02 1 0105-0209 ● ● ●
142 BOLT; QUAD BOX
(D) M10X20,M10X55 L=85 		1-09049-016-0 01 1 0210- ● ● ●
152 LEVER; RELAY,SELECT 1-33511-428-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-274-4 01 1 0105- ● ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-256-2 01 1 0105- ● ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-507-3 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-507-3 01 1 0105- ●
157 BOX; QUAD,TRANS
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-388-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-388-1 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-415-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-404-0 01 1 0105- ●
157 BOX; QUAD,TRANS
EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		1-33541-393-1 01 1 0105- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-466-0 01 1 0105- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-399-0 01 1 0105- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0105-0209 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0210- ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 02 1 0105-0209 ● ● ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 0210- ● ● ●
171 SWITCH; NEUTRAL 1-82440-101-1 01 1 0105- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 0105- ● ● ● ● ● ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 0105- ● ● ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 0105- ● ● ● ● ●
227 SPINDLE; 1ST & REV 1-33519-008-1 01 1 0105- ●
342 BOLT
M14X20 		1-09044-078-0 02 1 0105- ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 0105- ● ● ●
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0105-0602 ● ● ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603- ● ● ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0105- ● ● ●
413 BALL; BACK SW 9-00097-013-0 01 1 0105- ● ● ●
514 BLOCK; 6-7 SETTING 1-33511-605-0 01 1 0105- ●
515 LEVER; SHIFT,6TH & 7TH 1-33511-082-0 01 1 0105- ●
516 SPINDLE; 6TH & 7TH 1-33519-012-0 01 1 0105- ●
517 BLOCK; SHIFT,6TH & 7TH 1-33511-395-1 01 1 0105- ●
518 BLOCK ASM; SHIFT,6TH & 7TH 1-33511-293-2 01 1 0105- ●
520 SLEEVE; 6TH & 7TH 1-33516-022-1 01 1 0105- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
