2-26B — MANUAL TRANSMISSION GEAR (#13546) — 288 parça

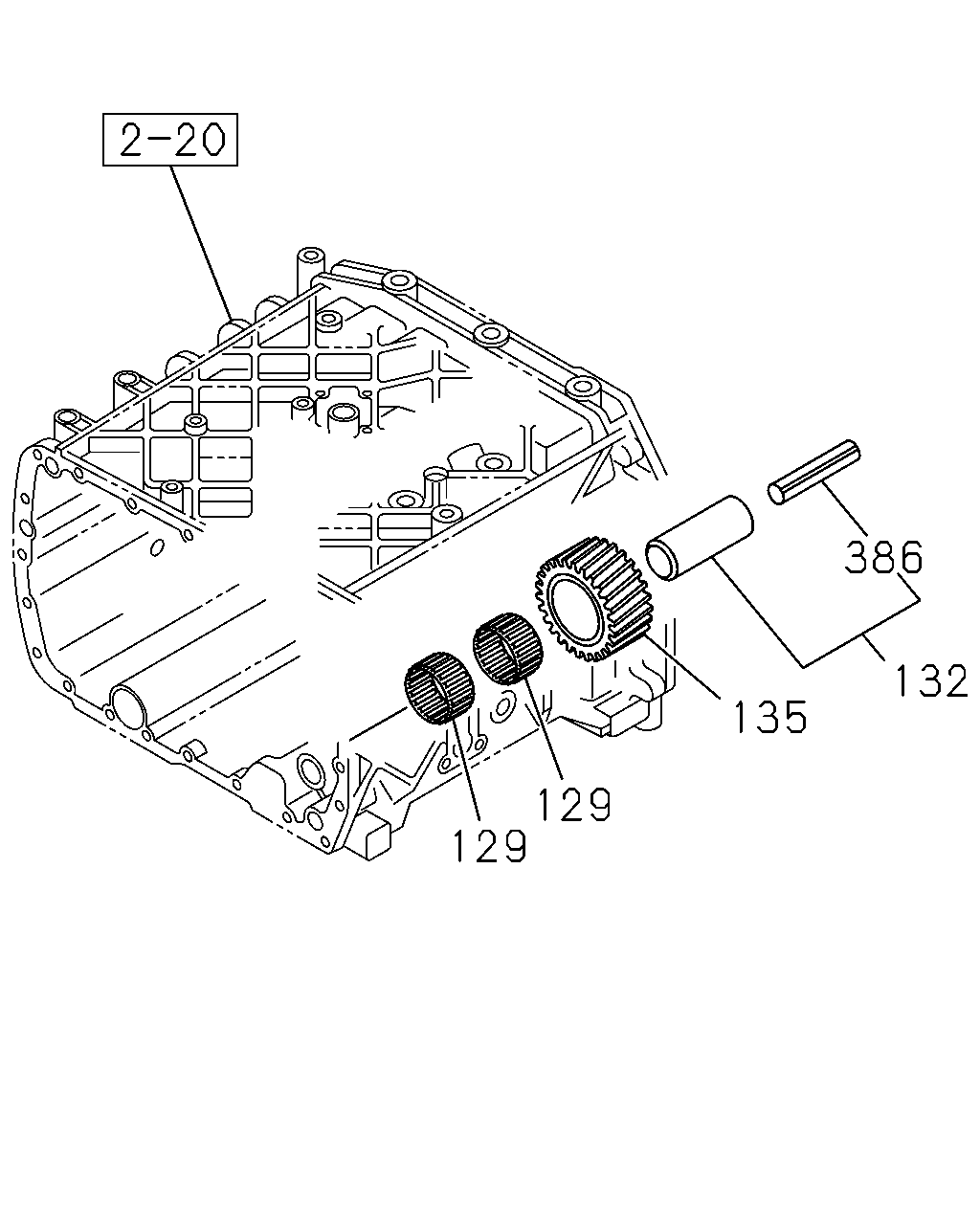

çizim 22207
129 129 135 132 386
BalonParca AdiParca NoAdetTipApplied Date A B
129 BEARING; NEEDLE,IDLER 1-33369-020-0 02 1 0105- ●
129 BEARING; NEEDLE,IDLER 1-33369-019-0 02 1 0105- ●
132 SHAFT; REV 1-33351-032-0 01 1 0105- ●
132 SHAFT; REV 1-33351-034-0 01 1 0105- ●
135 GEAR; REV IDLER 1-33361-082-0 01 1 0105- ●
135 GEAR; REV IDLER 1-33361-083-0 01 1 0105- ●
386 PIN; REV SHAFT 1-33359-012-0 01 1 0105- ●
386 PIN; REV SHAFT 1-33359-013-0 01 1 0105- ●

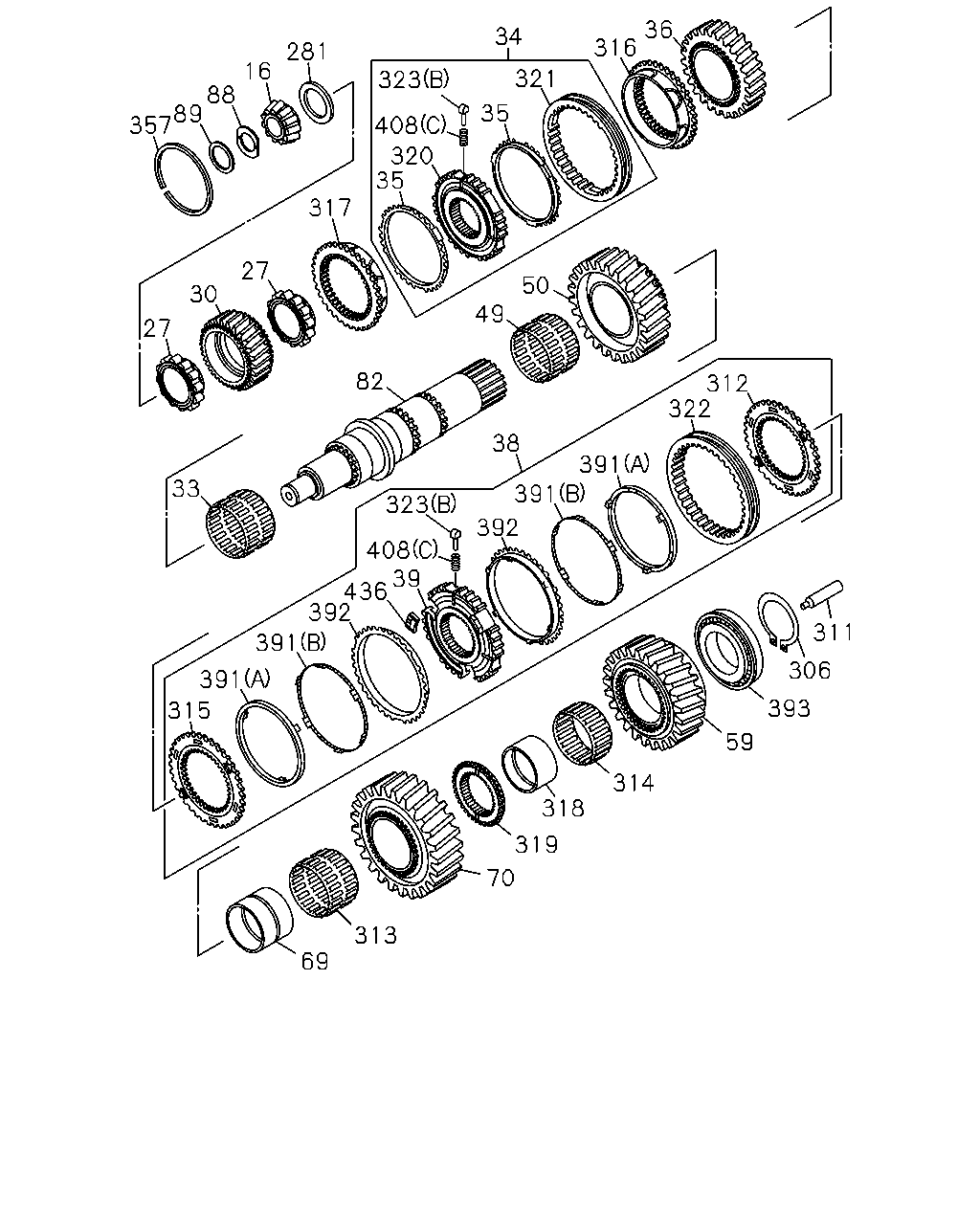

çizim 22209
70 318 314 59 393 306 311 312 319 313 69 315 391 391 392 436 39 408 323 392 391 391 322 38 50 49 82 33 27 30 27 317 35 320 408 323 34 321 35 281 16 88 89 357 316 36
BalonParca AdiParca NoAdetTipApplied Date A B
16 BEARING; PILOT,MAINSHAFT 1-33239-212-0 01 1 0105- ● ●
27 BEARING; 4TH GEAR 1-33259-046-0 02 1 0105- ●
27 BEARING; 4TH GEAR 1-33259-042-0 02 1 0105- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-466-0 01 1 0105- ●
30 GEAR; 4TH,MAINSHAFT 1-33251-400-0 01 1 0105- ●
33 BEARING; NEEDLE,3RD GEAR 1-33239-223-0 01 1 0105- ●
33 BEARING; NEEDLE,3RD GEAR 1-33239-187-0 01 1 0105- ●
34 SYNCHRONIZER; 4TH & 3RD 1-33260-151-0 01 1 0105- ● ●
35 RING; BLOCK,4TH & 3RD 1-33219-241-0 02 1 0105- ● ●
36 GEAR; 3RD,MAINSHAFT 1-33252-465-0 01 1 0105- ●
36 GEAR; 3RD,MAINSHAFT 1-33251-399-0 01 1 0105- ●
38 SYNCHRONIZER; LOW & 2ND 1-33260-152-0 01 1 0105- ● ●
39 HUB; CLU,LOW & 2ND 1-33261-224-0 01 1 0105- ● ●
49 BEARING; NEEDLE,2ND GEAR 1-33239-223-0 01 1 0105- ●
49 BEARING; NEEDLE,2ND GEAR 1-33239-187-0 01 1 0105- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-395-0 01 1 0105- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-397-0 01 1 0105- ●
59 GEAR; REV MAINSHAFT 1-33257-082-0 01 1 0105- ●
59 GEAR; REV MAINSHAFT 1-33257-083-0 01 1 0105- ●
69 COLLAR; 1ST GEAR MAIN 1-33259-067-0 01 1 0105- ●
69 COLLAR; 1ST GEAR MAIN 1-33259-038-0 01 1 0105- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-396-0 01 1 0105- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-398-0 01 1 0105- ●
82 SHAFT; MAIN,TRANS 1-33231-239-0 01 1 0105- ●
82 SHAFT; MAIN,TRANS 1-33231-282-0 01 1 0105- ●
88 RING; THRUST,THRUST WASHER
T=4.90 		1-33239-213-0 02 1 0105- ● ●
88 RING; THRUST,THRUST WASHER
T=4.70 		1-33239-214-0 02 1 0105- ● ●
88 RING; THRUST,THRUST WASHER
T=4.60 		1-33239-215-0 02 1 0105- ● ●
88 RING; THRUST,THRUST WASHER
T=5.00 		1-33239-305-0 02 1 0105- ● ●
88 RING; THRUST,THRUST WASHER
T=4.80 		1-33239-306-0 02 1 0105- ● ●
89 RING; RET,THRUST RING 1-33239-216-0 01 1 0105- ● ●
281 WASHER; THRUST,MAINSHAFT
T=8.30 		1-33239-210-0 01 1 0105- ● ●
281 WASHER; THRUST,MAINSHAFT
T=7.90 		1-33239-211-0 01 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=2.50 		1-33239-098-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=2.40 		1-33239-099-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=2.30 		1-33239-100-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=2.20 		1-33239-101-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=3.50 		1-33239-189-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=3.45 		1-33239-190-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=3.40 		1-33239-191-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=3.35 		1-33239-192-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=3.30 		1-33239-193-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=3.25 		1-33239-194-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=3.20 		1-33239-195-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=3.15 		1-33239-196-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=3.10 		1-33239-197-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=3.05 		1-33239-198-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=3.00 		1-33239-199-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=2.95 		1-33239-200-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=2.90 		1-33239-201-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=2.85 		1-33239-202-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=2.80 		1-33239-203-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=2.70 		1-33239-204-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=2.60 		1-33239-205-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=3.55 		1-33239-206-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=3.60 		1-33239-207-0 AR 1 0105- ● ●
306 RING; SNAP,MAINSHAFT
T=3.65 		1-33239-208-0 AR 1 0105- ● ●
311 PIPE; MAINSHAFT 1-33239-209-0 01 1 0105- ● ●
312 CLUTCH; DOG,1ST GEAR 1-33265-439-0 01 1 0105- ● ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-043-0 01 1 0105- ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-039-0 01 1 0105- ●
314 BEARING; NEEDLE,REV GEAR 1-33259-045-0 01 1 0105- ●
314 BEARING; NEEDLE,REV GEAR 1-33259-041-0 01 1 0105- ●
315 CLUTCH; DOG,2ND GEAR 1-33265-439-0 01 1 0105- ● ●
316 CLUTCH; DOG,3RD GEAR 1-33265-436-0 01 1 0105- ● ●
317 CLUTCH; DOG,4TH GEAR 1-33265-436-0 01 1 0105- ● ●
318 COLLAR; DIST,REV GEAR 1-33259-044-0 01 1 0105- ●
318 COLLAR; DIST,REV GEAR 1-33259-040-0 01 1 0105- ●
319 CLUTCH; SLIDING 1-33261-229-0 01 1 0105- ●
319 CLUTCH; SLIDING 1-33261-225-0 01 1 0105- ●
320 HUB; CLU,4TH & 3RD 1-33261-228-0 01 1 0105- ● ●
321 SLEEVE; SYN,4TH & 3RD 1-33262-208-0 01 1 0105- ● ●
322 SLEEVE; SYN,LOW & 2ND 1-33269-079-0 01 1 0105- ● ●
323 INSERT
(A) 		1-33263-027-0 09 1 0105- ● ●
323 INSERT
(B) 		1-33263-030-0 09 1 0105- ● ●
357 RING
T=4.00 		1-33239-217-0 01 1 0105- ● ●
357 RING
T=3.60 		1-33239-218-0 01 1 0105- ● ●
391 RING; INSIDE,SYN
(A) 		1-33265-440-0 02 1 0105- ● ●
391 RING; INSIDE,SYN
(B) 		1-33269-044-0 02 1 0105- ● ●
392 RING; OUTSIDE,SYN 1-33269-045-0 02 1 0105- ● ●
393 BEARING; MAINSHAFT END 1-33239-304-0 01 1 0105- ●
393 BEARING; MAINSHAFT END 1-33239-307-0 01 1 0105- ●
408 SPRING
(A) 		1-33269-038-0 09 1 0105- ● ●
408 SPRING
(B) 		1-33269-039-0 09 1 0105- ● ●
408 SPRING
(C) 		1-33269-042-0 09 1 0105- ● ●
436 KEY; LOW & 2ND 1-33269-046-0 03 1 0105- ● ●

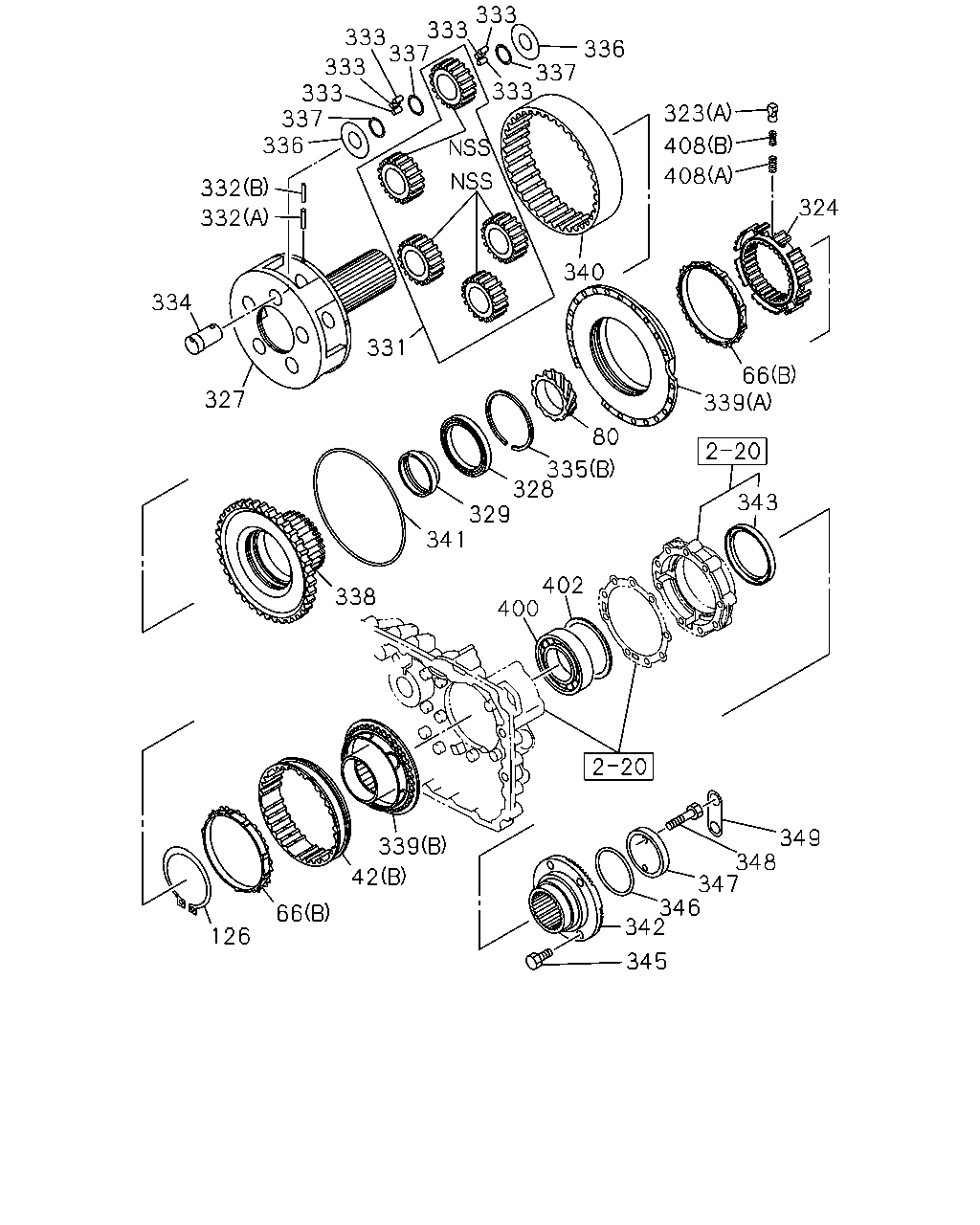

çizim 25621
345 342 346 347 348 349 126 66 42 339 400 402 343 339 66 80 335 328 329 341 338 331 327 334 332 332 336 337 333 333 333 337 333 333 336 337 333 323 408 408 340 324
BalonParca AdiParca NoAdetTipApplied Date A B
42 SLEEVE
(A) 		1-33262-208-0 01 1 0105- ● ●
42 SLEEVE
(B) 		1-33339-020-0 01 1 0105- ● ●
66 RING; BLOCK,SYN
(B) 		1-33219-241-0 02 1 0105- ● ●
66 RING; BLOCK,SYN
(A) 		1-33339-069-0 02 1 0105- ● ●
80 GEAR; SPD DRIVE 1-33371-063-0 01 1 0105- ●
80 GEAR; SPD DRIVE 1-33371-061-0 01 1 0105- ●
126 RING; SNAP,CLU HUB
T=4.0 		1-33269-047-0 01 1 0105- ● ●
126 RING; SNAP,CLU HUB
T=3.9 		1-33269-048-0 01 1 0105- ● ●
126 RING; SNAP,CLU HUB
T=3.8 		1-33269-049-0 01 1 0105- ● ●
126 RING; SNAP,CLU HUB
T=3.7 		1-33269-050-0 01 1 0105- ● ●
323 INSERT
(A) 		1-33263-027-0 09 1 0105- ● ●
323 INSERT
(B) 		1-33263-030-0 09 1 0105- ● ●
324 HUB; CLU 1-33261-230-0 01 1 0105- ●
324 HUB; CLU 1-33261-227-0 01 1 0105- ●
327 CARRIER; PLANETARY GEAR 1-33231-284-0 01 1 0105- ●
327 CARRIER; PLANETARY GEAR 1-33231-281-0 01 1 0105- ●
328 BEARING; CARRIER 1-33339-025-0 01 1 0105- ●
328 BEARING; CARRIER 1-33339-039-0 01 1 0105- ●
329 COLLAR; BEARING 1-33339-002-0 01 1 0105- ●
331 GEAR SET; PLANETARY 1-33239-224-0 01 1 0105- ●
331 GEAR SET; PLANETARY 1-33239-180-0 01 1 0105- ●
332 PIN; LOCK,SHAFT
(A) 		1-33239-185-0 05 1 0105- ● ●
332 PIN; LOCK,SHAFT
(B) 		1-33239-186-0 05 1 0105- ● ●
333 ROLLER; PLANETARY GEAR 1-33239-225-0 AR 1 0105- ●
333 ROLLER; PLANETARY GEAR 1-33239-183-0 AR 1 0105- ●
334 SHAFT; PLANETARY GEAR 1-33239-226-0 05 1 0105- ●
334 SHAFT; PLANETARY GEAR 1-33239-184-0 05 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-075-0 AR 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-076-0 AR 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-077-0 AR 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-078-0 AR 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-079-0 AR 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-080-0 AR 1 0105- ●
335 RING; SNAP,BEARING
(A) 		1-33219-246-0 01 1 0105- ● ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-081-0 01 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-082-0 01 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-083-0 01 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-084-0 01 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-085-0 01 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-086-0 01 1 0105- ●
336 WASHER; THRUST,PLANETARY GEAR 1-33239-182-0 10 1 0105- ● ●
337 WASHER; PLANETARY GEAR,INNER 1-33239-181-0 15 1 0105- ● ●
338 CARRIER; RING GEAR 1-33331-240-0 01 1 0105- ●
338 CARRIER; RING GEAR 1-33331-237-0 01 1 0105- ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33339-021-0 01 1 0105- ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33261-226-0 01 1 0105- ● ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-441-0 01 1 0105- ●
340 GEAR; RING 1-33339-046-0 01 1 0105- ●
340 GEAR; RING 1-33339-011-0 01 1 0105- ●
341 WIRE; LOCK,CARRIER 1-33339-012-0 01 1 0105- ● ●
342 FLANGE; OUTPUT 1-37243-324-0 01 1 0105- ●
342 FLANGE; OUTPUT 1-37243-294-0 01 1 0105- ●
343 SEAL; FLANGE 1-33139-052-0 01 1 0105- ● ●
345 BOLT; FLANGE TO YOKE 1-37249-147-0 04 1 0105- ● ●
346 GASKET; FLANGE 1-37249-079-0 01 1 0105- ●
346 GASKET; FLANGE 1-34155-035-0 01 1 0105- ●
347 WASHER; FLANGE 1-37249-080-0 01 1 0105- ●
347 WASHER; FLANGE 1-37249-149-0 01 1 0105- ●
348 BOLT; SHAFT 1-37249-155-0 02 1 0105- ●
348 BOLT; SHAFT 1-37249-150-0 02 1 0105- ●
349 WASHER; LK,SHAFT 1-37249-081-0 01 1 0105- ●
349 WASHER; LK,SHAFT 1-37249-151-0 01 1 0105- ●
400 BEARING; OUTPUT SHAFT RR 1-33139-014-0 01 1 0105- ● ●
402 SHIM
T=0.60 		1-33139-015-0 AR 1 0105- ●
402 SHIM
T=0.50 		1-33139-016-0 AR 1 0105- ●
402 SHIM
T=0.30 		1-33139-017-0 AR 1 0105- ●
402 SHIM
T=0.40 		1-33139-018-0 AR 1 0105- ●
402 SHIM
T=0.20 		1-33139-019-0 AR 1 0105- ●
402 SHIM
T=0.60 		1-33139-015-0 01 1 0105- ●
402 SHIM
T=0.50 		1-33139-016-0 01 1 0105- ●
402 SHIM
T=0.30 		1-33139-017-0 01 1 0105- ●
402 SHIM
T=0.40 		1-33139-018-0 01 1 0105- ●
402 SHIM
T=0.20 		1-33139-019-0 01 1 0105- ●
408 SPRING
(A) 		1-33269-038-0 09 1 0105- ● ●
408 SPRING
(B) 		1-33269-039-0 09 1 0105- ● ●
408 SPRING
(C) 		1-33269-042-0 09 1 0105- ● ●

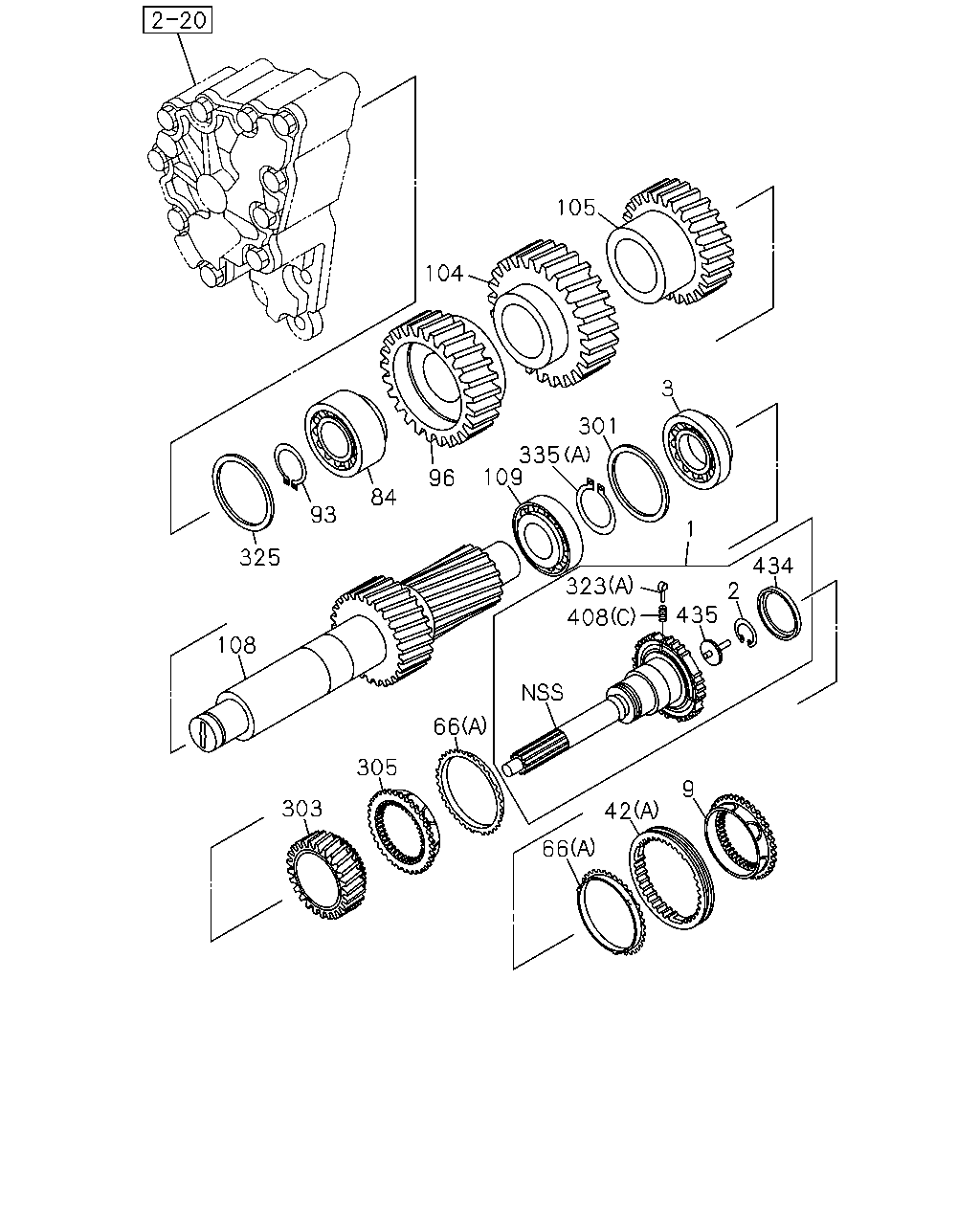

çizim 78436
303 305 66 42 9 435 2 434 1 323 408 66 108 325 93 84 96 109 335 301 3 105 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; TOP GEAR,TRANS 1-33219-244-0 01 1 0105- ●
1 SHAFT; TOP GEAR,TRANS 1-33219-239-0 01 1 0105- ●
2 RING; SNAP,TOP GEAR SHAFT 1-33219-115-0 01 1 0105- ● ●
3 BEARING; TOP GEAR SHAFT 1-33219-242-0 01 1 0105- ● ●
9 CLUTCH; DOG,TOP GEAR 1-33265-437-0 01 1 0105- ● ●
42 SLEEVE
(A) 		1-33262-208-0 01 1 0105- ● ●
42 SLEEVE
(B) 		1-33339-020-0 01 1 0105- ● ●
66 RING; BLOCK,SYN
(B) 		1-33219-241-0 02 1 0105- ● ●
66 RING; BLOCK,SYN
(A) 		1-33339-069-0 02 1 0105- ● ●
84 BEARING; COUNTER SHAFT,FRT 1-33319-087-0 01 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=3.20 		1-33319-061-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=3.15 		1-33319-062-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=3.10 		1-33319-063-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=3.05 		1-33319-064-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=3.00 		1-33319-065-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.95 		1-33319-066-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.90 		1-33319-067-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.85 		1-33319-068-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.80 		1-33319-069-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.75 		1-33319-070-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.70 		1-33319-071-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.65 		1-33319-072-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.60 		1-33319-073-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.55 		1-33319-074-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.50 		1-33319-075-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.45 		1-33319-076-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.40 		1-33319-077-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.35 		1-33319-078-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.30 		1-33319-079-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.25 		1-33319-080-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.20 		1-33319-081-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.15 		1-33319-082-0 AR 1 0105- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=2.10 		1-33319-083-0 AR 1 0105- ● ●
96 GEAR; COUNTER DRIVE 1-33331-259-0 01 1 0105- ●
96 GEAR; COUNTER DRIVE 1-33331-260-0 01 1 0105- ●
104 GEAR; 4TH,COUNTER 1-33338-375-0 01 1 0105- ●
104 GEAR; 4TH,COUNTER 1-33338-376-0 01 1 0105- ●
105 GEAR; 3RD,COUNTER 1-33333-163-0 01 1 0105- ●
105 GEAR; 3RD,COUNTER 1-33333-164-0 01 1 0105- ●
108 SHAFT; COUNTER 1-33311-310-0 01 1 0105- ●
108 SHAFT; COUNTER 1-33311-314-0 01 1 0105- ●
109 BEARING; COUNTER SHAFT,RR 1-33319-134-0 01 1 0105- ●
109 BEARING; COUNTER SHAFT,RR 1-33319-087-0 01 1 0105- ●
301 SHIM; TOP GEAR SHAFT
T=2.20 		1-33219-117-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=2.15 		1-33219-118-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=2.10 		1-33219-119-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=2.05 		1-33219-120-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=2.00 		1-33219-121-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.95 		1-33219-122-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.90 		1-33219-123-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.85 		1-33219-124-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.80 		1-33219-125-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.75 		1-33219-126-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.70 		1-33219-127-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.65 		1-33219-128-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.60 		1-33219-129-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.55 		1-33219-130-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.50 		1-33219-131-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.45 		1-33219-132-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.40 		1-33219-133-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.35 		1-33219-134-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.30 		1-33219-135-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.25 		1-33219-136-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.20 		1-33219-137-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.15 		1-33219-138-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.10 		1-33219-139-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.05 		1-33219-140-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=1.00 		1-33219-141-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=0.95 		1-33219-142-0 AR 1 0105- ● ●
301 SHIM; TOP GEAR SHAFT
T=0.90 		1-33219-143-0 AR 1 0105- ● ●
303 GEAR; SPLITTER 1-33219-249-0 01 1 0105- ●
303 GEAR; SPLITTER 1-33219-252-0 01 1 0105- ●
305 CLUTCH; DOG,SPLITTER GEAR 1-33265-436-0 01 1 0105- ● ●
323 INSERT
(A) 		1-33263-027-0 09 1 0105- ● ●
323 INSERT
(B) 		1-33263-030-0 09 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=3.05 		1-33319-108-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=3.00 		1-33319-109-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.95 		1-33319-110-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.90 		1-33319-111-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.85 		1-33319-112-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.80 		1-33319-113-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.75 		1-33319-114-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.70 		1-33319-115-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.65 		1-33319-116-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.60 		1-33319-117-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.55 		1-33319-118-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.50 		1-33319-119-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.45 		1-33319-120-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.40 		1-33319-121-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.35 		1-33319-122-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.30 		1-33319-123-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.25 		1-33319-124-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.20 		1-33319-125-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.15 		1-33319-126-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.10 		1-33319-127-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33319-128-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33319-129-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33319-130-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33319-131-0 AR 1 0105- ● ●
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33319-132-0 AR 1 0105- ● ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-075-0 AR 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-076-0 AR 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-077-0 AR 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-078-0 AR 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-079-0 AR 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-080-0 AR 1 0105- ●
335 RING; SNAP,BEARING
(A) 		1-33219-246-0 01 1 0105- ● ●
335 RING; SNAP,BEARING
(B) T=2.50 		1-33339-081-0 01 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.40 		1-33339-082-0 01 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.30 		1-33339-083-0 01 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.20 		1-33339-084-0 01 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.10 		1-33339-085-0 01 1 0105- ●
335 RING; SNAP,BEARING
(B) T=2.00 		1-33339-086-0 01 1 0105- ●
408 SPRING
(A) 		1-33269-038-0 09 1 0105- ● ●
408 SPRING
(B) 		1-33269-039-0 09 1 0105- ● ●
408 SPRING
(C) 		1-33269-042-0 09 1 0105- ● ●
434 GASKET; INPUTSHAFT 1-33219-116-0 01 1 0105- ● ●
435 PIPE; INPUTSHAFT 1-33219-114-0 01 1 0105- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
