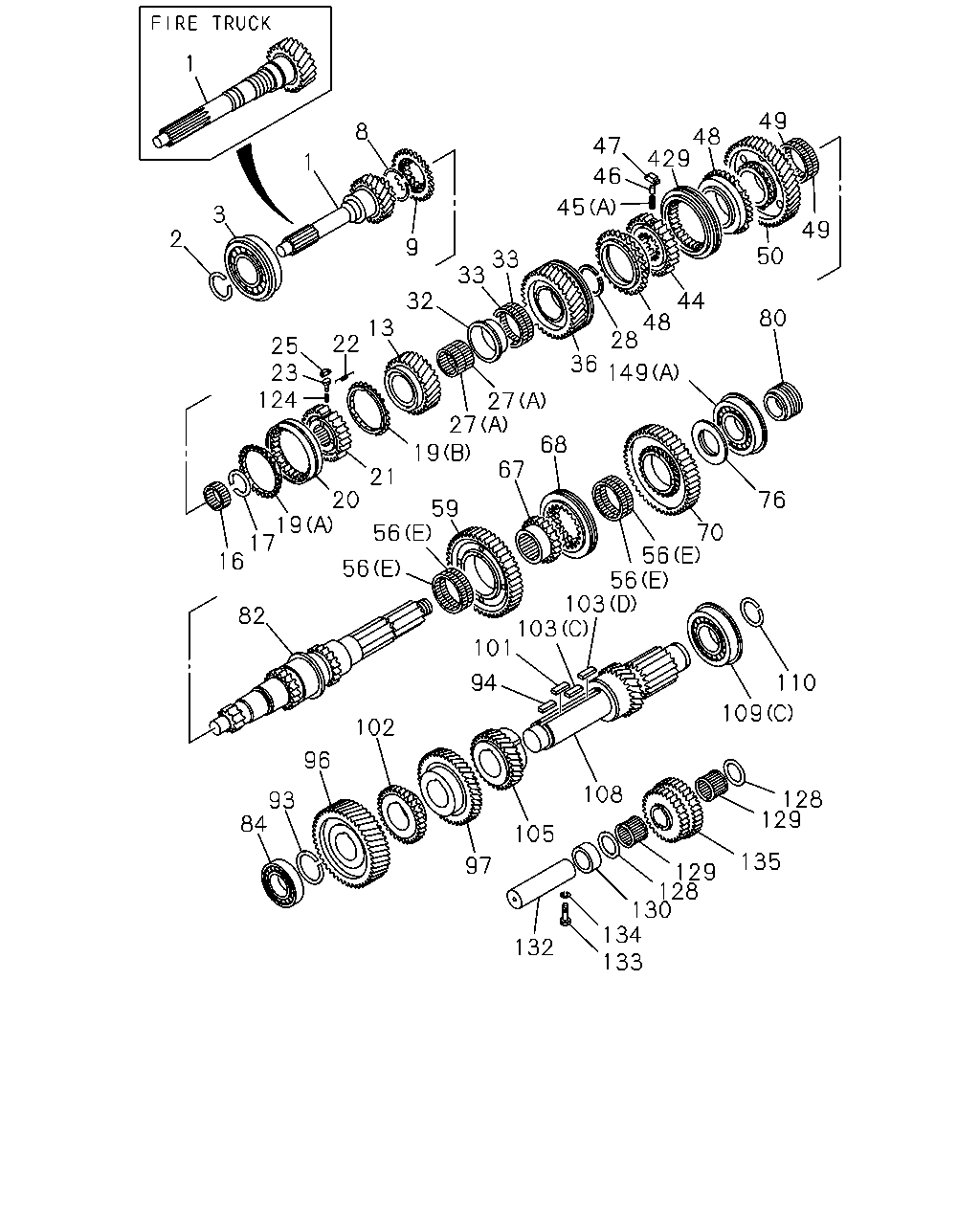

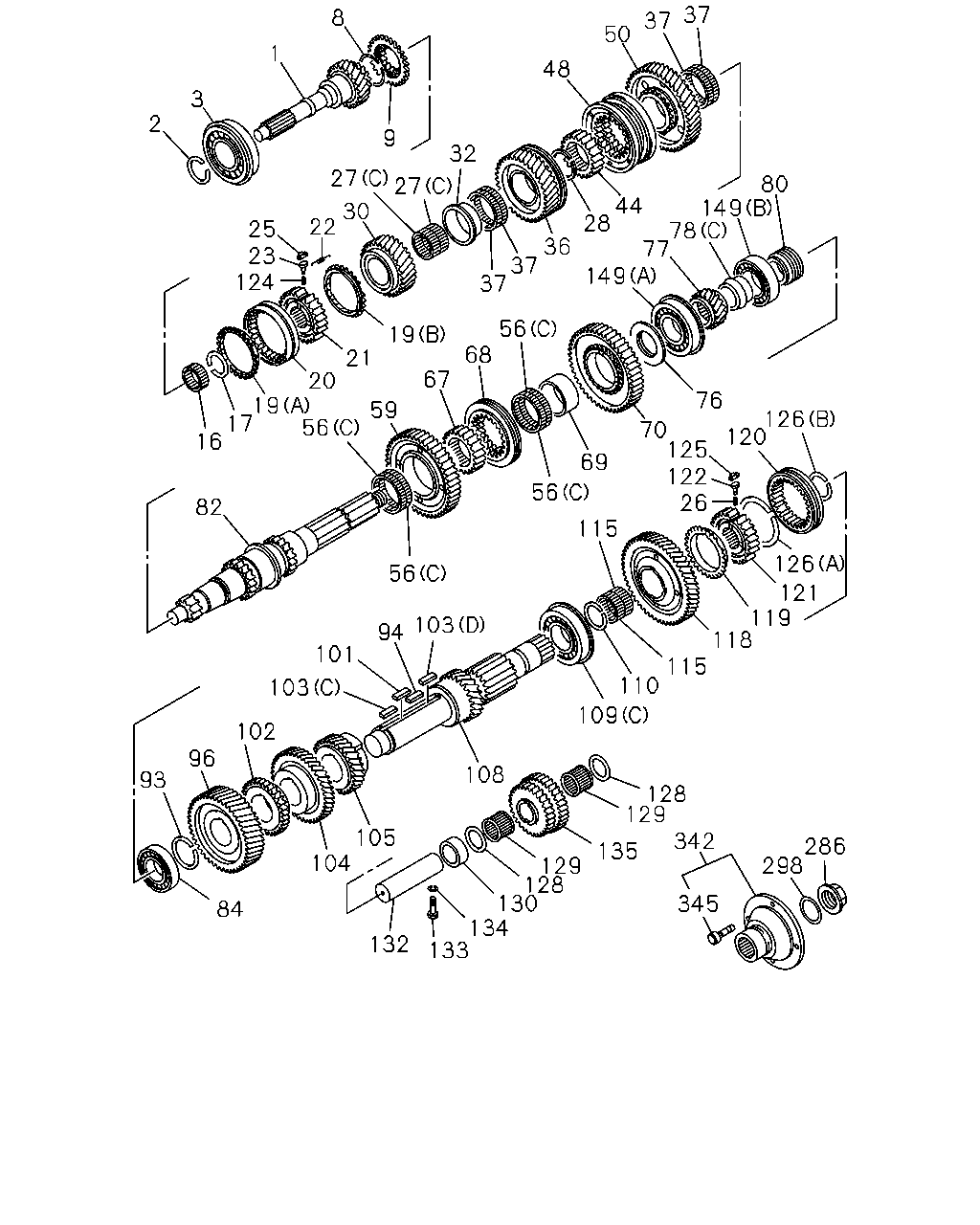

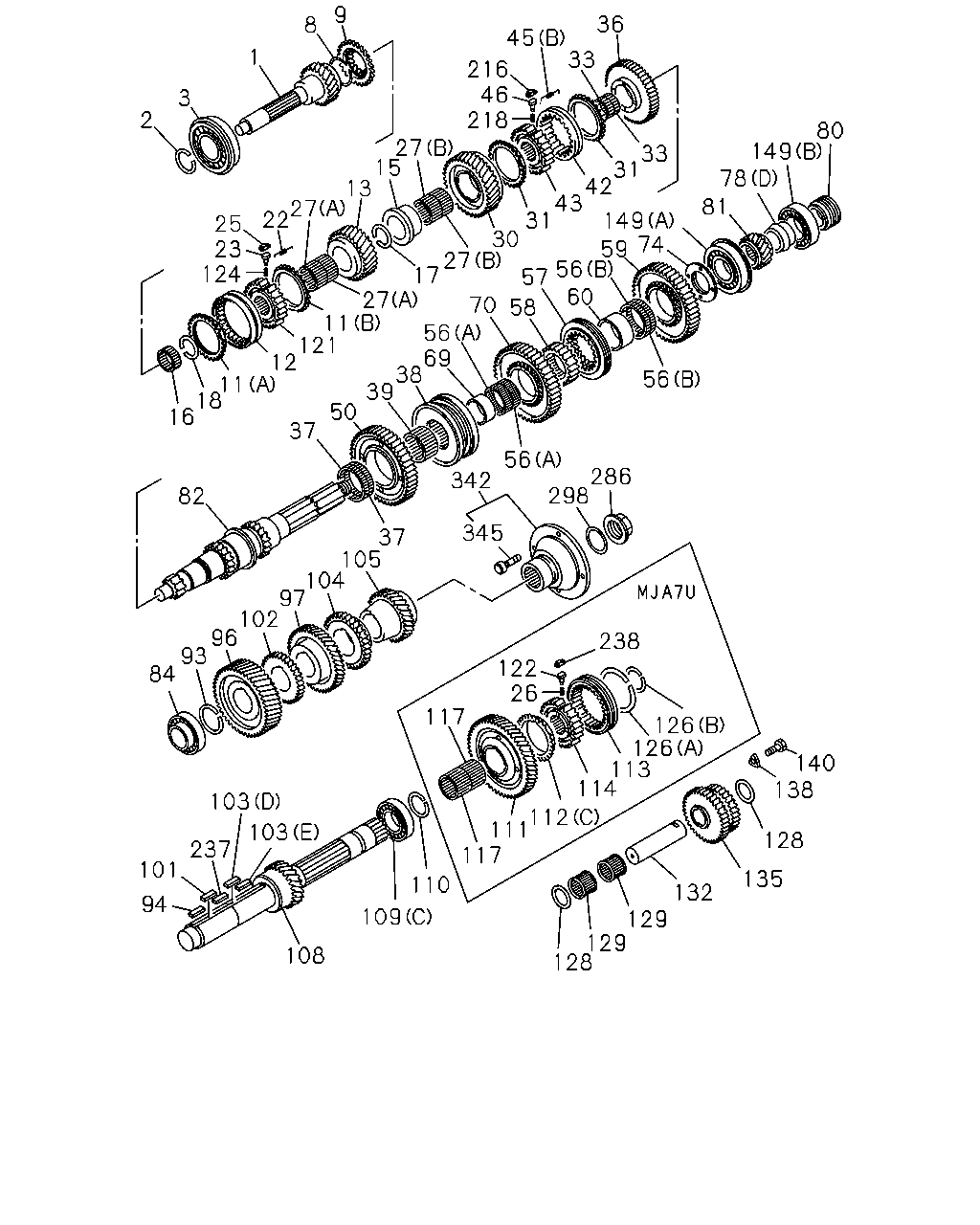

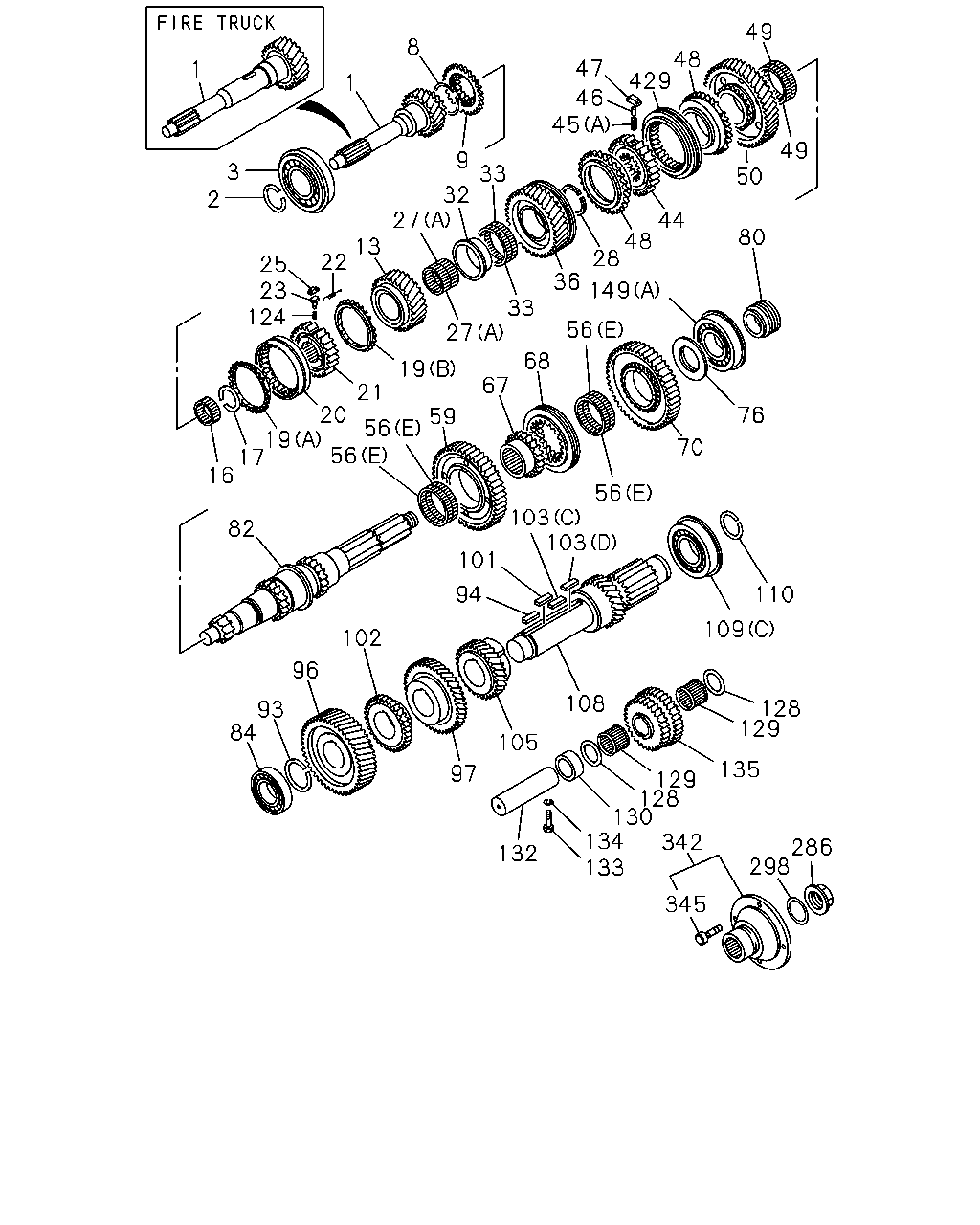

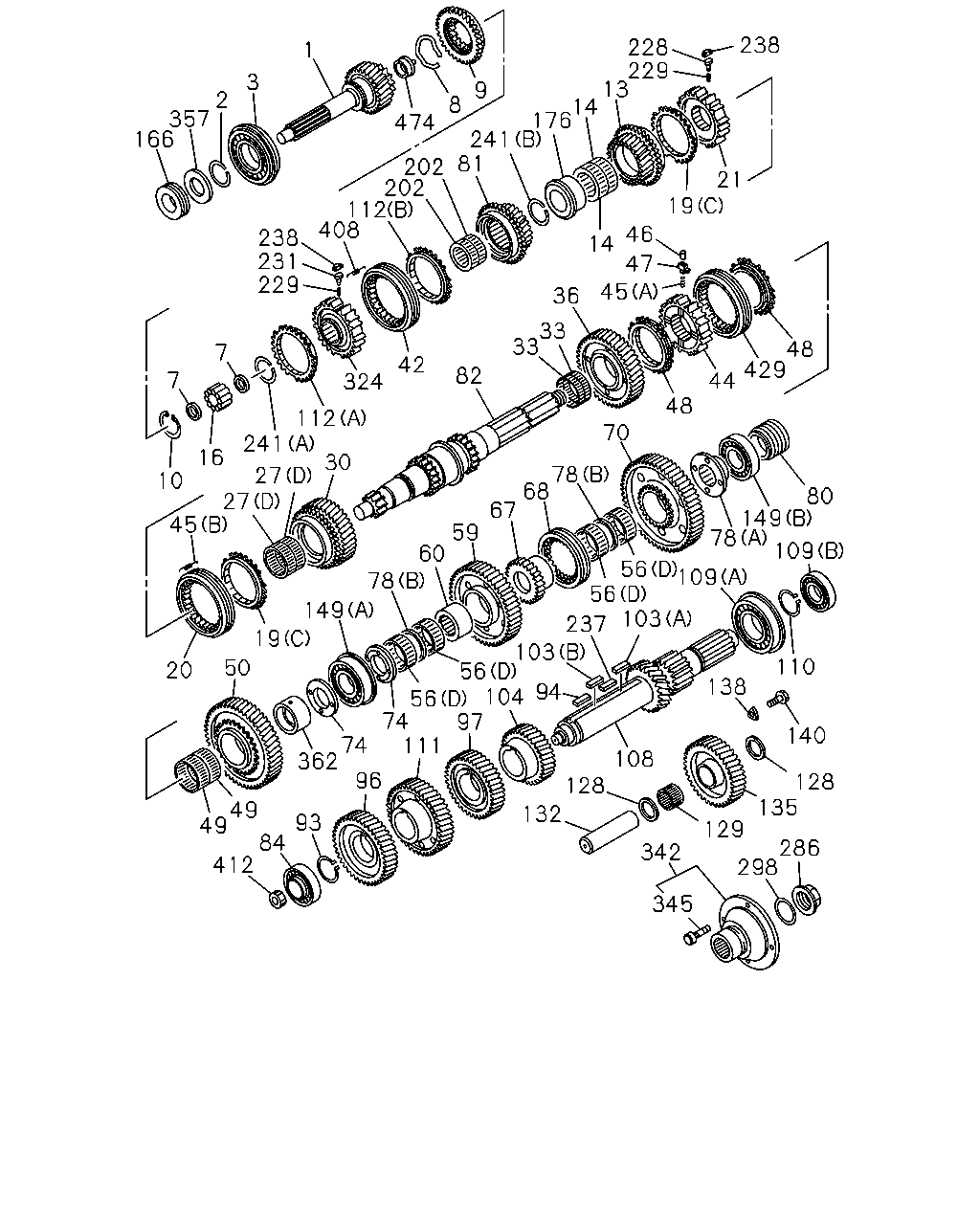

2-26A — MANUAL TRANSMISSION GEAR (#13545) — 1034 parça

166 357 2 3 1 474 8 9 241 176 14 13 229 228 238 21 19 46 47 45 14 36 33 33 82 42 324 112 241 27 30 27 16 10 7 7 229 231 238 408 112 202 202 81 20 50 19 149 78 60 59 67 68 78 70 48 44 429 48 45 49 49 362 74 74 111 96 93 84 412 132 128 108 342 345 298 286 135 128 140 110 138 129 97 56 104 94 56 103 237 103 56 56 109 78 149 80 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK<RA9> Z=24	1-33211-702-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-978-0	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK<RA9> Z=24	1-33211-977-1	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	0105-			●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	0105-				●
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	0105-					●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	0105-						●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0105-		●			●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0105-	●		●	●		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0105-	●		●	●		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-186-0	01	1	0105-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0105-					●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0105-					●
7	WASHER; THRUST,MAINSHAFT	1-33239-262-0	02	1	0105-					●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0105-	●	●	●	●		●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0105-					●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0105-	●	●	●	●		●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0105-					●
10	RING; SNAP,PILOT BRG OD=72.5	9-09180-168-0	01	1	0105-					●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-553-0	01	1	0105-	●	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	0105-				●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	0105-					●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	0105-						●
14	BEARING; NEEDLE,5TH NSK	1-09811-376-0	02	1	0105-					●
14	BEARING; NEEDLE,5TH NTN	1-09811-401-0	02	1	0105-					●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0105-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0105-	●	●	●	●		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0105-					●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0105-					●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	0105-	●	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	0105-	●	●	●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-0	02	1	0105-					●
20	SLEEVE	1-33262-097-1	01	1	0105-	●	●	●
20	SLEEVE	1-33262-222-0	01	1	0105-					●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0105-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0105-					●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	0105-	●	●		●		●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	0105-	●	●		●		●
27	BEARING; 4TH GEAR (C) NSK	1-09811-355-0	02	1	0105-			●
27	BEARING; 4TH GEAR (C) NTN	1-09811-402-0	02	1	0105-			●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	0105-				●		●
27	BEARING; 4TH GEAR (D) NSK	1-09811-376-0	02	1	0105-					●
27	BEARING; 4TH GEAR (D) NTN	1-09811-401-0	02	1	0105-					●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	0105-			●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	0105-				●		●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-695-0	01	1	0105-					●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0105-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0105-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	0105-				●		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0105-					●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0105-					●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	0105-	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	0105-			●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	0105-				●		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0105-					●
42	SLEEVE	1-33262-222-0	01	1	0105-				●	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0105-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	0105-			●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0105-					●
45	SPRING; BLOCK INSERT ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	06	1	0105-	●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0105-		●			●
45	SPRING; BLOCK INSERT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	03	1	0105-	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0105-				●	●	●
46	PLUNGER; DETENT,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	06	1	0105-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0105-		●			●
46	PLUNGER; DETENT,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	03	1	0105-	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-				●		●
47	BLOCK; INDEX,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	06	1	0105-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0105-		●			●
47	BLOCK; INDEX,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	03	1	0105-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0105-0407	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	0105-			●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0105-0404					●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	0405-					●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0105-	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0105-	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	0105-					●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	0105-					●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0105-	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	0105-			●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	0105-				●		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0105-					●
56	BEARING; NEEDLE,1ST,REV (E) NTN	1-09811-389-0	04	1	0105-	●	●
56	BEARING; NEEDLE,1ST,REV (E) NSK	1-09811-411-0	04	1	0105-	●	●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-410-0	04	1	0105-			●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	0105-				●		●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	0105-				●		●
56	BEARING; NEEDLE,1ST,REV (D) NSK	1-09811-376-0	04	1	0105-					●
56	BEARING; NEEDLE,1ST,REV (D) NTN	1-09811-401-0	04	1	0105-					●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0105-	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	0105-			●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	0105-				●		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0105-					●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	0105-				●		●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0105-					●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0105-	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	0105-			●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0105-					●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0105-	●	●			●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	0105-			●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0105-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	0105-			●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	0105-				●		●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0105-					●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	0105-				●		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0105-					●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	0105-			●
78	COLLAR; DIST,MAINSHAFT BRG (D)	1-33235-070-0	01	1	0105-				●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0105-					●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0105-					●
78	COLLAR; DIST,MAINSHAFT BRG (D)	1-33235-069-2	01	1	0105-						●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0105-	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0105-				●	●	●
81	GEAR; 7TH,MAIN Z=24	1-33253-654-0	01	1	0105-					●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	0105-						●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	0105-	●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	0105-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	0105-				●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-298-0	01	1	0105-					●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	0105-						●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0105-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0105-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0105-			●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0105-			●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0105-	●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0105-				●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●		●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	0105-	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-265-0	01	1	0105-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	0105-			●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	0105-				●
96	GEAR; COUNTER DRIVE Z=41	1-33331-272-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	0105-						●
97	GEAR; 5TH,COUNTER Z=43	1-33338-294-0	01	1	0105-	●	●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	0105-				●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	0105-					●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	0105-						●
103	KEY; COUNTER GEAR (C) L=46	1-09735-038-1	01	1	0105-	●	●	●
103	KEY; COUNTER GEAR (D) L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●		●
103	KEY; COUNTER GEAR (E) L=75.3	1-09735-042-0	01	1	0105-				●		●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0105-					●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0105-					●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	0105-			●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	0105-				●		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	0105-					●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	0105-	●	●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	0105-			●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	0105-				●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0105-0308					●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0309-					●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	0105-						●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-021-1	01	1	0105-	●	●	●	●		●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-163-0	01	1	0105-	●	●	●	●		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0105-					●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0105-	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	0105-				●		●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0105-					●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-388-0	01	1	0105-					●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	0105-						●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-6	01	1	0105-					●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-0	01	1	0105-					●
112	RING; BLOCK,7TH SYN (C) Z=54	1-33265-356-0	01	1	0105-						●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0105-	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0105-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0105-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	0105-				●		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0105-					●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0105-					●
132	SHAFT; REV	1-33351-012-2	01	1	0105-	●	●	●
132	SHAFT; REV	1-33351-016-2	01	1	0105-				●		●
132	SHAFT; REV	1-33351-025-4	01	1	0105-					●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0105-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	0105-			●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	0105-				●		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0105-					●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0105-				●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0105-				●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0105-	●	●	●	●		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0105-	●	●	●	●		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0105-			●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0105-			●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0105-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0105-					●
166	PIECE; DIST	1-33363-032-1	01	1	0105-					●
176	COLLAR; 5TH GEAR	1-33234-069-1	01	1	0105-					●
202	BEARING; COUNTER GEAR NSK	1-09811-382-0	02	1	0105-					●
202	BEARING; COUNTER GEAR NTN	1-09811-383-0	02	1	0105-					●
228	PLUNGER; SYN	1-33263-020-0	03	1	0105-					●
229	SPRING; PLUNGER D=6.2	1-09580-091-1	06	1	0105-					●
231	PLUNGER	1-33263-020-0	03	1	0105-					●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	0105-				●		●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0105-					●
238	INSERT	1-33263-025-2	06	1	0105-					●
238	INSERT	1-33263-025-2	03	1	0105-						●
241	RING; SNAP (A)	1-09588-185-0	01	1	0105-					●
241	RING; SNAP (B)	1-09588-189-0	01	1	0105-					●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0105-	●		●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0105-				●		●
286	NUT; LK,MAINSHAFT 6WF1 TC-C(1B8) M46	1-09449-062-0	01	1	0105-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0105-	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0105-				●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8)	1-09623-305-0	01	1	0105-					●
324	HUB; CLU	1-33261-238-0	01	1	0105-					●
342	FLANGE; OUTPUT	1-37243-361-0	01	1	0105-	●		●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0105-				●		●
342	FLANGE; OUTPUT 6WF1 TC-C(1B8)	1-37243-314-1	01	1	0105-					●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0105-	●		●	●		●
345	BOLT; FLANGE TO YOKE 6WF1 TC-C(1B8) M14X48.5	1-09046-013-0	04	1	0105-					●
357	RING	1-31349-015-0	01	1	0105-					●
362	COLLAR; 2ND GEAR	1-33234-072-0	01	1	0105-					●
408	SPRING	1-09583-171-0	03	1	0105-					●
412	GEAR; DRIVE Z=36	1-33339-029-1	01	1	0105-					●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0105-	●	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0105-					●
474	NOZZLE; OIL	1-33219-257-0	01	1	0105-					●

1 3 2 1 8 9 33 22 25 23 124 13 27 32 33 27 19 21 20 19 17 16 36 28 48 44 50 49 49 48 429 47 46 45 80 149 56 68 67 59 56 56 82 96 93 84 102 94 101 103 56 103 70 76 110 109 108 105 97 132 133 134 130 128 129 135 129 128 342 345 298 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK<RA9> Z=24	1-33211-702-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-978-0	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK<RA9> Z=24	1-33211-977-1	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	0105-			●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	0105-				●
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	0105-					●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	0105-						●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0105-		●			●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0105-	●		●	●		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0105-	●		●	●		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-186-0	01	1	0105-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0105-					●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0105-					●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0105-	●	●	●	●		●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0105-					●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0105-	●	●	●	●		●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0105-					●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-553-0	01	1	0105-	●	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	0105-				●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	0105-					●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	0105-						●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0105-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0105-	●	●	●	●		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0105-					●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0105-					●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-	●	●	●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	0105-				●		●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	0105-	●	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	0105-	●	●	●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-0	02	1	0105-					●
20	SLEEVE	1-33262-097-1	01	1	0105-	●	●	●
20	SLEEVE	1-33262-222-0	01	1	0105-					●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0105-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0105-					●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0105-	●	●	●	●		●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-	●	●	●	●		●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0105-	●	●	●	●		●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	0105-	●	●		●		●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	0105-	●	●		●		●
27	BEARING; 4TH GEAR (C) NSK	1-09811-355-0	02	1	0105-			●
27	BEARING; 4TH GEAR (C) NTN	1-09811-402-0	02	1	0105-			●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	0105-				●		●
27	BEARING; 4TH GEAR (D) NSK	1-09811-376-0	02	1	0105-					●
27	BEARING; 4TH GEAR (D) NTN	1-09811-401-0	02	1	0105-					●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0105-	●	●	●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0105-	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	0105-			●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0105-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0105-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	0105-				●		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0105-					●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0105-					●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	0105-	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	0105-			●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	0105-				●		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0105-					●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0105-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	0105-			●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0105-					●
45	SPRING; BLOCK INSERT ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	06	1	0105-	●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0105-		●			●
45	SPRING; BLOCK INSERT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	03	1	0105-	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0105-				●	●	●
46	PLUNGER; DETENT,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	06	1	0105-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0105-		●			●
46	PLUNGER; DETENT,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	03	1	0105-	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-				●		●
47	BLOCK; INDEX,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	06	1	0105-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0105-		●			●
47	BLOCK; INDEX,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	03	1	0105-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0105-0407	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	0105-			●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0105-0404					●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	0405-					●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0105-	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0105-	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	0105-					●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	0105-					●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0105-	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	0105-			●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	0105-				●		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0105-					●
56	BEARING; NEEDLE,1ST,REV (E) NTN	1-09811-389-0	04	1	0105-	●	●
56	BEARING; NEEDLE,1ST,REV (E) NSK	1-09811-411-0	04	1	0105-	●	●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-410-0	04	1	0105-			●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	0105-				●		●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	0105-				●		●
56	BEARING; NEEDLE,1ST,REV (D) NSK	1-09811-376-0	04	1	0105-					●
56	BEARING; NEEDLE,1ST,REV (D) NTN	1-09811-401-0	04	1	0105-					●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0105-	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	0105-			●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	0105-				●		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0105-					●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0105-	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	0105-			●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0105-					●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0105-	●	●			●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	0105-			●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0105-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	0105-			●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	0105-				●		●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0105-					●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0105-	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	0105-			●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0105-	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0105-				●	●	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	0105-	●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	0105-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	0105-				●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-298-0	01	1	0105-					●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	0105-						●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0105-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0105-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0105-			●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0105-			●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0105-	●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0105-				●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●		●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	0105-	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-265-0	01	1	0105-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	0105-			●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	0105-				●
96	GEAR; COUNTER DRIVE Z=41	1-33331-272-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	0105-						●
97	GEAR; 5TH,COUNTER Z=43	1-33338-294-0	01	1	0105-	●	●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	0105-				●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	0105-					●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	0105-						●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0105-	●	●	●	●		●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0105-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	0105-				●		●
103	KEY; COUNTER GEAR (C) L=46	1-09735-038-1	01	1	0105-	●	●	●
103	KEY; COUNTER GEAR (D) L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●		●
103	KEY; COUNTER GEAR (E) L=75.3	1-09735-042-0	01	1	0105-				●		●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0105-					●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0105-					●
105	GEAR; 3RD,COUNTER Z=31	1-33333-146-1	01	1	0105-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	0105-			●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	0105-				●		●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	0105-	●	●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	0105-			●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	0105-				●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0105-0308					●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0309-					●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	0105-						●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-021-1	01	1	0105-	●	●	●	●		●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-163-0	01	1	0105-	●	●	●	●		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0105-					●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0105-	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	0105-				●		●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0105-					●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0105-	●	●	●	●		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0105-	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0105-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0105-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	0105-				●		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0105-					●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0105-					●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0105-	●	●	●
132	SHAFT; REV	1-33351-012-2	01	1	0105-	●	●	●
132	SHAFT; REV	1-33351-016-2	01	1	0105-				●		●
132	SHAFT; REV	1-33351-025-4	01	1	0105-					●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0105-	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0105-	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0105-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	0105-			●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	0105-				●		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0105-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0105-	●	●	●	●		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0105-	●	●	●	●		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0105-			●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0105-			●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0105-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0105-					●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0105-	●		●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0105-				●		●
286	NUT; LK,MAINSHAFT 6WF1 TC-C(1B8) M46	1-09449-062-0	01	1	0105-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0105-	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0105-				●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8)	1-09623-305-0	01	1	0105-					●
342	FLANGE; OUTPUT	1-37243-361-0	01	1	0105-	●		●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0105-				●		●
342	FLANGE; OUTPUT 6WF1 TC-C(1B8)	1-37243-314-1	01	1	0105-					●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0105-	●		●	●		●
345	BOLT; FLANGE TO YOKE 6WF1 TC-C(1B8) M14X48.5	1-09046-013-0	04	1	0105-					●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0105-	●	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0105-					●

128 129 129 132 135 128 138 140 126 126 113 114 112 111 117 110 109 108 103 103 237 101 94 84 93 96 102 97 104 105 37 345 298 286 238 26 122 117 342 56 37 50 39 38 69 56 70 58 57 56 60 59 74 149 81 78 149 80 33 31 42 43 31 30 27 17 27 11 121 12 11 18 16 82 124 23 25 22 27 13 15 27 218 46 216 33 36 45 9 8 1 3 2 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK<RA9> Z=24	1-33211-702-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-978-0	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK<RA9> Z=24	1-33211-977-1	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	0105-			●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	0105-				●
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	0105-					●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	0105-						●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0105-		●			●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0105-	●		●	●		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0105-	●		●	●		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-186-0	01	1	0105-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0105-					●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0105-					●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0105-	●	●	●	●		●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0105-					●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0105-	●	●	●	●		●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0105-					●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-7	01	1	0105-				●		●
11	RING; BLOCK,5TH & 6TH (B) Z=54	1-33265-544-0	01	1	0105-				●		●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	0105-				●		●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-553-0	01	1	0105-	●	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	0105-				●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	0105-					●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	0105-						●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	0105-				●		●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0105-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0105-	●	●	●	●		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0105-					●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0105-					●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-	●	●	●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	0105-				●		●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-				●		●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0105-	●	●	●	●		●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-	●	●	●	●		●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0105-	●	●	●	●		●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	0105-			●			●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	0105-	●	●		●		●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	0105-	●	●		●		●
27	BEARING; 4TH GEAR (C) NSK	1-09811-355-0	02	1	0105-			●
27	BEARING; 4TH GEAR (C) NTN	1-09811-402-0	02	1	0105-			●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	0105-				●		●
27	BEARING; 4TH GEAR (D) NSK	1-09811-376-0	02	1	0105-					●
27	BEARING; 4TH GEAR (D) NTN	1-09811-401-0	02	1	0105-					●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	0105-			●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	0105-				●		●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-695-0	01	1	0105-					●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-545-0	02	1	0105-				●		●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0105-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0105-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	0105-				●		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0105-					●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0105-					●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	0105-	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	0105-			●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	0105-				●		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0105-					●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-409-0	04	1	0105-			●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-410-0	02	1	0105-				●		●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	0105-				●		●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	0105-				●		●
42	SLEEVE	1-33262-222-0	01	1	0105-				●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-241-0	01	1	0105-				●		●
45	SPRING; BLOCK INSERT ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	06	1	0105-	●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0105-		●			●
45	SPRING; BLOCK INSERT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	03	1	0105-	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0105-				●	●	●
46	PLUNGER; DETENT,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	06	1	0105-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0105-		●			●
46	PLUNGER; DETENT,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	03	1	0105-	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-				●		●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0105-	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	0105-			●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	0105-				●		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0105-					●
56	BEARING; NEEDLE,1ST,REV (E) NTN	1-09811-389-0	04	1	0105-	●	●
56	BEARING; NEEDLE,1ST,REV (E) NSK	1-09811-411-0	04	1	0105-	●	●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-410-0	04	1	0105-			●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	0105-				●		●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	0105-				●		●
56	BEARING; NEEDLE,1ST,REV (D) NSK	1-09811-376-0	04	1	0105-					●
56	BEARING; NEEDLE,1ST,REV (D) NTN	1-09811-401-0	04	1	0105-					●
57	SLEEVE; REV	1-33262-112-1	01	1	0105-				●		●
58	HUB; CLU,REV	1-33261-164-1	01	1	0105-				●		●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0105-	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	0105-			●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	0105-				●		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0105-					●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	0105-				●		●
60	COLLAR; REV MAIN	1-33234-087-0	01	1	0105-					●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	0105-			●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	0105-				●		●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0105-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	0105-			●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	0105-				●		●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0105-					●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	0105-				●		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	02	1	0105-					●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	0105-			●
78	COLLAR; DIST,MAINSHAFT BRG (D)	1-33235-070-0	01	1	0105-				●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0105-					●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0105-					●
78	COLLAR; DIST,MAINSHAFT BRG (D)	1-33235-069-2	01	1	0105-						●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0105-	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0105-				●	●	●
81	GEAR; 7TH,MAIN Z=24	1-33253-654-0	01	1	0105-					●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	0105-						●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	0105-	●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	0105-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	0105-				●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-298-0	01	1	0105-					●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	0105-						●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0105-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0105-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0105-			●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0105-			●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0105-	●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0105-				●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●		●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	0105-	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-265-0	01	1	0105-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	0105-			●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	0105-				●
96	GEAR; COUNTER DRIVE Z=41	1-33331-272-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	0105-						●
97	GEAR; 5TH,COUNTER Z=43	1-33338-294-0	01	1	0105-	●	●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	0105-				●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	0105-					●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	0105-						●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0105-	●	●	●	●		●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0105-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	0105-				●		●
103	KEY; COUNTER GEAR (C) L=46	1-09735-038-1	01	1	0105-	●	●	●
103	KEY; COUNTER GEAR (D) L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●		●
103	KEY; COUNTER GEAR (E) L=75.3	1-09735-042-0	01	1	0105-				●		●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0105-					●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0105-					●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	0105-			●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	0105-				●		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	0105-					●
105	GEAR; 3RD,COUNTER Z=31	1-33333-146-1	01	1	0105-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	0105-			●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	0105-				●		●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	0105-	●	●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	0105-			●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	0105-				●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0105-0308					●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0309-					●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	0105-						●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-021-1	01	1	0105-	●	●	●	●		●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-163-0	01	1	0105-	●	●	●	●		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0105-					●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0105-	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	0105-				●		●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0105-					●
111	GEAR; 7TH COUNTER SHAFT Z=50	1-33338-388-0	01	1	0105-					●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	0105-						●
112	RING; BLOCK,7TH SYN (A) Z=66	1-33265-376-6	01	1	0105-					●
112	RING; BLOCK,7TH SYN (B) Z=66	1-33265-545-0	01	1	0105-					●
112	RING; BLOCK,7TH SYN (C) Z=54	1-33265-356-0	01	1	0105-						●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-121-2	01	1	0105-						●
114	HUB; CLU,7TH	1-33261-177-2	01	1	0105-						●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	0105-						●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	0105-						●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0105-			●
121	HUB; CLU,6TH	1-33261-186-2	01	1	0105-				●		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-			●			●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0105-	●	●	●	●		●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0105-			●			●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-			●			●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0105-	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0105-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0105-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	0105-				●		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0105-					●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0105-					●
132	SHAFT; REV	1-33351-012-2	01	1	0105-	●	●	●
132	SHAFT; REV	1-33351-016-2	01	1	0105-				●		●
132	SHAFT; REV	1-33351-025-4	01	1	0105-					●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0105-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	0105-			●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	0105-				●		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0105-					●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0105-				●	●	●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0105-				●	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0105-	●	●	●	●		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0105-	●	●	●	●		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0105-			●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0105-			●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0105-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0105-					●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	0105-				●		●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD D=6.2	1-09580-091-1	03	1	0105-				●		●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	0105-				●		●
237	KEY; 5TH GEAR L=67	1-09735-049-0	01	1	0105-					●
238	INSERT	1-33263-025-2	06	1	0105-					●
238	INSERT	1-33263-025-2	03	1	0105-						●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0105-	●		●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0105-				●		●
286	NUT; LK,MAINSHAFT 6WF1 TC-C(1B8) M46	1-09449-062-0	01	1	0105-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0105-	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0105-				●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8)	1-09623-305-0	01	1	0105-					●
342	FLANGE; OUTPUT	1-37243-361-0	01	1	0105-	●		●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0105-				●		●
342	FLANGE; OUTPUT 6WF1 TC-C(1B8)	1-37243-314-1	01	1	0105-					●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0105-	●		●	●		●
345	BOLT; FLANGE TO YOKE 6WF1 TC-C(1B8) M14X48.5	1-09046-013-0	04	1	0105-					●

133 134 130 128 129 135 129 128 132 97 105 108 109 110 101 103 103 56 56 70 76 94 102 96 93 84 82 16 17 19 20 21 19 27 27 36 28 48 44 50 49 49 48 429 47 46 45 33 33 32 13 22 25 23 124 2 3 1 8 9 1 80 149 68 67 59 56 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK<RA9> Z=24	1-33211-702-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-978-0	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK<RA9> Z=24	1-33211-977-1	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	0105-			●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	0105-				●
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	0105-					●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	0105-						●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0105-		●			●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0105-	●		●	●		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0105-	●		●	●		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-186-0	01	1	0105-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0105-					●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0105-					●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0105-	●	●	●	●		●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0105-					●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0105-	●	●	●	●		●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0105-					●
13	GEAR; 5TH,MAINSHAFT Z=20	1-33253-553-0	01	1	0105-	●	●
13	GEAR; 5TH,MAINSHAFT Z=26	1-33253-397-1	01	1	0105-				●
13	GEAR; 5TH,MAINSHAFT Z=31	1-33253-673-0	01	1	0105-					●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	0105-						●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0105-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0105-	●	●	●	●		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0105-					●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0105-					●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-	●	●	●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	0105-				●		●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	0105-	●	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	0105-	●	●	●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-0	02	1	0105-					●
20	SLEEVE	1-33262-097-1	01	1	0105-	●	●	●
20	SLEEVE	1-33262-222-0	01	1	0105-					●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0105-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0105-					●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0105-	●	●	●	●		●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-	●	●	●	●		●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0105-	●	●	●	●		●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	0105-	●	●		●		●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	0105-	●	●		●		●
27	BEARING; 4TH GEAR (C) NSK	1-09811-355-0	02	1	0105-			●
27	BEARING; 4TH GEAR (C) NTN	1-09811-402-0	02	1	0105-			●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	0105-				●		●
27	BEARING; 4TH GEAR (D) NSK	1-09811-376-0	02	1	0105-					●
27	BEARING; 4TH GEAR (D) NTN	1-09811-401-0	02	1	0105-					●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0105-	●	●	●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0105-	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	0105-			●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	0105-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	0105-	●	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	0105-				●		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-380-0	02	1	0105-					●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-381-0	02	1	0105-					●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	0105-	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	0105-			●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	0105-				●		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0105-					●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0105-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	0105-			●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0105-					●
45	SPRING; BLOCK INSERT ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	06	1	0105-	●
45	SPRING; BLOCK INSERT (A) D=3.8	1-09580-395-0	06	1	0105-		●			●
45	SPRING; BLOCK INSERT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) D=3.8	1-09580-395-0	03	1	0105-	●
45	SPRING; BLOCK INSERT (B)	1-09583-171-0	03	1	0105-				●	●	●
46	PLUNGER; DETENT,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	06	1	0105-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0105-		●			●
46	PLUNGER; DETENT,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-037-1	03	1	0105-	●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-				●		●
47	BLOCK; INDEX,SYN ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	06	1	0105-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0105-		●			●
47	BLOCK; INDEX,SYN EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33269-035-1	03	1	0105-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0105-0407	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	0105-			●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0105-0404					●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	0405-					●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	0105-	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	0105-	●	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-378-0	02	1	0105-					●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-379-0	02	1	0105-					●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0105-	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	0105-			●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	0105-				●		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0105-					●
56	BEARING; NEEDLE,1ST,REV (E) NTN	1-09811-389-0	04	1	0105-	●	●
56	BEARING; NEEDLE,1ST,REV (E) NSK	1-09811-411-0	04	1	0105-	●	●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-410-0	04	1	0105-			●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	0105-				●		●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	0105-				●		●
56	BEARING; NEEDLE,1ST,REV (D) NSK	1-09811-376-0	04	1	0105-					●
56	BEARING; NEEDLE,1ST,REV (D) NTN	1-09811-401-0	04	1	0105-					●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0105-	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	0105-			●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	0105-				●		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0105-					●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0105-	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	0105-			●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0105-					●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0105-	●	●			●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	0105-			●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0105-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	0105-			●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	0105-				●		●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0105-					●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0105-	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	0105-			●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0105-	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0105-				●	●	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	0105-	●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	0105-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	0105-				●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-298-0	01	1	0105-					●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	0105-						●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0105-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0105-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0105-			●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0105-			●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0105-	●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0105-				●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●		●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	0105-	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-265-0	01	1	0105-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	0105-			●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	0105-				●
96	GEAR; COUNTER DRIVE Z=41	1-33331-272-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	0105-						●
97	GEAR; 5TH,COUNTER Z=43	1-33338-294-0	01	1	0105-	●	●
97	GEAR; 5TH,COUNTER Z=42	1-33338-219-1	01	1	0105-				●
97	GEAR; 5TH,COUNTER Z=36	1-33338-386-0	01	1	0105-					●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	0105-						●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0105-	●	●	●	●		●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0105-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	0105-				●		●
103	KEY; COUNTER GEAR (C) L=46	1-09735-038-1	01	1	0105-	●	●	●
103	KEY; COUNTER GEAR (D) L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●		●
103	KEY; COUNTER GEAR (E) L=75.3	1-09735-042-0	01	1	0105-				●		●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0105-					●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0105-					●
105	GEAR; 3RD,COUNTER Z=31	1-33333-146-1	01	1	0105-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	0105-			●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	0105-				●		●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	0105-	●	●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	0105-			●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	0105-				●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0105-0308					●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0309-					●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	0105-						●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-021-1	01	1	0105-	●	●	●	●		●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-163-0	01	1	0105-	●	●	●	●		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0105-					●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0105-	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	0105-				●		●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0105-					●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0105-	●	●	●	●		●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0105-	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0105-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0105-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	0105-				●		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0105-					●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0105-					●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0105-	●	●	●
132	SHAFT; REV	1-33351-012-2	01	1	0105-	●	●	●
132	SHAFT; REV	1-33351-016-2	01	1	0105-				●		●
132	SHAFT; REV	1-33351-025-4	01	1	0105-					●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0105-	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0105-	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0105-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	0105-			●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	0105-				●		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0105-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0105-	●	●	●	●		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0105-	●	●	●	●		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0105-			●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0105-			●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0105-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0105-					●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0105-	●	●
429	SLEEVE; 2ND & 3RD	1-33262-219-0	01	1	0105-					●

298 286 345 342 129 128 135 129 128 130 134 133 132 104 105 108 109 110 115 118 119 121 126 120 126 26 122 125 70 76 69 56 115 56 103 94 101 103 102 96 93 84 82 56 59 67 68 56 149 77 78 149 80 37 37 50 48 44 28 16 17 19 20 21 19 37 37 36 32 27 27 9 30 22 25 23 124 2 3 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-656-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK<RA9> Z=24	1-33211-702-1	01	1	0105-	●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-978-0	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS FIRE TRUCK<RA9> Z=24	1-33211-977-1	01	1	0105-		●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	0105-			●
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-610-1	01	1	0105-				●
1	SHAFT; TOP GEAR,TRANS Z=27	1-33211-992-0	01	1	0105-					●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	0105-						●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0105-	●		●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.53 WHITE	1-09588-181-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.56 YELLOW	1-09588-182-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.60 BLUE	1-09588-183-0	AR	1	0105-		●			●
2	RING; SNAP,TOP GEAR SHAFT ID=71 T=2.64 GREEN	1-09588-184-0	AR	1	0105-		●			●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0105-	●		●	●		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0105-	●		●	●		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-186-0	01	1	0105-		●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-273-0	01	1	0105-					●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-274-0	01	1	0105-					●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0105-	●	●	●	●		●
8	CLIP; DOG CLU	1-33219-024-0	01	1	0105-					●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0105-	●	●	●	●		●
9	CLUTCH; DOG,TOP GEAR Z=66	1-33265-401-0	01	1	0105-					●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	0105-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0105-	●	●	●	●		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-242-0	16	1	0105-					●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-243-0	16	1	0105-					●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-	●	●	●
17	RING; SNAP,4TH GEAR ID=74.5	1-09588-118-0	01	1	0105-				●		●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	0105-	●	●	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	0105-	●	●	●
19	RING; BLOCK,4TH & 5TH (C) Z=66	1-33265-545-0	02	1	0105-					●
20	SLEEVE	1-33262-097-1	01	1	0105-	●	●	●
20	SLEEVE	1-33262-222-0	01	1	0105-					●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0105-	●	●	●
21	HUB; CLU,4TH & 5TH	1-33261-252-0	01	1	0105-					●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0105-	●	●	●	●		●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-	●	●	●	●		●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0105-	●	●	●	●		●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	0105-			●			●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	0105-	●	●		●		●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	0105-	●	●		●		●
27	BEARING; 4TH GEAR (C) NSK	1-09811-355-0	02	1	0105-			●
27	BEARING; 4TH GEAR (C) NTN	1-09811-402-0	02	1	0105-			●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	0105-				●		●
27	BEARING; 4TH GEAR (D) NSK	1-09811-376-0	02	1	0105-					●
27	BEARING; 4TH GEAR (D) NTN	1-09811-401-0	02	1	0105-					●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	0105-	●	●	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	0105-			●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	0105-				●		●
30	GEAR; 4TH,MAINSHAFT Z=42	1-33253-695-0	01	1	0105-					●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	0105-	●	●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	0105-			●
36	GEAR; 3RD,MAINSHAFT Z=34	1-33252-462-0	01	1	0105-	●	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	0105-			●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	0105-				●		●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-447-0	01	1	0105-					●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-409-0	04	1	0105-			●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-410-0	02	1	0105-				●		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	0105-	●	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	0105-			●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-261-0	01	1	0105-					●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	0105-0407	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-	●	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	0105-			●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-543-0	02	1	0105-0404					●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-612-1	02	1	0405-					●
50	GEAR; 2ND,MAINSHAFT Z=54	1-33251-326-3	01	1	0105-	●	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	0105-			●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	0105-				●		●
50	GEAR; 2ND,MAINSHAFT Z=53	1-33251-358-1	01	1	0105-					●
56	BEARING; NEEDLE,1ST,REV (E) NTN	1-09811-389-0	04	1	0105-	●	●
56	BEARING; NEEDLE,1ST,REV (E) NSK	1-09811-411-0	04	1	0105-	●	●
56	BEARING; NEEDLE,1ST,REV (C) NSK	1-09811-410-0	04	1	0105-			●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	0105-				●		●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	0105-				●		●
56	BEARING; NEEDLE,1ST,REV (D) NSK	1-09811-376-0	04	1	0105-					●
56	BEARING; NEEDLE,1ST,REV (D) NTN	1-09811-401-0	04	1	0105-					●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	0105-	●	●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	0105-			●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	0105-				●		●
59	GEAR; REV MAINSHAFT Z=50	1-33257-075-0	01	1	0105-					●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	0105-	●	●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	0105-			●
67	HUB; CLU,1ST TO REV	1-33261-222-0	01	1	0105-					●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	0105-	●	●			●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	0105-			●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	0105-			●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	0105-				●		●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	0105-	●	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	0105-			●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	0105-				●		●
70	GEAR; 1ST,MAINSHAFT Z=54	1-33255-070-0	01	1	0105-					●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	0105-	●	●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	0105-			●
77	GEAR; 6TH,MAINSHAFT Z=21	1-33253-445-2	01	1	0105-			●
78	COLLAR; DIST,MAINSHAFT BRG (C)	1-33235-074-0	01	1	0105-			●
78	COLLAR; DIST,MAINSHAFT BRG (D)	1-33235-070-0	01	1	0105-				●
78	COLLAR; DIST,MAINSHAFT BRG (A)	1-33235-098-0	01	1	0105-					●
78	COLLAR; DIST,MAINSHAFT BRG (B)	1-33363-030-0	02	1	0105-					●
78	COLLAR; DIST,MAINSHAFT BRG (D)	1-33235-069-2	01	1	0105-						●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0105-	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0105-				●	●	●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-305-0	01	1	0105-	●	●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	0105-			●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-210-3	01	1	0105-				●
82	SHAFT; MAIN,TRANS Z=37-28-24-24	1-33231-298-0	01	1	0105-					●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	0105-						●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	0105-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	0105-	●	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0105-			●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0105-			●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	0105-	●	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0105-				●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●		●
94	KEY; FEATHER,COUNTER SHAFT L=67	1-09735-049-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=39	1-33331-190-0	01	1	0105-	●
96	GEAR; COUNTER DRIVE Z=39	1-33331-265-0	01	1	0105-		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	0105-			●
96	GEAR; COUNTER DRIVE Z=47	1-33331-175-2	01	1	0105-				●
96	GEAR; COUNTER DRIVE Z=41	1-33331-272-0	01	1	0105-					●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	0105-						●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0105-	●	●	●	●		●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0105-	●	●	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	0105-				●		●
103	KEY; COUNTER GEAR (C) L=46	1-09735-038-1	01	1	0105-	●	●	●
103	KEY; COUNTER GEAR (D) L=50.0	1-09735-010-0	01	1	0105-	●	●	●	●		●
103	KEY; COUNTER GEAR (E) L=75.3	1-09735-042-0	01	1	0105-				●		●
103	KEY; COUNTER GEAR (A) L=63	1-09735-027-0	01	1	0105-					●
103	KEY; COUNTER GEAR (B) L=67	1-09735-049-0	01	1	0105-					●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	0105-			●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	0105-				●		●
104	GEAR; 4TH,COUNTER Z=35	1-33338-380-0	01	1	0105-					●
105	GEAR; 3RD,COUNTER Z=31	1-33333-146-1	01	1	0105-	●	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	0105-			●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	0105-				●		●
108	SHAFT; COUNTER Z=22-13	1-33311-269-0	01	1	0105-	●	●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	0105-			●
108	SHAFT; COUNTER Z=21-12	1-33311-180-1	01	1	0105-				●
108	SHAFT; COUNTER Z=24-17-12	1-33311-260-1	01	1	0105-0308					●
108	SHAFT; COUNTER Z=24-17-12	1-33311-331-0	01	1	0309-					●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	0105-						●
109	BEARING; COUNTER SHAFT,RR (C) NSK	1-09810-021-1	01	1	0105-	●	●	●	●		●
109	BEARING; COUNTER SHAFT,RR (C) NTN	1-09810-163-0	01	1	0105-	●	●	●	●		●
109	BEARING; COUNTER SHAFT,RR (A) NSK	1-09810-186-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (B) NSK	1-09810-205-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (B) NTN	1-09810-206-0	01	1	0105-					●
109	BEARING; COUNTER SHAFT,RR (A) NTN	1-09810-207-0	01	1	0105-					●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0105-	●	●	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	0105-				●		●
110	RING; SNAP,COUNTER BRG	1-09588-193-1	01	1	0105-					●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	0105-			●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	0105-			●
118	GEAR; 6TH,COUNTER Z=54	1-33338-306-0	01	1	0105-			●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	0105-			●
120	SLEEVE	1-33262-098-2	01	1	0105-			●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0105-			●
121	HUB; CLU,6TH	1-33261-186-2	01	1	0105-				●		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0105-			●			●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	0105-	●	●	●	●		●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	0105-			●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0105-			●			●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0105-			●			●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0105-	●	●	●	●	●	●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	0105-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0105-	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	0105-				●		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-384-0	01	1	0105-					●
129	BEARING; NEEDLE,IDLER NTN	1-09811-385-0	01	1	0105-					●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0105-	●	●	●
132	SHAFT; REV	1-33351-012-2	01	1	0105-	●	●	●
132	SHAFT; REV	1-33351-016-2	01	1	0105-				●		●
132	SHAFT; REV	1-33351-025-4	01	1	0105-					●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0105-	●	●	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0105-	●	●	●
135	GEAR; REV IDLER Z=27	1-33361-070-0	01	1	0105-	●	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	0105-			●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	0105-				●		●
135	GEAR; REV IDLER Z=36	1-33361-075-0	01	1	0105-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0105-	●	●	●	●		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0105-	●	●	●	●		●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0105-			●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0105-			●		●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-203-0	01	1	0105-					●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-204-0	01	1	0105-					●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	0105-	●		●
286	NUT; LK,MAINSHAFT M46	1-09449-062-0	01	1	0105-				●		●
286	NUT; LK,MAINSHAFT 6WF1 TC-C(1B8) M46	1-09449-062-0	01	1	0105-					●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	0105-	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-305-0	01	1	0105-				●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 6WF1 TC-C(1B8)	1-09623-305-0	01	1	0105-					●
342	FLANGE; OUTPUT	1-37243-361-0	01	1	0105-	●		●
342	FLANGE; OUTPUT	1-37243-314-1	01	1	0105-				●		●
342	FLANGE; OUTPUT 6WF1 TC-C(1B8)	1-37243-314-1	01	1	0105-					●
345	BOLT; FLANGE TO YOKE M14X48.5	1-09046-013-0	04	1	0105-	●		●	●		●
345	BOLT; FLANGE TO YOKE 6WF1 TC-C(1B8) M14X48.5	1-09046-013-0	04	1	0105-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
