2-25A — SPEEDOMETER DRIVEN GEAR (#13543) — 79 parça

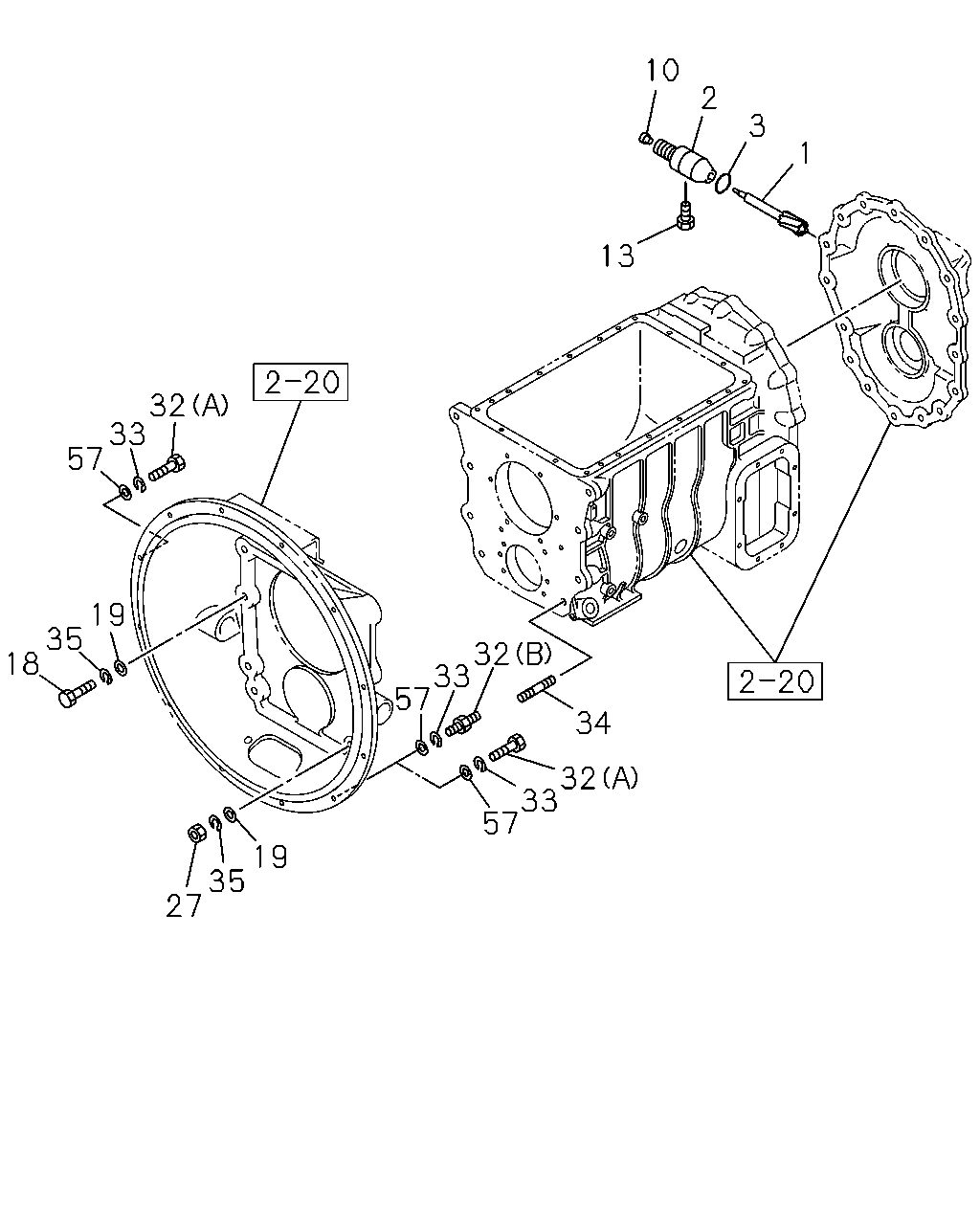

57 33 32 34 32 33 57 19 35 27 19 35 18 57 33 32 10 2 3 1 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	0105-	●	●	●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	0105-	●	●	●	●	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0105-	●	●	●	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0105-	●	●	●	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0105-	●	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	0105-0512	●	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50651-650-0	06	1	0601-	●	●	●	●	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	0105-	●	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	0105-0512	●	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0601-	●	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X60	0-28181-260-0	08	1	0312-0512						●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WG1 TC-R(75L) (A) M12X60	0-28181-260-0	08	1	0312-0512					●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X60 FLANGE	0-28151-260-0	08	1	0601-						●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WG1 TC-R(75L) (A) M12X60 FLANGE	0-28151-260-0	08	1	0601-					●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0312-						●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WG1 TC-R(75L) (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0312-					●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28781-235-0	08	1	0312-0512	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28751-235-0	08	1	0601-	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	0312-	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28781-235-0	08	1	0105-0311	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	0105-0311	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X70 FLANGE	0-28181-270-0	08	1	0105-0512						●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X70 FLANGE	0-28151-270-0	08	1	0601-						●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X65 L=92.7	1-09049-017-0	04	1	0105-						●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X60	0-28181-260-0	08	1	0105-0311					●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WF1 TC-C(1B8) (A) M12X60	0-28181-260-0	10	1	0312-0512					●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WF1 TC-C(1B8) (A) M12X60 FLANGE	0-28151-260-0	10	1	0601-					●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0105-0311					●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WF1 TC-C(1B8) (B) M10X16,M12X67 L=91	1-09029-043-1	02	1	0312-					●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	04	1	0312-	●	●	●	●		●
33	WASHER; LK,CLU HSG 6WG1 TC-R(75L) ID=12.2	9-09150-612-0	04	1	0312-					●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	04	1	0105-0311	●	●	●	●	●	●
33	WASHER; LK,CLU HSG 6WF1 TC-C(1B8) ID=12.2	9-09150-612-0	02	1	0312-					●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0105-	●	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	0105-	●	●	●	●	●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	04	1	0312-	●	●	●	●		●
57	WASHER; PL,CLU HSG 6WG1 TC-R(75L) ID=12.5	9-09164-512-0	04	1	0312-					●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	04	1	0105-0311	●	●	●	●	●	●
57	WASHER; PL,CLU HSG 6WF1 TC-C(1B8) ID=12.5	9-09164-512-0	02	1	0312-					●

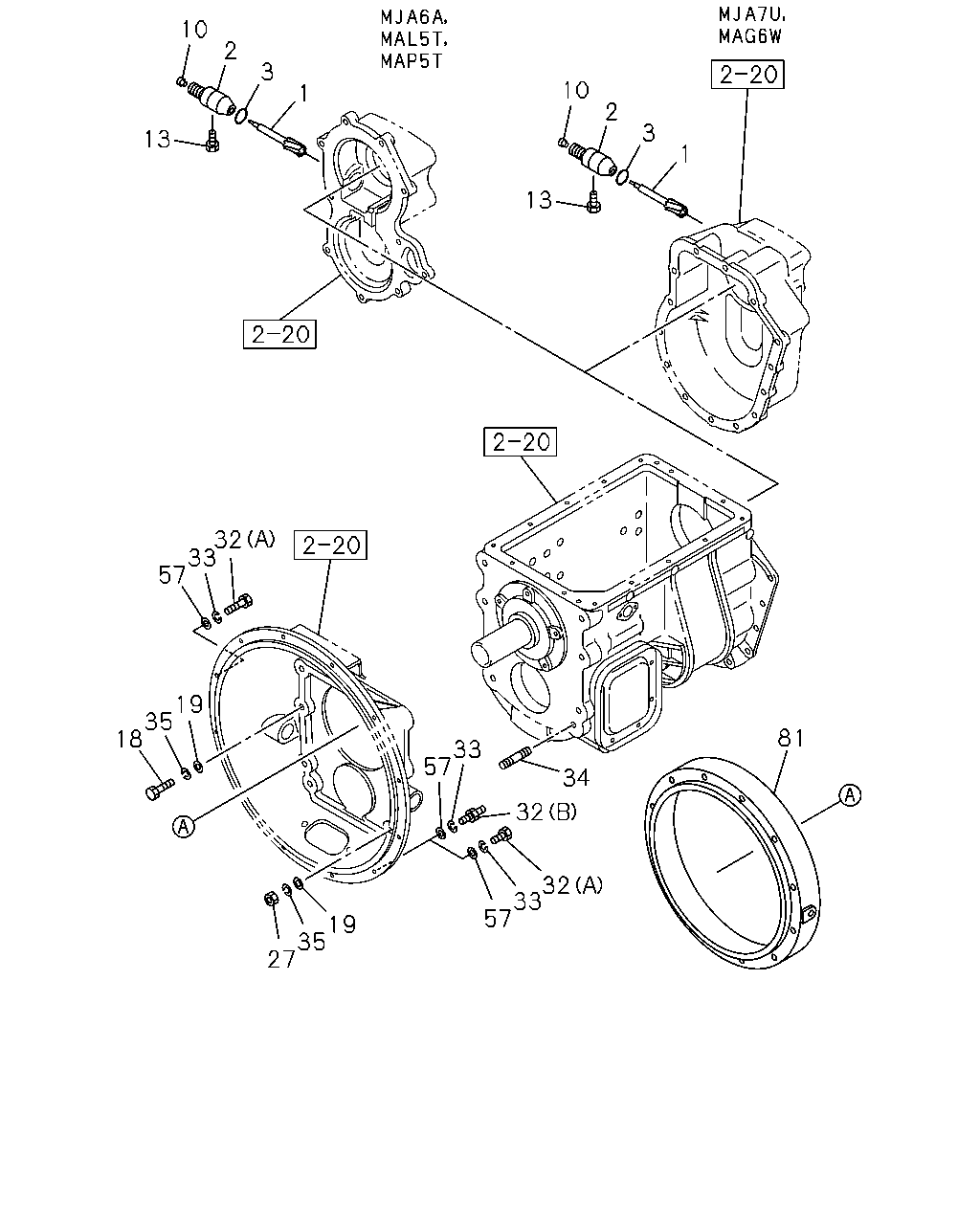

10 2 3 1 13 32 33 57 19 35 18 27 35 19 57 33 32 32 34 33 57 81 13 10 2 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	GEAR; DRIVEN,SPD Z=15	1-33372-147-4	01	1	0105-	●	●	●	●	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	1-33373-077-0	01	1	0105-	●	●	●	●	●	●
3	GASKET; BUSHING ALSO INCLUDED IN GASKET SET(M/T).	1-09623-246-0	01	1	0105-	●	●	●	●	●	●
10	SEAL; OIL,DRIVE GEAR ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-510-0	01	1	0105-	●	●	●	●	●	●
13	SCREW; BUSHING,DRIVEN GEAR M6X12.5 FLANGE	1-09044-063-0	01	1	0105-	●	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50151-650-0	06	1	0105-0512	●	●	●	●	●	●
18	BOLT; CLU HSG TO TRANS M16X50 W/LK&PL WASHER	0-50651-650-0	06	1	0601-	●	●	●	●	●	●
19	WASHER; PL,CLU HSG TO TRANS ID=17	9-09160-516-0	02	1	0105-	●	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	9-99110-516-0	02	1	0105-0512	●	●	●	●	●	●
27	NUT; CLU HSG TO TRANS M16	0-91110-516-0	02	1	0601-	●	●	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X60	0-28181-260-0	08	1	0312-0512						●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WG1 TC-R(75L) (A) M12X60	0-28181-260-0	08	1	0312-0512					●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X60 FLANGE	0-28151-260-0	08	1	0601-						●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WG1 TC-R(75L) (A) M12X60 FLANGE	0-28151-260-0	08	1	0601-					●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0312-						●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WG1 TC-R(75L) (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0312-					●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28781-235-0	08	1	0312-0512	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28751-235-0	08	1	0601-	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	0312-	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X35 FLANGE	0-28781-235-0	08	1	0105-0311	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X35 L=59	1-09029-031-1	04	1	0105-0311	●	●	●	●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X70 FLANGE	0-28181-270-0	08	1	0105-0512						●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X70 FLANGE	0-28151-270-0	08	1	0601-						●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X65 L=92.7	1-09049-017-0	04	1	0105-						●
32	BOLT; CLU HSG TO FLYWHEEL HSG (A) M12X60	0-28181-260-0	08	1	0105-0311					●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WF1 TC-C(1B8) (A) M12X60	0-28181-260-0	10	1	0312-0512					●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WF1 TC-C(1B8) (A) M12X60 FLANGE	0-28151-260-0	10	1	0601-					●
32	BOLT; CLU HSG TO FLYWHEEL HSG (B) M10X16,M12X67 L=91	1-09029-043-1	04	1	0105-0311					●
32	BOLT; CLU HSG TO FLYWHEEL HSG 6WF1 TC-C(1B8) (B) M10X16,M12X67 L=91	1-09029-043-1	02	1	0312-					●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	04	1	0312-	●	●	●	●		●
33	WASHER; LK,CLU HSG 6WG1 TC-R(75L) ID=12.2	9-09150-612-0	04	1	0312-					●
33	WASHER; LK,CLU HSG ID=12.2	9-09150-612-0	04	1	0105-0311	●	●	●	●	●	●
33	WASHER; LK,CLU HSG 6WF1 TC-C(1B8) ID=12.2	9-09150-612-0	02	1	0312-					●
34	STUD; CLU HSG M16X45 L=69	9-04411-645-0	02	1	0105-	●	●	●	●	●	●
35	WASHER; LK,CLU HSG TO TRANS ID=16.2	9-09150-516-0	02	1	0105-	●	●	●	●	●	●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	04	1	0312-	●	●	●	●		●
57	WASHER; PL,CLU HSG 6WG1 TC-R(75L) ID=12.5	9-09164-512-0	04	1	0312-					●
57	WASHER; PL,CLU HSG ID=12.5	9-09164-512-0	04	1	0105-0311	●	●	●	●	●	●
57	WASHER; PL,CLU HSG 6WF1 TC-C(1B8) ID=12.5	9-09164-512-0	02	1	0312-					●
81	SPACER	1-31119-017-0	01	1	0105-						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
