◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20B - MANUAL TRANSMISSION ASM AND CASE ▶
2-20B — MANUAL TRANSMISSION ASM AND CASE (#13542) — 430 parça

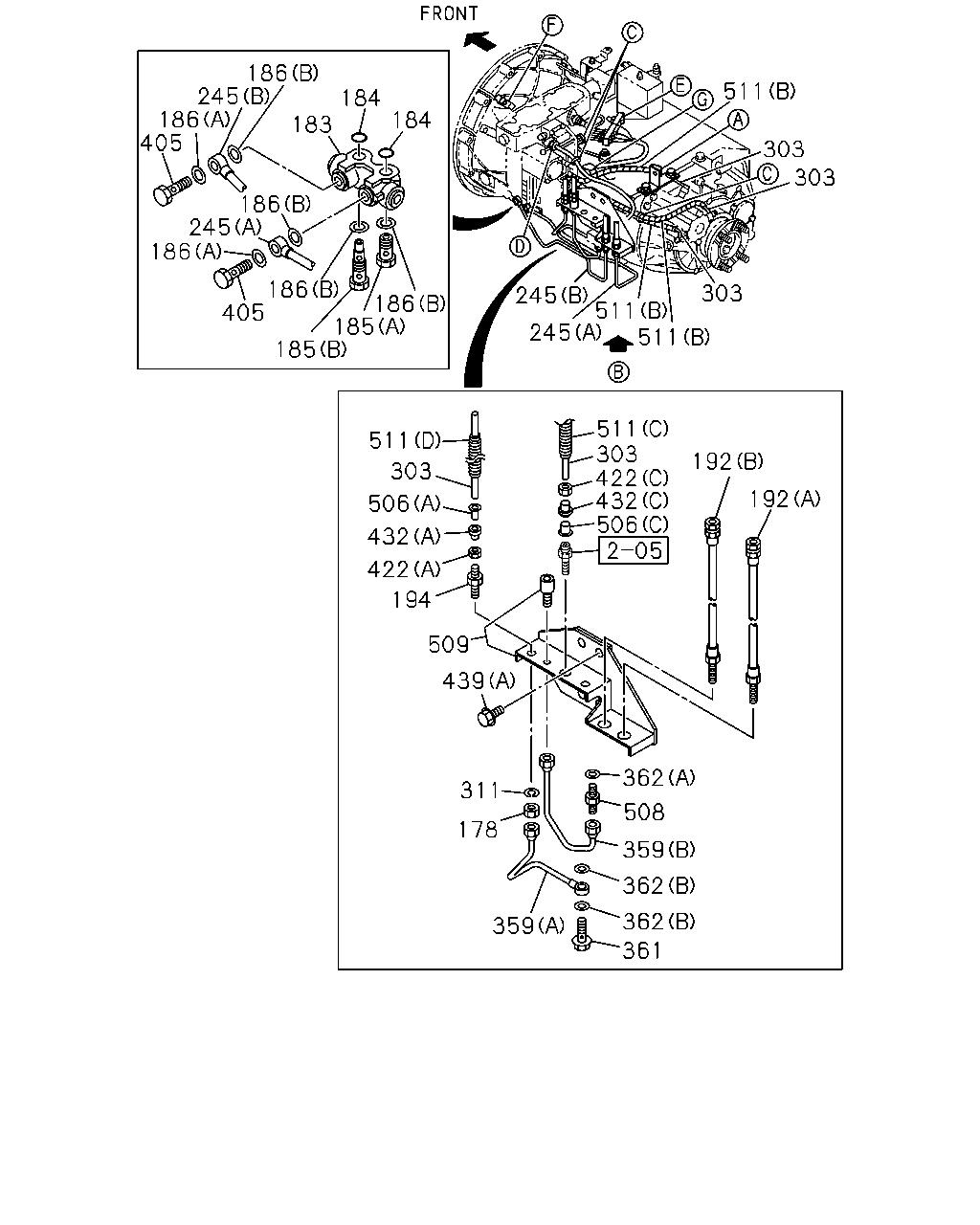

çizim 22276
361 362 362 359 508 362 359 178 311 439 509 194 422 432 506 303 511 511 303 422 432 506 192 192 511 245 511 303 303 303 511 245 185 186 185 405 186 186 245 186 183 184 184 186 245 186 405
BalonParca AdiParca NoAdetTipApplied Date A B
178 NUT; UNION
M14 		9-99111-414-0 01 1 0105-0512 ● ●
178 NUT; UNION
M14 		0-91111-514-0 01 1 0601- ● ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 0105- ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 0105- ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 0105- ● ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 0105- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-001-0 04 1 0105- ● ●
186 RING; SEAL
(B) ID=22 		1-32568-002-0 02 1 0105- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) L=400 		1-09364-913-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=500 		1-09364-914-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
6WA1 TC-C(55L) (B) L=535 		1-09364-936-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
6WA1 TC-C(55L) (A) L=406 		1-09364-961-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
(B) L=311 		1-09364-921-0 01 1 0105- ●
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 0105- ● ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 0105- ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 0105- ●
245 PIPE; OIL
(A) 		1-49161-055-0 01 1 0105- ●
245 PIPE; OIL
(B) 		1-49161-061-0 01 1 0105- ●
303 TUBE; NYLON
W-SERIES ENG<1A2> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0105-0105 ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0106-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202- ● ●
303 TUBE; NYLON
PE-SERIES ENG<1A0> L=2000 OD=8 		1-87410-073-0 02 1 0105-0105 ●
303 TUBE; NYLON
L=2000 OD=12 		1-87410-069-0 01 1 0106- ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0105-0105 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202- ● ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 0105- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0105- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 0105- ● ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0105- ● ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 0105- ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0105- ● ●
422 NUT; SLEEVE
(C) M18 		1-09660-213-0 01 1 0106- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0105- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0105- ● ●
432 SLEEVE; TUBE
(C) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0105- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0105- ● ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0105-0512 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28851-635-0 04 1 0601- ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0105-0512 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28751-040-0 04 1 0601- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 0105-0512 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28851-625-0 02 1 0601- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 0105-0512 ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28851-640-0 01 1 0601- ●
506 INSERT
(C) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106- ● ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0105- ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0105- ● ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0105- ● ●
509 BRACKET; PIPE 1-47478-215-2 01 1 0105- ●
509 BRACKET; PIPE 1-47477-447-2 01 1 0105- ●
511 TUBE; CORRUGATE
W-SERIES ENG<1A2> (C) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0105-0105 ● ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ● ●
511 TUBE; CORRUGATE
W-SERIES ENG<1A2> (C) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0107- ● ●
511 TUBE; CORRUGATE
(C) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
(A) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0105-0105 ● ●
511 TUBE; CORRUGATE
(A) L=250 ID=7 		1-83129-031-1 01 1 0106- ● ●
511 TUBE; CORRUGATE
PE-SERIES ENG<1A0> (D) L=2000 ID=10 		1-87410-088-0 01 1 0105-0106 ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ● ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0105- ● ●

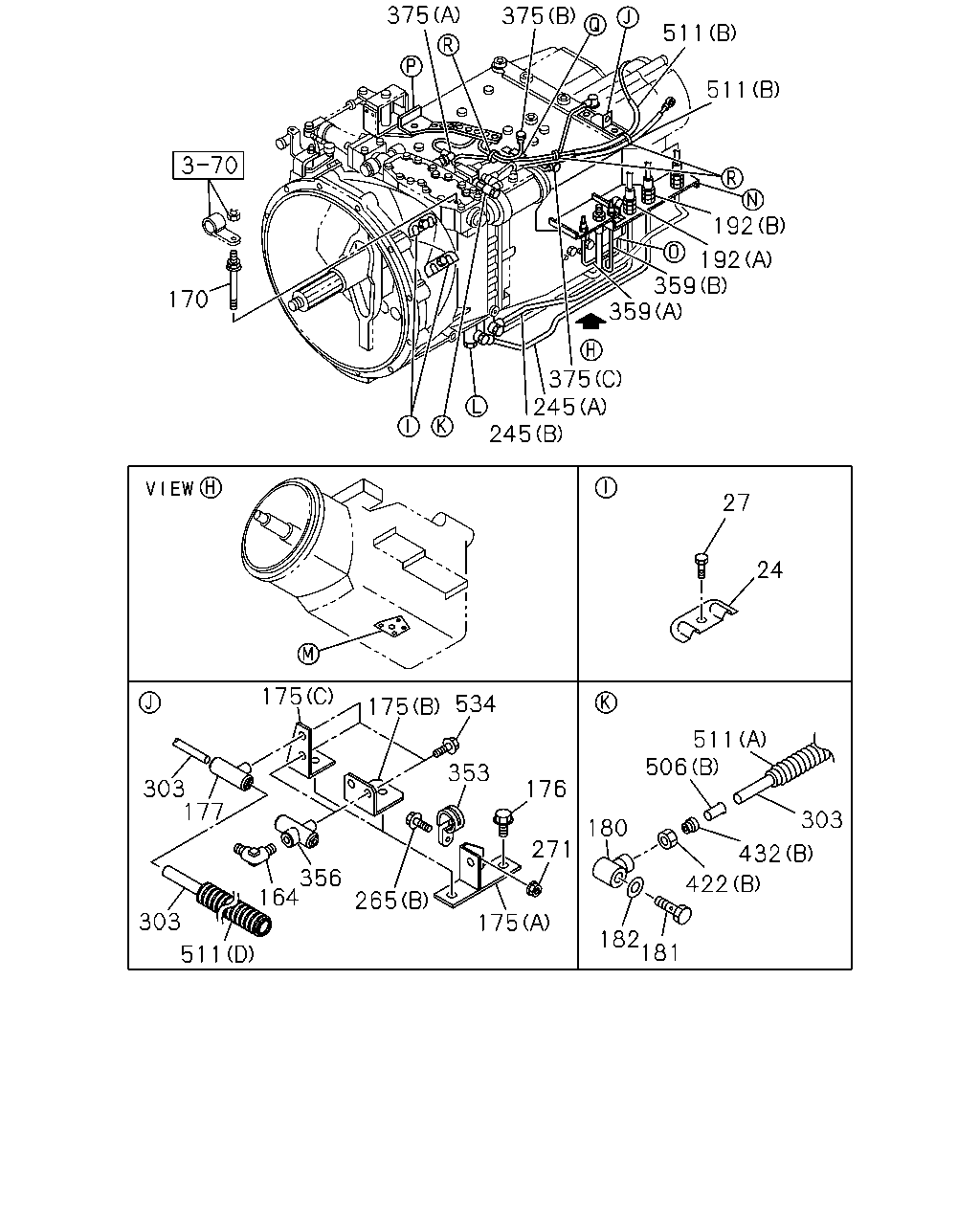

çizim 22376
170 245 245 375 359 359 192 192 511 511 375 375 175 175 534 353 176 271 175 265 356 164 511 303 177 303 180 182 181 422 432 303 506 511 24 27
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 0105- ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 0105-0512 ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28851-625-0 02 1 0601- ● ●
164 CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106- ● ●
170 STUD; QUAD BOX
6WA1 TC-C(55L) 		1-09052-017-1 01 1 0108- ●
170 STUD; QUAD BOX 1-09052-017-1 01 1 0108- ●
175 BRACKET; UNION
(B) 		1-47477-572-0 01 1 0106-0106 ● ●
175 BRACKET; UNION
(C) 		1-47479-299-0 01 1 0107- ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0105- ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 0105-0512 ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28851-625-0 02 1 0601- ● ●
177 UNION; NYLON TUBE 1-09661-133-0 01 1 0107- ● ●
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 0105- ● ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 0105- ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 0105- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) L=400 		1-09364-913-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=500 		1-09364-914-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
6WA1 TC-C(55L) (B) L=535 		1-09364-936-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
6WA1 TC-C(55L) (A) L=406 		1-09364-961-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
(B) L=311 		1-09364-921-0 01 1 0105- ●
245 PIPE; OIL
(B) 		1-49119-468-1 01 1 0105- ●
245 PIPE; OIL
(A) 		1-49122-031-0 01 1 0105- ●
245 PIPE; OIL
(A) 		1-49161-055-0 01 1 0105- ●
245 PIPE; OIL
(B) 		1-49161-061-0 01 1 0105- ●
265 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0106-0106 ● ●
265 BOLT; CLIP
(A) M8X40 FLANGE 		0-28680-840-0 01 1 0105-0512 ●
265 BOLT; CLIP
(A) M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ●
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
271 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ●
303 TUBE; NYLON
W-SERIES ENG<1A2> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0105-0105 ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0106-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202- ● ●
303 TUBE; NYLON
PE-SERIES ENG<1A0> L=2000 OD=8 		1-87410-073-0 02 1 0105-0105 ●
303 TUBE; NYLON
L=2000 OD=12 		1-87410-069-0 01 1 0106- ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0105-0105 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202- ● ●
353 CLIP; NYLON TUBE
ID=24 L=27 		1-09700-809-0 01 1 0106-0106 ● ●
356 UNION
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0106- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0105- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 0105- ● ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 0105- ● ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 0105- ● ●
422 NUT; SLEEVE
(C) M18 		1-09660-213-0 01 1 0106- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0105- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0105- ● ●
432 SLEEVE; TUBE
(C) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0105- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0105- ● ●
506 INSERT
(C) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106- ● ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0105- ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0105- ● ●
511 TUBE; CORRUGATE
W-SERIES ENG<1A2> (C) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0105-0105 ● ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ● ●
511 TUBE; CORRUGATE
W-SERIES ENG<1A2> (C) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0107- ● ●
511 TUBE; CORRUGATE
(C) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
(A) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0105-0105 ● ●
511 TUBE; CORRUGATE
(A) L=250 ID=7 		1-83129-031-1 01 1 0106- ● ●
511 TUBE; CORRUGATE
PE-SERIES ENG<1A0> (D) L=2000 ID=10 		1-87410-088-0 01 1 0105-0106 ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ● ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0105- ● ●
534 BOLT; UNION
M8X12 FLANGE 		0-28080-812-0 01 1 0106-0106 ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 0107-0512 ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●

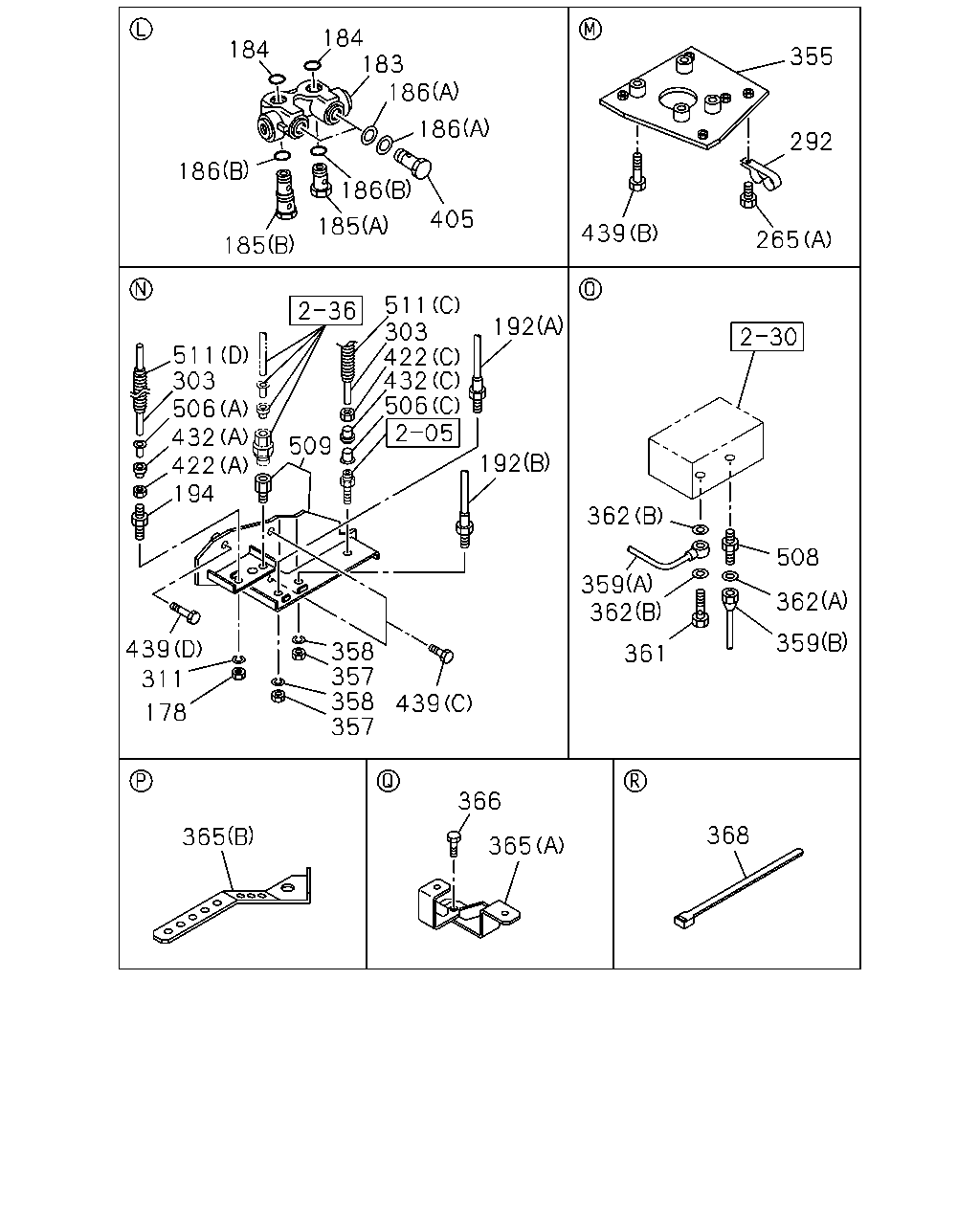

çizim 23439
368 365 366 365 178 311 439 357 439 358 357 358 359 362 508 361 362 359 362 192 192 506 432 422 303 511 405 439 265 292 355 186 186 183 184 184 186 186 185 185 511 303 506 432 422 194 509
BalonParca AdiParca NoAdetTipApplied Date A B
178 NUT; UNION
M14 		9-99111-414-0 01 1 0105-0512 ● ●
178 NUT; UNION
M14 		0-91111-514-0 01 1 0601- ● ●
183 VALVE; BYPASS,TRANS 1-32569-046-0 01 1 0105- ● ●
184 GASKET; BYPASS VLV 1-32568-003-0 02 1 0105- ● ●
185 UNION; SCREW,BYPASS VLV
(A) M22 		1-32567-011-0 01 1 0105- ● ●
185 UNION; SCREW,BYPASS VLV
(B) 		1-32567-016-0 01 1 0105- ● ●
186 RING; SEAL
(A) ID=22 		1-32568-001-0 04 1 0105- ● ●
186 RING; SEAL
(B) ID=22 		1-32568-002-0 02 1 0105- ● ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) L=400 		1-09364-913-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=500 		1-09364-914-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
6WA1 TC-C(55L) (B) L=535 		1-09364-936-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
6WA1 TC-C(55L) (A) L=406 		1-09364-961-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
(A) L=406 		1-09364-961-0 01 1 0105- ●
192 HOSE; FLEX,TRANS
(B) L=311 		1-09364-921-0 01 1 0105- ●
194 UNION; NYLON TUBE
M14 		1-09664-230-0 01 1 0105- ● ●
265 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0106-0106 ● ●
265 BOLT; CLIP
(A) M8X40 FLANGE 		0-28680-840-0 01 1 0105-0512 ●
265 BOLT; CLIP
(A) M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ●
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 0105- ● ●
303 TUBE; NYLON
W-SERIES ENG<1A2> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0105-0105 ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0106-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202- ● ●
303 TUBE; NYLON
PE-SERIES ENG<1A0> L=2000 OD=8 		1-87410-073-0 02 1 0105-0105 ●
303 TUBE; NYLON
L=2000 OD=12 		1-87410-069-0 01 1 0106- ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0105-0105 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202- ● ●
311 WASHER; LK
ID=14.2 		9-09150-514-0 01 1 0105- ● ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 0105- ●
355 BRACKET; OIL PIPE 1-47477-500-1 01 1 0105- ●
357 NUT; UNION,FLEX HOSE
M22 		9-09111-522-0 02 1 0105-0512 ● ●
357 NUT; UNION,FLEX HOSE
M22 		0-91111-522-0 02 1 0601- ● ●
358 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0105- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0105- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
361 BOLT; EYE,AIR PIPE
M12X24 EYE-BOLT 		1-09675-229-0 01 1 0105- ● ●
362 GASKET; AIR PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0105- ● ●
362 GASKET; AIR PIPE
(B) ID=12.2 		1-09630-084-0 02 1 0105- ● ●
365 BRACKET; HARNESS
6WA1 TC-C(55L) (C) 		1-47477-902-0 01 1 0109- ●
365 BRACKET; HARNESS
(B) 		1-82699-490-2 01 1 0105- ● ●
365 BRACKET; HARNESS
(A) 		1-47479-047-0 01 1 0105- ●
366 BOLT; BRKT,HARNESS
6WA1 TC-C(55L) M12X16 		0-28181-216-0 01 1 0109-0512 ●
366 BOLT; BRKT,HARNESS
6WA1 TC-C(55L) M12X16 		0-28151-216-0 01 1 0601- ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28181-225-0 01 1 0105-0512 ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28151-225-0 01 1 0601- ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 0105-0105 ● ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 03 1 0106- ● ●
405 BOLT; EYE,OIL PIPE
M22X37 		1-09675-060-0 02 1 0105- ● ●
422 NUT; SLEEVE
(C) M18 		1-09660-213-0 01 1 0106- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0105- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0105- ● ●
432 SLEEVE; TUBE
(C) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0105- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0105- ● ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0105-0512 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28851-635-0 04 1 0601- ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0105-0512 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28751-040-0 04 1 0601- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 0105-0512 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28851-625-0 02 1 0601- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 0105-0512 ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28851-640-0 01 1 0601- ●
506 INSERT
(C) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106- ● ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0105- ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0105- ● ●
508 UNION; AIR
M10 & M12 STRAIGHT 		1-09664-235-0 01 1 0105- ● ●
509 BRACKET; PIPE 1-47478-215-2 01 1 0105- ●
509 BRACKET; PIPE 1-47477-447-2 01 1 0105- ●
511 TUBE; CORRUGATE
W-SERIES ENG<1A2> (C) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0105-0105 ● ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ● ●
511 TUBE; CORRUGATE
W-SERIES ENG<1A2> (C) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0107- ● ●
511 TUBE; CORRUGATE
(C) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
(A) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0105-0105 ● ●
511 TUBE; CORRUGATE
(A) L=250 ID=7 		1-83129-031-1 01 1 0106- ● ●
511 TUBE; CORRUGATE
PE-SERIES ENG<1A0> (D) L=2000 ID=10 		1-87410-088-0 01 1 0105-0106 ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ● ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0105- ● ●

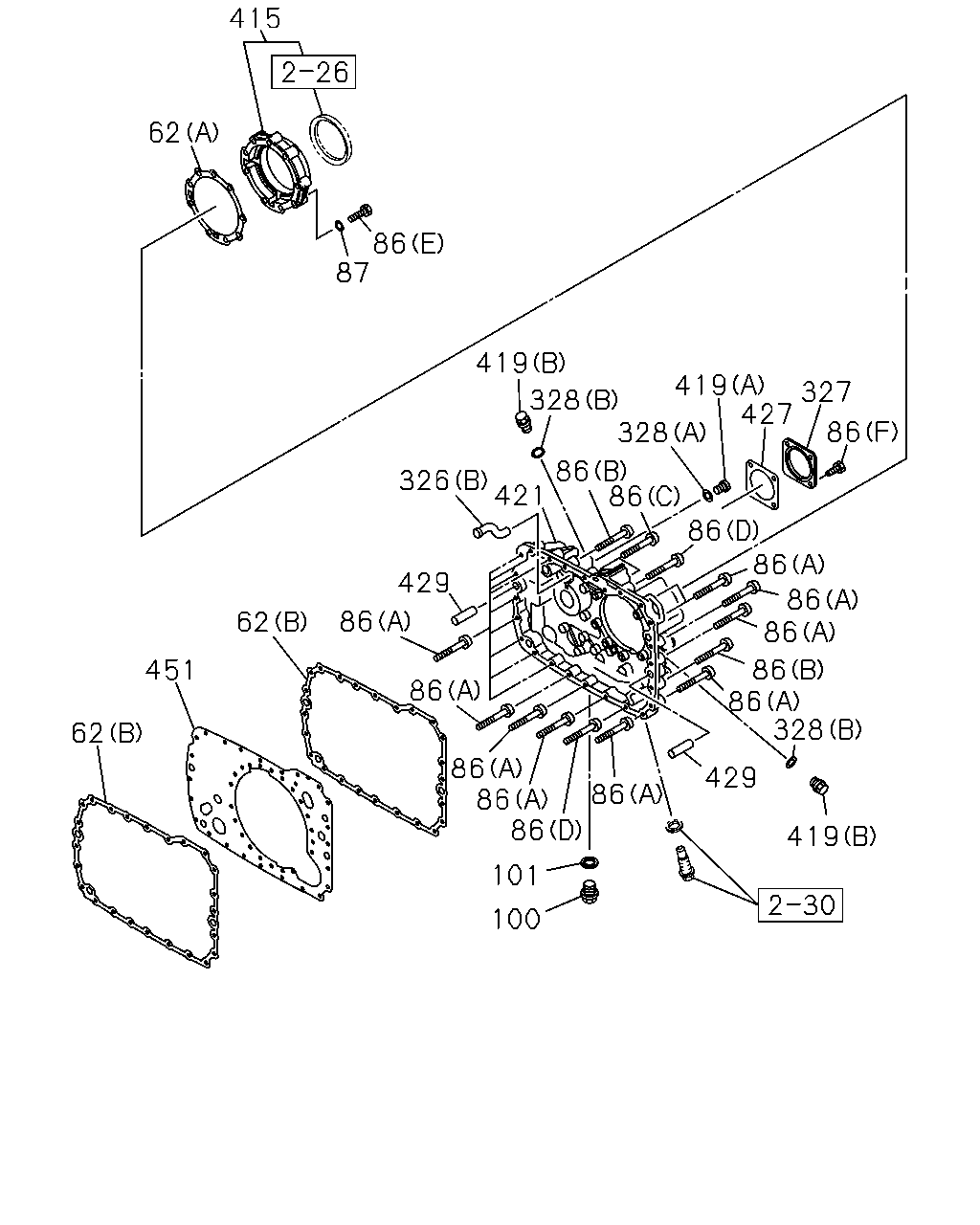

çizim 23442
100 101 419 328 429 86 86 86 86 86 86 429 326 421 86 86 86 86 86 86 86 86 62 451 62 86 327 427 419 328 328 419 87 86 415 62
BalonParca AdiParca NoAdetTipApplied Date A B
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33119-399-0 02 1 0105- ● ●
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33139-053-0 01 1 0105- ● ●
86 BOLT; RR COVER
(A) 		1-33119-266-0 18 1 0105- ● ●
86 BOLT; RR COVER
(E) 		1-33139-054-0 09 1 0105- ● ●
86 BOLT; RR COVER
(B) 		1-33139-056-0 02 1 0105- ● ●
86 BOLT; RR COVER
(C) M10X110 		1-33139-057-0 02 1 0105- ● ●
86 BOLT; RR COVER
(D) M10X50 		1-33139-058-0 02 1 0105- ● ●
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (F) M12X25 		1-33119-400-0 04 1 0105- ● ●
87 WASHER; LK,RR COVER 1-09469-010-0 09 1 0105- ● ●
100 PLUG; DRAIN RR COVER 1-33119-268-0 01 1 0105- ● ●
101 GASKET; DRAIN RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 0105- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 0105- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 0105- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-272-0 01 1 0105- ●
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-165-0 01 1 0105- ● ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 0105- ● ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 0105- ● ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 0105- ● ●
415 COVER; BRG 1-33159-039-0 01 1 0105- ● ●
419 PLUG; RR COVER
(B) 		1-33119-171-0 02 1 0105- ● ●
419 PLUG; RR COVER
(A) 		1-34119-008-0 01 1 0105- ● ●
421 COVER; RR,TRANS 1-33131-244-0 01 1 0105- ● ●
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) 		1-33132-054-0 01 1 0105- ● ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 0105- ● ●
451 PLATE; RR COVER 1-33139-055-0 01 1 0105- ● ●

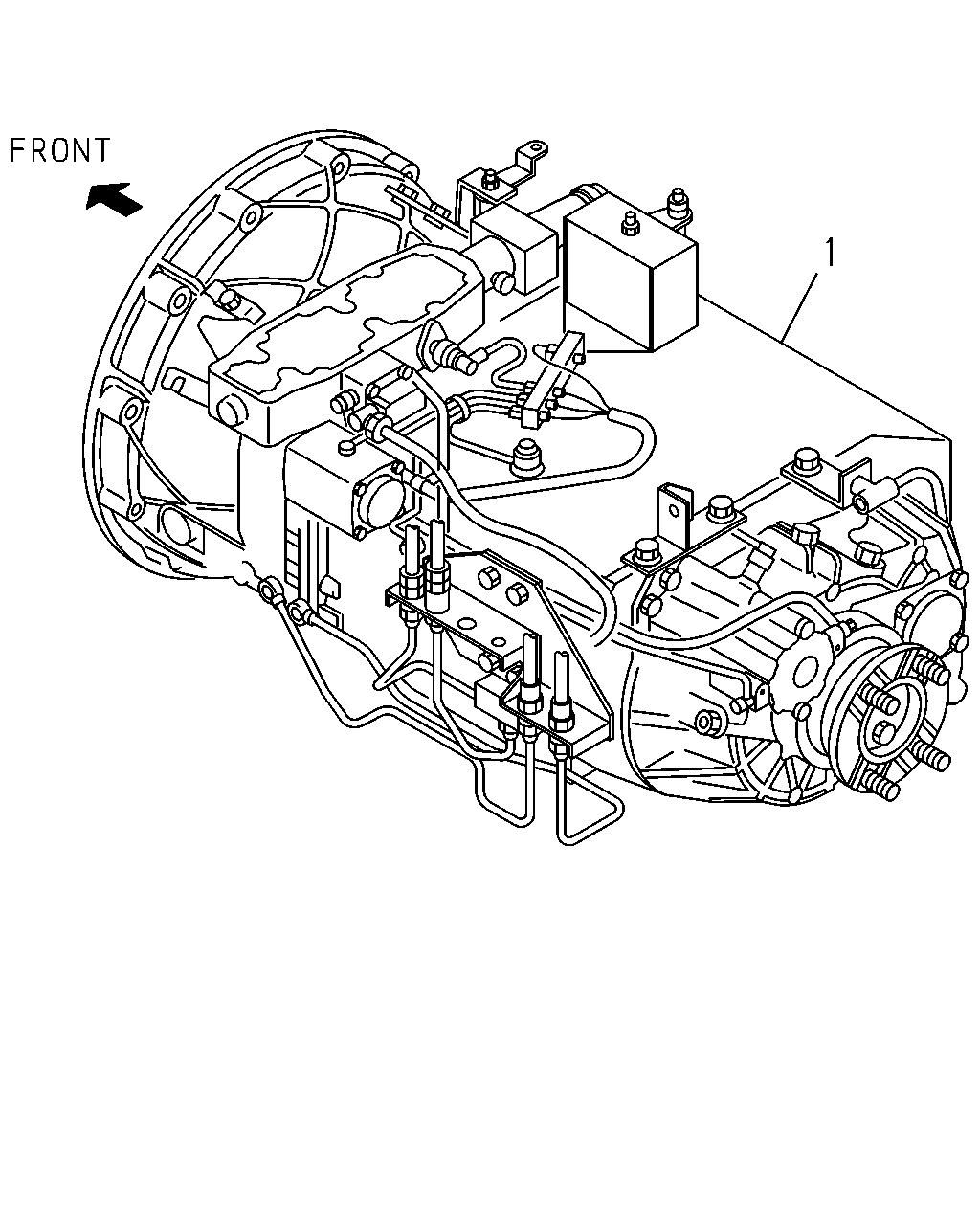

çizim 24047
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-017-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-380-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-033-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-381-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33043-379-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-377-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-378-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-376-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33043-021-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33043-383-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-020-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-382-0 01 1 0110- ●

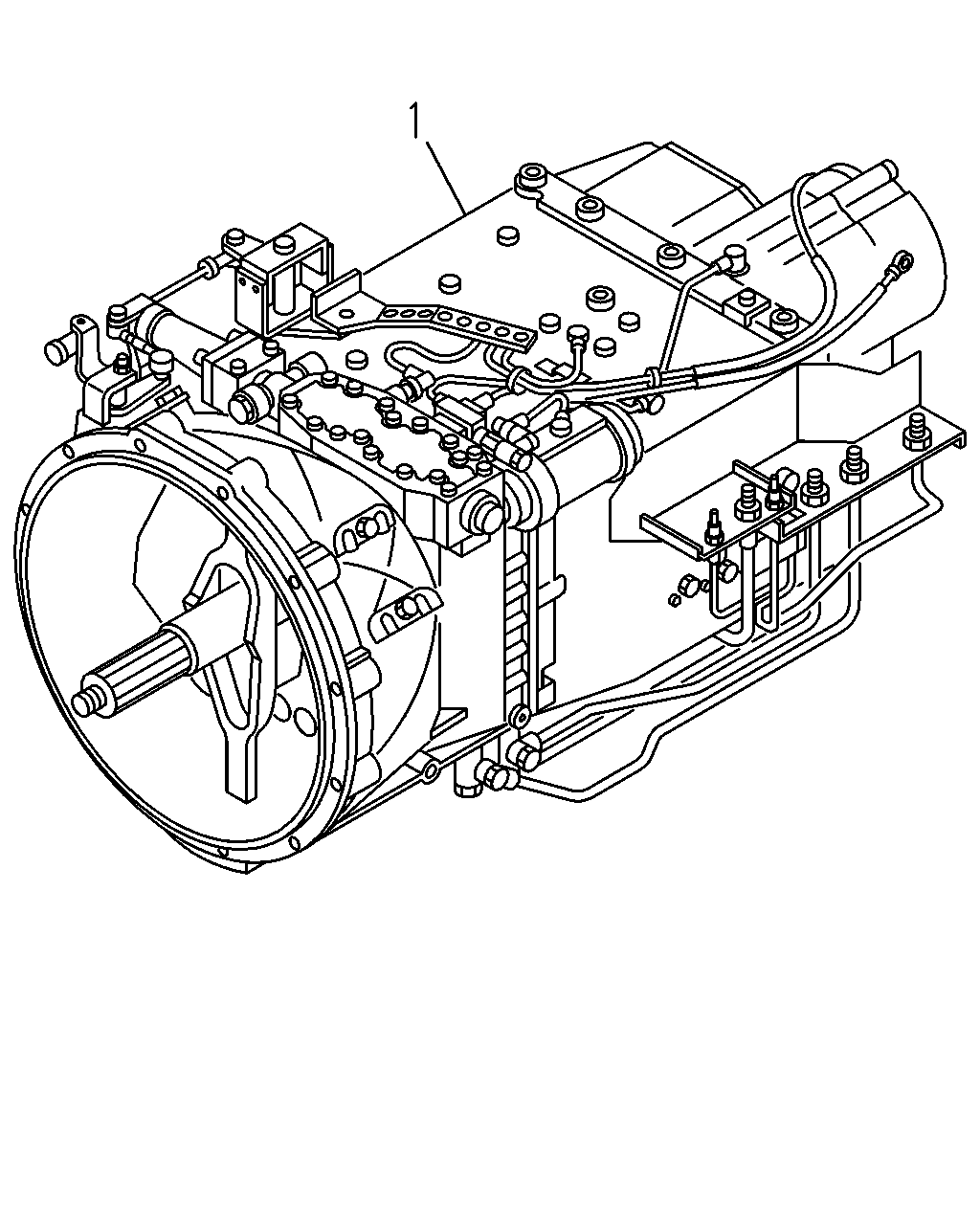

çizim 24178
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-017-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-380-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-033-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-381-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33042-165-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33043-379-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33042-011-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU> 		1-33043-377-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33042-166-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-378-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33042-012-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU> 		1-33043-376-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33043-021-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> 		1-33043-383-0 01 1 0110- ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-020-0 01 1 0105-0109 ●
1 TRANSMISSION ASM; MANUAL
TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM) 		1-33043-382-0 01 1 0110- ●

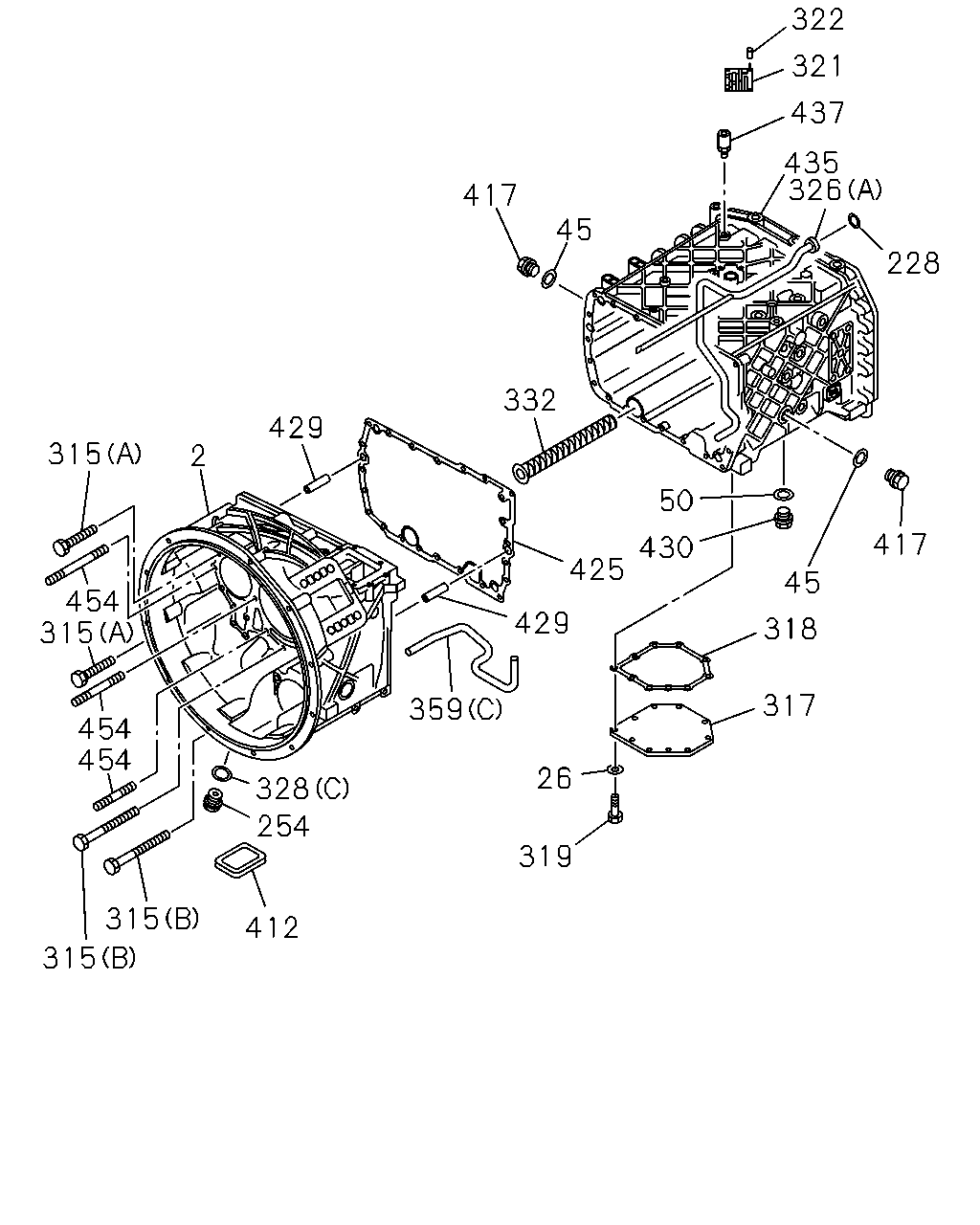

çizim 80368
26 319 317 318 45 417 430 50 425 429 359 328 254 412 315 315 454 454 315 454 315 2 429 332 45 417 228 326 435 437 321 322
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; CLU 1-31111-194-0 01 1 0105- ● ●
26 WASHER; PL,COVER 1-09469-010-0 10 1 0105- ● ●
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 02 1 0105- ● ●
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-264-0 01 1 0105- ● ●
228 GASKET; NOZZLE 1-33119-273-0 01 1 0105- ● ●
254 PLUG; DRAIN,OIL 1-33119-376-0 01 1 0105- ● ●
315 BOLT; CASE
(A) 		1-33119-266-0 15 1 0105- ● ●
315 BOLT; CASE
(B) 		1-33119-267-0 07 1 0105- ● ●
317 COVER; CASE 1-33119-274-0 01 1 0105- ● ●
318 GASKET; COVER 1-33119-409-0 01 1 0105- ● ●
319 BOLT; COVER 1-33119-276-0 10 1 0105- ● ●
321 PLATE; NAME 1-33119-277-0 01 1 0105- ● ●
322 RIVET; NAME PLATE 1-33119-398-0 04 1 0105- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-282-0 01 1 0105- ●
326 NOZZLE; OIL,OUTLET
(B) 		1-33139-021-0 01 1 0105- ● ●
326 NOZZLE; OIL,OUTLET
(A) 		1-33119-272-0 01 1 0105- ●
328 GASKET; PLUG
(B) 		1-33119-249-0 02 1 0105- ● ●
328 GASKET; PLUG
(C) 		1-33119-264-0 01 1 0105- ● ●
328 GASKET; PLUG
(A) 		1-33139-023-0 01 1 0105- ● ●
332 FILTER; OIL 1-33119-370-0 01 1 0105- ● ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49119-463-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-135-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49119-464-1 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-136-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(C) 		1-33119-395-0 01 1 0105- ● ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49118-935-0 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(A) 		1-49123-133-0 01 1 0110- ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49118-937-0 01 1 0105-0109 ●
359 PIPE; AIR,TRANS TO UNION
(B) 		1-49123-134-0 01 1 0110- ●
412 CAP; CLU HSG 1-31119-022-0 01 1 0105- ● ●
417 PLUG; OIL FILLER,TRANS 1-33119-268-0 02 1 0105- ● ●
425 GASKET; CLU HSG TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-262-0 01 1 0105- ● ●
429 PIN; STRAIGHT 1-33119-265-0 07 1 0105- ● ●
430 PLUG; OIL DRAIN 1-33119-268-0 01 1 0105- ● ●
435 CASE; TRANS 1-33111-286-0 01 1 0105- ●
435 CASE; TRANS 1-33111-290-0 01 1 0105- ●
437 BREATHER; TRANS 1-36122-004-0 01 1 0105- ● ●
454 STUD; CLU HSG
M10 L=50 		1-33119-381-0 04 1 0105- ● ●
454 STUD; CLU HSG
M10 L=80 		1-33119-393-0 08 1 0105- ● ●
454 STUD; CLU HSG
M10 L=25 		1-33119-394-0 11 1 0105- ● ●

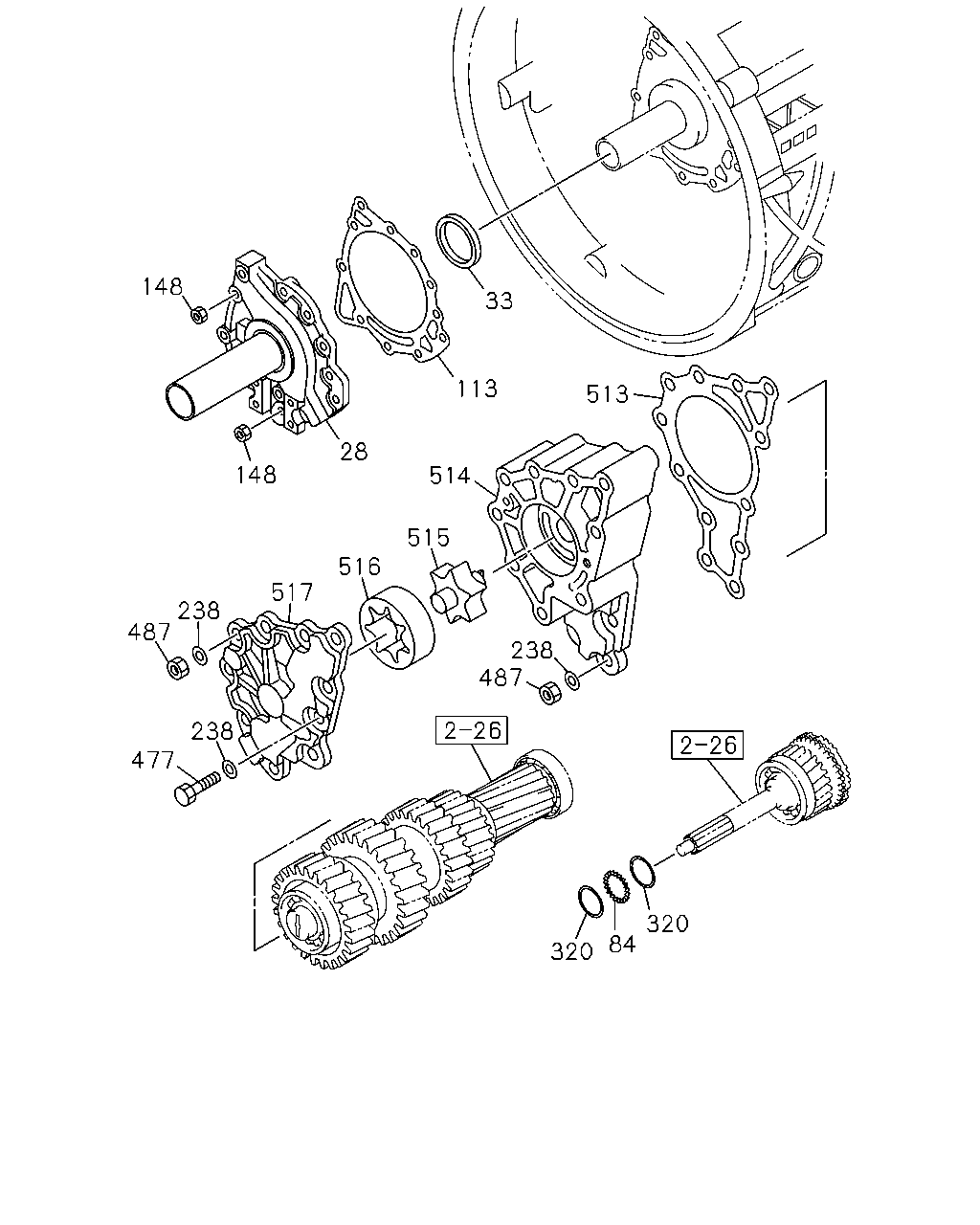

çizim 80939
320 84 320 487 238 515 514 113 513 33 28 516 517 238 238 477 487 148 148
BalonParca AdiParca NoAdetTipApplied Date A B
28 COVER; FRT,TRANS CASE 1-33121-149-0 01 1 0105- ● ●
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-33219-248-0 01 1 0105- ● ●
84 SPACER; COVER,TRANS 1-33129-006-0 01 1 0105- ● ●
113 GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). 		1-33122-018-0 01 1 0105- ● ●
148 NUT 1-33529-056-0 11 1 0105- ● ●
238 WASHER; PL 1-09469-010-0 14 1 0105- ● ●
320 WASHER; COVER 1-33129-007-0 02 1 0105- ● ●
477 BOLT; OIL PUMP 1-33529-055-0 02 1 0105- ● ●
487 NUT; COVER,OIL PUMP 1-33529-056-0 12 1 0105- ● ●
513 GASKET; HOUSING 1-34159-058-0 01 1 0105- ● ●
514 HOUSING; OIL PUMP 1-34155-027-0 01 1 0105- ● ●
515 SHAFT; OIL PUMP 1-34159-070-0 01 1 0105- ● ●
516 ROTOR; OIL PUMP 1-34159-060-0 01 1 0105- ● ●
517 COVER; OIL PUMP 1-34159-071-0 01 1 0105- ● ●

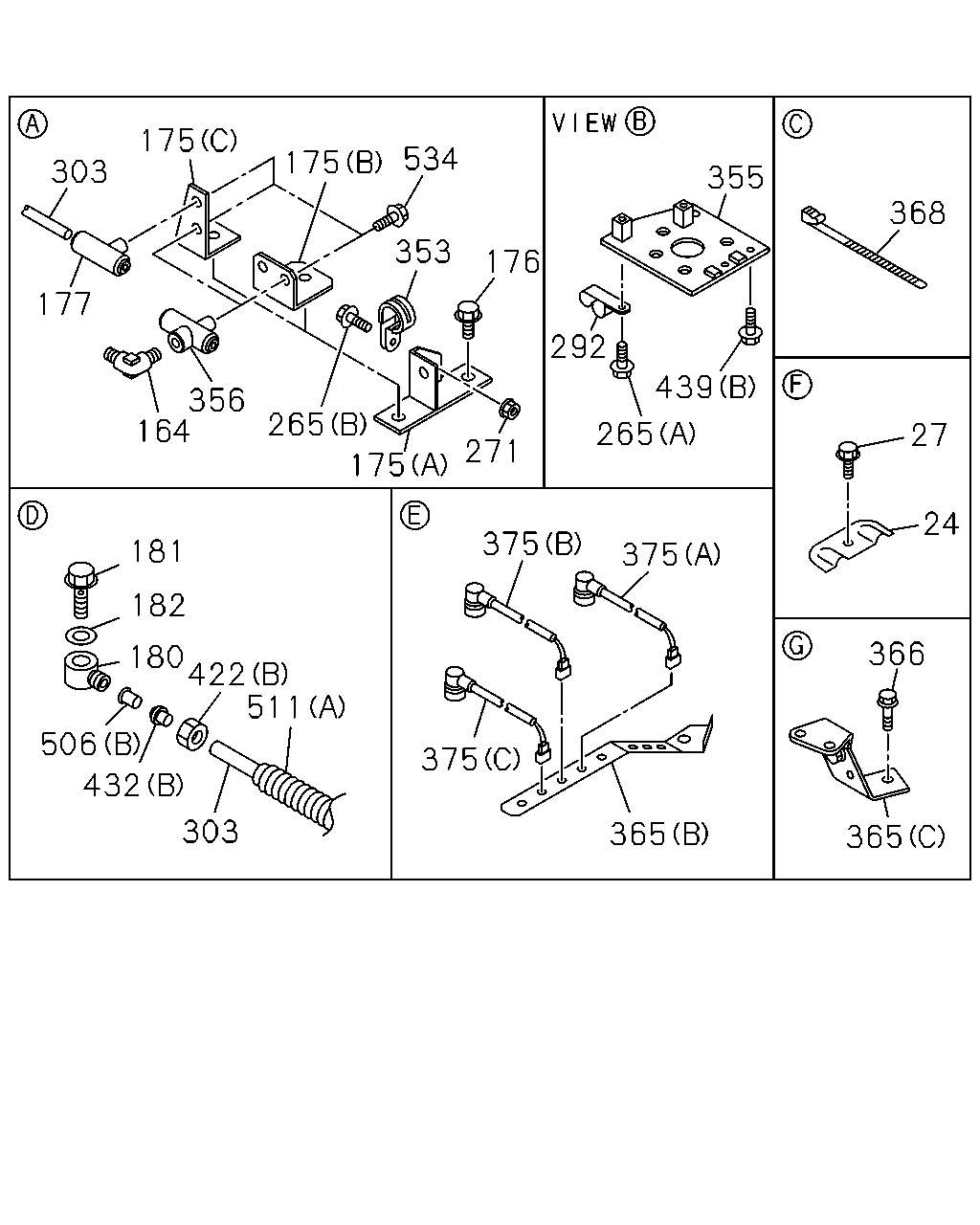

çizim 81541
375 375 375 365 365 366 24 27 368 355 439 265 292 271 175 265 356 164 181 182 180 422 511 303 432 506 177 303 175 175 534 353 176
BalonParca AdiParca NoAdetTipApplied Date A B
24 COVER; CHECK HOLE,DUST 1-31131-038-0 03 1 0105- ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28881-625-0 02 1 0105-0512 ● ●
27 BOLT; COVER TO CLU HSG
M16X25 FLANGE 		0-28851-625-0 02 1 0601- ● ●
164 CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0106- ● ●
175 BRACKET; UNION
(B) 		1-47477-572-0 01 1 0106-0106 ● ●
175 BRACKET; UNION
(C) 		1-47479-299-0 01 1 0107- ● ●
175 BRACKET; UNION
(A) 		1-47477-545-0 01 1 0105- ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28881-625-0 02 1 0105-0512 ● ●
176 BOLT; UNION BRKT
M16X25 FLANGE 		0-28851-625-0 02 1 0601- ● ●
177 UNION; NYLON TUBE 1-09661-133-0 01 1 0107- ● ●
180 CONNECTOR; NYLON TUBE 1-09660-239-0 01 1 0105- ● ●
181 BOLT; EYE,NYLON TUBE
M12 L=35.5 		1-09675-169-0 01 1 0105- ● ●
182 GASKET; EYE BOLT,NYLON TUBE
ID=12.2 		9-09571-412-0 01 1 0105- ● ●
265 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0106-0106 ● ●
265 BOLT; CLIP
(A) M8X40 FLANGE 		0-28680-840-0 01 1 0105-0512 ●
265 BOLT; CLIP
(A) M8X40 FLANGE 		0-28650-840-0 01 1 0601- ●
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ●
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
271 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0106-0106 ● ●
292 CLIP; OIL PIPE
ID=16 & 16 L=28 		1-09701-219-0 01 1 0105- ● ●
303 TUBE; NYLON
W-SERIES ENG<1A2> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0105-0105 ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0106-0201 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0202- ● ●
303 TUBE; NYLON
PE-SERIES ENG<1A0> L=2000 OD=8 		1-87410-073-0 02 1 0105-0105 ●
303 TUBE; NYLON
L=2000 OD=12 		1-87410-069-0 01 1 0106- ● ●
303 TUBE; NYLON
L=2000 OD=8 		1-87410-073-0 01 1 0105-0105 ● ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0106-0201 ●
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0202- ● ●
353 CLIP; NYLON TUBE
ID=24 L=27 		1-09700-809-0 01 1 0106-0106 ● ●
355 BRACKET; OIL PIPE 1-47478-217-1 01 1 0105- ●
355 BRACKET; OIL PIPE 1-47477-500-1 01 1 0105- ●
356 UNION
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0106- ● ●
365 BRACKET; HARNESS
6WA1 TC-C(55L) (C) 		1-47477-902-0 01 1 0109- ●
365 BRACKET; HARNESS
(B) 		1-82699-490-2 01 1 0105- ● ●
365 BRACKET; HARNESS
(A) 		1-47479-047-0 01 1 0105- ●
366 BOLT; BRKT,HARNESS
6WA1 TC-C(55L) M12X16 		0-28181-216-0 01 1 0109-0512 ●
366 BOLT; BRKT,HARNESS
6WA1 TC-C(55L) M12X16 		0-28151-216-0 01 1 0601- ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28181-225-0 01 1 0105-0512 ●
366 BOLT; BRKT,HARNESS
M12X25 FLANGE 		0-28151-225-0 01 1 0601- ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 02 1 0105-0105 ● ●
368 CLIP; BAND,CABLE
L=140 		5-09707-031-1 03 1 0106- ● ●
375 CABLE; TRANS
(A) L=250 		1-82659-134-1 01 1 0105- ● ●
375 CABLE; TRANS
(B) L=580 		1-82659-135-1 01 1 0105- ● ●
375 CABLE; TRANS
(C) L=880 		1-82659-137-1 01 1 0105- ● ●
422 NUT; SLEEVE
(C) M18 		1-09660-213-0 01 1 0106- ● ●
422 NUT; SLEEVE
(B) M14 		1-09660-212-0 01 1 0105- ● ●
422 NUT; SLEEVE
(A) M14 		1-09660-767-0 01 1 0105- ● ●
432 SLEEVE; TUBE
(C) ID=12.15 OD=15 L=10 		1-09666-043-0 01 1 0106- ● ●
432 SLEEVE; TUBE
(B) ID=8.15 OD=11 L=9.5 		1-09666-042-0 01 1 0105- ● ●
432 SLEEVE; TUBE
(A) ID=8.2 L=9.5 		1-09666-067-0 01 1 0105- ● ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28881-635-0 04 1 0105-0512 ●
439 BOLT; BRKT
(A) M16X35 FLANGE 		0-28851-635-0 04 1 0601- ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28781-040-0 04 1 0105-0512 ● ●
439 BOLT; BRKT
(B) M10X40 FLANGE 		0-28751-040-0 04 1 0601- ● ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28881-625-0 02 1 0105-0512 ●
439 BOLT; BRKT
(C) M16X25 FLANGE 		0-28851-625-0 02 1 0601- ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28881-640-0 01 1 0105-0512 ●
439 BOLT; BRKT
(D) M16X40 FLANGE 		0-28851-640-0 01 1 0601- ●
506 INSERT
(C) ID=7.5 OD=8.8 L=18 		1-09669-055-0 01 1 0106- ● ●
506 INSERT
(B) ID=4.5 OD=5.8 L=18 		1-09669-054-0 01 1 0105- ● ●
506 INSERT
(A) ID=5 OD=5.9 L=16 		1-09669-122-0 01 1 0105- ● ●
511 TUBE; CORRUGATE
W-SERIES ENG<1A2> (C) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0105-0105 ● ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ● ●
511 TUBE; CORRUGATE
W-SERIES ENG<1A2> (C) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0106-0106 ●
511 TUBE; CORRUGATE
(C) L=2000 ID=13 		1-87410-091-0 01 1 0107- ● ●
511 TUBE; CORRUGATE
(C) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0202- ●
511 TUBE; CORRUGATE
(A) SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0105-0105 ● ●
511 TUBE; CORRUGATE
(A) L=250 ID=7 		1-83129-031-1 01 1 0106- ● ●
511 TUBE; CORRUGATE
PE-SERIES ENG<1A0> (D) L=2000 ID=10 		1-87410-088-0 01 1 0105-0106 ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0107-0201 ● ●
511 TUBE; CORRUGATE
(D) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0202- ● ●
511 TUBE; CORRUGATE
(B) L=350 SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0105- ● ●
534 BOLT; UNION
M8X12 FLANGE 		0-28080-812-0 01 1 0106-0106 ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28080-816-0 02 1 0107-0512 ● ●
534 BOLT; UNION
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
