Sayfa 2-05 - Isuzu EPC

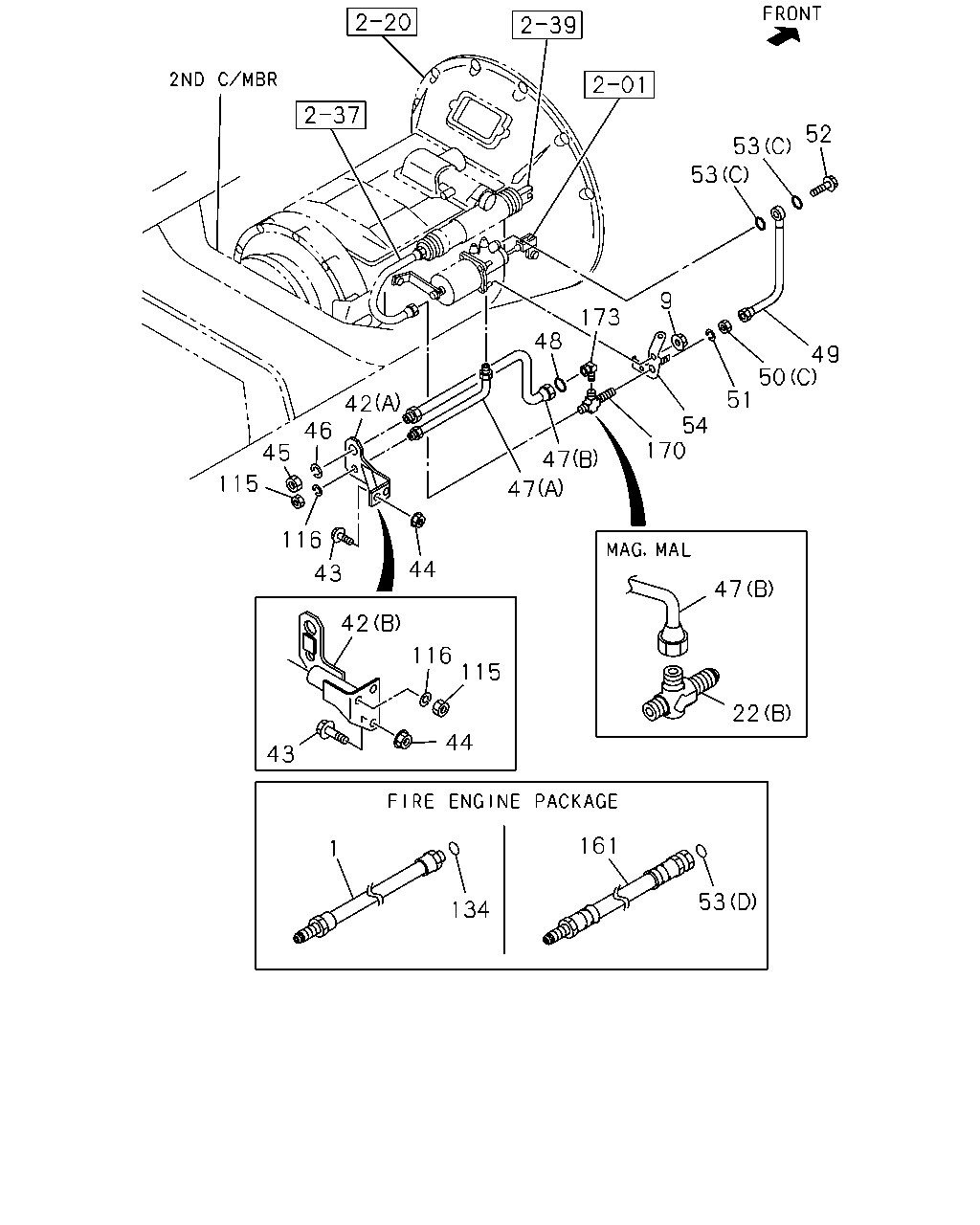

2-05 — CLUTCH PIPING (#13536) — 630 parça

109 106 109 106 106 153 34 35 35 35 28 29 25 26 33 32 31 35 30 34 34 33 153 106 109 33 33 33 34 33 109 106 104 27 106 25 28 29 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-583-1	01	1	0105-	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (A)	1-47477-935-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (F) L=50	1-47475-299-2	02	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> (D)	1-47477-498-1	01	1	0105-0107	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> (C)	1-47477-499-1	01	1	0105-0107	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> (G)	1-47478-406-0	01	1	0105-0107	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (F) L=50	1-47475-299-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (E)	1-47475-881-0	01	1	0105-0106	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (F)	1-47477-669-1	01	1	0107-	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0107-0602	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
26	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-	●	●
27	NUT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> (C) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
27	NUT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
28	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-	●	●
28	CLIP; OIL PIPE PE-SERIES ENG<1A0> (C) ID=9 L=20	9-09524-835-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (D) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) M8X16 FLANGE	0-28080-816-0	01	1	0108-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28080-816-0	01	1	0108-0512	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0106	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0106	●	●
29	BOLT; CLIP,OIL PIPE PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512	●	●
29	BOLT; CLIP,OIL PIPE PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-0107	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-	●	●
30	BOLT; BRKT W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
30	BOLT; BRKT W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
31	NUT; BRKT ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
31	NUT; BRKT ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
32	BRACKET; CLIP OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2>	1-47477-235-0	01	1	0105-	●	●
33	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-	●	●
33	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-	●	●
33	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) ID=9 L=20	9-09524-835-0	01	1	0105-	●	●
33	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
33	CLIP; OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
33	CLIP; OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-	●	●
33	CLIP; OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-	●	●
34	BOLT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
34	BOLT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
34	BOLT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
34	BOLT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	03	1	0105-0512	●	●
34	BOLT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	03	1	0105-0512	●	●
34	BOLT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
34	BOLT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●
35	NUT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
35	NUT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
35	NUT; PIPE CLIP 10PE1S(60L),10PE1N(61L) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
35	NUT; PIPE CLIP 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; PIPE CLIP 10PE1S(60L),10PE1N(61L) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; PIPE CLIP 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
35	NUT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
35	NUT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0105-0602	●	●
35	NUT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> PE-SERIES ENG<1A0> L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	0105-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> W-SERIES ENG<1A2> L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	0105-0106	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> W-SERIES ENG<1A2> L=2296	1-49166-267-0	01	1	0107-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2> L=2143	1-49164-307-0	01	1	0105-0106	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2> L=2138 SERVICED BY L=2150	1-47426-394-0	01	1	0107-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	0105-	●	●
106	UNION; OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
106	UNION; OIL PIPE ZF M/T<X9E>	1-09654-384-0	01	1	0105-	●	●
109	PIPE; AIR,UNION TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=1081 SERVICED BY L=1100	1-47426-387-0	01	1	0105-	●	●
109	PIPE; AIR,UNION TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=969 SERVICED BY L=970	1-47426-385-0	01	1	0105-	●	●
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) L=1031 SERVICED BY L=1100	1-47426-387-0	01	1	0105-	●	●
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=1015 SERVICED BY L=1100	1-47426-387-0	01	1	0105-0205	●	●
109	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=1015 SERVICED BY L=1100	1-47434-409-0	01	1	0206-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) SERVICED BY L=1950	1-47426-393-0	01	1	0207-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0206	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CHINA-SOUTHERN ECONOMIC ZONEEQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0207-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0206	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0207-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0105-0106	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=433	1-47429-241-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B)	1-49166-494-0	01	1	0112-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> W-SERIES ENG<1A2> (B) L=955	1-49163-430-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (B) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (B) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (B) L=1806 SERVICED BY L=1950	1-47434-414-0	01	1	0112-	●	●

116 111 191 172 206 53 29 128 95 92 158 115 25 29 63 190 52 53 53 207 206 147 206 206 26 80 29 172 29 25 29 25 51 50 106 90 213 106 90 51 50 81 53 206

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-583-1	01	1	0105-	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (A)	1-47477-935-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (F) L=50	1-47475-299-2	02	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> (D)	1-47477-498-1	01	1	0105-0107	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> (C)	1-47477-499-1	01	1	0105-0107	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> (G)	1-47478-406-0	01	1	0105-0107	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (F) L=50	1-47475-299-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (E)	1-47475-881-0	01	1	0105-0106	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (F)	1-47477-669-1	01	1	0107-	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0107-0602	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
26	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) M8X16 FLANGE	0-28080-816-0	01	1	0108-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28080-816-0	01	1	0108-0512	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0106	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0106	●	●
29	BOLT; CLIP,OIL PIPE PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512	●	●
29	BOLT; CLIP,OIL PIPE PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-0107	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-0512	●	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (C) M20	9-99111-420-0	01	1	0105-0512	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (C) M20	0-91111-520-0	01	1	0601-	●	●
50	NUT; UNION ZF M/T<X9E> (B) M12	9-09840-280-0	01	1	0105-	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (D) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (D) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-	●	●
51	WASHER; LK ZF M/T<X9E> ID=12.2	9-09150-512-0	01	1	0105-	●	●
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●
52	BOLT; EYE,AIR PIPE ZF M/T<X9E> M16X30	1-09675-026-0	01	1	0105-	●	●
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT ZF M/T<X9E> (A) ID=16.2	1-09630-086-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT ZF M/T<X9E> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT FIRE ENGINE PACKAGE<WS2> (D) ID=11 OD=18	9-09572-510-0	01	1	0105-		●
63	BOLT; CLIP,PIPE ZF M/T<X9E> M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●
63	BOLT; CLIP,PIPE ZF M/T<X9E> M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
80	CLIP; HOSE TRANSMISSION-ZF 16S221 OD(Y1U) ID=16 L=28	1-09700-872-0	01	1	0108-	●	●
81	UNION; AIR PIPE ZF M/T<X9E>	1-09664-233-0	01	1	0105-	●	●
90	NIPPLE; OIL PIPE ZF M/T<X9E>	1-31829-485-0	01	1	0105-	●	●
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=9 L=32	9-09524-865-0	01	1	0105-	●	●
92	CLIP; OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=9 H=32 L=24	1-09701-221-0	01	1	0105-	●	●
95	BOLT; EYE,OIL PIPE ZF M/T<X9E> M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●
106	UNION; OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
106	UNION; OIL PIPE ISUZU M/T<X9A> M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
106	UNION; OIL PIPE ZF M/T<X9E>	1-09654-384-0	01	1	0105-	●	●
111	UNION; OIL PIPE ZF M/T<X9E> (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-	●	●
111	UNION; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
111	UNION; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M14 2WAY	1-09654-176-2	01	1	0105-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-	●	●
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-	●	●
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) ID=13	1-09701-030-1	01	1	0105-	●	●
128	CLIP; AIR PIPE TRANSMISSION-ZF 16S221 OD(Y1U) ID=13 H=18 L=20	1-09701-232-0	01	1	0105-	●	●
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-	●	●
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0105-0602	●	●
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91180-208-0	01	1	0603-	●	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-466-2	01	1	0105-	●	●
158	PIPE; OIL,FLEX HOSE TO CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-054-0	01	1	0105-	●	●
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (B) L=570	1-09365-162-0	01	1	0108-	●	●
172	HOSE; FLEX,CLU BOOSTER TRANSMISSION-ZF 16S221 OD(Y1U) (A) L=380	1-09364-261-0	01	1	0105-	●	●
172	HOSE; FLEX,CLU BOOSTER 10PE1S(60L),10PE1N(61L),10PE1H(68L) TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=400	1-09364-263-0	01	1	0105-	●	●
172	HOSE; FLEX,CLU BOOSTER 6WA1 TC-C(55L) TRANSMISSION-ZF 16S151 OD(Y2N) (A) L=470	1-09364-929-0	01	1	0105-	●	●
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49119-465-1	01	1	0105-	●	●
190	PIPE; AIR,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49161-730-0	01	1	0105-	●	●
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S151 OD(Y2N)	1-49163-427-0	01	1	0105-	●	●
191	PIPE; OIL,UNION TO MINIPAC TRANSMISSION-ZF 16S221 OD(Y1U)	1-49163-428-0	01	1	0105-0107	●	●
206	CLIP; TUBE 6WF1 TC-C(1B8) ZF M/T<X9E> (D) ID=13 & 21	8-94417-626-0	01	1	0108-	●	●
206	CLIP; TUBE ZF M/T<X9E> PE-SERIES ENG<1A0> (E) ID=18 L=50	1-09701-072-0	01	1	0108-	●	●
206	CLIP; TUBE ZF M/T<X9E> (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0105-0107	●	●
206	CLIP; TUBE ZF M/T<X9E> (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0108-	●	●
206	CLIP; TUBE ZF M/T<X9E> (B) ID=13 & 12	8-94178-797-0	01	1	0105-	●	●
206	CLIP; TUBE ZF M/T<X9E> W-SERIES ENG<1A2> (C) ID=13-18 L=14.5	1-09709-290-0	01	1	0105-0107	●	●
206	CLIP; TUBE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=18 L=28 H=30	1-09701-110-0	01	1	0108-	●	●
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●	●
207	BOLT; CLIP ZF M/T<X9E> M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
213	BRACKET; OIL HOSE TRANSMISSION-ZF 16S221 OD(Y1U)	1-47478-478-0	01	1	0108-	●	●

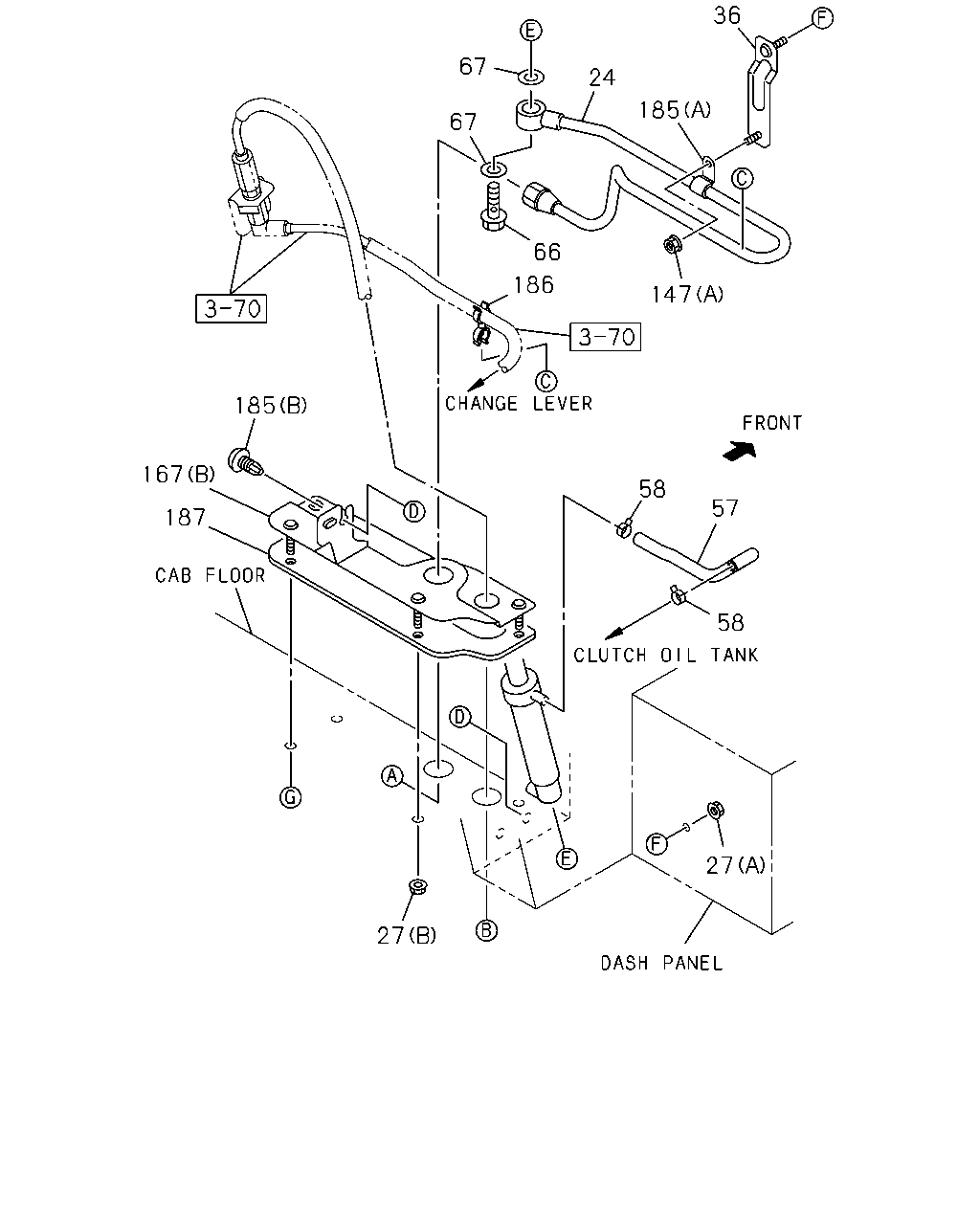

147 58 57 58 27 27 187 167 185 186 66 67 67 24 36 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PIPE ASM; CLU,M/CYL TO UNION ISUZU M/T<X9A> L=621	1-47428-362-1	01	1	0105-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION ZF M/T<X9E> L=628	1-47428-381-1	01	1	0105-	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-	●	●
27	NUT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> (C) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
27	NUT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
36	BRACKET; CLIP	1-71117-191-1	01	1	0105-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0105-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0105-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0105-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●
147	NUT; CLIP FIX (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-	●	●
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91150-208-0	01	1	0105-0602	●	●
147	NUT; CLIP FIX ZF M/T<X9E> (B) M8 FLANGE	0-91180-208-0	01	1	0603-	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0105-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0105-	●	●
185	CLIP; BRKT (B) D8X13.5	1-09987-248-1	01	1	0105-	●	●
185	CLIP; BRKT (A) ID=9 L=20	9-09545-108-0	01	1	0105-0205	●	●
185	CLIP; BRKT (A) ID=11 L=16	9-09525-025-0	01	1	0206-	●	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-	●	●
187	SEAL; BRKT	1-71117-209-2	01	1	0105-	●	●

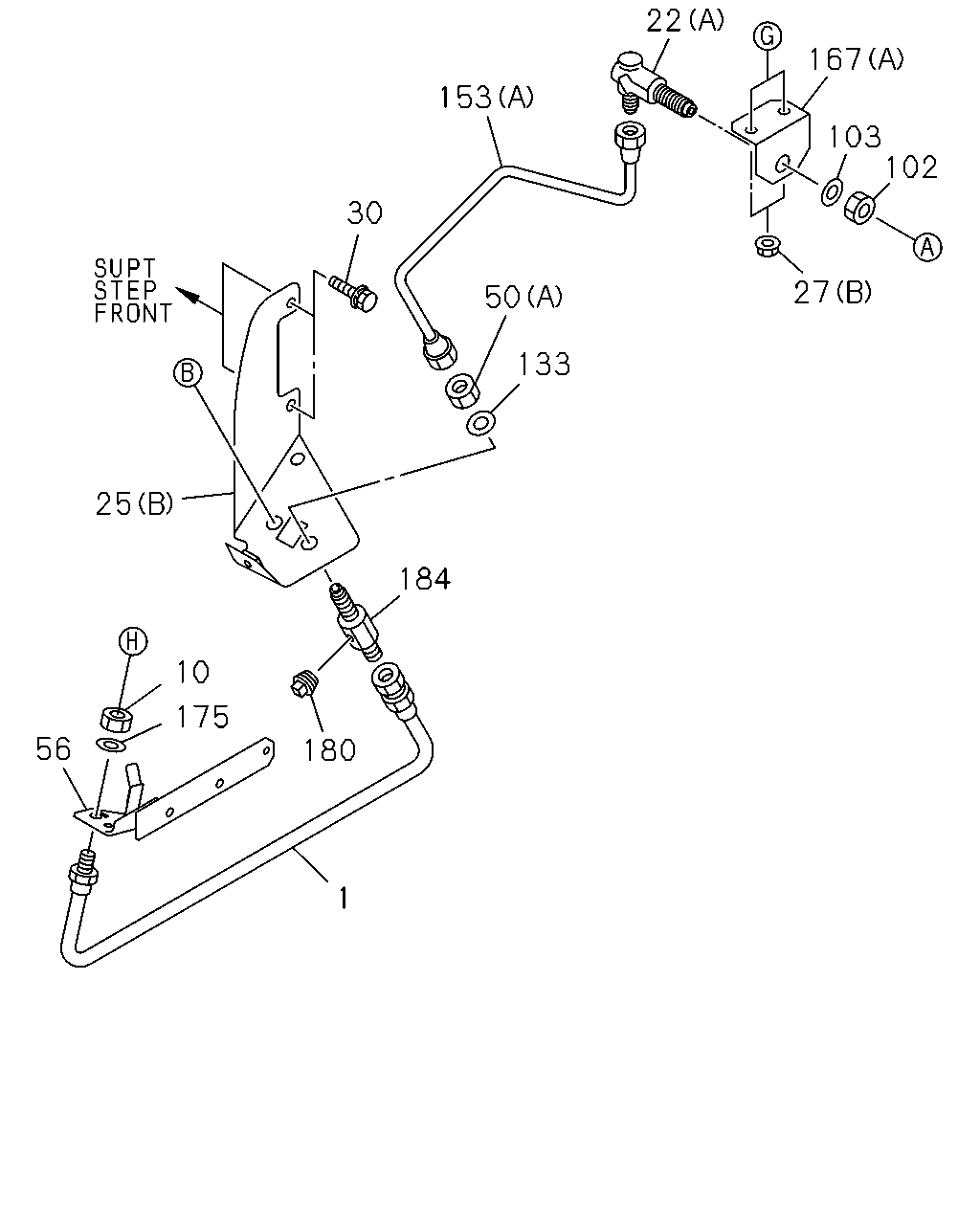

133 50 30 153 22 167 103 102 27 184 180 1 175 56 10 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0105-	●	●
1	HOSE; FLEX,CLU CONT FIRE ENGINE PACKAGE<WS2> MAP5 M/T<Y9F> W-SERIES ENG<1A2> L=520	1-09364-583-0	01	1	0105-		●
1	HOSE; FLEX,CLU CONT FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> L=470	1-09364-692-0	01	1	0105-		●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512	●	●
10	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
22	UNION; CLU PIPE (A) M14	9-09225-208-1	01	1	0105-	●	●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> (B)	1-09656-181-1	01	1	0105-	●	●
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-583-1	01	1	0105-	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (A)	1-47477-935-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (F) L=50	1-47475-299-2	02	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> (D)	1-47477-498-1	01	1	0105-0107	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> (C)	1-47477-499-1	01	1	0105-0107	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> (G)	1-47478-406-0	01	1	0105-0107	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (F) L=50	1-47475-299-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (E)	1-47475-881-0	01	1	0105-0106	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (F)	1-47477-669-1	01	1	0107-	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-	●	●
27	NUT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> (C) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
27	NUT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-	●	●
30	BOLT; BRKT W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
30	BOLT; BRKT W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-0512	●	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (C) M20	9-99111-420-0	01	1	0105-0512	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (C) M20	0-91111-520-0	01	1	0601-	●	●
50	NUT; UNION ZF M/T<X9E> (B) M12	9-09840-280-0	01	1	0105-	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (D) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (D) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
56	BRACKET; FLEX HOSE	1-47477-603-1	01	1	0105-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512	●	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) SERVICED BY L=1950	1-47426-393-0	01	1	0207-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0206	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CHINA-SOUTHERN ECONOMIC ZONEEQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0207-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0206	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0207-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0105-0106	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=433	1-47429-241-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B)	1-49166-494-0	01	1	0112-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> W-SERIES ENG<1A2> (B) L=955	1-49163-430-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (B) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (B) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (B) L=1806 SERVICED BY L=1950	1-47434-414-0	01	1	0112-	●	●
167	BRACKET; UNION (B)	1-71117-207-1	01	1	0105-	●	●
167	BRACKET; UNION (A)	1-71907-376-1	01	1	0105-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0105-	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0105-	●	●

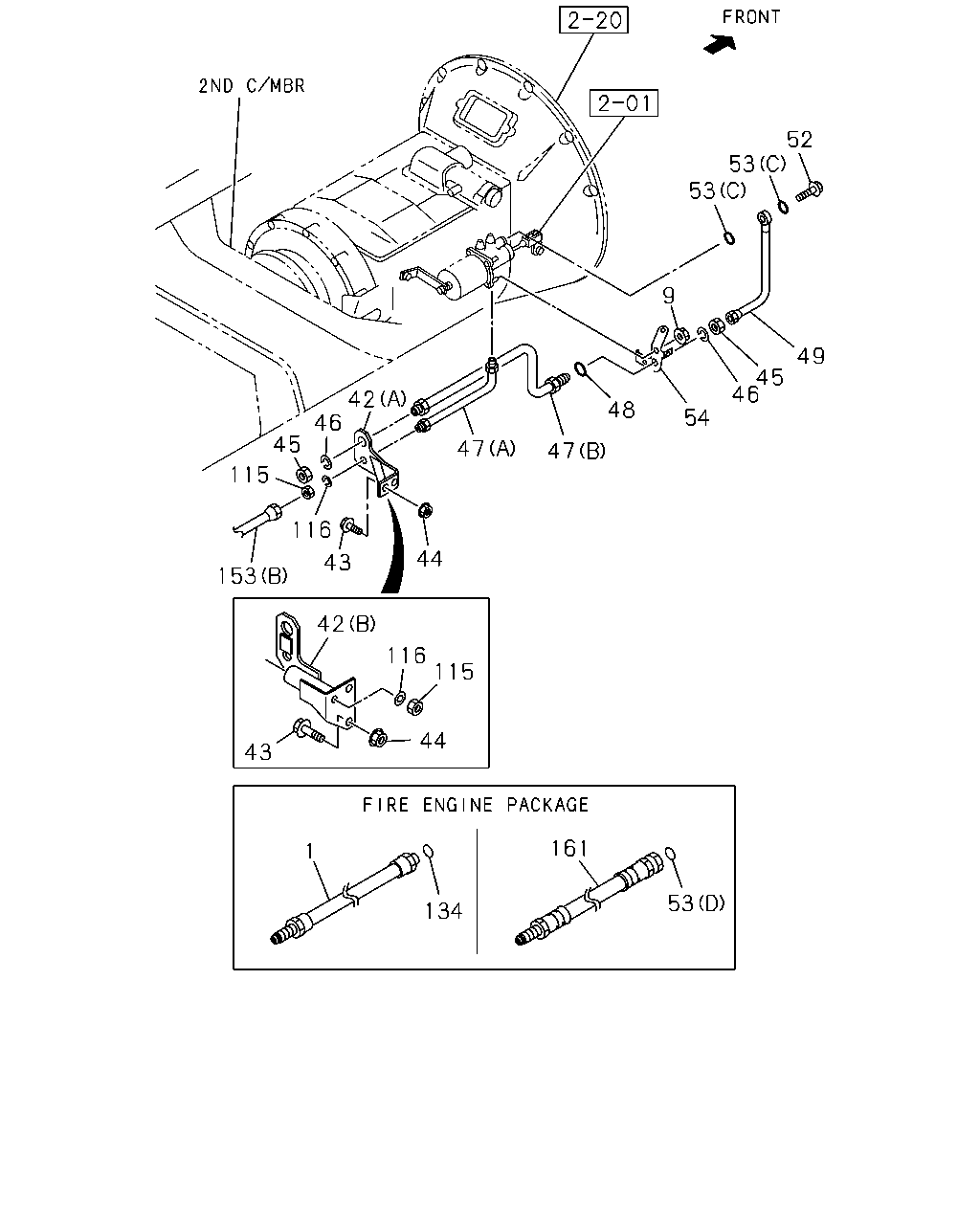

115 116 42 43 44 1 134 161 53 22 47 170 54 51 50 49 9 173 48 42 46 45 115 43 116 44 53 53 52 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0105-	●	●
1	HOSE; FLEX,CLU CONT FIRE ENGINE PACKAGE<WS2> MAP5 M/T<Y9F> W-SERIES ENG<1A2> L=520	1-09364-583-0	01	1	0105-		●
1	HOSE; FLEX,CLU CONT FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> L=470	1-09364-692-0	01	1	0105-		●
9	NUT; BRKT,FLEX HOSE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MJD7S M/T(Y2Y),MAP5T M/T(Y4J) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
9	NUT; BRKT,FLEX HOSE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MJD7S M/T(Y2Y),MAP5T M/T(Y4J) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
22	UNION; CLU PIPE (A) M14	9-09225-208-1	01	1	0105-	●	●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> MAL5 M/T<X9F>,MAG6 M/T<X9T> (B)	1-09656-181-1	01	1	0105-	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-47479-371-0	01	1	0201-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A)	1-47477-546-1	01	1	0105-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> W-SERIES ENG<1A2> (B)	1-47477-414-0	01	1	0105-0112	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> (B)	1-47477-414-0	01	1	0201-	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B)	1-47477-414-0	01	1	0201-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2> M10X35 FLANGE	0-28681-035-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2> M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-0512	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	0-91111-520-0	01	1	0601-	●	●
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0105-0512	●	●
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	0-91111-520-0	02	1	0601-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0105-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2> (B) L=520	1-09364-583-0	01	1	0208-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=370	0-07806-370-1	01	1	0207-0207	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> ASSISTOR SHIFT CONTROL<WX8> EXC. MIXER TRUCK<RA2> (A) L=480	0-07806-480-1	01	1	0208-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=390	1-09364-475-0	01	1	0207-0207	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=430	1-09364-725-0	01	1	0208-	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=350	0-07806-350-1	01	1	0109-0206	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) L=350	0-07806-350-1	01	1	0207-	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=390	0-07806-390-1	01	1	0109-0207	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2>,CHINA-SOUTHERN ECONOMIC ZONEEQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=390	0-07806-390-1	01	1	0208-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=390	0-07806-390-1	01	1	0208-	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=520	1-09364-583-0	01	1	0109-0109	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=450	1-09364-369-0	01	1	0110-0207	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CHINA-SOUTHERN ECONOMIC ZONEEQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) L=450	1-09364-369-0	01	1	0208-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=500	1-09364-329-0	01	1	0105-0108	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=420	1-09364-615-0	01	1	0109-0206	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) L=420	1-09364-615-0	01	1	0207-	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=560	0-07806-560-1	01	1	0105-0211	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2> (A) L=560	0-07806-560-1	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=600	1-09364-705-0	01	1	0105-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) (A) L=500	0-07806-500-1	01	1	0109-0211	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) (A) L=500	0-07806-500-1	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0212-	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0105-	●	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=550	1-09364-434-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=550	1-09364-434-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=550	1-09364-434-0	01	1	0105-0108	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=550	1-09364-434-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B) L=550	1-09364-434-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=550	1-09364-434-0	01	1	0109-	●
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> L=245	1-49117-733-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAL5 M/T<X9F>,MAG6 M/T<X9T> L=245	1-49117-733-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAP5T M/T(Y4J) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) L=245	1-49117-733-0	01	1	0105-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=293	1-49117-734-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FIRE TRUCK<RA9> MAL5 M/T<X9F>,MAP5 M/T<Y9F> L=293	1-49117-734-0	01	1	0105-		●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-0512	●	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (C) M20	9-99111-420-0	01	1	0105-0512	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (C) M20	0-91111-520-0	01	1	0601-	●	●
50	NUT; UNION ZF M/T<X9E> (B) M12	9-09840-280-0	01	1	0105-	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (D) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (D) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-	●	●
51	WASHER; LK ZF M/T<X9E> ID=12.2	9-09150-512-0	01	1	0105-	●	●
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●
52	BOLT; EYE,AIR PIPE ZF M/T<X9E> M16X30	1-09675-026-0	01	1	0105-	●	●
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT ZF M/T<X9E> (A) ID=16.2	1-09630-086-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT ZF M/T<X9E> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT FIRE ENGINE PACKAGE<WS2> (D) ID=11 OD=18	9-09572-510-0	01	1	0105-		●
54	BRACKET; AIR,FLEX HOSE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MJD7S M/T(Y2Y),MAP5T M/T(Y4J)	1-47477-284-1	01	1	0105-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-	●	●
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-	●	●
134	GASKET FIRE ENGINE PACKAGE<WS2> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-		●
161	HOSE; FLEX,SLAVE CYL FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> L=450	0-07806-450-1	01	1	0105-		●
170	UNION; AIR PIPE ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>,MAP5 M/T<Y9F>	1-09656-640-0	01	1	0105-	●	●
173	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S>,MAP5 M/T<Y9F> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0105-	●	●

52 53 53 49 45 46 54 48 47 47 42 46 45 115 153 116 44 43 9 115 116 42 44 43 1 134 161 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=520	1-09364-948-1	01	1	0105-	●	●
1	HOSE; FLEX,CLU CONT FIRE ENGINE PACKAGE<WS2> MAP5 M/T<Y9F> W-SERIES ENG<1A2> L=520	1-09364-583-0	01	1	0105-		●
1	HOSE; FLEX,CLU CONT FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> L=470	1-09364-692-0	01	1	0105-		●
9	NUT; BRKT,FLEX HOSE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MJD7S M/T(Y2Y),MAP5T M/T(Y4J) M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
9	NUT; BRKT,FLEX HOSE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MJD7S M/T(Y2Y),MAP5T M/T(Y4J) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> (B)	1-47479-371-0	01	1	0201-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A)	1-47477-546-1	01	1	0105-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> W-SERIES ENG<1A2> (B)	1-47477-414-0	01	1	0105-0112	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> (B)	1-47477-414-0	01	1	0201-	●	●
42	BRACKET; FLEX HOSE,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FRAME EQUIPMENT HEAVY DUTY VAR2<F01>,FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B)	1-47477-414-0	01	1	0201-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2> M10X35 FLANGE	0-28681-035-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> ISUZU M/T<X9A> W-SERIES ENG<1A2> M10X35 FLANGE	0-28651-035-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X30 FLANGE	0-28681-030-0	02	1	0105-0512	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ISUZU M/T<X9A> W-SERIES ENG<1A2> M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	9-99111-420-0	01	1	0105-0512	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> M20	0-91111-520-0	01	1	0601-	●	●
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0105-0512	●	●
45	NUT; FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> M20	0-91111-520-0	02	1	0601-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> ID=20.2	9-09150-520-0	01	1	0105-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0105-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2> (B) L=520	1-09364-583-0	01	1	0208-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=370	0-07806-370-1	01	1	0207-0207	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> ASSISTOR SHIFT CONTROL<WX8> EXC. MIXER TRUCK<RA2> (A) L=480	0-07806-480-1	01	1	0208-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=390	1-09364-475-0	01	1	0207-0207	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=430	1-09364-725-0	01	1	0208-	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=350	0-07806-350-1	01	1	0109-0206	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A) L=350	0-07806-350-1	01	1	0207-	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=390	0-07806-390-1	01	1	0109-0207	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2>,CHINA-SOUTHERN ECONOMIC ZONEEQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) L=390	0-07806-390-1	01	1	0208-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=390	0-07806-390-1	01	1	0208-	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=520	1-09364-583-0	01	1	0109-0109	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=450	1-09364-369-0	01	1	0110-0207	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CHINA-SOUTHERN ECONOMIC ZONEEQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) L=450	1-09364-369-0	01	1	0208-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=500	1-09364-329-0	01	1	0105-0108	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=420	1-09364-615-0	01	1	0109-0206	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) L=420	1-09364-615-0	01	1	0207-	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=560	0-07806-560-1	01	1	0105-0211	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. MIXER TRUCK<RA2> (A) L=560	0-07806-560-1	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=600	1-09364-705-0	01	1	0105-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) (A) L=500	0-07806-500-1	01	1	0109-0211	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> EXC. CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE (TBU) (A) L=500	0-07806-500-1	01	1	0212-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (A) L=500	0-07806-500-1	01	1	0212-	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0105-	●	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=550	1-09364-434-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=550	1-09364-434-0	01	1	0105-0108	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=550	1-09364-434-0	01	1	0105-0108	●
47	HOSE; FLEX,CLU CONT ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=550	1-09364-434-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B) L=550	1-09364-434-0	01	1	0109-	●	●
47	HOSE; FLEX,CLU CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=550	1-09364-434-0	01	1	0109-	●
48	GASKET; FLEX HOSE,CLU CONT ISUZU M/T<X9A> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> L=245	1-49117-733-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAL5 M/T<X9F>,MAG6 M/T<X9T> L=245	1-49117-733-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAP5T M/T(Y4J) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) L=245	1-49117-733-0	01	1	0105-		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MJD7 M/T<X9J>,MJA7 M/T<X9Q>,MJA6 M/T<X9S> EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=293	1-49117-734-0	01	1	0105-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FIRE TRUCK<RA9> MAL5 M/T<X9F>,MAP5 M/T<Y9F> L=293	1-49117-734-0	01	1	0105-		●
52	BOLT; EYE,AIR PIPE ISUZU M/T<X9A> M14X27 FLANGE	1-09675-086-0	01	1	0105-	●	●
52	BOLT; EYE,AIR PIPE ZF M/T<X9E> M16X30	1-09675-026-0	01	1	0105-	●	●
53	GASKET; JOINT BOLT ISUZU M/T<X9A> (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT ZF M/T<X9E> (A) ID=16.2	1-09630-086-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT ZF M/T<X9E> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0105-	●	●
53	GASKET; JOINT BOLT FIRE ENGINE PACKAGE<WS2> (D) ID=11 OD=18	9-09572-510-0	01	1	0105-		●
54	BRACKET; AIR,FLEX HOSE MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MJD7S M/T(Y2Y),MAP5T M/T(Y4J)	1-47477-284-1	01	1	0105-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-	●	●
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-	●	●
134	GASKET FIRE ENGINE PACKAGE<WS2> ID=10.2 OD=16.0	9-09571-410-0	01	1	0105-		●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) SERVICED BY L=1950	1-47426-393-0	01	1	0207-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0206	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CHINA-SOUTHERN ECONOMIC ZONEEQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0207-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0206	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0207-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0105-0106	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=433	1-47429-241-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B)	1-49166-494-0	01	1	0112-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> W-SERIES ENG<1A2> (B) L=955	1-49163-430-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (B) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (B) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (B) L=1806 SERVICED BY L=1950	1-47434-414-0	01	1	0112-	●	●
161	HOSE; FLEX,SLAVE CYL FIRE ENGINE PACKAGE<WS2> PE-SERIES ENG<1A0> L=450	0-07806-450-1	01	1	0105-		●

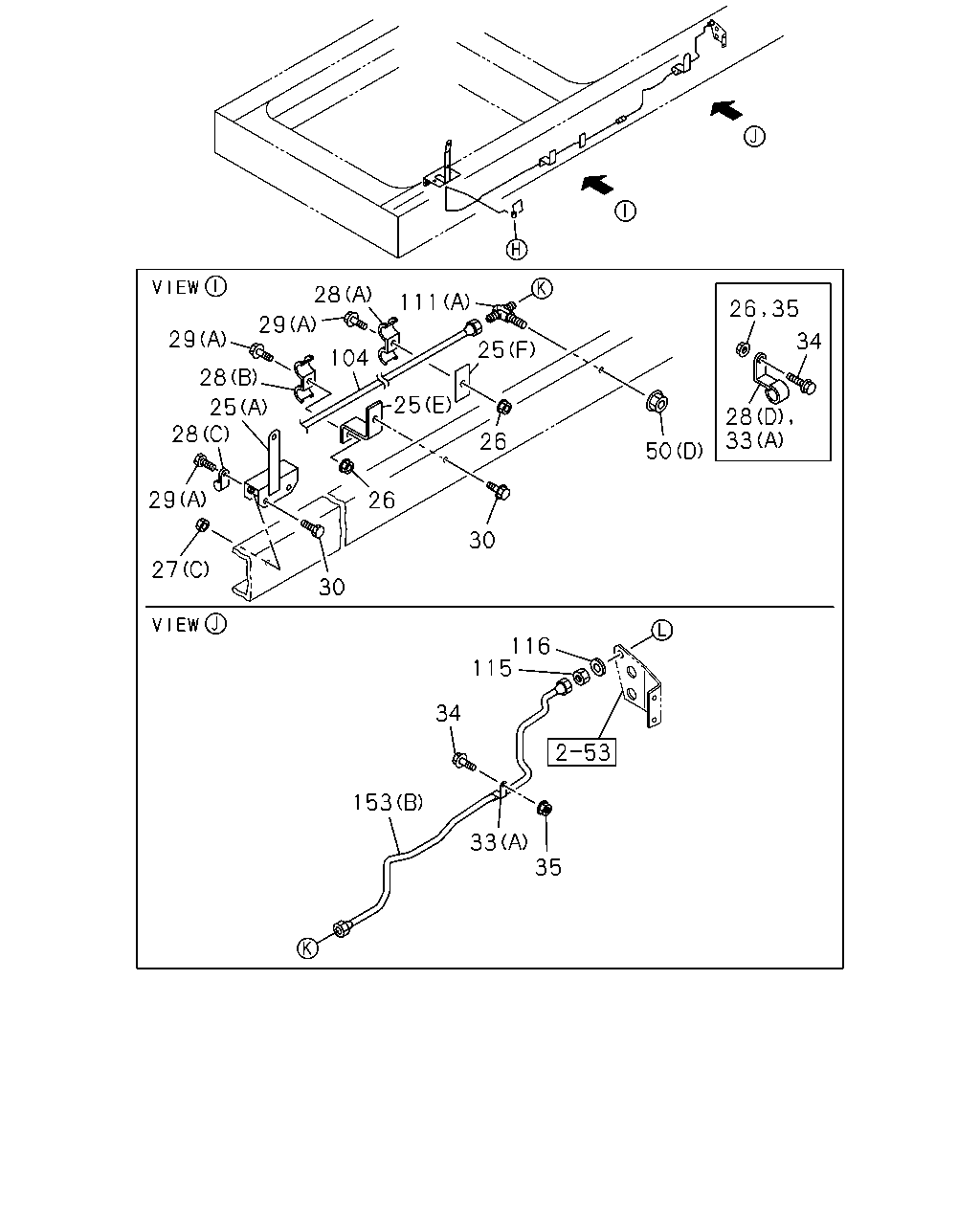

29 28 25 28 29 28 25 111 104 26 26 30 30 27 29 50 28 26 35 34 33 116 115 34 153 33 35 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE (B)	1-71907-627-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE CAB UP +110MM<TGG> (A)	1-47478-583-1	01	1	0105-	●	●
25	BRACKET; OIL PIPE EXC. CAB UP +110MM<TGG> (A)	1-47477-935-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (F) L=50	1-47475-299-2	02	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> (D)	1-47477-498-1	01	1	0105-0107	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-47477-498-1	01	1	0108-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> (C)	1-47477-499-1	01	1	0105-0107	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-47477-499-1	01	1	0108-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> (G)	1-47478-406-0	01	1	0105-0107	●	●
25	BRACKET; OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-47478-406-0	01	1	0108-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (F) L=50	1-47475-299-2	01	1	0105-	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (E)	1-47475-881-0	01	1	0105-0106	●	●
25	BRACKET; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (F)	1-47477-669-1	01	1	0107-	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	03	1	0107-0602	●	●
26	NUT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
26	NUT; CLIP,OIL PIPE PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
26	NUT; CLIP,OIL PIPE W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0106	●	●
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
26	NUT; CLIP,OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
27	NUT; BRKT (C) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0105-	●	●
27	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-	●	●
27	NUT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> (C) M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
27	NUT; BRKT ZF M/T<X9E> W-SERIES ENG<1A2> (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
28	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	02	1	0105-	●	●
28	CLIP; OIL PIPE PE-SERIES ENG<1A0> (C) ID=9 L=20	9-09524-835-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (D) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=16 & 9 L=18 & 17	1-09700-669-0	01	1	0105-	●	●
28	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	0105-	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (B) M8X12,M10X20 L=39	1-09039-005-0	01	1	0108-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	01	1	0105-0107	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) M8X16 FLANGE	0-28080-816-0	01	1	0108-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28080-816-0	01	1	0108-0512	●	●
29	BOLT; CLIP,OIL PIPE ISUZU M/T<X9A> PE-SERIES ENG<1A0> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0106	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0106	●	●
29	BOLT; CLIP,OIL PIPE PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512	●	●
29	BOLT; CLIP,OIL PIPE PE-SERIES ENG<1A0> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-0107	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28080-816-0	05	1	0108-0512	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S151 OD(Y2N) (A) M8X16 FLANGE	0-28050-816-0	05	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
29	BOLT; CLIP,OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
29	BOLT; CLIP,OIL PIPE TRANSMISSION-ZF 16S221 OD(Y1U) (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0105-0512	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●
30	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-	●	●
30	BOLT; BRKT W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
30	BOLT; BRKT W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
33	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-	●	●
33	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0105-	●	●
33	CLIP; OIL PIPE ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) ID=9 L=20	9-09524-835-0	01	1	0105-	●	●
33	CLIP; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
33	CLIP; OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●
33	CLIP; OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-	●	●
33	CLIP; OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	0105-	●	●
34	BOLT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
34	BOLT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
34	BOLT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
34	BOLT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0105-0512	●	●
34	BOLT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	03	1	0105-0512	●	●
34	BOLT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M8X30 FLANGE	0-28680-830-0	03	1	0105-0512	●	●
34	BOLT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
34	BOLT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M8X30 FLANGE	0-28650-830-0	03	1	0601-	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●
35	NUT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
35	NUT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
35	NUT; PIPE CLIP 10PE1S(60L),10PE1N(61L) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
35	NUT; PIPE CLIP 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
35	NUT; PIPE CLIP ISUZU M/T<X9A> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; PIPE CLIP 10PE1S(60L),10PE1N(61L) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; PIPE CLIP 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
35	NUT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602	●	●
35	NUT; PIPE CLIP ZF M/T<X9E> W-SERIES ENG<1A2> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
35	NUT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	03	1	0105-0602	●	●
35	NUT; PIPE CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
50	NUT; UNION (A) M14	9-99111-414-0	01	1	0105-0512	●	●
50	NUT; UNION (A) M14	0-91111-514-0	01	1	0601-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (C) M20	9-99111-420-0	01	1	0105-0512	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> ISUZU M/T<X9A> (C) M20	0-91111-520-0	01	1	0601-	●	●
50	NUT; UNION ZF M/T<X9E> (B) M12	9-09840-280-0	01	1	0105-	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (D) M12 FLANGE	0-91150-212-0	01	1	0105-0602	●	●
50	NUT; UNION ZF M/T<X9E> W-SERIES ENG<1A2> (D) M12 FLANGE	0-91180-212-0	01	1	0603-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> PE-SERIES ENG<1A0> L=2275 SERVICED BY L=2400	1-47426-395-0	01	1	0105-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> W-SERIES ENG<1A2> L=2284 SERVICED BY L=2400	1-47426-395-0	01	1	0105-0106	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ISUZU M/T<X9A> W-SERIES ENG<1A2> L=2296	1-49166-267-0	01	1	0107-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2> L=2143	1-49164-307-0	01	1	0105-0106	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF M/T<X9E> W-SERIES ENG<1A2> L=2138 SERVICED BY L=2150	1-47426-394-0	01	1	0107-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> L=1616 SERVICED BY L=1700	1-47426-391-0	01	1	0105-	●	●
111	UNION; OIL PIPE ZF M/T<X9E> (B) M8 & M12 STRAIGHT	1-09654-383-0	01	1	0105-	●	●
111	UNION; OIL PIPE ZF M/T<X9E> PE-SERIES ENG<1A0> (A) M14 STRAIGHT	9-09223-008-1	01	1	0105-	●	●
111	UNION; OIL PIPE ZF M/T<X9E> W-SERIES ENG<1A2> (A) M14 2WAY	1-09654-176-2	01	1	0105-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	9-99111-414-0	01	1	0105-0512	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●
115	NUT; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) M14	0-91111-514-0	01	1	0601-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0105-	●	●
116	WASHER; FLEX HOSE,CLU CONT TRANSMISSION-ZF 16S151 OD(Y2N) ID=14.2	9-09150-514-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) SERVICED BY L=1950	1-47426-393-0	01	1	0207-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> (B) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0206	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CHINA-SOUTHERN ECONOMIC ZONEEQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) L=1830 SERVICED BY L=1950	1-47426-393-0	01	1	0207-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> (B) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0105-0206	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) L=1834 SERVICED BY L=1950	1-47426-393-0	01	1	0207-	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=490	1-47428-363-0	01	1	0105-0106	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=395	1-49166-204-0	01	1	0107-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=433	1-47429-241-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B) L=547 SERVICED BY L=550	1-47426-377-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ISUZU M/T<X9A> PE-SERIES ENG<1A0> (B)	1-49166-494-0	01	1	0112-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF M/T<X9E> W-SERIES ENG<1A2> (B) L=955	1-49163-430-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (B) L=1453 SERVICED BY L=1550	1-47426-390-0	01	1	0105-	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (B) L=1803 SERVICED BY L=1800	1-47426-392-0	01	1	0105-0111	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6WA1 TC-C(55L),6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> (B) L=1806 SERVICED BY L=1950	1-47434-414-0	01	1	0112-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
