2-01B — CLUTCH (#13534) — 83 parça

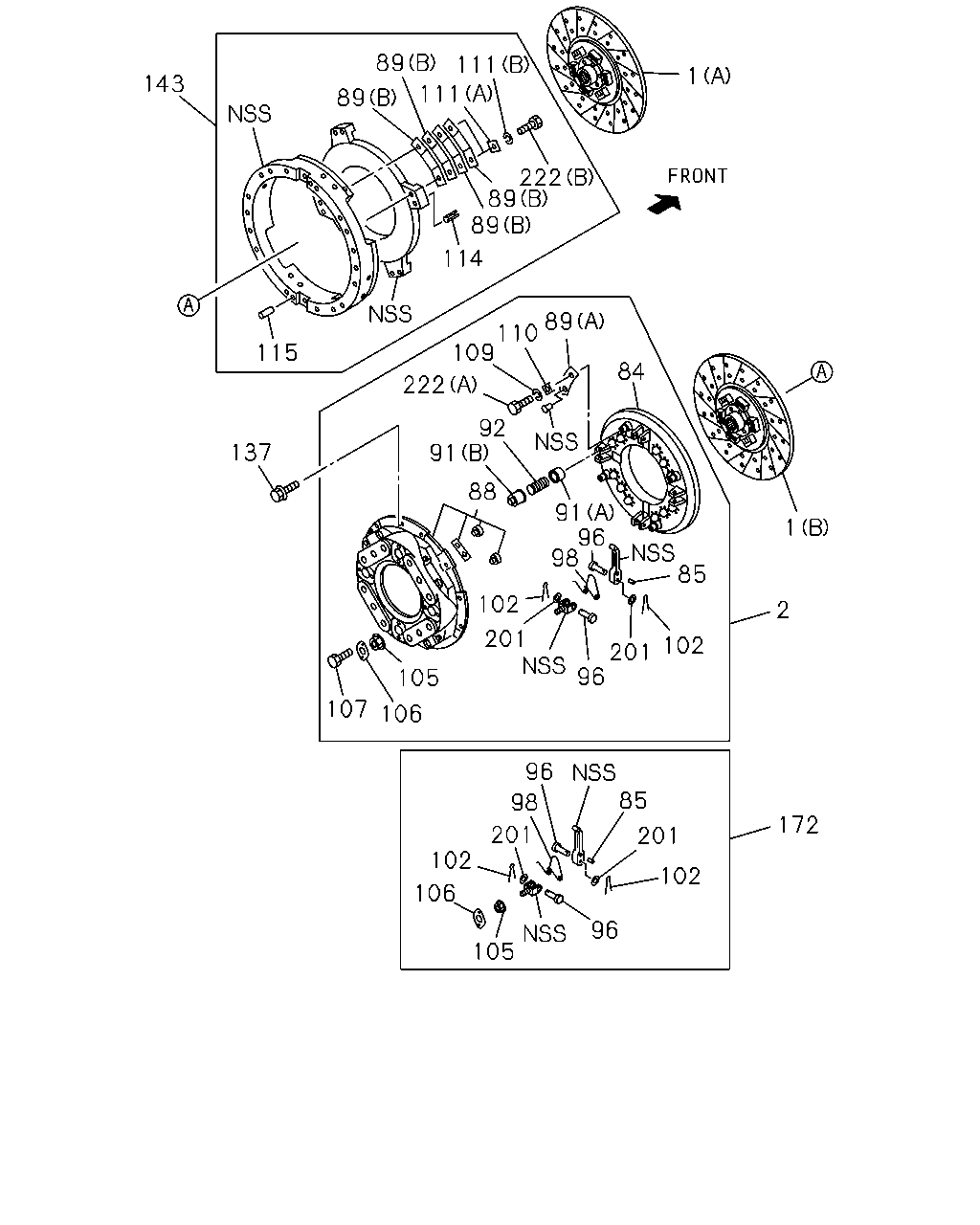

1 2 172 102 201 85 96 98 201 96 105 106 102 107 137 115 143 89 89 111 111 114 89 89 222 89 110 109 222 91 92 84 85 102 201 96 201 105 106 102 98 91 88 96 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DISC; CLUTCH 6WF1 TC-C(1B8),6WG1 TC-C(72L) (A) 15.5"	1-31240-883-0	01	1	0105-	●	●
1	DISC; CLUTCH 6WF1 TC-C(1B8),6WG1 TC-C(72L) (B) 15.5"	1-31240-884-0	01	1	0105-	●	●
1	DISC; CLUTCH 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) 15.5"	1-31240-885-0	01	1	0105-		●
1	DISC; CLUTCH 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) 15.5"	1-31240-886-0	01	1	0105-		●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-31220-286-3	01	1	0105-		●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8)	1-31220-293-3	01	1	0105-	●
2	PLATE ASM; PRESSURE,CLU 6WG1 TC-C(72L)	1-31220-299-3	01	1	0105-	●
84	PLATE; PRESSURE	1-31221-092-0	01	1	0105-	●	●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	0206-0308	●	●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	0309-	●	●
85	BUSHING; RELEASE LEVER	1-31239-021-0	16	1	0105-0205	●	●
88	COVER SUB ASM; CLU	1-31211-034-1	01	1	0105-	●	●
89	PLATE; STRAP (A)	1-31229-010-0	12	1	0105-	●	●
89	PLATE; STRAP 6WF1 TC-C(1B8),6WG1 TC-C(72L) (B)	1-31229-048-0	20	1	0105-	●
89	PLATE; STRAP 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (B)	1-31229-048-0	16	1	0105-		●
91	SEAT; SPR (B)	1-31219-045-0	12	1	0105-	●	●
91	SEAT; SPR (A)	1-31219-046-0	12	1	0105-	●	●
92	SPRING; CLU 6WF1 TC-C(1B8)	1-31214-062-0	12	1	0105-	●
92	SPRING; CLU 6WG1 TC-C(72L)	1-31214-055-0	12	1	0105-	●
92	SPRING; CLU 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-31214-042-0	12	1	0105-		●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	0309-	●	●
96	PIN; RELEASE LEVER	1-31232-013-0	08	1	0105-0308	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	0105-0308	●	●
98	SPRING; RETURN	1-31233-007-0	04	1	0309-	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0105-0308	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0309-	●	●
105	NUT; SUPPORT M16	1-31239-013-0	04	1	0105-0205	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0206-0206	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0207-0308	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0105-0308	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0309-	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0206-0206	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0207-0308	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0105-0205	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0105-0308	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0309-	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0105-0308	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0309-	●	●
111	WASHER; PL,STRAP (A) ID=12	1-31229-006-0	08	1	0105-	●	●
111	WASHER; PL,STRAP (B) ID=12.2	9-09150-512-0	08	1	0105-	●	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE	1-09748-033-0	04	1	0105-	●	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER D=10 L=25	1-09740-039-1	02	1	0105-	●	●
137	BOLT; CLU COVER M12X80	0-28181-280-0	02	1	0105-0512	●	●
137	BOLT; CLU COVER M12X80	0-28151-280-0	02	1	0601-	●	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28181-290-0	10	1	0105-0512	●	●
137	BOLT; CLU COVER M12X90 FLANGE	0-28151-290-0	10	1	0601-	●	●
137	BOLT; CLU COVER M12X30	0-28781-230-0	04	1	0105-0512	●	●
137	BOLT; CLU COVER M12X30 FLANGE	0-28751-230-0	04	1	0601-	●	●
143	PLATE; INTERMEDIATE 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-31221-108-0	01	1	0105-		●
143	PLATE; INTERMEDIATE 6WF1 TC-C(1B8),6WG1 TC-C(72L)	1-31221-110-0	01	1	0105-	●
172	LEVER KIT; RELEASE,CLU	1-87830-809-0	01	1	0105-0205	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-113-0	01	1	0206-0306	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-174-1	01	1	0307-	●	●
201	WASHER; PIN LEVER SUPPORT ID=14	9-09651-098-0	08	1	0105-	●	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	0105-0308	●	●
222	BOLT; STRAP (A) M12X30	1-09040-016-0	04	1	0309-	●	●
222	BOLT; STRAP (B) M12X26.7	1-09040-086-0	08	1	0105-	●	●

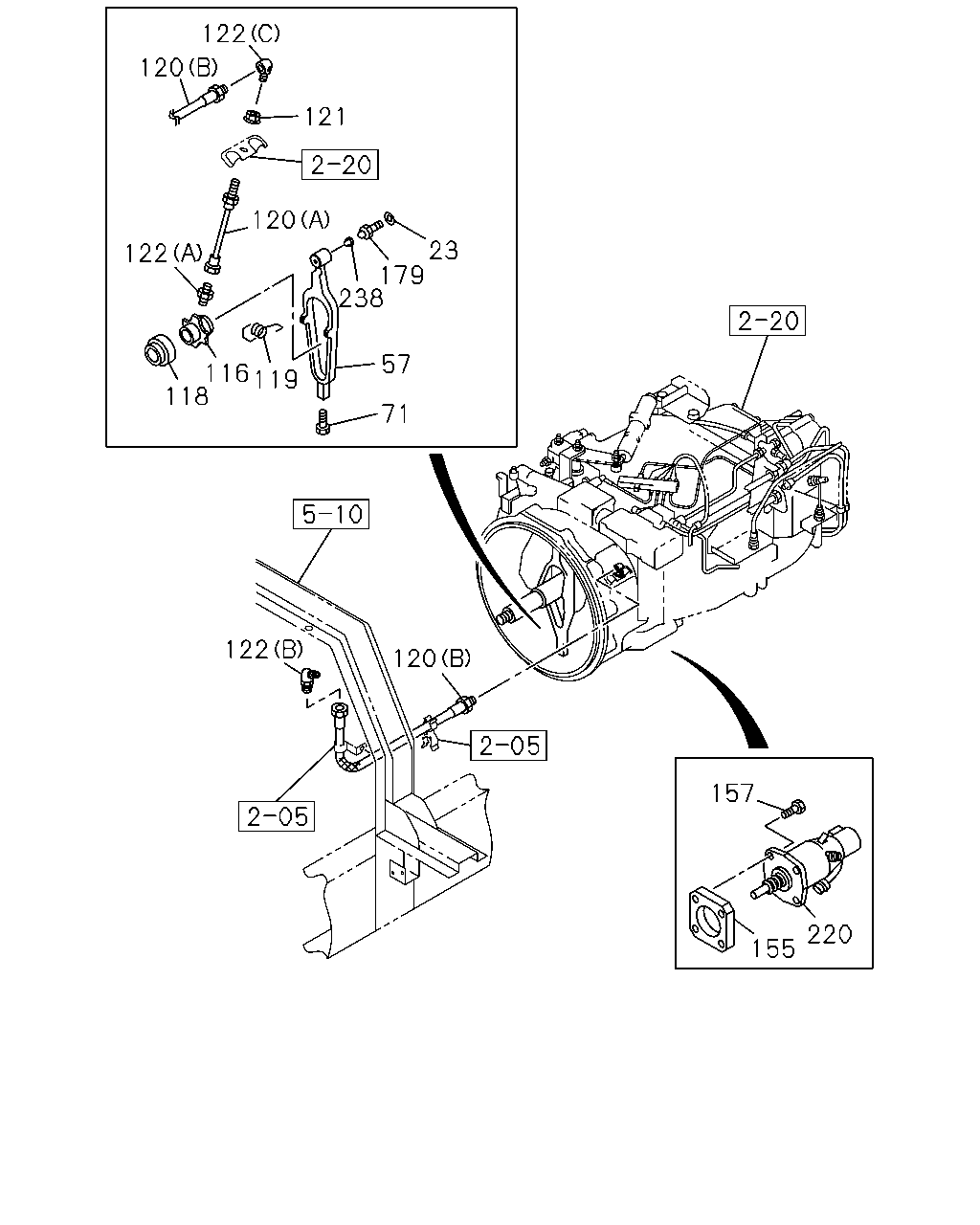

23 179 238 71 57 119 116 118 122 120 122 121 120 157 155 220 120 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	WASHER; LK,SUPPORT,CLU FORK	1-31349-027-0	01	1	0105-	●	●
57	FORK; SHIFT,CLU	1-31341-041-0	01	1	0105-	●	●
71	BOLT M4X6	9-93490-406-0	01	1	0105-	●	●
116	BLOCK; SHIFT,CLU	1-31321-087-0	01	1	0105-	●	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	0105-0111	●	●
118	BEARING; CLU RELEASE	1-09820-116-0	01	1	0112-	●	●
119	SPRING; SHIFT FORK	1-31329-020-0	02	1	0105-	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU 10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) L=615	1-09364-717-0	01	1	0105-		●
120	HOSE; FLEX,SHIFT BLOCK,CLU 6WA1 TC-C(55L) (A) L=705	1-09364-850-0	01	1	0105-		●
120	HOSE; FLEX,SHIFT BLOCK,CLU (A) L=705	1-09364-850-0	01	1	0105-	●
120	HOSE; FLEX,SHIFT BLOCK,CLU (B) L=270	1-09364-903-0	01	1	0105-	●	●
121	NUT; SHIFT FORK M16 FLANGE	0-91160-216-0	01	1	0105-0602	●	●
121	NUT; SHIFT FORK M16 FLANGE	0-91180-216-0	01	1	0603-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (A) PT1/8 & M10	1-09660-710-0	01	1	0105-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0105-0512	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L),10PE1H(68L) (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK 6WA1 TC-C(55L) (C) PT1/8 ELBOW	8-94338-418-1	01	1	0105-		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (C) PT1/8 ELBOW	8-94338-418-1	01	1	0105-	●
155	BRACKET; MINIPACK	1-31429-361-1	01	1	0105-	●	●
157	BOLT; BRKT M8X40 HEX SOCKET	0-58310-840-0	04	1	0105-0512	●	●
157	BOLT; BRKT M8X40 HEX SOCKET	0-58330-840-0	04	1	0601-	●	●
179	SUPPORT; CLU FORK	1-31349-026-0	01	1	0105-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-404-0	01	1	0105-	●	●
238	CUP; SUPPORT,CLU FORK	1-31349-025-0	01	1	0105-	●	●
