2-01A — CLUTCH (#13533) — 723 parça

1 102 201 102 96 105 106 201 85 96 98 201 102 131 116 119 124 57 137 2 106 105 107 118 119 130 172 96 201 102 98 96 88 91 92 91 222 115 143 114 111 111 1 222 89 89 89 89 84 89 110 109 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DISC; CLUTCH 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER> (C) 17"	1-31240-892-1	01	1	0105-	●	●	●	●
1	DISC; CLUTCH 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER> (C) 17"	1-31240-897-0	01	1	0105-	●	●	●	●
1	DISC; CLUTCH 6WA1 TC-C(55L),10PE1H(68L) (C) 17"	1-31240-876-0	01	1	0105-	●	●	●	●
1	DISC; CLUTCH (D) 17"	1-31240-865-1	01	1	0105-					●
1	DISC; CLUTCH 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (D) 17"	1-31240-865-1	01	1	0105-						●
1	DISC; CLUTCH 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) 15.5"	1-31240-883-0	01	1	0105-						●
1	DISC; CLUTCH 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 15.5"	1-31240-884-0	01	1	0105-						●
2	PLATE ASM; PRESSURE,CLU 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31220-320-1	01	1	0105-0308	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1N(61L) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CH INA EQUIPMENT(YT2)	1-31220-320-2	01	1	0309-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31220-277-1	01	1	0105-0308	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31220-400-1	01	1	0309-						●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L),10PE1H(68L)	1-31220-321-1	01	1	0105-0308	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-321-2	01	1	0309-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-335-1	01	1	0105-0211					●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31220-335-1	01	1	0105-0211						●
2	PLATE ASM; PRESSURE,CLU	1-31220-401-0	01	1	0212-0308					●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31220-401-0	01	1	0212-0308						●
2	PLATE ASM; PRESSURE,CLU	1-31220-401-0	01	1	0309-					●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-31220-401-0	01	1	0309-						●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-329-2	01	1	0105-						●
2	PLATE ASM; PRESSURE,CLU 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-333-2	01	1	0105-						●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0105-	●	●	●	●
57	FORK; SHIFT,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31340-059-1	01	1	0105-						●
57	FORK; SHIFT,CLU 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31340-062-0	01	1	0105-					●	●
84	PLATE; PRESSURE	1-31221-125-0	01	1	0212-					●
84	PLATE; PRESSURE 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31221-125-0	01	1	0212-						●
84	PLATE; PRESSURE 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31221-041-0	01	1	0105-0308	●	●	●	●
84	PLATE; PRESSURE 6WA1 TC-C(55L),10PE1H(68L)	1-31221-083-1	01	1	0105-0206	●	●	●	●
84	PLATE; PRESSURE 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31221-083-1	01	1	0105-0206	●	●	●	●
84	PLATE; PRESSURE 6WA1 TC-C(55L),10PE1H(68L) 17"	1-31221-128-0	01	1	0207-0308	●	●	●	●
84	PLATE; PRESSURE 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER> 17"	1-31221-128-0	01	1	0207-0308	●	●	●	●
84	PLATE; PRESSURE 17"	1-31221-128-0	01	1	0309-	●	●	●	●
84	PLATE; PRESSURE	1-31221-125-0	01	1	0105-0211					●
84	PLATE; PRESSURE 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31221-125-0	01	1	0105-0211						●
84	PLATE; PRESSURE 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-087-0	01	1	0105-						●
85	BUSHING; RELEASE LEVER 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31239-003-0	08	1	0105-0308	●	●	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-C(55L),10PE1H(68L)	1-31239-053-0	08	1	0105-0205	●	●	●	●
85	BUSHING; RELEASE LEVER 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31239-053-0	08	1	0105-0205	●	●	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-C(55L),10PE1H(68L)	1-31239-053-0	08	1	0206-0308	●	●	●	●
85	BUSHING; RELEASE LEVER 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31239-053-0	08	1	0206-0308	●	●	●	●
85	BUSHING; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-053-0	08	1	0206-0308						●
85	BUSHING; RELEASE LEVER 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-053-0	08	1	0309-	●	●	●	●
85	BUSHING; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-053-0	08	1	0309-						●
85	BUSHING; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-021-0	16	1	0105-0205						●
88	COVER SUB ASM; CLU 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31210-024-0	01	1	0206-0206	●	●	●	●
88	COVER SUB ASM; CLU	1-31210-024-0	01	1	0207-	●	●	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	0105-0205	●	●	●	●
88	COVER SUB ASM; CLU 6WA1 TC-C(55L),10PE1H(68L)	1-31210-008-0	01	1	0206-0206	●	●	●	●
88	COVER SUB ASM; CLU 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31210-008-0	01	1	0206-0206	●	●	●	●
88	COVER SUB ASM; CLU 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31210-020-1	01	1	0105-						●
89	PLATE; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31229-010-0	12	1	0105-						●
89	PLATE; STRAP 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31229-048-0	20	1	0105-						●
91	SEAT; SPR (A)	1-31219-032-0	04	1	0105-	●	●	●	●
91	SEAT; SPR (B)	1-31219-033-0	04	1	0105-	●	●	●	●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31219-045-0	12	1	0105-						●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31219-046-0	12	1	0105-						●
92	SPRING; CLU 6WG1 TC-R(75L) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-052-0	01	1	0212-					●
92	SPRING; CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-052-0	01	1	0212-						●
92	SPRING; CLU 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-09580-579-0	12	1	0206-0206	●	●	●	●
92	SPRING; CLU 10PE1S(60L),10PE1N(61L)	1-09580-579-0	12	1	0207-0308	●	●	●	●
92	SPRING; CLU 10PE1N(61L) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CH INA EQUIPMENT(YT2)	1-09580-579-0	12	1	0309-	●	●	●	●
92	SPRING; CLU 10PE1S(60L),10PE1N(61L)	1-09580-297-0	12	1	0105-0205	●	●	●	●
92	SPRING; CLU 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-09580-297-0	12	1	0206-0206	●	●	●	●
92	SPRING; CLU 6WA1 TC-C(55L),10PE1H(68L)	1-31214-040-0	12	1	0105-0308	●	●	●	●
92	SPRING; CLU 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-040-0	12	1	0309-	●	●	●	●
92	SPRING; CLU	1-31239-052-0	01	1	0105-0211					●
92	SPRING; CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-052-0	01	1	0105-0211						●
92	SPRING; CLU 6WF1 TC-C(1B8) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-062-0	12	1	0105-						●
92	SPRING; CLU 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-055-0	12	1	0105-						●
96	PIN; RELEASE LEVER	1-31239-055-0	03	1	0212-					●
96	PIN; RELEASE LEVER 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-055-0	03	1	0212-						●
96	PIN; RELEASE LEVER 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER> L=77	1-31232-010-0	08	1	0105-0308	●	●	●	●
96	PIN; RELEASE LEVER 6WA1 TC-C(55L),10PE1H(68L)	1-31232-017-0	08	1	0105-0308	●	●	●	●
96	PIN; RELEASE LEVER 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31232-017-0	08	1	0105-0308	●	●	●	●
96	PIN; RELEASE LEVER 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-017-0	08	1	0309-	●	●	●	●
96	PIN; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-017-0	08	1	0309-						●
96	PIN; RELEASE LEVER	1-31239-055-0	03	1	0105-0211					●
96	PIN; RELEASE LEVER 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-055-0	03	1	0105-0211						●
96	PIN; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-013-0	08	1	0105-0308						●
98	SPRING; RETURN 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31233-001-0	04	1	0105-0308	●	●	●	●
98	SPRING; RETURN 6WA1 TC-C(55L),10PE1H(68L)	1-31233-007-0	04	1	0105-0308	●	●	●	●
98	SPRING; RETURN 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31233-007-0	04	1	0105-0308	●	●	●	●
98	SPRING; RETURN CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	0105-0308						●
98	SPRING; RETURN 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	0309-	●	●	●	●
98	SPRING; RETURN CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	0309-						●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0105-0308	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) OD=2.7 L=22	9-08113-022-0	08	1	0105-0308						●
102	PIN; SPLIT,RELEASE LEVER 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) OD=2.7 L=22	9-08113-022-0	08	1	0309-	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) OD=2.7 L=22	9-08113-022-0	08	1	0309-						●
105	NUT; SUPPORT 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	9-31235-061-0	04	1	0105-0205	●	●	●	●
105	NUT; SUPPORT 6WA1 TC-C(55L),10PE1H(68L)	1-31235-009-0	04	1	0105-0206	●	●	●	●
105	NUT; SUPPORT 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31235-009-0	04	1	0105-0206	●	●	●	●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M16	1-31239-013-0	04	1	0105-0205						●
105	NUT; SUPPORT 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31235-014-0	04	1	0206-0206	●	●	●	●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31235-014-0	04	1	0206-0206						●
105	NUT; SUPPORT	1-31235-014-0	04	1	0207-0308	●	●	●	●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31235-014-0	04	1	0207-0308						●
105	NUT; SUPPORT 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31235-014-0	04	1	0309-	●	●	●	●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31235-014-0	04	1	0309-						●
106	PLATE; LK,LEVER SUPPORT	1-31239-042-0	01	1	0212-					●
106	PLATE; LK,LEVER SUPPORT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-042-0	01	1	0212-						●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0105-0308	●	●	●	●
106	PLATE; LK,LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-019-0	04	1	0105-0308						●
106	PLATE; LK,LEVER SUPPORT 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-019-0	04	1	0309-	●	●	●	●
106	PLATE; LK,LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-019-0	04	1	0309-						●
106	PLATE; LK,LEVER SUPPORT	1-31239-042-0	01	1	0105-0211					●
106	PLATE; LK,LEVER SUPPORT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-042-0	01	1	0105-0211						●
107	BOLT; LK PLATE 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31239-061-0	08	1	0206-0206	●	●	●	●
107	BOLT; LK PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-061-0	08	1	0206-0206						●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0207-0308	●	●	●	●
107	BOLT; LK PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-061-0	08	1	0207-0308						●
107	BOLT; LK PLATE 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-061-0	08	1	0309-	●	●	●	●
107	BOLT; LK PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-061-0	08	1	0309-						●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0105-0205	●	●	●	●
107	BOLT; LK PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0105-0205						●
107	BOLT; LK PLATE 6WA1 TC-C(55L),10PE1H(68L) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0206-0206	●	●	●	●
107	BOLT; LK PLATE 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER> M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0206-0206	●	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0105-0308	●	●	●	●
109	WASHER; LK,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12.2	9-09150-512-0	04	1	0105-0308						●
109	WASHER; LK,STRAP 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12.2	9-09150-512-0	04	1	0309-	●	●	●	●
109	WASHER; LK,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12.2	9-09150-512-0	04	1	0309-						●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0105-0308	●	●	●	●
110	WASHER; SPECIAL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12	1-31229-006-0	04	1	0105-0308						●
110	WASHER; SPECIAL,STRAP 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12	1-31229-006-0	04	1	0309-	●	●	●	●
110	WASHER; SPECIAL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12	1-31229-006-0	04	1	0309-						●
111	WASHER; PL,STRAP (C) ID=13	1-31239-038-0	04	1	0212-					●
111	WASHER; PL,STRAP 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (C) ID=13	1-31239-038-0	04	1	0212-						●
111	WASHER; PL,STRAP (D) ID=14	9-09651-098-0	08	1	0105-	●	●	●	●
111	WASHER; PL,STRAP (C) ID=13	1-31239-038-0	04	1	0105-0211					●
111	WASHER; PL,STRAP 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (C) ID=13	1-31239-038-0	04	1	0105-0211						●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) ID=12	1-31229-006-0	08	1	0105-						●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) ID=12.2	9-09150-512-0	08	1	0105-						●
114	PIN; STRAIGHT,INTERMEDIATE PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09748-033-0	04	1	0105-						●
115	PIN; STRAIGHT,FLYWHEEL,SPACER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) D=10 L=25	1-09740-039-1	02	1	0105-						●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	0105-	●	●	●	●
116	BLOCK; SHIFT,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31321-073-2	01	1	0105-						●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0111-0111				●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0112-	●	●	●	●
118	BEARING; CLU RELEASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09820-118-0	01	1	0112-						●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0105-0110	●	●	●	●
118	BEARING; CLU RELEASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09820-112-0	01	1	0105-0110						●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0111-0111	●	●	●
118	BEARING; CLU RELEASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09820-112-0	01	1	0111-0111						●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	0105-	●	●	●	●
119	SPRING; SHIFT FORK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31329-019-0	01	1	0105-						●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	0105-	●	●	●	●
119	SPRING; SHIFT FORK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31329-018-0	01	1	0105-						●
124	BEARING; CAM,SHIFT FORK 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L)	1-31349-011-1	02	1	0105-	●	●	●	●
124	BEARING; CAM,SHIFT FORK 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31349-011-1	02	1	0105-					●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0105-0512	●	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0105-	●	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0105-0512	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●	●
137	BOLT; CLU COVER CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) M12X30	0-28781-230-0	12	1	0105-0512					●	●
137	BOLT; CLU COVER CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) M12X30 FLANGE	0-28751-230-0	12	1	0601-					●	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28181-280-0	02	1	0105-0512						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28151-280-0	02	1	0601-						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28181-290-0	10	1	0105-0512						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28151-290-0	10	1	0601-						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30	0-28781-230-0	04	1	0105-0512						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30 FLANGE	0-28751-230-0	04	1	0601-						●
143	PLATE; INTERMEDIATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-109-0	01	1	0105-						●
172	LEVER KIT; RELEASE,CLU 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-87830-526-1	01	1	0105-0205	●	●	●	●
172	LEVER KIT; RELEASE,CLU 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-87831-118-0	01	1	0206-0303	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-C(55L),10PE1H(68L)	1-87830-885-2	01	1	0105-0303	●	●	●	●
172	LEVER KIT; RELEASE,CLU 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-87830-885-2	01	1	0105-0303	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-885-2	01	1	0304-0403	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-182-0	01	1	0404-	●	●	●	●
172	LEVER KIT; RELEASE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-915-0	01	1	0105-0205						●
172	LEVER KIT; RELEASE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87831-114-0	01	1	0206-0306						●
172	LEVER KIT; RELEASE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87831-164-1	01	1	0307-						●
201	WASHER; PIN LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=14	9-09651-098-0	08	1	0105-						●
222	BOLT; STRAP (C)	1-31239-037-0	04	1	0212-					●
222	BOLT; STRAP 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (C)	1-31239-037-0	04	1	0212-						●
222	BOLT; STRAP 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER> (A) M12X30	1-09040-016-0	04	1	0105-0308	●	●	●	●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X30	1-09040-016-0	04	1	0105-0308						●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X30	1-09040-016-0	04	1	0309-						●
222	BOLT; STRAP 6WA1 TC-C(55L),10PE1H(68L) (A)	1-09040-102-0	04	1	0105-0308	●	●	●	●
222	BOLT; STRAP 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER> (A)	1-09040-102-0	04	1	0105-0308	●	●	●	●
222	BOLT; STRAP (A)	1-09040-102-0	04	1	0309-	●	●	●	●
222	BOLT; STRAP (C)	1-31239-037-0	04	1	0105-0211					●
222	BOLT; STRAP 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (C)	1-31239-037-0	04	1	0105-0211						●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M12X26.7	1-09040-086-0	08	1	0105-						●

1 111 96 102 85 84 96 98 92 91 110 109 222 2 137 57 131 124 119 118 119 116 130 107 106 105 111 102 88 91 102 111 85 172 96 98 111 102 105 106 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DISC; CLUTCH 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER> (C) 17"	1-31240-892-1	01	1	0105-	●	●	●	●
1	DISC; CLUTCH 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER> (C) 17"	1-31240-897-0	01	1	0105-	●	●	●	●
1	DISC; CLUTCH 6WA1 TC-C(55L),10PE1H(68L) (C) 17"	1-31240-876-0	01	1	0105-	●	●	●	●
1	DISC; CLUTCH (D) 17"	1-31240-865-1	01	1	0105-					●
1	DISC; CLUTCH 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (D) 17"	1-31240-865-1	01	1	0105-						●
1	DISC; CLUTCH 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) 15.5"	1-31240-883-0	01	1	0105-						●
1	DISC; CLUTCH 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 15.5"	1-31240-884-0	01	1	0105-						●
2	PLATE ASM; PRESSURE,CLU 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31220-320-1	01	1	0105-0308	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1N(61L) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CH INA EQUIPMENT(YT2)	1-31220-320-2	01	1	0309-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31220-277-1	01	1	0105-0308	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31220-400-1	01	1	0309-						●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L),10PE1H(68L)	1-31220-321-1	01	1	0105-0308	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-321-2	01	1	0309-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-335-1	01	1	0105-0211					●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31220-335-1	01	1	0105-0211						●
2	PLATE ASM; PRESSURE,CLU	1-31220-401-0	01	1	0212-0308					●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31220-401-0	01	1	0212-0308						●
2	PLATE ASM; PRESSURE,CLU	1-31220-401-0	01	1	0309-					●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-31220-401-0	01	1	0309-						●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-329-2	01	1	0105-						●
2	PLATE ASM; PRESSURE,CLU 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-333-2	01	1	0105-						●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0105-	●	●	●	●
57	FORK; SHIFT,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31340-059-1	01	1	0105-						●
57	FORK; SHIFT,CLU 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31340-062-0	01	1	0105-					●	●
84	PLATE; PRESSURE	1-31221-125-0	01	1	0212-					●
84	PLATE; PRESSURE 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31221-125-0	01	1	0212-						●
84	PLATE; PRESSURE 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31221-041-0	01	1	0105-0308	●	●	●	●
84	PLATE; PRESSURE 6WA1 TC-C(55L),10PE1H(68L)	1-31221-083-1	01	1	0105-0206	●	●	●	●
84	PLATE; PRESSURE 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31221-083-1	01	1	0105-0206	●	●	●	●
84	PLATE; PRESSURE 6WA1 TC-C(55L),10PE1H(68L) 17"	1-31221-128-0	01	1	0207-0308	●	●	●	●
84	PLATE; PRESSURE 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER> 17"	1-31221-128-0	01	1	0207-0308	●	●	●	●
84	PLATE; PRESSURE 17"	1-31221-128-0	01	1	0309-	●	●	●	●
84	PLATE; PRESSURE	1-31221-125-0	01	1	0105-0211					●
84	PLATE; PRESSURE 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31221-125-0	01	1	0105-0211						●
84	PLATE; PRESSURE 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-087-0	01	1	0105-						●
85	BUSHING; RELEASE LEVER 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31239-003-0	08	1	0105-0308	●	●	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-C(55L),10PE1H(68L)	1-31239-053-0	08	1	0105-0205	●	●	●	●
85	BUSHING; RELEASE LEVER 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31239-053-0	08	1	0105-0205	●	●	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-C(55L),10PE1H(68L)	1-31239-053-0	08	1	0206-0308	●	●	●	●
85	BUSHING; RELEASE LEVER 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31239-053-0	08	1	0206-0308	●	●	●	●
85	BUSHING; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-053-0	08	1	0206-0308						●
85	BUSHING; RELEASE LEVER 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-053-0	08	1	0309-	●	●	●	●
85	BUSHING; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-053-0	08	1	0309-						●
85	BUSHING; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-021-0	16	1	0105-0205						●
88	COVER SUB ASM; CLU 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31210-024-0	01	1	0206-0206	●	●	●	●
88	COVER SUB ASM; CLU	1-31210-024-0	01	1	0207-	●	●	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	0105-0205	●	●	●	●
88	COVER SUB ASM; CLU 6WA1 TC-C(55L),10PE1H(68L)	1-31210-008-0	01	1	0206-0206	●	●	●	●
88	COVER SUB ASM; CLU 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31210-008-0	01	1	0206-0206	●	●	●	●
88	COVER SUB ASM; CLU 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31210-020-1	01	1	0105-						●
91	SEAT; SPR (A)	1-31219-032-0	04	1	0105-	●	●	●	●
91	SEAT; SPR (B)	1-31219-033-0	04	1	0105-	●	●	●	●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B)	1-31219-045-0	12	1	0105-						●
91	SEAT; SPR CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A)	1-31219-046-0	12	1	0105-						●
92	SPRING; CLU 6WG1 TC-R(75L) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-052-0	01	1	0212-					●
92	SPRING; CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-052-0	01	1	0212-						●
92	SPRING; CLU 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-09580-579-0	12	1	0206-0206	●	●	●	●
92	SPRING; CLU 10PE1S(60L),10PE1N(61L)	1-09580-579-0	12	1	0207-0308	●	●	●	●
92	SPRING; CLU 10PE1N(61L) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CH INA EQUIPMENT(YT2)	1-09580-579-0	12	1	0309-	●	●	●	●
92	SPRING; CLU 10PE1S(60L),10PE1N(61L)	1-09580-297-0	12	1	0105-0205	●	●	●	●
92	SPRING; CLU 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-09580-297-0	12	1	0206-0206	●	●	●	●
92	SPRING; CLU 6WA1 TC-C(55L),10PE1H(68L)	1-31214-040-0	12	1	0105-0308	●	●	●	●
92	SPRING; CLU 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-040-0	12	1	0309-	●	●	●	●
92	SPRING; CLU	1-31239-052-0	01	1	0105-0211					●
92	SPRING; CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-052-0	01	1	0105-0211						●
92	SPRING; CLU 6WF1 TC-C(1B8) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-062-0	12	1	0105-						●
92	SPRING; CLU 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-055-0	12	1	0105-						●
96	PIN; RELEASE LEVER	1-31239-055-0	03	1	0212-					●
96	PIN; RELEASE LEVER 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-055-0	03	1	0212-						●
96	PIN; RELEASE LEVER 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER> L=77	1-31232-010-0	08	1	0105-0308	●	●	●	●
96	PIN; RELEASE LEVER 6WA1 TC-C(55L),10PE1H(68L)	1-31232-017-0	08	1	0105-0308	●	●	●	●
96	PIN; RELEASE LEVER 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31232-017-0	08	1	0105-0308	●	●	●	●
96	PIN; RELEASE LEVER 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-017-0	08	1	0309-	●	●	●	●
96	PIN; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-017-0	08	1	0309-						●
96	PIN; RELEASE LEVER	1-31239-055-0	03	1	0105-0211					●
96	PIN; RELEASE LEVER 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-055-0	03	1	0105-0211						●
96	PIN; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-013-0	08	1	0105-0308						●
98	SPRING; RETURN 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31233-001-0	04	1	0105-0308	●	●	●	●
98	SPRING; RETURN 6WA1 TC-C(55L),10PE1H(68L)	1-31233-007-0	04	1	0105-0308	●	●	●	●
98	SPRING; RETURN 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31233-007-0	04	1	0105-0308	●	●	●	●
98	SPRING; RETURN CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	0105-0308						●
98	SPRING; RETURN 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	0309-	●	●	●	●
98	SPRING; RETURN CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31233-007-0	04	1	0309-						●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0105-0308	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) OD=2.7 L=22	9-08113-022-0	08	1	0105-0308						●
102	PIN; SPLIT,RELEASE LEVER 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) OD=2.7 L=22	9-08113-022-0	08	1	0309-	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) OD=2.7 L=22	9-08113-022-0	08	1	0309-						●
105	NUT; SUPPORT 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	9-31235-061-0	04	1	0105-0205	●	●	●	●
105	NUT; SUPPORT 6WA1 TC-C(55L),10PE1H(68L)	1-31235-009-0	04	1	0105-0206	●	●	●	●
105	NUT; SUPPORT 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31235-009-0	04	1	0105-0206	●	●	●	●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M16	1-31239-013-0	04	1	0105-0205						●
105	NUT; SUPPORT 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31235-014-0	04	1	0206-0206	●	●	●	●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31235-014-0	04	1	0206-0206						●
105	NUT; SUPPORT	1-31235-014-0	04	1	0207-0308	●	●	●	●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31235-014-0	04	1	0207-0308						●
105	NUT; SUPPORT 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31235-014-0	04	1	0309-	●	●	●	●
105	NUT; SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31235-014-0	04	1	0309-						●
106	PLATE; LK,LEVER SUPPORT	1-31239-042-0	01	1	0212-					●
106	PLATE; LK,LEVER SUPPORT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-042-0	01	1	0212-						●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0105-0308	●	●	●	●
106	PLATE; LK,LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-019-0	04	1	0105-0308						●
106	PLATE; LK,LEVER SUPPORT 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-019-0	04	1	0309-	●	●	●	●
106	PLATE; LK,LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-019-0	04	1	0309-						●
106	PLATE; LK,LEVER SUPPORT	1-31239-042-0	01	1	0105-0211					●
106	PLATE; LK,LEVER SUPPORT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-042-0	01	1	0105-0211						●
107	BOLT; LK PLATE 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31239-061-0	08	1	0206-0206	●	●	●	●
107	BOLT; LK PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-061-0	08	1	0206-0206						●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0207-0308	●	●	●	●
107	BOLT; LK PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-061-0	08	1	0207-0308						●
107	BOLT; LK PLATE 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-061-0	08	1	0309-	●	●	●	●
107	BOLT; LK PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-061-0	08	1	0309-						●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0105-0205	●	●	●	●
107	BOLT; LK PLATE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0105-0205						●
107	BOLT; LK PLATE 6WA1 TC-C(55L),10PE1H(68L) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0206-0206	●	●	●	●
107	BOLT; LK PLATE 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER> M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0206-0206	●	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0105-0308	●	●	●	●
109	WASHER; LK,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12.2	9-09150-512-0	04	1	0105-0308						●
109	WASHER; LK,STRAP 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12.2	9-09150-512-0	04	1	0309-	●	●	●	●
109	WASHER; LK,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12.2	9-09150-512-0	04	1	0309-						●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0105-0308	●	●	●	●
110	WASHER; SPECIAL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12	1-31229-006-0	04	1	0105-0308						●
110	WASHER; SPECIAL,STRAP 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12	1-31229-006-0	04	1	0309-	●	●	●	●
110	WASHER; SPECIAL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=12	1-31229-006-0	04	1	0309-						●
111	WASHER; PL,STRAP (C) ID=13	1-31239-038-0	04	1	0212-					●
111	WASHER; PL,STRAP 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (C) ID=13	1-31239-038-0	04	1	0212-						●
111	WASHER; PL,STRAP (D) ID=14	9-09651-098-0	08	1	0105-	●	●	●	●
111	WASHER; PL,STRAP (C) ID=13	1-31239-038-0	04	1	0105-0211					●
111	WASHER; PL,STRAP 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (C) ID=13	1-31239-038-0	04	1	0105-0211						●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) ID=12	1-31229-006-0	08	1	0105-						●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) ID=12.2	9-09150-512-0	08	1	0105-						●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	0105-	●	●	●	●
116	BLOCK; SHIFT,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31321-073-2	01	1	0105-						●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0111-0111				●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0112-	●	●	●	●
118	BEARING; CLU RELEASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09820-118-0	01	1	0112-						●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0105-0110	●	●	●	●
118	BEARING; CLU RELEASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09820-112-0	01	1	0105-0110						●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0111-0111	●	●	●
118	BEARING; CLU RELEASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-09820-112-0	01	1	0111-0111						●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	0105-	●	●	●	●
119	SPRING; SHIFT FORK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31329-019-0	01	1	0105-						●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	0105-	●	●	●	●
119	SPRING; SHIFT FORK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31329-018-0	01	1	0105-						●
124	BEARING; CAM,SHIFT FORK 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L)	1-31349-011-1	02	1	0105-	●	●	●	●
124	BEARING; CAM,SHIFT FORK 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31349-011-1	02	1	0105-					●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0105-0512	●	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0105-	●	●	●	●	●	●

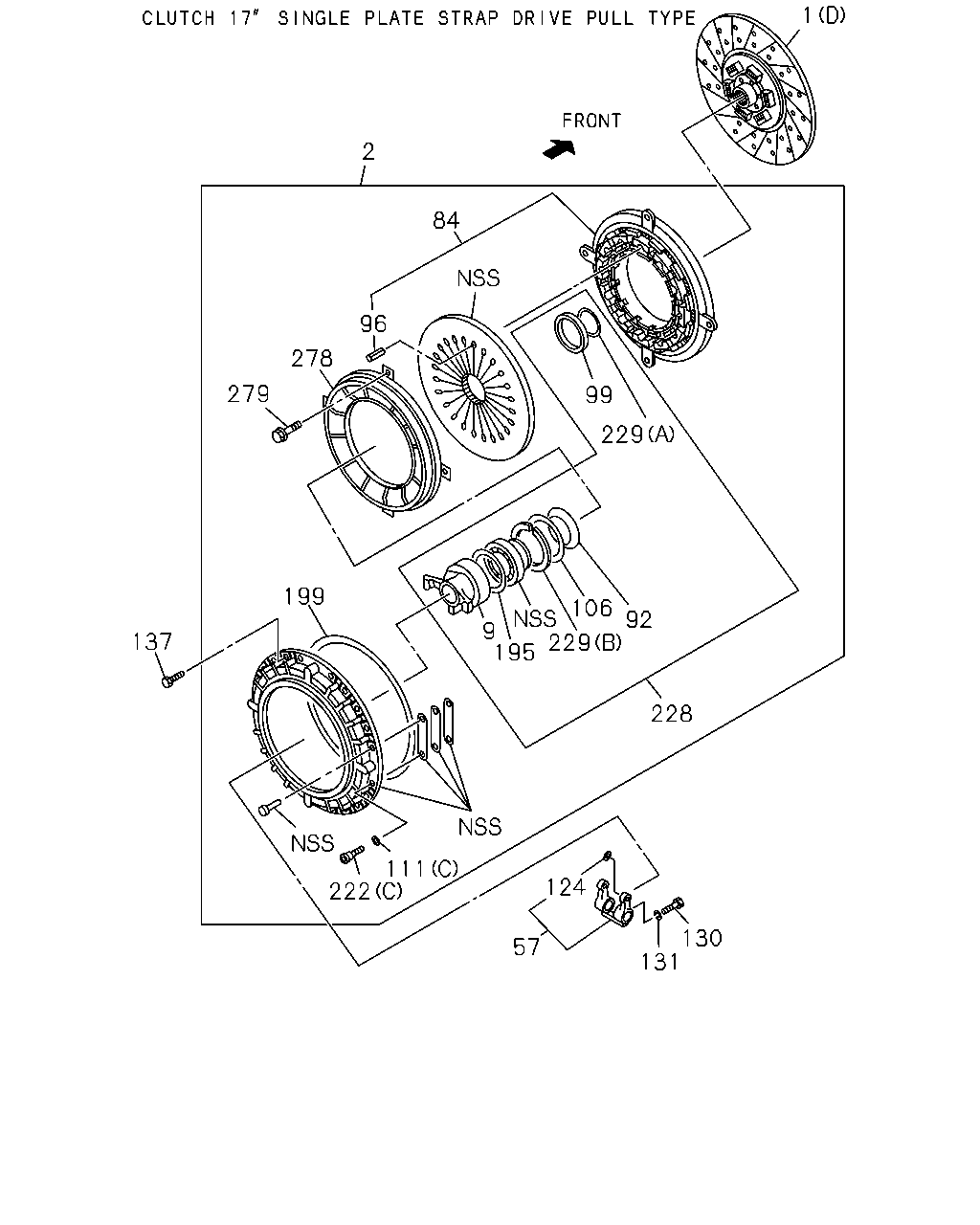

137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0105-0512	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●	●
137	BOLT; CLU COVER CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) M12X30	0-28781-230-0	12	1	0105-0512					●	●
137	BOLT; CLU COVER CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) M12X30 FLANGE	0-28751-230-0	12	1	0601-					●	●

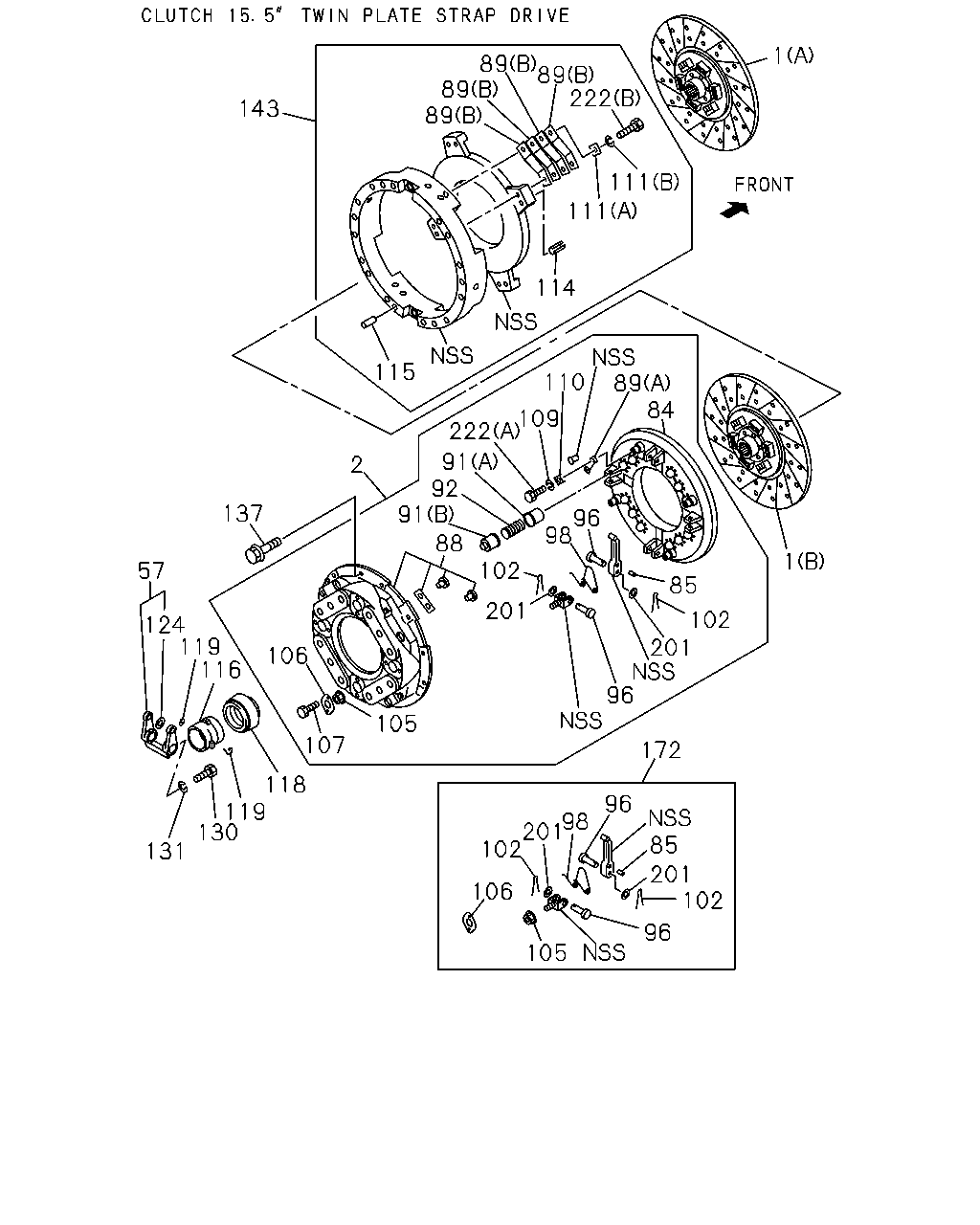

137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28181-280-0	02	1	0105-0512						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28151-280-0	02	1	0601-						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28181-290-0	10	1	0105-0512						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28151-290-0	10	1	0601-						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30	0-28781-230-0	04	1	0105-0512						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30 FLANGE	0-28751-230-0	04	1	0601-						●

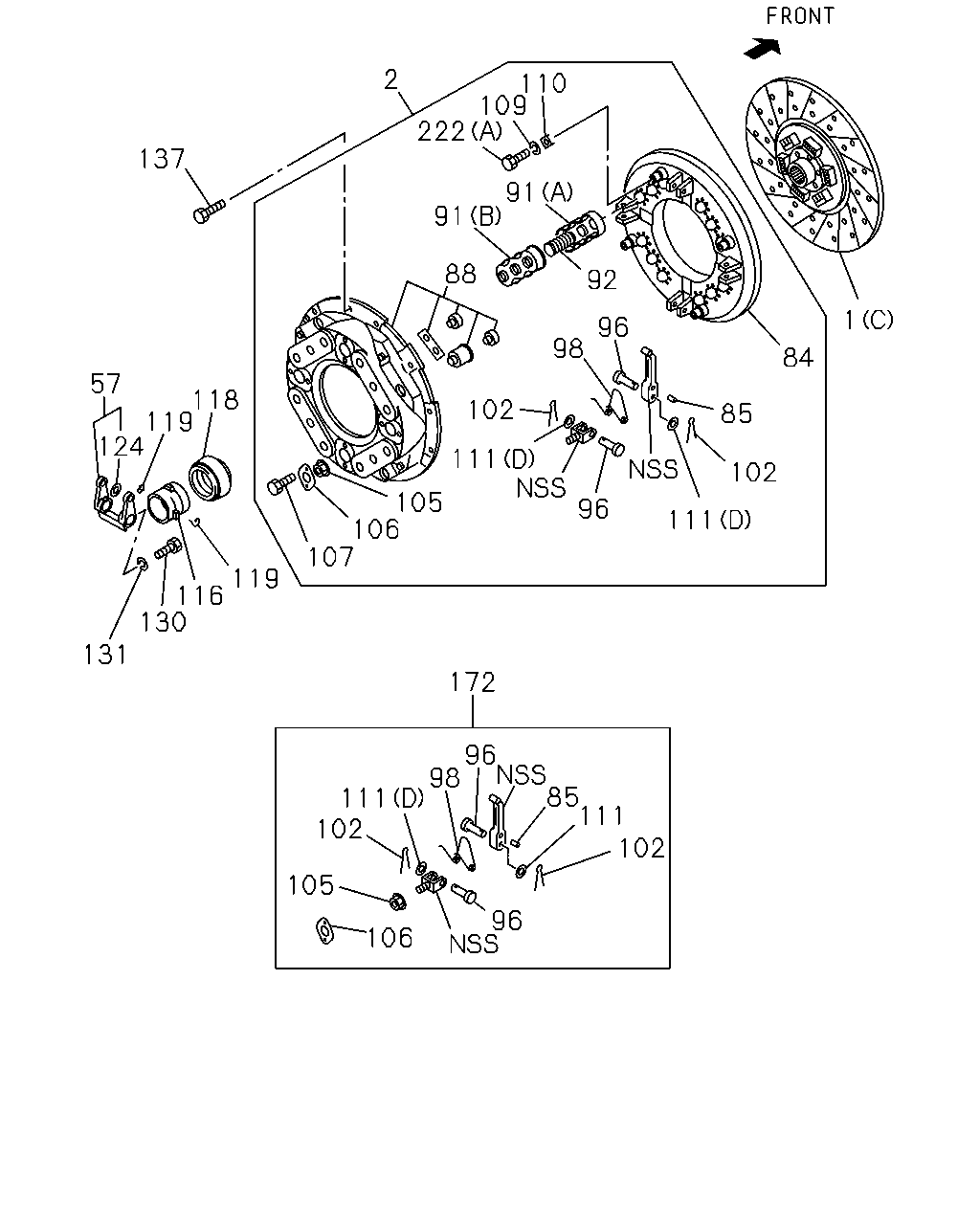

172	LEVER KIT; RELEASE,CLU 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-87830-526-1	01	1	0105-0205	●	●	●	●
172	LEVER KIT; RELEASE,CLU 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-87831-118-0	01	1	0206-0303	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-C(55L),10PE1H(68L)	1-87830-885-2	01	1	0105-0303	●	●	●	●
172	LEVER KIT; RELEASE,CLU 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-87830-885-2	01	1	0105-0303	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-885-2	01	1	0304-0403	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-182-0	01	1	0404-	●	●	●	●
172	LEVER KIT; RELEASE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87830-915-0	01	1	0105-0205						●
172	LEVER KIT; RELEASE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87831-114-0	01	1	0206-0306						●
172	LEVER KIT; RELEASE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87831-164-1	01	1	0307-						●
222	BOLT; STRAP (C)	1-31239-037-0	04	1	0212-					●
222	BOLT; STRAP 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (C)	1-31239-037-0	04	1	0212-						●
222	BOLT; STRAP 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER> (A) M12X30	1-09040-016-0	04	1	0105-0308	●	●	●	●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X30	1-09040-016-0	04	1	0105-0308						●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X30	1-09040-016-0	04	1	0309-						●
222	BOLT; STRAP 6WA1 TC-C(55L),10PE1H(68L) (A)	1-09040-102-0	04	1	0105-0308	●	●	●	●
222	BOLT; STRAP 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER> (A)	1-09040-102-0	04	1	0105-0308	●	●	●	●
222	BOLT; STRAP (A)	1-09040-102-0	04	1	0309-	●	●	●	●
222	BOLT; STRAP (C)	1-31239-037-0	04	1	0105-0211					●
222	BOLT; STRAP 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (C)	1-31239-037-0	04	1	0105-0211						●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M12X26.7	1-09040-086-0	08	1	0105-						●

157 161 170 155 220 149 148 155 155 155 127 122 173 170 170 161 161 157 154 127 125 122 123 13 120 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

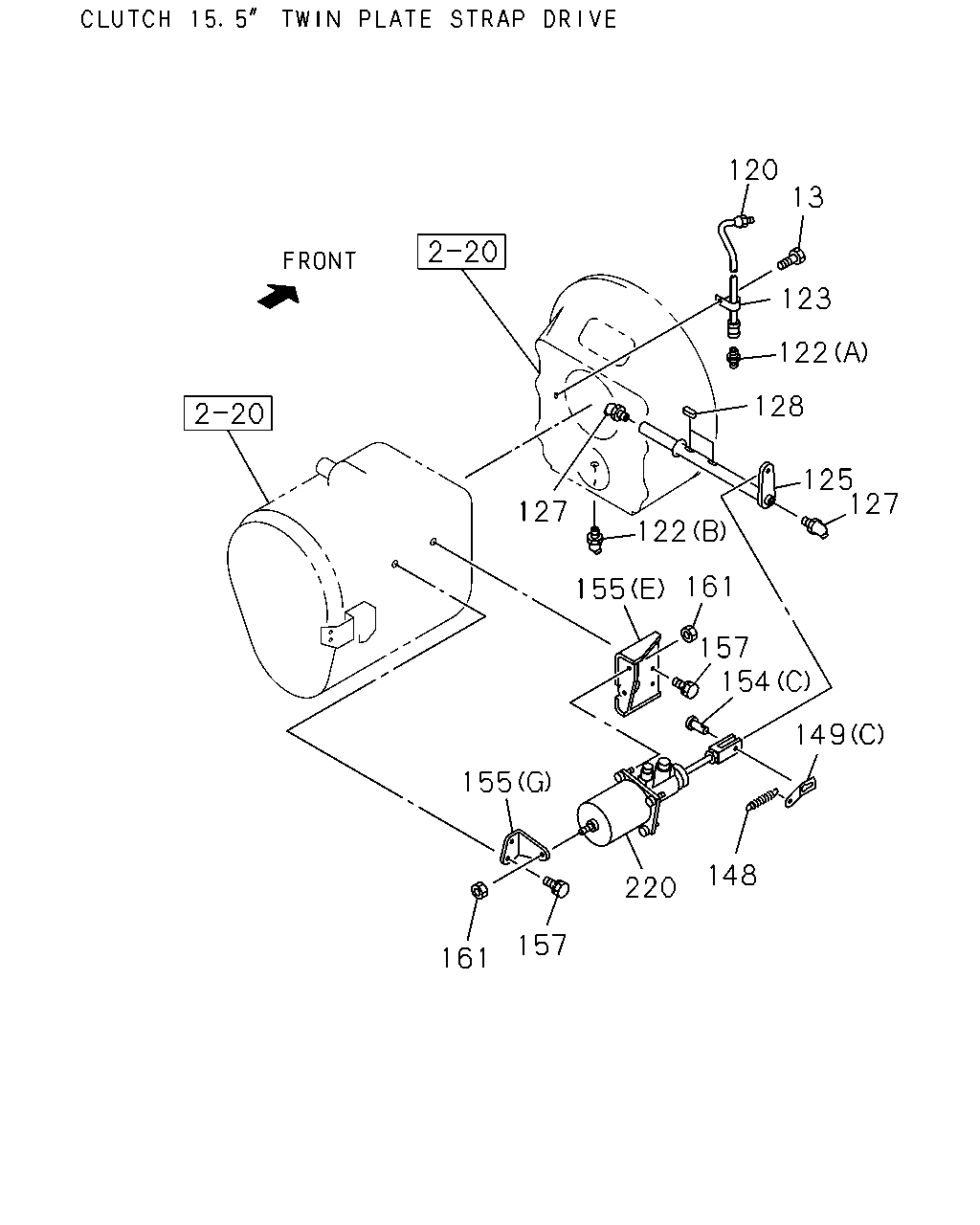

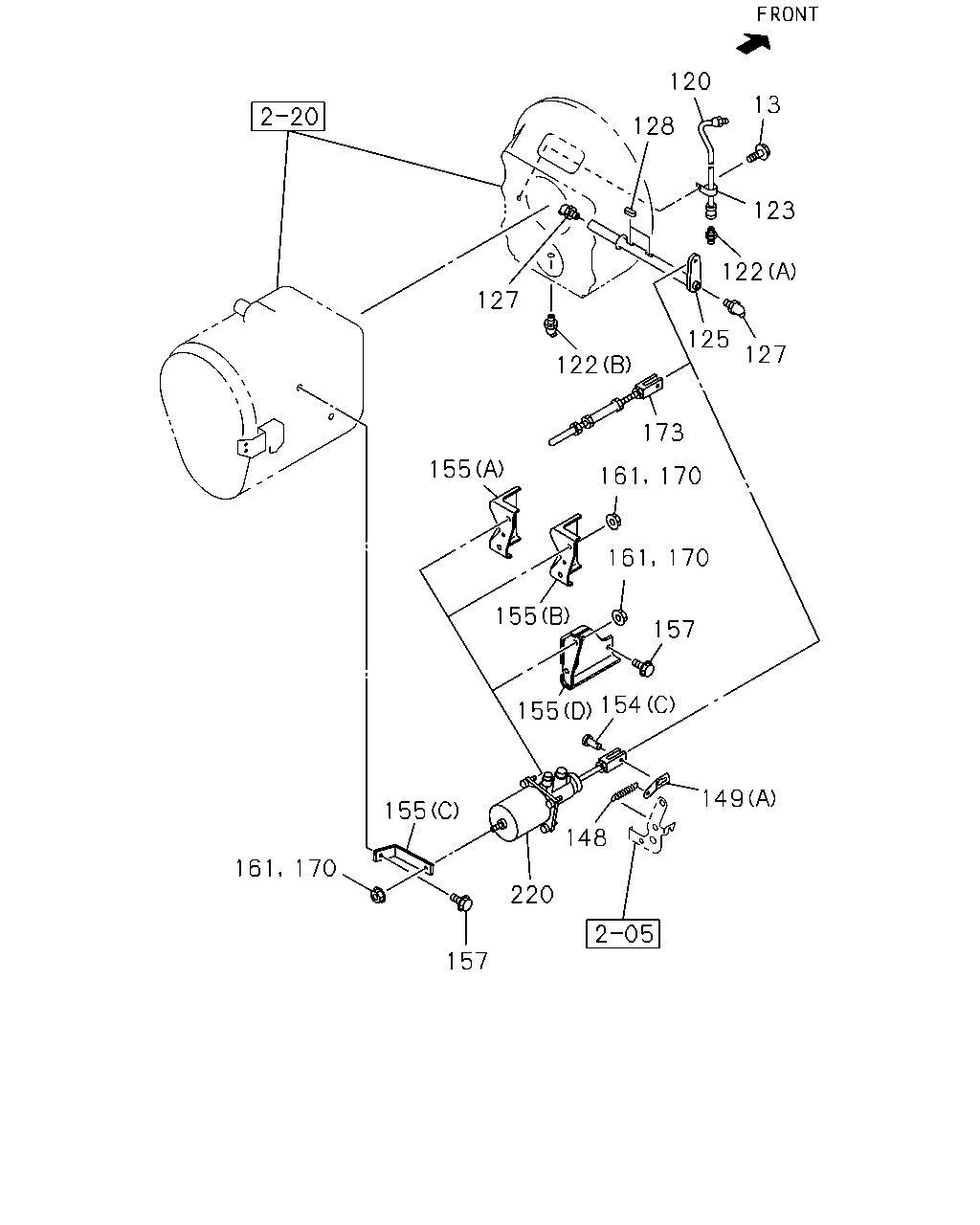

13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●	●	●
13	BOLT; CLIP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512						●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●
13	BOLT; CLIP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8X16 FLANGE	0-28050-816-0	01	1	0601-						●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0105-	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=390	1-09365-143-0	01	1	0105-						●
120	HOSE; FLEX,SHIFT BLOCK,CLU 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) L=500	1-09364-651-0	01	1	0105-					●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (A) PT1/8 & M10	1-09660-710-0	01	1	0105-	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) PT1/8 & M10	1-09660-710-0	01	1	0105-						●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0105-0512	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0105-0512						●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-						●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0105-	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=9 L=20	9-09524-835-0	01	1	0105-						●
125	SHAFT; CLU	1-31342-305-0	01	1	0105-	●	●	●	●
125	SHAFT; CLU	1-31342-311-1	01	1	0105-					●
125	SHAFT; CLU CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31342-290-1	01	1	0105-						●
125	SHAFT; CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31342-262-0	01	1	0105-						●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0105-0512	●	●	●	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0105-	●	●	●	●	●	●
148	SPRING; CLU RETURN 10PE1N(61L) FIRE TRUCK<RA9> L=206.4	1-09583-291-1	01	1	0105-				●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0105-0109	●	●	●	●
148	SPRING; CLU RETURN 6WG1 TC-R(75L) FIRE TRUCK<RA9> L=135	1-09583-305-0	01	1	0105-0109					●
148	SPRING; CLU RETURN CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=135	1-09583-305-0	01	1	0105-0109						●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0110-	●	●	●	●		●
148	SPRING; CLU RETURN 6WG1 TC-R(75L) FIRE TRUCK<RA9> L=135	1-09583-305-0	01	1	0110-					●
148	SPRING; CLU RETURN L=192	1-09583-266-0	02	1	0105-					●
149	EYE; SPRING,RETURN SPRING (A)	1-31426-052-0	01	1	0105-	●	●	●	●
149	EYE; SPRING,RETURN SPRING 6WG1 TC-R(75L) FIRE TRUCK<RA9> (A)	1-31426-052-0	01	1	0105-					●
149	EYE; SPRING,RETURN SPRING 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-31426-052-0	01	1	0105-						●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-031-0	01	1	0105-					●
149	EYE; SPRING,RETURN SPRING CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-31426-048-0	01	1	0105-						●
154	PIN; JAW JOINT (C) D=14 L=27	1-31424-009-0	01	1	0105-0109	●	●	●	●
154	PIN; JAW JOINT 6WG1 TC-R(75L) FIRE TRUCK<RA9> (C) D=14 L=27	1-31424-009-0	01	1	0105-0109					●
154	PIN; JAW JOINT 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) D=14 L=27	1-31424-009-0	01	1	0105-0109						●
154	PIN; JAW JOINT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) D=14 L=27	1-31424-009-0	01	1	0105-0109						●
154	PIN; JAW JOINT (C)	1-31424-009-0	01	1	0110-	●	●	●	●
154	PIN; JAW JOINT 6WG1 TC-R(75L) FIRE TRUCK<RA9> (C)	1-31424-009-0	01	1	0110-					●
154	PIN; JAW JOINT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-31424-009-0	01	1	0110-						●
154	PIN; JAW JOINT (A) D=12 L=15.7	1-31424-005-0	01	1	0105-					●
154	PIN; JAW JOINT (B) D=14 L=32 L=35	1-31424-010-0	01	1	0105-0105					●
154	PIN; JAW JOINT (B) L=35	1-31424-003-0	01	1	0106-					●
155	BRACKET; MINIPACK 10PE1N(61L) FIRE TRUCK<RA9> (A)	1-31429-449-0	01	1	0105-				●
155	BRACKET; MINIPACK (C)	1-31429-345-0	01	1	0105-			●	●
155	BRACKET; MINIPACK (B)	1-31429-443-1	01	1	0105-			●	●
155	BRACKET; MINIPACK (H)	1-31429-395-0	01	1	0105-					●
155	BRACKET; MINIPACK (I)	1-31429-419-0	01	1	0105-					●
155	BRACKET; MINIPACK 6WG1 TC-R(75L) FIRE TRUCK<RA9> (J)	1-31429-431-0	01	1	0105-					●
155	BRACKET; MINIPACK 6WG1 TC-R(75L) FIRE TRUCK<RA9> (K)	1-31429-432-0	01	1	0105-					●
155	BRACKET; MINIPACK (C)	1-31429-289-1	01	1	0105-	●	●
155	BRACKET; MINIPACK (D)	1-31429-402-0	01	1	0105-	●	●
155	BRACKET; MINIPACK (G)	1-31429-350-0	01	1	0105-						●
155	BRACKET; MINIPACK 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (F)	1-31429-391-0	01	1	0105-0209						●
155	BRACKET; MINIPACK CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (F)	1-31429-391-0	01	1	0210-						●
155	BRACKET; MINIPACK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (E)	1-31429-323-1	01	1	0105-						●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0105-	●	●	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	04	1	0105-					●
157	BOLT; BRKT M10X25 FLANGE	0-28781-025-0	03	1	0105-0512						●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0601-						●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	0105-0602	●	●
161	NUT; BRKT 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10 FLANGE	0-91150-210-0	03	1	0105-0602						●
161	NUT; BRKT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10 FLANGE	0-91150-210-0	03	1	0105-0602						●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0603-	●	●
161	NUT; BRKT 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10 FLANGE	0-91180-210-0	03	1	0603-						●
161	NUT; BRKT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10 FLANGE	0-91180-210-0	03	1	0603-						●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	0105-0602			●	●	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91180-210-0	03	1	0603-			●	●	●
173	ROD; PUSH,MINIPACK 10PE1N(61L) FIRE TRUCK<RA9>	1-31824-204-0	01	1	0105-				●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>, CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31800-466-0	01	1	0105-0109	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-466-0	01	1	0105-0109						●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-466-1	01	1	0110-	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31800-466-1	01	1	0110-						●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-490-0	01	1	0105-0206	●		●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WF1 TC-C(1B8),10PE1S(60L),10PE1N(61L), 10PE1H(68L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-490-2	01	1	0207-	●		●	●		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-491-0	01	1	0105-					●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31800-386-3	01	1	0105-						●

245 154 148 157 170 161 155 220 155 136 136 157 155 161 170 155 148 149 154 153 149 148 127 20 155 120 158 128 127 125 154 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

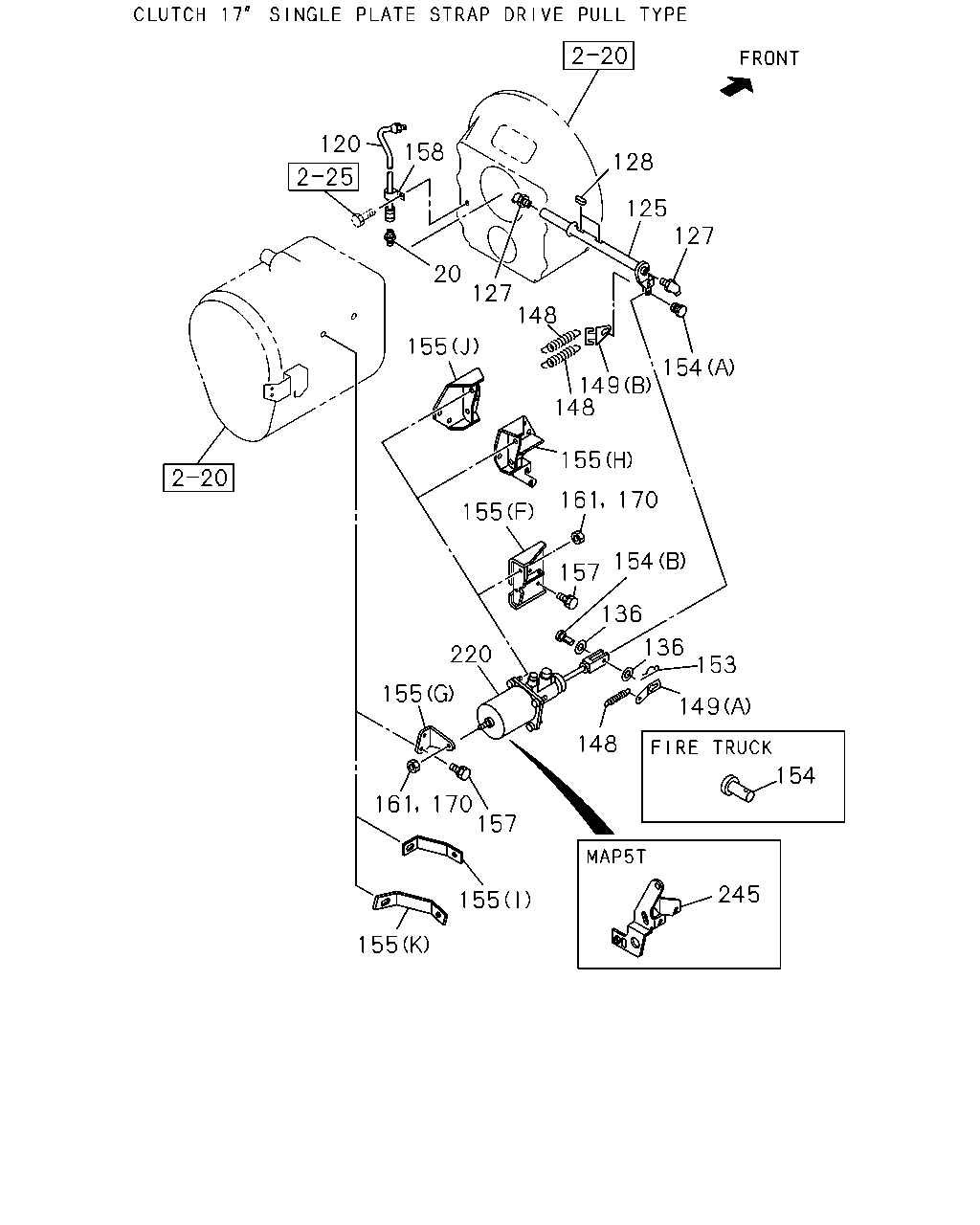

20	NIPPLE; GREASE 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) PT1/8 STRAIGHT	9-09031-010-0	01	1	0105-0512					●	●
20	NIPPLE; GREASE 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-					●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0105-	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=390	1-09365-143-0	01	1	0105-						●
120	HOSE; FLEX,SHIFT BLOCK,CLU 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) L=500	1-09364-651-0	01	1	0105-					●	●
125	SHAFT; CLU	1-31342-305-0	01	1	0105-	●	●	●	●
125	SHAFT; CLU	1-31342-311-1	01	1	0105-					●
125	SHAFT; CLU CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31342-290-1	01	1	0105-						●
125	SHAFT; CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31342-262-0	01	1	0105-						●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0105-0512	●	●	●	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0105-	●	●	●	●	●	●
136	WASHER; PL ID=15	9-09160-514-0	02	1	0105-					●
148	SPRING; CLU RETURN 10PE1N(61L) FIRE TRUCK<RA9> L=206.4	1-09583-291-1	01	1	0105-				●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0105-0109	●	●	●	●
148	SPRING; CLU RETURN 6WG1 TC-R(75L) FIRE TRUCK<RA9> L=135	1-09583-305-0	01	1	0105-0109					●
148	SPRING; CLU RETURN CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=135	1-09583-305-0	01	1	0105-0109						●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0110-	●	●	●	●		●
148	SPRING; CLU RETURN 6WG1 TC-R(75L) FIRE TRUCK<RA9> L=135	1-09583-305-0	01	1	0110-					●
148	SPRING; CLU RETURN L=192	1-09583-266-0	02	1	0105-					●
149	EYE; SPRING,RETURN SPRING (A)	1-31426-052-0	01	1	0105-	●	●	●	●
149	EYE; SPRING,RETURN SPRING 6WG1 TC-R(75L) FIRE TRUCK<RA9> (A)	1-31426-052-0	01	1	0105-					●
149	EYE; SPRING,RETURN SPRING 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-31426-052-0	01	1	0105-						●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-031-0	01	1	0105-					●
149	EYE; SPRING,RETURN SPRING CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-31426-048-0	01	1	0105-						●
153	PIN; SPLIT,CLU SHAFT	1-09747-009-0	01	1	0105-					●
154	PIN; JAW JOINT (C) D=14 L=27	1-31424-009-0	01	1	0105-0109	●	●	●	●
154	PIN; JAW JOINT 6WG1 TC-R(75L) FIRE TRUCK<RA9> (C) D=14 L=27	1-31424-009-0	01	1	0105-0109					●
154	PIN; JAW JOINT 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) D=14 L=27	1-31424-009-0	01	1	0105-0109						●
154	PIN; JAW JOINT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) D=14 L=27	1-31424-009-0	01	1	0105-0109						●
154	PIN; JAW JOINT (C)	1-31424-009-0	01	1	0110-	●	●	●	●
154	PIN; JAW JOINT 6WG1 TC-R(75L) FIRE TRUCK<RA9> (C)	1-31424-009-0	01	1	0110-					●
154	PIN; JAW JOINT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-31424-009-0	01	1	0110-						●
154	PIN; JAW JOINT (A) D=12 L=15.7	1-31424-005-0	01	1	0105-					●
154	PIN; JAW JOINT (B) D=14 L=32 L=35	1-31424-010-0	01	1	0105-0105					●
154	PIN; JAW JOINT (B) L=35	1-31424-003-0	01	1	0106-					●
155	BRACKET; MINIPACK 10PE1N(61L) FIRE TRUCK<RA9> (A)	1-31429-449-0	01	1	0105-				●
155	BRACKET; MINIPACK (C)	1-31429-345-0	01	1	0105-			●	●
155	BRACKET; MINIPACK (B)	1-31429-443-1	01	1	0105-			●	●
155	BRACKET; MINIPACK (H)	1-31429-395-0	01	1	0105-					●
155	BRACKET; MINIPACK (I)	1-31429-419-0	01	1	0105-					●
155	BRACKET; MINIPACK 6WG1 TC-R(75L) FIRE TRUCK<RA9> (J)	1-31429-431-0	01	1	0105-					●
155	BRACKET; MINIPACK 6WG1 TC-R(75L) FIRE TRUCK<RA9> (K)	1-31429-432-0	01	1	0105-					●
155	BRACKET; MINIPACK (C)	1-31429-289-1	01	1	0105-	●	●
155	BRACKET; MINIPACK (D)	1-31429-402-0	01	1	0105-	●	●
155	BRACKET; MINIPACK (G)	1-31429-350-0	01	1	0105-						●
155	BRACKET; MINIPACK 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (F)	1-31429-391-0	01	1	0105-0209						●
155	BRACKET; MINIPACK CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (F)	1-31429-391-0	01	1	0210-						●
155	BRACKET; MINIPACK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (E)	1-31429-323-1	01	1	0105-						●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0105-	●	●	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	04	1	0105-					●
157	BOLT; BRKT M10X25 FLANGE	0-28781-025-0	03	1	0105-0512						●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0601-						●
158	CLIP; FLEX HOSE CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	9-09917-576-0	01	1	0105-					●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	0105-0602	●	●
161	NUT; BRKT 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10 FLANGE	0-91150-210-0	03	1	0105-0602						●
161	NUT; BRKT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10 FLANGE	0-91150-210-0	03	1	0105-0602						●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0603-	●	●
161	NUT; BRKT 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10 FLANGE	0-91180-210-0	03	1	0603-						●
161	NUT; BRKT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10 FLANGE	0-91180-210-0	03	1	0603-						●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	0105-0602			●	●	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91180-210-0	03	1	0603-			●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>, CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31800-466-0	01	1	0105-0109	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-466-0	01	1	0105-0109						●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-466-1	01	1	0110-	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31800-466-1	01	1	0110-						●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-490-0	01	1	0105-0206	●		●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WF1 TC-C(1B8),10PE1S(60L),10PE1N(61L), 10PE1H(68L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-490-2	01	1	0207-	●		●	●		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-491-0	01	1	0105-					●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31800-386-3	01	1	0105-						●
245	BRACKET; HOSE 6WG1 TC-R(75L) FIRE TRUCK<RA9>	1-47478-722-0	01	1	0105-					●

120 123 122 128 125 127 122 127 155 161 157 154 149 148 220 157 161 155 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●	●	●
13	BOLT; CLIP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8X16 FLANGE	0-28080-816-0	01	1	0105-0512						●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●
13	BOLT; CLIP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M8X16 FLANGE	0-28050-816-0	01	1	0601-						●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0105-	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=390	1-09365-143-0	01	1	0105-						●
120	HOSE; FLEX,SHIFT BLOCK,CLU 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) L=500	1-09364-651-0	01	1	0105-					●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (A) PT1/8 & M10	1-09660-710-0	01	1	0105-	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) PT1/8 & M10	1-09660-710-0	01	1	0105-						●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0105-0512	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0105-0512						●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-						●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0105-	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ID=9 L=20	9-09524-835-0	01	1	0105-						●
125	SHAFT; CLU	1-31342-305-0	01	1	0105-	●	●	●	●
125	SHAFT; CLU	1-31342-311-1	01	1	0105-					●
125	SHAFT; CLU CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31342-290-1	01	1	0105-						●
125	SHAFT; CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31342-262-0	01	1	0105-						●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0105-0512	●	●	●	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0105-	●	●	●	●	●	●
148	SPRING; CLU RETURN 10PE1N(61L) FIRE TRUCK<RA9> L=206.4	1-09583-291-1	01	1	0105-				●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0105-0109	●	●	●	●
148	SPRING; CLU RETURN 6WG1 TC-R(75L) FIRE TRUCK<RA9> L=135	1-09583-305-0	01	1	0105-0109					●
148	SPRING; CLU RETURN CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=135	1-09583-305-0	01	1	0105-0109						●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0110-	●	●	●	●		●
148	SPRING; CLU RETURN 6WG1 TC-R(75L) FIRE TRUCK<RA9> L=135	1-09583-305-0	01	1	0110-					●
148	SPRING; CLU RETURN L=192	1-09583-266-0	02	1	0105-					●
149	EYE; SPRING,RETURN SPRING (A)	1-31426-052-0	01	1	0105-	●	●	●	●
149	EYE; SPRING,RETURN SPRING 6WG1 TC-R(75L) FIRE TRUCK<RA9> (A)	1-31426-052-0	01	1	0105-					●
149	EYE; SPRING,RETURN SPRING 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-31426-052-0	01	1	0105-						●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-031-0	01	1	0105-					●
149	EYE; SPRING,RETURN SPRING CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-31426-048-0	01	1	0105-						●
154	PIN; JAW JOINT (C) D=14 L=27	1-31424-009-0	01	1	0105-0109	●	●	●	●
154	PIN; JAW JOINT 6WG1 TC-R(75L) FIRE TRUCK<RA9> (C) D=14 L=27	1-31424-009-0	01	1	0105-0109					●
154	PIN; JAW JOINT 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) D=14 L=27	1-31424-009-0	01	1	0105-0109						●
154	PIN; JAW JOINT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C) D=14 L=27	1-31424-009-0	01	1	0105-0109						●
154	PIN; JAW JOINT (C)	1-31424-009-0	01	1	0110-	●	●	●	●
154	PIN; JAW JOINT 6WG1 TC-R(75L) FIRE TRUCK<RA9> (C)	1-31424-009-0	01	1	0110-					●
154	PIN; JAW JOINT CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (C)	1-31424-009-0	01	1	0110-						●
154	PIN; JAW JOINT (A) D=12 L=15.7	1-31424-005-0	01	1	0105-					●
154	PIN; JAW JOINT (B) D=14 L=32 L=35	1-31424-010-0	01	1	0105-0105					●
154	PIN; JAW JOINT (B) L=35	1-31424-003-0	01	1	0106-					●
155	BRACKET; MINIPACK 10PE1N(61L) FIRE TRUCK<RA9> (A)	1-31429-449-0	01	1	0105-				●
155	BRACKET; MINIPACK (C)	1-31429-345-0	01	1	0105-			●	●
155	BRACKET; MINIPACK (B)	1-31429-443-1	01	1	0105-			●	●
155	BRACKET; MINIPACK (H)	1-31429-395-0	01	1	0105-					●
155	BRACKET; MINIPACK (I)	1-31429-419-0	01	1	0105-					●
155	BRACKET; MINIPACK 6WG1 TC-R(75L) FIRE TRUCK<RA9> (J)	1-31429-431-0	01	1	0105-					●
155	BRACKET; MINIPACK 6WG1 TC-R(75L) FIRE TRUCK<RA9> (K)	1-31429-432-0	01	1	0105-					●
155	BRACKET; MINIPACK (C)	1-31429-289-1	01	1	0105-	●	●
155	BRACKET; MINIPACK (D)	1-31429-402-0	01	1	0105-	●	●
155	BRACKET; MINIPACK (G)	1-31429-350-0	01	1	0105-						●
155	BRACKET; MINIPACK 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (F)	1-31429-391-0	01	1	0105-0209						●
155	BRACKET; MINIPACK CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (F)	1-31429-391-0	01	1	0210-						●
155	BRACKET; MINIPACK CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (E)	1-31429-323-1	01	1	0105-						●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0105-	●	●	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	04	1	0105-					●
157	BOLT; BRKT M10X25 FLANGE	0-28781-025-0	03	1	0105-0512						●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0601-						●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	0105-0602	●	●
161	NUT; BRKT 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10 FLANGE	0-91150-210-0	03	1	0105-0602						●
161	NUT; BRKT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10 FLANGE	0-91150-210-0	03	1	0105-0602						●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0603-	●	●
161	NUT; BRKT 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10 FLANGE	0-91180-210-0	03	1	0603-						●
161	NUT; BRKT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M10 FLANGE	0-91180-210-0	03	1	0603-						●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>, CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31800-466-0	01	1	0105-0109	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-466-0	01	1	0105-0109						●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-466-1	01	1	0110-	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31800-466-1	01	1	0110-						●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 10PE1N(61L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-490-0	01	1	0105-0206	●		●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6WF1 TC-C(1B8),10PE1S(60L),10PE1N(61L), 10PE1H(68L) CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-31800-490-2	01	1	0207-	●		●	●		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-491-0	01	1	0105-					●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31800-386-3	01	1	0105-						●

2 84 96 278 279 99 199 137 229 92 106 228 229 195 9 131 57 124 130 222 111 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DISC; CLUTCH 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER> (C) 17"	1-31240-892-1	01	1	0105-	●	●	●	●
1	DISC; CLUTCH 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER> (C) 17"	1-31240-897-0	01	1	0105-	●	●	●	●
1	DISC; CLUTCH 6WA1 TC-C(55L),10PE1H(68L) (C) 17"	1-31240-876-0	01	1	0105-	●	●	●	●
1	DISC; CLUTCH (D) 17"	1-31240-865-1	01	1	0105-					●
1	DISC; CLUTCH 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (D) 17"	1-31240-865-1	01	1	0105-						●
1	DISC; CLUTCH 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) 15.5"	1-31240-883-0	01	1	0105-						●
1	DISC; CLUTCH 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 15.5"	1-31240-884-0	01	1	0105-						●
2	PLATE ASM; PRESSURE,CLU 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31220-320-1	01	1	0105-0308	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1N(61L) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CH INA EQUIPMENT(YT2)	1-31220-320-2	01	1	0309-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31220-277-1	01	1	0105-0308	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31220-400-1	01	1	0309-						●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L),10PE1H(68L)	1-31220-321-1	01	1	0105-0308	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-321-2	01	1	0309-	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-335-1	01	1	0105-0211					●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31220-335-1	01	1	0105-0211						●
2	PLATE ASM; PRESSURE,CLU	1-31220-401-0	01	1	0212-0308					●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31220-401-0	01	1	0212-0308						●
2	PLATE ASM; PRESSURE,CLU	1-31220-401-0	01	1	0309-					●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-31220-401-0	01	1	0309-						●
2	PLATE ASM; PRESSURE,CLU 6WF1 TC-C(1B8) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-329-2	01	1	0105-						●
2	PLATE ASM; PRESSURE,CLU 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31220-333-2	01	1	0105-						●
9	HOUSING; CLU,W/BUSHING	1-31319-003-0	01	1	0105-0211					●
9	HOUSING; CLU,W/BUSHING 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31319-003-0	01	1	0105-0211						●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0105-	●	●	●	●
57	FORK; SHIFT,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31340-059-1	01	1	0105-						●
57	FORK; SHIFT,CLU 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31340-062-0	01	1	0105-					●	●
84	PLATE; PRESSURE	1-31221-125-0	01	1	0212-					●
84	PLATE; PRESSURE 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31221-125-0	01	1	0212-						●
84	PLATE; PRESSURE 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-31221-041-0	01	1	0105-0308	●	●	●	●
84	PLATE; PRESSURE 6WA1 TC-C(55L),10PE1H(68L)	1-31221-083-1	01	1	0105-0206	●	●	●	●
84	PLATE; PRESSURE 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31221-083-1	01	1	0105-0206	●	●	●	●
84	PLATE; PRESSURE 6WA1 TC-C(55L),10PE1H(68L) 17"	1-31221-128-0	01	1	0207-0308	●	●	●	●
84	PLATE; PRESSURE 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER> 17"	1-31221-128-0	01	1	0207-0308	●	●	●	●
84	PLATE; PRESSURE 17"	1-31221-128-0	01	1	0309-	●	●	●	●
84	PLATE; PRESSURE	1-31221-125-0	01	1	0105-0211					●
84	PLATE; PRESSURE 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31221-125-0	01	1	0105-0211						●
84	PLATE; PRESSURE 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31221-087-0	01	1	0105-						●
92	SPRING; CLU 6WG1 TC-R(75L) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-052-0	01	1	0212-					●
92	SPRING; CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-052-0	01	1	0212-						●
92	SPRING; CLU 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER>	1-09580-579-0	12	1	0206-0206	●	●	●	●
92	SPRING; CLU 10PE1S(60L),10PE1N(61L)	1-09580-579-0	12	1	0207-0308	●	●	●	●
92	SPRING; CLU 10PE1N(61L) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV),CH INA EQUIPMENT(YT2)	1-09580-579-0	12	1	0309-	●	●	●	●
92	SPRING; CLU 10PE1S(60L),10PE1N(61L)	1-09580-297-0	12	1	0105-0205	●	●	●	●
92	SPRING; CLU 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-09580-297-0	12	1	0206-0206	●	●	●	●
92	SPRING; CLU 6WA1 TC-C(55L),10PE1H(68L)	1-31214-040-0	12	1	0105-0308	●	●	●	●
92	SPRING; CLU 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-040-0	12	1	0309-	●	●	●	●
92	SPRING; CLU	1-31239-052-0	01	1	0105-0211					●
92	SPRING; CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-052-0	01	1	0105-0211						●
92	SPRING; CLU 6WF1 TC-C(1B8) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-062-0	12	1	0105-						●
92	SPRING; CLU 6WG1 TC-R(75L) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31214-055-0	12	1	0105-						●
96	PIN; RELEASE LEVER	1-31239-055-0	03	1	0212-					●
96	PIN; RELEASE LEVER 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-055-0	03	1	0212-						●
96	PIN; RELEASE LEVER 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER> L=77	1-31232-010-0	08	1	0105-0308	●	●	●	●
96	PIN; RELEASE LEVER 6WA1 TC-C(55L),10PE1H(68L)	1-31232-017-0	08	1	0105-0308	●	●	●	●
96	PIN; RELEASE LEVER 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER>	1-31232-017-0	08	1	0105-0308	●	●	●	●
96	PIN; RELEASE LEVER 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-017-0	08	1	0309-	●	●	●	●
96	PIN; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-017-0	08	1	0309-						●
96	PIN; RELEASE LEVER	1-31239-055-0	03	1	0105-0211					●
96	PIN; RELEASE LEVER 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-055-0	03	1	0105-0211						●
96	PIN; RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31232-013-0	08	1	0105-0308						●
99	PLATE; RELEASE LEVER	1-31239-065-0	01	1	0212-					●
99	PLATE; RELEASE LEVER 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-065-0	01	1	0212-						●
99	PLATE; RELEASE LEVER	1-31239-032-0	01	1	0105-0206					●
99	PLATE; RELEASE LEVER 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-032-0	01	1	0105-0206						●
99	PLATE; RELEASE LEVER	1-31239-063-0	01	1	0207-0211					●
99	PLATE; RELEASE LEVER 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-063-0	01	1	0207-0211						●
106	PLATE; LK,LEVER SUPPORT	1-31239-042-0	01	1	0212-					●
106	PLATE; LK,LEVER SUPPORT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-042-0	01	1	0212-						●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0105-0308	●	●	●	●
106	PLATE; LK,LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-019-0	04	1	0105-0308						●
106	PLATE; LK,LEVER SUPPORT 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-019-0	04	1	0309-	●	●	●	●
106	PLATE; LK,LEVER SUPPORT CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31239-019-0	04	1	0309-						●
106	PLATE; LK,LEVER SUPPORT	1-31239-042-0	01	1	0105-0211					●
106	PLATE; LK,LEVER SUPPORT 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-042-0	01	1	0105-0211						●
111	WASHER; PL,STRAP (C) ID=13	1-31239-038-0	04	1	0212-					●
111	WASHER; PL,STRAP 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (C) ID=13	1-31239-038-0	04	1	0212-						●
111	WASHER; PL,STRAP (D) ID=14	9-09651-098-0	08	1	0105-	●	●	●	●
111	WASHER; PL,STRAP (C) ID=13	1-31239-038-0	04	1	0105-0211					●
111	WASHER; PL,STRAP 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (C) ID=13	1-31239-038-0	04	1	0105-0211						●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) ID=12	1-31229-006-0	08	1	0105-						●
111	WASHER; PL,STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) ID=12.2	9-09150-512-0	08	1	0105-						●
124	BEARING; CAM,SHIFT FORK 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L)	1-31349-011-1	02	1	0105-	●	●	●	●
124	BEARING; CAM,SHIFT FORK 6WF1 TC-C(1B8),6WG1 TC-R(75L) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU),CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-31349-011-1	02	1	0105-					●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0105-0512	●	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0105-	●	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0105-0512	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●	●
137	BOLT; CLU COVER CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) M12X30	0-28781-230-0	12	1	0105-0512					●	●
137	BOLT; CLU COVER CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) M12X30 FLANGE	0-28751-230-0	12	1	0601-					●	●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28181-280-0	02	1	0105-0512						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X80	0-28151-280-0	02	1	0601-						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28181-290-0	10	1	0105-0512						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X90 FLANGE	0-28151-290-0	10	1	0601-						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30	0-28781-230-0	04	1	0105-0512						●
137	BOLT; CLU COVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) M12X30 FLANGE	0-28751-230-0	04	1	0601-						●
195	SPRING; RETURN	1-31239-051-0	01	1	0105-0211					●
195	SPRING; RETURN 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-051-0	01	1	0105-0211						●
199	RING; WIRE,DIAPH,CLU	1-31239-036-0	01	1	0212-					●
199	RING; WIRE,DIAPH,CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-036-0	01	1	0212-						●
199	RING; WIRE,DIAPH,CLU	1-31239-036-0	01	1	0105-0211					●
199	RING; WIRE,DIAPH,CLU 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-036-0	01	1	0105-0211						●
222	BOLT; STRAP (C)	1-31239-037-0	04	1	0212-					●
222	BOLT; STRAP 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (C)	1-31239-037-0	04	1	0212-						●
222	BOLT; STRAP 10PE1S(60L),10PE1N(61L) EXC. CLUTCH NF401 + M FACED DISC<BER> (A) M12X30	1-09040-016-0	04	1	0105-0308	●	●	●	●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X30	1-09040-016-0	04	1	0105-0308						●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (A) M12X30	1-09040-016-0	04	1	0309-						●
222	BOLT; STRAP 6WA1 TC-C(55L),10PE1H(68L) (A)	1-09040-102-0	04	1	0105-0308	●	●	●	●
222	BOLT; STRAP 10PE1N(61L) CLUTCH NF401 + M FACED DISC<BER> (A)	1-09040-102-0	04	1	0105-0308	●	●	●	●
222	BOLT; STRAP (A)	1-09040-102-0	04	1	0309-	●	●	●	●
222	BOLT; STRAP (C)	1-31239-037-0	04	1	0105-0211					●
222	BOLT; STRAP 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (C)	1-31239-037-0	04	1	0105-0211						●
222	BOLT; STRAP CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) M12X26.7	1-09040-086-0	08	1	0105-						●
228	BEARING; RELEASE	1-31310-005-0	01	1	0105-0206					●
228	BEARING; RELEASE 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31310-005-0	01	1	0105-0206						●
228	BEARING; RELEASE	1-31310-015-0	01	1	0207-0211					●
228	BEARING; RELEASE 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31310-015-0	01	1	0207-0211						●
228	BEARING; RELEASE	1-31310-014-0	01	1	0212-					●
228	BEARING; RELEASE 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31310-014-0	01	1	0212-						●
229	RING (A)	1-31239-064-0	01	1	0212-					●
229	RING 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-31239-064-0	01	1	0212-						●
229	RING (B)	1-31239-044-0	01	1	0105-0211					●
229	RING 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (B)	1-31239-044-0	01	1	0105-0211						●
229	RING (A)	1-31239-054-0	01	1	0105-0211					●
229	RING 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) (A)	1-31239-054-0	01	1	0105-0211						●
278	WHEEL; AIR	1-31239-056-0	01	1	0212-0308					●
278	WHEEL; AIR 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-056-0	01	1	0212-0308						●
278	WHEEL; AIR	1-31239-056-0	01	1	0309-					●
278	WHEEL; AIR 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-31239-056-0	01	1	0309-						●
278	WHEEL; AIR	1-31239-056-0	01	1	0105-0211					●
278	WHEEL; AIR 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-056-0	01	1	0105-0211						●
279	BOLT; AIR WHEEL	1-31239-057-0	04	1	0212-0308					●
279	BOLT; AIR WHEEL 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-057-0	04	1	0212-0308						●
279	BOLT; AIR WHEEL	1-31239-057-0	04	1	0309-					●
279	BOLT; AIR WHEEL 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU) EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-31239-057-0	04	1	0309-						●
279	BOLT; AIR WHEEL	1-31239-057-0	04	1	0105-0211					●
279	BOLT; AIR WHEEL 6WF1 TC-C(1B8) CLUTCH 17" SINGLE PLATE STRAP DRIVE PULL TYPE(TBU)	1-31239-057-0	04	1	0105-0211						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
