◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10875 - CXZ LHD S-CAM BRAKE ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56A - EXHAUST BRAKE SYSTEM ▶
1-56A — EXHAUST BRAKE SYSTEM (#13531) — 92 parça

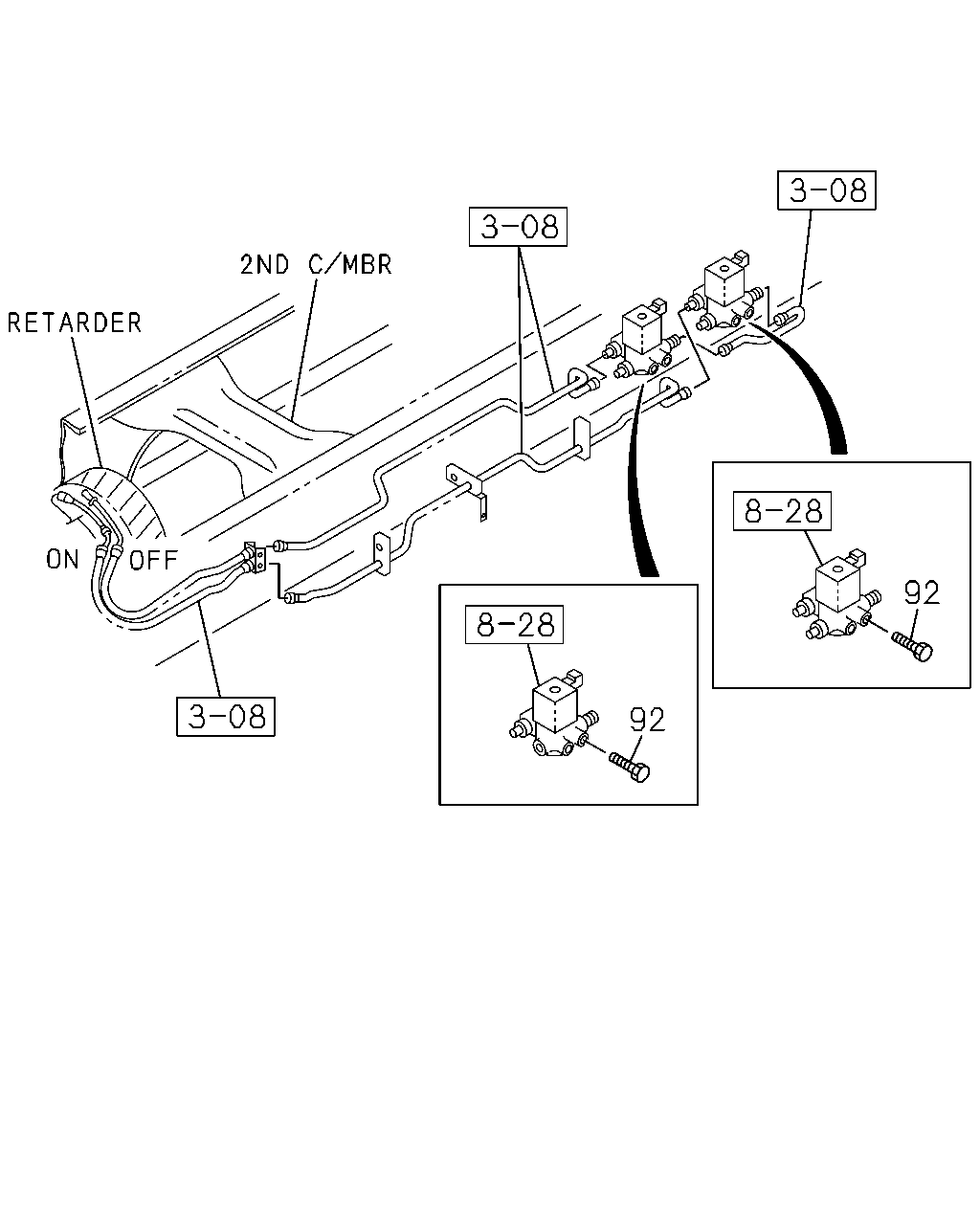

çizim 22718
92 92
BalonParca AdiParca NoAdetTipApplied Date A B C D
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
çizim 77749
92 10 17 87 87 86 88 17 94 10 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 NUT; BRKT,EXH BRAKE
(C) M8 FLANGE 		0-91150-108-0 03 1 0105-0602 ● ● ●
10 NUT; BRKT,EXH BRAKE
(C) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ●
10 NUT; BRKT,EXH BRAKE
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ●
10 NUT; BRKT,EXH BRAKE
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
10 NUT; BRKT,EXH BRAKE
CAB UP +110MM<TGG> (B) M10 FLANGE 		0-91150-210-0 01 1 0105-0206 ●
10 NUT; BRKT,EXH BRAKE
(B) M10 FLANGE 		0-91150-210-0 01 1 0207-0602 ●
10 NUT; BRKT,EXH BRAKE
(B) M10 FLANGE 		0-91180-210-0 01 1 0603- ●
17 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 03 1 0105-0512 ● ● ●
17 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
17 BOLT; BRKT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0105-0512 ●
17 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ●
84 CLIP; HARNESS
(A) ID=19 L=50 		9-09525-886-0 01 1 0304- ● ● ● ●
84 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 02 1 0105-0106 ● ● ● ●
84 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0107-0112 ● ● ● ●
84 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0107-0112 ● ● ● ●
84 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0201- ● ● ● ●
84 CLIP; HARNESS
(C) ID=20 L=50 		1-09700-679-1 01 1 0105- ● ● ● ●
84 CLIP; HARNESS
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=140 		5-09707-031-1 01 1 0105- ● ● ●
86 VALVE; MAG,EXH BRK
POWER BRAKE LOCK SYSTEM(J50) 		1-82563-871-2 01 1 0105- ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0105- ● ● ● ●
87 CONNECTOR
(E) R1/4 & RC1/4 		1-09664-211-0 01 1 0201- ● ● ●
87 CONNECTOR
POWER BRAKE LOCK SYSTEM(J50) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105- ● ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105- ●
87 CONNECTOR
POWER BRAKE LOCK SYSTEM(J50) (B) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0105- ● ● ● ●
87 CONNECTOR
FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0105- ● ● ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0105- ● ● ●
87 CONNECTOR
FULL FLOATING CAB(W16) (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0105- ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0105- ●
88 PLUG
POWER BRAKE LOCK SYSTEM(J50) PT1/4 		9-99204-513-0 01 1 0105- ● ● ● ●
88 PLUG
EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 0105- ● ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-273-0 01 1 0105- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-277-2 01 1 0105- ●

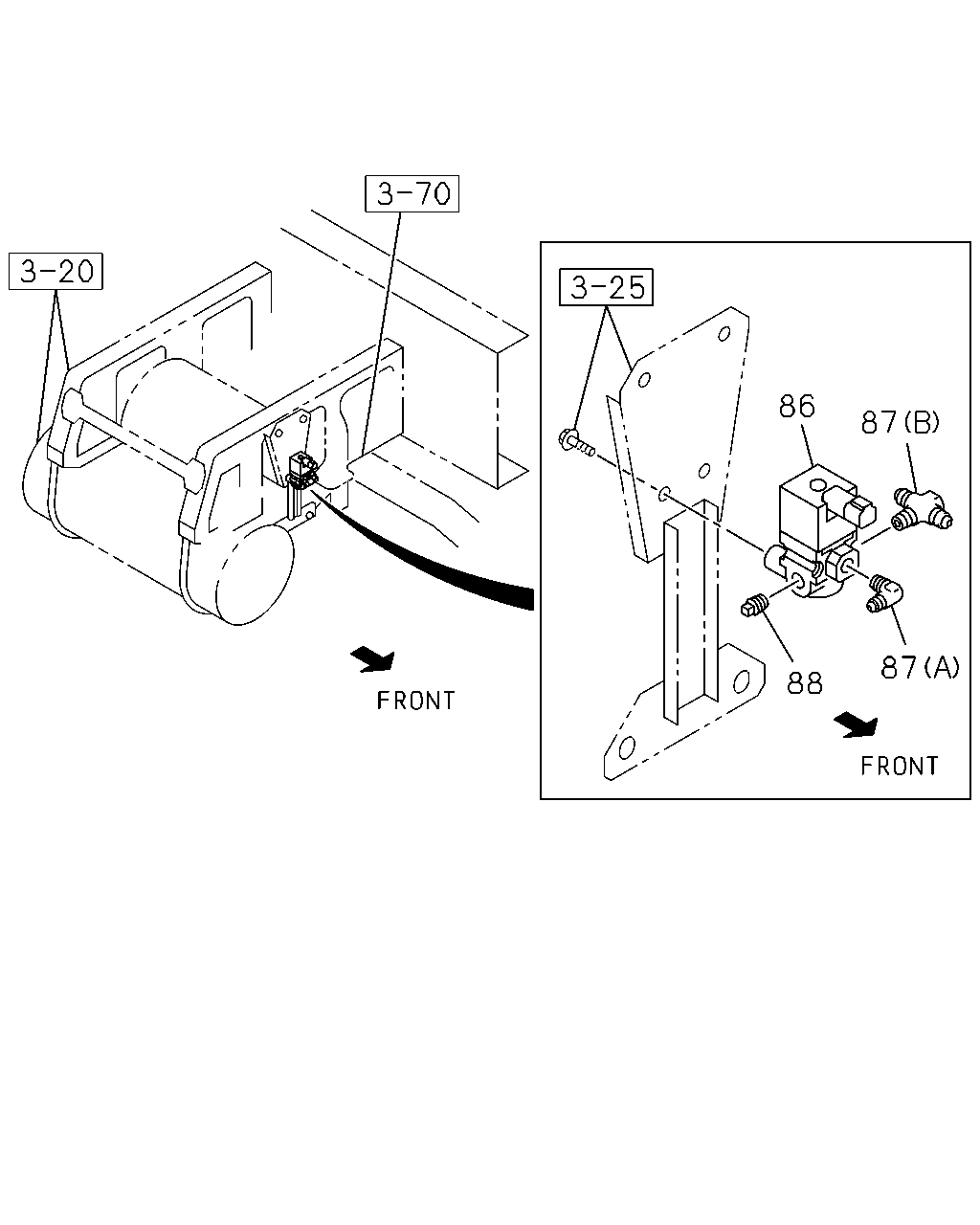

çizim 79028
88 87 87 86
BalonParca AdiParca NoAdetTipApplied Date A B C D
86 VALVE; MAG,EXH BRK
POWER BRAKE LOCK SYSTEM(J50) 		1-82563-871-2 01 1 0105- ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0105- ● ● ● ●
87 CONNECTOR
(E) R1/4 & RC1/4 		1-09664-211-0 01 1 0201- ● ● ●
87 CONNECTOR
POWER BRAKE LOCK SYSTEM(J50) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105- ● ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105- ●
87 CONNECTOR
POWER BRAKE LOCK SYSTEM(J50) (B) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0105- ● ● ● ●
87 CONNECTOR
FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0105- ● ● ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0105- ● ● ●
87 CONNECTOR
FULL FLOATING CAB(W16) (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0105- ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0105- ●
88 PLUG
POWER BRAKE LOCK SYSTEM(J50) PT1/4 		9-99204-513-0 01 1 0105- ● ● ● ●
88 PLUG
EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 0105- ● ● ● ●

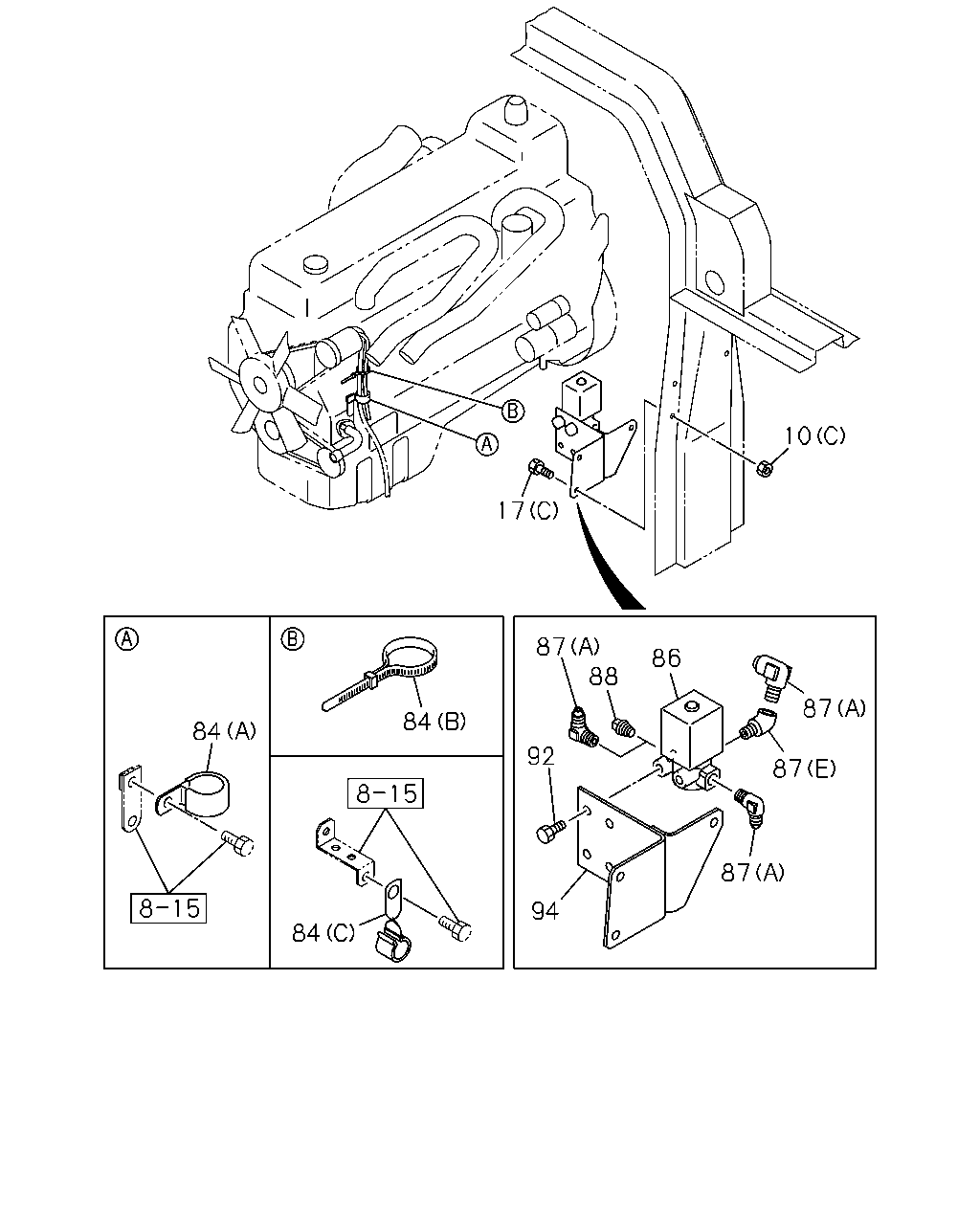

çizim 80332
87 87 87 94 92 87 88 86 10 17 84 84 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 NUT; BRKT,EXH BRAKE
(C) M8 FLANGE 		0-91150-108-0 03 1 0105-0602 ● ● ●
10 NUT; BRKT,EXH BRAKE
(C) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ● ●
10 NUT; BRKT,EXH BRAKE
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ●
10 NUT; BRKT,EXH BRAKE
(A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
10 NUT; BRKT,EXH BRAKE
CAB UP +110MM<TGG> (B) M10 FLANGE 		0-91150-210-0 01 1 0105-0206 ●
10 NUT; BRKT,EXH BRAKE
(B) M10 FLANGE 		0-91150-210-0 01 1 0207-0602 ●
10 NUT; BRKT,EXH BRAKE
(B) M10 FLANGE 		0-91180-210-0 01 1 0603- ●
17 BOLT; BRKT
(C) M8X25 FLANGE 		0-28680-825-0 03 1 0105-0512 ● ● ●
17 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ● ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
17 BOLT; BRKT
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0105-0512 ●
17 BOLT; BRKT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ●
84 CLIP; HARNESS
(A) ID=19 L=50 		9-09525-886-0 01 1 0304- ● ● ● ●
84 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 02 1 0105-0106 ● ● ● ●
84 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0107-0112 ● ● ● ●
84 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0107-0112 ● ● ● ●
84 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0201- ● ● ● ●
84 CLIP; HARNESS
(C) ID=20 L=50 		1-09700-679-1 01 1 0105- ● ● ● ●
84 CLIP; HARNESS
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) L=140 		5-09707-031-1 01 1 0105- ● ● ●
86 VALVE; MAG,EXH BRK
POWER BRAKE LOCK SYSTEM(J50) 		1-82563-871-2 01 1 0105- ● ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0105- ● ● ● ●
87 CONNECTOR
(E) R1/4 & RC1/4 		1-09664-211-0 01 1 0201- ● ● ●
87 CONNECTOR
POWER BRAKE LOCK SYSTEM(J50) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105- ● ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105- ●
87 CONNECTOR
POWER BRAKE LOCK SYSTEM(J50) (B) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0105- ● ● ● ●
87 CONNECTOR
FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 03 1 0105- ● ● ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0105- ● ● ●
87 CONNECTOR
FULL FLOATING CAB(W16) (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0105- ●
87 CONNECTOR
EXC. FULL FLOATING CAB(W16) (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0105- ●
88 PLUG
POWER BRAKE LOCK SYSTEM(J50) PT1/4 		9-99204-513-0 01 1 0105- ● ● ● ●
88 PLUG
EXC. FULL FLOATING CAB(W16) PT1/4 		9-99204-513-0 01 1 0105- ● ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-273-0 01 1 0105- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-277-2 01 1 0105- ●
